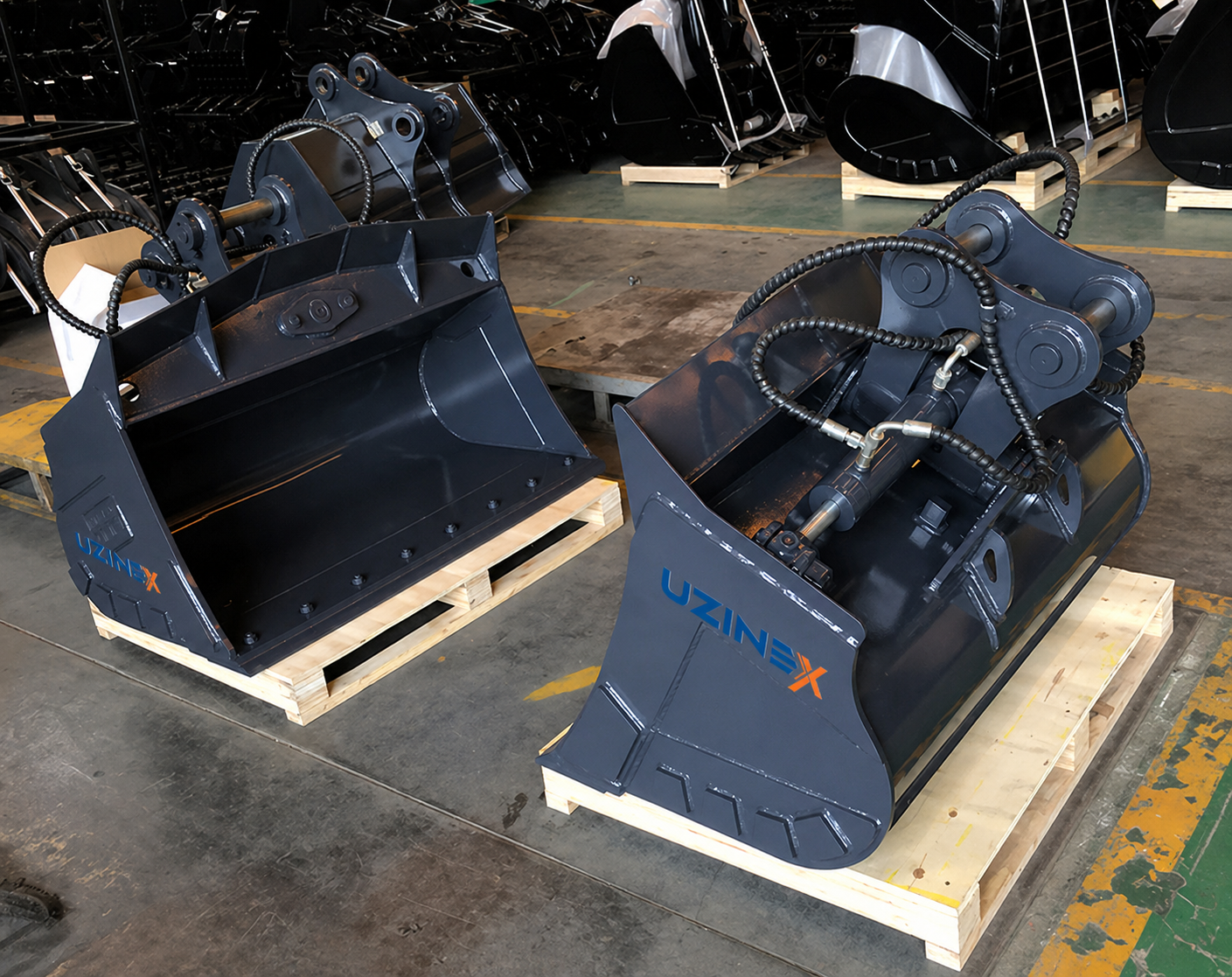

The Monde tilting excavator bucket is the hydraulic attachment that solves the fundamental problem of any standard bucket: the inability to work at an angle relative to the boom axis. With a ±45° rotation controlled from the operator's cab, the tilting excavator bucket allows precise slopes, sloped-profile trenches and drainage channels to be created without repositioning the excavator.
Operations that would otherwise require multiple passes, manual adjustments of the machine's position or additional labour for finishing slopes become executable directly with the Monde tilting excavator bucket in a single cycle controlled from the cab.
The Monde tilting excavator bucket is available for excavators from 2 to 30 tonnes, with capacities between 0.1 and 5 m³, and is built from high-strength steels — NM400, Q355, Q460, WH60 and Hardox 400. The hydraulic cylinder is available in single and double versions depending on the model size and the force requirements of the application. Key advantages of the Monde tilting excavator bucket
• ±45° rotation in both directions, controlled from the cab — the Monde tilting excavator bucket allows the operator to tilt the bucket up to 45° to the left and 45° to the right of the neutral axis, without moving the excavator or the boom. This freedom of angle is the key to productivity on levelling and drainage work: the operator maintains the excavator's position and varies the bucket angle to follow the designed slope.
• NM400, Q355, Q460, WH60, Hardox 400 — the Monde tilting excavator bucket uses high-strength steels matched to the specific demands of buckets with a movable joint: Q355 and Q460 for the load-bearing structure of the joint, WH60 and NM400 for the wear surfaces, Hardox 400 for the zones with direct ground impact. The combination is optimised to keep the weight accessible without compromising joint rigidity under lateral load.
• Single or double hydraulic cylinder depending on the model — the Monde tilting excavator bucket with a single cylinder is the standard solution for small and medium excavators (2–10 tonnes), with a tilting force sufficient for drainage and levelling work in soft and medium soil. The double-cylinder version is recommended for medium-large excavators (10–30 tonnes) where the lateral forces when digging in compact soil require a more robust actuation system to prevent angular drift under load.
• Maximum versatility on sites with multiple requirements — the Monde tilting excavator bucket eliminates the need to change the attachment between excavating, levelling and slope-finishing operations on the same work front. On a road or sewer site, a single attachment replaces the traditional combination of a standard bucket plus a levelling blade plus manual labour for finishing slopes.
• Capacity 0.1–5 m³ for 2–30 tonnes — the Monde tilting excavator bucket range covers everything from 2-tonne mini-excavators used in drainage work in gardens and private properties, to medium 30-tonne excavators in road and sewer infrastructure projects. Each model is dimensioned in weight and geometry so as not to exceed the lifting capacity of the compatible excavator class.
• Precise work alongside walls, foundations and obstacles — the lateral tilt of the tilting excavator bucket allows excavating and levelling in zones where the excavator boom cannot be positioned perpendicular to the work surface: alongside foundations, retaining walls, kerbs, posts and other fixed obstacles that limit the radial movement of the machine.
• Reduction of fuel and labour costs — the tilting excavator bucket eliminates the repeated repositioning of the excavator required with a standard bucket to work at an angle, reducing fuel consumption per linear metre of trench or per square metre of levelled surface. Finishing slopes directly with the bucket eliminates the manual intervention with a shovel after excavation.
• 60-month UZINEX warranty — spare parts for the tilt joint in stock in Iași, guaranteed 24–48 hour national technical support.
Technical specifications — Monde tilting excavator bucket
| Parameter | Value |
|---|---|
| Tilt rotation | ±45° in both directions |
| Capacity | 0,1 m³ – 5 m³ (depending on model) |
| Compatible excavators | 2–30 tonnes |
| Materials | NM400, Q355, Q460, WH60, Hardox 400 |
| Hydraulic cylinder | Single (2–10t) or double (10–30t) |
| Actuation | Hydraulic — excavator auxiliary circuit |
| Main applications | Levelling, drainage, sloped trenches, earthworks, work alongside obstacles |
The exact configuration — capacity, single or double cylinder, mounting geometry — is selected according to the excavator's tonnage and the specific application. UZINEX engineers size the tilting excavator bucket for your conditions — free technical consultancy available . Main applications of the tilting excavator bucket
Creating drainage channels with a trapezoidal or triangular profile is the flagship application for the tilting excavator bucket. The profile of a functional drainage channel requires lateral walls with a controlled slope — normally an operation involving a standard bucket for rough excavation, followed by manual finishing. With the tilting excavator bucket, the operator profiles the channel walls directly at the desired angle in a single pass, halving the number of cycles and eliminating the manual intervention.
Levelling surfaces with a controlled slope for platforms, car parks and access roads is another major application. The tilting excavator bucket allows the operator to maintain a constant slope along the entire length of the worked surface, following a preset slope profile without using a manual reference or changing the machine's position. On platforms with a drainage slope of 1–3%, the difference compared with a standard bucket is directly visible in the quality of the finished surface.
Earthwork operations alongside foundations and existing structures — underpinning, basement extensions, laying pipes alongside buildings — are significantly facilitated by the tilting excavator bucket, which allows excavating at an angle to the foundation wall without forcing the excavator boom into positions that overload the joints or limit the operator's visibility.
Cleaning and reprofiling existing drainage ditches along roads and railways is a frequent application in infrastructure maintenance work. The tilting excavator bucket allows the ditch to be cleaned and the slope reprofiled at the same time, in a single pass, compared with two passes with a standard bucket — one for extracting the material and one for finishing the slope. Tilting excavator bucket vs. the standard bucket — when the difference is justified
The standard excavator bucket is the optimal solution for vertical or near-vertical excavation — foundations, straight trenches, mass earth movement. On these applications, lateral tilt brings no benefit and the additional weight of the tilt mechanism of the tilting excavator bucket would needlessly reduce the net load capacity.
The tilting excavator bucket becomes the right solution as soon as the project includes surfaces with a controlled slope, channels with a specific profile or work in zones where frequent repositioning of the excavator is not possible or economical. The practical threshold: if more than 20–30% of the time on a site is spent manually finishing slopes after excavation or repositioning the excavator to reach different working angles, the tilting excavator bucket pays back the investment in less than a season.
Combined with a Monde DEHN quick coupler , the tilting excavator bucket can be mounted and removed from the cab in less than a minute, allowing a rapid switch between the tilting bucket and a rock bucket or skeleton bucket depending on the work phase. Frequently asked questions about the tilting excavator bucket
Does the tilting excavator bucket require an auxiliary hydraulic circuit?
Yes — the hydraulic actuation of the tilt mechanism requires an auxiliary oil circuit on your excavator. UZINEX checks the availability and parameters of the auxiliary circuit (flow and pressure) for your specific excavator model at the quotation stage, to confirm hydraulic compatibility before delivery. Single vs. double cylinder — how do I choose?
The single cylinder is sufficient for 2–10 tonne excavators used in drainage and levelling work in soft and medium soils. The double cylinder is recommended for 10–30 tonne excavators or for applications with high lateral forces — compact soil, stony material — where the single cylinder can produce angular drift under maximum load. UZINEX engineers recommend the right configuration based on the excavator class and the working soil. Is the Monde tilting excavator bucket eligible for public tenders?
Yes. UZINEX provides the complete technical documentation at delivery. The product can be added directly to SEAP/SICAP. UZINEX is a member of the Enterprise Europe Network and delivers excavator attachments for projects with European and NRRP funds. Are spare parts available for the tilt joint?
UZINEX keeps in stock in Iași spare parts for the tilt mechanism of the Monde tilting excavator bucket — cylinder seals, joint pins and wear elements. Immediate delivery, with no waiting times that keep the machine idle on site. Why UZINEX for the tilting excavator bucket
The tilting excavator bucket is a specialised attachment whose value depends directly on exact hydraulic compatibility with your excavator and on the correct selection of the cylinder configuration. UZINEX ensures both before delivery.
• Hydraulic compatibility check included — UZINEX engineers confirm the auxiliary circuit parameters required for the tilting excavator bucket on your specific excavator model.
• Cylinder configuration selection — single or double cylinder recommended based on the excavator's tonnage and the working soil, with no additional consultancy costs.
• 60-month warranty — extended coverage for the Monde tilting excavator bucket under intensive site use.
• Transport and installation included — delivery to destination, mounting on the excavator, hydraulic adjustments and operator training included in the price of the tilting excavator bucket.
• Spare parts for the tilt joint in permanent stock in Iași — immediate availability, with no unplanned machine stoppages.
• National technical support 24–48 hours — a network of technicians with national coverage and a guaranteed response time.
• Financing options — leasing and credit available on the UZINEX credit and leasing page .
The Monde tilting excavator bucket available through UZINEX — ±45° rotation, NM400/Q355/Q460/WH60/Hardox400, single or double cylinder, 0,1–5 m³, compatible with 2–30 tonnes, 60-month warranty, transport and installation included throughout Romania.
