UZX-024Box making machines
CNC Cardboard Box Production Machine
Full automation and maximum versatility for manufacturing corrugated cardboard boxes.
This category produces the packaging itself: automatic machines that make corrugated boxes on demand (multiple FEFCO formats, format change in seconds), integrated print-fold-glue folder-gluer lines, wire stitchers, carton cutting machines and complete folding-sealing lines. These are the machines with which packaging producers, print houses and large fulfilment operations bring box production in-house. Note: for packing your own finished products (pallets, film, strapping), see Packaging equipment.
Full automation and maximum versatility for manufacturing corrugated cardboard boxes.
Automatic corrugated cardboard box production line: 1,000 pcs/h, integrated printing+cutting+folding+packaging, boxes 240×150×…

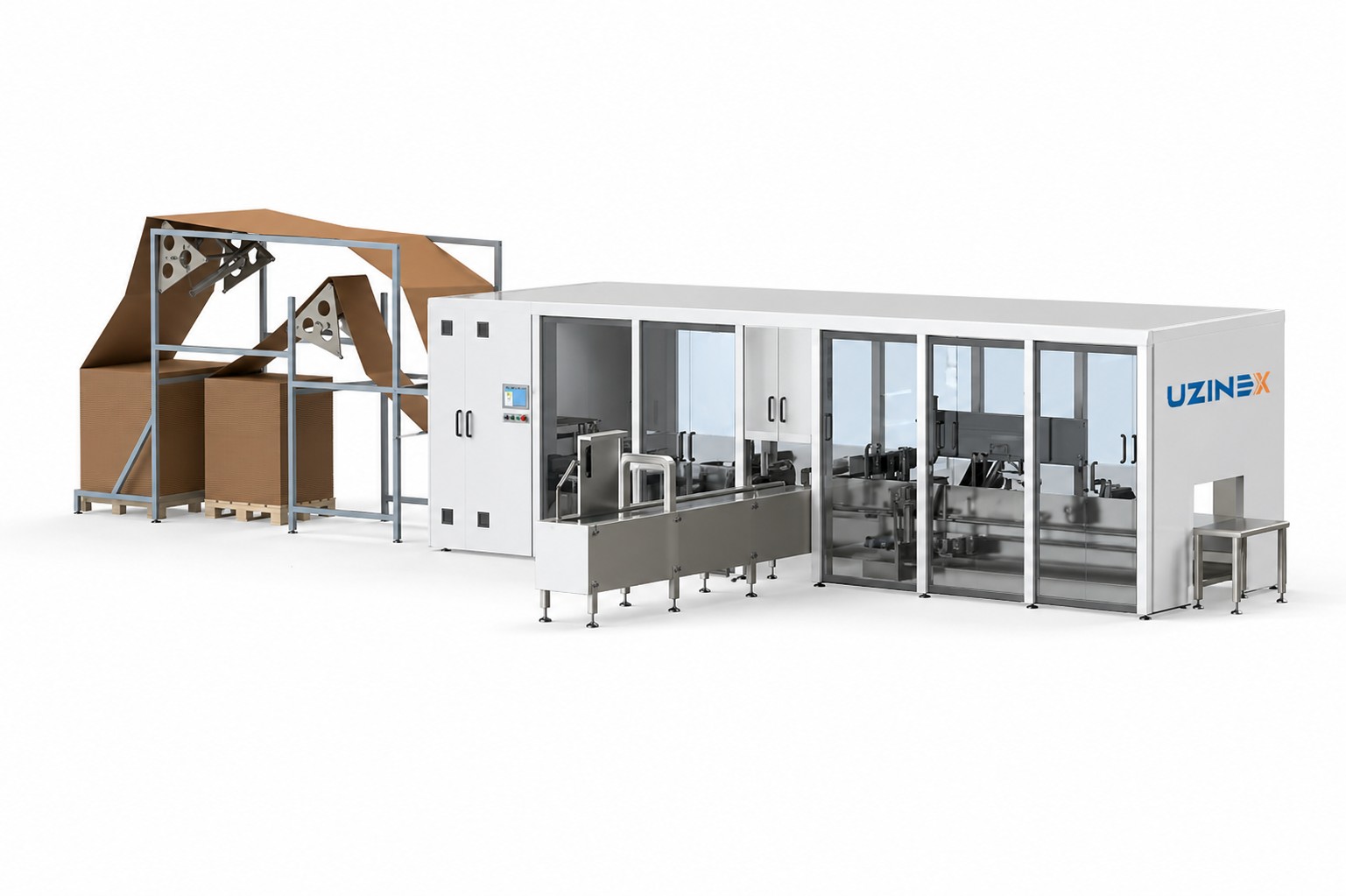

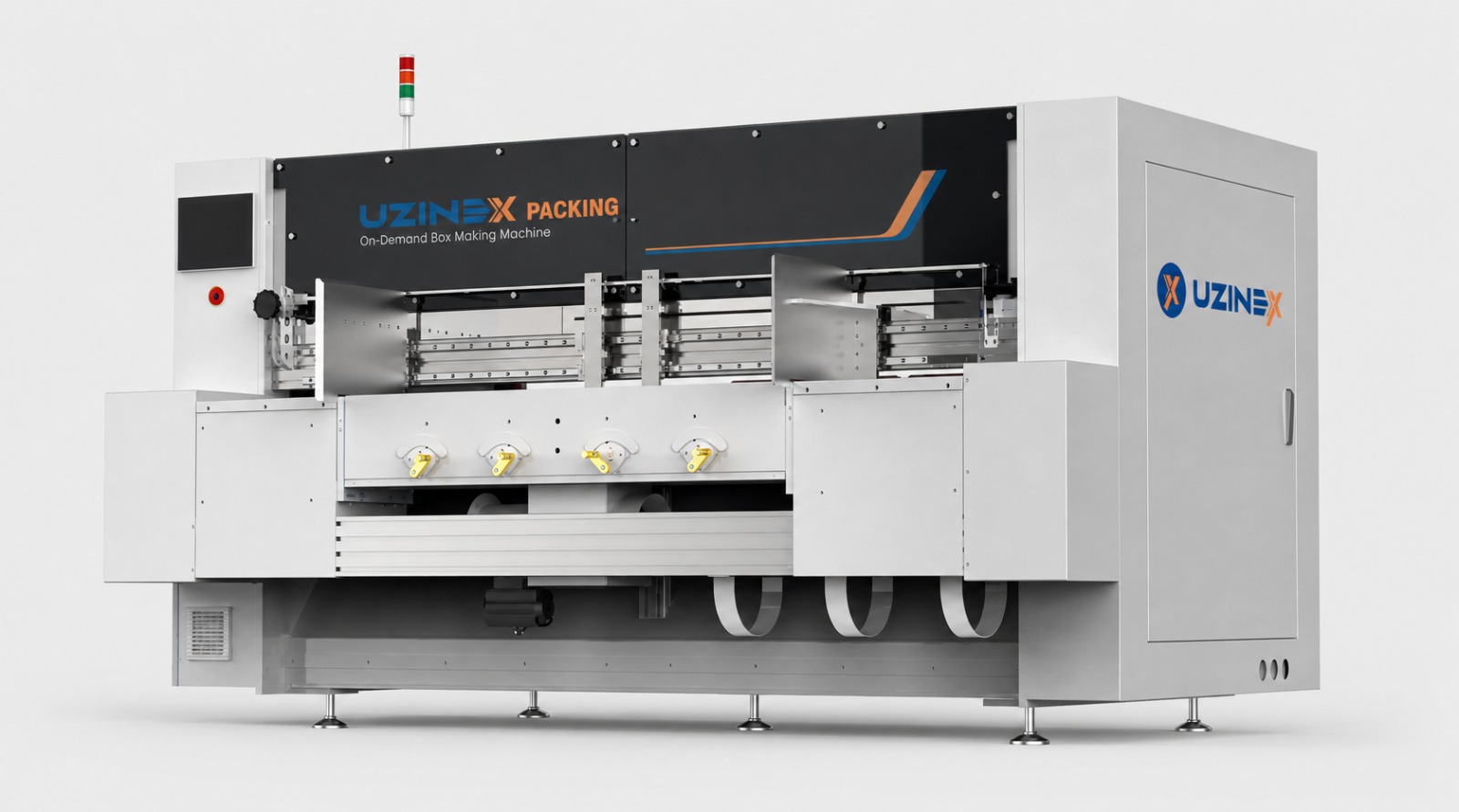

On-demand box making machine for single and double wall corrugated board, sheets up to 1800 mm, 700–800 boxes/hour, over 100 FEFCO codes, 3-second format change.

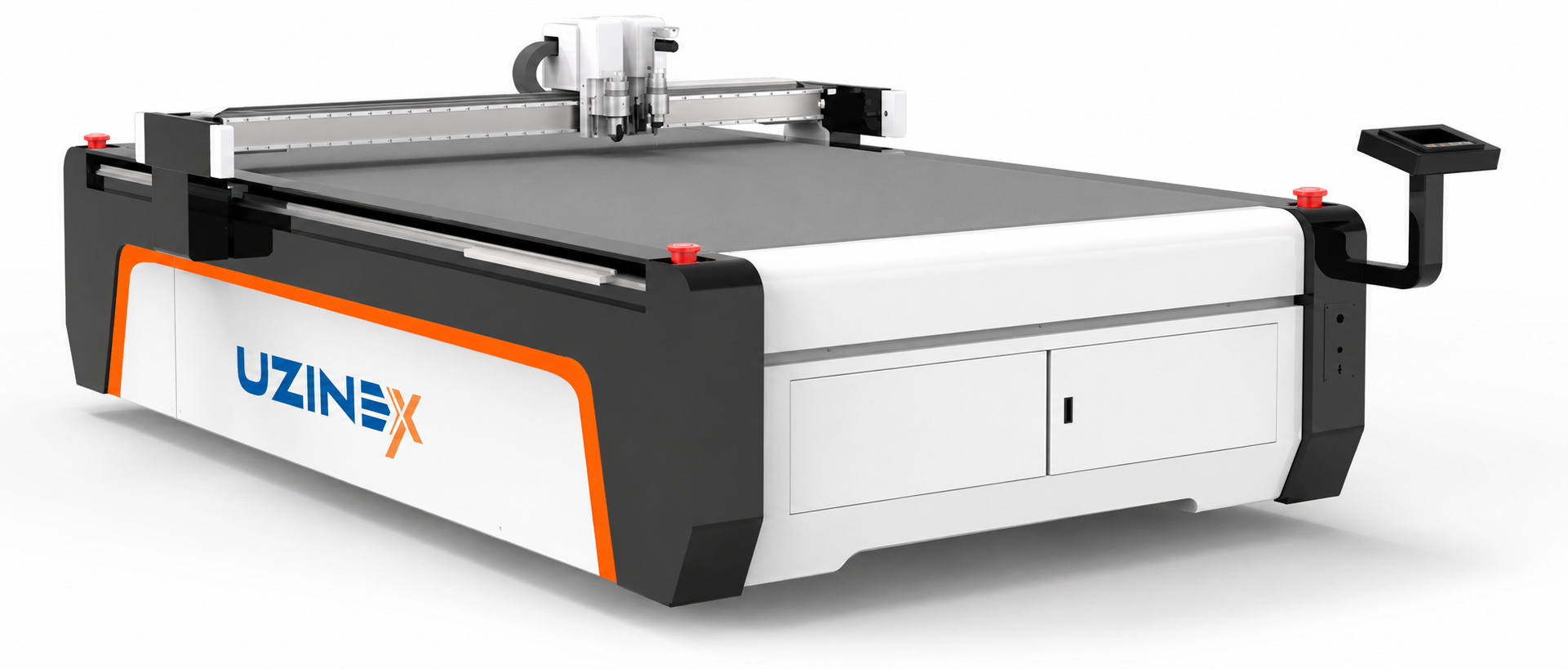

UZX-ZX-1625V: CNC knife cutting machine, table 1600×2500 mm, dual tool holder, speed 1200 mm/s, accuracy ±0,1 mm, materials 0,1–100 mm, vacuum 9 kW.

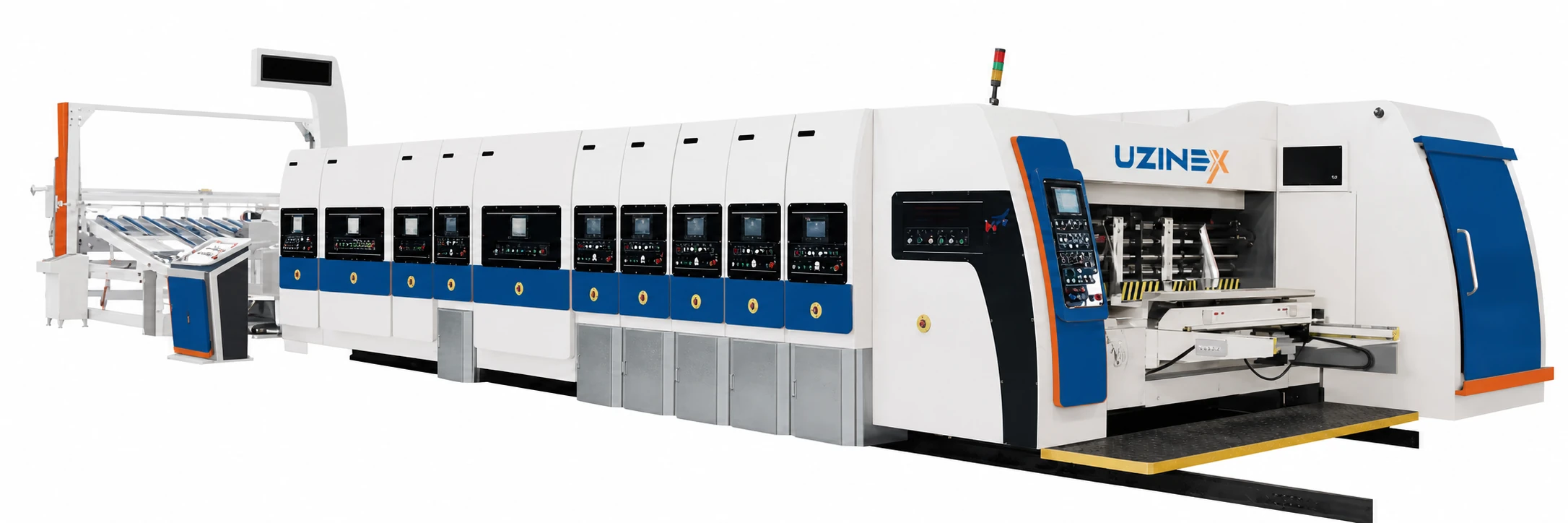

HS Series (920G/1224G/1628G): flexo HD printing machine 90–133 LPI, corrugated cardboard slotting and die-cutting, full vacuum, up to 250 pcs./min, die-cutting up to 1600×2880 mm.

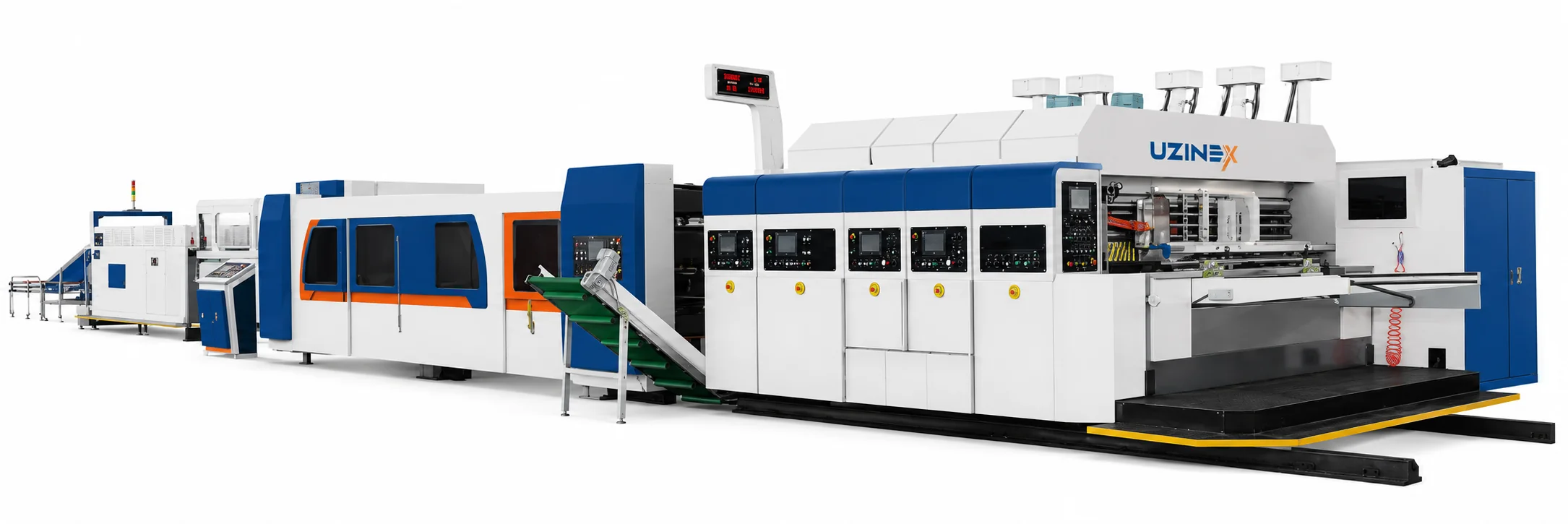

HX Series (1628X/1630X): flexo printer slotter die cutter, bottom vacuum printing, water-based ink (VOC-free), 50–133 LPI, up to 180 pcs/min, die-cutting up to 1600×3280 mm.

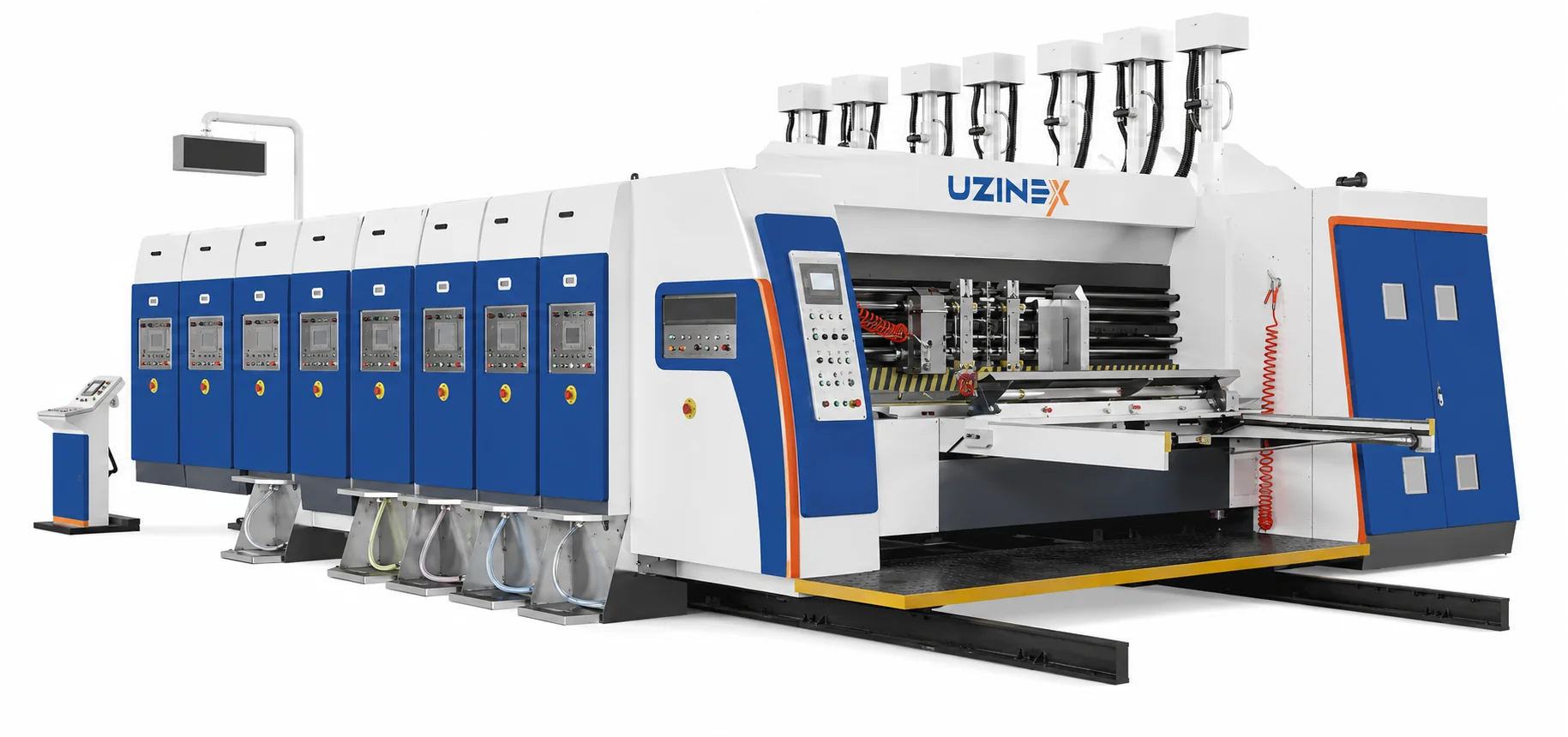

HS High Speed Series (920S/1224S/1424S/1628S): printing slotting die-cutting machine, 280 pcs/min, 7,5 kW variable-frequency vacuum, water-based ink, slot up to 410 mm, die-cutting 1600×2880 mm.

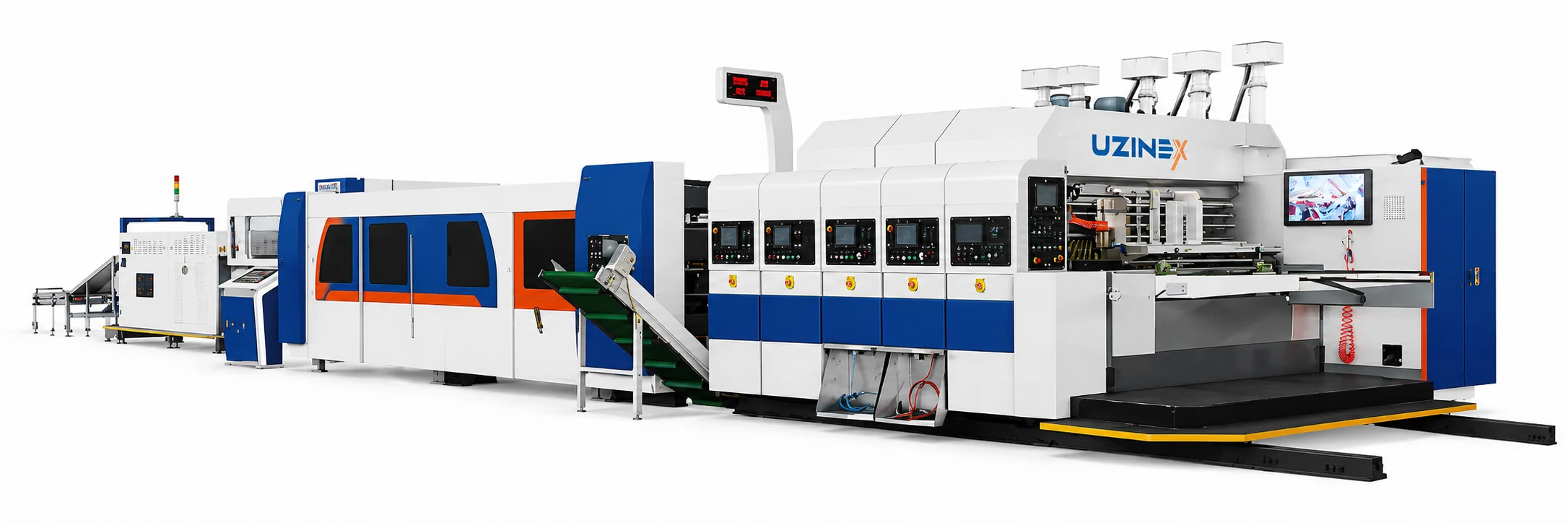

HX Series Folder-Gluer (1628X/1632X): integrated line for HD printing + slotting + die-cutting + folding + gluing + automatic bundling; bottom vacuum, water-based ink, up to 180 pcs/min, die-cutting 1600×3280 mm.

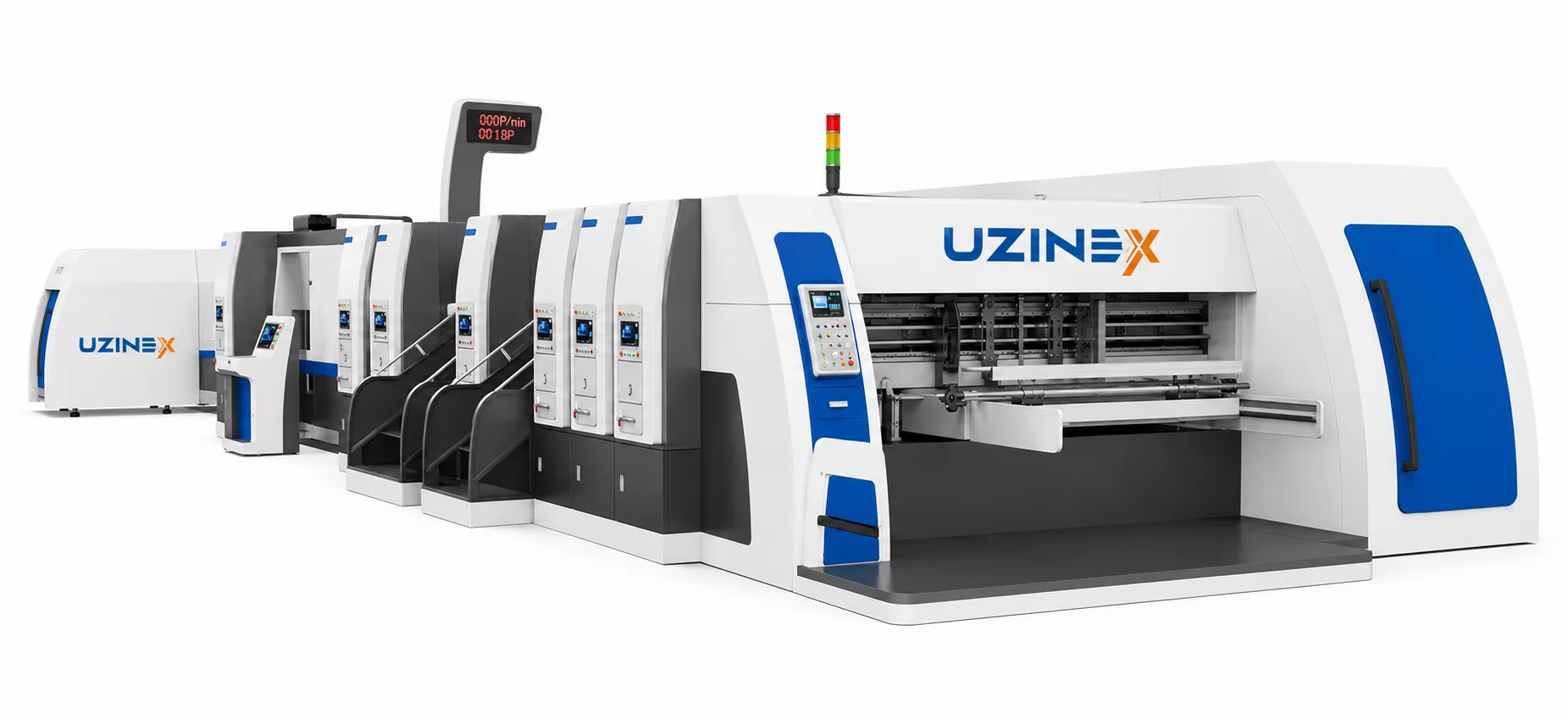

UZX-HS-A Series Folder-Gluer (920A/924A/1224A/1228A): specialized corrugated board box folding + gluing + bundling machine, up to 350 pcs/min, ±1,5 mm accuracy, unlimited memory, ERP connectivity.

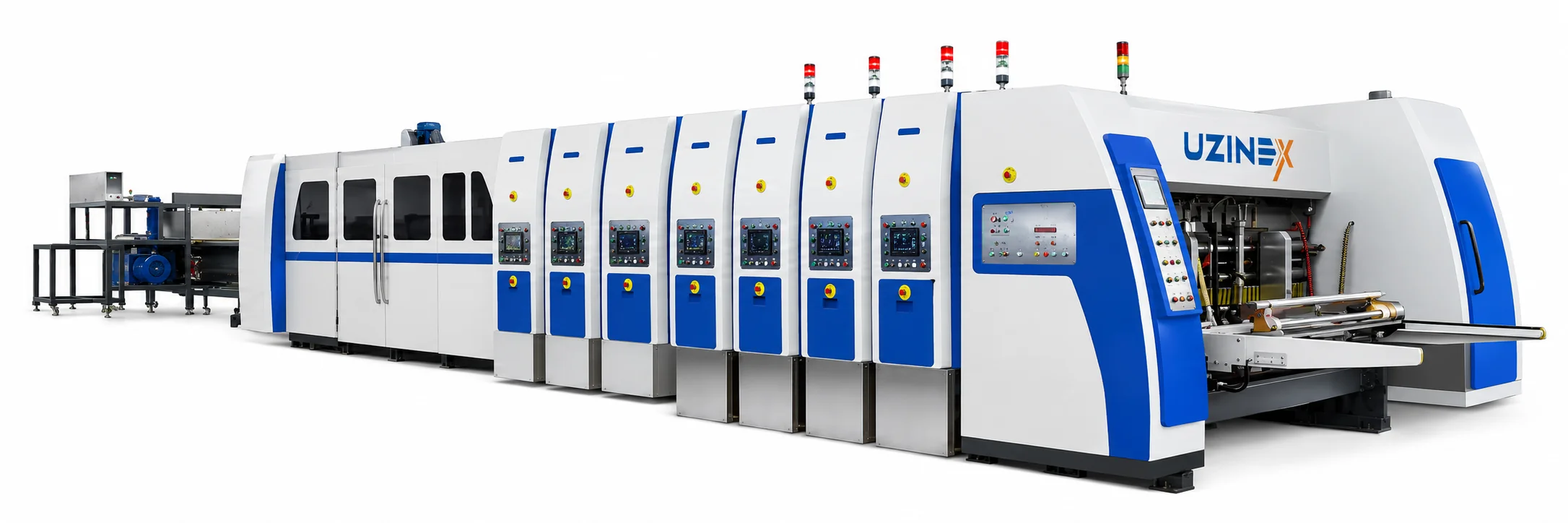

UZX-HS-B Series Folder-Gluer (920B/924B/1224B/1228B): robust corrugated board folder gluer machine, up to 280 pcs/min, folding accuracy ±1,5 mm, extended bridge with central support, minimal maintenance.

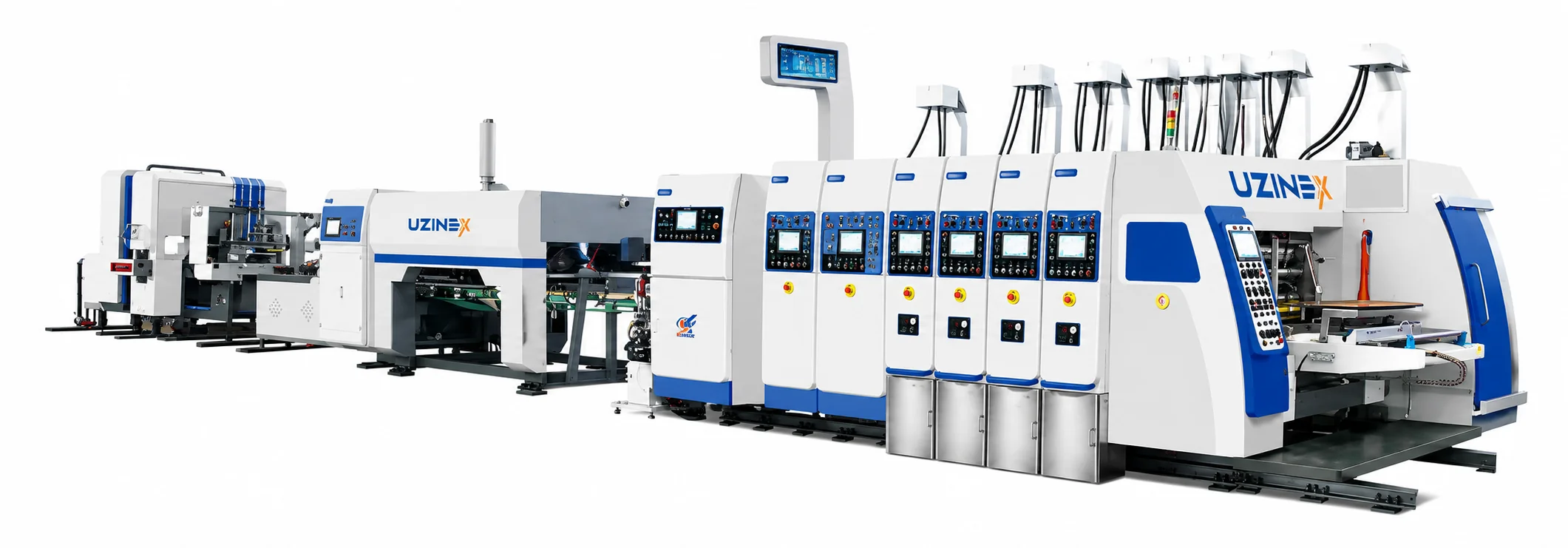

UZX-HS-C Series (920C/924C/1224C): automatic folding and gluing machine for SMALL cardboard boxes, min format 130/80 mm, min folding spacing 210 mm, up to 280 pcs/min, PLC touchscreen, 4-direction servo head.

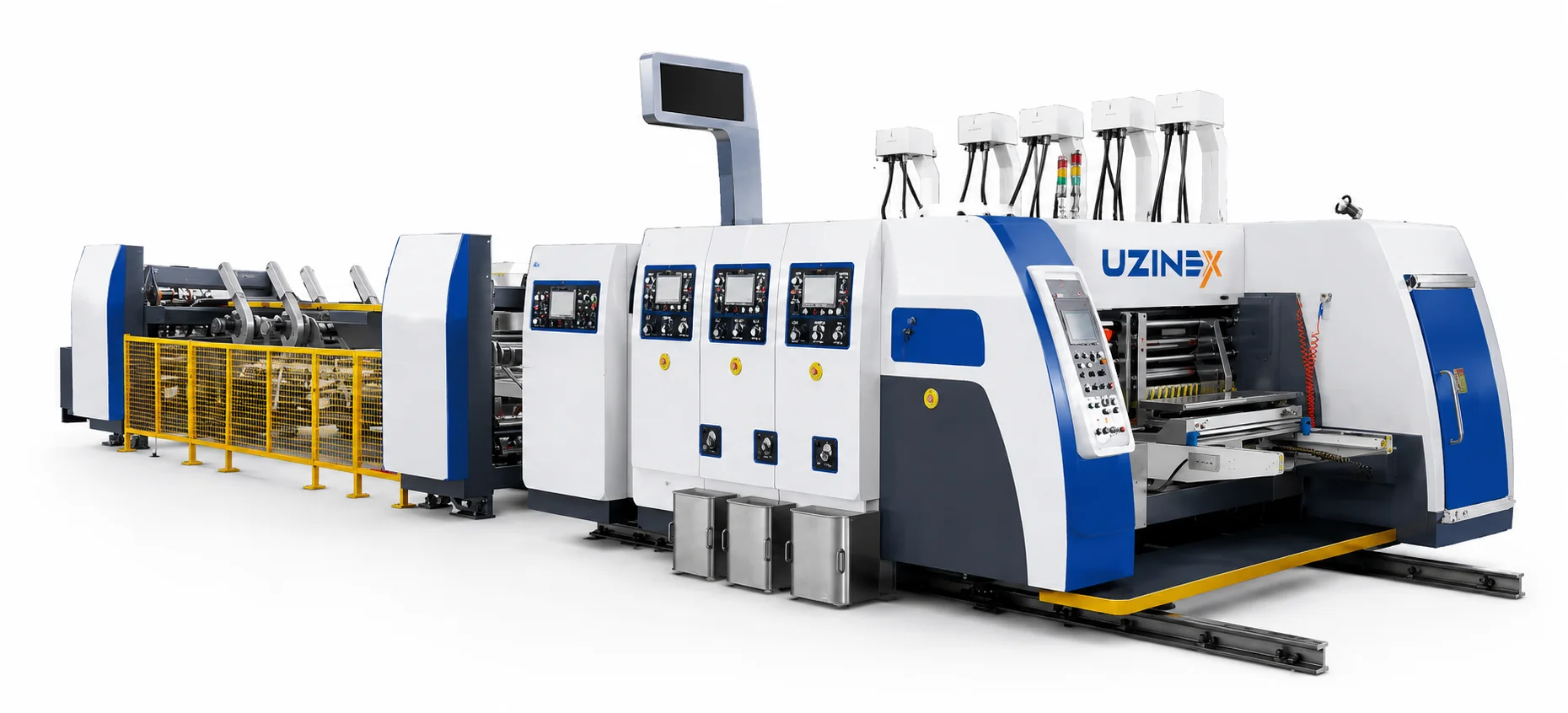

UZX-HS-T Series 920T: ULTRA-fast ecommerce box gluing machine, up to 700 pcs/min, min format 130/80 mm, high-frequency "bottom insertion" system, unique model specialized for fulfillment.

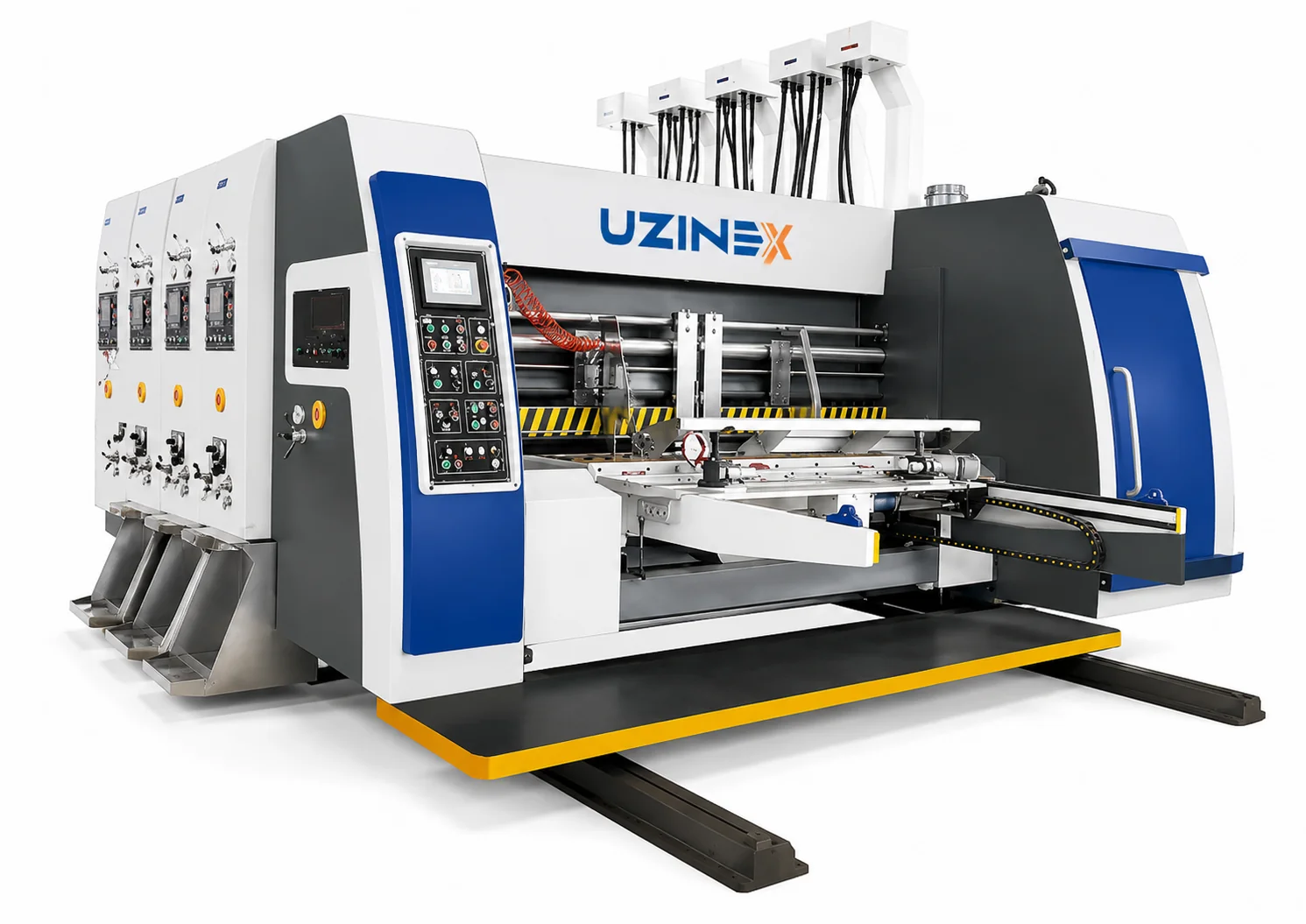

UZX-PSA Series (8 models 920÷1632): corrugated board roll printing + slotting + die-cutting machine, up to 260 pcs/min, board 2–11 mm, skip feeding 1900×3350 mm, 20CrMnTi level-6 transmission.

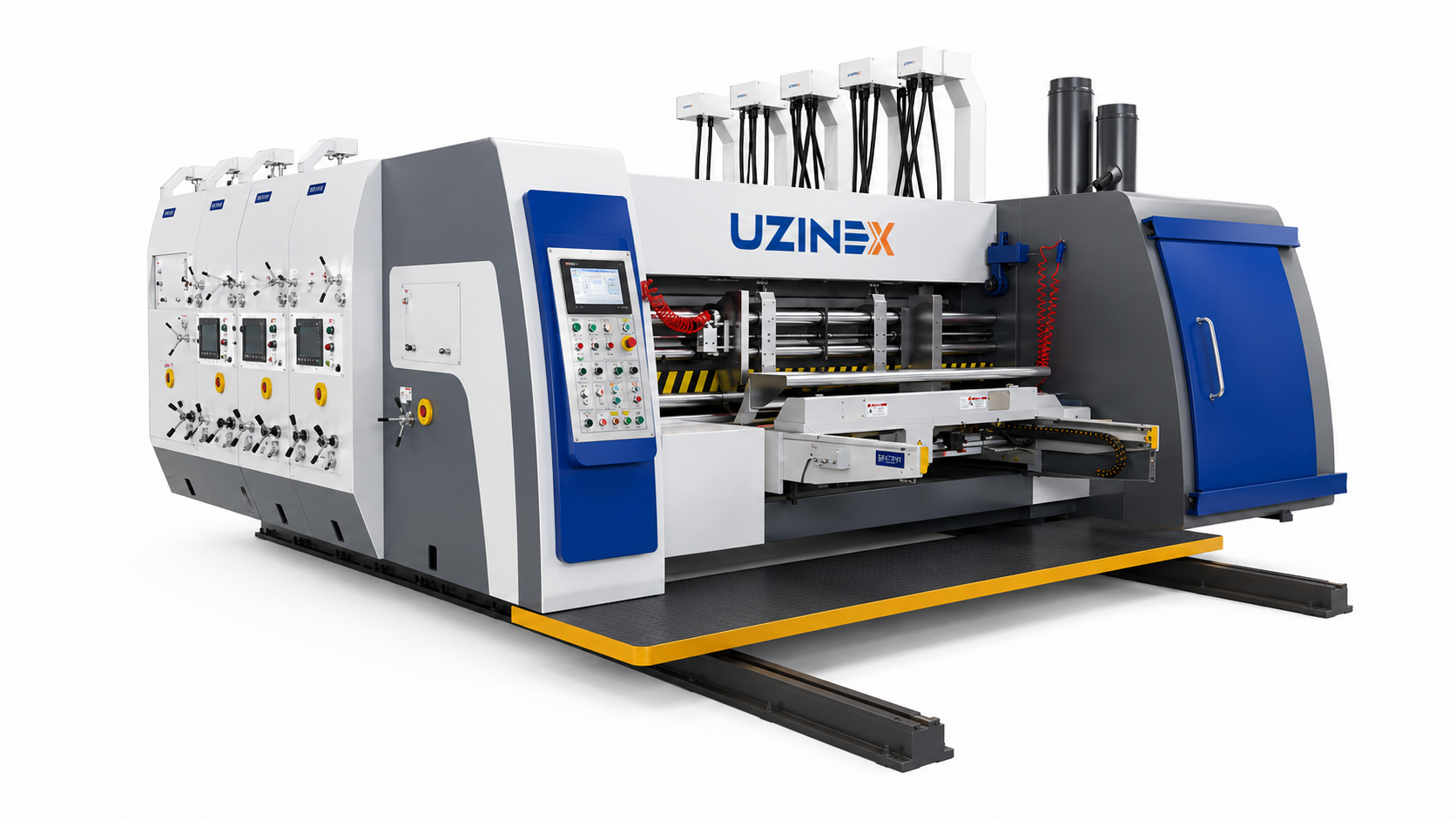

UZX-PSB Series (6 models 920÷1428): corrugated board roll printing + slotting + die-cutting machine, up to 220 pcs/min, board 2–11 mm, skip feeding 1700×2750 mm, 40Cr level-6 gearing.

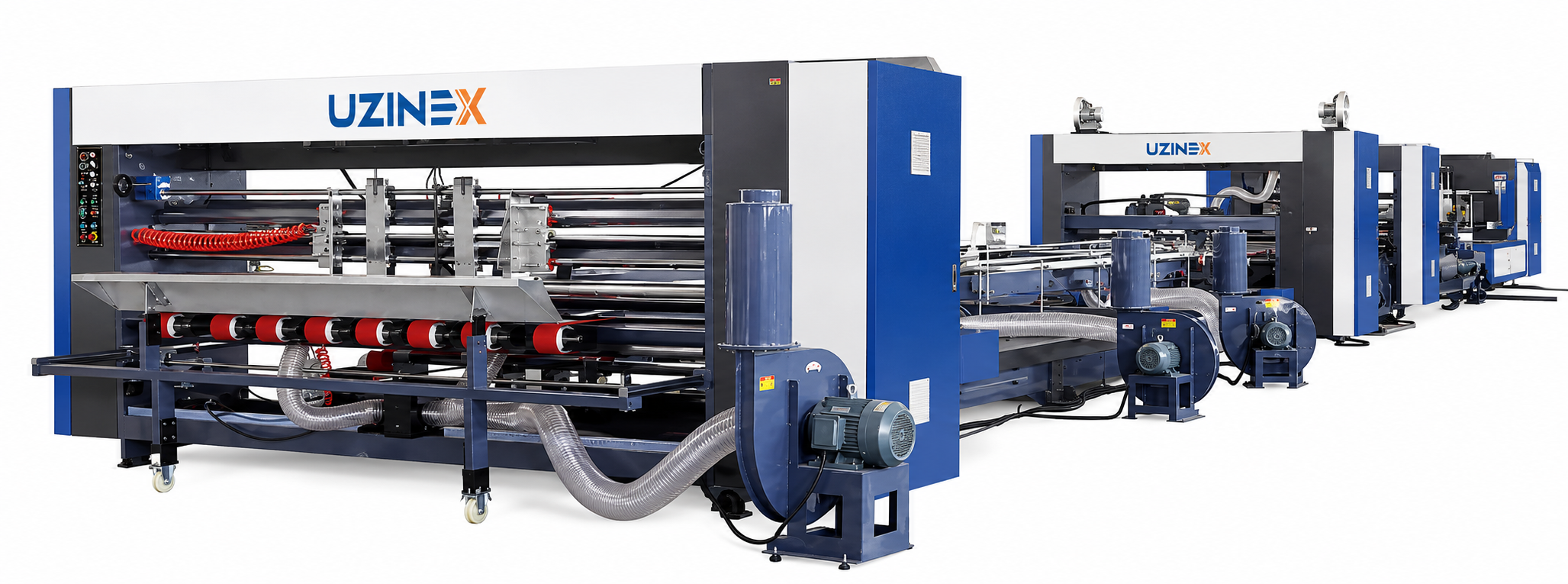

UZX-YF-Z Series (1224Z/1630Z): automatic gluing + bundling machine for LARGE corrugated board boxes, 130 m/min, box front up to 1000 mm, differential left-right correction, full alignment with linear rails.

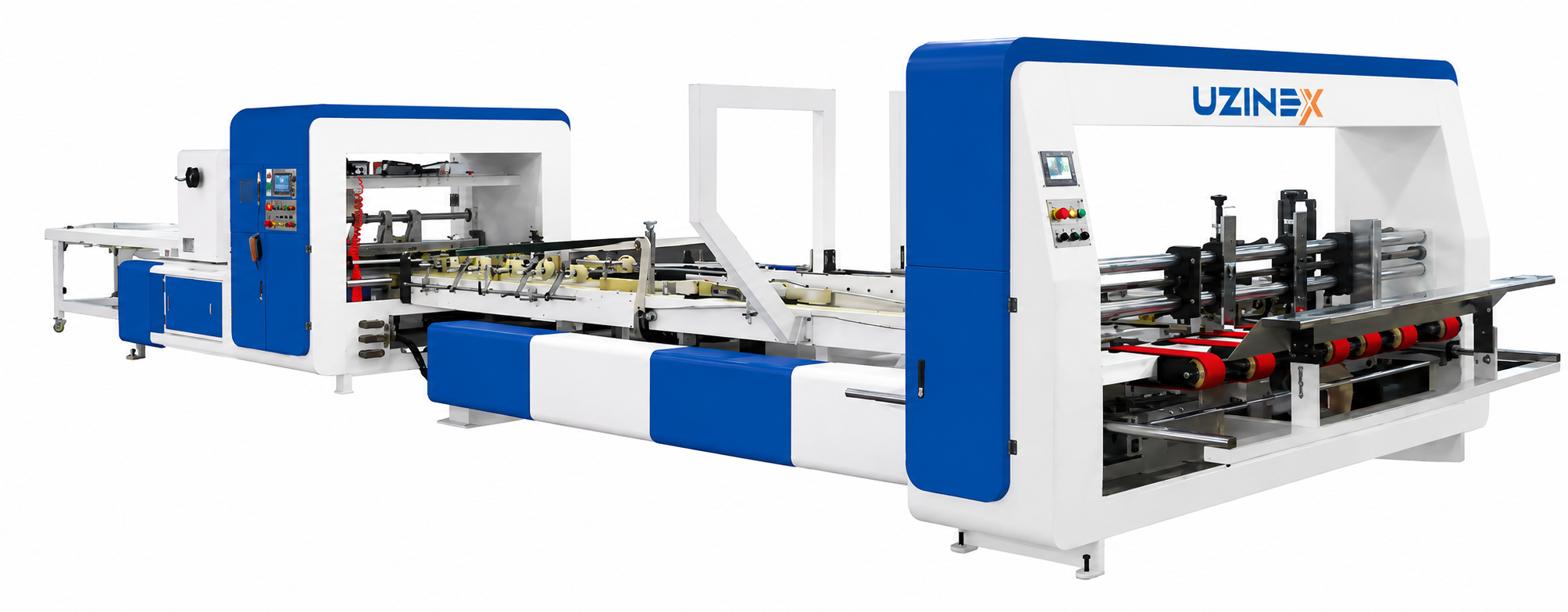

UZX-YF-C Series (1224/1630): compact automatic corrugated board box gluing machine, 3 modules, synchronized dual frequency inverter, 130 m/min (220 sheets/min max), box front 130–1000 mm.

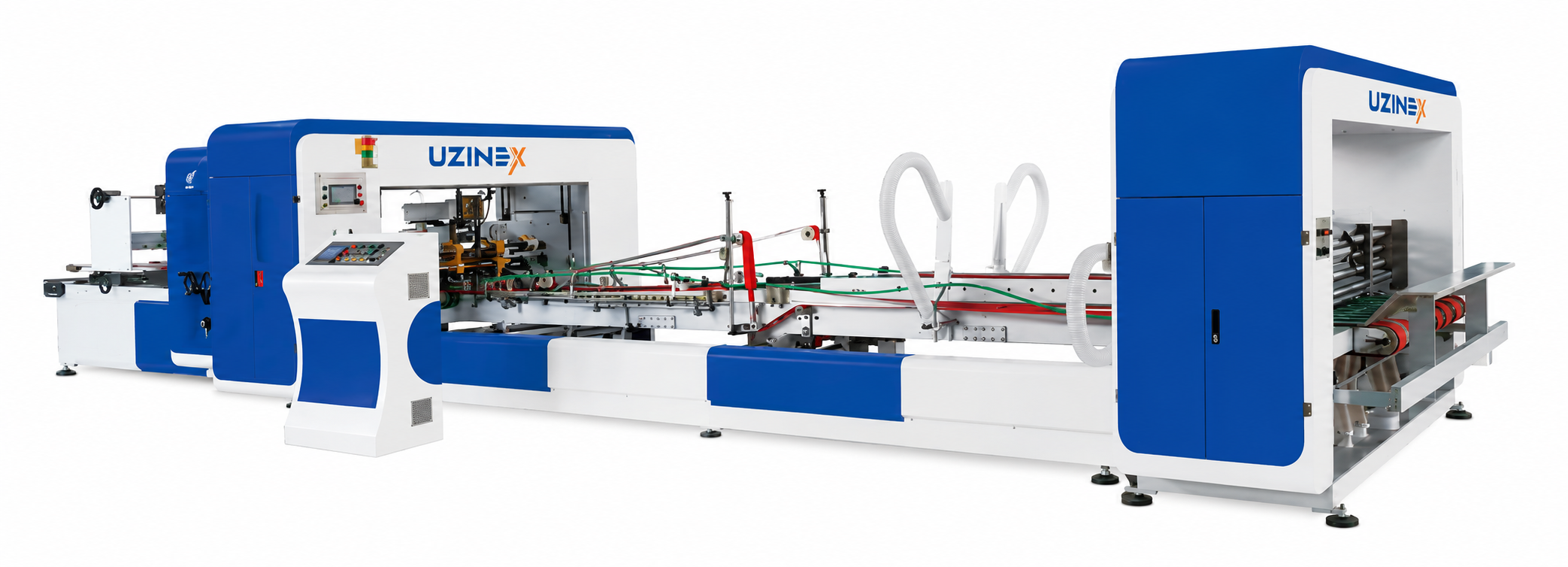

UZX-YF-ZD Series (model UZX-YF-ZD1224): automatic wire stitching machine for 3/5/7-layer corrugated board boxes, Taiwan stitching head 600 staples/min, adjustable spacing 30–100 mm, 3 stitching modes, PLC touchscreen.

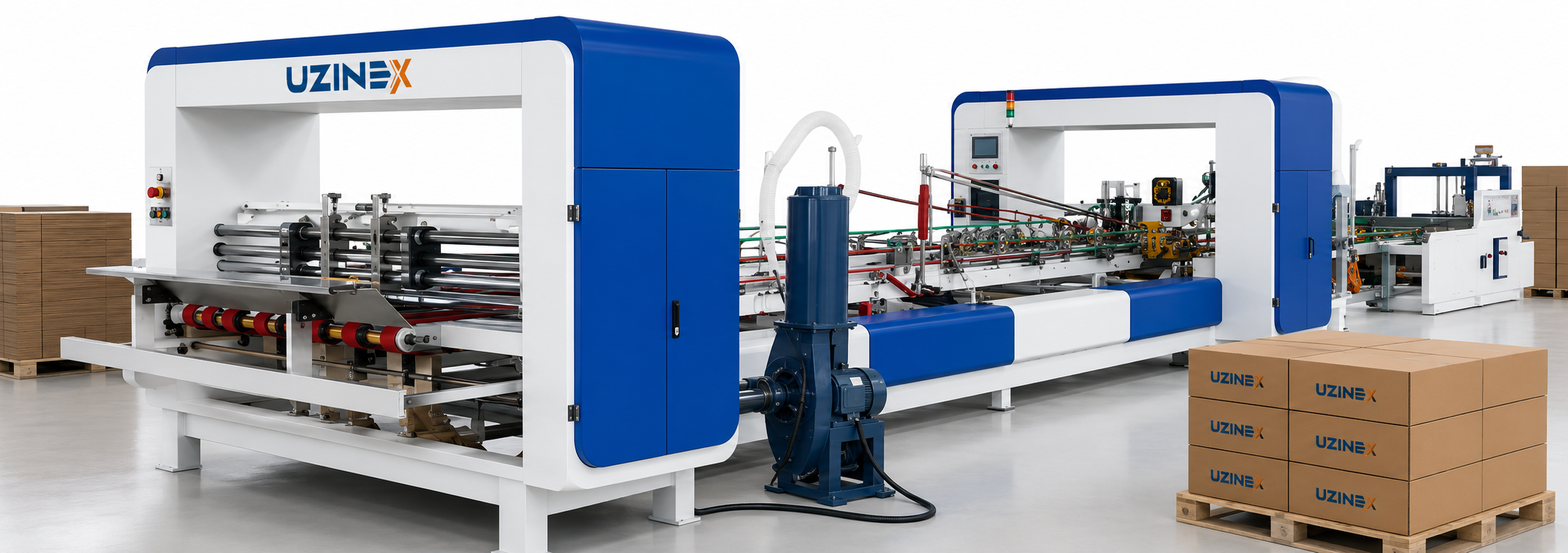

UZX-YF-D Series (model UZX-YF-D1224): automatic stitching machine for 3/5/7-layer corrugated board boxes with down-type structure, Taiwan stitching head 600 staples/min, adjustable spacing 30–100 mm, 3 stitching modes, PLC touchscreen.

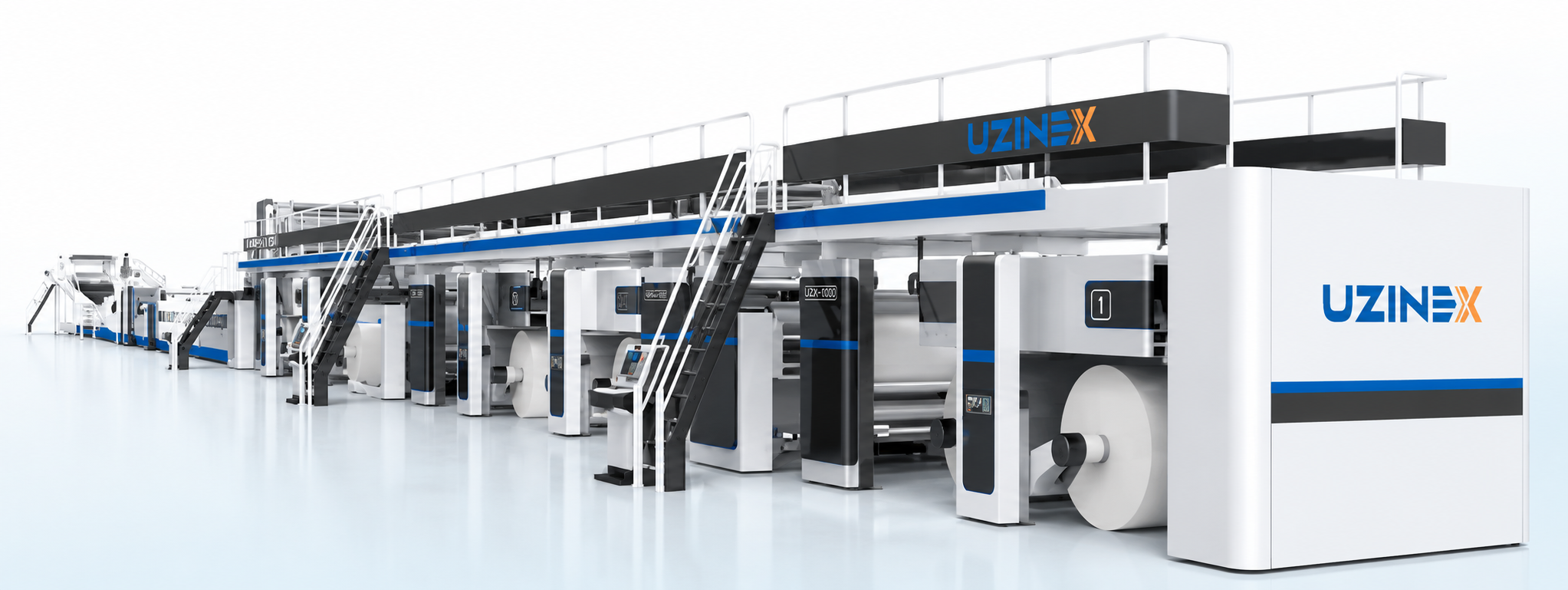

UZX-HYM-S300-25W-S: complete intelligent corrugated board production line, 2500 mm width, shaftless mill roll stand, fingerless vacuum single facer, preheater, glue system, double bridge, double facer, slitter scorer, cut-off, stacker.

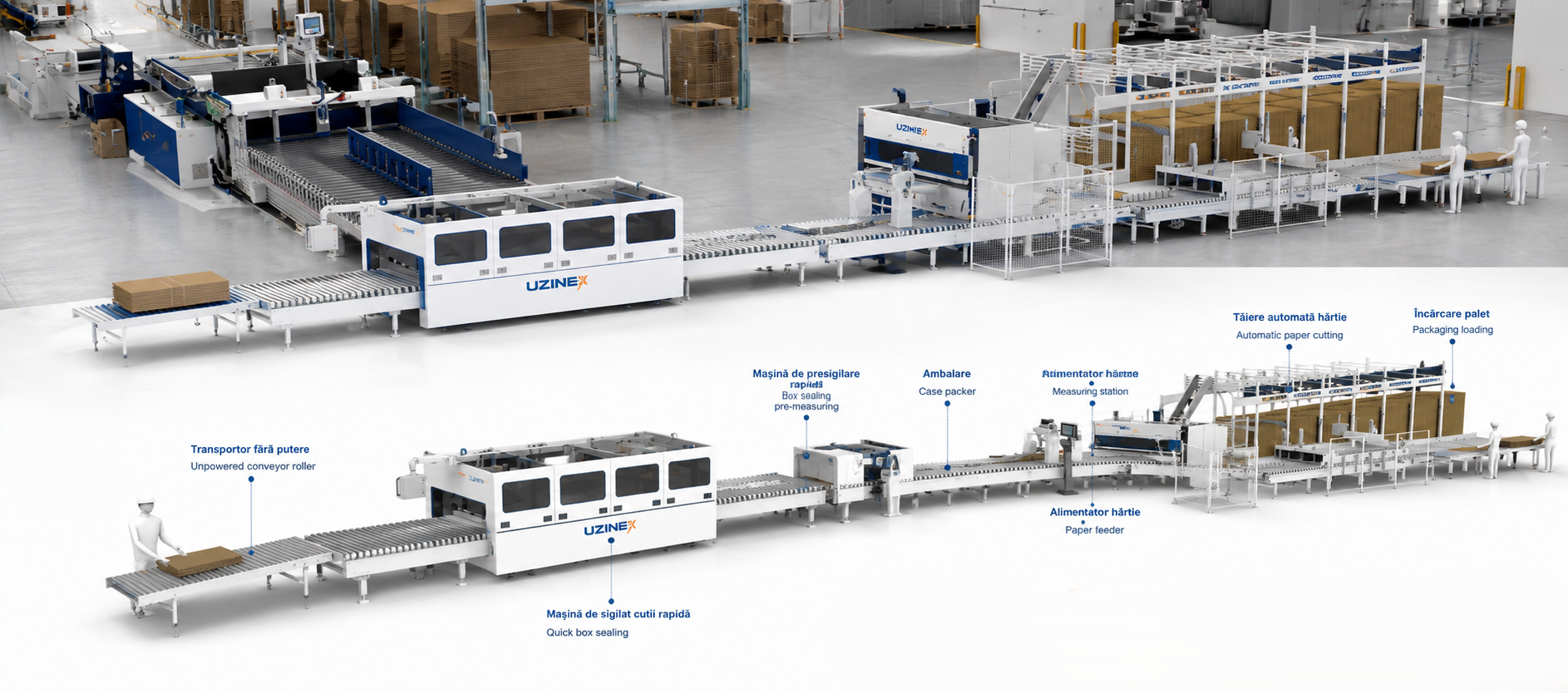

Complete automatic line for packaging products into corrugated cardboard boxes: 98% automation, 7–10 packages/min standard, box forming from flat paper with an intelligent measuring station, in-house software, German mechanical design.

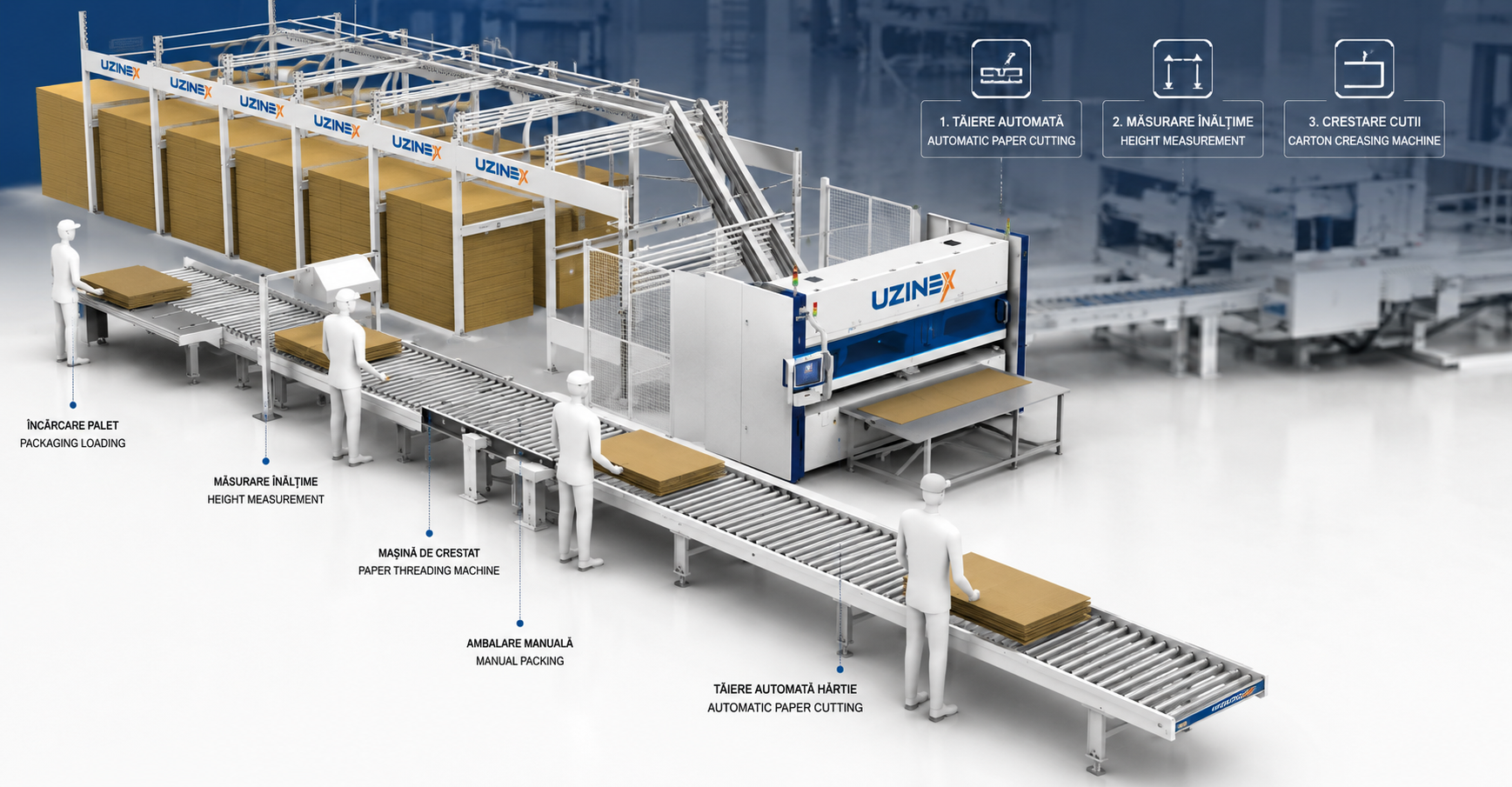

Automatic packaging line for furniture and bulky products with intelligent QR scanning: no measuring station, no MES pre-grouping, 3,5–10 packages/min, minimum box thickness 18 mm, 3 or 6 paper libraries.

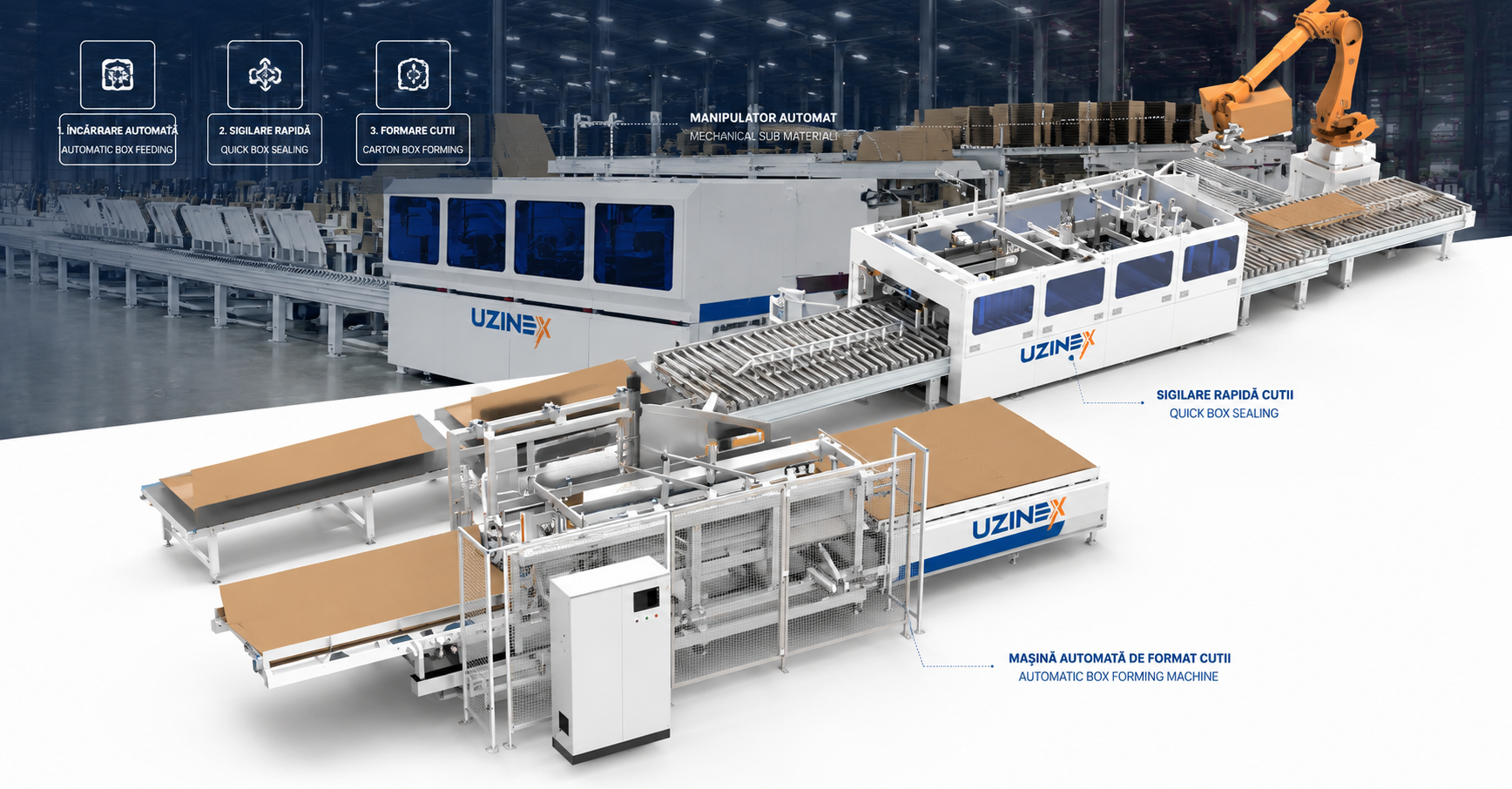

Automatic folding and sealing line for pre-die-cut boxes without glue: full servo drive, Italian mechanical design, 4–7 pcs/min folding, 6–10 pcs/min batch sealing, 50% labor savings, optional robotic arm.

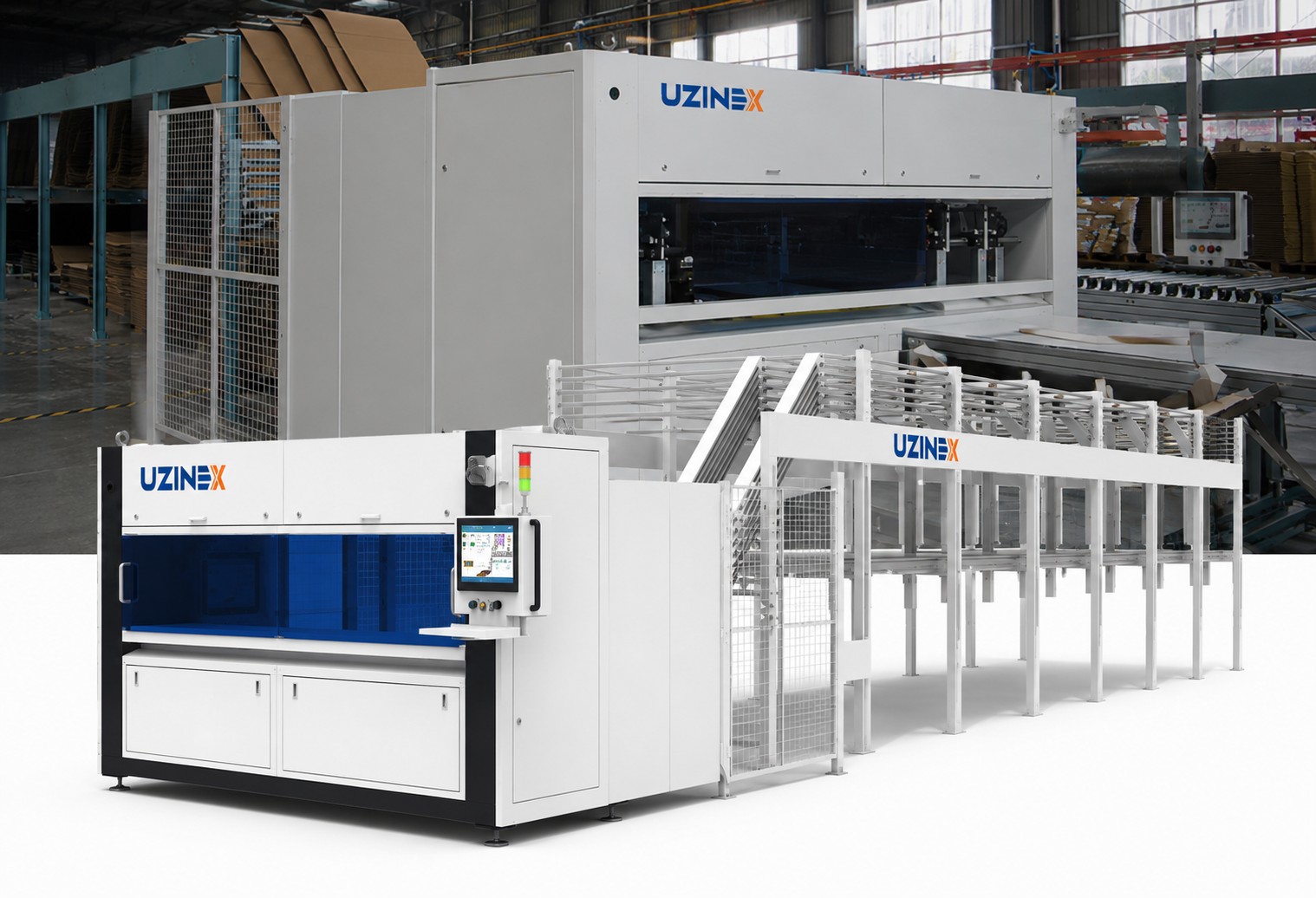

Automatic corrugated board cutting machine with 3 or 6 paper libraries, patented design 7 longitudinal knives + 1 transverse, 30% more box types than the industry, max. width 2.550 mm, min. box thickness 18 mm, 3,5–10 pcs/min.

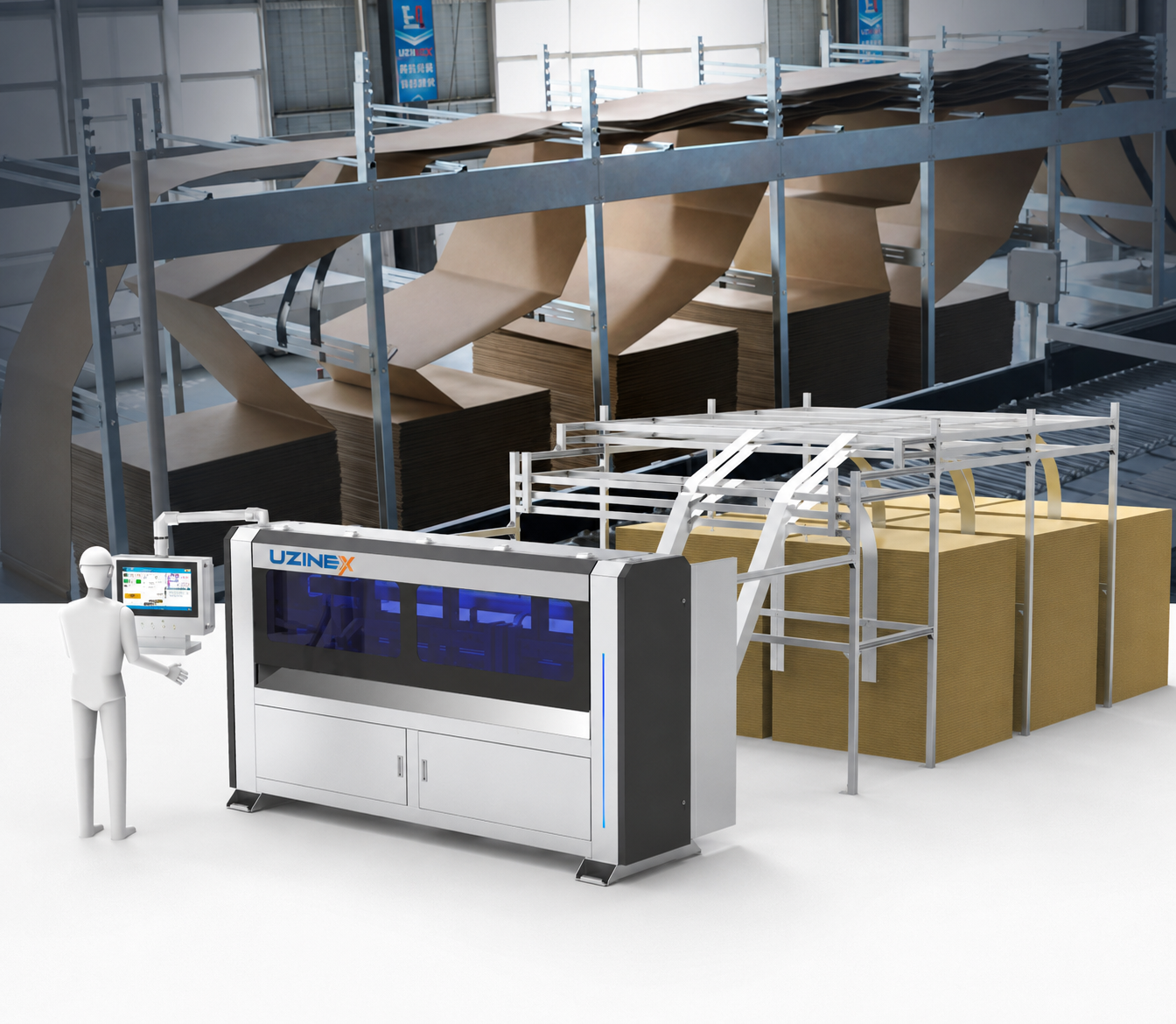

Corrugated board box cutting machine with 4 paper libraries, patented design 7 longitudinal knives + 1 transverse, 30% more box types vs the industry, max. width 2.550 mm, min. box thickness 18 mm, 3,5–10 pcs/min.

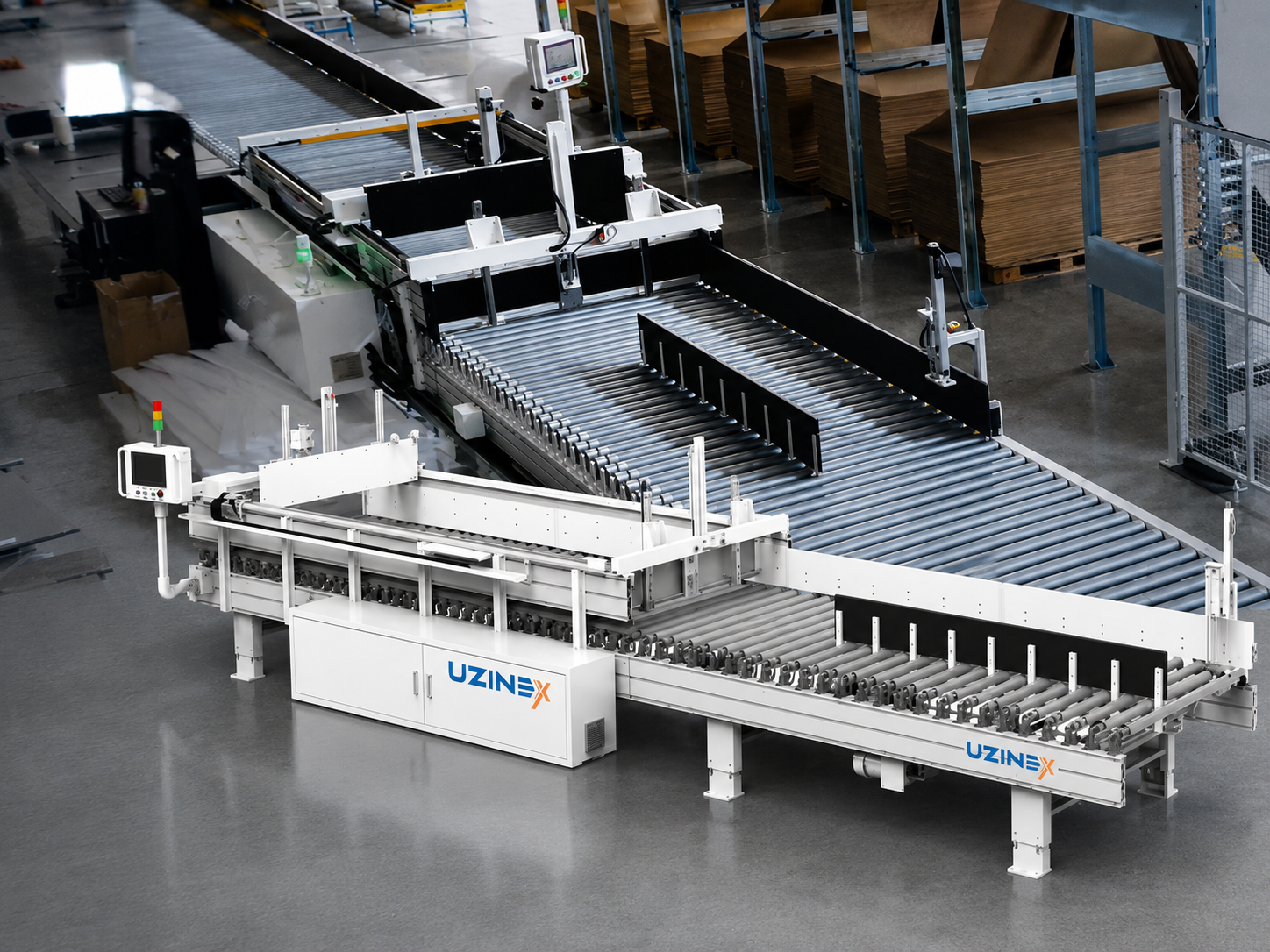

Automatic measuring station for workpiece length and width on packaging lines: range 350–2.800 mm × 200–1.200 mm, throughput 4–6 pcs/min, rubber-coated silver rollers, variable-frequency control, direct integration with Cutting-2518.

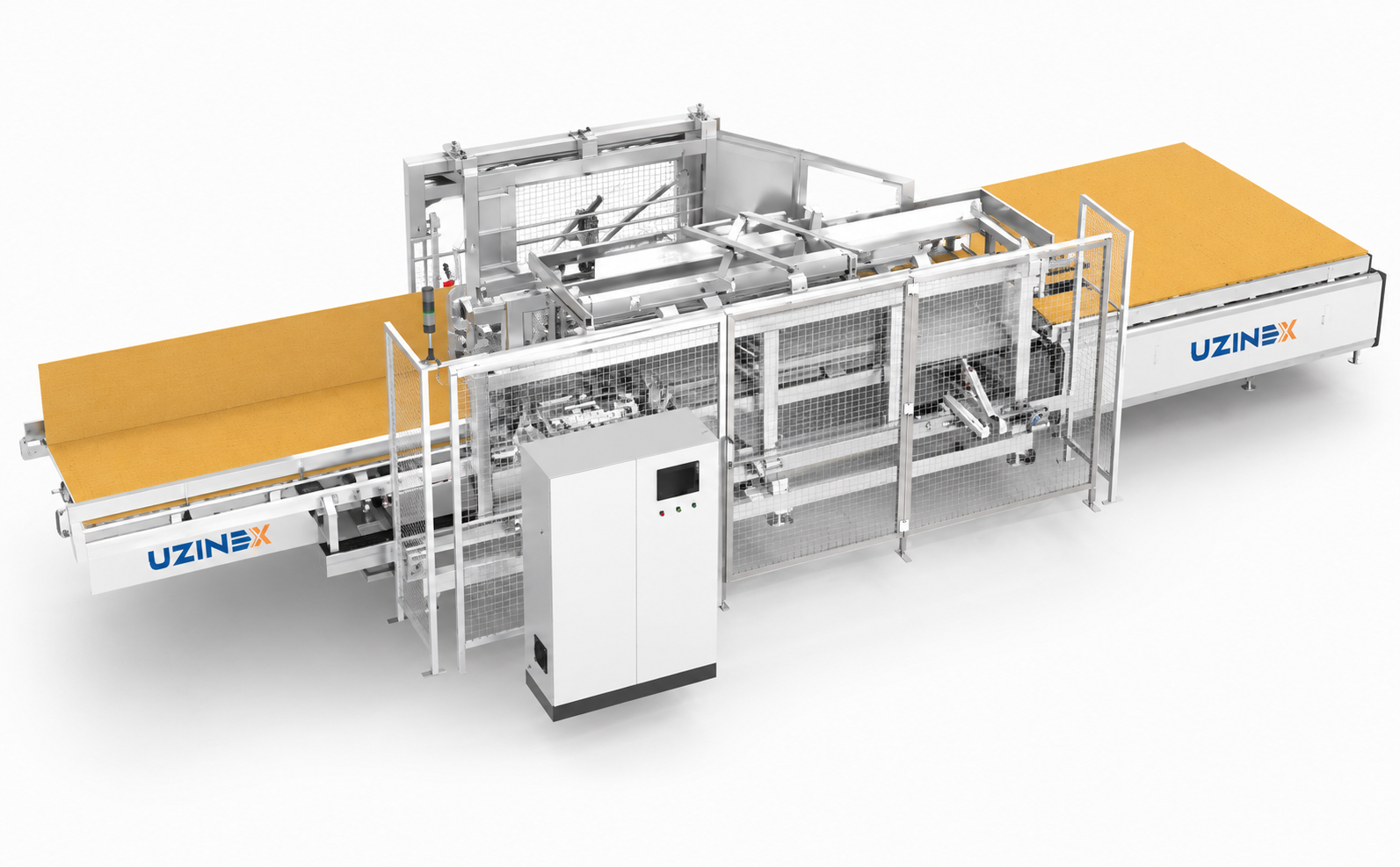

Automatic corrugated board box folding machine with 7 individual servo longitudinal knives, constant-temperature adhesive system with double thermal insulation, Italian mechanical design, 4–7 pcs/min, up to 2.800 × 1.220 mm on the Pro version.

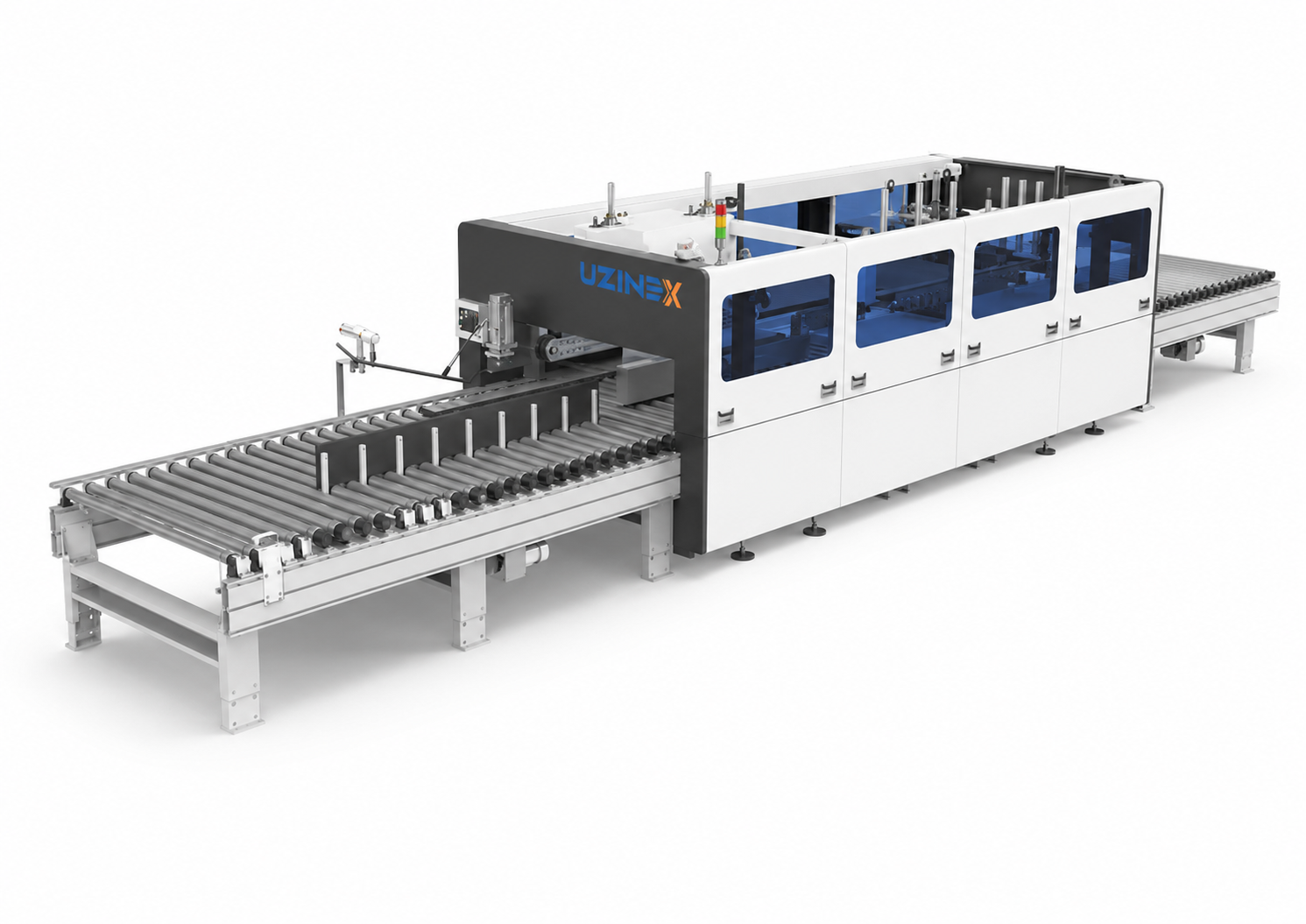

High-speed smart corrugated board box sealing machines with German mechanical design: integrated pre-measuring device, constant-temperature adhesive system with double thermal insulation, 4–10 pcs/min, box thickness 18 mm min, 400 mm max (Pro), configurable hot-melt.
Gearless full-servo, precision printing on flexible films down to 15 μm

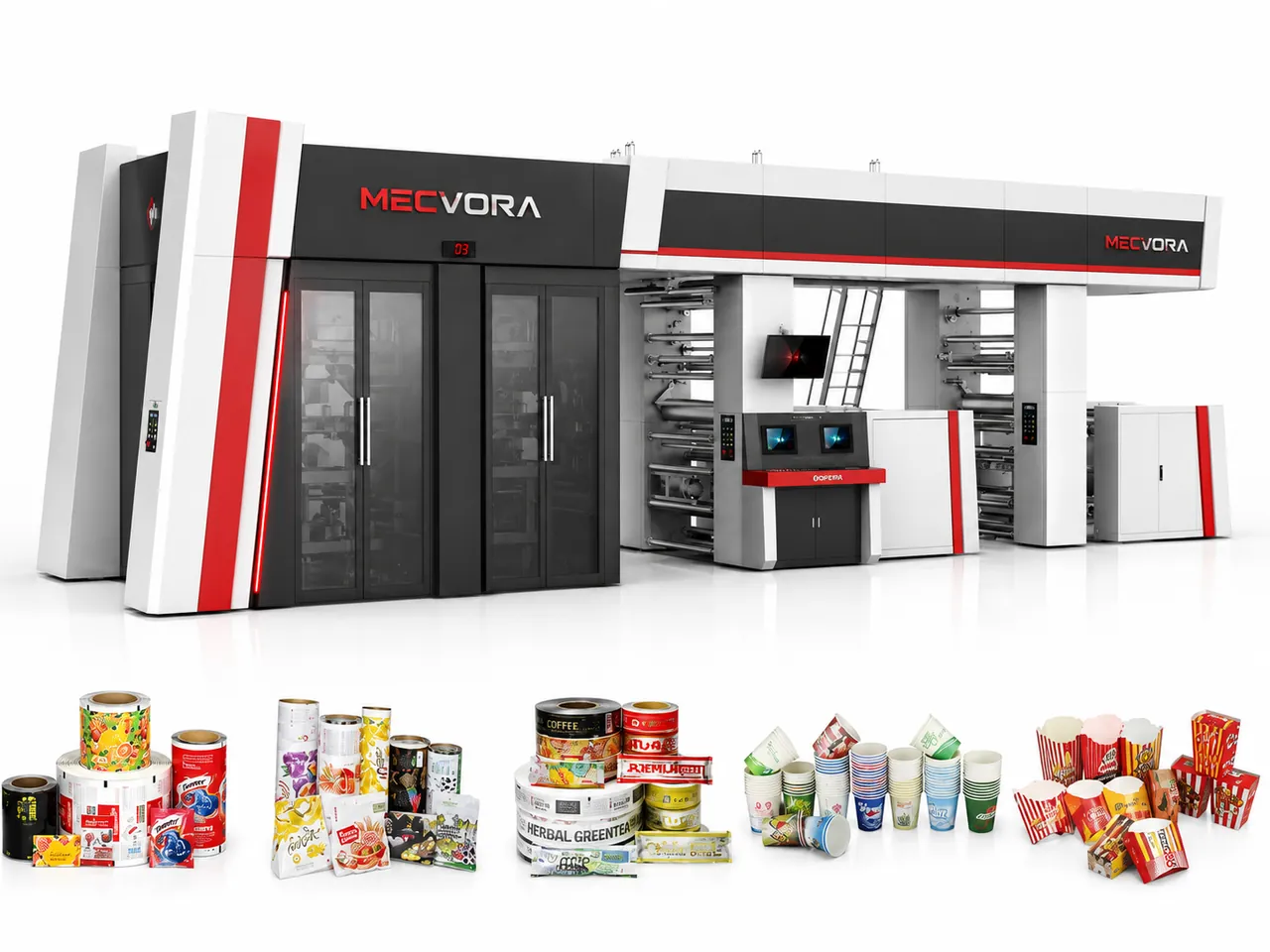

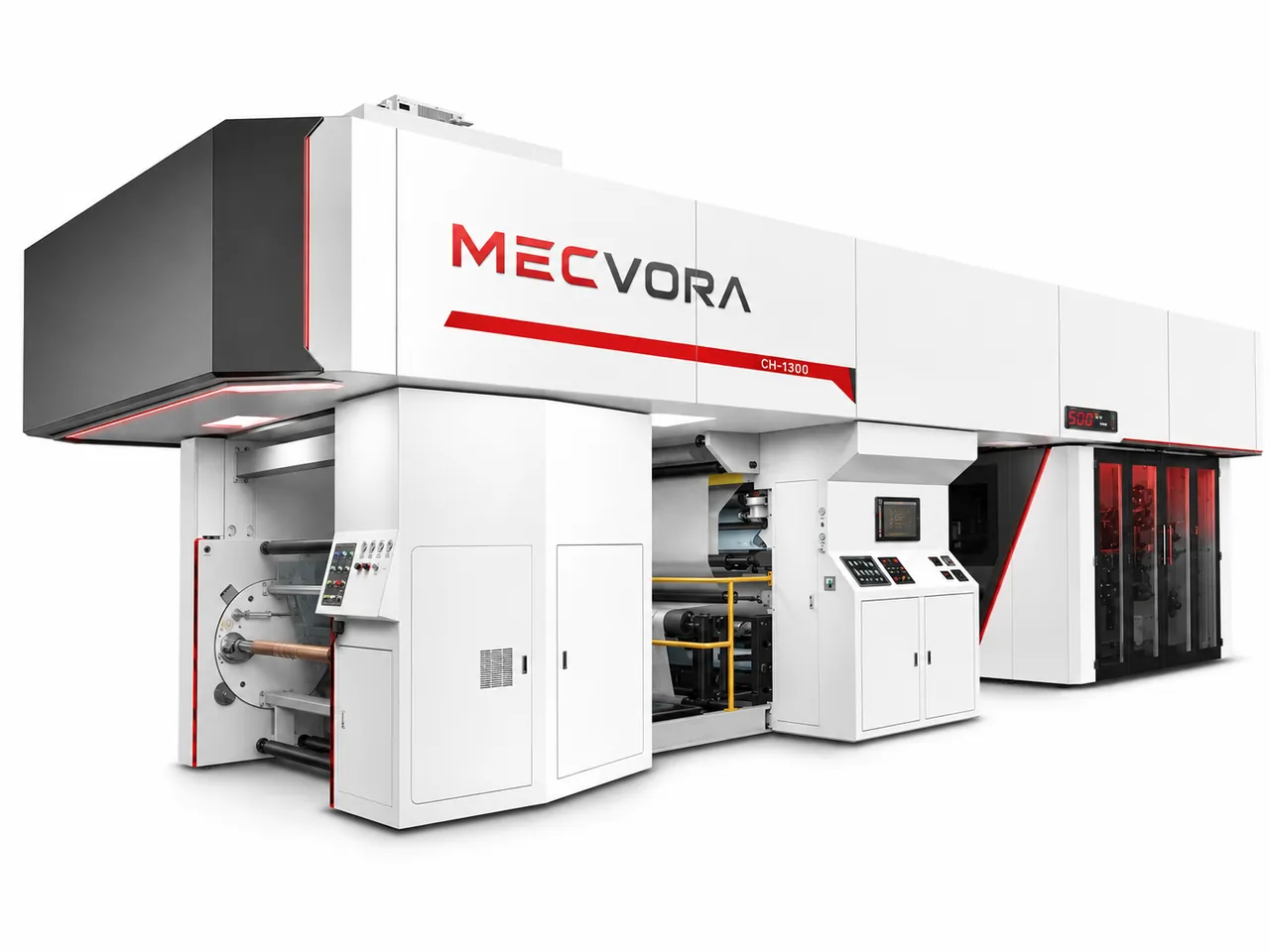

High speed, central drum, high productivity on film and foil

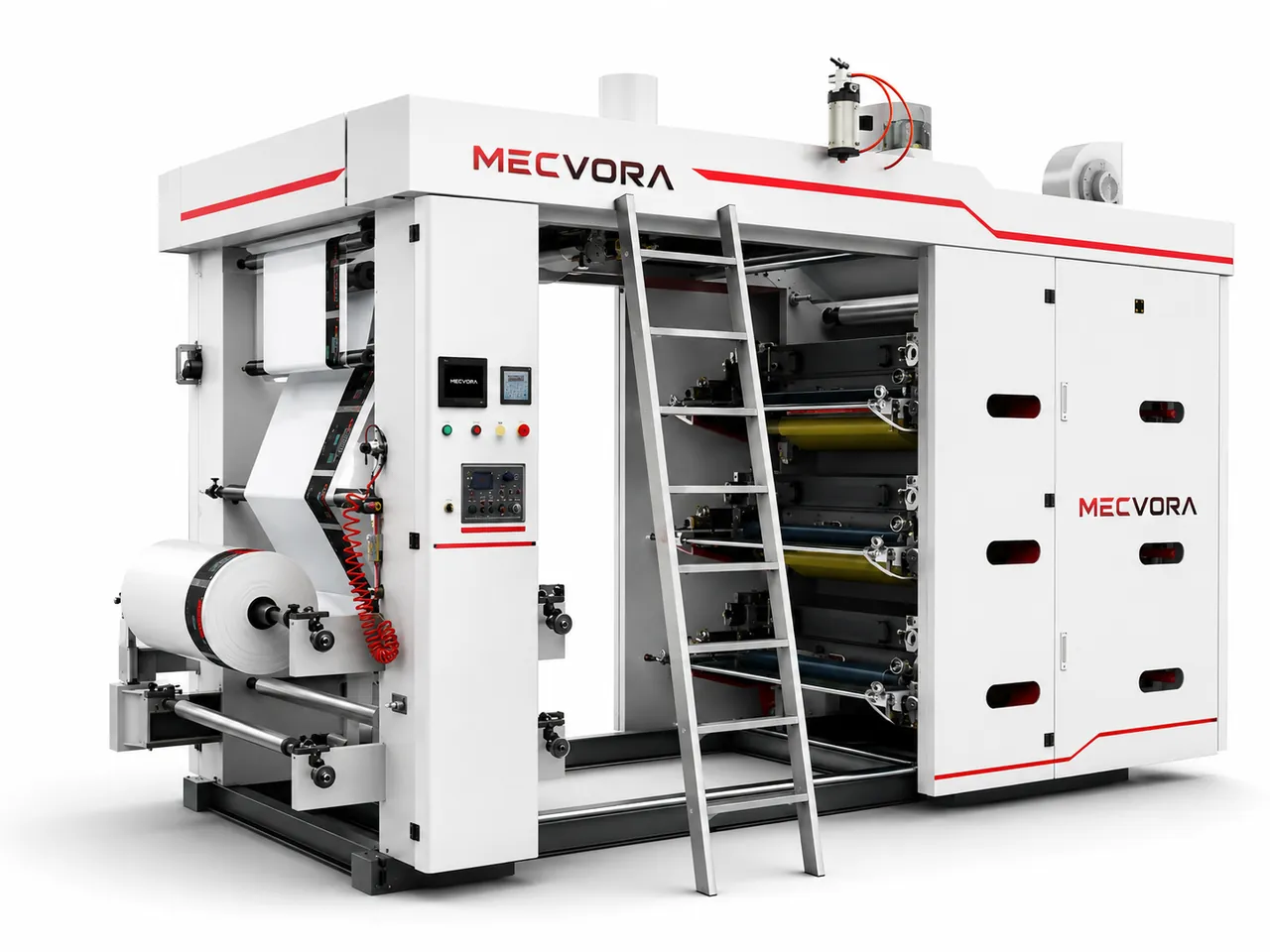

±0.1 mm precision, stack and CI variant, ideal for paper bags

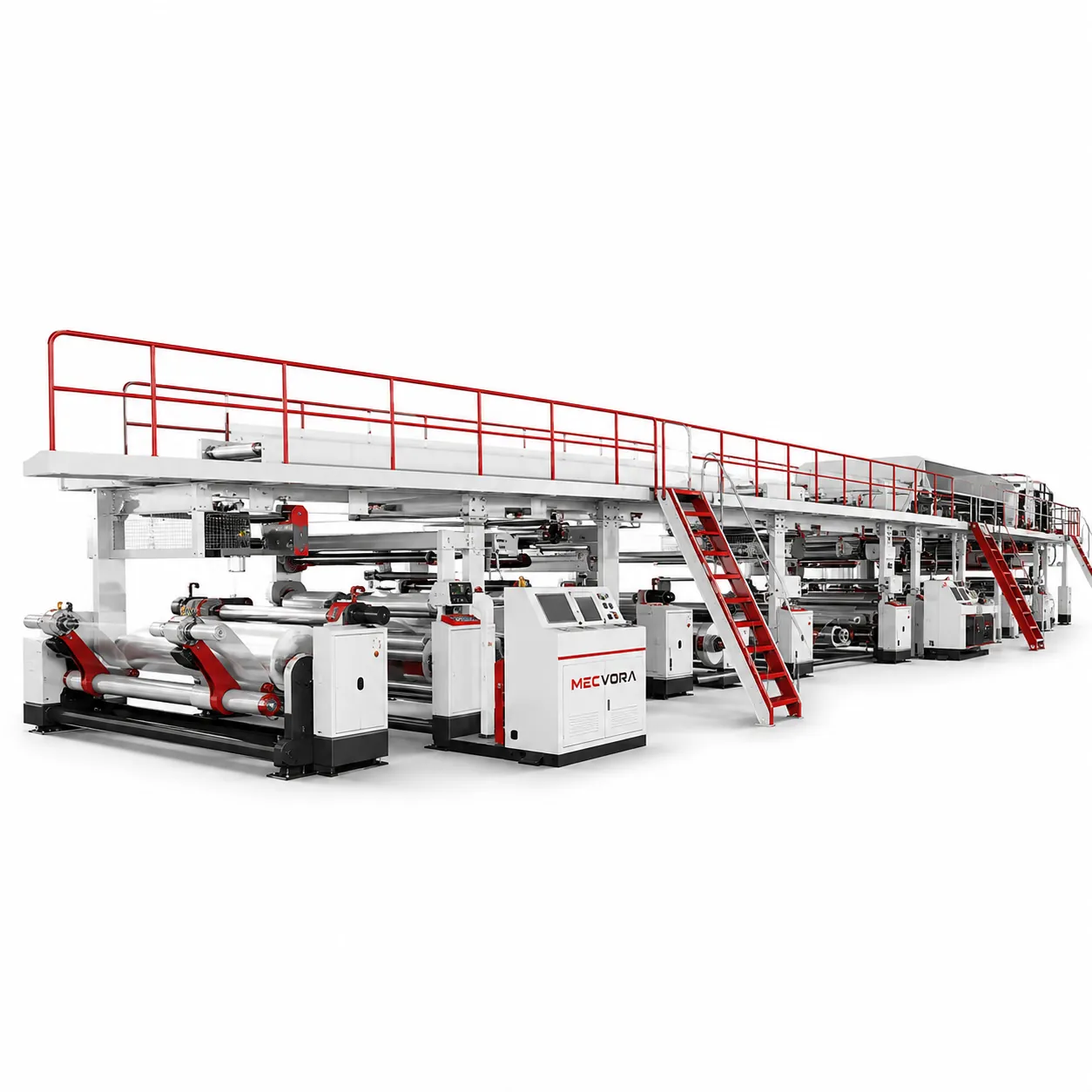

High industrial speed, 3/5/7 layers, integrated glue preparation

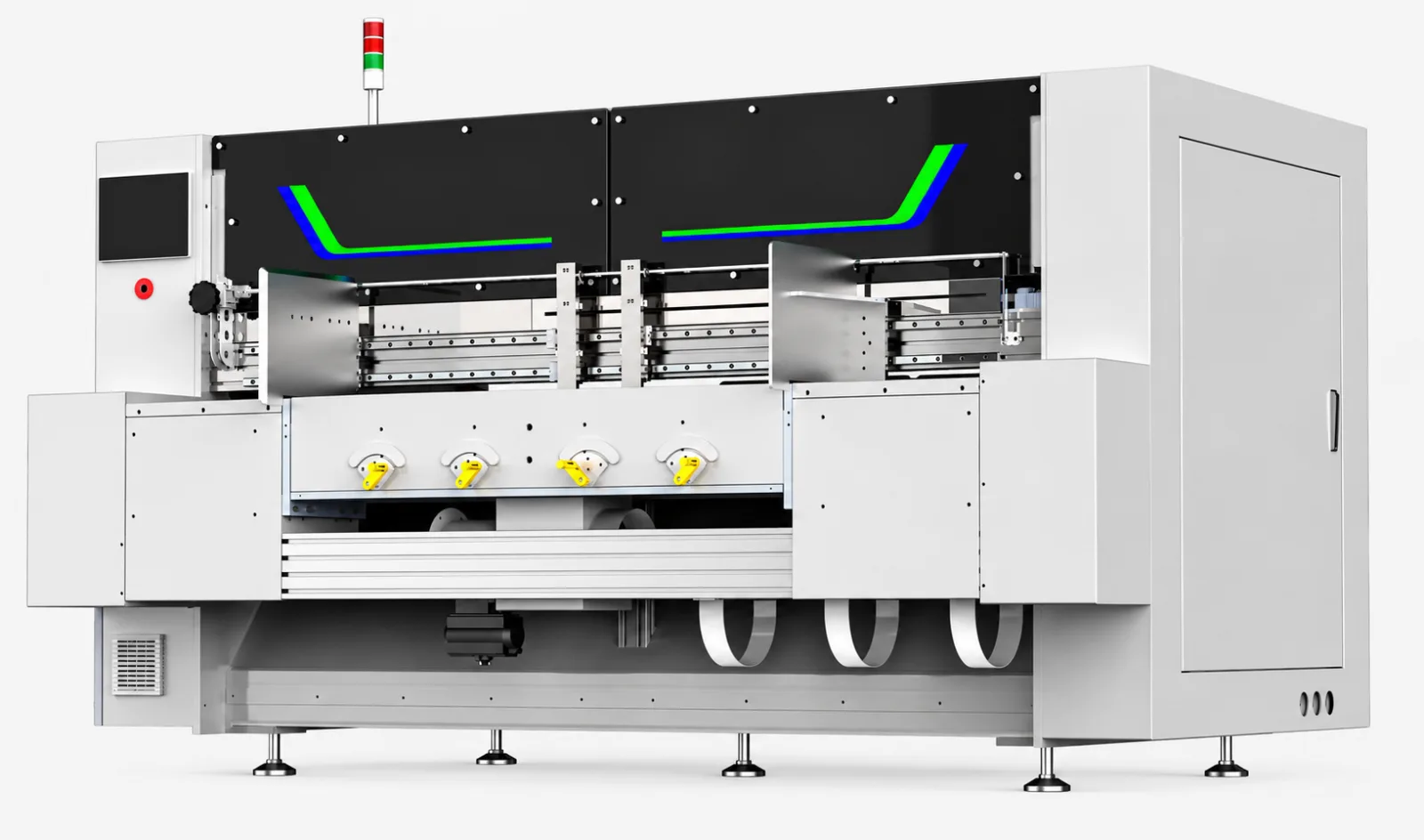

On-demand box machine for single and double wall corrugated board, sheets up to 1800 mm, 700–800 boxes/hour, over 100 FEFCO codes.

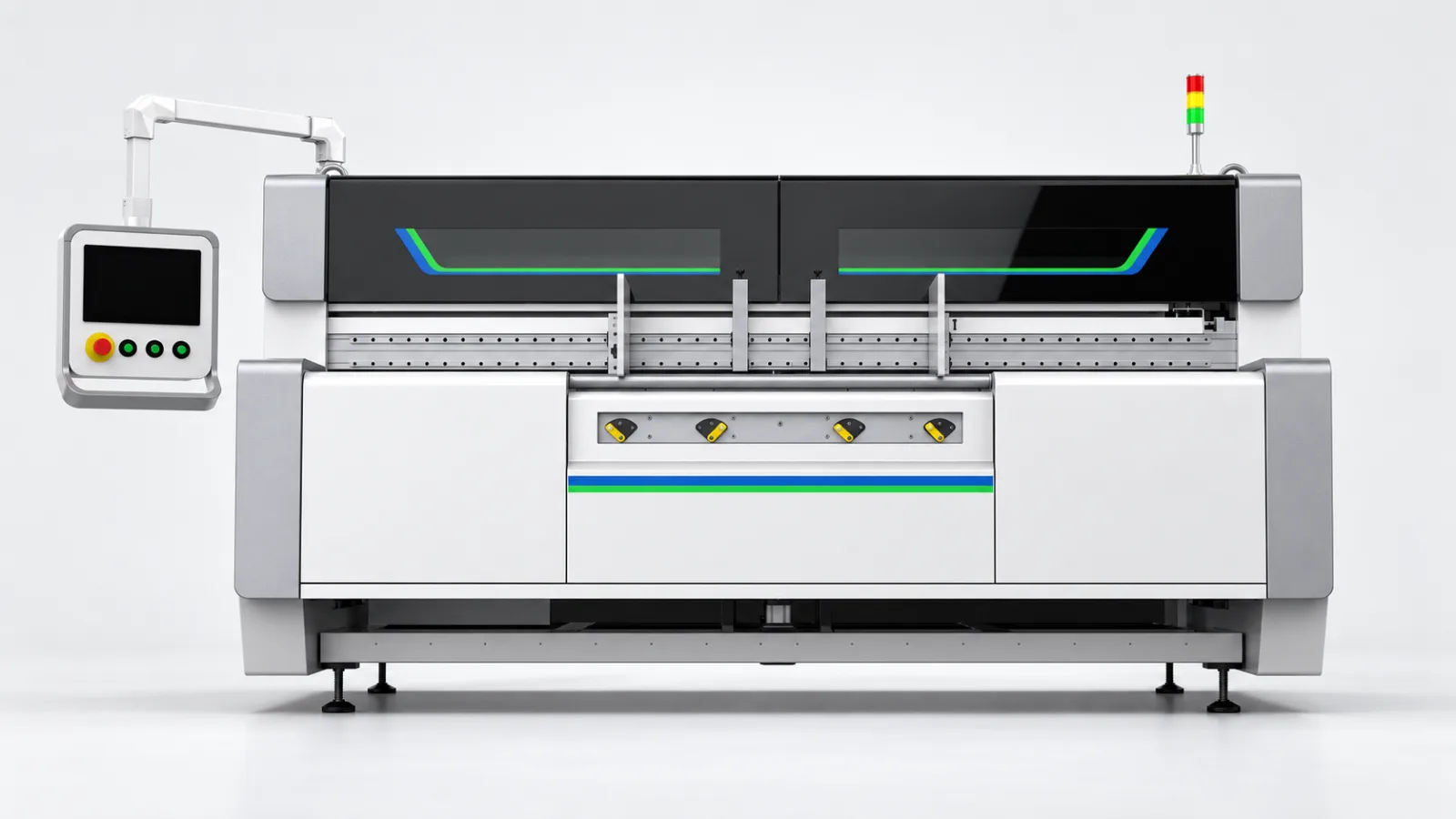

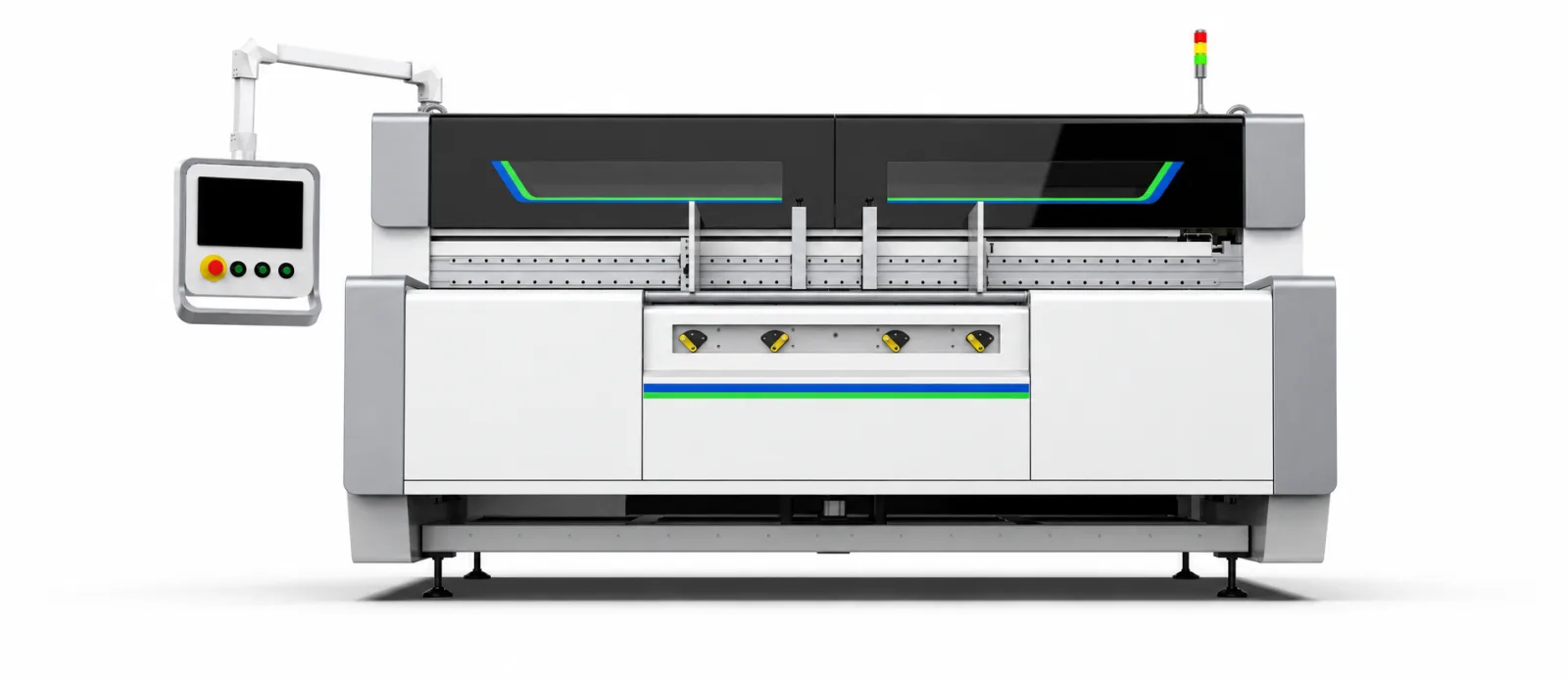

On-demand box machine for sheets up to 2500 mm, 500–600 boxes/hour, boxes up to 1000 mm wide, over 100 FEFCO codes.
On-demand box machine for sheets up to 2500 mm, 500–600 boxes/hour, boxes up to 1000 mm wide, separate vacuum unit.
On-demand box machine for very tall boxes, up to 2900 mm, 500–600 boxes/hour, over 100 FEFCO codes, 3-second format change.

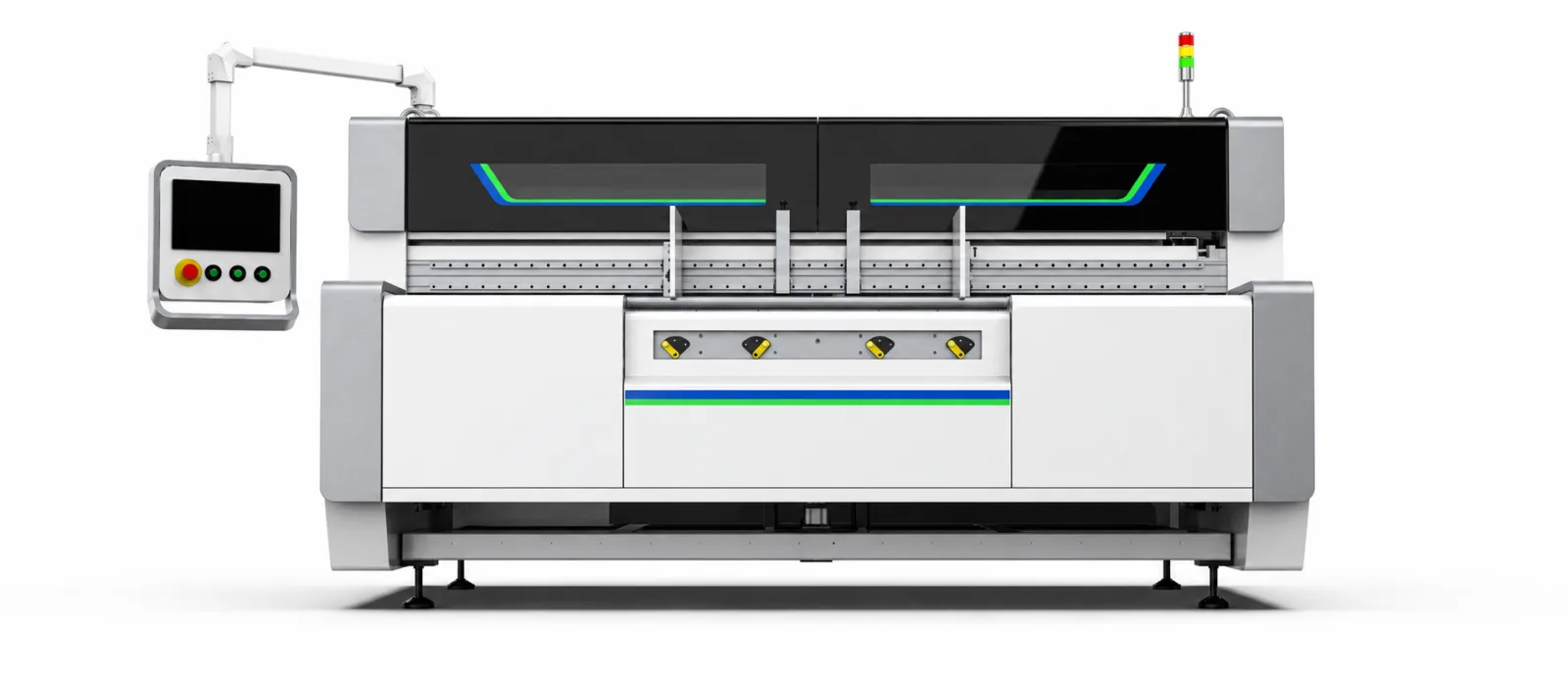

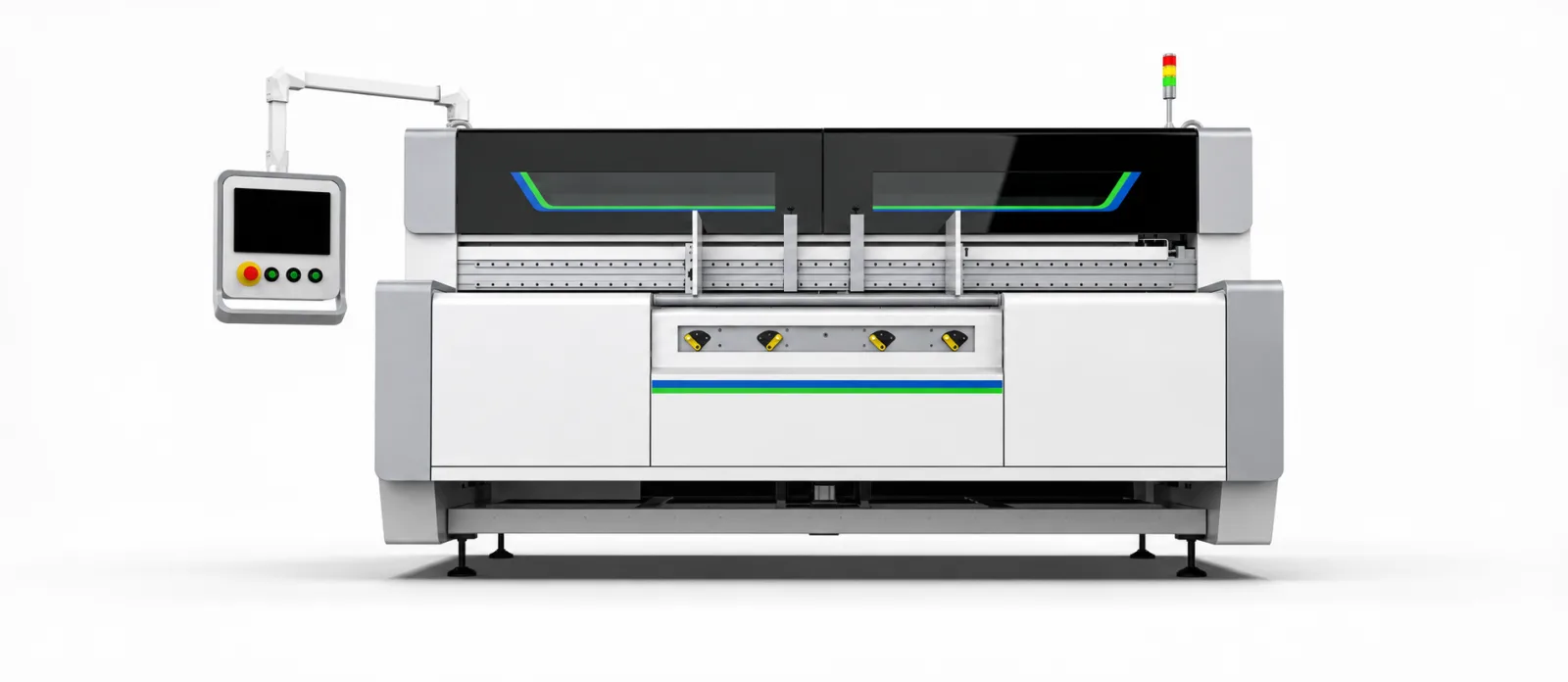

On-demand box machine for single, double and triple wall board 1.5–21 mm, sheets up to 3000 mm, 500–600 boxes/hour, over 130 FEFCO codes.

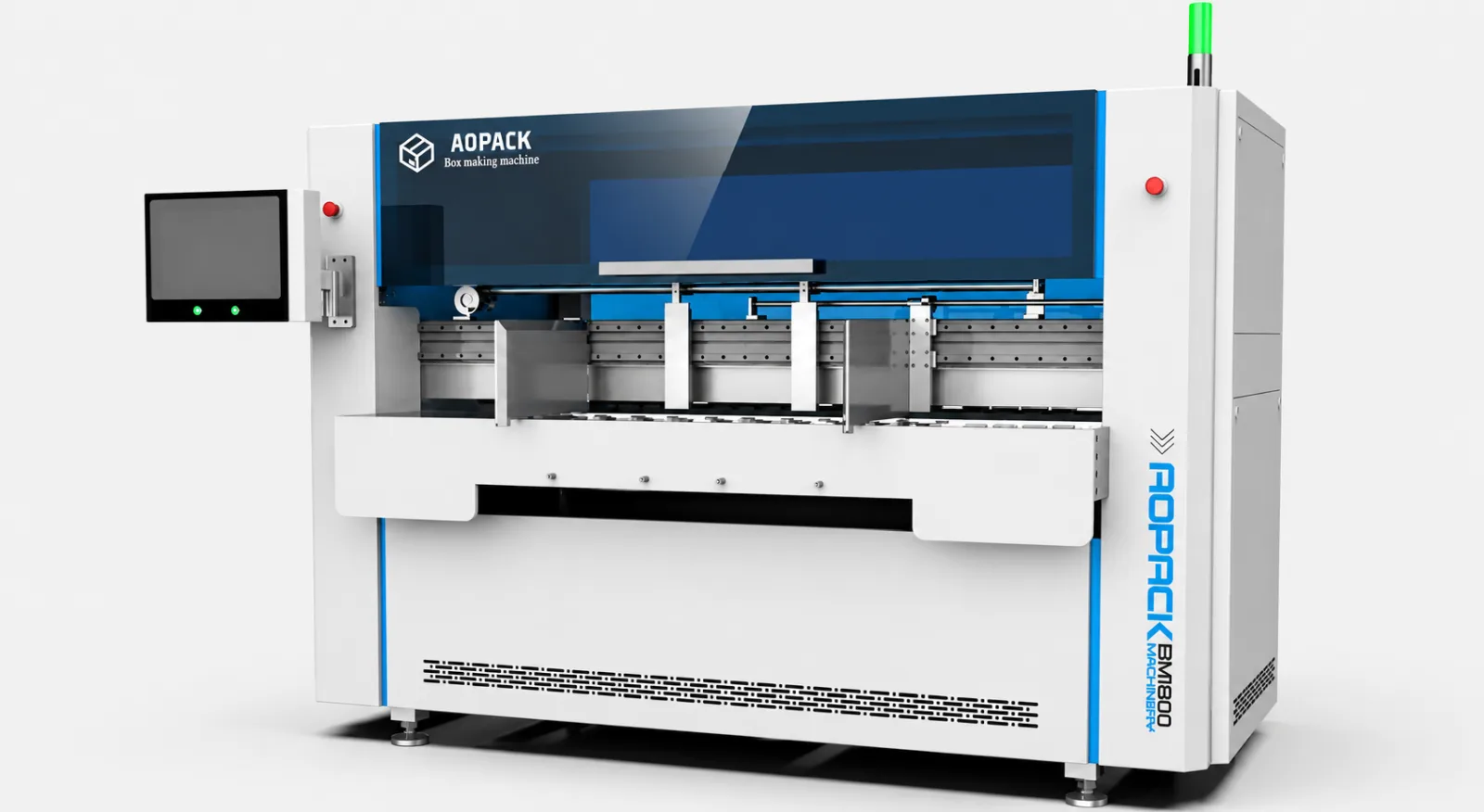

Compact on-demand box machine, sheets up to 1800 mm, 2–10 mm board, 400–600 boxes/hour, order change in 1–6 seconds.

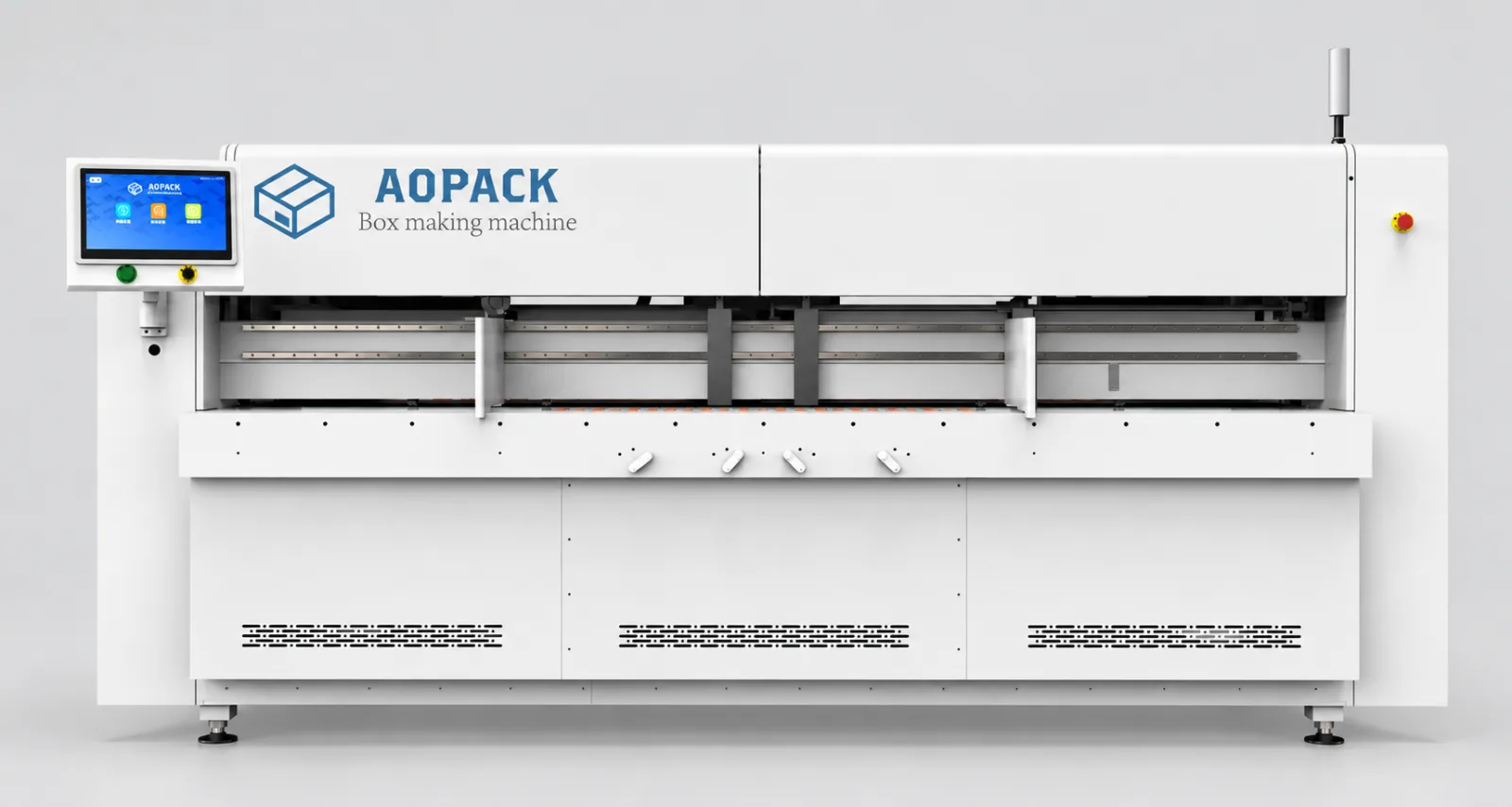

On-demand box machine for sheets up to 2800 mm, 2–10 mm board, 8–15 boxes/minute, creasing on both sides, optional gluing.

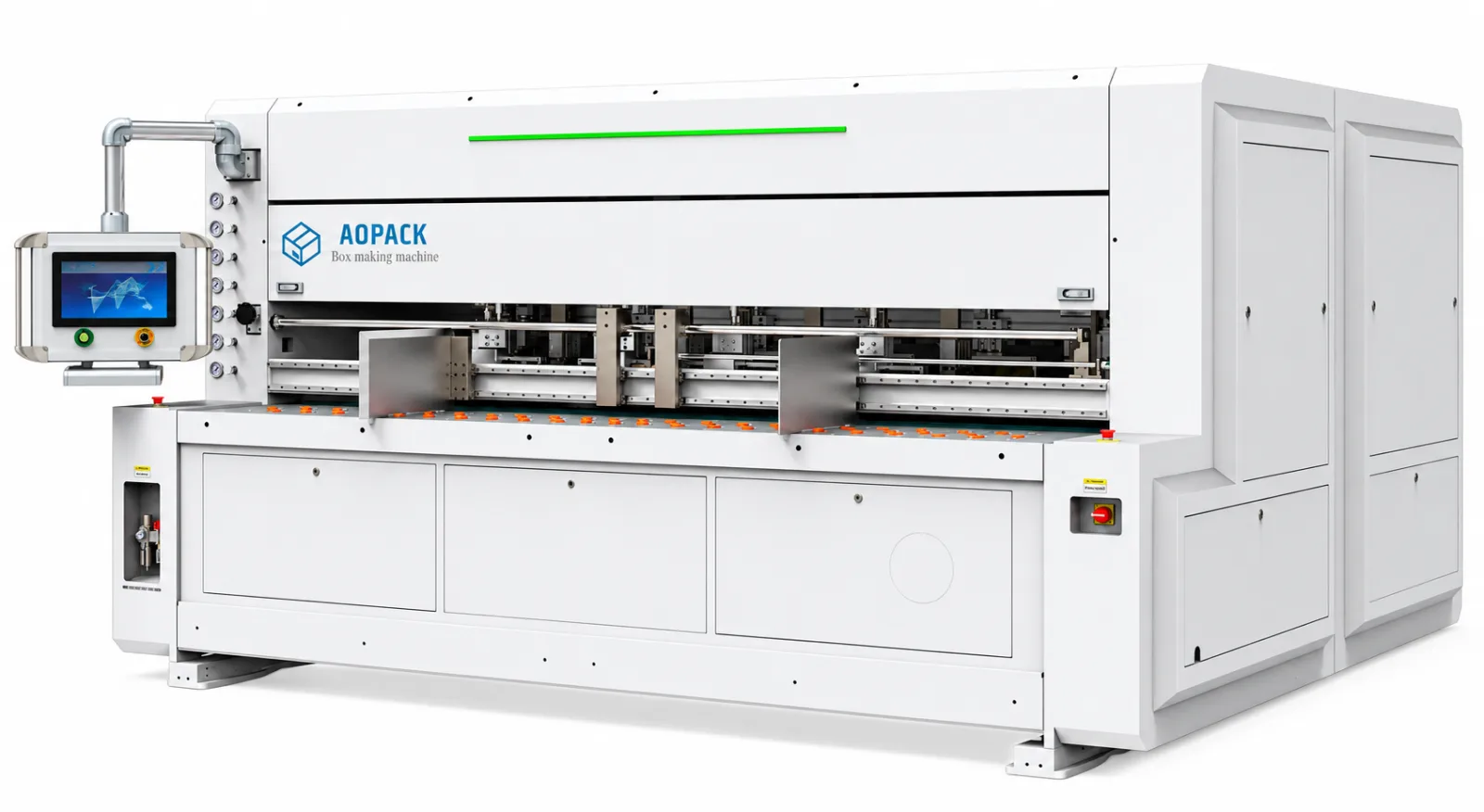

On-demand box machine for 2–16 mm board, sheets up to 2800 mm, built-in gluing, optional single-pass digital printing.

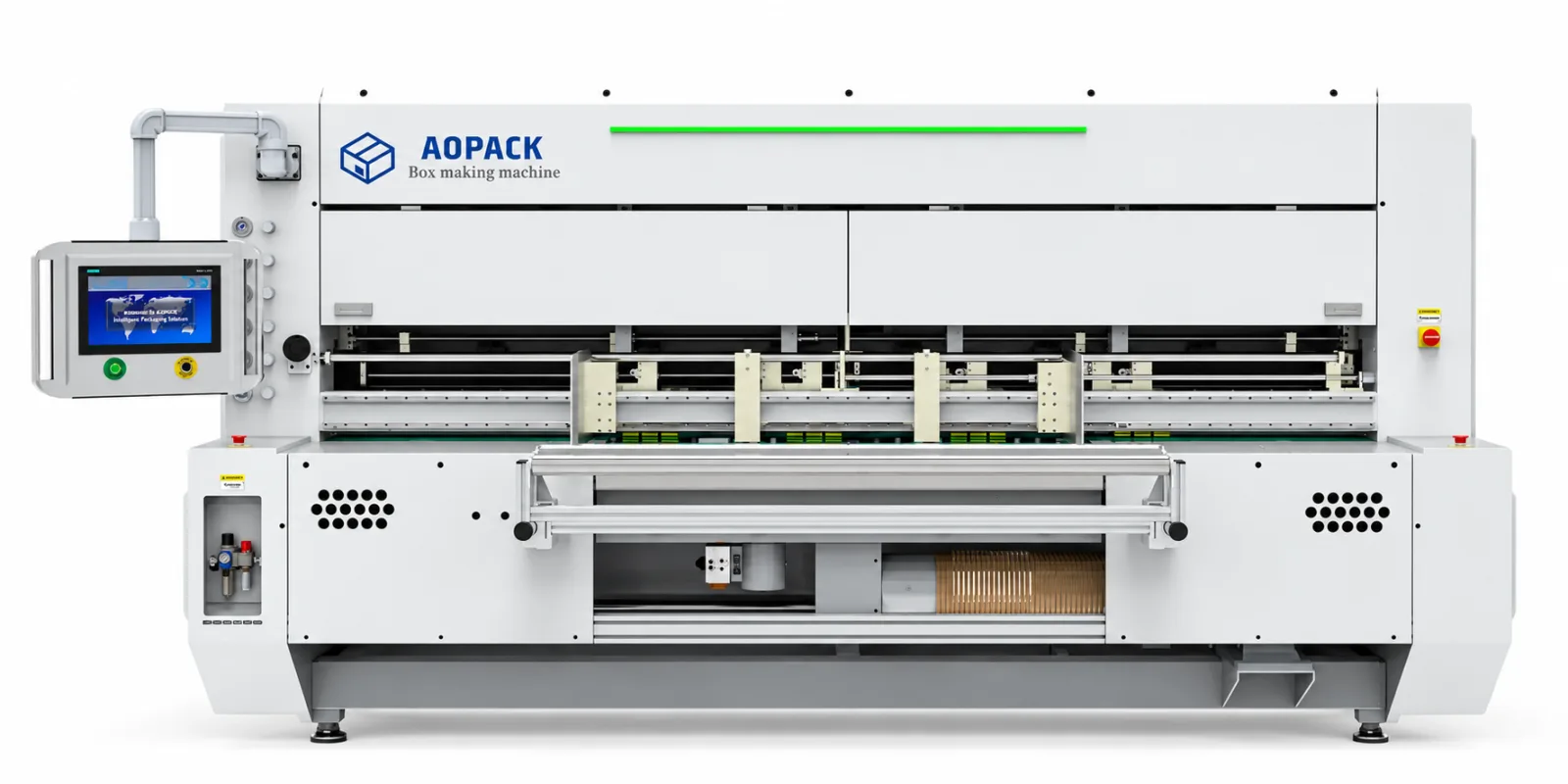

On-demand box machine for sheets up to 3000 mm, 2–16 mm board, 10–16 boxes/minute, handle punching, glue flap pressing.

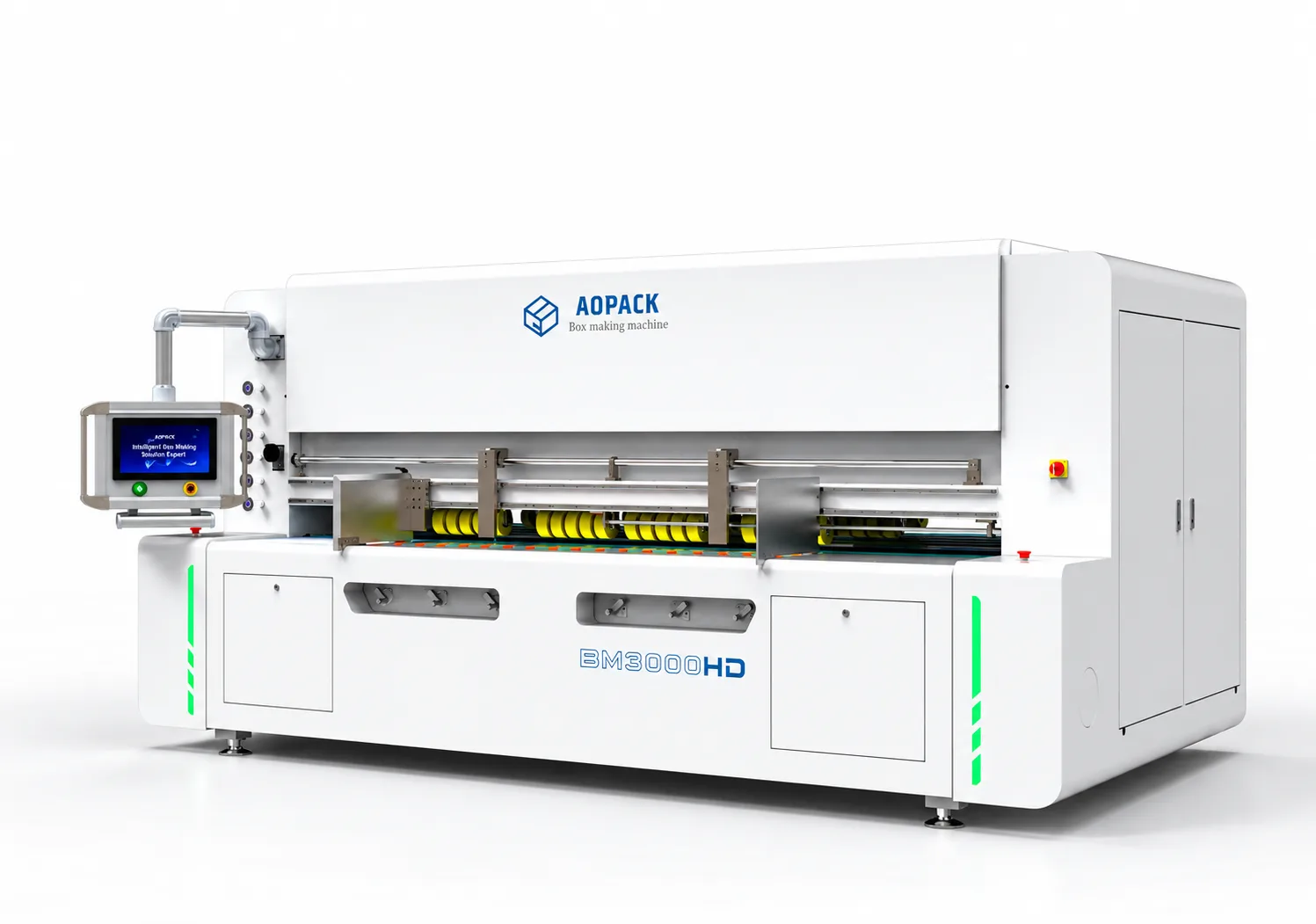

On-demand box machine for sheets up to 3000 mm, 2–16 mm board, 10–16 boxes/minute, creasing on both sides and perforating, optional flexo printing.
