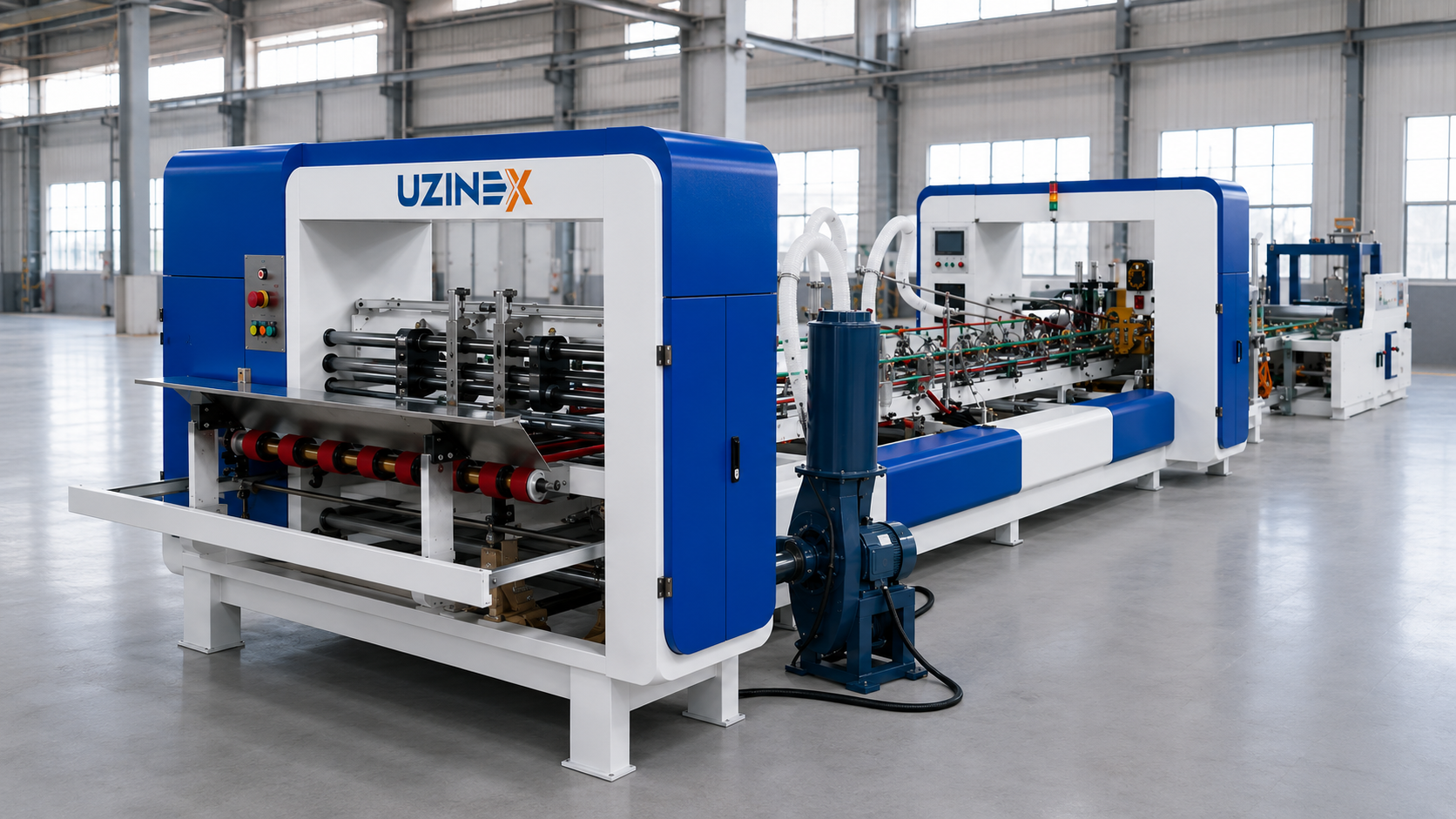

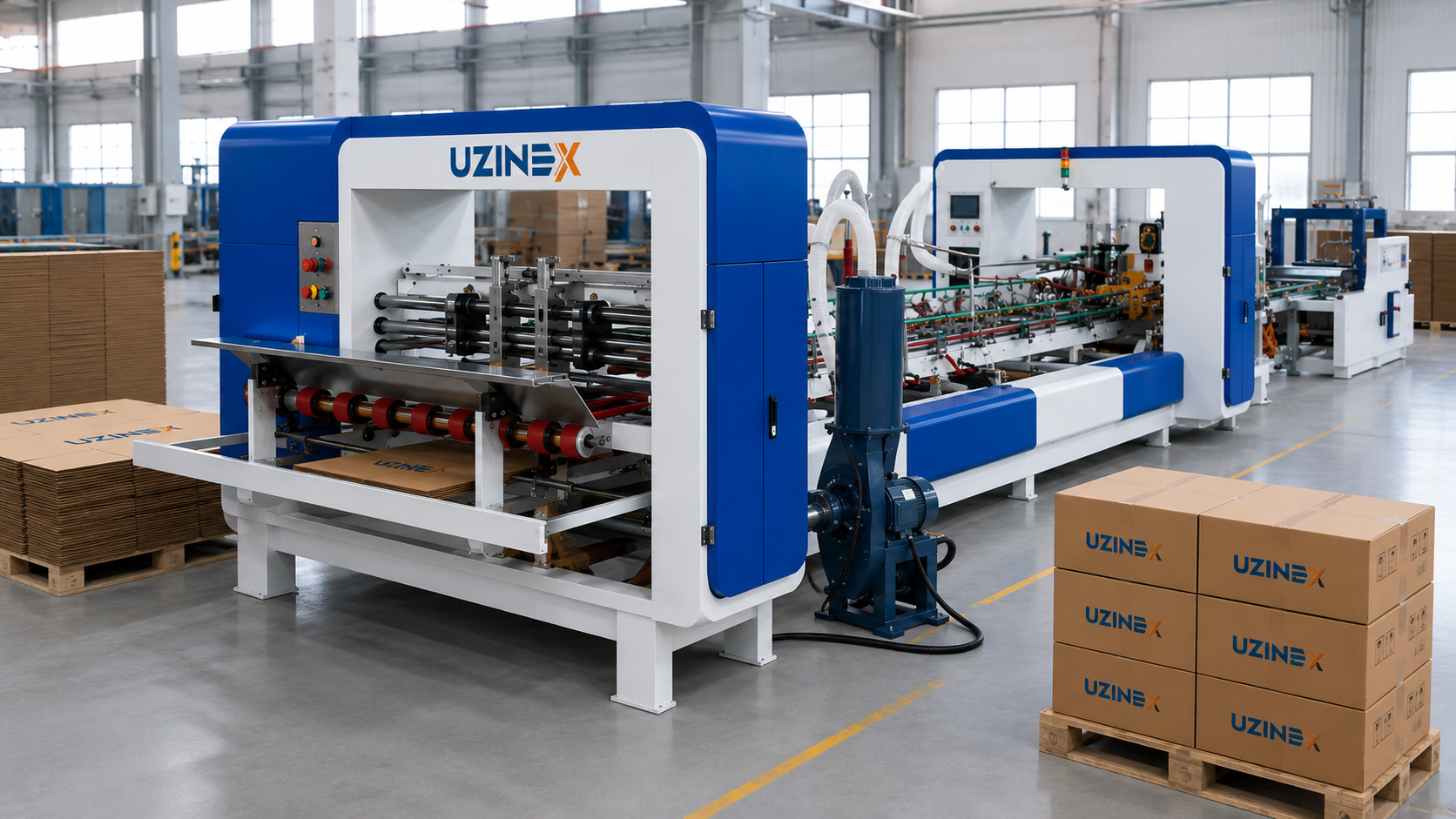

YF-D Series Corrugated Board Box Stitching Machine

The YF-D Series is a fully automatic corrugated board box stitching machine with a down-type insertion structure, PLC touchscreen control and a Taiwan stitching head with a mechanical speed of 600 staples/minute. This corrugated board box stitching machine makes the mechanical joint of the boxes with metal wire staples, suitable for corrugated board with 3, 5 and 7 layers, covering a wide range of industrial packaging requirements where wire stitching is preferred over adhesive gluing.

Compared with the YF-ZD Series, which uses a standard structure, the YF-D Series corrugated board box stitching machine adopts the down-inserting type structure, a different mechanical configuration of the way the box is inserted and processed that makes it suitable for more types of boxes and packaging requirements than the conventional structure. Both series use the same Taiwan stitching head at 600 staples/minute and the same PLC touchscreen control system, with identical technical specifications for format and staple spacing.

Key advantages of the YF-D Series corrugated board box stitching machine

• Down-type structure: suitable for more types of boxes. The down-type insertion mechanical configuration of the YF-D Series corrugated board box stitching machine makes it more versatile than the standard structure, covering box types and flap geometries that cannot be optimally processed in the conventional configuration.

• Taiwan stitching head: 600 staples/minute. The same high-performance stitching head as the YF-ZD Series, imported from Taiwan, reaches 600 staples/minute mechanical speed with constant accuracy in the positioning and penetration of the staples into thick 3, 5 or 7-layer corrugated board.

• Adjustable staple spacing 30–100 mm: the corrugated board box stitching machine allows the stitching density to be adapted to the specific requirements of each application, from dense stitching (30 mm) for heavy products to sparse stitching (100 mm) for light boxes where mechanical strength is less critical.

• Three stitching modes: single, double, one-time. The flexibility of the stitching modes allows adaptation to the different requirements of customers regarding joint strength and wire consumption, with direct switching from the PLC panel without mechanical changes.

• Compatible with 3, 5 and 7-layer board: the YF-D Series corrugated board box stitching machine processes single wall (CO3), double wall (CO5) and triple wall board (CO7 with special specifications), covering the full range of weights used in industrial packaging.

• Vacuum feeding with edge-guide belt: the suction vacuum feeding system ensures that each board sheet enters perfectly aligned relative to the stitching head, with no lateral deviation that would shift the stitching off the assembly flap.

• PLC touchscreen control: job change in a few minutes. Adjusting the box dimensions and staple spacing takes only a few minutes from the touchscreen interface, with no tools or complex mechanical adjustments, allowing frequent format changes with minimal downtime.

• Programmable staple count 1–99 per box: the precise programming of the number of staples per cycle allows optimization of wire consumption and the mechanical strength of each individual order.

Technical specifications of the YF-D1224 corrugated board box stitching machine

The YF-D Series versus the YF-ZD Series: the difference in structure and applications

The YF-D Series and the YF-ZD Series are both corrugated board box stitching machines with the same Taiwan stitching head at 600 staples/minute, the same format specifications, the same PLC touchscreen control system and the same three stitching modes. The essential difference is the mechanical box-processing structure.

The YF-D Series corrugated board box stitching machine uses the down-type insertion structure: the box is inserted and processed from top to bottom relative to the stitching head. This configuration is more suitable for certain flap geometries and box types that cannot be optimally positioned in the standard structure of the YF-ZD. If the specific type of box processed (flap format, board rigidity, joint geometry) works better with down-type insertion, the YF-D Series is the correct technical choice. UZINEX provides free consultancy to determine the right model based on the exact geometry of the customer's box.

Applications and industries for the YF-D Series corrugated board box stitching machine

The YF-D Series corrugated board box stitching machine is intended for industrial packaging plants that assemble thick cardboard boxes through wire stitching, with the down-type structure extending versatility over models with standard insertion. It is used for heavy industrial packaging: metal parts, automotive components, tools, agricultural equipment and heavy products where the mechanical strength of the wire staples is superior to adhesive gluing.

Manufacturers of packaging for export and storage at extreme temperatures prefer this corrugated board box stitching machine because the metal-staple joint is not affected by temperature variations: hot-melt adhesives become brittle in the cold and soften in the heat, while galvanized wire staples maintain a constant mechanical strength from -30°C to +60°C.

Plants that simultaneously process several types of boxes with different flap geometries benefit from the versatility of the down-type structure of the YF-D Series corrugated board box stitching machine over models with standard insertion, reducing the need to use separate equipment for formats that do not fit the conventional model.

How the YF-D Series corrugated board box stitching machine works

1. Vacuum feeding and automatic alignment: the pre-die-cut blanks are fed through the suction vacuum feeding system; the edge-guide belt ensures precise alignment relative to the stitching head, preventing lateral deviation that would shift the stitching off the flap.

2. Parameter programming on the PLC touchscreen: the operator selects the stitching mode, the number of staples (1–99), the staple spacing (30–100 mm) and the box dimensions directly from the touchscreen interface in a few minutes, with no tools or mechanical adjustments.

3. Down-type insertion and box positioning: the down-type structure of the YF-D Series corrugated board box stitching machine positions the box from top to bottom relative to the stitching head, ensuring optimal head access to the assembly flap for box geometries that are not compatible with standard insertion.

4. Automatic stitching at 600 staples/minute: the Taiwan stitching head makes the stitch at a mechanical speed of 600 staples/minute, with a stitching-tab length of 35–40 mm ensuring complete penetration through the thickness of the 3, 5 or 7-layer corrugated board.

5. Distance and stitching-density adjustment: the distance between staple groups (30–80 mm) and the adjustable staple spacing (30–100 mm) are set from the PLC; the stitching density is adapted to the weight of the packaged product and the box's strength requirements.

6. Automatic stacking and bundling into stacks: the finished stitched boxes are stacked and bundled automatically into stacks for shipping, completing the production cycle with no manual intervention at the output.

Frequently asked questions about the YF-D Series corrugated board box stitching machine

What specific types of boxes benefit from the down-type structure over the standard structure?

The down-type structure of the YF-D Series corrugated board box stitching machine is advantageous for boxes with long flaps or asymmetric joint geometries, where the stitching head must access the assembly flap from a different angle than on models with standard insertion. Also, boxes with high rigidity (thick triple wall board) that do not flex enough to adapt to standard insertion benefit from the down-type configuration, which does not impose the same mechanical-flexibility requirements on the material. UZINEX recommends testing with the customer's specific format to confirm whether the YF-D or YF-ZD is the optimal solution.

Can I use the same wire for the YF-D as for the YF-ZD?

Yes, both models use the same type of standard galvanized wire for industrial corrugated board stitching, available from the same consumable suppliers. The Taiwan stitching head is identical on both models, so the consumables (wire, stitching-head wear parts) are fully interchangeable between the YF-D1224 and the YF-ZD1224. Plants that own both models can manage a single consumables stock for both pieces of equipment.

How often does the Taiwan stitching head require maintenance?

The Taiwan stitching head of the YF-D Series corrugated board box stitching machine is designed for continuous industrial production. Regular maintenance includes periodic lubrication of the staple-forming mechanism, checking and replacing the wire-cutting blade and monitoring the wire tension in the feeder. UZINEX includes in the AI smart manual a detailed preventive-maintenance schedule specific to the YF-D1224 model and ensures the availability of spare parts for the stitching head.

How do I concretely decide between the YF-D and the YF-ZD for my plant?

The decision is based on the predominant geometry of the boxes processed. The YF-ZD (standard structure) is the choice for standard FEFCO 0201 boxes with uniform flaps and medium board rigidity, most common industrial applications. The YF-D (down-type structure) is indicated if the portfolio includes boxes with long flaps (over 200 mm), asymmetric joint geometries (special shipping boxes, non-FEFCO formats) or very rigid triple wall board that does not flex in the standard structure. Practical recommendation: if over 30% of orders have boxes with non-standard geometry, the YF-D justifies the choice; below this threshold, the YF-ZD covers most cases at a similar investment cost.

Does it make sense to own both the YF-D and the YF-ZD in the same plant?

Yes, the dual configuration is an optimal solution for large industrial packaging plants that process a mixed portfolio: the YF-ZD for the main flow of standard FEFCO boxes and the YF-D for orders with special geometry or extra-rigid board. Concrete advantages: fully interchangeable consumables (the same wire, the same wear parts for the Taiwan head), operators qualified on both pieces of equipment without additional training (the PLC interface is identical), and operational redundancy in case of unexpected maintenance on one machine. The typical threshold for a dual setup is over 200,000 boxes/year with a mixed portfolio.

Can the Taiwan stitching head be replaced/repaired locally or must it be returned to the manufacturer?

The wear components of the stitching head (wire-cutting blade, staple guide, wire-feeding mechanism) are replaceable locally by the UZINEX technical team or by the plant's qualified operators, with original spare parts supplied by UZINEX from its own stock. Major repairs that require complete disassembly of the head are rare (the Taiwan mechanism is designed for a service life of 5–8 years under normal use) and are handled by UZINEX with intervention within a maximum of 36 hours under the 60-month extended warranty contract.

Is the YF-D Series corrugated board box stitching machine eligible for EU-funded projects?

Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for EU-funded projects: NRRP, the Regional Program, the Just Transition Program. The YF-D Series corrugated board box stitching machine can be included in funding applications for production automation and modernization of industrial packaging lines. The versatility of the down-type structure for non-standard formats represents a technological-innovation argument in funding applications. UZINEX provides the complete technical documentation for public procurement procedures and tenders.

Why UZINEX for a corrugated board box stitching machine

• Free technical consultancy: YF-D vs YF-ZD and gluing vs stitching. UZINEX evaluates the box geometry, the type of board, the weight of the packaged product and the conditions of use to recommend the down-type structure (YF-D) or the standard structure (YF-ZD), or an adhesive gluing method if that is more suitable.

• Transport, installation and commissioning included free of charge: the corrugated board box stitching machine is delivered, installed and started at the customer's site by the UZINEX technical team, with calibration of the stitching head for the board and wire used and complete operator training.

• Extended 60-month warranty: one of the longest warranties available in Romania for automatic industrial stitching machines, with technical support included for the entire warranty period and availability of spare parts for the Taiwan stitching head.

• National technical support in under 36 hours: on-site intervention or video diagnostic session in less than 36 hours from report, with a dedicated 24/7 telephone line for UZINEX customers.

• AI smart manual included: complete usage, preventive-maintenance and troubleshooting documentation with AI assistance, capable of instantly resolving over 96% of technical requests without human intervention.

• Full eligibility for European funding: UZINEX provides the documentation and full support for EU-, NRRP- or structural-funds procurement, including for public tender procedures.

The YF-D Series corrugated board box stitching machine is the industrial solution for packaging plants that assemble 3, 5 and 7-layer cardboard boxes through mechanical wire stitching in the down-type configuration, more versatile than models with standard insertion, with a Taiwan stitching head at 600 staples/minute, three stitching modes, adjustable spacing 30–100 mm, anti-deviation vacuum feeding and PLC touchscreen control for fast format change.
