UZX-017CNC for furniture

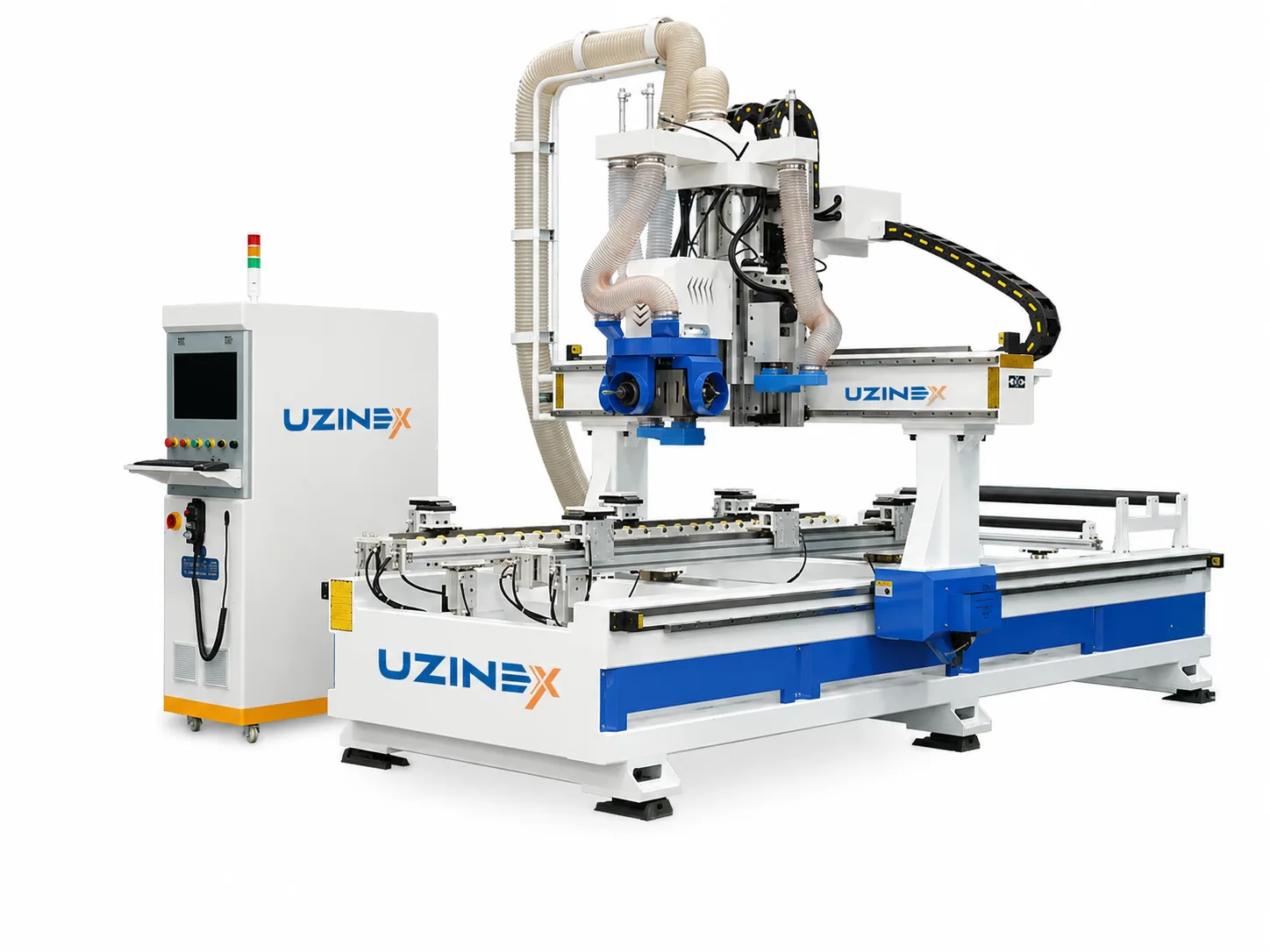

CNC Machine for Drilling Lock and Hinge Holes on Wooden Doors
The CNC router for drilling door lock holes is mainly used for processing wooden doors…
Furniture CNC automates the critical plant operations: nesting with board optimisation and automatic part labeling, double-head 6-side boring, and hinge/lock recess milling, built for continuous panel flow and integration with your design software.
The CNC router for drilling door lock holes is mainly used for processing wooden doors…

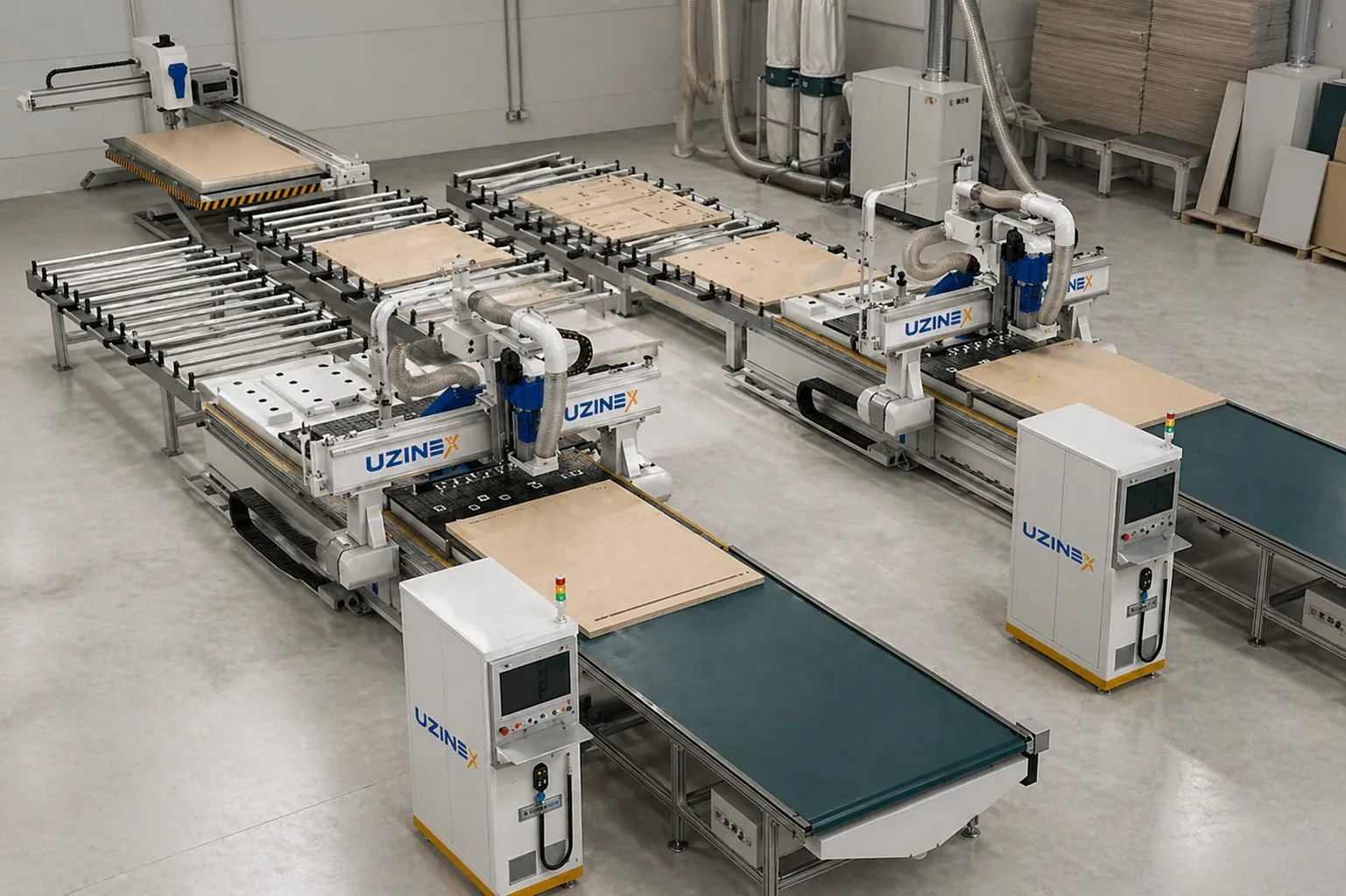

The CNC nesting cell for furniture: two ATC routers, high-speed automatic labelling, 240 panels/8h, central control…

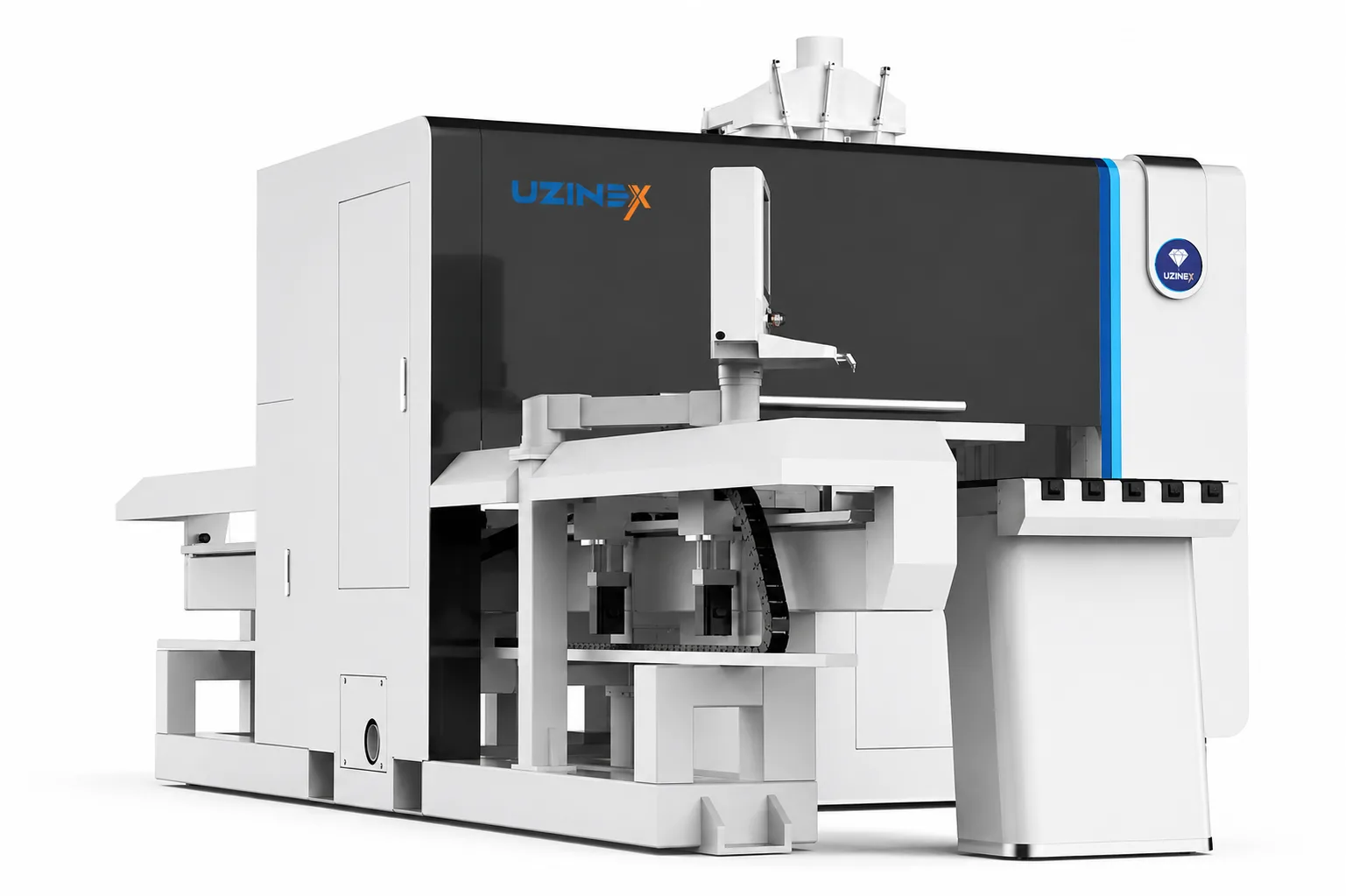

The six-sided CNC drilling machine is the ideal solution for panel furniture production, offering automation…

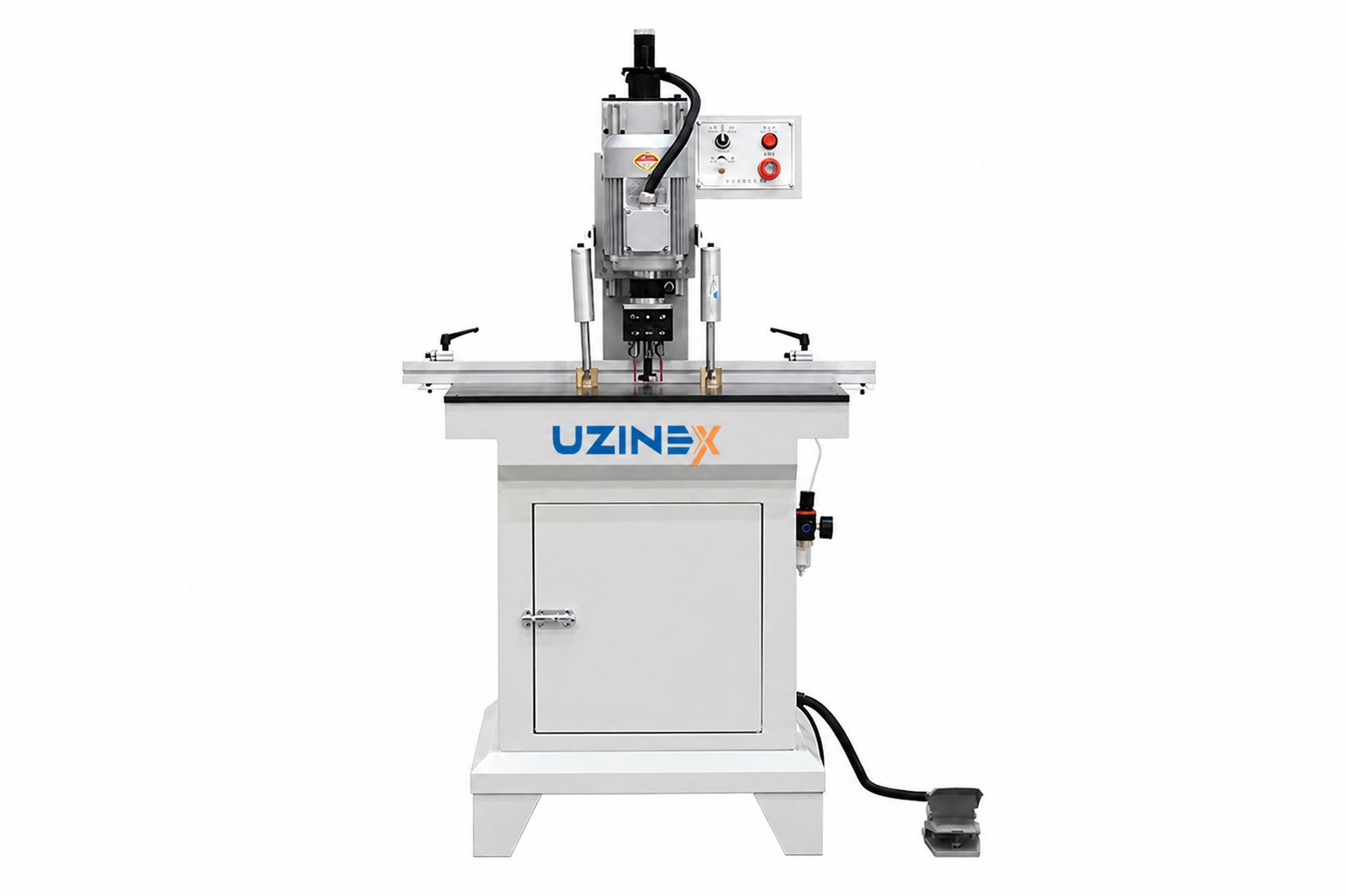

Purchase the CNC hinge drilling equipment, ideal for furniture manufacturing.

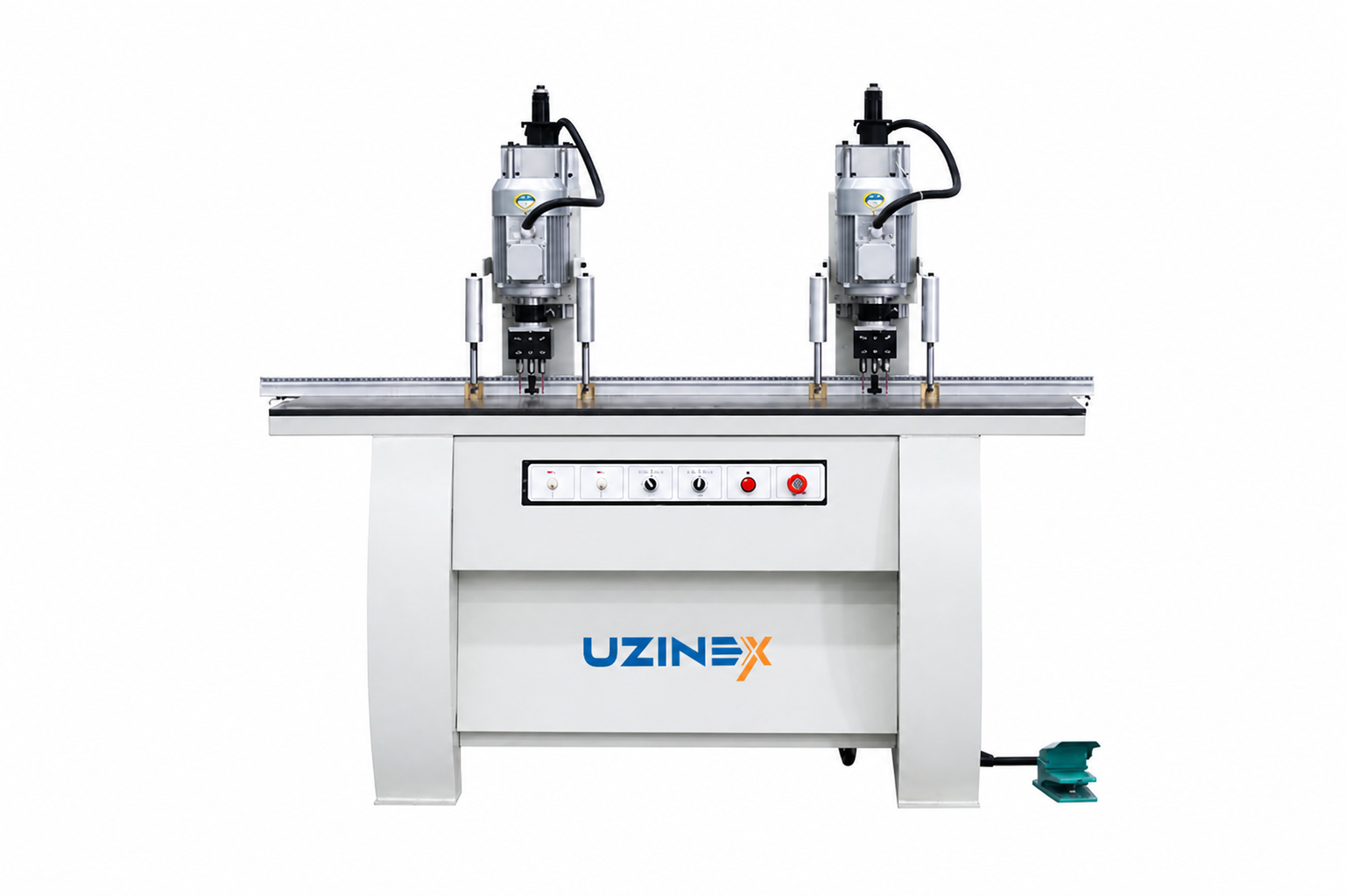

This double-head hinge drilling machine offers flexibility and precision for processing wooden furniture, being i…

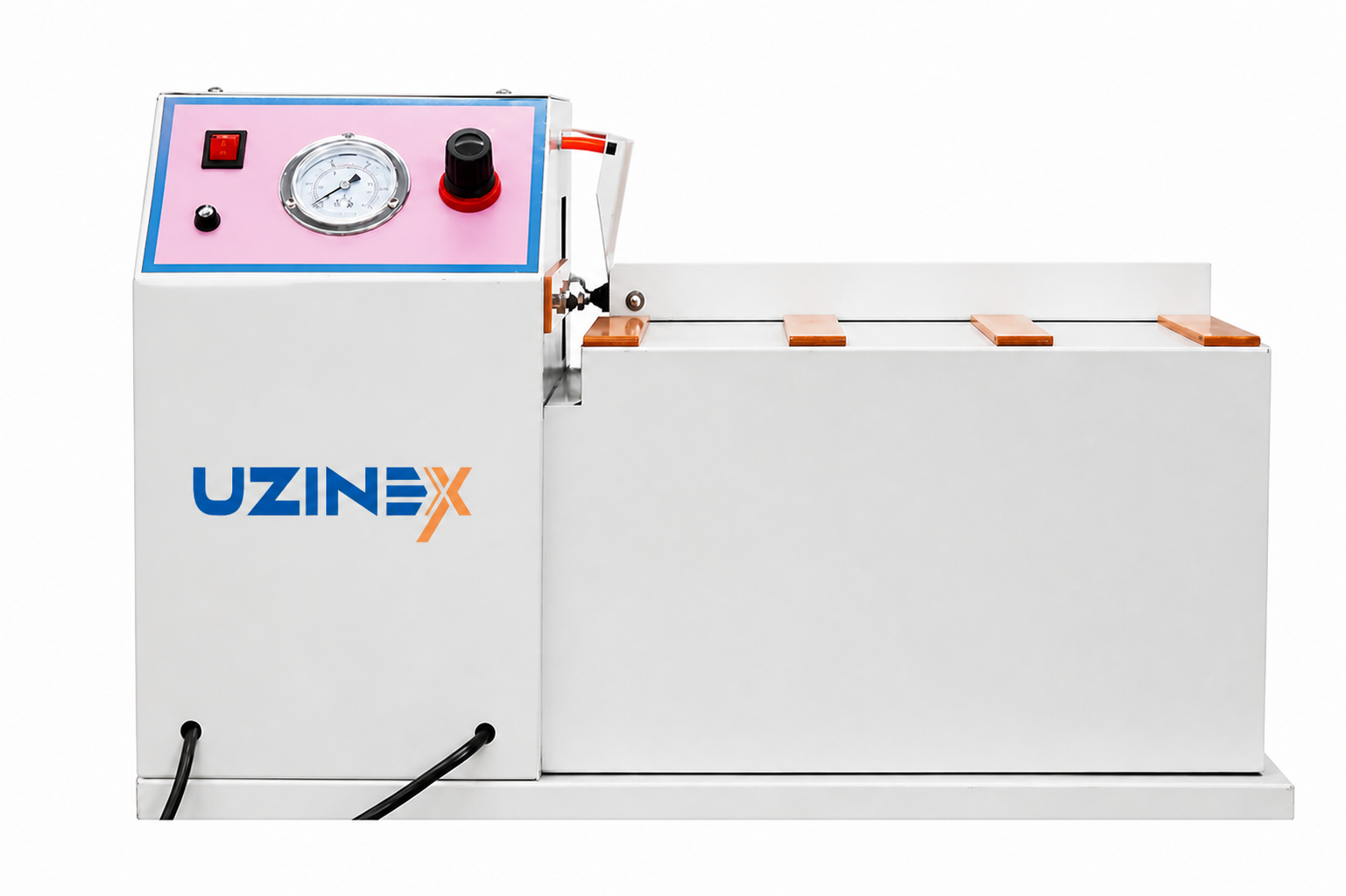

The corner profiling and trimming machine for furniture production is a CNC furniture machine that can chamfer and tr…

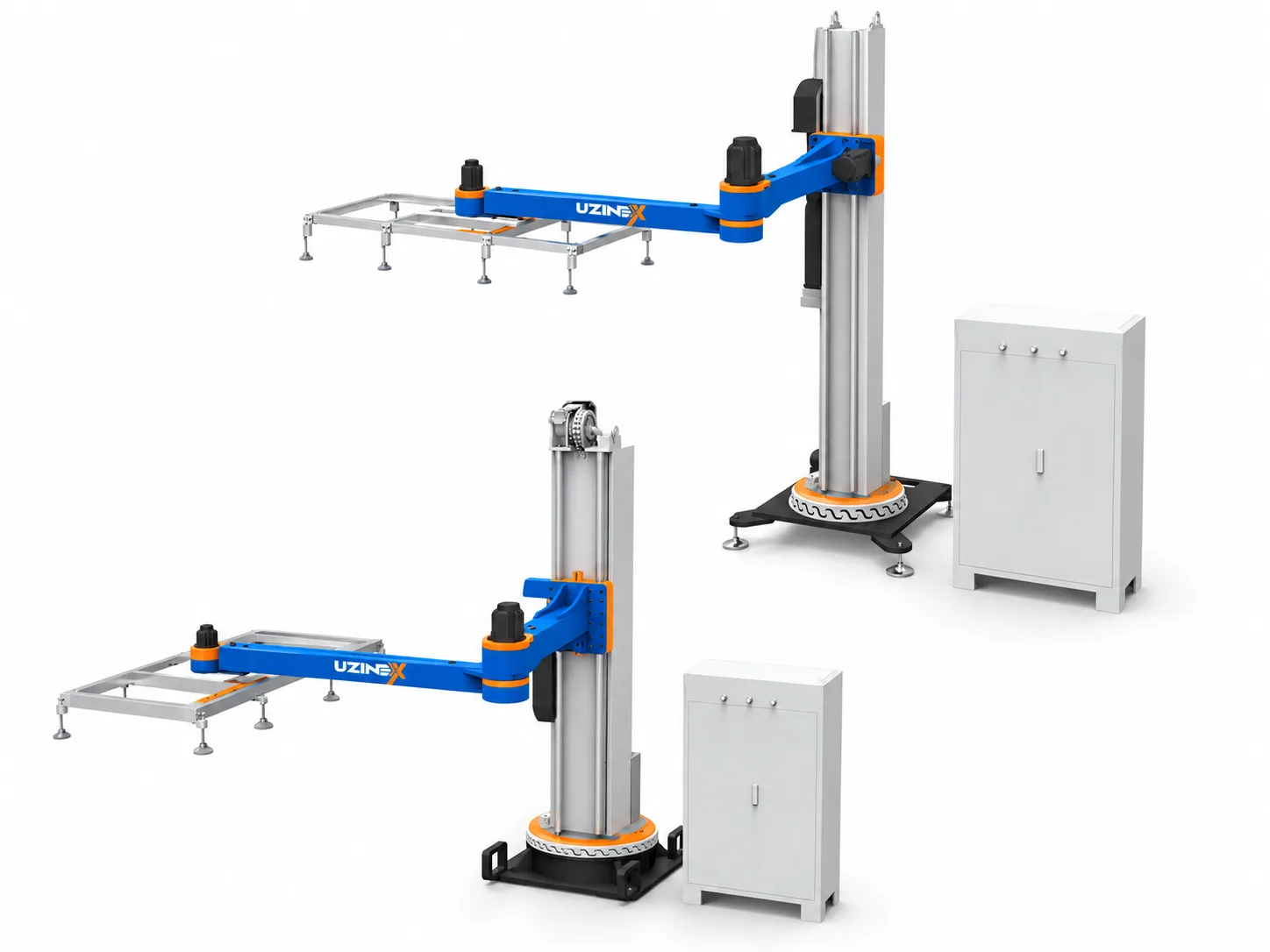

Industrial column robot arm with 4 axes for automatic loading of CNC panel nesting machines. Payload 50–150 kg, arm 2200–3300 mm, rotation radius 2400–3500 mm, J1 rotation 360°, 8 silicone vacuum cups. Four models: UZX-S4, S4por, S4plus, S4mini.

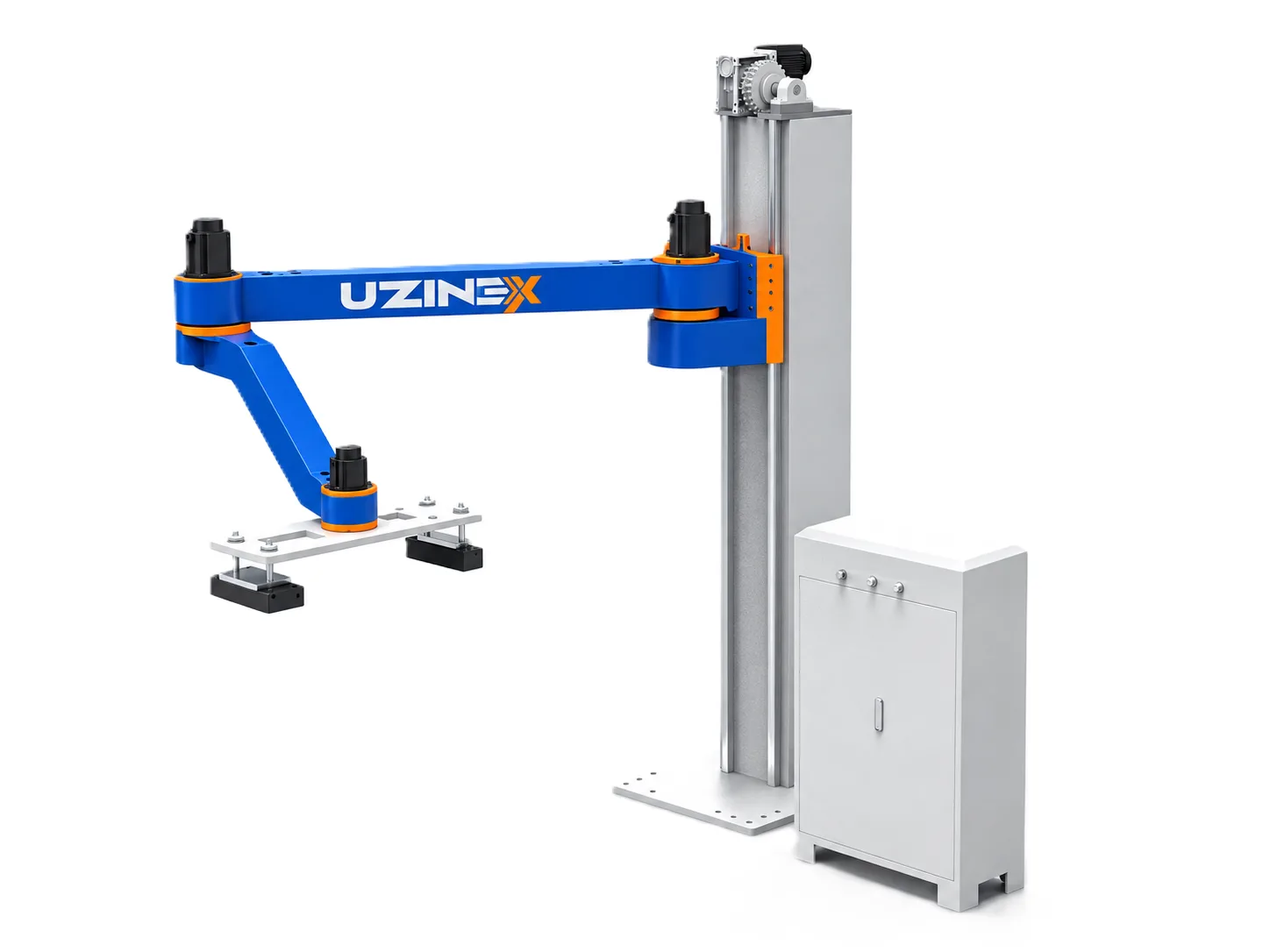

Industrial column robot with 4 axes for breaking down panel stacks and feeding the cutting line. Payload 50 kg, arm 3000 mm, radius 3000 mm, J1 rotation ±90°, sponge vacuum cups 60×340 and 130×350 mm, 220 V supply.

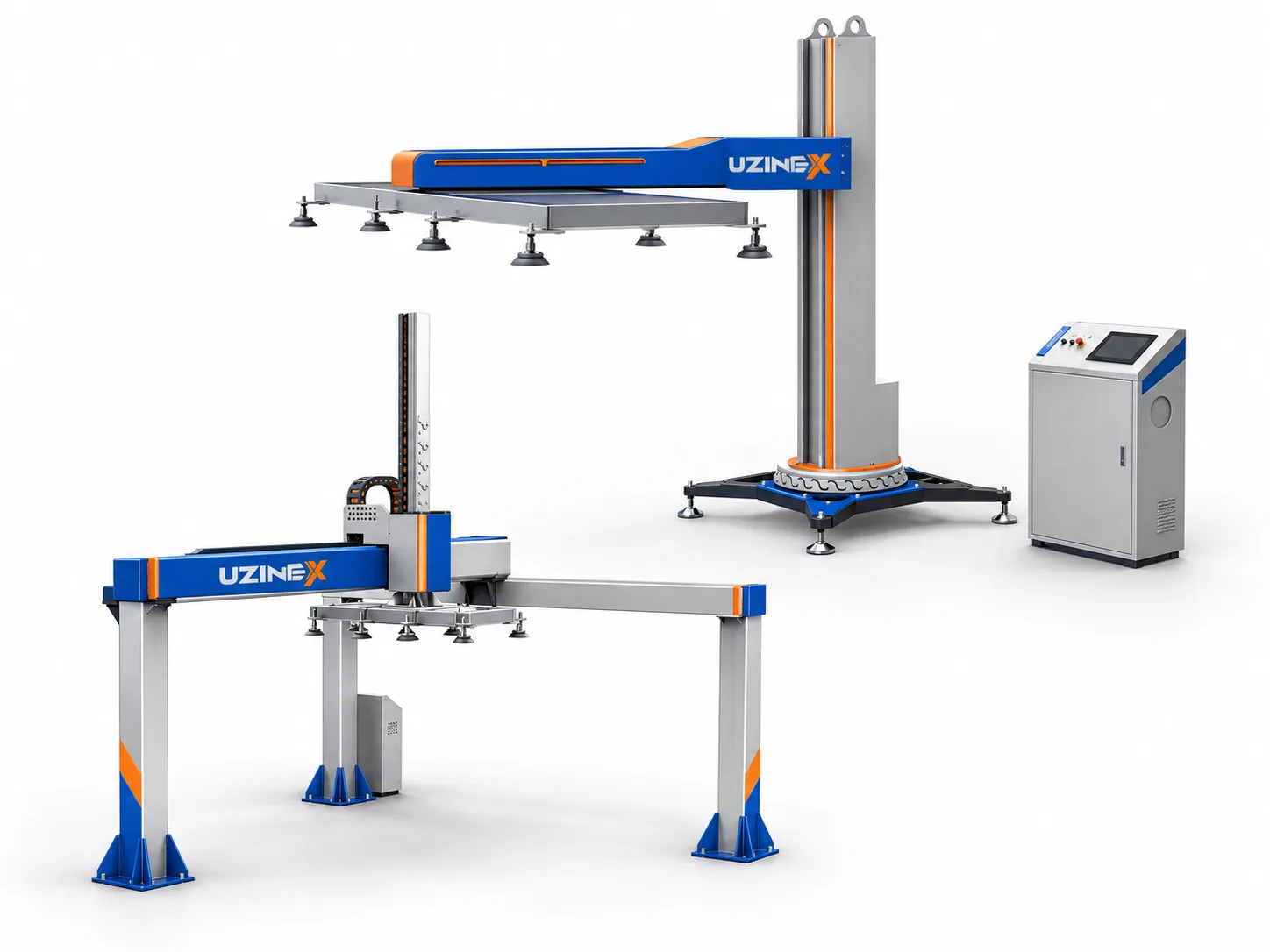

Industrial manipulator for serving CNC machines, in two versions: UZX-H3, a gantry over the line with a 2900 mm transfer travel, and UZX-S3, a column with −270° to +270° rotation. Both 100 kg payload, 1600 mm lift, 8 silicone vacuum cups, 220 V.

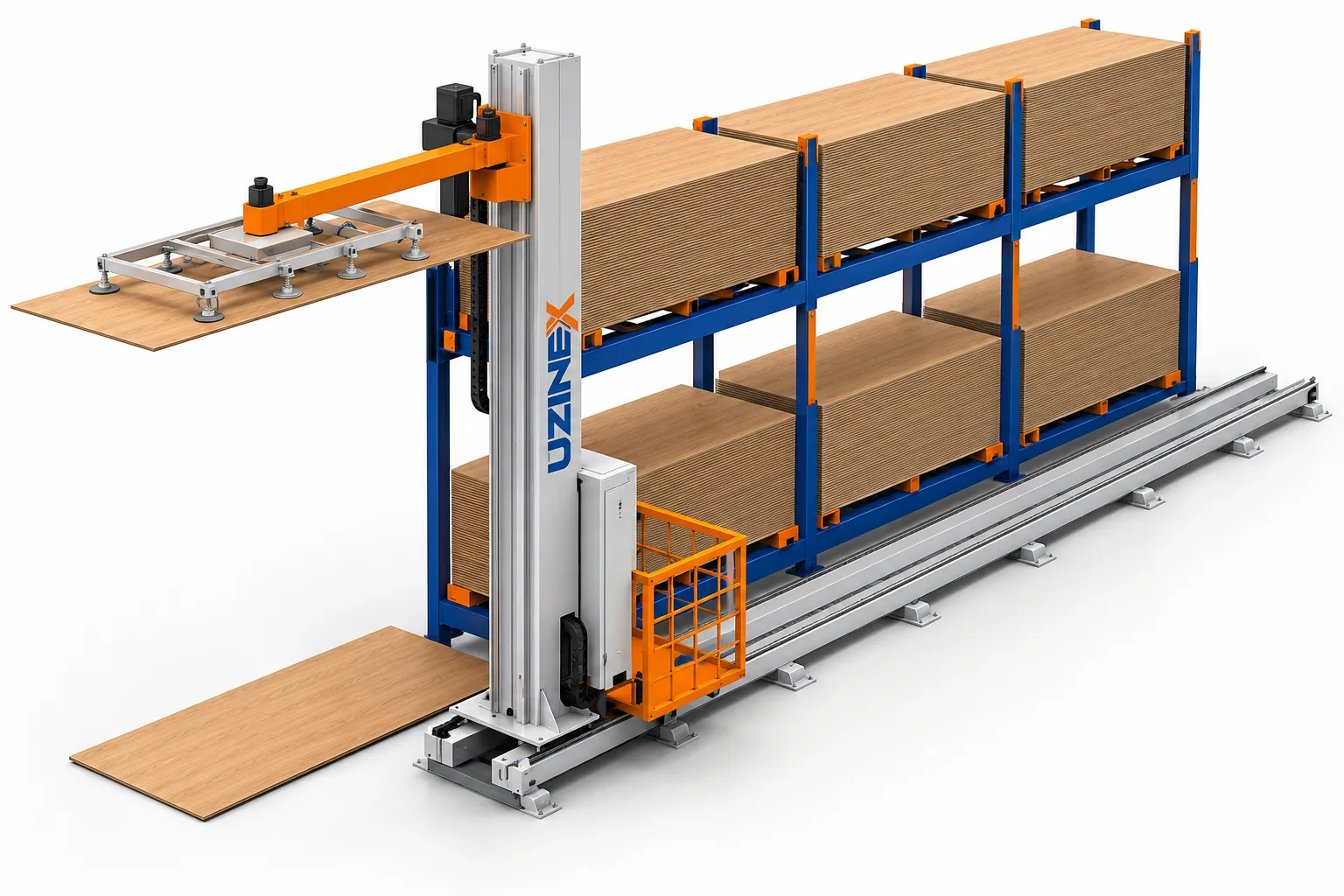

Automated vertical storage system for chipboard and MDF panels, with racking and a rail-mounted manipulator. Payload 100 kg, lift stroke 3300 mm, radius 3000 mm, rail length on request, height 4400 mm, 380 V supply.

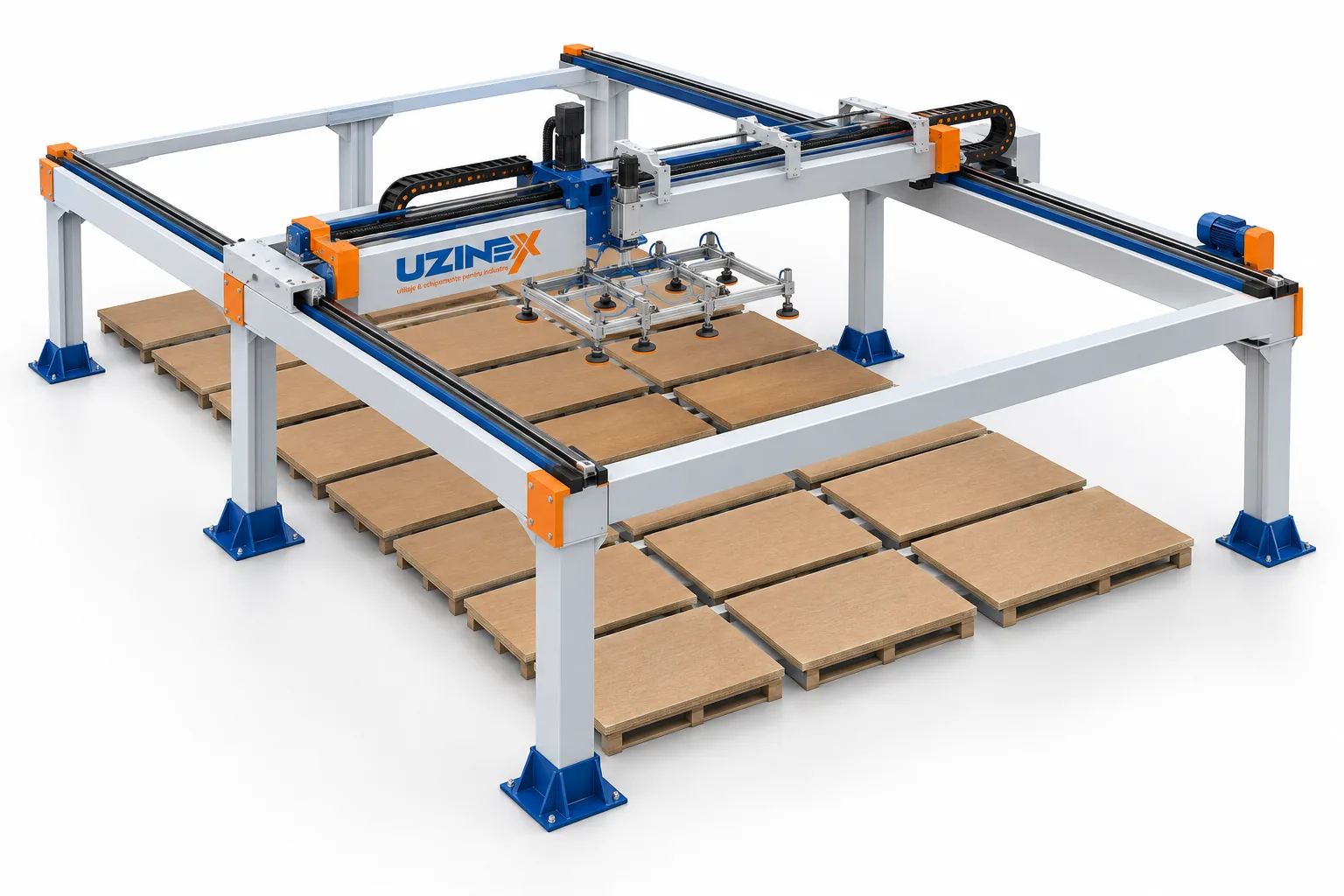

Automated planar storage system for chipboard, MDF and sheet metal, with a gantry covering an area of 11×18×4 m. Payload 100 kg, travels 9500 × 16000 × 1500 mm, head rotation ±90°, 8 silicone vacuum cups, 380 V supply.

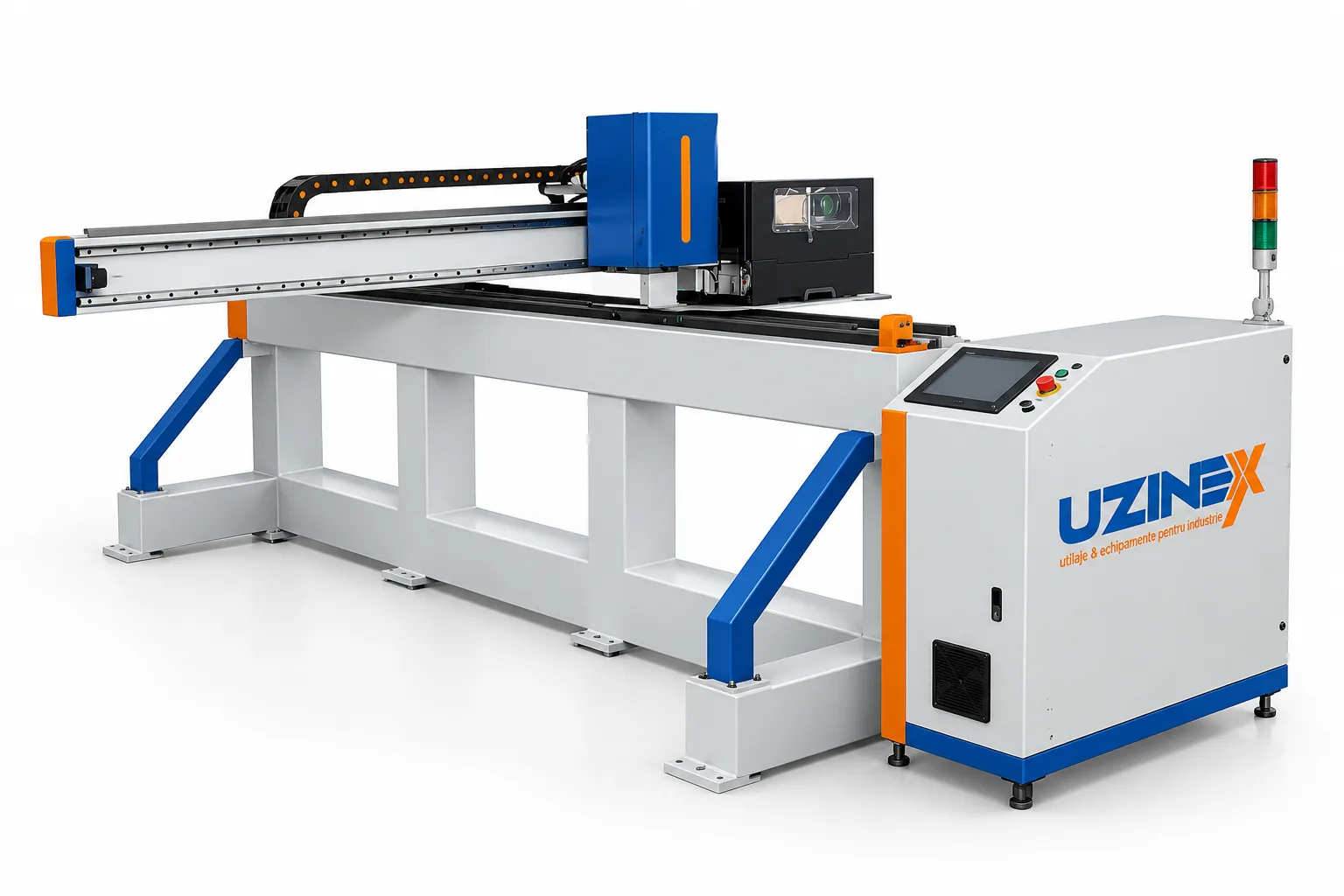

Automatic labelling machine for chipboard and MDF panels, with an XY gantry and Leisai PLC. Label application range 1220×2800 mm, travels 1300 and 3000 mm, machine envelope 2300×4000 mm, 3.5 to 5 seconds per label.

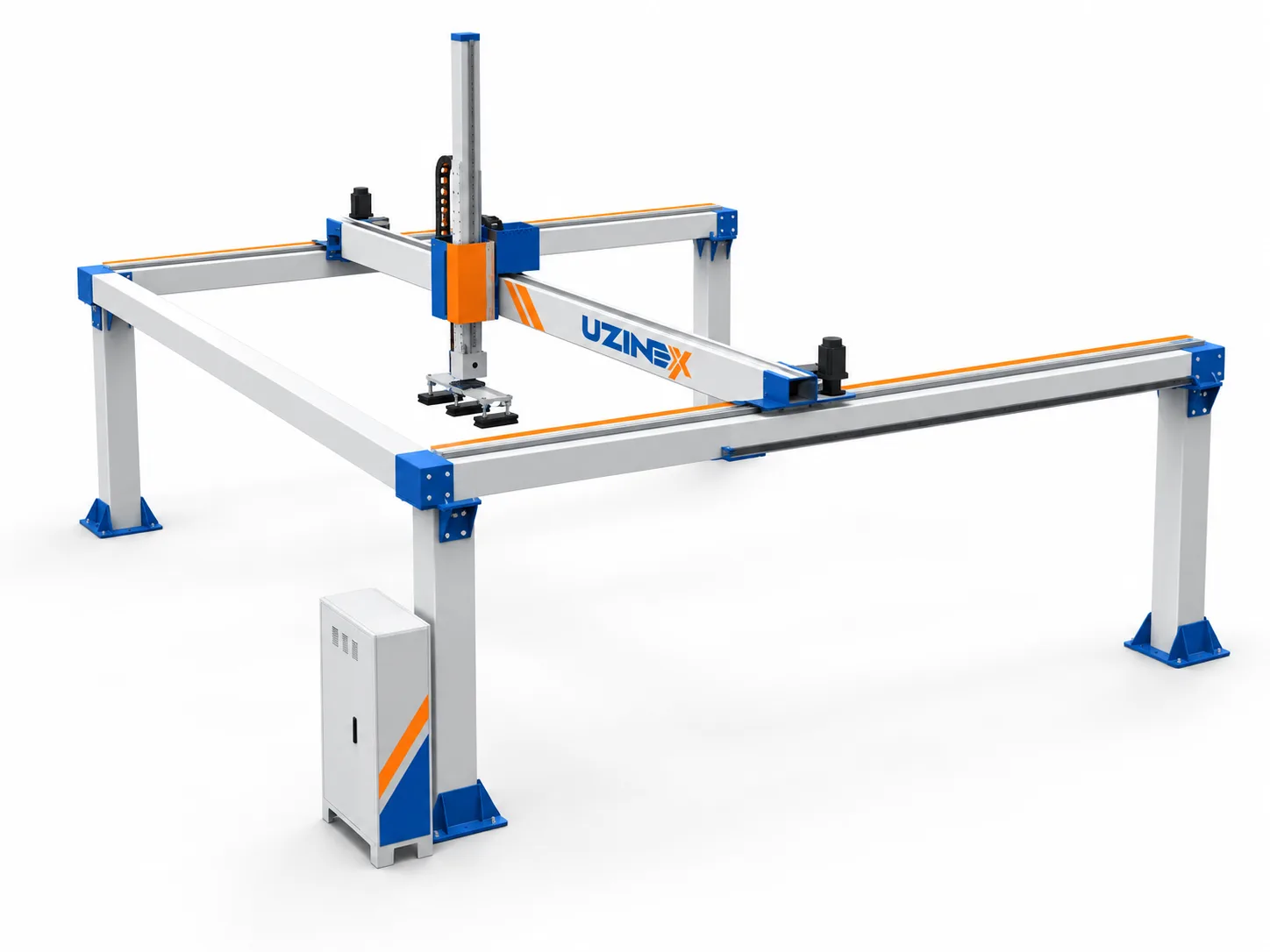

Industrial gantry robot with 4 axes for picking and sorting cut parts. Area served 8×7×4.8 m, travels 6000 × 4500 × 1500 mm, head rotation 180°, payload 50 kg, sponge vacuum cups, 380 V supply.
Multi-function CNC line for solid wood billiard table frames: cutting to width and length, drilling, milling, automatic loading and unloading.
