UZX-915Beam cutting and drilling

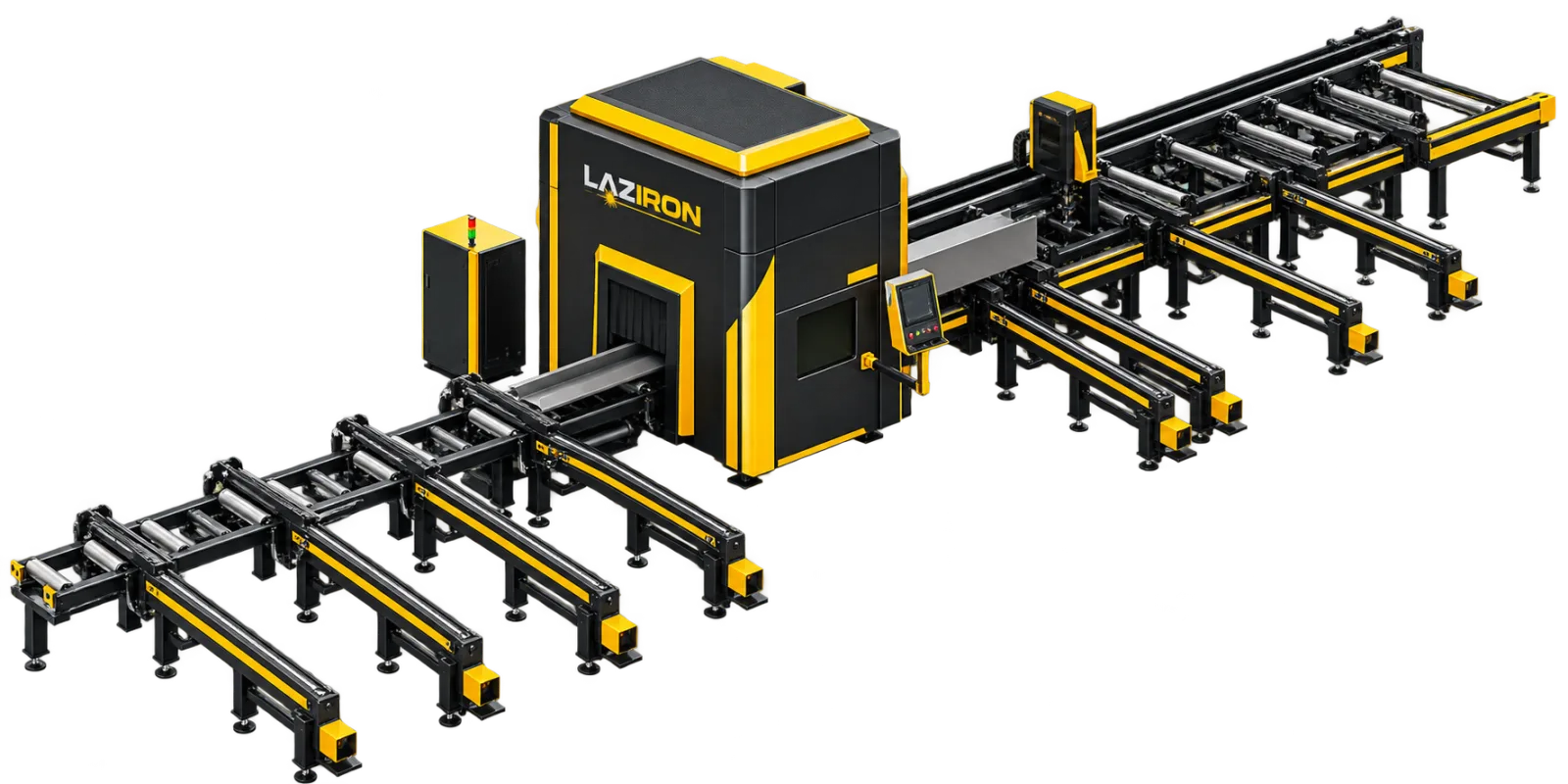

H-beam and profile laser cutting line LAZIRON XHJG
20 kW H-beam laser cutting line for H, I, U beams: cutting, holes, cut-outs, ±45° bevelling and marking in one pass. 60-month warranty, installation included.
Steel structure machinery covers the flow of a steel fabrication plant, from cutting to painting: cutting and drilling of H-beams and sections, CNC cutting of large diameter pipes, assembly, welding and straightening of H-beams and box girders, machines for the U-ribs of steel bridges, the automatic painting line and auxiliary equipment, from turnover devices to C and Z purlin roll forming.
The machines come from the LAZIRON range and are configured for your parts. Delivery, installation with commissioning and operator training are included in Romania, and pricing is by quote.
20 kW H-beam laser cutting line for H, I, U beams: cutting, holes, cut-outs, ±45° bevelling and marking in one pass. 60-month warranty, installation included.

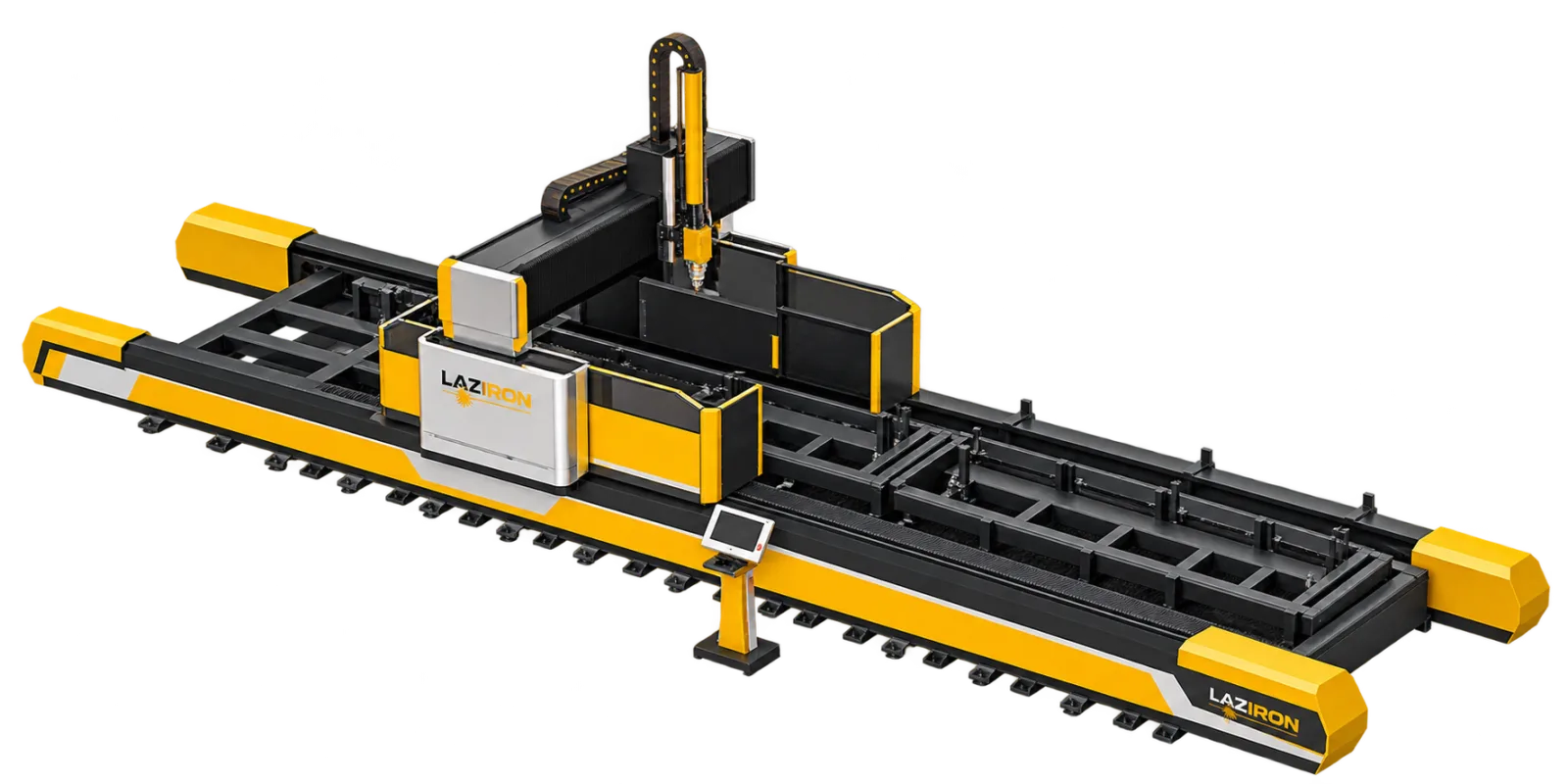

20 kW gantry sheet and profile laser cutting machine: 3 × 12 m sheet, H, I and U beams, ±45° bevelling. 60-month warranty, installation and training included.

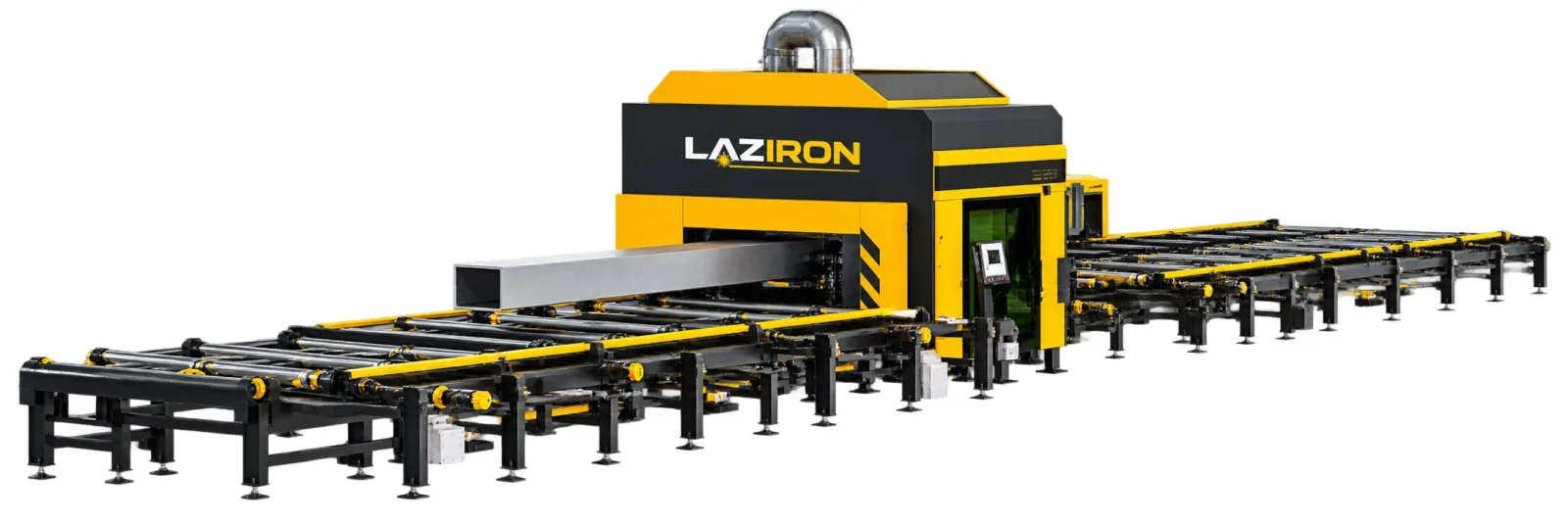

CNC H-beam plasma cutting centre for webs of 200–1250 mm: 3D cutting, holes, cut-outs and ±45° bevelling on 1–45 mm. 60-month warranty, installation included.

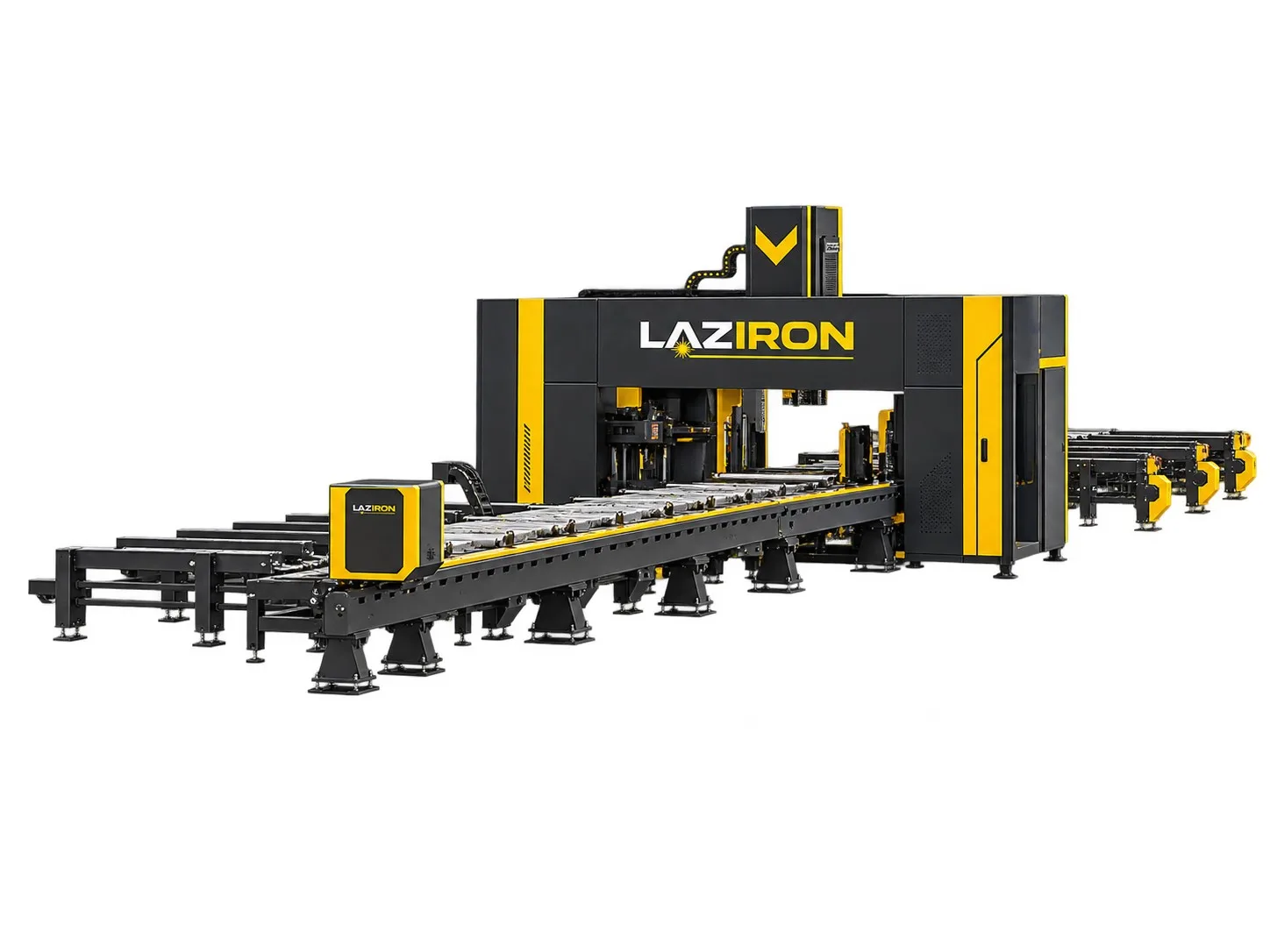

3D CNC beam drilling machine for H-beams with webs of 200–1250 mm: 3 spindles of 15 kW, holes of 8–40 mm, 12 m or 15 m. 60-month warranty.
8-axis CNC pipe cutting machine, plasma and oxy-fuel: intersections and bevels on round pipes of 60–800 mm and square of 80–500 mm. 60-month warranty.
CNC round pipe cutting machine with plasma or oxy-fuel: intersections and weld bevels on pipes of 60–800 mm, 6–12 m long. 60-month warranty.
CNC machine for large diameter pipe cutting, 108–2000 mm, with plasma or oxy-fuel, intersections and bevels straight from the drawing. 60-month warranty.
Large diameter pipe cutting robot with two oxy-fuel heads, for offshore pipes of 1700–2800 mm and up to 40 m. 60-month warranty included.

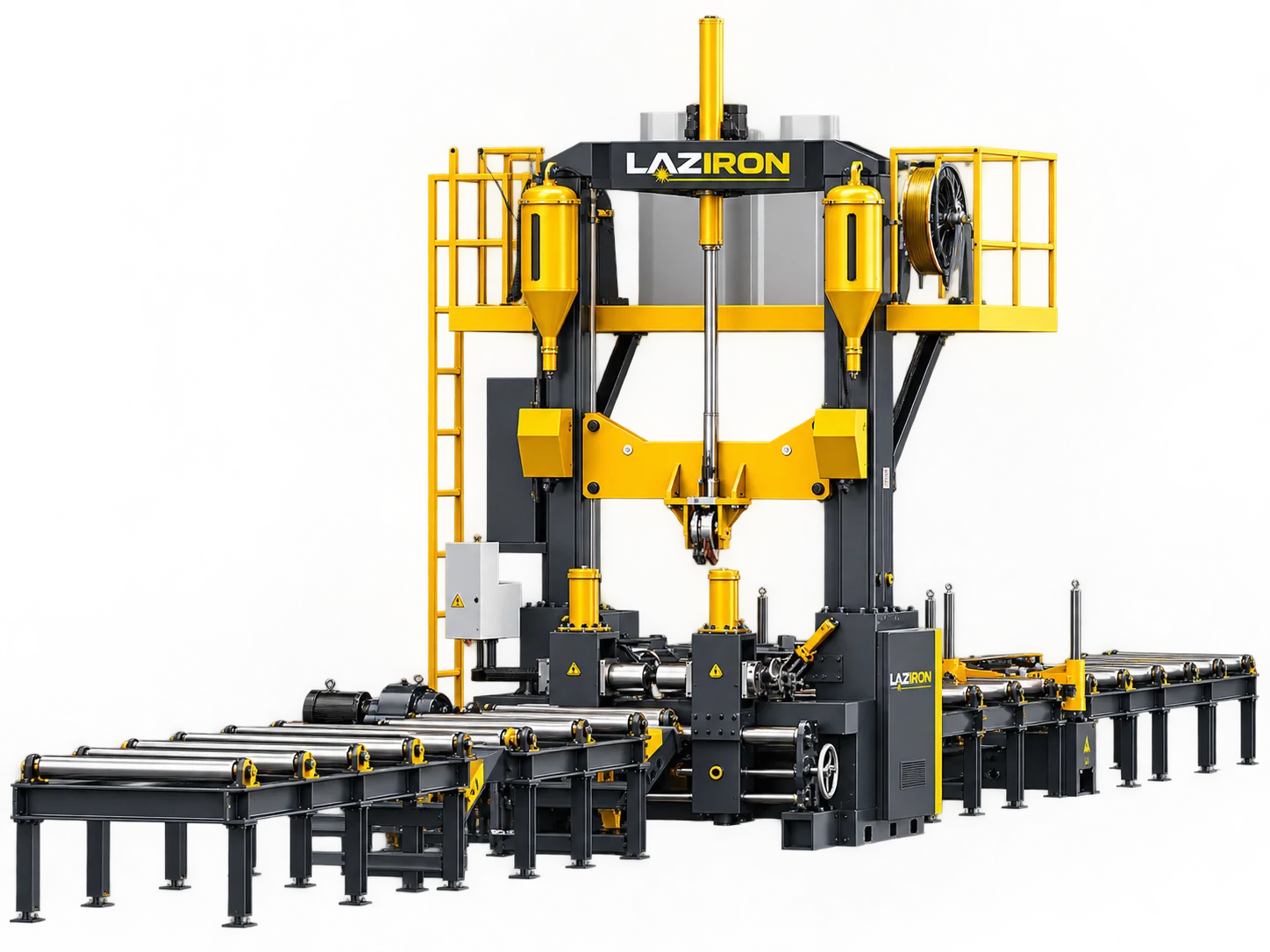

3-in-1 H-beam machine that assembles, submerged arc welds and straightens H, I and T beams of 4–15 m, with 1–2 operators. 60-month warranty.

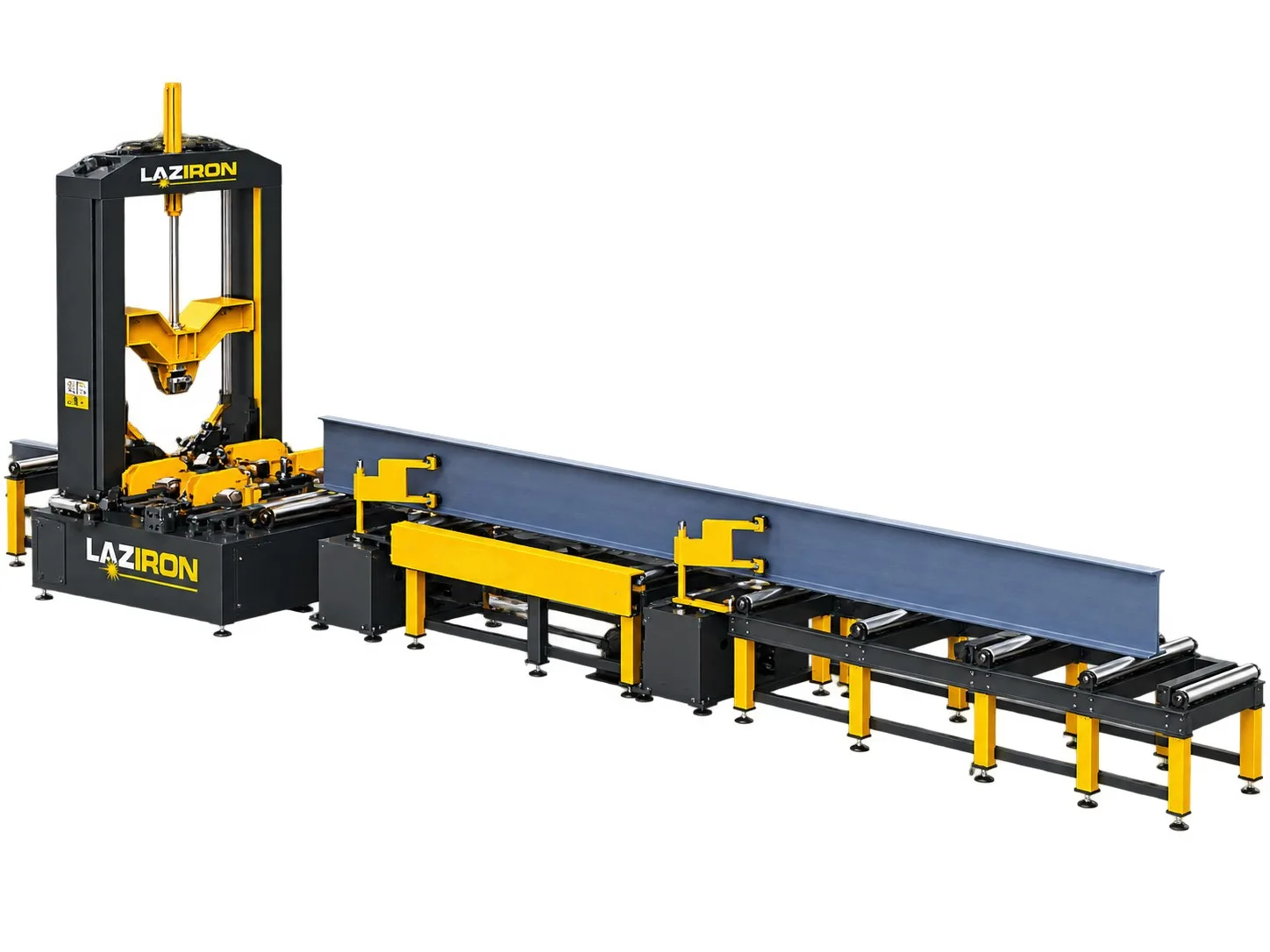

H-beam assembly machine for webs of 200–2000 mm and flanges of 200–1000 mm, automatic alignment and 0.5–6 m/min. 60-month warranty, installation included.

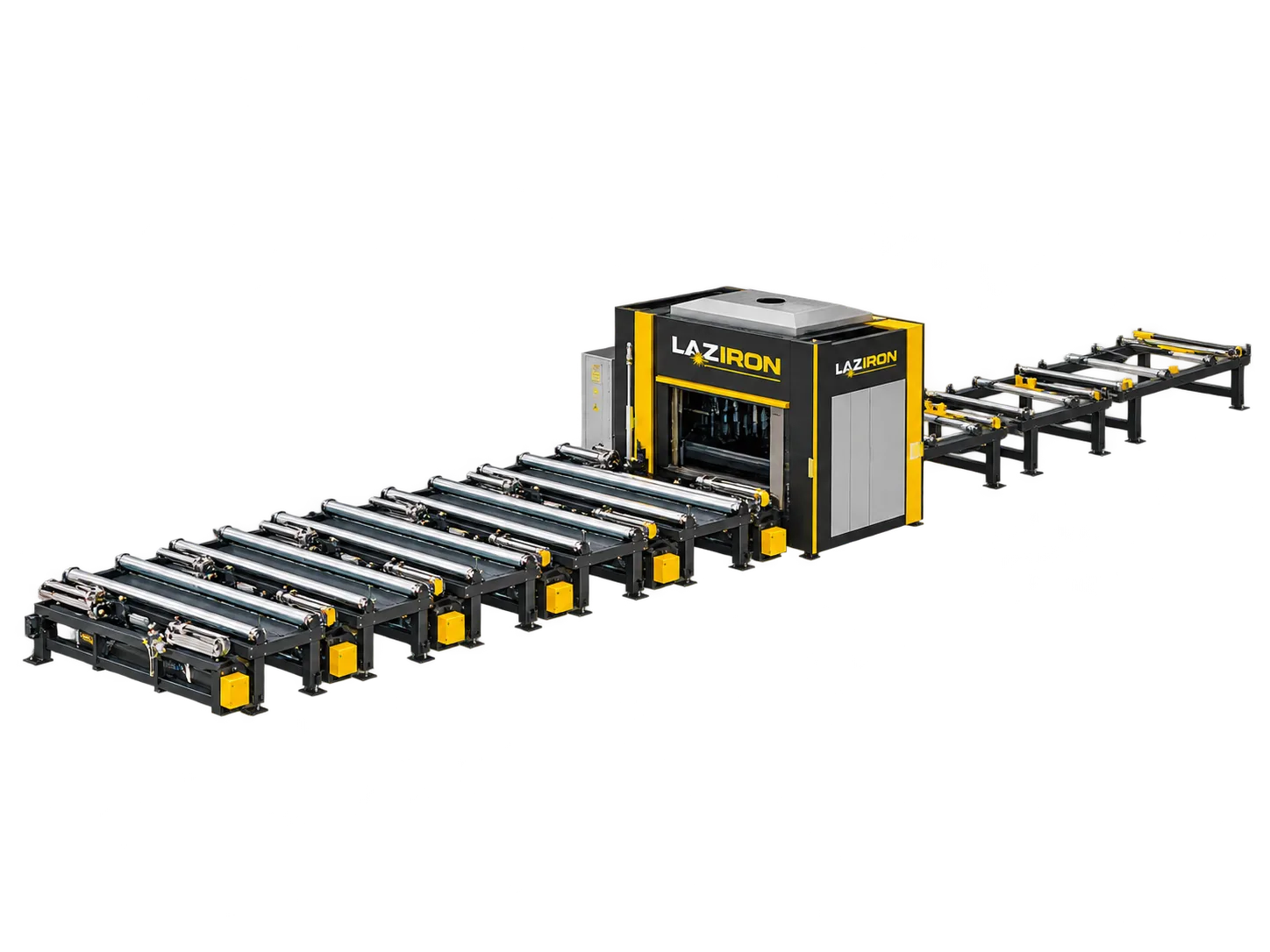

Horizontal H-beam assembly machine: aligns the web and flanges before welding, for flanges of 140–800 mm and parts of 5–15 m. 60-month warranty.

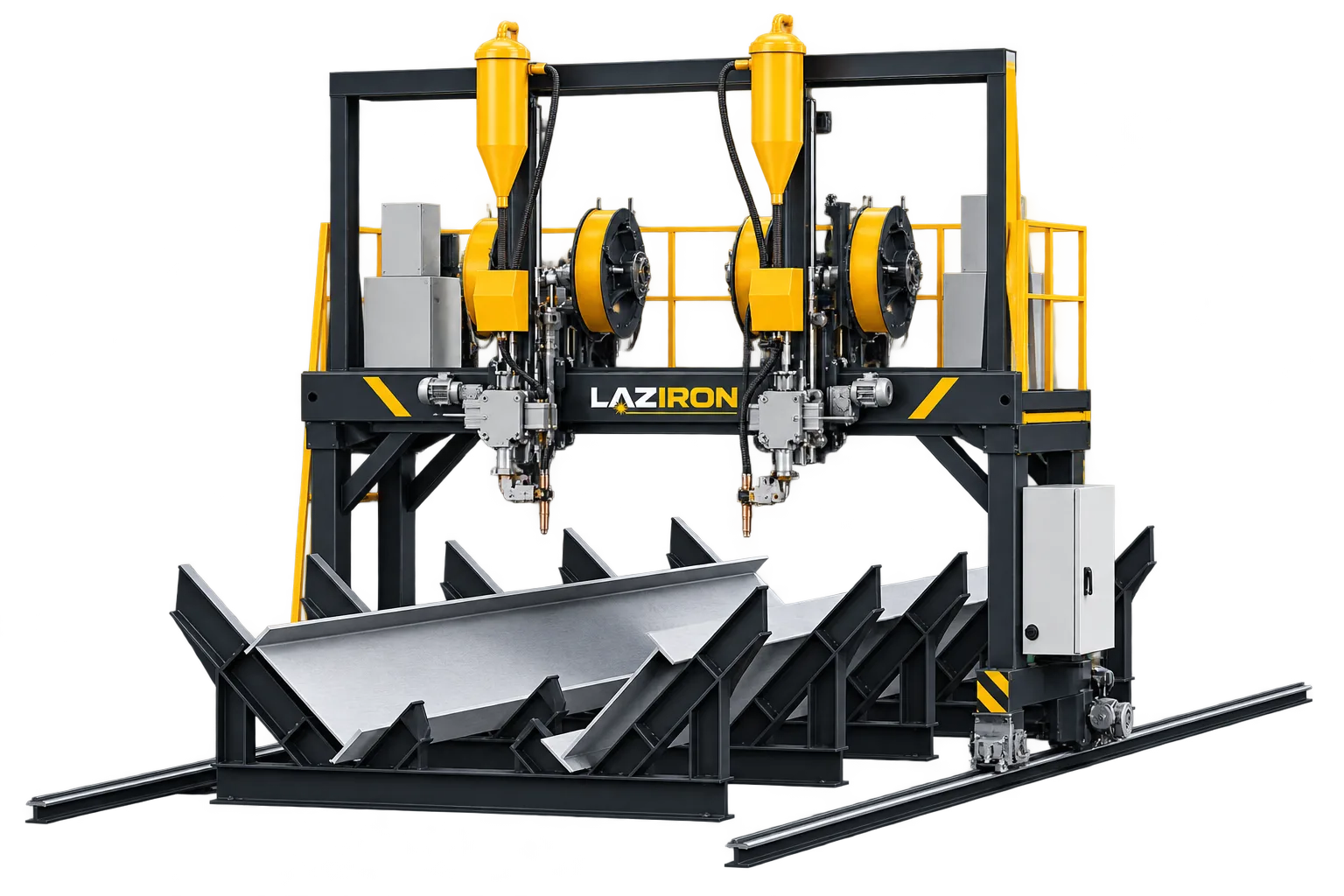

Gantry H-beam welding machine with mechanical seam tracking and two-way welding, for flanges of 200–800 mm. 60-month warranty included.

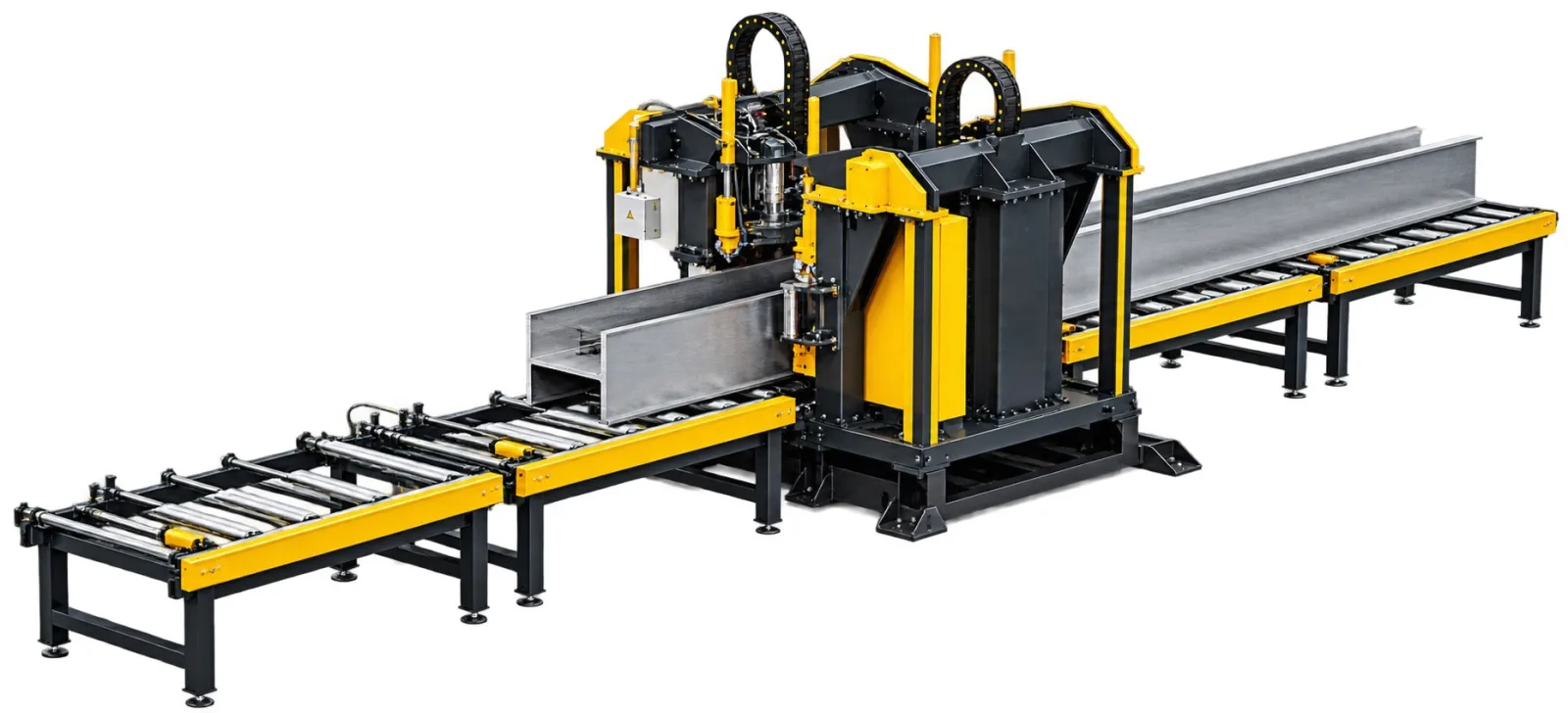

Hydraulic H-beam straightening machine: corrects both flanges at once after welding, with automatic detection and 25 MPa. 60-month warranty included.
Hydraulic H-beam straightening machine for post-weld work: corrects angular flange distortion on 200–2000 mm flanges at 4.8 m/min. 60-month warranty.

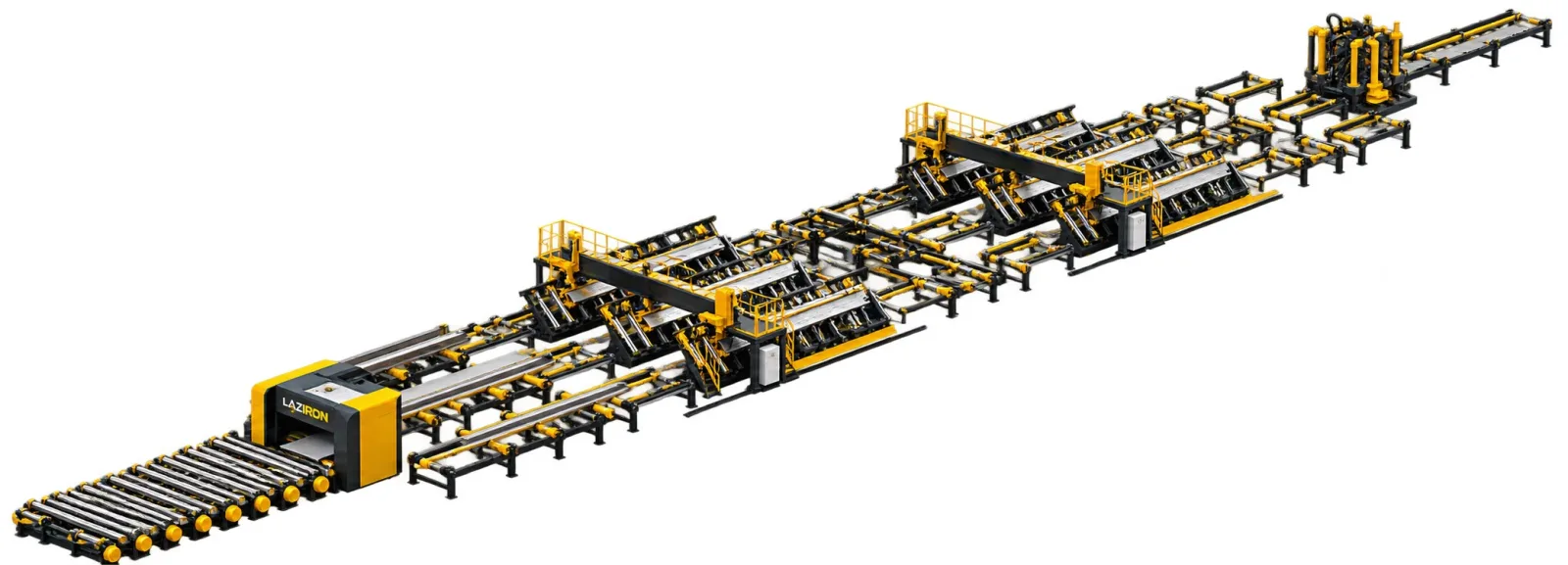

Multi-channel H-beam production line: assembly, welding, straightening and cutting in a horizontal flow, for 350–1500 mm webs. 60-month warranty.

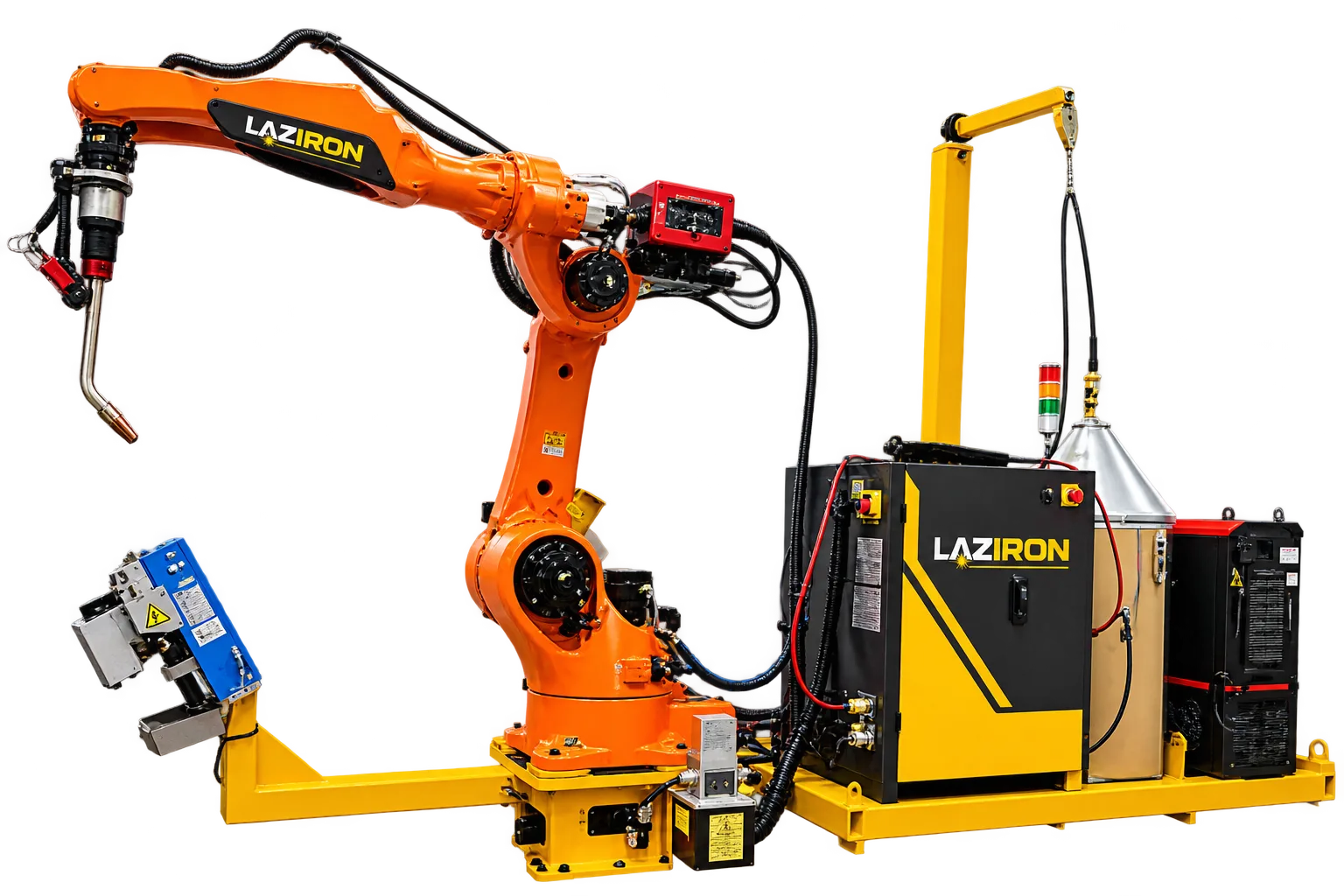

Welding robot for H-beams and crane runway girders, programmed directly from the BIM model (STEP, IFC), with a line laser sensor. 60-month warranty.

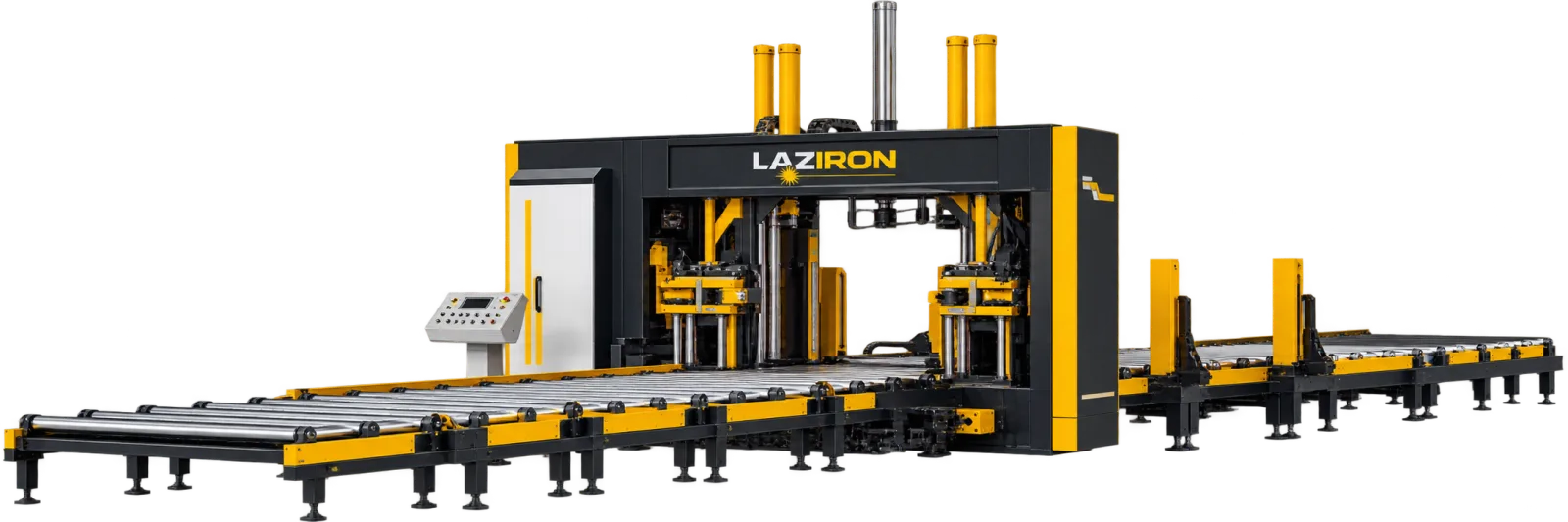

Box girder assembly machine with mobile gantry: clamps the plates onto the diaphragms before electroslag welding, for 5–12 m parts. 60-month warranty.

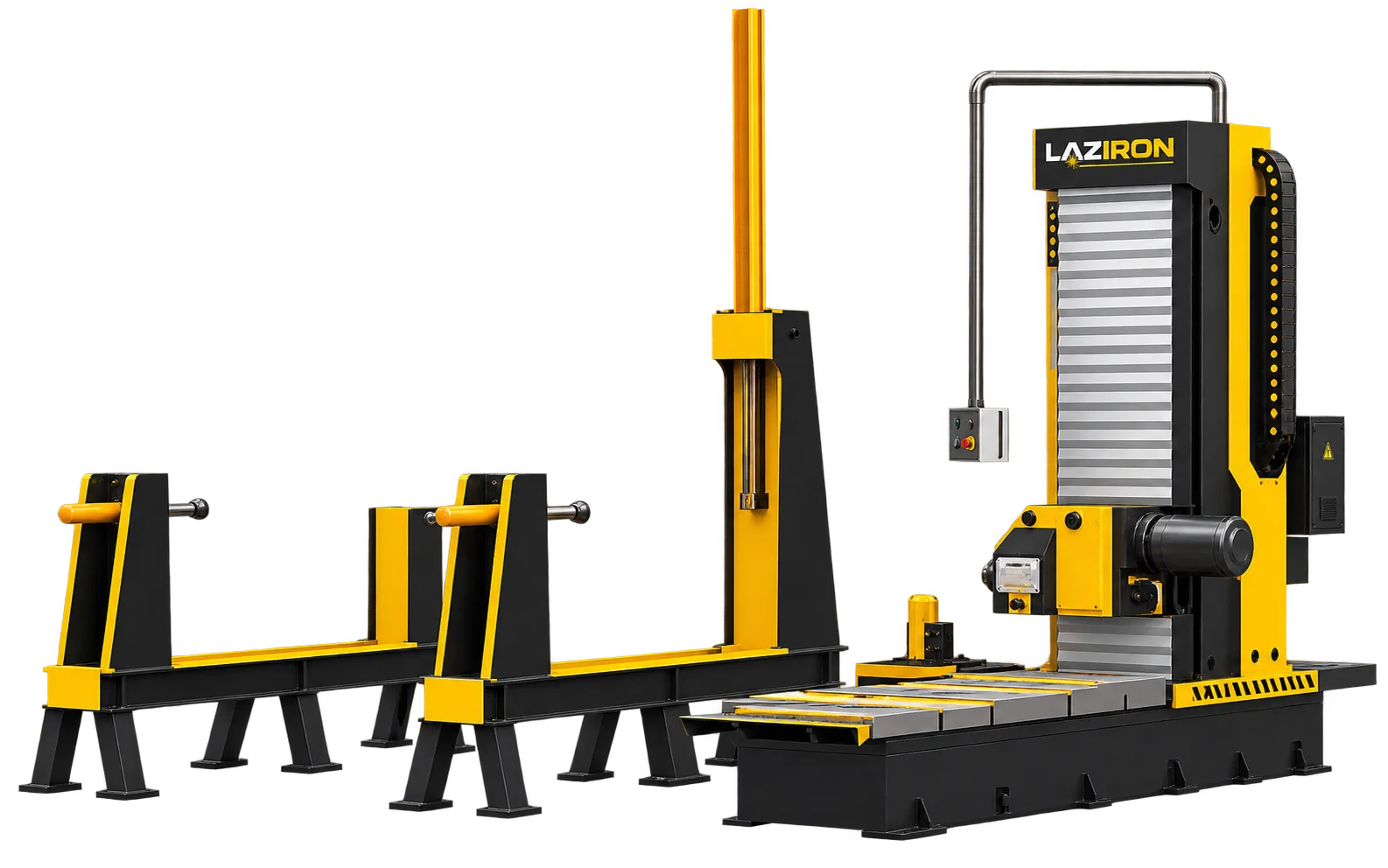

Face milling machine with CNC feed for sections up to 2000 × 1500 mm and 4–80 mm plates, for flat, accurate surfaces. 60-month warranty.
U-rib assembly machine for steel bridge decks: hydraulic clamping, fit-up gap ≤1 mm, deck plates up to 18 m long. 60-month warranty.
Multi-head U-rib welding machine with automatic seam tracking, fillet weld penetration of at least 5 mm on bridge decks. 60-month warranty.
U-rib internal welding machine for deck plates up to 16 m long, with 1–6 ribs per plate. Extended 60-month warranty and installation included.
Multi-roller hydraulic U-rib straightening machine that corrects plate tilt and angular distortion at the same time. Extended 60-month warranty.
Automatic painting line for 3–12 m beams and sections, with 12 spray guns, 3D-scan programming and controlled drying. Extended 60-month warranty.
Chain turnover device for 10 t or 20 t parts, 360° rotation by remote control, used with the overhead crane. Extended 60-month warranty.
Weld groove milling machine for shells 3000–15000 mm in diameter, 75 kW spindle and 120 mm cutting depth. Extended 60-month warranty included.
Multi-wire submerged arc welding for longitudinal and circumferential seams on 2000–12000 mm shells. Extended 60-month warranty, installation included.
C/Z purlin roll forming machine for 1.5–3.0 mm strip, switching between profiles without changing rollers, up to 25 m/min. Extended 60-month warranty.
