Tracked mobile trommel screen UZX-UTS-50
Tracked trommel screen, 60–100 m³/h, 55 kW (73 HP) Yanmar diesel, interchangeable drum mesh, remote control.
The screening plants and mobile screens in this category split material into fractions right at the work site: crushed stone, sand and gravel, recycled rubble, topsoil and compost. The range includes trommel screens for wet and organic material, two- and three-deck vibrating screens for clean aggregates, and scalpers for dirty material ahead of the crusher.
The choice starts from the material, the hourly throughput and the number of fractions you need. All of them move on tracks, by remote control. Delivery, commissioning and operator training are included in Romania, with a standard 60-month warranty.
Tracked trommel screen, 60–100 m³/h, 55 kW (73 HP) Yanmar diesel, interchangeable drum mesh, remote control.
Tracked trommel screen, Ø2200 × 5500 mm drum, 100–300 m³/h, 91 kW (125 HP) engine, 2200 × 5000 mm hopper, 10 mm mesh, 25 t.
Tracked triple-deck 3YK1545 vibrating screen, 200 t/h, 6.7 m² screen area, 6 m³ hopper, B800 main belt, two product belts, Cummins 81 kW, 25 t.
Tracked double-deck vibrating screen, 50–100 m³/h, 1200 × 3500 mm deck, feed below 150 mm, 2 m³ hopper, Cummins 43 kW, 8.8 t.

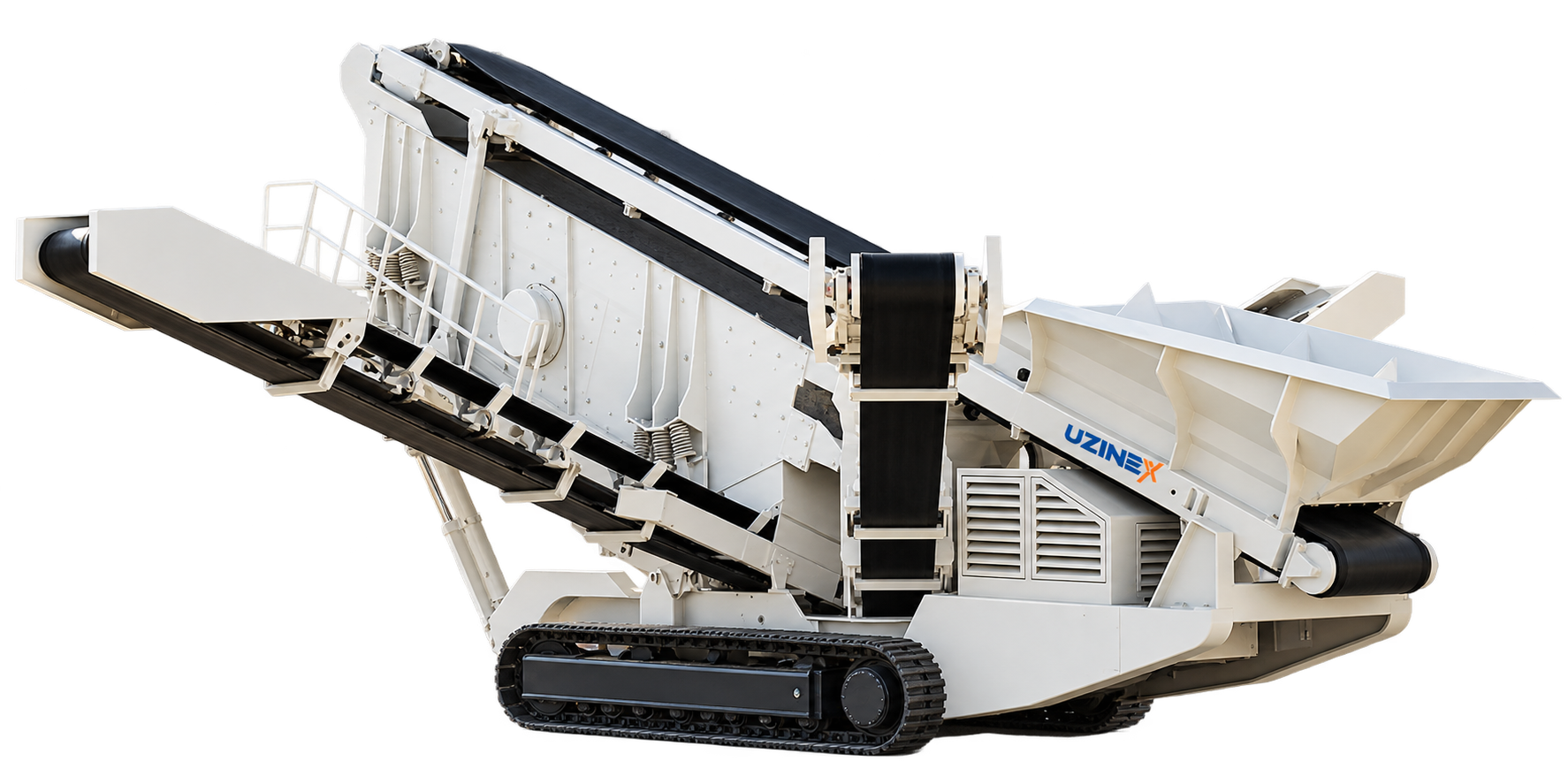

Tracked triple-deck vibrating screen, 3YK1545 1500 × 4500 mm, 200 t/h, 6.7 m², 6 m³ hopper, Cummins 81 kW, 25 t.

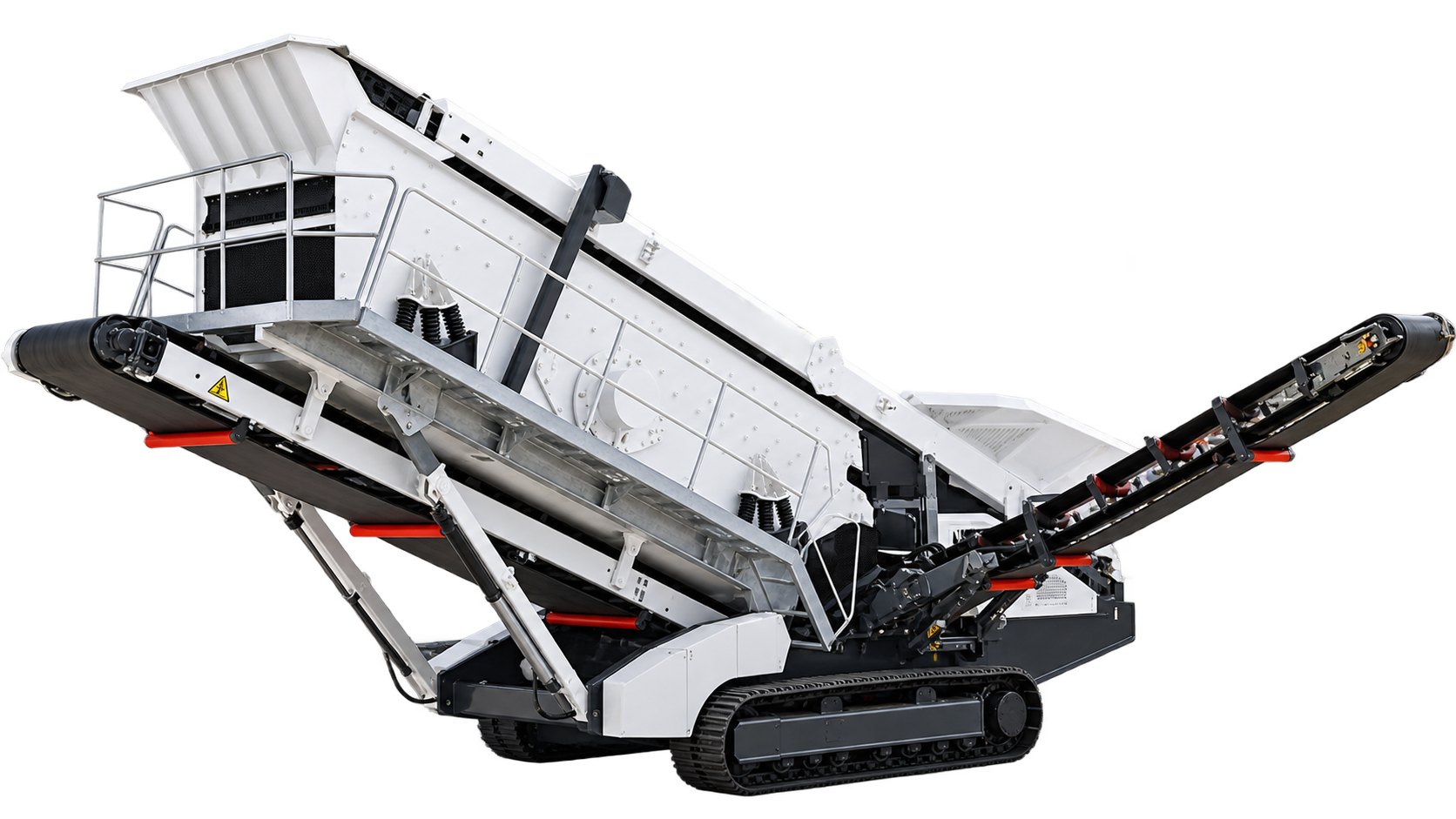

Tracked triple-deck vibrating screen, 3YK1860 1800 × 6000 mm, 10.8 m², 300–400 t/h, 8 m³ hopper, Cummins 128 kW, 35 t.
Tracked scalping screen, 2YK1122 double deck 1150 × 2400 mm, 30–80 t/h, feed below 200 mm, Kubota 18.2 kW, 5.2 t.

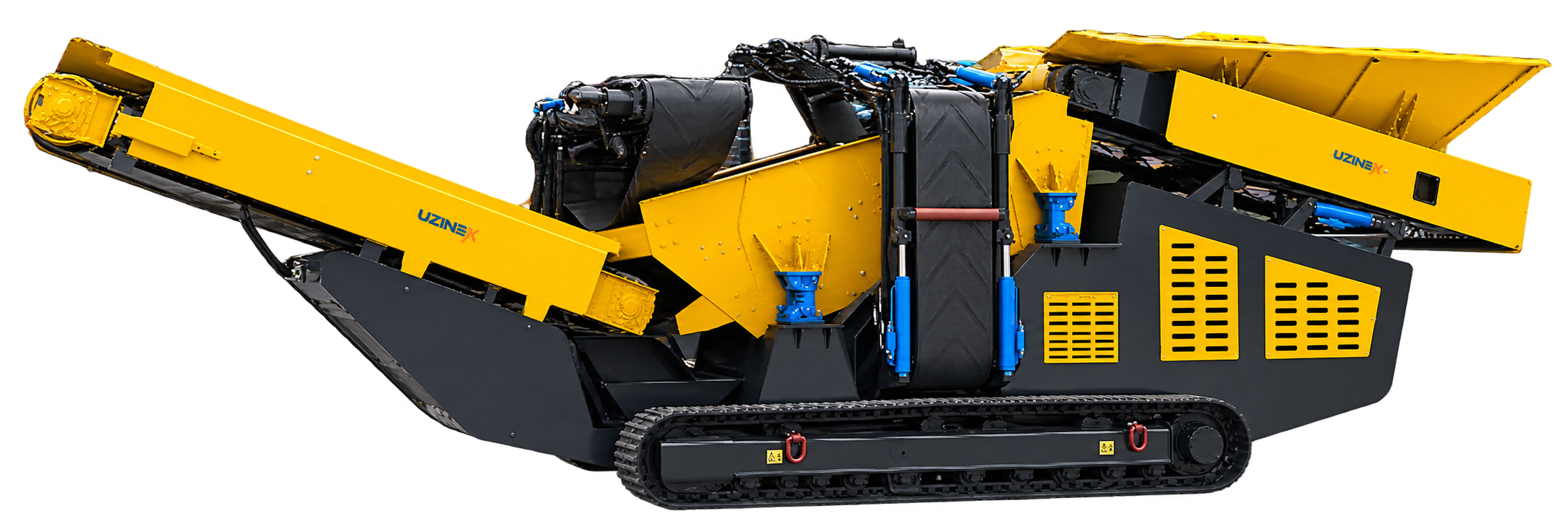

Tracked scalper, 1200 × 3000 mm double deck, 500 mm feed, anti-clogging mesh, Yanmar 35.5 kW or Kubota 43 kW, remote control.

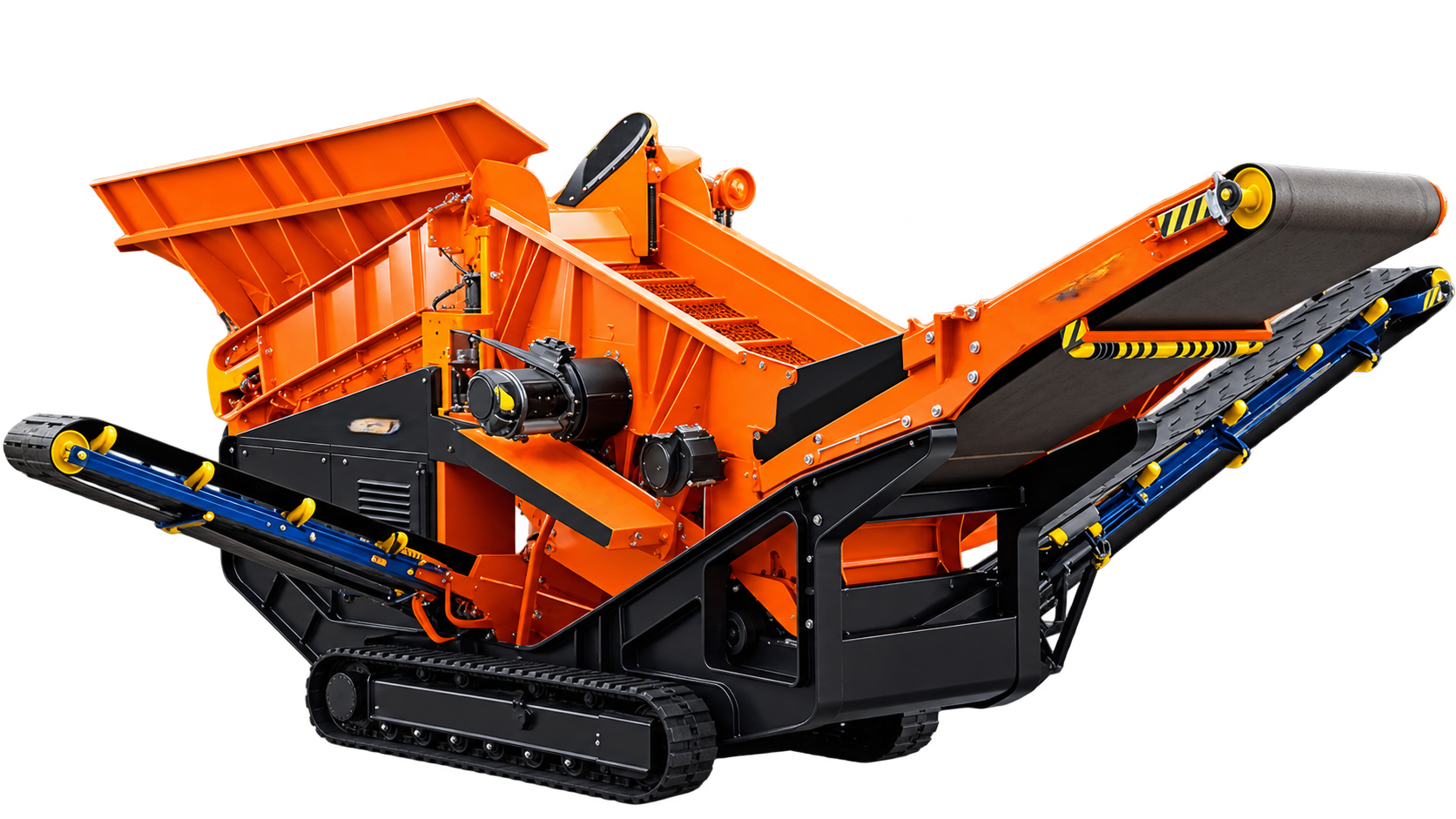

Tracked scalper, 1300 × 3800 mm double deck, 120–300 t/h, 4 m³ hopper, B1000 apron feeder, Cummins 61 kW, 21.5 t.

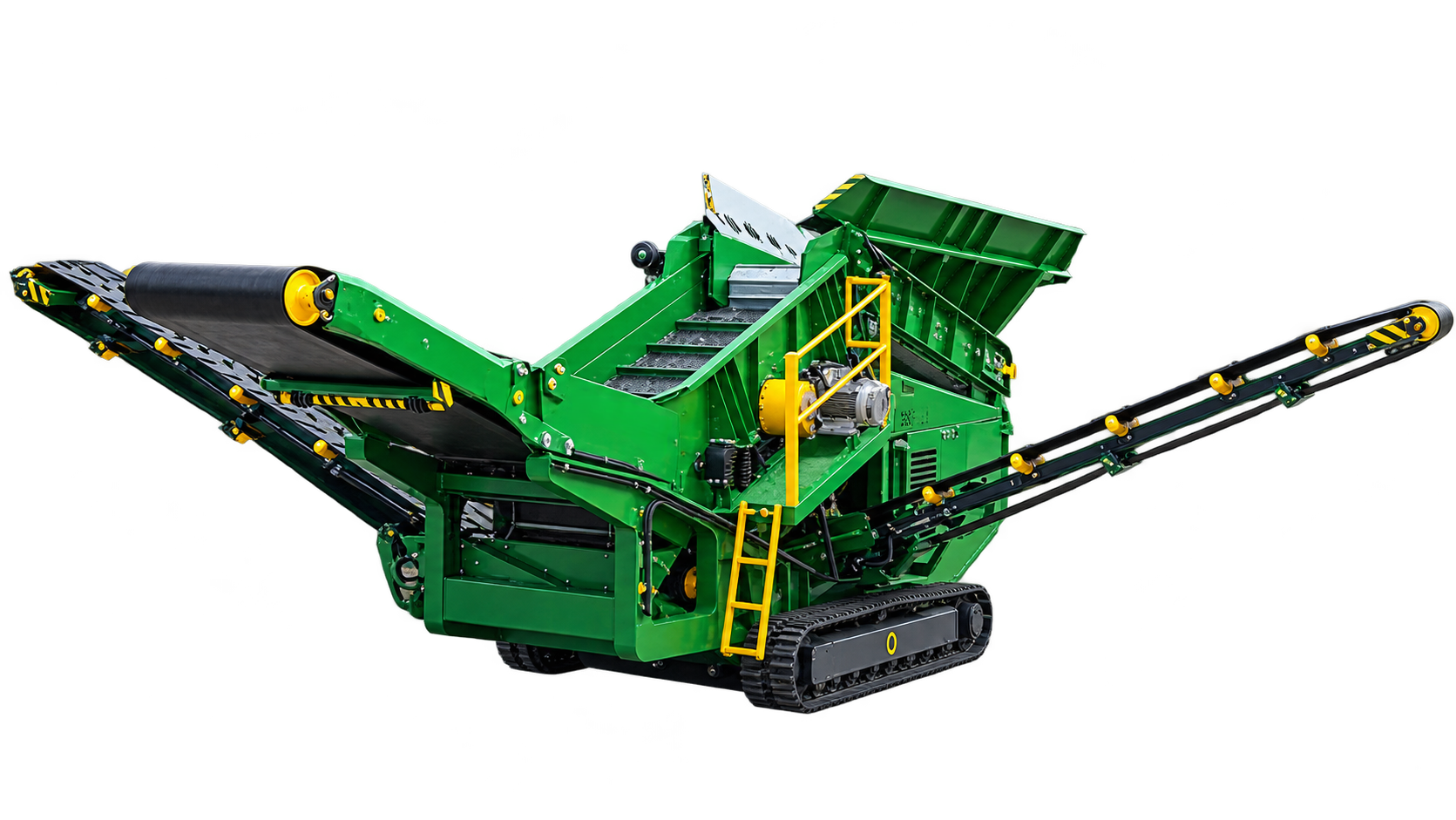

Heavy-duty tracked scalper, 1500 × 4800 mm double deck, 200–400 t/h, 7 m³ hopper, B1000 apron feeder, 90 kW (122 HP) engine, 28.5 t.
