UZX-885Utilaje de foraj puțuri
Skid-mounted hydraulic drilling rig for water wells and geological drilling, UZX-HW-160YY
Skid-mounted hydraulic drilling rig for water wells and geological drilling, down to 160 m, 75–300 mm, 13.2 kW engine, 850 kg.
The water well drilling rigs in this category drill wells for homes, farms, irrigation and industry and boreholes for geothermal heat pumps. The range goes from small skid-mounted hydraulic rigs, which fit into a narrow yard, to crawler rigs with an air-driven down-the-hole (DTH) hammer, which drill fast in rock down to 600 m.
The choice starts from the depth and diameter of the well and from the ground: soil, gravel or rock. Hydraulic rigs work with mud circulation and reach 160–230 m, while pneumatic DTH rigs work with a separate compressor and reach 180, 320 or 600 m. Delivery, commissioning and operator training are included in Romania, with a standard 60-month warranty.
Skid-mounted hydraulic drilling rig for water wells and geological drilling, down to 160 m, 75–300 mm, 13.2 kW engine, 850 kg.
Crawler water well drilling rig, down to 190 m, 75–500 mm, 145 L/min mud pump, 2500 kg winch, 3250 kg.
Skid-mounted water well drilling rig, down to 230 m, 75–500 mm, 15 kW engine, 145 L/min pump, 950 kg.
Water well drilling rig on rubber tracks, pneumatic DTH hammer, down to 180 m, 130–254 mm holes, 42 kW engine, 4.5 t.

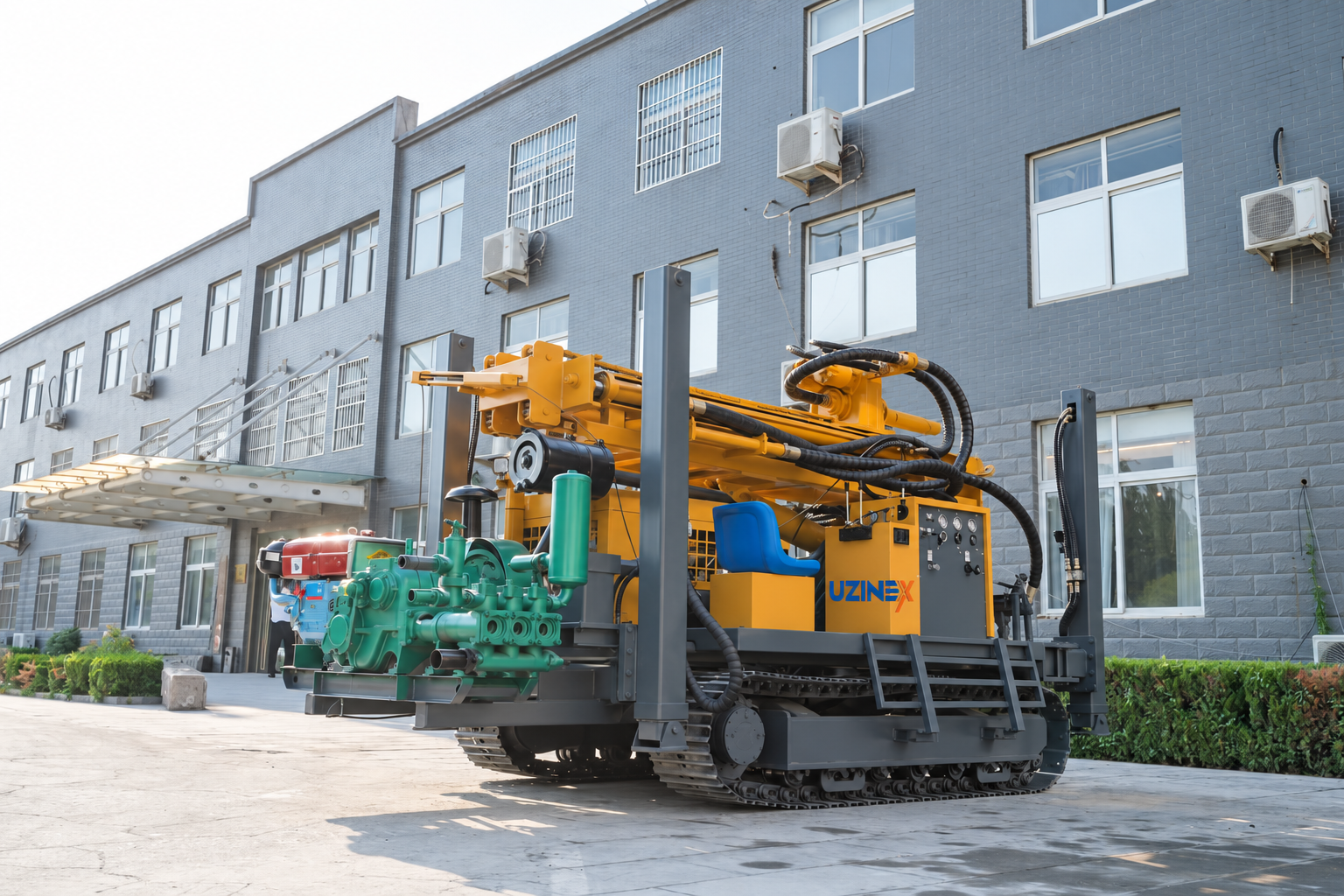

Water well drilling machine on steel tracks, pneumatic DTH hammer, down to 320 m, 130–305 mm holes, 85 kW engine, 8500–9000 N·m torque.

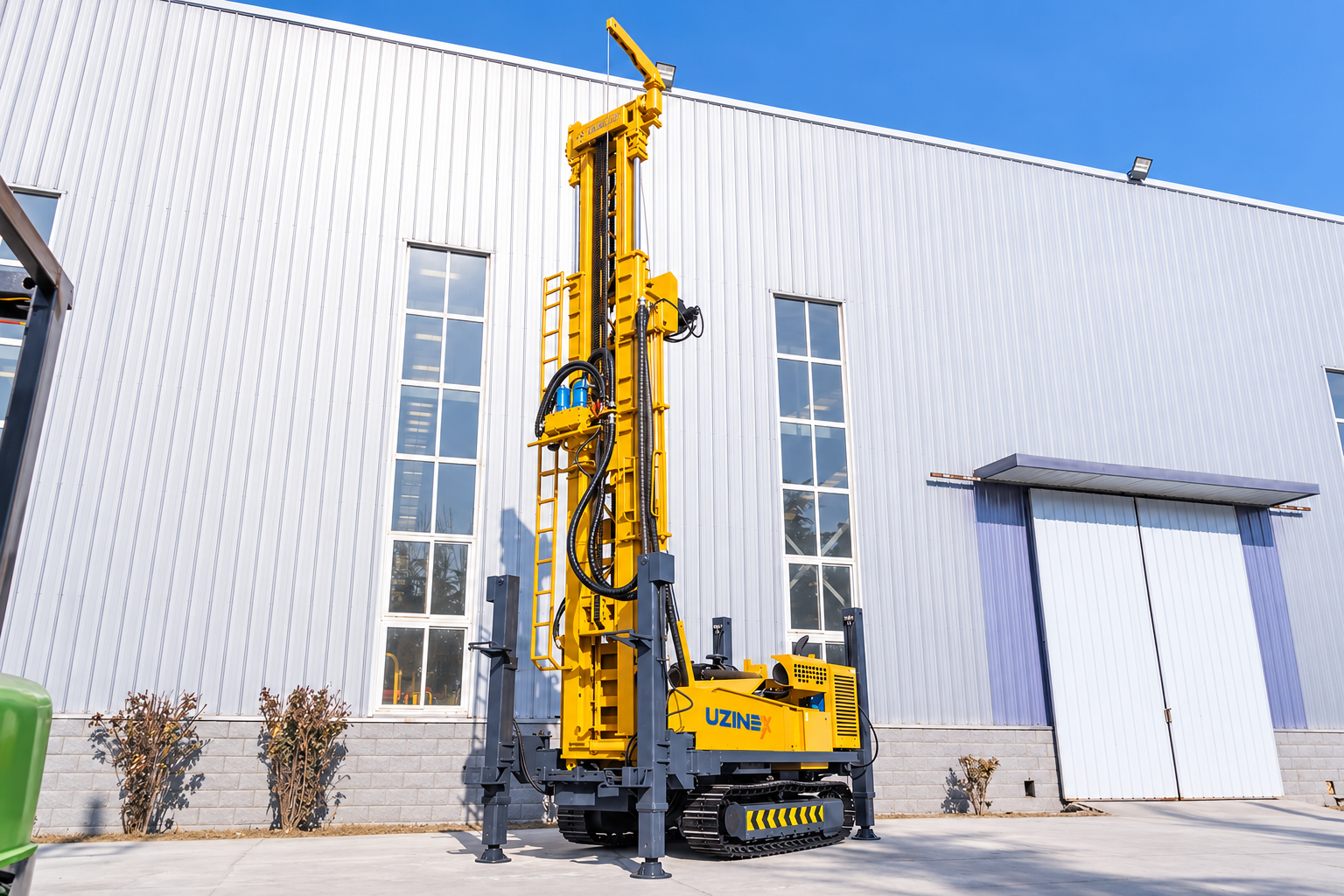

Water well drilling rig on steel tracks, pneumatic DTH hammer, down to 600 m, 130–350 mm holes, 132 kW engine, 12 t.
