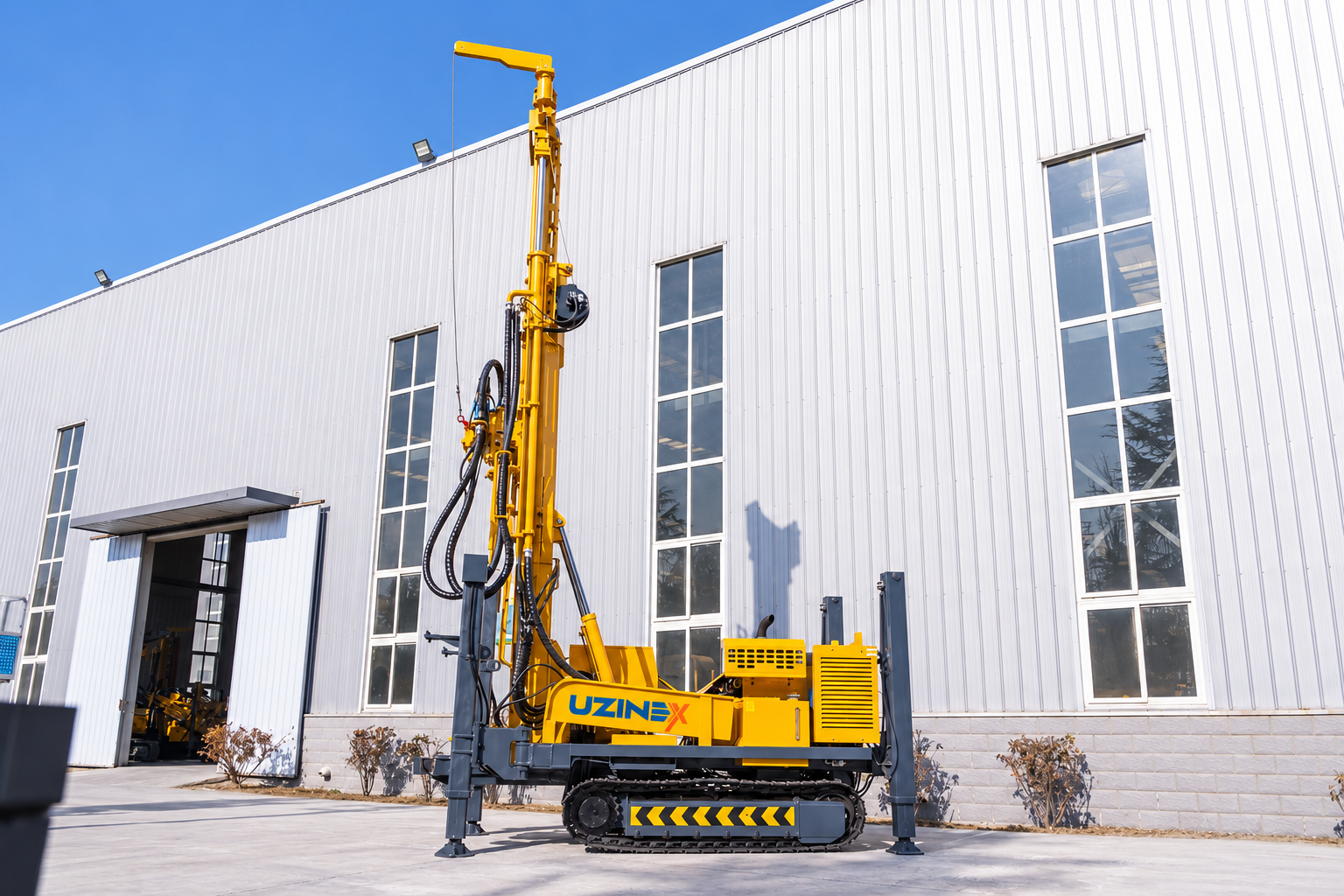

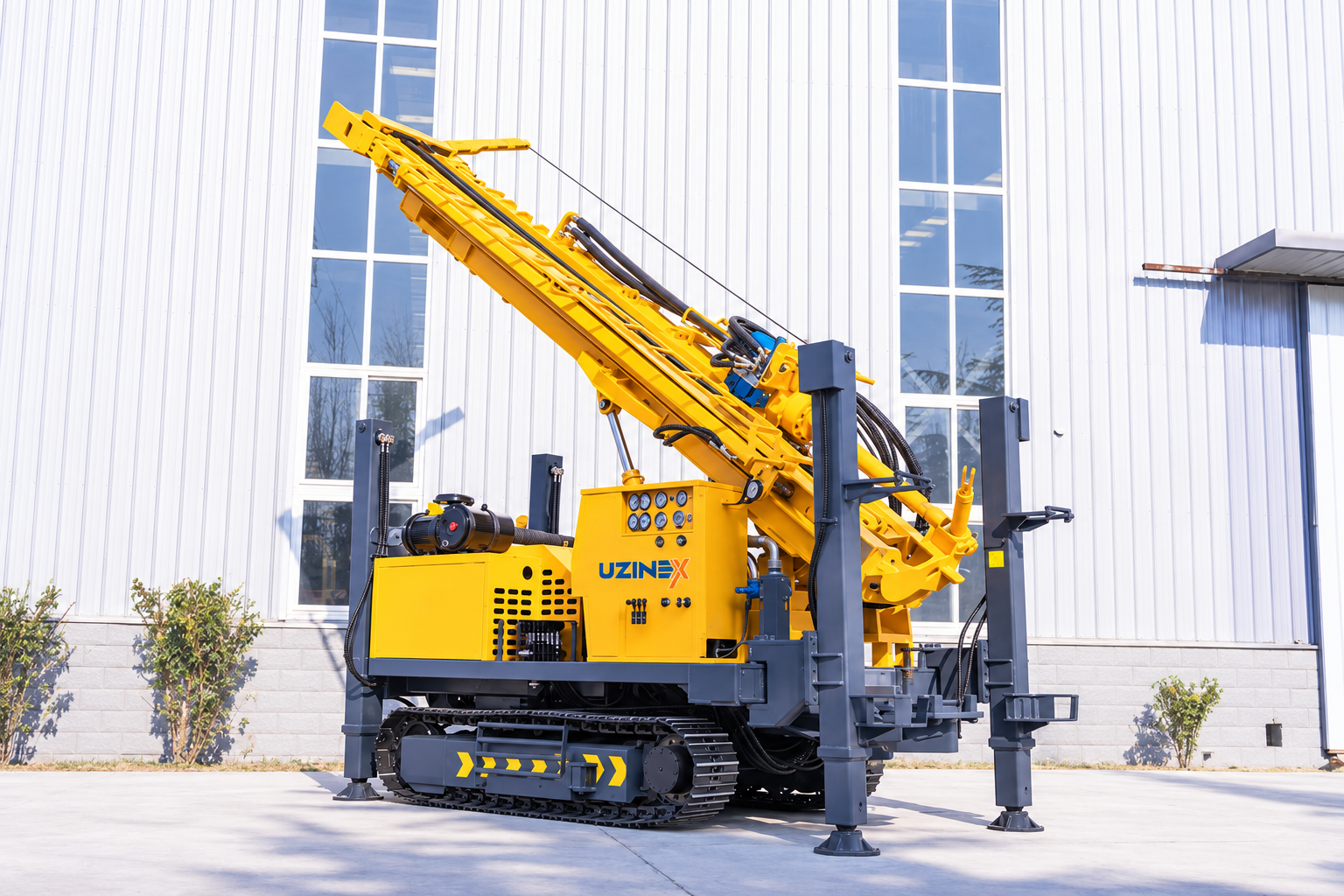

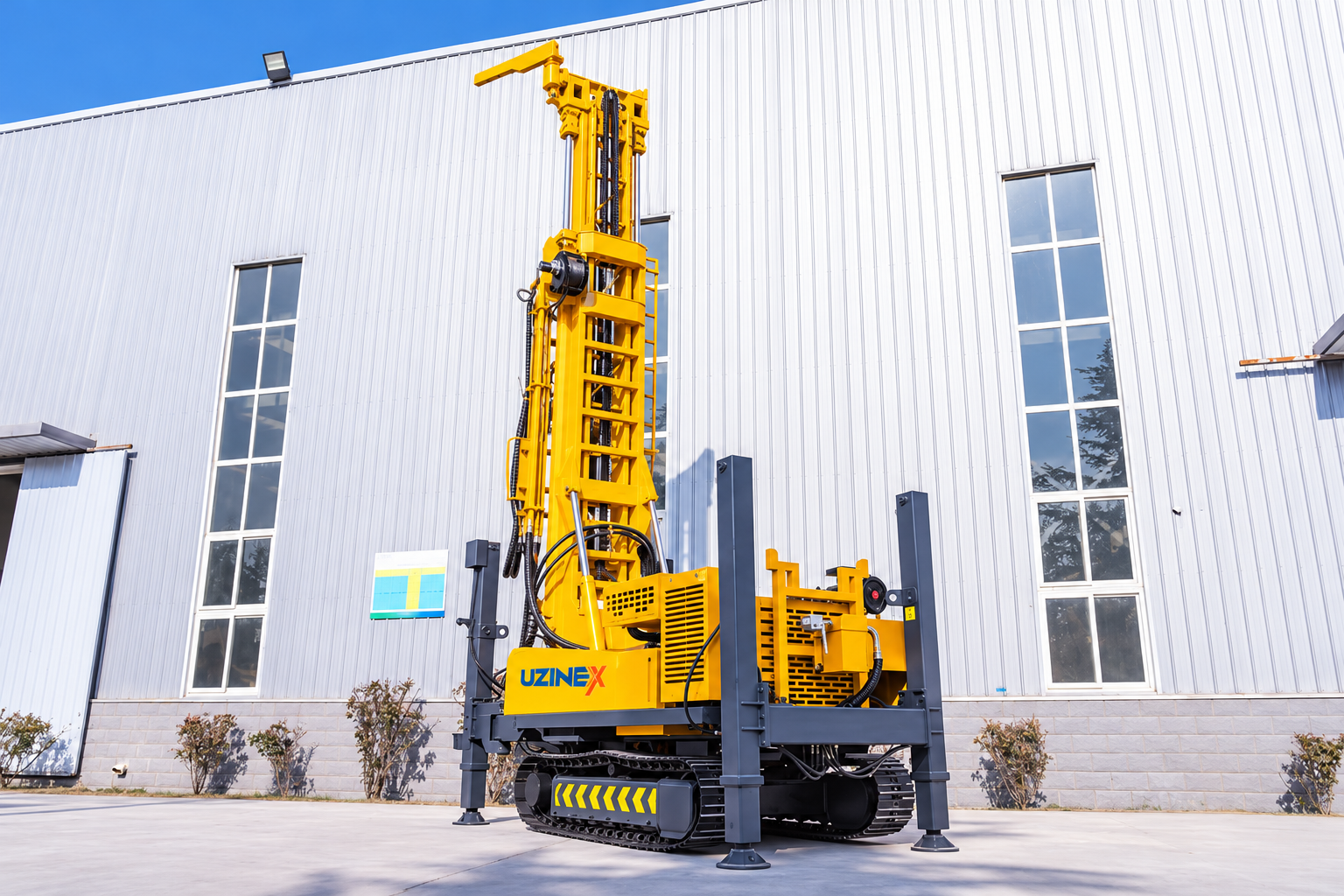

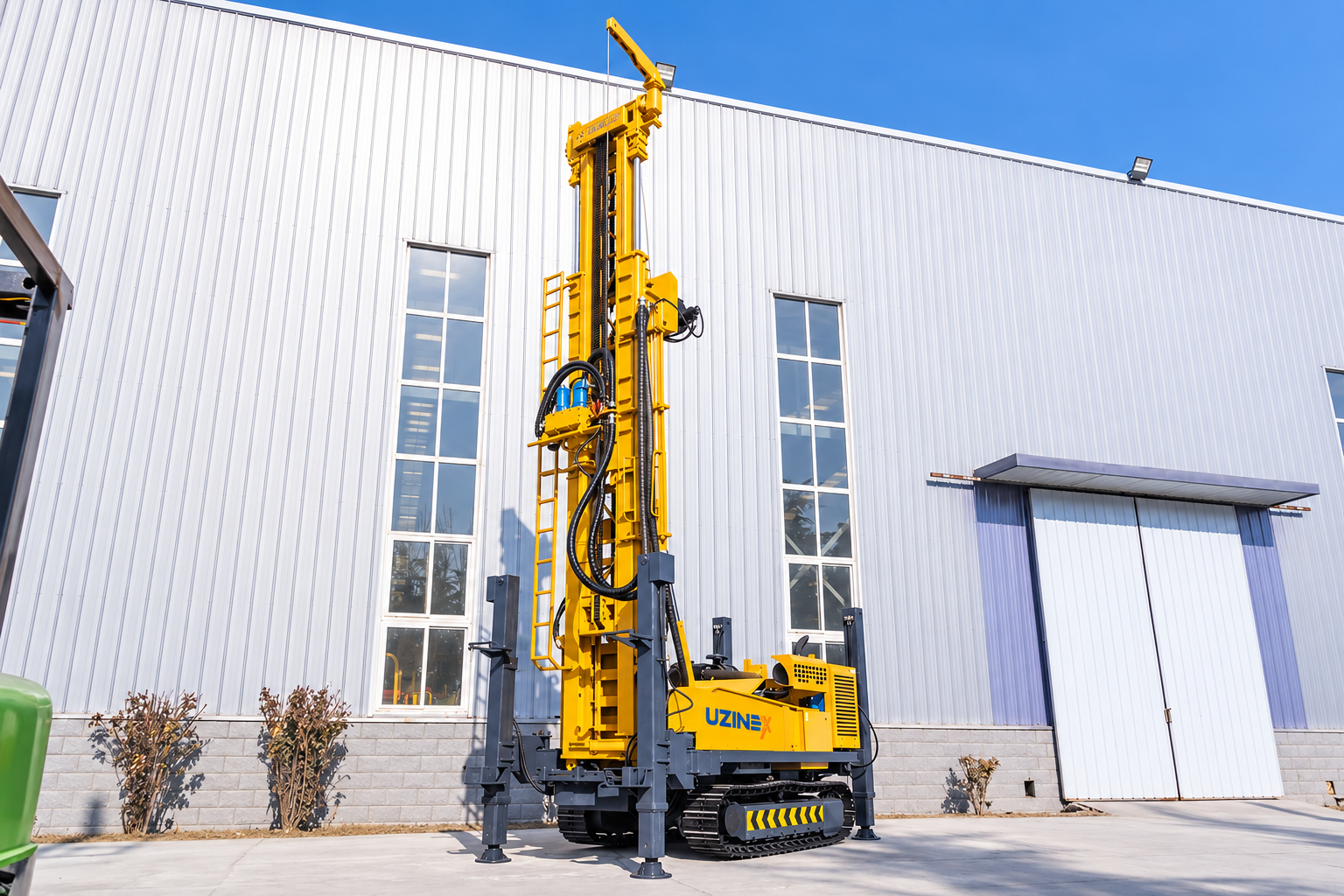

Water well drilling rig on steel tracks, pneumatic DTH hammer, down to 600 m, 130–350 mm holes, 132 kW engine, 12 t.
| Type | steel tracks, pneumatic DTH hammer, top drive |
| Drilling depth | 600 m |
| Drilling diameter | 130–350 mm |
| Drilling mast | 6 m, 6.6 m feed in one stroke |
| Engine | Yuchai, 132 kW |
| Compressed air required | 17–42 m³/min, 1.7–3.5 MPa, from a separate compressor |
| Drill rod | Ø102 / 108 / 114 mm, 3 and 6 m lengths |
| Pull-back force | 28 t |
| Rotation speed | 45–115 rpm |
| Maximum torque | 9000–11000 N·m |
| Travel speed | 2.5 km/h |
| Gradeability | 30° |
| Weight | 12 t |
| Shipping dimensions | 6000 × 2200 × 2950 mm |
The UZX-HQZ-600L is the largest water well drilling rig in the range: it drills down to 600 m with 130–350 mm holes. It works with an air-driven down-the-hole (DTH) hammer and a hydraulic rotary head, on a 6 m mast that feeds 6.6 m in one stroke.
It has a 132 kW Yuchai engine, 9000–11000 N·m of torque and 28 t of pull-back, for long strings of 102–114 mm rods. The air comes from a separate compressor, 17–42 m³/min at 1.7–3.5 MPa. It weighs 12 t and travels on steel tracks.
| Parameter | Value |
|---|---|
| Type | steel tracks, pneumatic DTH hammer, top drive |
| Drilling depth | 600 m |
| Drilling diameter | 130–350 mm |
| Drilling mast | 6 m, 6.6 m feed in one stroke |
| Engine | Yuchai, 132 kW |
| Compressed air required | 17–42 m³/min, 1.7–3.5 MPa, from a separate compressor |
| Drill rod | Ø102 / 108 / 114 mm, 3 and 6 m lengths |
| Pull-back force | 28 t |
| Rotation speed | 45–115 rpm |
| Maximum torque | 9000–11000 N·m |
| Travel speed | 2.5 km/h |
| Gradeability | 30° |
| Weight | 12 t |
| Shipping dimensions | 6000 × 2200 × 2950 mm |
The rig works with a down-the-hole (DTH) hammer. The hydraulic rotary head, mounted high on the mast, turns the string and pushes it into the ground, and compressed air from the compressor travels down the rods to the hammer at the bottom. The hammer strikes the rock directly, so speed stays high at depth, and the same air carries the cuttings to the surface. In soil and gravel, casing can be used so the walls do not collapse.
It reaches 600 m, for industrial wells and deep geothermal boreholes.
The 28 t pull-back and up to 11000 N·m of torque handle heavy rod strings.
The 6 m mast with 6 m rods reduces the number of joints.
Steel tracks take it over rough ground without support machines.
Deep water wells for industry, municipal water supply, large farms and irrigation, deep geothermal boreholes and exploration drilling down to 600 m.
The model is chosen by depth and diameter. The UZX-HQZ-180L, on rubber tracks, reaches 180 m with 130–254 mm holes. The UZX-HQZ-320L reaches 320 m with 130–305 mm, and the UZX-HQZ-600L 600 m with 130–350 mm. All need a separate compressor, chosen by depth. For wells down to 230 m in soil, the UZX-HW hydraulic rigs cost less.
The price depends on the model and the equipment: mast, rods, hammers, bits and compressor. Send us the well depth and diameter, the ground and how many wells you drill per month, and a Uzinex engineer will prepare a quote for the right configuration, compressor included. Delivery, commissioning and operator training are included in Romania.
• Delivery and commissioning included, at your site, with operator training.
• 60-month warranty, standard across the whole catalogue.
• Service with nationwide coverage in Romania, on-site visit within 24 hours.
• Spare parts in stock, so a breakdown does not stop the job.
• Technical documentation for EU-funded projects, PNRR and public tenders (SEAP/SICAP).
• Configuration on request: rods, hammers and bits for your diameter and the right compressor for the depth.
