Compact crawler anchor drilling rig, 65–220 mm holes, down to 30 m, at any angle, 22 kW electric rotary head.
| Type | crawler, hydraulic control |
| Drilling diameter | 65–220 mm |
| Drilling depth | up to 30 m |
| Drilling angle | horizontal, inclined or vertical |
| Drilling mast | maximum vertical height 5.5 m; 1.8 m chain feed |
| Rotation drive | upper part 180° |
| Engine | Changfa, 22 HP; 15 kW travel motor |
| Power | electric rotary head, 22 kW |
| Track shoe width | 400 mm; chassis 2500 × 2300 mm |
| Feed force | 40 kN |

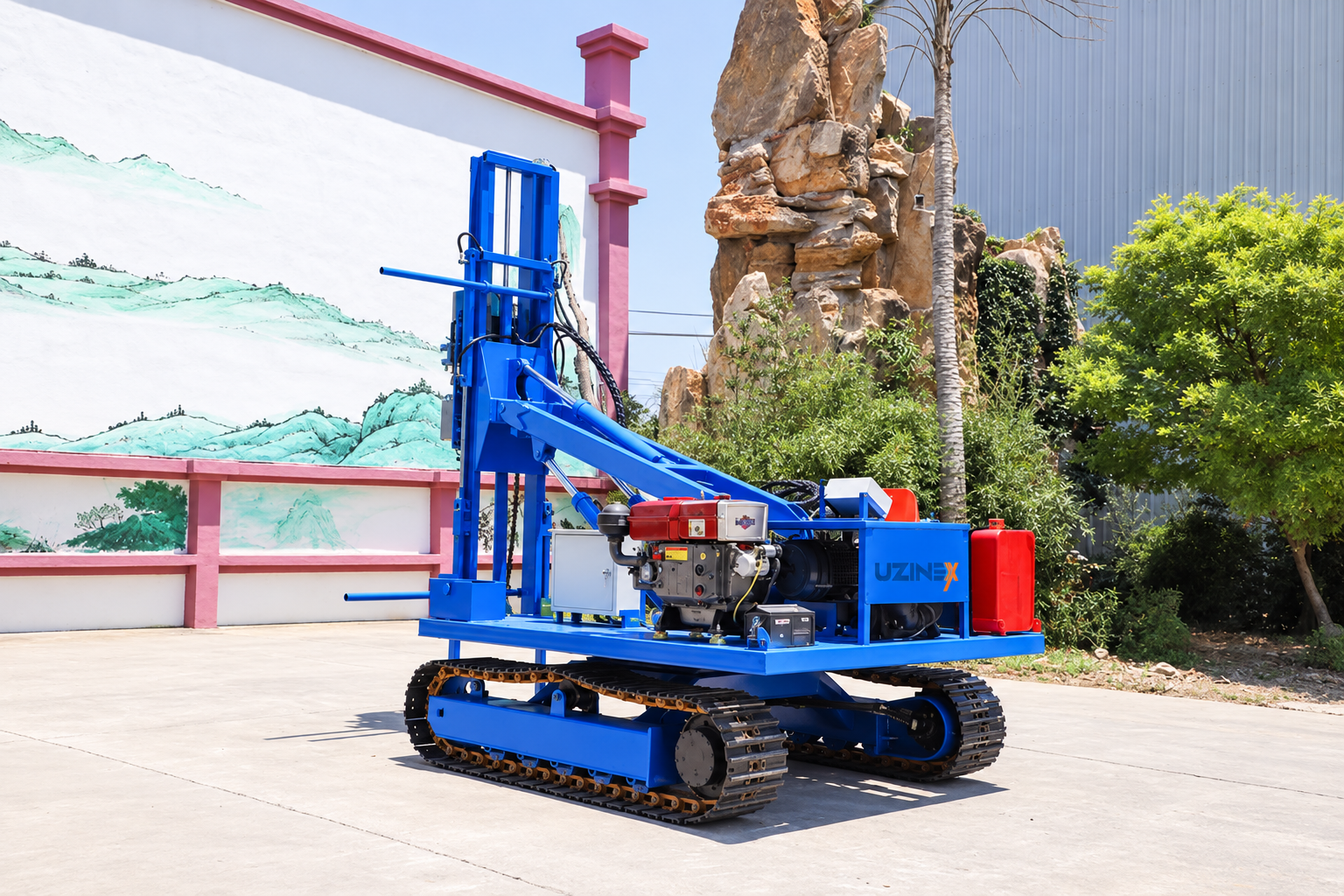

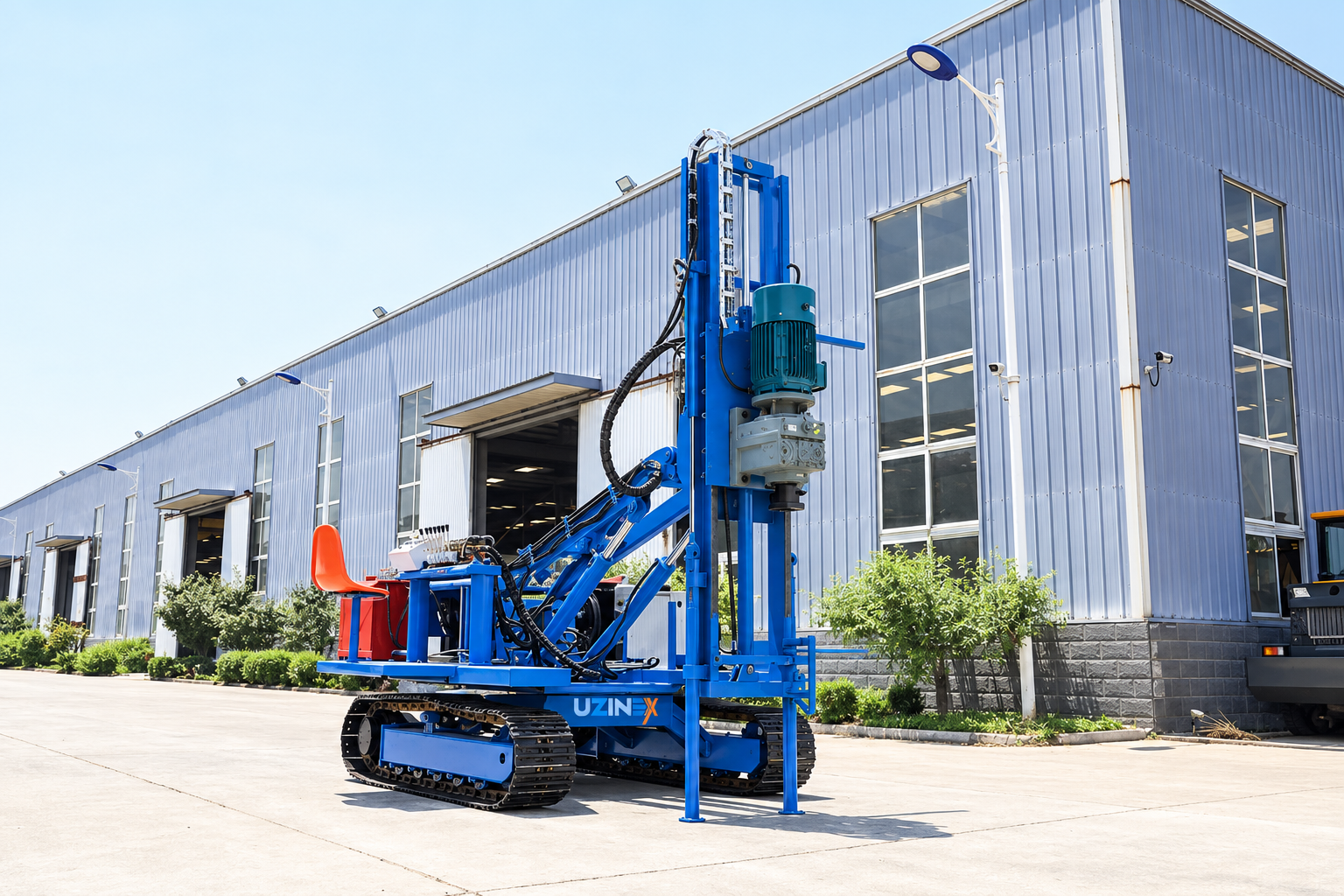

The UZX-HWMG-5.5M is a compact crawler anchor drilling rig with full hydraulic control. It drills 65–220 mm holes down to 30 m, horizontal, inclined or vertical, with the mast raised up to 5.5 m. The upper part rotates 180°, so it drills along a slope without moving for every hole.

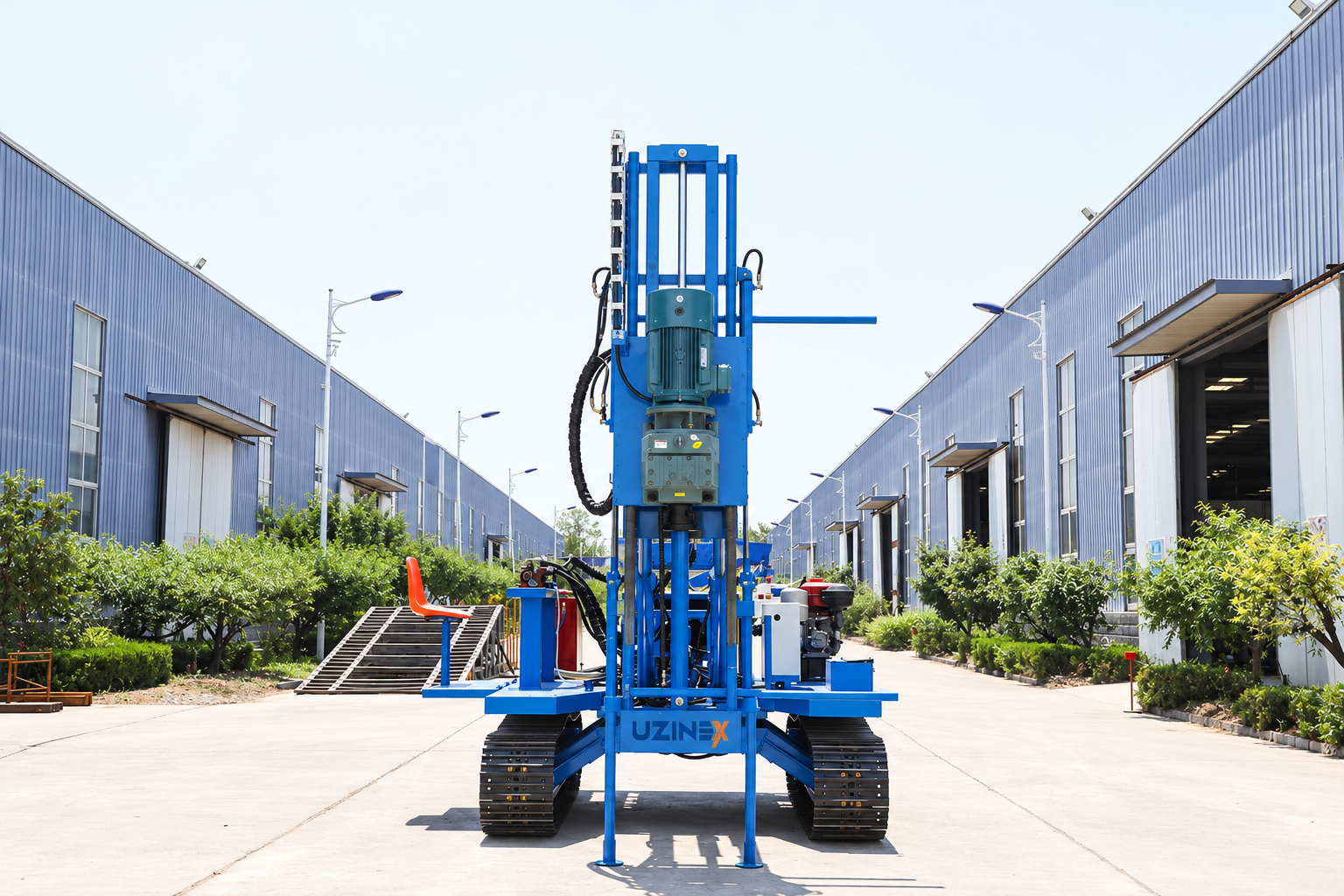

It has a 22 kW electric rotary head, a 22 HP engine for travel and a 1.8 m chain feed. Most parts are made of alloy steel to keep it light, and the build comes apart in modules, so it moves and sets up quickly. It works with a DTH hammer, with casing or with a long auger.
| Parameter | Value |
|---|---|
| Type | crawler, hydraulic control |
| Drilling diameter | 65–220 mm |
| Drilling depth | up to 30 m |
| Drilling angle | horizontal, inclined or vertical |
| Drilling mast | maximum vertical height 5.5 m; 1.8 m chain feed |
| Rotation drive | upper part 180° |
| Engine | Changfa, 22 HP; 15 kW travel motor |
| Power | electric rotary head, 22 kW |
| Track shoe width | 400 mm; chassis 2500 × 2300 mm |
| Feed force | 40 kN |

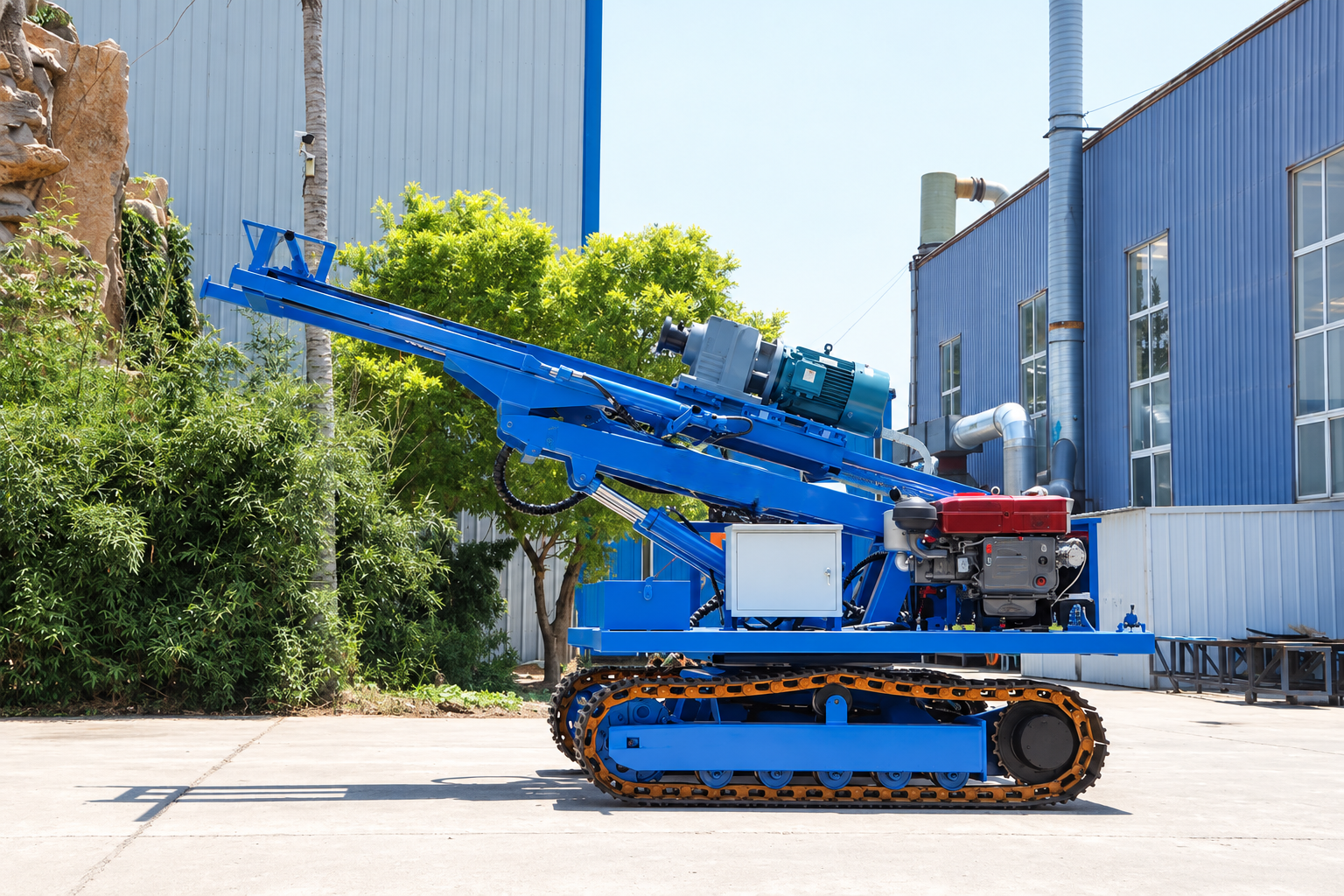

The rig sets up at the foot of the slope, raises the mast to the anchor height and aims it at the design angle, from horizontal to vertical. The rotary head drills the hole with a DTH hammer, with casing or with a long auger, and air or mud flushes the cuttings. The anchor is then installed and grouted in the drilled hole, and the rig moves on to the next hole without relocating.
Drills at any angle, from horizontal to vertical, on slopes and excavation walls.
The modular build moves and sets up quickly, so several holes are drilled from one move.
The operator stays away from the hole mouth, with low effort and better working conditions.
Works with a DTH hammer, casing or a long auger.
Prestressed anchors and drainage holes on road and railway slopes, hydropower plants, landslide stabilisation and rockfall prevention.
The UZX-HWMG-5.5M is compact and modular, for 65–220 mm holes and 30 m, with the mast up to 5.5 m. The UZX-HWMG-15M is heavy, at 18.5 t, with a 15 m mast, hydraulic outriggers and a cab, for holes up to 300 mm and 40 m on high slopes and in deep excavations.
The price depends on the model and the equipment: hammers, casing, augers and compressor. Send us the anchor diameter and length, the slope height and the ground, and a Uzinex engineer will prepare a quote. Delivery, commissioning and operator training are included in Romania.
• Delivery and commissioning included, at your site, with operator training.
• 60-month warranty, standard across the whole catalogue.
• Service with nationwide coverage in Romania, on-site visit within 24 hours.
• Spare parts in stock, so a breakdown does not stop the job.
• Technical documentation for EU-funded projects, PNRR and public tenders (SEAP/SICAP).
• Configuration on request: hammers, casing and augers for your anchors and ground.
