Crawler full-hydraulic rig for deep wireline core drilling, down to 1000 m in NTW, 154 kW Cummins engine, mud pump included, 7.5 t.
| Type | crawler, full hydraulic, wireline coring |
| Core sizes | HTW / NTW / BTW |
| Drilling depth | 500 / 1000 / 1100 m, by core size |
| Engine | Cummins turbocharged, 154 kW, 2400 rpm |
| Hydraulic system | 28 MPa, 300 L/min, air and water cooling |
| Maximum torque | 1000–3500 N·m |
| Rotation speed | up to 1300 rpm |
| Feed stroke | 3500 mm |
| Drilling angle | 45–90° |
| Pull-back force | 30 t |
| Feed force | 15 t |
| Winch | 1000 kg, 100–300 rpm, Ø6 mm rope, 1000 m |
| Mud pump | BW-160, 90–180 L/min, 4–7 MPa, included |
| Travel speed | 3.5 km/h, manual or remote control |
| Gradeability | 45° |
| Weight | 7.5 t |
| Shipping dimensions | 6000 × 2200 × 2400 mm |

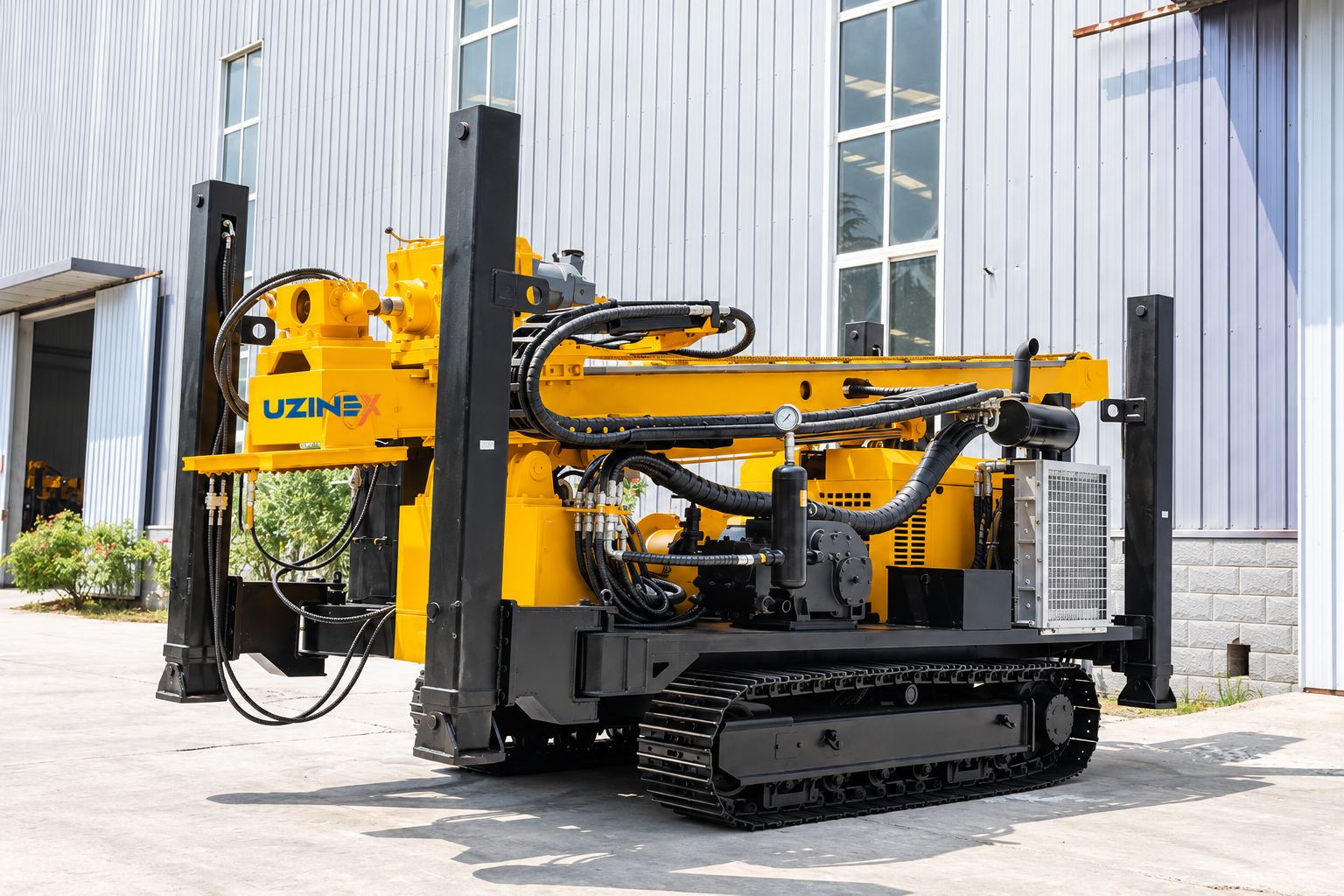

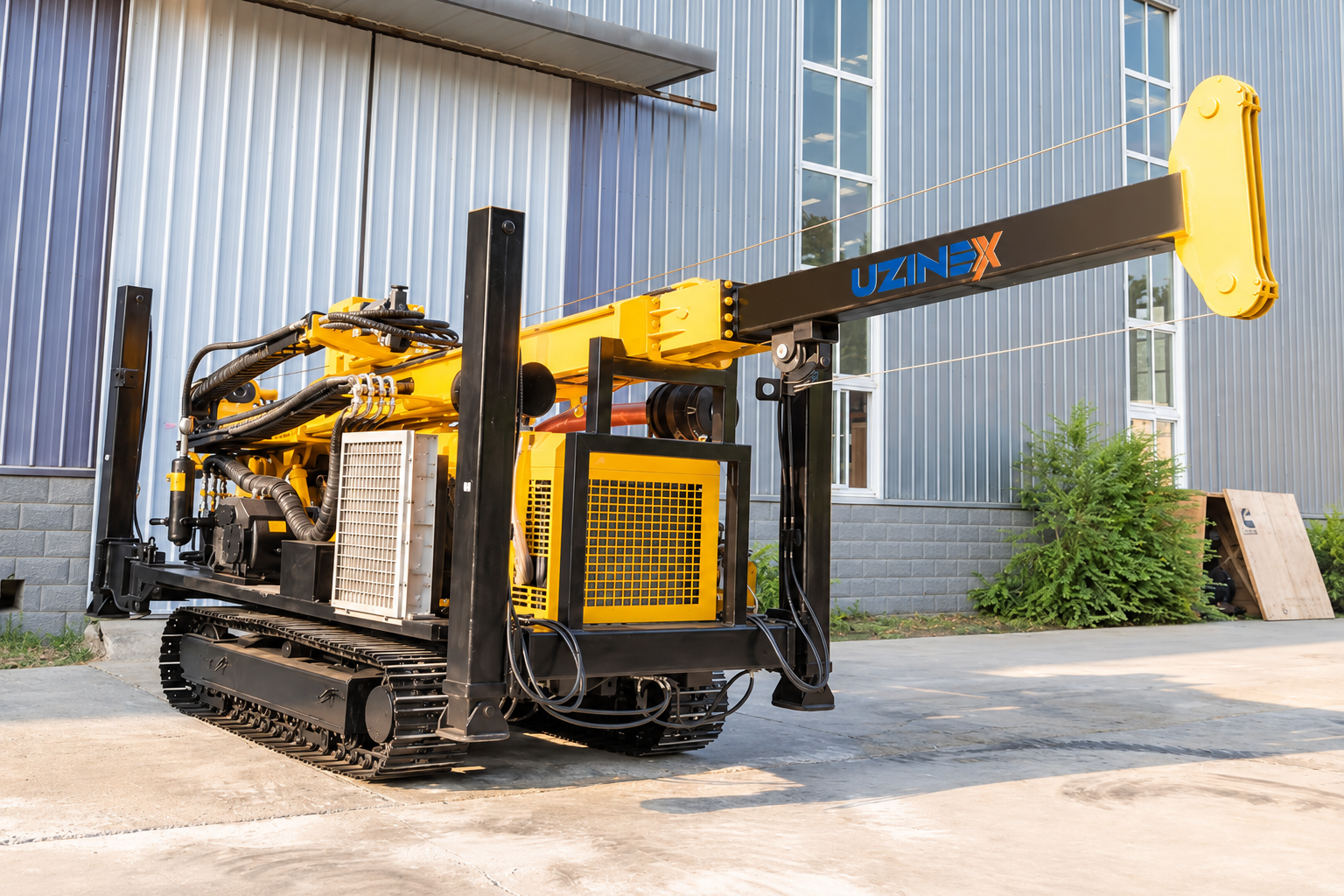

The UZX-HW-1000GL is a full-hydraulic crawler rig for deep wireline core drilling in geological and mining exploration. It recovers HTW, NTW and BTW cores, down to 500, 1000 and 1100 m respectively. The core is lifted through the rods with the winch, without pulling the string.

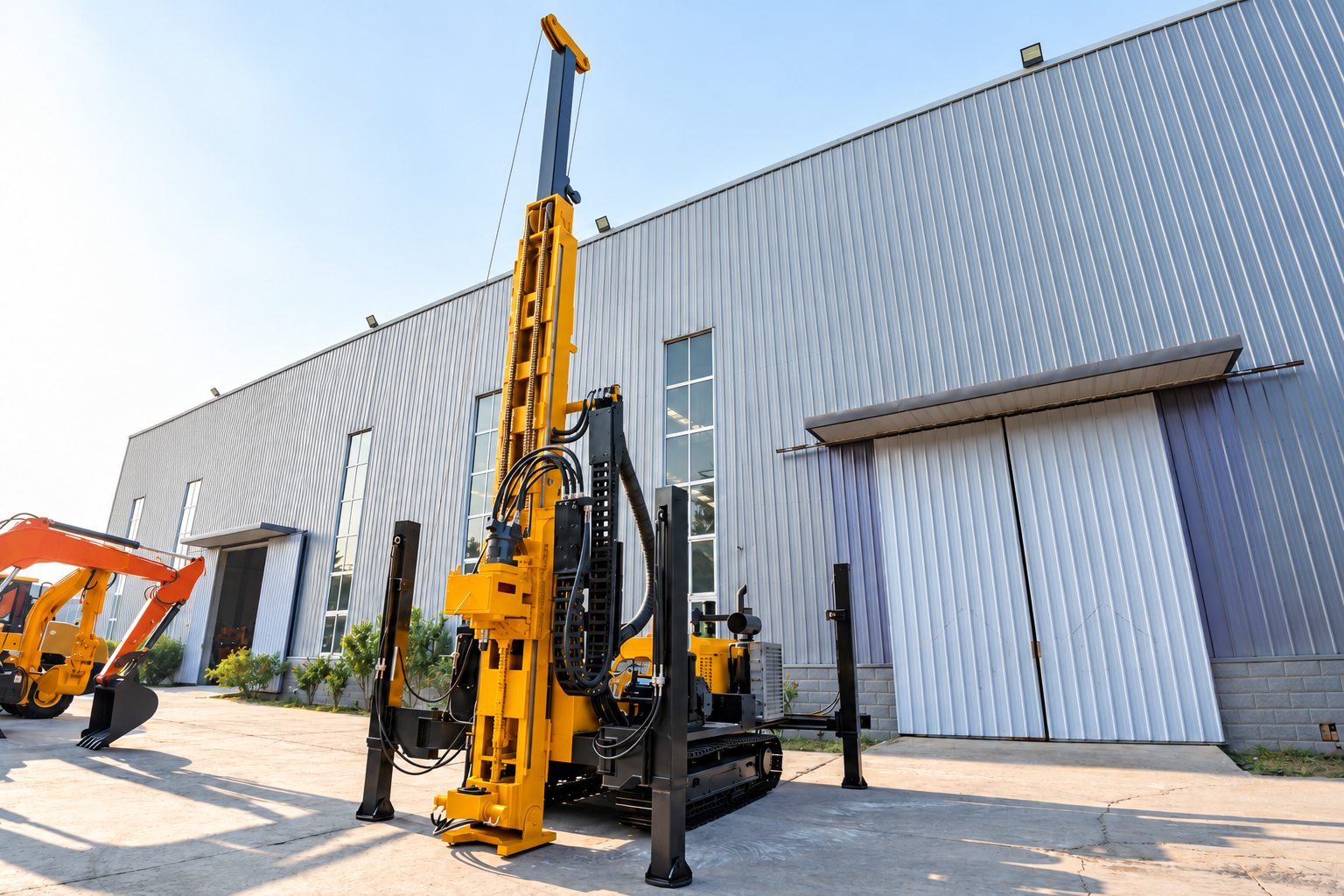

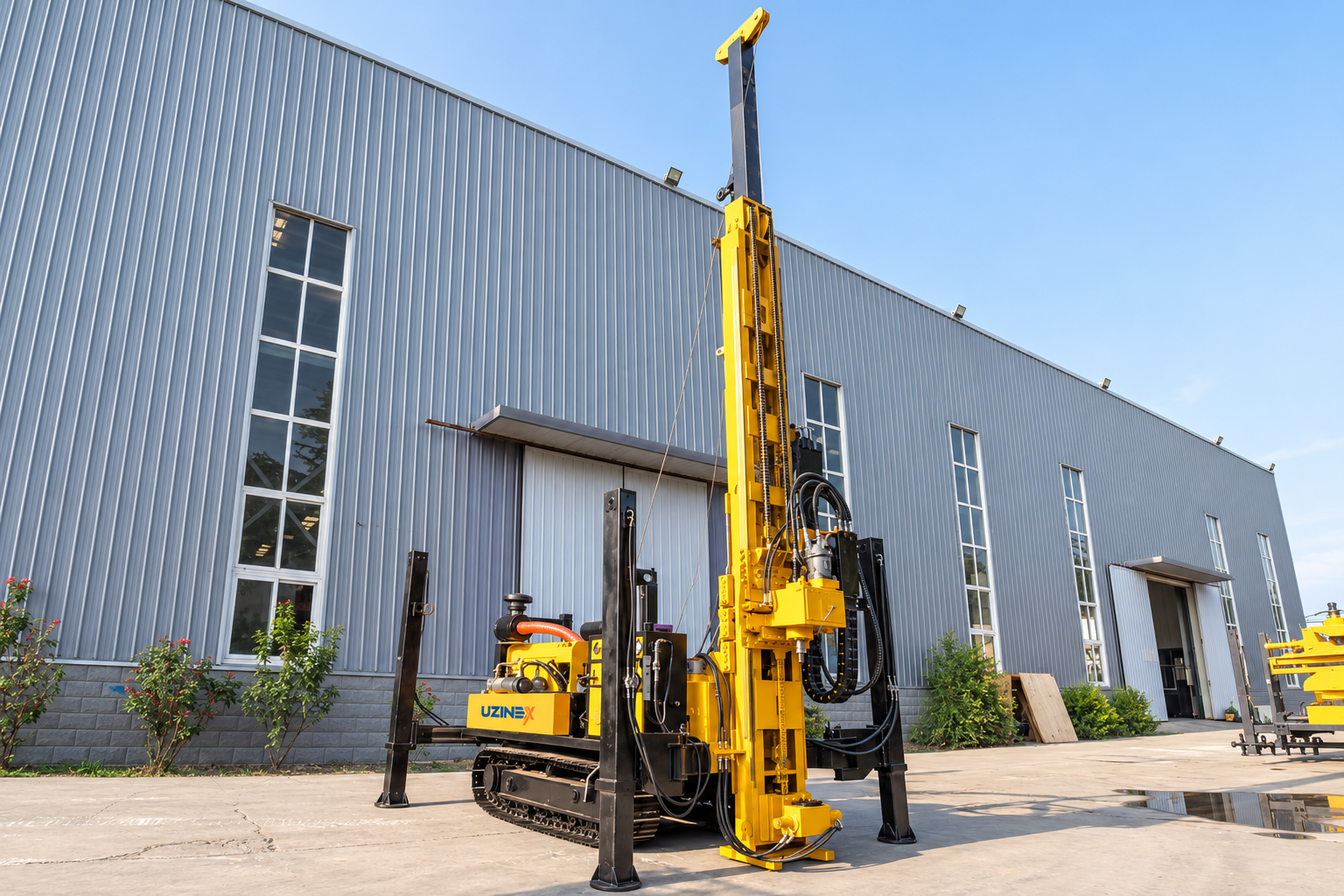

It has a 154 kW turbocharged Cummins engine, 28 MPa and 300 L/min hydraulics, a rotary head of up to 3500 N·m and 1300 rpm and a 3500 mm feed stroke. The integrated mast tilts from 45 to 90°, lifts 30 t and pushes 15 t. The BW-160 mud pump is included. It weighs 7.5 t.
| Parameter | Value |
|---|---|
| Type | crawler, full hydraulic, wireline coring |
| Core sizes | HTW / NTW / BTW |
| Drilling depth | 500 / 1000 / 1100 m, by core size |
| Engine | Cummins turbocharged, 154 kW, 2400 rpm |
| Hydraulic system | 28 MPa, 300 L/min, air and water cooling |
| Maximum torque | 1000–3500 N·m |
| Rotation speed | up to 1300 rpm |
| Feed stroke | 3500 mm |
| Drilling angle | 45–90° |
| Pull-back force | 30 t |
| Feed force | 15 t |
| Winch | 1000 kg, 100–300 rpm, Ø6 mm rope, 1000 m |
| Mud pump | BW-160, 90–180 L/min, 4–7 MPa, included |
| Travel speed | 3.5 km/h, manual or remote control |
| Gradeability | 45° |
| Weight | 7.5 t |
| Shipping dimensions | 6000 × 2200 × 2400 mm |
The rig drills rotary, with a diamond bit at the end of the rods, and cuts a cylinder of rock, the core, which enters the core barrel. When the barrel is full, the winch lowers an overshot through the inside of the rods, which grips it and pulls it up on the wireline, without lifting the string. The core goes into the core box, an empty barrel goes back down and drilling continues. The mud pump cools the bit and keeps the hole clean.
It reaches 1000 m in NTW, for deep mining exploration.
The 30 t pull-back and 3500 mm stroke handle long, heavy strings.
Wireline coring recovers the core without pulling the rods, so drilling stays fast at depth.
The integrated mast removes crane setup and heavy transport.
Exploration for gold, iron ore, coal, lithium, rubidium and stone, deep geological drilling and deposit studies with core samples.
The UZX-HW-400XL, at 4.3 t, reaches 500 m in BTW and suits geotechnical studies and medium-depth exploration. The UZX-HW-1000GL, at 7.5 t, with a 154 kW engine and 30 t of pull-back, reaches 1000 m in NTW, for deep mining exploration.
The price depends on the model and the equipment: rods, core barrels, bits and overshots. Send us the hole depth, the core size and the rock, and a Uzinex engineer will prepare a quote. Delivery, commissioning and operator training are included in Romania.
• Delivery and commissioning included, at your site, with operator training.
• 60-month warranty, standard across the whole catalogue.
• Service with nationwide coverage in Romania, on-site visit within 24 hours.
• Spare parts in stock, so a breakdown does not stop the job.
• Technical documentation for EU-funded projects, PNRR and public tenders (SEAP/SICAP).
• Configuration on request: rods, core barrels and bits for your core size and rock.
