Hydraulic rock and concrete splitter, no explosives, 80 or 90 mm cylinders, 480 t actual force, 5–15 seconds per split, 1–10 cylinders on one unit.
| Splitting cylinders | HW80 and HW90, 250 / 350 / 450 mm wedge, 28–33 kg |
| Holes for the cylinders | Ø42 / 45 / 50 mm, at least 500 / 550 / 600 mm deep |
| Splitting force | 480 t actual; 600 t (HW80) or 800 t (HW90) theoretical |
| Crack width | 10–40 mm |
| Splitting time | 5–15 s |

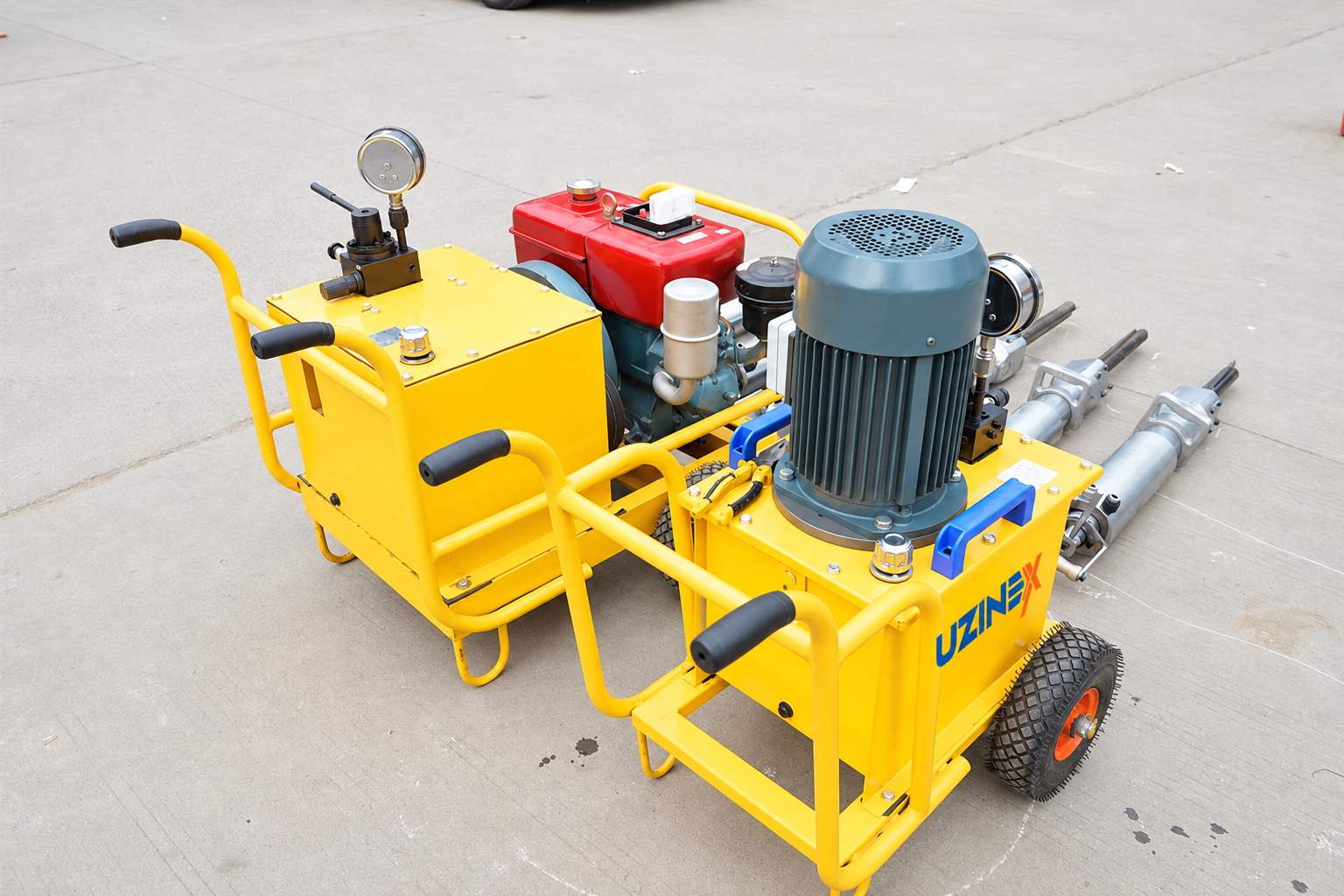

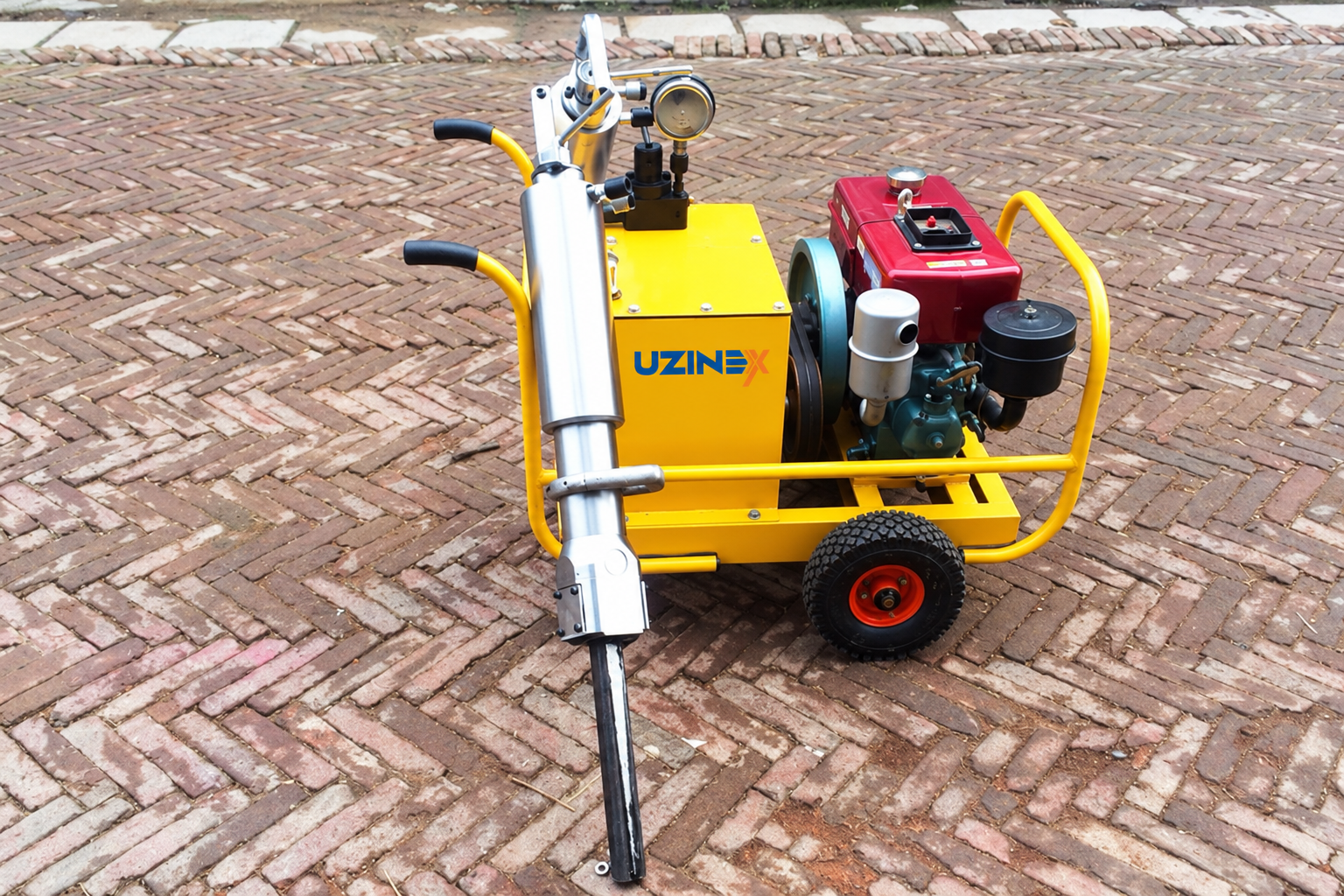

| Pump unit | electric 3 / 4 / 5.5 kW or diesel 3 / 5 / 7.5 HP, 60–150 kg |
| Working pressure | 55–60 MPa |
| Hydraulic flow | 2–13 L/min |
| Features | 1–10 cylinders per unit, depending on the model |
The UZX-HW-80/90 is a hand-held hydraulic rock and concrete splitter for demolition and excavation without explosives. The cylinder goes into a 42–50 mm drilled hole, and the wedge between two counter-wedges is pushed hydraulically, opening the rock or concrete with an actual force of 480 t in 5–15 seconds.
It is used where a hydraulic breaker does not fit or where noise, dust, vibration and flying debris are not allowed. An electric or diesel pump unit at 55–60 MPa drives 1 to 10 cylinders at once, depending on the model.
| Parameter | Value |
|---|---|
| Splitting cylinders | HW80 and HW90, 250 / 350 / 450 mm wedge, 28–33 kg |
| Holes for the cylinders | Ø42 / 45 / 50 mm, at least 500 / 550 / 600 mm deep |
| Splitting force | 480 t actual; 600 t (HW80) or 800 t (HW90) theoretical |
| Crack width | 10–40 mm |
| Splitting time | 5–15 s |
| Pump unit | electric 3 / 4 / 5.5 kW or diesel 3 / 5 / 7.5 HP, 60–150 kg |
| Working pressure | 55–60 MPa |
| Hydraulic flow | 2–13 L/min |
| Features | 1–10 cylinders per unit, depending on the model |

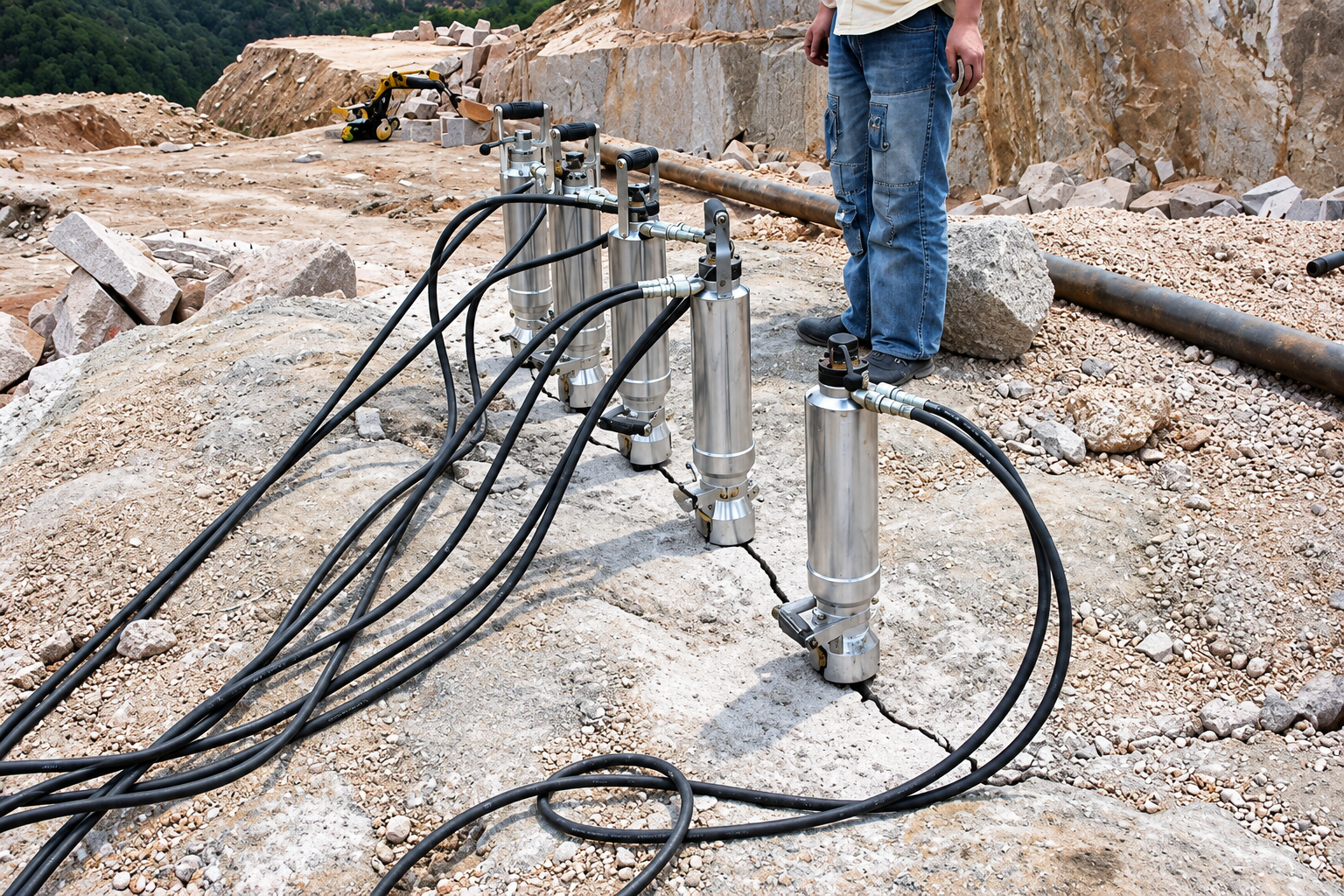

Splitting starts with 42–50 mm holes, drilled with a rock drill in rock or concrete. A cylinder with a wedge between two counter-wedges goes into each hole. The pump unit sends oil at 55–60 MPa, the wedge moves down and spreads the counter-wedges, and the material cracks along the line of holes in 5–15 seconds, with no blast noise, no vibration and no flying debris.
Splits rock and concrete without explosives, vibration or flying debris.
The 480 t actual force opens stone in 5–15 seconds.
The wedges resist wear well.
Easy to use and maintain, with an electric or diesel pump unit.
Demolition of reinforced concrete and foundations, rock excavation next to buildings, utilities or protected areas, building stone quarries, tunnels and tight spaces where large machines do not fit.
The HW80 cylinders have 600 t of theoretical force and the HW90 800 t, with the same actual force of 480 t. The wedge length, 250, 350 or 450 mm, is chosen by block thickness. The pump unit can be electric, 3–5.5 kW, or diesel, 3–7.5 HP, and drives 1 to 10 cylinders.
The price depends on the number of cylinders, the wedge length and the pump unit. Send us the material, the block thickness and how much you split per day, and a Uzinex engineer will prepare a quote. Delivery, commissioning and operator training are included in Romania.
• Delivery and commissioning included, at your site, with operator training.
• 60-month warranty, standard across the whole catalogue.
• Service with nationwide coverage in Romania, on-site visit within 24 hours.
• Spare parts in stock, so a breakdown does not stop the job.
• Technical documentation for EU-funded projects, PNRR and public tenders (SEAP/SICAP).
• Configuration on request: number of cylinders, wedge length and an electric or diesel pump unit.
