Plate rolls turn flat sheet into shells, tubes and cones — the building blocks of tanks, ducting and cylindrical weldments. The catalog covers the usual configurations: 2-roll machines for thin sheet in series, symmetric and asymmetric 3-roll models for the wide thickness range, and variable-axis machines for cones. Choice depends on sheet thickness, minimum shell diameter and how much pre-bending of the edges matters — a UZINEX engineer helps you choose on your parts.
High-capacity 2-roll plate rolling machine, 28 MPa Bosch Rexroth hydraulics, CNC diameter compensation and 3D programming, accuracy ±0,5 mm, 5 models 12–30 mm thickness × 2000–4000 mm width.

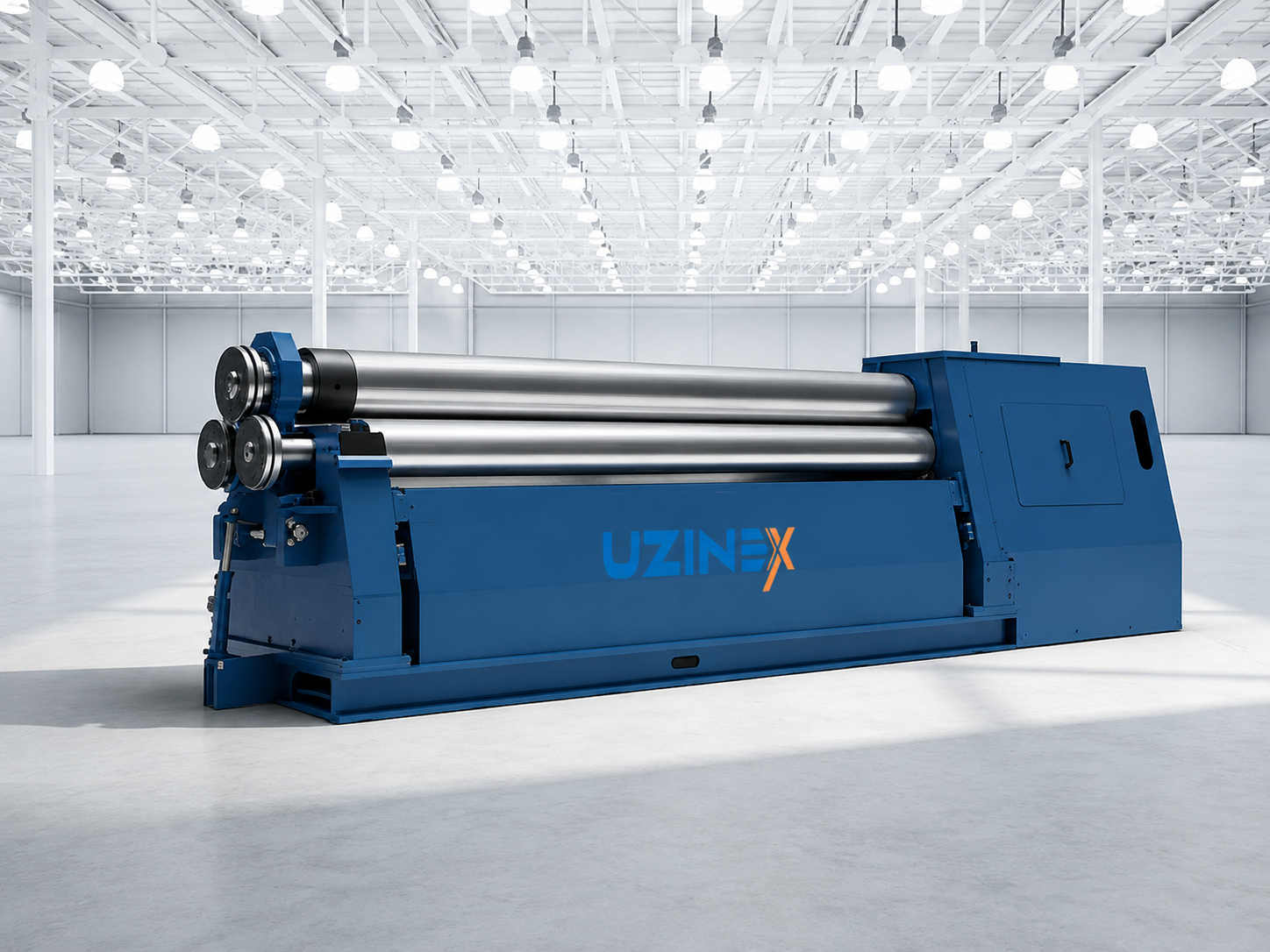

3-roll plate rolling machine with 42CrMo roll shafts, variable-flow Yuken/Bosch hydraulic system, 3–5 axis CNC control with 30 stored programs, accuracy ±0,08 mm, 5 models 4–20 mm × 2048–4060 mm.

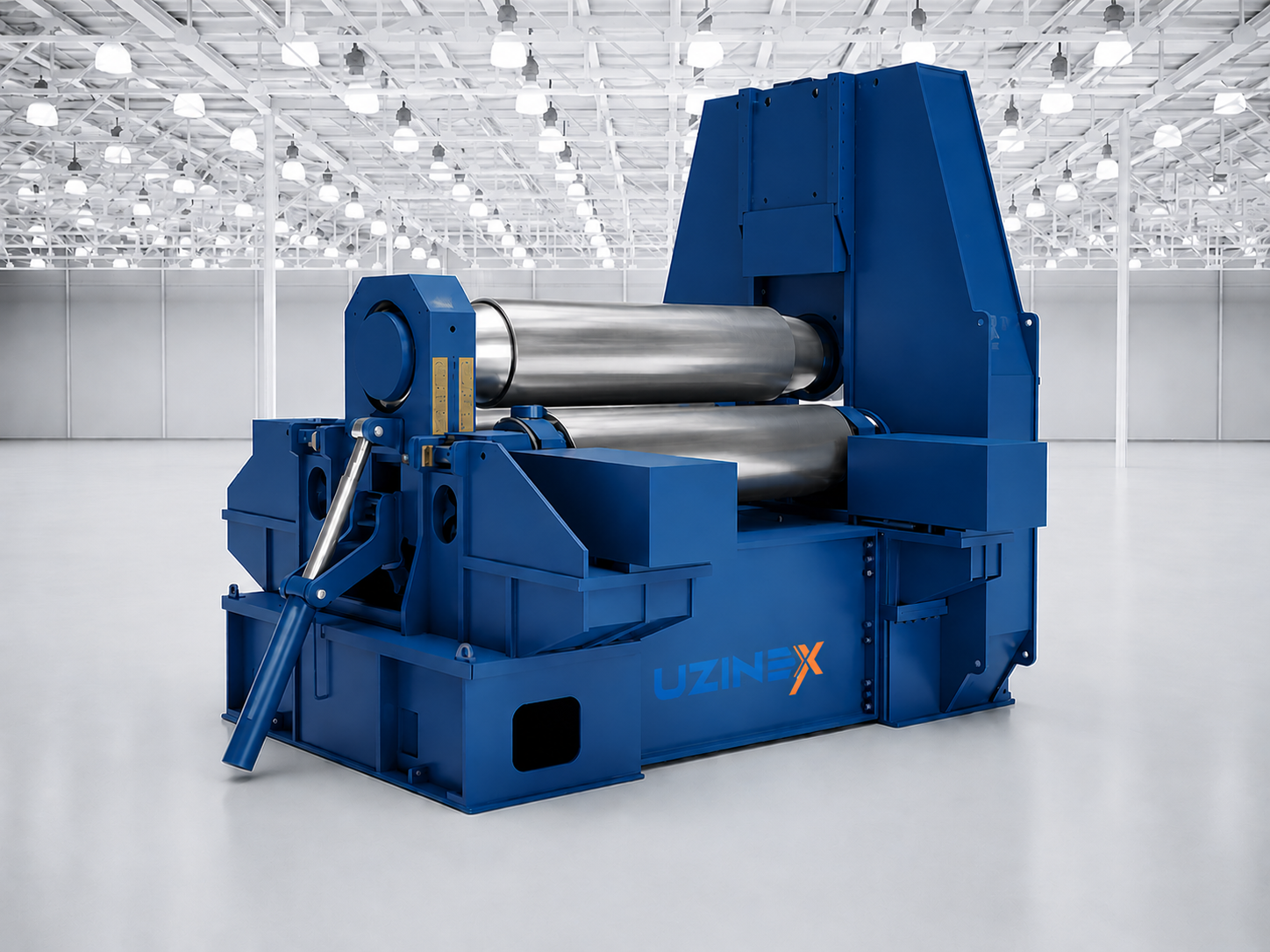

Variable-axis 3-roll plate rolling machine, max thickness 80 mm, max width 10000 mm, diameter 120–15000 mm, CNC conical rolling 0–45°, 8-axis Pfiffner CNC, 5 models 3RV 0511–80100.

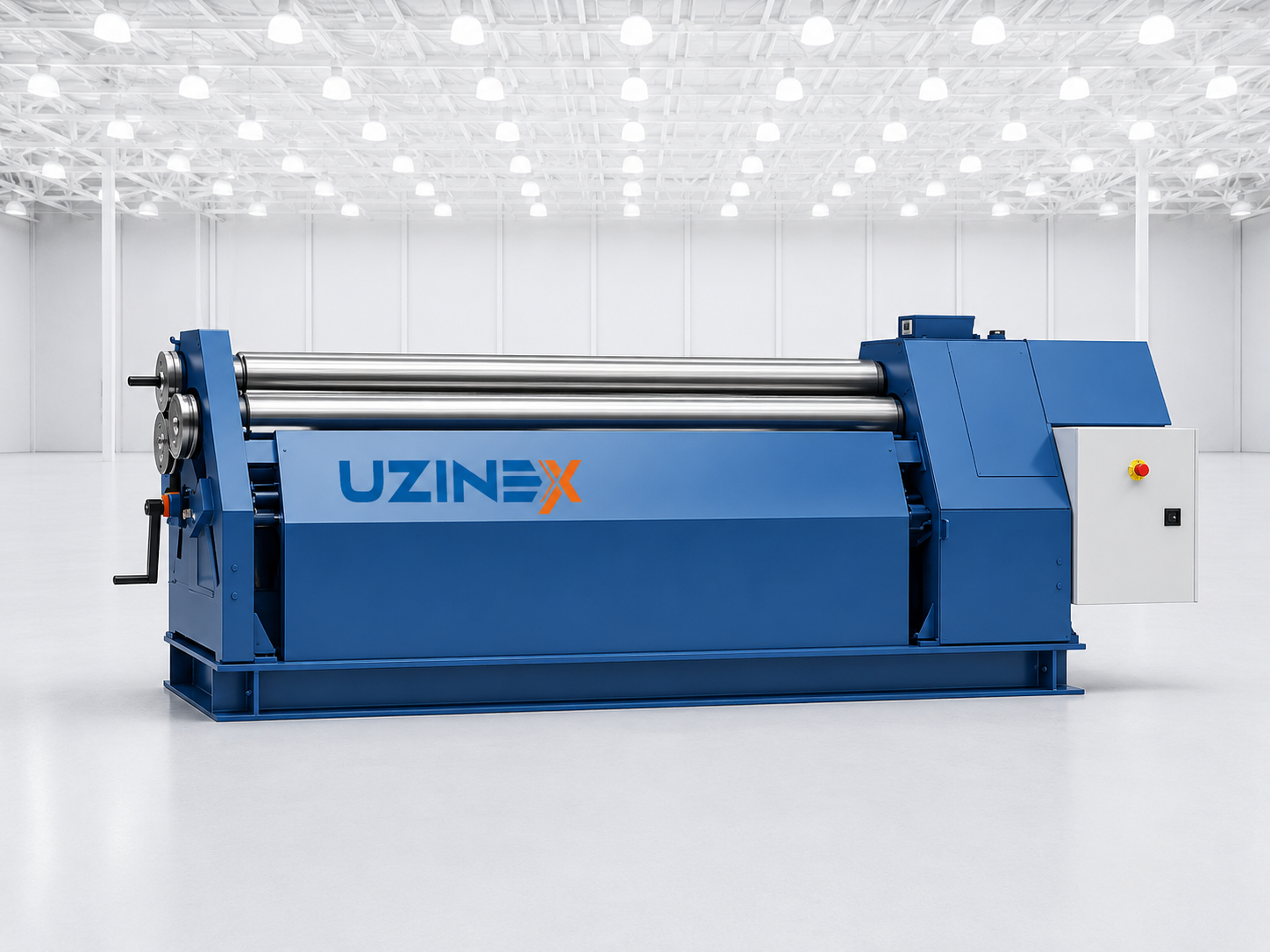

3-roll plate rolling machine in an asymmetric configuration, end pre-rolling without plate reversal, Bosch Rexroth hydraulic top-roll adjustment, variable-frequency drive, 8-axis Pfiffner CNC, 5 models 6–50 mm × 2000–6000 mm.
