No-dig pipe rehabilitation with UV liner

The equipment in this category rehabilitates sewers and pipes without digging. A resin-impregnated glass fibre liner is pulled into the old pipe and cured with UV light, giving a new pipe inside the old one, with no street closure. For isolated defects there is spot repair, with a UV-cured patch in a few minutes.

The choice starts from the pipe diameters, the run lengths and the vehicle carrying the system: a van for neighbourhoods and narrow streets, a truck for large sewers. Delivery, commissioning and crew training are included in Romania, with a standard 60-month warranty.

5 machines in this category

Machines

UZX-814Reabilitare conducte fără săpătură
Sistem de reabilitare conducte UV UZX-X120-UV-SUPER

Truck-mounted UV pipe rehabilitation system, UZX-X120-UV-SUPER

Truck-mounted UV curing system for DN200–1600, small light train for DN200–800 and big train for DN800–1600, IP68 LED, up to 2 m/min.

Details
UZX-815Reabilitare conducte fără săpătură
Sistem UV pentru cămășuire conducte UZX-X120-UVG

UV relining system for DN200–2000 pipes, UZX-X120-UVG

Truck-mounted UV curing system for DN200–2000, large and small lamp brackets, front and rear video, temperature sensors, tablet control.

Details
UZX-816Reabilitare conducte fără săpătură
Sistem UV pentru reabilitare canalizare fără săpătură UZX-X120-UV-MINI

Compact van-mounted UV system for small pipe rehabilitation, UZX-X120-UV-MINI

Van-mounted UV curing system for DN150–500, two sections of flexible waterproof lamps, curing up to 2.5 m/min.

Details
UZX-817Reabilitare conducte fără săpătură
Sistem de reparație locală conducte UZX-X120-ZD

UV spot repair system for pipes, DN200–600, UZX-X120-ZD

From
23.490 €+ VAT

Spot repair system with UV-cured patch, CA1–CA5 packers for DN200–600, two-section LED lamp, 60 m cable reel, control unit.

Details
UZX-818Reabilitare conducte fără săpătură

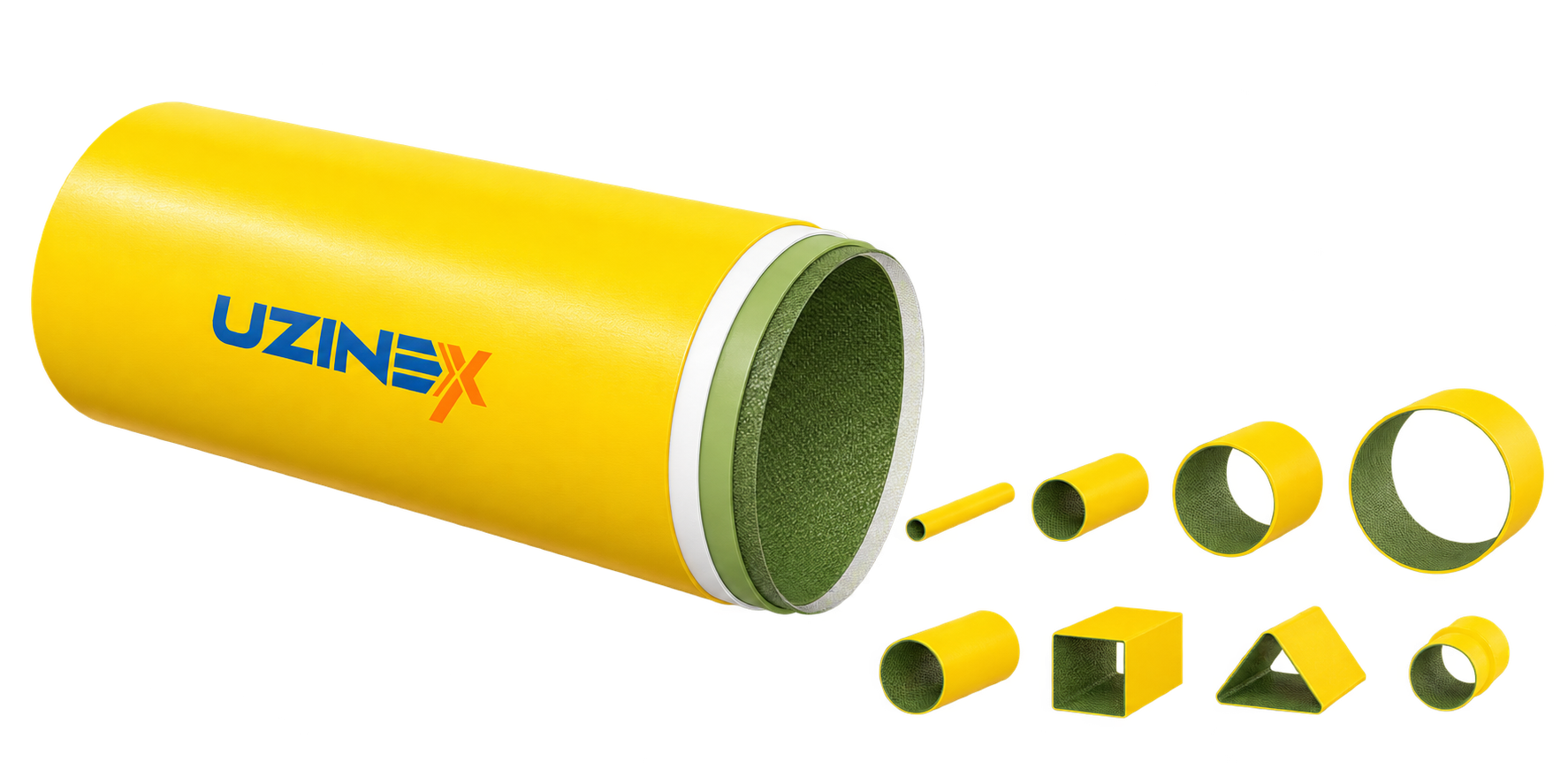

Liner UV pentru cămășuire conducte UZX-ZY-86

Glass fibre UV liner for pipe relining, UZX-ZY-86

Relining tube in ECR glass fibre or carbon fibre, isophthalic polyester resin, DN150–2200, 3–18 mm wall, UV or 395 nm LED curing.

Details

Frequently asked questions about no-dig pipe rehabilitation

What is UV liner relining?+
A resin-impregnated glass fibre tube is pulled into the old pipe, inflated and cured with UV light. It becomes a rigid pipe bonded to the old one, with no digging.
When is spot repair chosen?+
When the pipe has only a few isolated defects, such as cracks, offset joints or roots. The UV-cured patch goes only on the defect, so it costs less than relining the whole run.
What diameters can be rehabilitated?+
The systems cover DN150–2000, and the liner is made in DN150–2200 diameters.
Can the equipment be financed through EU funds?+
Yes. We arrange leasing or equipment credit through our 10 financial partners and assist with EU or government funding files, including delivery within the financing deadline.
What warranty applies?+
Every UZINEX machine comes with a 60-month standard manufacturer warranty, phone support and on-site service intervention in under 24 hours anywhere in Romania.
