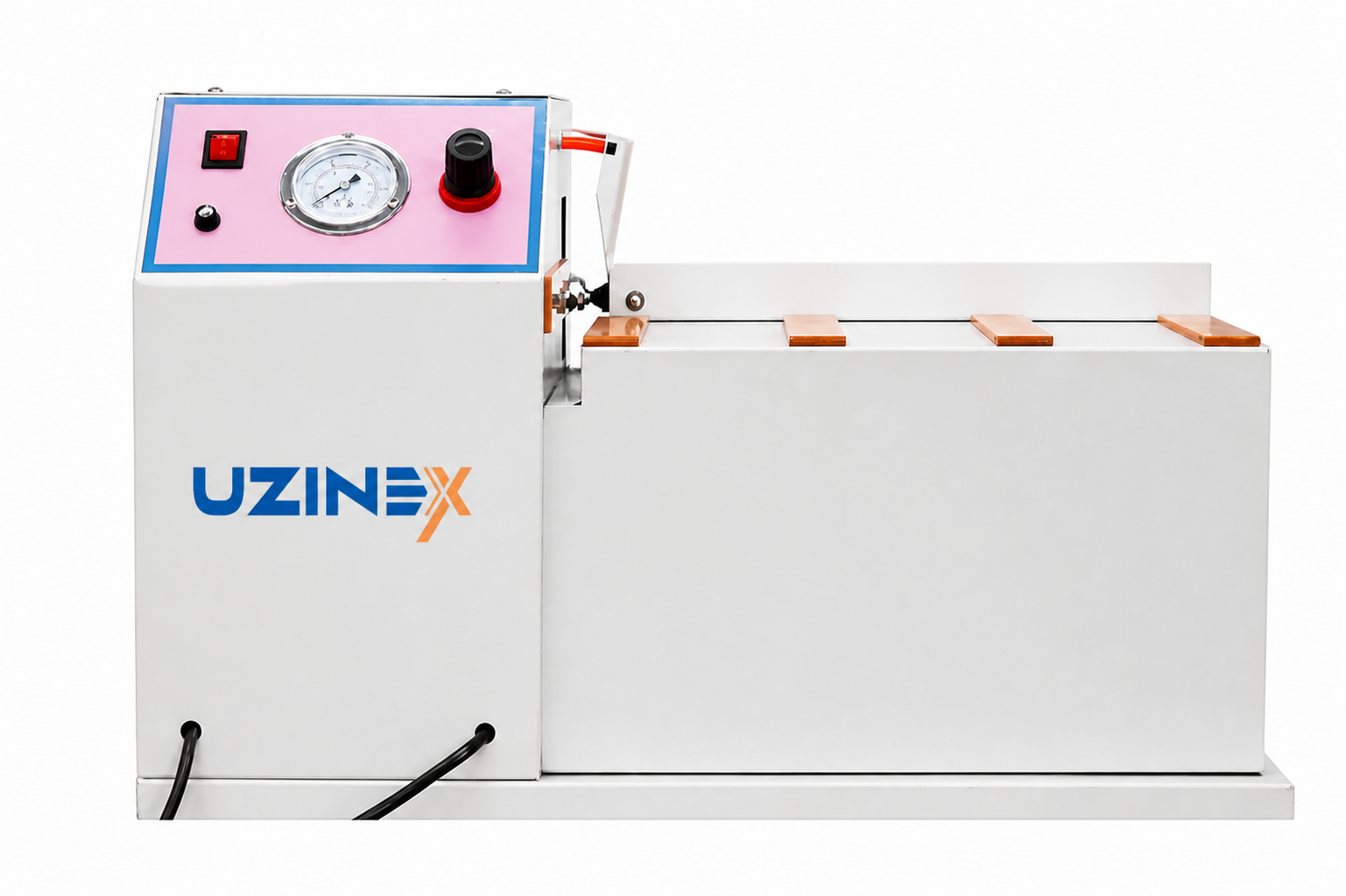

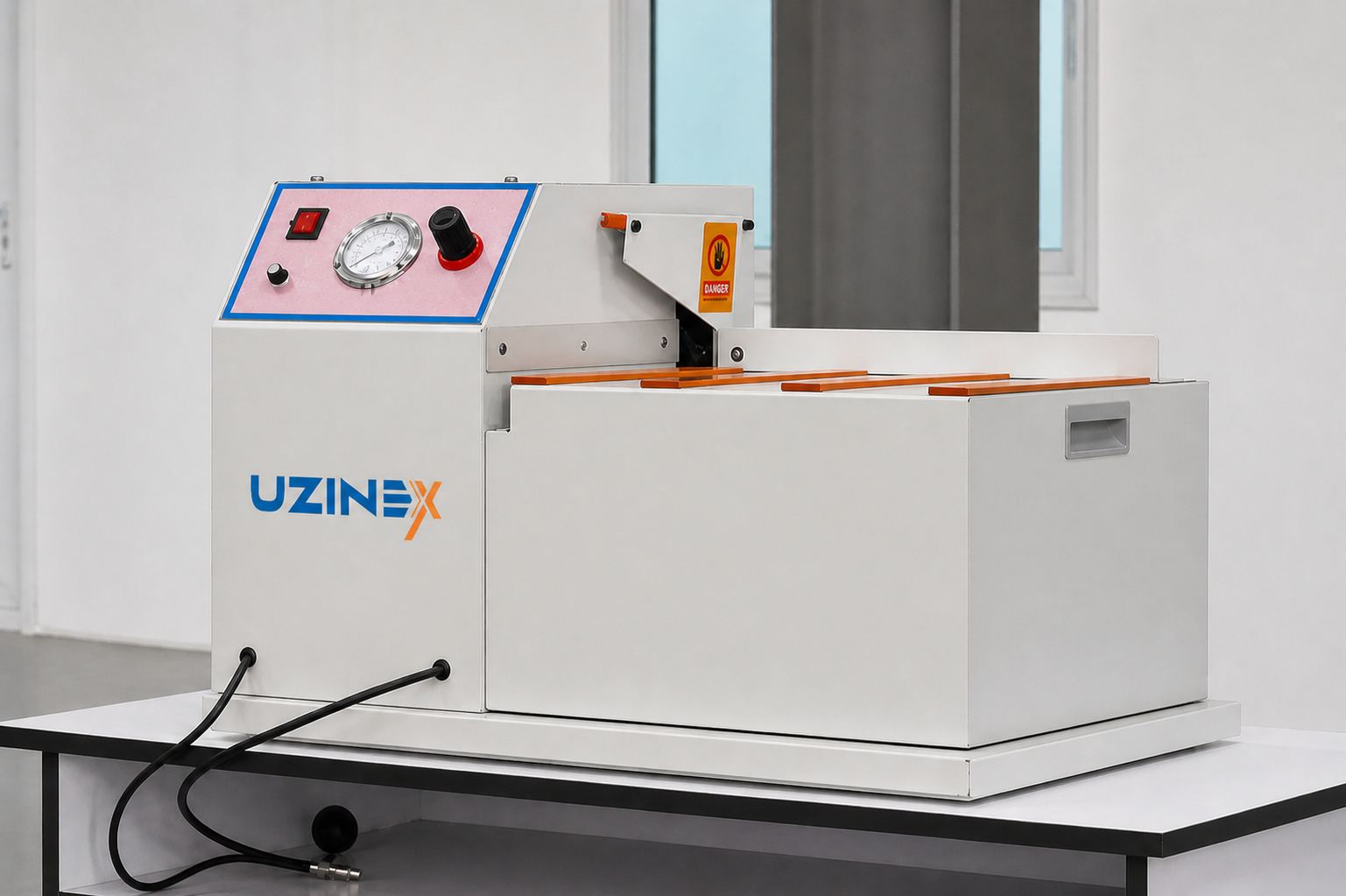

Corner profiling and trimming machine for furniture production

The furniture corner edge-banding trimmer is the workshop equipment for finishing the corners of furniture panels after edge banding has been applied. It removes excess edge banding from the corners of chipboard, MDF and other panels and creates a smooth, uniform R profile with no scratches on the panel surface.

With an adjustable cutting thickness between 0,3 and 3 mm, a height of 60 mm and an adjustable R arc angle, the furniture corner edge-banding trimmer covers every edge-banding format used in furniture production: thin 0,4 mm edge banding, medium 1–2 mm edge banding and ABS edge banding of 2–3 mm.

The furniture corner edge-banding trimmer operates pneumatically at a pressure of 0,5–0,8 MPa and has a power rating of 350 W, making it compatible with any standard workshop compressor with no additional investment in electrical or pneumatic infrastructure. The compact footprint of 710×500×460 mm, the low weight and the single-phase 220 V supply allow the furniture corner edge-banding trimmer to be used in any furniture production workshop, from large factories to small workshops and furniture repair services. Technical specifications: furniture corner edge-banding trimmer

The furniture corner edge-banding trimmer is available for quotation through UZINEX. Free technical consultancy to verify compatibility with the edge-banding types and panels processed in your workshop. Advantages of the furniture corner edge-banding trimmer

• Adjustable R profile: uniform rounded corners across the entire production run. The furniture corner edge-banding trimmer allows the R arc angle of the cutting head to be adjusted to achieve rounded corners with the exact radius required, kept constant across the whole production series. R profile repeatability is the parameter that distinguishes series production from manual work: the equipment produces the same angle on every panel, regardless of the operator using it or the time of day in the shift.

• Cutting thickness 0,3–3 mm: covers all edge-banding types used in furniture production. The furniture corner edge-banding trimmer works with thin 0,4 mm edge banding (economical melamine edge banding), medium 1–2 mm edge banding (standard for living-room and bedroom furniture) and thick ABS edge banding of 2–3 mm (premium furniture, kitchens, bathrooms). This 0,3–3 mm range means it is the only trimming machine needed in the workshop, regardless of the product range manufactured.

• Cutting height 60 mm: sufficient for all standard edge-banding profiles. The furniture corner edge-banding trimmer cuts at a height of 60 mm, covering the standard heights of edge banding used on furniture panels with thicknesses from 16 mm to 40 mm. Edge banding applied to furniture panels rarely exceeds 50 mm in height, so the 60 mm of the furniture corner edge-banding trimmer fully covers production requirements without limitations.

• Adjustable chamfer size: quick adaptation to different orders. The furniture corner edge-banding trimmer allows the chamfer (bevel) size at the corners to be adjusted independently of the R profile, offering flexibility for furniture production with different aesthetic requirements: corners with a minimal visible chamfer for minimalist furniture or corners with a more generous chamfer for classic and transitional styles.

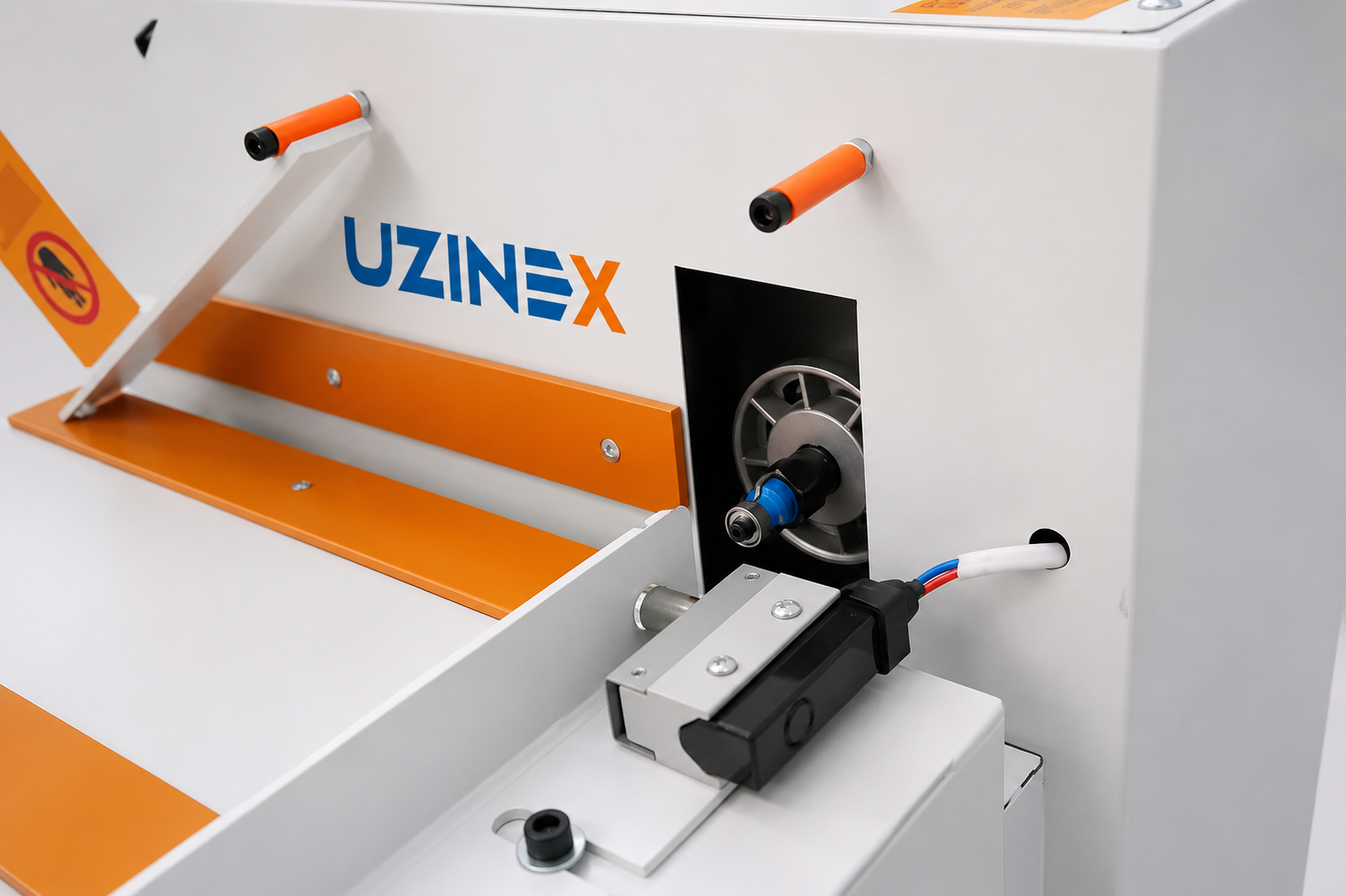

• Precision cutting head with protective cover: quality and safety at the same time. The cutting head of the furniture corner edge-banding trimmer produces a clean surface, with no fraying or tearing of the edge-banding fibres, even on ABS and PVC edge banding which tend to deform when cut with non-specialised tools. The integrated protective cover of the cutting head protects the operator during work and meets workplace safety requirements.

• Pneumatic drive 0,5–0,8 MPa: constant force, no overheating. The furniture corner edge-banding trimmer runs on compressed air, not on an electric cutting motor. The pneumatic drive ensures a constant cutting force throughout the production shift, with no loss of performance from overheating, and eliminates the risk of thermal deformation of heat-sensitive edge banding (PVC, thin ABS).

• Compact 710×500×460 mm footprint, portable: moves wherever it is needed. The furniture corner edge-banding trimmer takes up little space on the workbench or assembly table and moves easily around the workshop according to the production flow. Portability is relevant in workshops where the furniture corner edge-banding trimmer is used at different workstations or where space is organised flexibly according to current orders.

• 60-month UZINEX warranty: spare parts in stock at Iasi, national technical support within 24–48 hours, transport and commissioning included.

Applications: furniture corner edge-banding trimmer

Custom furniture production (melamine chipboard, painted MDF, veneer) is the main application of the furniture corner edge-banding trimmer. After edge banding has been applied on edge-banding machines, the panel corners are left with excess edge banding that has to be removed and profiled. The furniture corner edge-banding trimmer performs this operation quickly and with a constant R profile on kitchen cabinets, bedroom wardrobes, bookcases, tables and any furniture piece with edge-banded panel corners.

Furniture repair services and repair workshops use the furniture corner edge-banding trimmer to re-band damaged furniture panels or to adapt furniture to new dimensions. Portability and the single-phase 220 V supply also allow the furniture corner edge-banding trimmer to be used outside the workshop, directly at the end customer's site, without a generator or special installations.

Manufacturers of prefabricated panels and furniture components for retailers and furniture stores use the furniture corner edge-banding trimmer on the production line for the series finishing of corners on large volumes of panels. The efficiency and R profile repeatability of the furniture corner edge-banding trimmer are essential for the consistent quality of the prefabricated panels delivered to multiple customers with different quality standards. The furniture corner edge-banding trimmer in the furniture production flow

In furniture production, this machine is the third piece of equipment in the panel finishing line, after panel sizing and after edge banding on the edge-banding machine. Without the furniture corner edge-banding trimmer, the corners of edge-banded panels are left with straight excess edge banding or with sharp corners, an untidy and potentially dangerous appearance for the end user of the furniture.

The furniture corner edge-banding trimmer integrates into any furniture production line without changes to the existing flow: the operator picks up the edge-banded panel from the edge-banding machine, positions the corner on the cutting head of the furniture corner edge-banding trimmer and obtains the R-profiled corner in under 5 seconds per corner. On a rectangular panel with 4 corners, the entire corner finishing operation with this equipment takes under 20 seconds. Frequently asked questions about the furniture corner edge-banding trimmer

Does the furniture corner edge-banding trimmer work with edge banding of any material?

Yes. The furniture corner edge-banding trimmer works with melamine (paper) edge banding, PVC edge banding, ABS edge banding and natural veneer edge banding, in thicknesses of 0,3 to 3 mm. The precision cutting head produces clean cuts on all these materials without tearing the fibres or deforming the edge banding. For veneer edge banding or edge banding with a special finish, UZINEX recommends checking the pressure parameters at the quotation stage. What compressor is required for the furniture corner edge-banding trimmer?

The furniture corner edge-banding trimmer requires a working pressure of 0,5–0,8 MPa, compatible with any workshop compressor with a tank of at least 24 litres and a maximum pressure of 8 bar. The 1,5–2,2 kW piston compressors commonly used in furniture workshops are sufficient to supply the furniture corner edge-banding trimmer in continuous production. Can the furniture corner edge-banding trimmer also be used for thick 3 mm edge banding on a kitchen worktop?

Yes. The maximum cutting thickness of 3 mm covers the thick ABS edge banding used on kitchen worktops, bathroom tops and furniture with increased durability. The cutting height of 60 mm is sufficient for the edge-banding profiles applied to worktops with thicknesses up to the 40–45 mm standard in kitchen production. Is the furniture corner edge-banding trimmer eligible for European funding?

Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for projects with European funds. The furniture corner edge-banding trimmer can be included in funding applications for the modernisation of furniture production workshops. Leasing and credit options are available on the UZINEX credit and leasing page. How are the R profile and the chamfer size adjusted?

The furniture corner edge-banding trimmer has direct mechanical adjustments on the cutting head for the R arc angle and the chamfer size, with no special tools. The operator sets the desired profile before starting the production series and the equipment keeps that profile constant on all panels in the series. The initial training included with delivery by UZINEX covers the adjustment procedure for all edge-banding types and R profiles frequently used. Why UZINEX for the furniture corner edge-banding trimmer

The furniture corner edge-banding trimmer is a productivity investment with rapid payback: it eliminates a slow and inconsistent manual operation and adds visible, uniform quality to every furniture piece delivered.

• Verified compatibility: at the quotation stage UZINEX confirms that the furniture corner edge-banding trimmer is suitable for the edge-banding types, thicknesses and R profiles used in your production.

• Transport and commissioning included: delivery to destination, connection to the pneumatic and electrical network and operator training included at no additional cost.

• 60-month warranty: extended coverage for equipment in continuous series production.

• Spare parts in stock at Iasi: cutting heads, pneumatic seals and consumables available immediately, with no prolonged production stoppages.

• National technical support within 24–48 hours: UZINEX technicians with nationwide coverage and a guaranteed response time.

• Eligible for European funds: complete technical documentation for POR and PNRR funding applications, direct addition to SEAP/SICAP.

UZINEX furniture corner edge-banding trimmer: 350 W, pneumatic 0,5–0,8 MPa, cutting thickness 0,3–3 mm, cutting height 60 mm, adjustable R angle, adjustable chamfer size, precision cutting head with protective cover, 710×500×460 mm, 220 V, 60-month warranty, transport and commissioning included throughout Romania.
