Box making machines

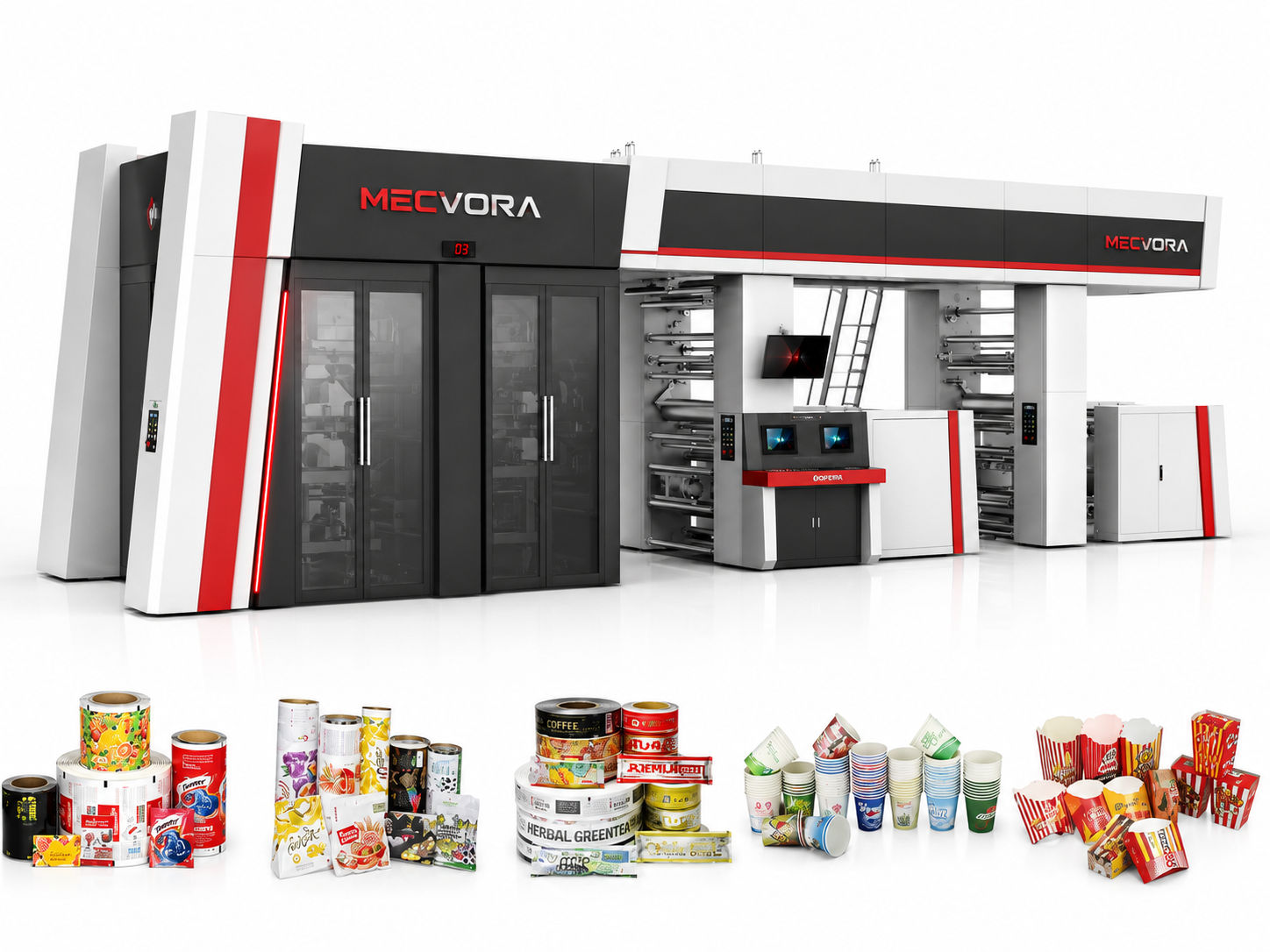

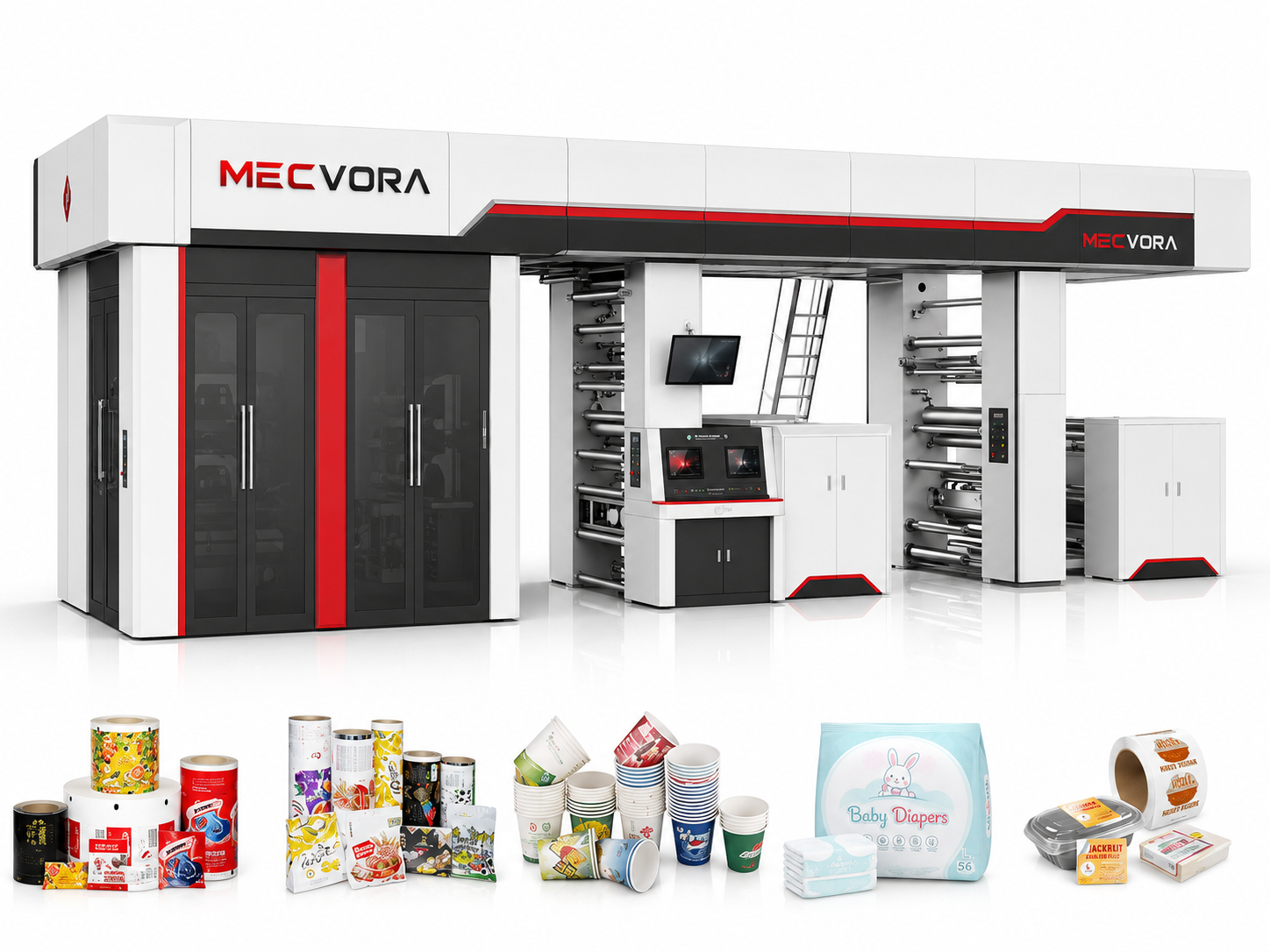

CI Flexo Press with Central Drum MECVORA

Product code: UZX-263

Gearless full-servo, precision printing on flexible films down to 15 μm

Machine type
Central impression (CI) flexographic press, gearless full-servo
Number of colours
4 – 10 (per configuration)
Print width
600 – 1,600 mm (model dependent)
Print speed
up to 300 – 500 m/min (model dependent)
AI takes care
AI manual & maintenance
Transport & commissioning
Free across Romania
SEAP / SICAP
Eligible for public procurement
European funds
PNRR · POR · Just Transition
Industries served

Recommended applications

BEVERAGE PRODUCTIONFOOD · COSMETICS · PHARMA3 000UZX-BEVREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Flexible food packaging

AUTOMATIC LABELINGPRINT HEADTARGETSPEED 60 m/min · DPI 300UZX-LBLREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Printed bags and films

FILLING · DOSING500 ml · ±0.5% · 6 000 BPHUZX-FILREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

FMCG labels and packs

CONVEYOR BELTM1M22 400v = 0.5 m/sXYUZX-CNVREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Packaging printers

Technical data

Technical specifications

Machine typeCentral impression (CI) flexographic press, gearless full-servo
Number of colours4 – 10 (per configuration)
Print width600 – 1,600 mm (model dependent)
Print speedup to 300 – 500 m/min (model dependent)
Substrate thicknessfilms from 15 μm (ultra-thin)
SubstratesBOPP, PET, PE, paper, flexible films
AniloxCeramic, with doctor blade
DryingHot air between stations and tunnel
DriveServo motors, gearless
ChangeoverSleeve technology (quick sleeves)
CertificationCE
MaterialNote
BOPPPrecise registration, vivid colours on thin film
PETStable alignment, suitable for lamination
PEControlled printing on stretchy film
PaperClean colours, fast drying
About this equipment

The MECVORA CI flexo printing machine with central drum prints flexible packaging in tight register on films down to 15 μm. It is gearless and full-servo, with 4–10 colours, 600–1600 mm print widths and speeds up to 300–500 m/min depending on the model.

In a production flow, this CI flexo press replaces unstable presses and losses from registration errors on stretchy materials, consolidating consistent quality across long runs. It fits naturally into any flexible-packaging, film or pouch printing shop, and completes the range alongside the unit type flexo press in the same family, for paper and carton.

Advantages of a Central Impression Flexo Press

• Perfect registration on thin films, a CI flexo press supports the material on a large-diameter central drum, which eliminates distortion and keeps colours aligned even on stretchy 15 μm films.

• Gearless full-servo architecture, each station has its own servo motor, with no gears, for precise registration control and high repeatability between runs.

• Sleeve technology for fast changeover, print and anilox sleeves change quickly, which shortens setup time between jobs and increases productivity on short and varied runs.

• Ceramic anilox and doctor blade, precise ink metering ensures consistent density and optimal consumption, with uniform quality across the full width and fewer stops for adjustment.

• Efficient drying between stations, the hot-air system dries each colour before the next station, for clean colours with no contamination or shade mixing.

• High production speed, the central drum and servo drive allow high printing speeds, with stable registration even at top speed on long production runs.

• Wide substrate compatibility, it prints on BOPP, PET, PE, paper and other films, so a single machine covers several packaging types.

• One supplier for the whole flow, installation, training and service from the same team, with no juggling between multiple partners.

Technical Specifications, CI Flexo Press

ParameterValue
Machine typeCentral impression (CI) flexographic press, gearless full-servo
Number of colours4 – 10 (per configuration)
Print width600 – 1,600 mm (model dependent)
Print speedup to 300 – 500 m/min (model dependent)
Substrate thicknessfilms from 15 μm (ultra-thin)
SubstratesBOPP, PET, PE, paper, flexible films
AniloxCeramic, with doctor blade
DryingHot air between stations and tunnel
DriveServo motors, gearless
ChangeoverSleeve technology (quick sleeves)
CertificationCE

Applications, CI Flexo Printing Machine

A CI flexo press of this type serves flexible food packaging, snack pouches and wrappers, dairy and liquid packaging, paper cups, labels and woven PP sacks. Printers who invest in a central-impression press get impeccable registration on film and consistent quality across long runs.

The solution suits both varied production and large runs. The machine complies with the applicable requirements for CE-marked industrial equipment, in line with the EU Machinery Directive 2006/42/EC. For printing on paper and carton with independent units, see the unit type flexo press in the same family.

In flexible food packaging, a CI flexo press prints pouches, films and wrappers with vivid colours and precise registration, directly on thin films that distort easily on other technologies. The central drum keeps the material stable, and the servo drive ensures perfect colour alignment across the whole run.

Packaging producers use a CI flexo press for high volumes, with fast changeovers between jobs thanks to sleeve technology. Wide substrate compatibility and precise ink metering keep quality consistent, regardless of the material or design of the order. On a return-on-investment basis, stable registration cuts waste and scrap, so a busy press pays for itself fast.

For a converter running film every day, waste is the hidden cost: every metre lost to misregister on a stretchy substrate is expensive material gone. A press that holds register from the first metre keeps that waste low, and fast sleeve changes mean the machine spends its time printing saleable work rather than being set up. On premium films, fewer scrapped rolls quietly repay the investment.

Compatible Materials

The system prints on a wide range of films and paper, depending on configuration. Printing behaviour depends on material and ink; the values below are indicative and confirmed in the personalized quotation.

On BOPP, PET and PE, the central drum ensures precise registration without distorting the film, and on paper it delivers clean colours with fast drying. Sleeve technology allows quick switching between widths and designs, so a single machine covers a varied packaging portfolio, with no lengthy mechanical setup between jobs. This lets one press serve many customers instead of being locked to a single format.

MaterialNote
BOPPPrecise registration, vivid colours on thin film
PETStable alignment, suitable for lamination
PEControlled printing on stretchy film
PaperClean colours, fast drying

How It Works

The workflow on a CI flexo press is simple and repeatable, from plate mounting to finished roll:

1. The operator mounts the print and anilox sleeves and positions them around the central drum.

2. They set registration and colour density from the servo control system.

3. The material runs on the central drum, which supports it stably throughout printing.

4. Each station applies one colour, and drying between stations prevents contamination.

5. The servo system keeps registration aligned automatically, even at high speed.

6. The finished roll comes out with vivid, aligned colours, ready for lamination or slitting.

Because registration is servo-controlled and sleeves change quickly, repeating a recurring order is fast, and an operator reaches consistent results without lengthy adjustments, a real advantage for varied runs. This also makes planning predictable and keeps the cost per roll under control from one order to the next. For a shop quoting film work by the metre, that predictability is as valuable as the print quality itself.

What Uzinex provides

• Delivery, installation and commissioning, with operator training on your own production.

• 60-month warranty and service with on-site response in under 24 hours in Romania (24–72 hours in other countries).

• Technical documentation for EU-funded, PNRR and public procurement projects.
