Complete automatic line for packaging products into corrugated cardboard boxes: 98% automation, 7–10 packages/min standard, box forming from flat paper with an intelligent measuring station, in-house software, German mechanical design.
| Solution type | Complete automatic line for packaging products into cardboard boxes |
| Production efficiency, standard type | 7–10 packages/minute |
| Production efficiency, custom type | 3–6 packages/minute |
| Automation degree | 98% |
| Width processing range | 200–1.200 mm |
| Length processing range | 400–2.800 mm |
| Height processing range (standard) | 18–250 mm |
| Height processing range (pro) | 18–400 mm |
| Processed cardboard thickness | 3–7 mm |
| Conveyor speed | 20–50 m/min |
| Maximum package size | 2.800 × 1.250 mm |
| Minimum package size | 300 × 200 mm |
| Control software | Fully self-developed |
| Mechanical design | German origin |
| Patents | Patented design, first in the industry |
| Standard-format sealing | Automatic sealing: 98% for standard formats |
The FQ-P01 automatic product packaging line is a complete solution designed for companies that pack finished products into corrugated cardboard boxes in a fully automated flow: from flat-paper feeding to the sealed box ready for shipping. With a 98% degree of automation, a speed of 7–10 packages/minute for standard types and fully in-house control software, the FQ-P01 line is a patented solution, the first in the industry in its configuration, with a German-origin mechanical design.
Unlike equipment that processes corrugated board to produce boxes, the FQ-P01 automatic product packaging line performs the inverse, complementary operation: it receives finished products and automatically packs them into boxes formed from flat paper or cardboard, sealed and ready for transport. It is the end-of-line equipment suited to integration with production machines, assembly lines or fulfillment warehouses that need fast, flexible automatic packaging.
Main advantages of the FQ-P01 automatic product packaging line
• 98% automation: the first patented design in the industry. The FQ-P01 line reaches a 98% degree of automation, with all measuring, cutting, folding, box-forming, product-packing and sealing operations performed automatically; the only remaining manual steps are the initial paper feeding and the final unloading of the sealed boxes.
• 7–10 packages/minute for standard types, 3–6 packages/minute for custom types: the production speed adapts to box-format complexity, with standard types (common formats, quick adjustment) reaching 7–10 packages/minute and custom types (unique formats per product) processed at 3–6 packages/minute.
“98% degree of automation with box forming from flat cardboard exactly to the product dimensions: the first patented design in the industry, with its own software and German-origin mechanics.”
• Box forming from flat paper: no stock of pre-formed boxes. The FQ-P01 line forms the box directly from flat paper or cardboard fed in a roll or sheet, eliminating the need for pre-formed box stock and reducing storage space; each box is formed to the exact dimensions of the packed product.
• Intelligent measuring station: automatically measures the product before packaging and transmits the dimensions to the control system, which automatically adjusts the cutting, folding and sealing parameters to form the exact box for the product dimensions, with no manual intervention between products of different sizes.
• Fully in-house control software: the FQ-P01 line's software system is fully developed in-house, ensuring perfect integration between all stations and fast updates and customizations without dependence on third-party software vendors.
• German-origin mechanical design: the mechanical structure is designed on German-origin mechanical principles, ensuring precision, durability and reliability in continuous production at industrial speeds.
• Wide format range: 300×200 mm minimum to 2.800×1.250 mm maximum. The line covers an extremely wide range of product sizes, from small parcels (300×200 mm) to bulky products (2.800×1.250 mm), with automatic parameter adjustment between formats.
• Cardboard thickness 3–7 mm, package height 18–400 mm: compatible with standard single-wall and double-wall corrugated board, with a height range of 18–250 mm in the standard configuration and up to 400 mm in the pro version, covering the vast majority of industrial and consumer products.
Technical specifications: FQ-P01 automatic product packaging line
| Parameter | Specification |
|---|---|
| Model | FQ-P01 |
| Solution type | Complete automatic line for packaging products into cardboard boxes |
| Production efficiency, standard type | 7–10 packages/minute |
| Production efficiency, custom type | 3–6 packages/minute |
| Automation degree | 98% |
| Width processing range | 200–1.200 mm |
| Length processing range | 400–2.800 mm |
| Height processing range (standard) | 18–250 mm |
| Height processing range (pro) | 18–400 mm |
| Processed cardboard thickness | 3–7 mm |
| Conveyor speed | 20–50 m/min |
| Maximum package size | 2.800 × 1.250 mm |
| Minimum package size | 300 × 200 mm |
| Control software | Fully self-developed |
| Mechanical design | German origin |
| Patents | Patented design, first in the industry |
| Standard-format sealing | Automatic sealing: 98% for standard formats |

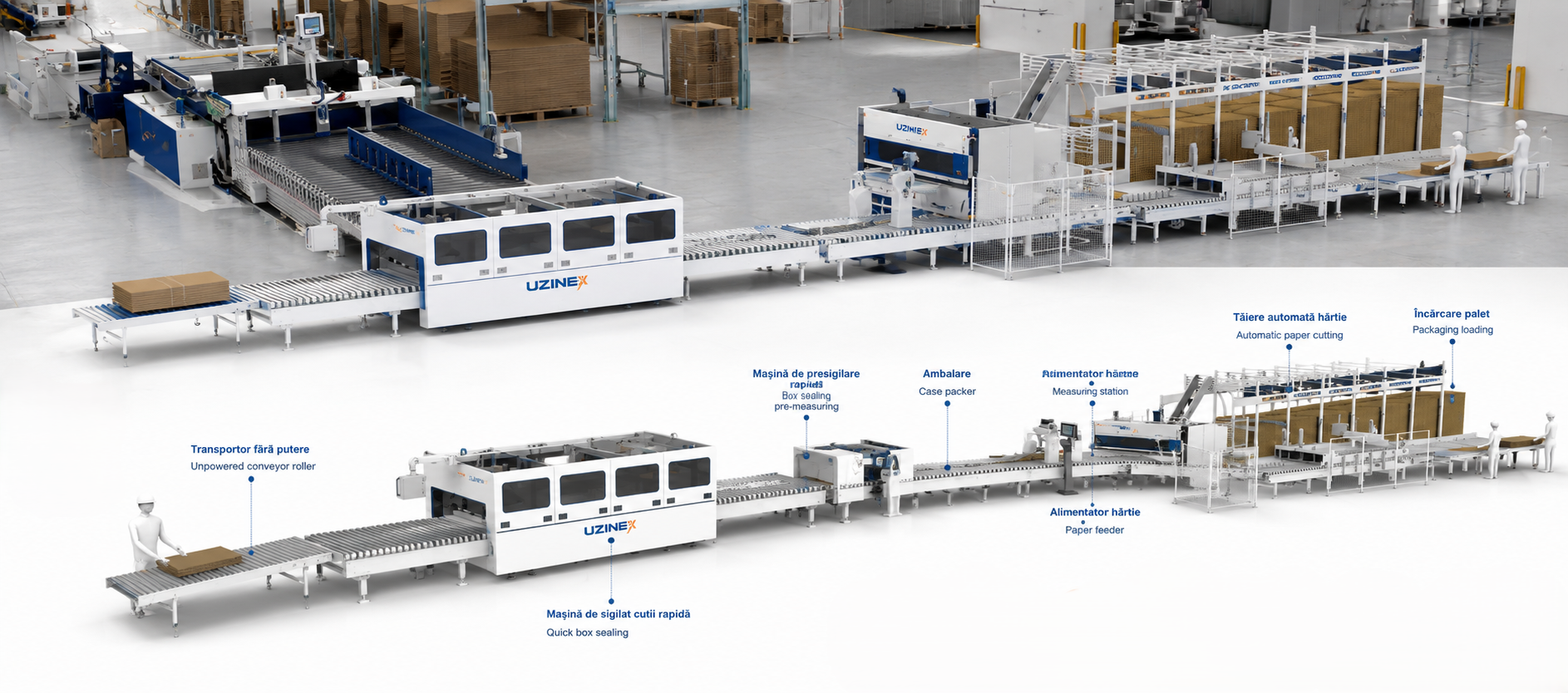

Workflow of the FQ-P01 automatic product packaging line
The FQ-P01 line operates in 12 integrated stages, from manual paper feeding to the unloading of sealed boxes. Flat-paper feeding and translation loading introduce the material into the large-gate buffer storage system, which manages the material reserve for continuous operation even with rhythm variations between sections. The temporary part buffer and micro-dose transport ensure the controlled flow of products to the intelligent measuring station.
The intelligent measuring station automatically measures each product and transmits the dimensions to the control system, which adjusts the longitudinal cutting machine and the creasing-and-folding machine to form the exact box for the product dimensions. The belt conveyor transfers the blanks to the flip-lid wrapping machine (case packer), where the product is inserted into the formed box. The fast intelligent sealing machine seals the box, and the final conveyor prepares it for unloading and shipping.
Main components of the FQ-P01 automatic product packaging line
• Intelligent measuring station: the heart of the control system. It automatically measures the length, width and height of each product or product batch and transmits the dimensions to the software for automatic adjustment of all downstream stations. It completely eliminates manual measuring and format data entry.
• Longitudinal cutting and creasing-folding machine: cuts the flat paper or cardboard to the dimensions calculated by the control system and creates the creasing lines for precise box folding at the correct angles, forming the box blank exactly to the measured product dimensions.
• Case Packer (flip-lid wrapping machine): inserts the products into the formed box and folds the flaps for sealing. The central component of the FQ-P01 line that performs the “wrapping” of the product in the packaging formed from flat cardboard.
• Fast intelligent sealing machine: seals the box with adhesive tape or hot-melt adhesive quickly and precisely. The pre-measuring system ensures the formed box dimensions match the contained product before sealing, eliminating scrap caused by incorrectly formed boxes.
• Non-powered transport table (Gravity Roller): the motorless gravity roller table transfers products between stations without electricity, reducing the line's energy consumption and simplifying maintenance of the transfer sections.
Applications and industries for the FQ-P01 automatic product packaging line
The FQ-P01 line is intended for companies that pack large volumes of finished products of varied dimensions and need full automation of the packaging stage: from forming the box to the product's dimensions through to sealing and preparation for shipping, with no manual intervention.
Industrial manufacturers of equipment, technical components, household appliances and electronics use this line to eliminate the bottleneck at the end of the production line: manual or semi-automatic packaging that cannot keep up with automated production. At 7–10 packages/minute for standard types, the FQ-P01 can pack products faster than most industrial production lines.
Fulfillment centers and e-commerce operators with varied SKUs benefit from the intelligent measuring station: each product is automatically measured and packed in a box formed exactly to its dimensions, eliminating empty space in the packaging, reducing the required filling material and optimizing transport cost by maximizing stacking density.
Companies in the food, cosmetics and pharmaceutical industries that pack finished products at industrial capacity find in the FQ-P01 a line with a 98% degree of automation that meets the hygiene and traceability requirements of regulated sectors, with proprietary software that integrates with existing ERP and WMS systems.
Manufacturers of household appliances, electronics, technical components and equipment who remove the manual packing bottleneck at the end of the automated production line.
Fulfilment centres with varied SKUs that use the smart measuring station to pack each product in the exact-size box, with no empty space and no filler material.
Companies in regulated sectors that need hygiene, traceability and ERP/WMS integration through in-house developed software.
Why UZINEX for an automatic product packaging line
• Free technical consulting to configure the complete solution: UZINEX assesses the type of products packed, the production volume, dimension variability, ERP/WMS integration requirements and available space to configure the FQ-P01 line optimally for the customer's specific flow.
• Transport, installation and commissioning included free of charge: the line is delivered, installed and started at the customer's location by the UZINEX technical team, with full calibration of all stations, testing with the customer's real products and training of the operator and technician team.
• Extended 60-month warranty: one of the longest warranties available in Romania for complete automatic packaging lines, with technical support included for the entire warranty period and on-site intervention or video assistance in under 36 hours.
• National technical support in under 36 hours: on-site intervention or a video diagnostic session in less than 36 hours of the request, with a dedicated 24/7 phone line for UZINEX customers.
• Intelligent AI manual included: complete operating, preventive-maintenance and troubleshooting documentation with AI assistance, able to instantly resolve over 96% of technical requests without human intervention.
• Full eligibility for European funds: UZINEX provides the complete documentation and support for purchases with EU, PNRR or structural funding, including public-tender procedures for automation investments.
The FQ-P01 automatic product packaging line is the end-of-line solution for companies that want to eliminate the packaging bottleneck and reach 98% automation, with box forming from flat cardboard directly to the product dimensions, an intelligent measuring station, fast sealing, proprietary software and a German-origin mechanical design, at 7–10 packages/minute for standard types and 3–6 packages/minute for custom formats.
