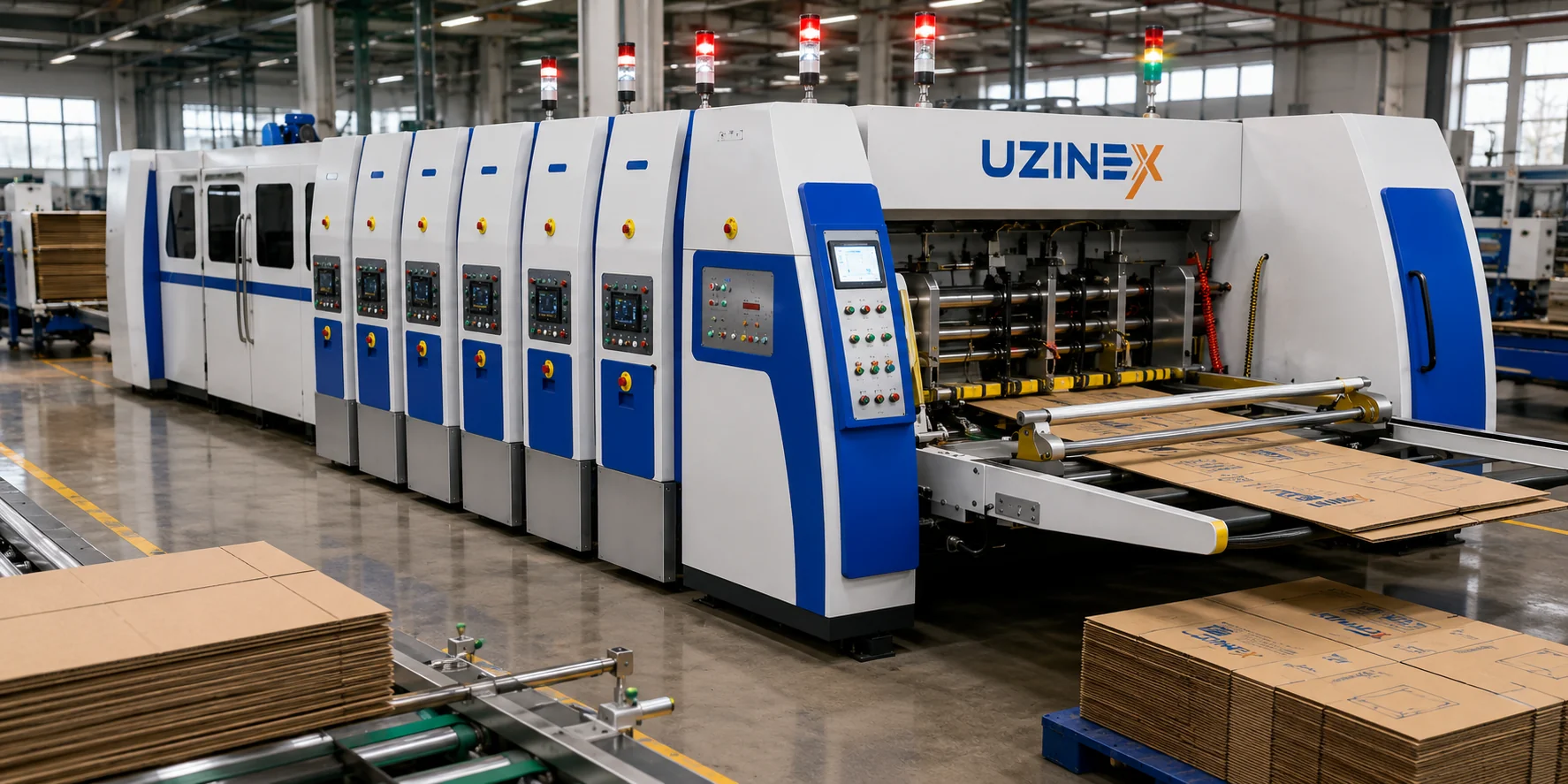

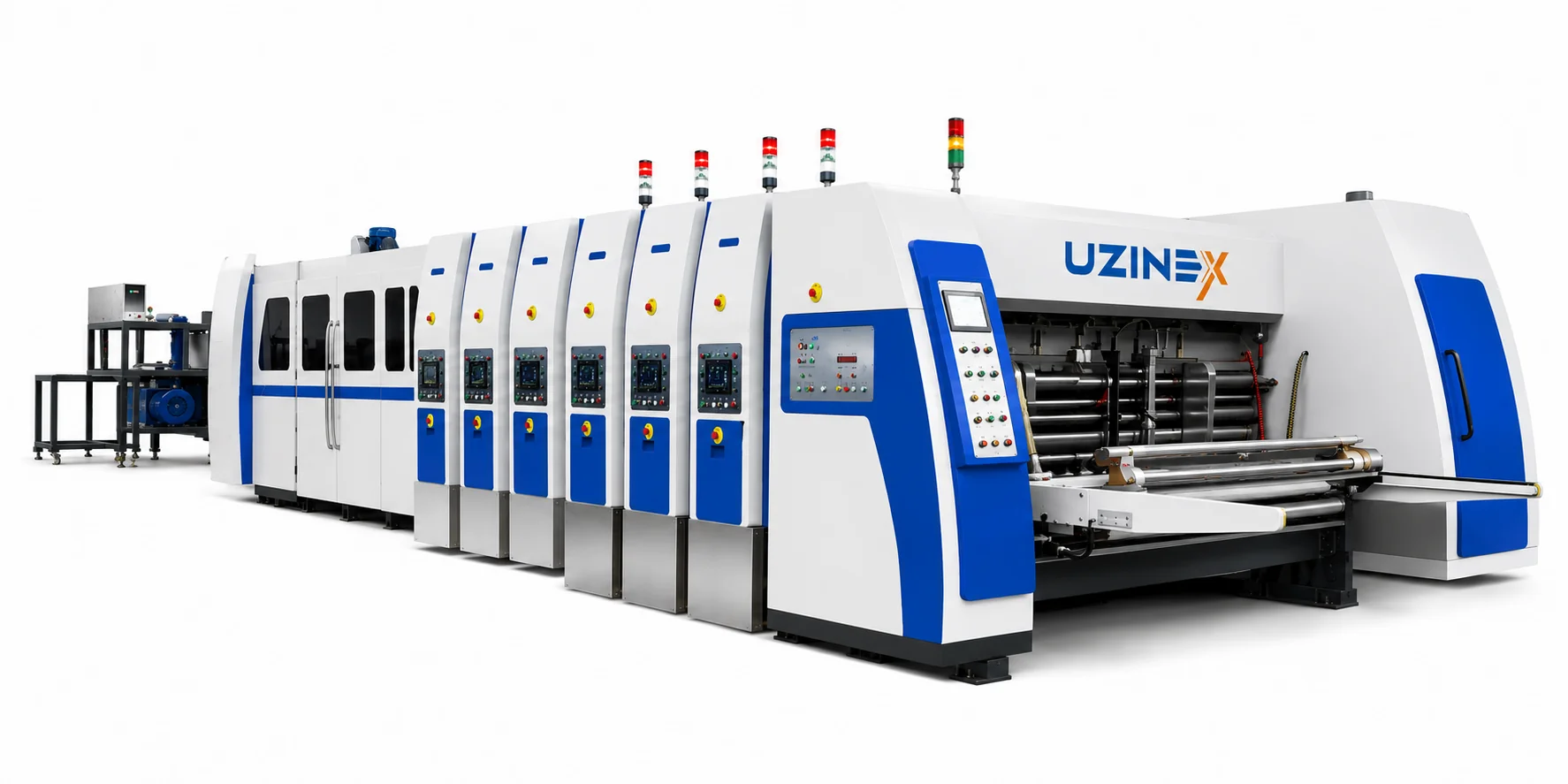

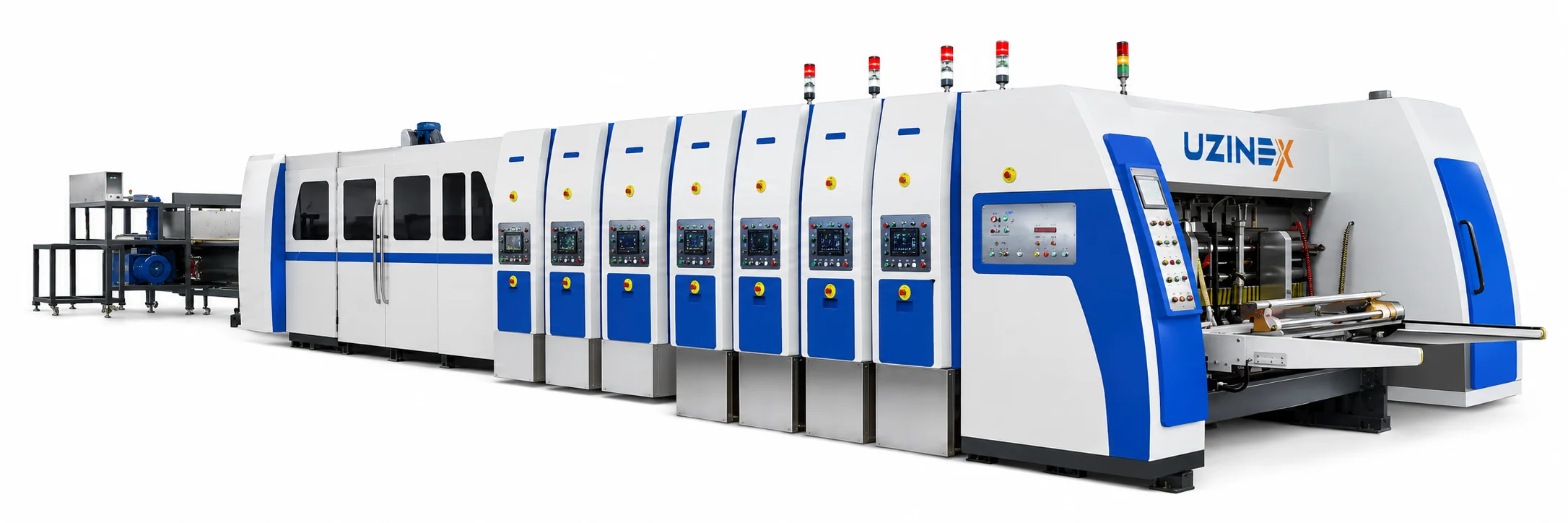

HS-B Series Corrugated Board Folder Gluer Machine

The HS-B Series is a fully computerized, high-speed corrugated board folder gluer machine, designed for packaging plants that process pre-die-cut blanks and need precise folding, stable gluing and automatic bundling into stacks, in a robust and easy-to-operate machine. With a production speed of up to 280 pcs/min on the 920B model and folding accuracy of ±1,5 mm, this corrugated board folder gluer machine combines operational simplicity with industrial-grade mechanical performance.

The HS-B Series stands out through the extended high-bridge structure of the folding arm, supported by a high-strength support bridge in the middle, which ensures smooth and stable operation at high speeds, without vibration or misalignment when changing formats. Compared with other corrugated board folder gluer machines in the family, the HS-B is optimized for simple and fast operation, with convenient adjustment and quick format changeover.

Key advantages of the HS-B Series corrugated board folder gluer machine

• Extended folding bridge with high-strength central support: the extended structure of the folding arm, supported by a high-strength support bridge in the middle, ensures smooth operation of the corrugated board folder gluer machine at high speeds, eliminating vibration and ensuring constant accuracy across the entire working width.

• Edge-guide belt feeding system with variable-frequency control: the adjustable air section with frequency control ensures optimal grip on the blanks regardless of board thickness and quality, with the paper-pressure feeding structure protecting the board from compression losses at the inlet.

• Precise angular guide with lateral roll-sync displacement system: the synchronized lateral displacement system ensures precise box alignment along the entire length of the folding line, preventing deviation and ensuring ±1,5 mm accuracy at all formats and production speeds.

• Constant-temperature gluing system with large lateral mesh: the adhesive temperature is kept constant throughout production; the large lateral mesh system electrically adjusts both the applied adhesive quantity and the application position, with no manual intervention between format changes.

• Elastic guide device with right-angle forming: the right-angle forming wheel and the upper-lower belts for damping and guidance ensure a uniform folding effect and perfect box arrangement, even at speeds of 280 pcs/min.

• Unique correction system with wheels and navigation buoys: automatic correction of box deviation in the guide area, assisted by navigation buoys, ensures uniform and consistent box forming throughout the production run.

• High-frequency "stack-lift" collection: blower fan, flat pneumatic pressing and automatic circular collection count and stack the finished boxes with high efficiency, preparing them for bundling into stacks without manual intervention.

• Convenient control and fast format changeover: this corrugated board folder gluer machine is designed for simple operation, with easy adjustments and fast format changeover, reducing setup times to a minimum and allowing plants to respond flexibly to varied orders.

Technical specifications of the HS-B Series corrugated board folder gluer machine

The 4 models of the HS-B Series corrugated board folder gluer machine

920B: maximum speed for intensive production

The 920B model of the corrugated board folder gluer machine reaches 280 pcs/min and is the choice for plants with high production volumes on constant medium formats. The extended-bridge structure with central support ensures complete mechanical stability at maximum speed, with no vibration or loss of folding accuracy.

924B: sustained production at 250 pcs/min

At 250 pcs/min, the 924B model of the corrugated board folder gluer machine offers a good balance between productivity and working-format versatility. It is recommended for plants with orders that vary in size, where format changes are frequent and fast adjustment is a priority.

1224B: extended width for medium-large formats

The 1224B model extends the working width to 1224 mm, processing boxes with a front and back of up to 1000 mm at 230 pcs/min. This corrugated board folder gluer machine is suitable for manufacturers of packaging for the food, cosmetics and household products industries with medium-large formats and folding-accuracy requirements.

1228B: large format for bulky packaging

The 1228B model offers the largest working format in the series at 200 pcs/min, with the width extended to 1228 mm and front/back dimensions of up to 1000 mm. The 1228B corrugated board folder gluer machine is recommended for large-size packaging for furniture, household appliances and industrial products where wide format is a primary production requirement.

HS-B Series versus HS-A Series: how to choose the right corrugated board folder gluer machine

Both series are high-speed corrugated board folder gluer machines with similar folding, gluing and automatic collection systems. The main differences are operational and capacity-related. The HS-A Series reaches 350 pcs/min versus 280 pcs/min for the HS-B, has slightly larger maximum box front/back dimensions (1100/1145 mm versus 1000 mm) and includes unlimited job memory with ERP connectivity, suitable for plants with integrated production management systems.

The HS-B Series corrugated board folder gluer machine is optimized for operational simplicity and mechanical robustness: the edge-guide belt feeding system and the extended-bridge structure with high-strength central support ensure high reliability and easy maintenance in continuous production. It is the recommended choice for plants that prioritize robustness and ease of operation over absolute maximum speed or ERP connectivity. UZINEX provides free consultancy for selecting the optimal configuration.

Applications and industries for the HS-B Series corrugated board folder gluer machine

The HS-B Series corrugated board folder gluer machine is intended for packaging plants that receive pre-printed and pre-die-cut blanks and need folding, gluing and automatic bundling into stacks at industrial speeds, with equipment that is easy to operate and maintain. It is the right solution for medium and large plants looking for a robust folder-gluer with fast adjustment and reliable production over long shifts.

Manufacturers of packaging for the food and beverage industry use this corrugated board folder gluer machine for high volumes of standard boxes, where consistency of folding and gluing quality is essential for the customer's automated filling line. An incorrectly folded or glued box causes stoppages on the filling line; the ±1,5 mm accuracy and the constant-temperature gluing system eliminate this risk.

Packaging plants for cosmetics, detergents and personal care products use the HS-B Series corrugated board folder gluer machine for boxes with high aesthetic requirements, where the surface's graphic finish must be protected during the folding and bundling process. The high-frequency collection system with flat pneumatic pressing ensures that the printed surface is not damaged during stacking.

How the HS-B Series corrugated board folder gluer machine works

1. Edge-guide belt feeding: the pre-die-cut blanks are fed into the corrugated board folder gluer machine by the edge-guide belt system with variable-frequency control; the paper-pressure structure protects the board from compression deformation at the inlet.

2. Adhesive application with lateral mesh at constant temperature: the large lateral mesh system applies the adhesive uniformly on the gluing flap, with the temperature kept constant and electric adjustment of the application quantity and position directly from the control panel.

3. Folding with extended bridge and synchronized angular guide: the extended folding bridge, supported by the high-strength central support, folds the box with ±1,5 mm accuracy; the precise angular guide with lateral roll synchronization prevents any displacement during folding at high speeds.

4. Guidance and final box forming: the elastic device with right-angle forming wheel and the upper-lower absorption belts form and fix the box; the correction system with wheels and navigation buoys automatically corrects any deviation in the guide area.

5. Deviation correction with independent motors: the rear section with absorption-type conveyor belt and independent motors on both sides drives the correction system, effectively correcting residual deviations before collection.

6. Automatic collection, counting and stacking: the high-frequency stack-lift system, the blower fan and the flat pneumatic pressing stack and count the finished boxes; the output conveyor belt with paper roller and pneumatic offset control prepares the stacks for shipping.

Frequently asked questions about the HS-B Series corrugated board folder gluer machine

What type of blanks can the HS-B Series corrugated board folder gluer machine process?

The HS-B Series corrugated board folder gluer machine processes pre-die-cut corrugated board blanks with front and back dimensions between 150 mm and 1000 mm, a minimum folding spacing of 350 mm and a minimum feed height of 300 mm. It covers standard RSC boxes, flap boxes and other common formats in the food, cosmetics, detergent and household products industries. UZINEX provides free technical consultancy to verify compatibility with the customer's specific formats.

What makes the HS-B's extended folding bridge different from conventional systems?

Folder-gluer machines with a standard folding bridge have a single support point, which generates vibration and mechanical flexing at high speeds or with wide formats. The extended folding-arm structure of the HS-B Series, supported by the high-strength support bridge placed centrally, distributes the mechanical forces uniformly across the entire working width, eliminating vibration and maintaining ±1,5 mm accuracy at 280 pcs/min without degradation over time. In practice: box #1 of the batch and box #1,000,000 come out with the same accuracy.

How do I choose between the HS-B Series (UZX-192) and the HS-A Series (UZX-191)?

The HS-A Series is the fastest (350 pcs/min vs 280 pcs/min for the HS-B), has larger formats (1100/1145 mm front/back vs 1000/1000 mm) and includes unlimited memory with ERP connectivity. The HS-B Series is more mechanically robust (extended bridge with central support), simpler operationally (no ERP, convenient adjustments) and has easier maintenance. Recommendation: HS-A for "smart factory" plants with digital integration and very high volumes; HS-B for medium-large plants that prioritize reliability, simplicity and a low total cost of ownership.

Is special maintenance required for the constant-temperature gluing system?

The gluing system of the HS-B Series machine is designed for minimal maintenance in continuous production. The constant temperature is maintained automatically by the control system, with no manual adjustments at format change or at ambient temperature variations. Periodic cleaning of the adhesive application heads (~once a week on 2 shifts) is the only regular maintenance required; the procedure is documented in the AI smart manual included as standard. An annual replacement of some minor consumables (filters, seals) completes the preventive maintenance plan.

Can I later upgrade from the HS-B to the HS-A for smart memory and ERP?

The two series have architectural differences (control system, network connectivity, maximum capacity): a post-delivery upgrade cannot be done as a retrofit and requires replacing the equipment. Recommendation: if there is a high probability of integrating ERP within 2–3 years, it is more economical to buy the HS-A directly; if your current and medium-term requirements are within the HS-B range, choose the HS-B and use the cost difference for other stations in the line. UZINEX makes a 5-year projection free of charge before ordering.

What is the total cost of operation of the HS-B Series vs the HS-A Series over 5 years?

For a typical plant of 40–60 million boxes/year, the total cost of operation includes: the initial investment (HS-B approximately 70–80% of the HS-A cost), adhesive and energy consumables (almost identical), maintenance (HS-B about 15% lower, due to mechanical simplicity), operator training (HS-B shorter), and productivity losses on ERP upgrade (zero for the HS-B). For plants that have no integrated ERP or do not plan to integrate one, the HS-B offers the best TCO ratio. For "smart factory" plants with an existing ERP, the HS-A eliminates the cost of a later integration.

Is the HS-B Series corrugated board folder gluer machine eligible for EU-funded projects?

Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for EU-funded projects: NRRP, the Regional Program, the Just Transition Program. The HS-B Series is suitable for funding applications oriented toward modernizing production lines and increasing productivity, with a more affordable investment cost than the HS-A, which can make the application more competitive in programs with a co-financing ceiling. UZINEX provides all the technical documentation for public procurement procedures and tenders.

Why UZINEX for a corrugated board folder gluer machine

• Free technical consultancy for model selection: UZINEX evaluates the production volume, blank formats, type of corrugated board and folding-accuracy requirements to recommend the optimal model among the 920B, 924B, 1224B and 1228B based on the plant's specific flow.

• Transport, installation and commissioning included free of charge: the corrugated board folder gluer machine is delivered, installed and started at the customer's site by the UZINEX technical team, with complete parameterization for all initial formats and operator training on the actual equipment in production.

• Extended 60-month warranty: one of the longest warranties available in Romania for industrial folder gluer machines, with technical support included for the entire warranty period and on-site intervention or video assistance in under 36 hours.

• National technical support in under 36 hours: a dedicated 24/7 telephone line, remote diagnostics and fast on-site intervention through the UZINEX national technical support network.

• AI smart manual included: complete usage, maintenance and troubleshooting documentation with AI assistance, capable of instantly resolving over 96% of common technical requests without human intervention.

• Full eligibility for European funding: UZINEX provides the documentation and full support for EU-, NRRP- or structural-funds procurement, including for public tender procedures.

The HS-B Series corrugated board folder gluer machine is the industrial solution for packaging plants looking for a robust, easy-to-operate folder-gluer with an extended folding bridge for stability at high speeds, a constant-temperature gluing system and automatic bundling into stacks: equipment designed for reliable continuous production, with minimal maintenance and consistent finished-box quality.
