UZX-HS-C Series (920C/924C/1224C): automatic folding and gluing machine for SMALL cardboard boxes, min format 130/80 mm, min folding spacing 210 mm, up to 280 pcs/min, PLC touchscreen, 4-direction servo head.
| Production speed (pcs/min) | 280 |
| Minimum folding spacing (mm) | 210 |
| Box front, min (mm) | 130 |
| Box front, max (mm) | 730 |
| Box back, min (mm) | 80 |
| Box back, max (mm) | 730 |
| Folding accuracy (mm) | ±2 |
| Min. feed height without vibrator (mm) | 210 |
| Min. feed height with vibrator (mm) | 280 |
| Control system | PLC touchscreen, data entry without stopping |
| Gluing head | Servo, 4-direction electric adjustment, 1-click |
| Transmission | Imported belt, variable frequency |
| Gluing system | Auto circulation + stainless wheels + uniform application |
| Gluing section cleaning | Electric vacuum brush, edge-imprint reduction |
| Pressure paper | Soft + silicone elastic + flap deviation correction |
| Folding | Independent variable frequency, L-R sync |
| General correction | Horizontal electric shift per deviation |
| Stacking output | Auto counting + pneumatic clamping + adjustable force |
| Special application | Small ecommerce box guide (optional) |
| Components | Anti-stick Nylon wheels + optical guides, CE |

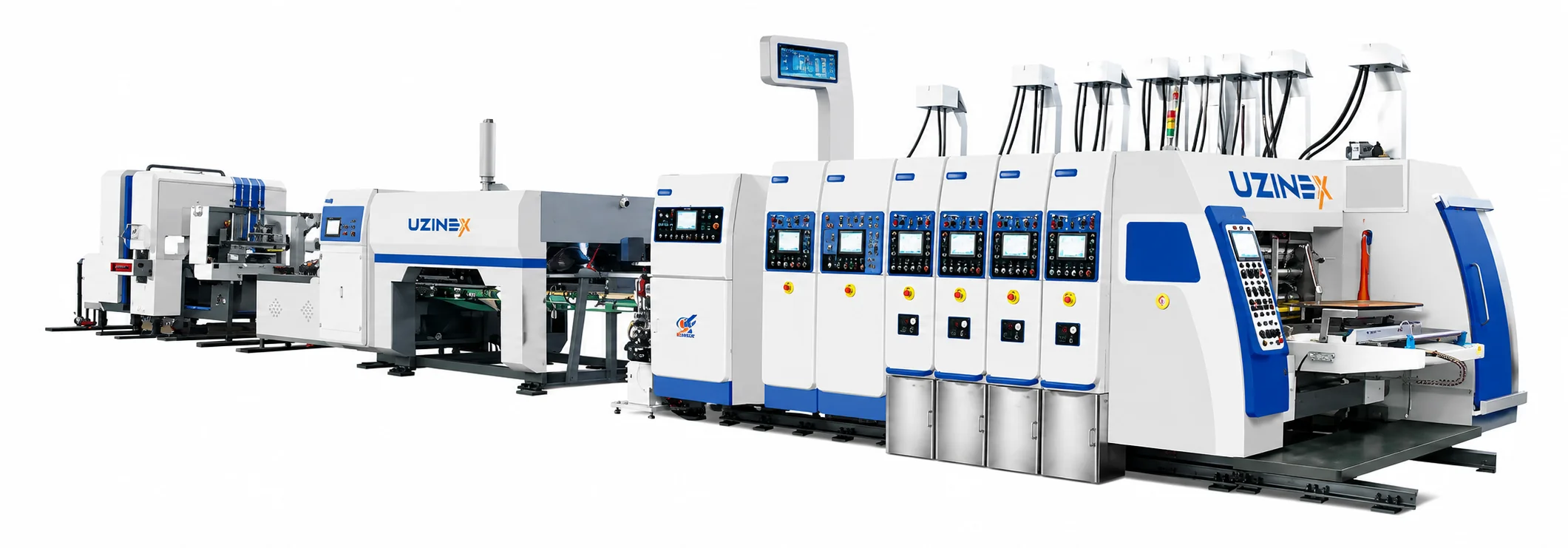

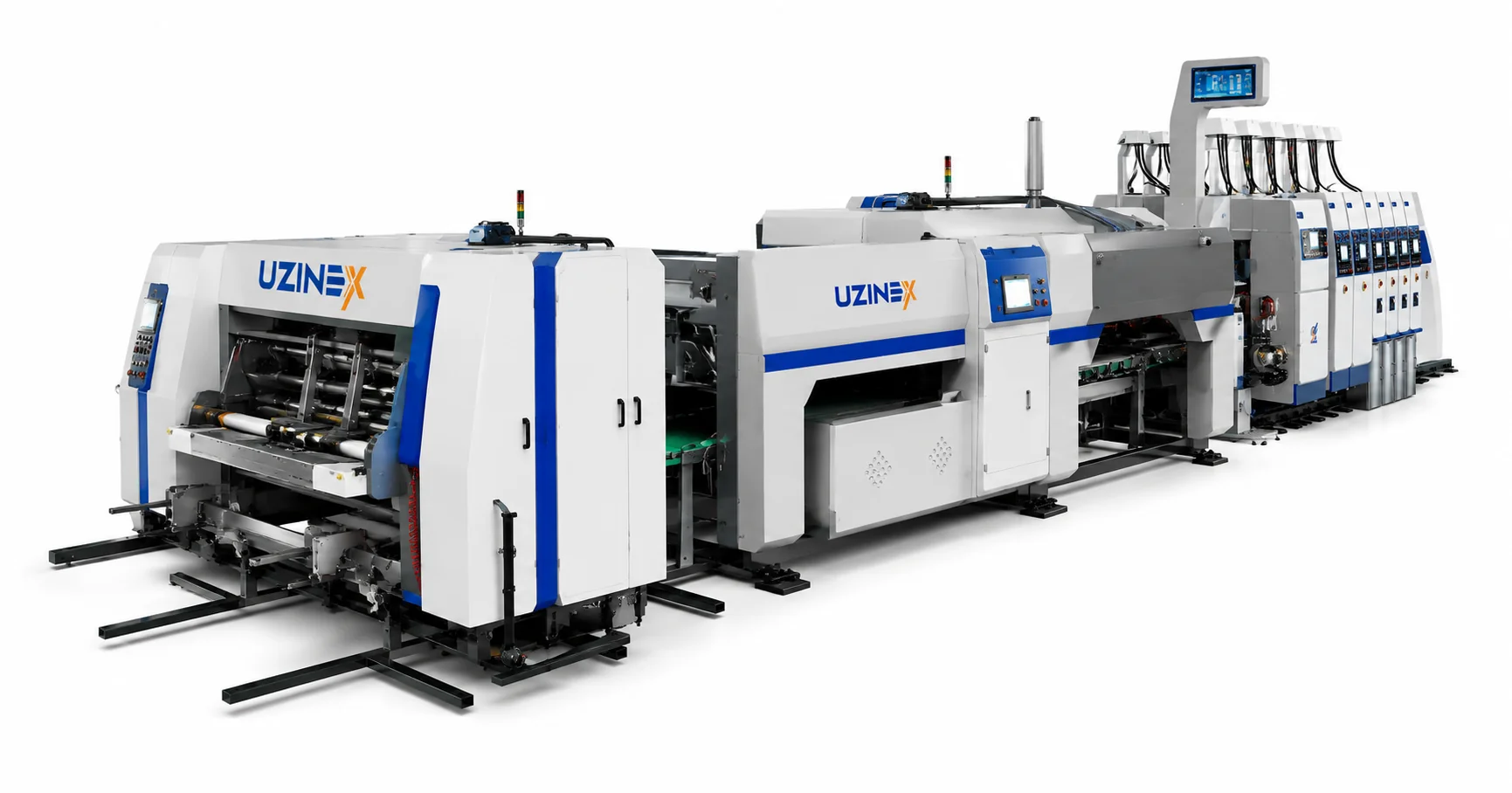

The UZX-HS-C Series is a fully automatic, high-speed automatic small cardboard box folding and gluing machine with a PLC touchscreen control system, designed specifically for packaging manufacturers that process small, varied formats, including boxes for ecommerce, cosmetics, pharmaceuticals and other applications where the minimum box dimensions are critical. With a minimum folding spacing of just 210 mm and minimum box front dimensions of 130 mm and back of 80 mm, this automatic small cardboard box folding and gluing machine covers formats that other folder-gluers in the family cannot process.
Compared with the HS-A and HS-B series, which have a minimum spacing of 350 mm and minimum formats of 140–150 mm, the UZX-HS-C Series is designed explicitly for small and medium boxes, with a servo gluing head electrically adjustable in 4 directions and a PLC system with data entry without stopping the machine. It is the ideal solution for plants that simultaneously produce diverse formats and need fast, precise changeover between jobs, with no downtime for manual adjustment.
• Minimum folding spacing 210 mm: suitable for small and ecommerce boxes. Compared with 350 mm on the HS-A and HS-B series, the UZX-HS-C Series automatic small cardboard box folding and gluing machine can process significantly smaller formats, covering standard boxes for ecommerce, cosmetics and pharmaceuticals that are not compatible with other models in the family.
• PLC touchscreen control with data entry without stopping the machine: the PLC system with touchscreen allows production parameters to be changed in real time, without stopping the line; fast and reliable response, with job storage and recall for quick format changeover.
• Servo gluing head with electric adjustment in 4 directions: the gluing head can be electrically adjusted left-right and front-back, with automatic data setting and a one-click adjustment function responding across the whole machine, eliminating repetitive manual adjustments and reducing format-change times to a minimum.
• Continuous automatic gluing without breaks: the automatic glue circulation system with coated stainless-steel wheels (resistant to corrosion and wear) applies the glue uniformly along the entire length of the flap, with no gluing gaps caused by different adhesive viscosities.
• Electric vacuum cleaning brush at the gluing section: effectively reduces the imprint of the cut edges at the gluing port, improving the visual quality of the finished box and eliminating appearance defects caused by adhesive residue at the edges.
• Soft pressure paper with silicone elastic and deviation correction: effectively corrects the scissor-difference phenomenon of full flaps, ensuring uniform and symmetric folding even on board with dimensional deviations or thickness variations.
• Independent variable-frequency adjustment on the folding section: the folding speed can be adjusted up and down independently of the main line speed, effectively adjusting the left-right synchronization for smoother production on small formats with frequent changes.
• Special guide for small ecommerce boxes (optional): the special inlet guide ensures smooth entry of small packaging boxes into the folding section, preventing jams and the alignment errors common when processing formats under 300 mm.
| Parameter | 920C | 924C | 1224C |
|---|---|---|---|
| Production speed (pcs/min) | 280 | 250 | - |
| Minimum folding spacing (mm) | 210 | 210 | 210 |
| Box front, min (mm) | 130 | 130 | 130 |
| Box front, max (mm) | 730 | 730 | 730 |
| Box back, min (mm) | 80 | 80 | 80 |
| Box back, max (mm) | 730 | 730 | 730 |
| Folding accuracy (mm) | ±2 | ±2 | ±2 |
| Min. feed height without vibrator (mm) | 210 | 210 | 210 |
| Min. feed height with vibrator (mm) | 280 | 280 | 280 |
| Control system | PLC touchscreen, data entry without stopping | PLC touchscreen, data entry without stopping | PLC touchscreen, data entry without stopping |
| Gluing head | Servo, 4-direction electric adjustment, 1-click | Servo, 4-direction electric adjustment, 1-click | Servo, 4-direction electric adjustment, 1-click |
| Transmission | Imported belt, variable frequency | Imported belt, variable frequency | Imported belt, variable frequency |
| Gluing system | Auto circulation + stainless wheels + uniform application | Auto circulation + stainless wheels + uniform application | Auto circulation + stainless wheels + uniform application |
| Gluing section cleaning | Electric vacuum brush, edge-imprint reduction | Electric vacuum brush, edge-imprint reduction | Electric vacuum brush, edge-imprint reduction |
| Pressure paper | Soft + silicone elastic + flap deviation correction | Soft + silicone elastic + flap deviation correction | Soft + silicone elastic + flap deviation correction |
| Folding | Independent variable frequency, L-R sync | Independent variable frequency, L-R sync | Independent variable frequency, L-R sync |
| General correction | Horizontal electric shift per deviation | Horizontal electric shift per deviation | Horizontal electric shift per deviation |
| Stacking output | Auto counting + pneumatic clamping + adjustable force | Auto counting + pneumatic clamping + adjustable force | Auto counting + pneumatic clamping + adjustable force |
| Special application | Small ecommerce box guide (optional) | Small ecommerce box guide (optional) | Small ecommerce box guide (optional) |
| Components | Anti-stick Nylon wheels + optical guides, CE | Anti-stick Nylon wheels + optical guides, CE | Anti-stick Nylon wheels + optical guides, CE |
The 920C model of the automatic small cardboard box folding and gluing machine reaches 280 pcs/min on formats between 130 mm front and 80 mm back, with a minimum folding spacing of 210 mm. It is the choice for ecommerce and fulfillment plants that process high volumes of small boxes with frequent format changes, where speed and accuracy of automatic adjustment are critical factors.
At 250 pcs/min, the 924C model of the automatic small cardboard box folding and gluing machine offers high productivity across a wide range of small and medium formats. It is recommended for manufacturers of cosmetic, pharmaceutical and small-size food packaging, where the variety of formats and gluing quality are as important as production speed.
The 1224C model extends the working width to 1224 mm, maintaining the same minimum format dimensions (front 130 mm, back 80 mm). The 1224C automatic small cardboard box folding and gluing machine is the solution for manufacturers that simultaneously process boxes that are small but wider, typical of packaging for household products or small industrial items.
The HS-A and HS-B series are folder-gluer machines optimized for medium and large formats, with a minimum folding spacing of 350 mm and minimum box front/back dimensions of 140–150 mm. The UZX-HS-C Series automatic small cardboard box folding and gluing machine covers a completely different segment: a minimum spacing of 210 mm and front/back formats from 130 mm / 80 mm, boxes that the A and B series cannot physically process.
The UZX-HS-C Series is the choice when the order includes boxes under 350 mm folding spacing, when the plant produces for ecommerce with highly varied formats and frequent job changes, or when PLC touchscreen control with automatic servo gluing-head adjustment is an operational requirement. UZINEX provides free technical consultancy to identify the right series based on the customer's format portfolio.
The UZX-HS-C Series automatic small cardboard box folding and gluing machine is intended primarily for manufacturers of packaging for ecommerce and fulfillment, where the range of box sizes is extremely varied and orders change frequently. The optional special guide for small ecommerce boxes and the PLC system with format change without stopping are features designed explicitly for this sector.
The cosmetic and pharmaceutical industry uses this automatic small cardboard box folding and gluing machine for small-size boxes with strict gluing-quality requirements and an impeccable visual appearance of the finished box. The electric vacuum cleaning brush and the silicone-elastic pressure paper eliminate the appearance defects common on small formats processed at high speeds.
Manufacturers of individually packaged food products, medicines, personal care products and other fast-moving consumer goods find in the UZX-HS-C Series an automatic small cardboard box folding and gluing machine capable of processing different formats simultaneously within the same production shift, with fast automatic adjustment and no waste caused by job changes.
1. Feeding with PLC control and variable frequency: the small pre-die-cut blanks are fed into the automatic small cardboard box folding and gluing machine by the imported belt transmission system; the locking carriage and the paper pressing roller are electrically adjustable in distance directly from the PLC touchscreen panel.
2. Automatic servo gluing-head adjustment: when changing format, the servo gluing head repositions electrically in 4 directions (left-right and front-back) with a single click or through automatic adjustment synchronized with the new job parameters, with no manual intervention.
3. Glue application with automatic circulation: the automatic glue circulation system with coated stainless-steel wheels applies the adhesive uniformly along the entire length of the flap, with no gaps or over-dosing, regardless of the viscosity of the adhesive used.
4. Edge cleaning at the gluing port: the electric vacuum brush cleans the cut edges of the flap before adhesive application, preventing edge imprint and ensuring an impeccable visual appearance of the finished box.
5. Folding with independent left-right synchronization: the independent variable-frequency adjustment on the folding section adjusts the left-right synchronization, with the soft silicone-elastic pressure paper automatically correcting flap deviations.
6. General system correction and final guidance: the general correction system, electrically movable horizontally, corrects residual board deviations; the special guide for small boxes (optional) ensures smooth entry into the collection section without jams.
7. Automatic collection, counting and stacking: the pneumatic clamping mechanism with automatic counting stacks the finished boxes according to the set quantity; the pushing force and the stack output with independent variable frequency are adjusted according to the order volume for maximum packaging efficiency.
• Free technical consultancy for model and configuration selection: UZINEX evaluates the box format portfolio, production volume, type of adhesive and special requirements (ecommerce, small-box guide) to configure the optimal model among the 920C, 924C and 1224C.
• Transport, installation and commissioning included free of charge: the automatic small cardboard box folding and gluing machine is delivered, installed and started at the customer's site by the UZINEX technical team, with complete parameterization of all initial formats and operator training on the PLC touchscreen system.
• Extended 60-month warranty: one of the longest warranties available in Romania for automatic folder-gluer machines, with technical support included for the entire warranty period.
• National technical support in under 24 hours in Romania (24–72 hours in other countries): on-site intervention or video diagnostic session in under 24 hours from report, with a dedicated 24/7 telephone line for UZINEX customers.
• AI smart manual included: complete usage, maintenance and troubleshooting documentation with AI assistance, capable of instantly resolving over 96% of technical requests without human intervention.
• Full eligibility for European funding: UZINEX provides the documentation and full support for EU-, NRRP- or structural-funds procurement.
The UZX-HS-C Series automatic small cardboard box folding and gluing machine is the industrial solution for packaging plants that process small, varied formats (ecommerce, cosmetics, pharmaceuticals, food products) and need PLC touchscreen control, a servo gluing head with automatic 4-direction adjustment and fast format changeover without stopping the line, at speeds up to 280 pcs/min.
