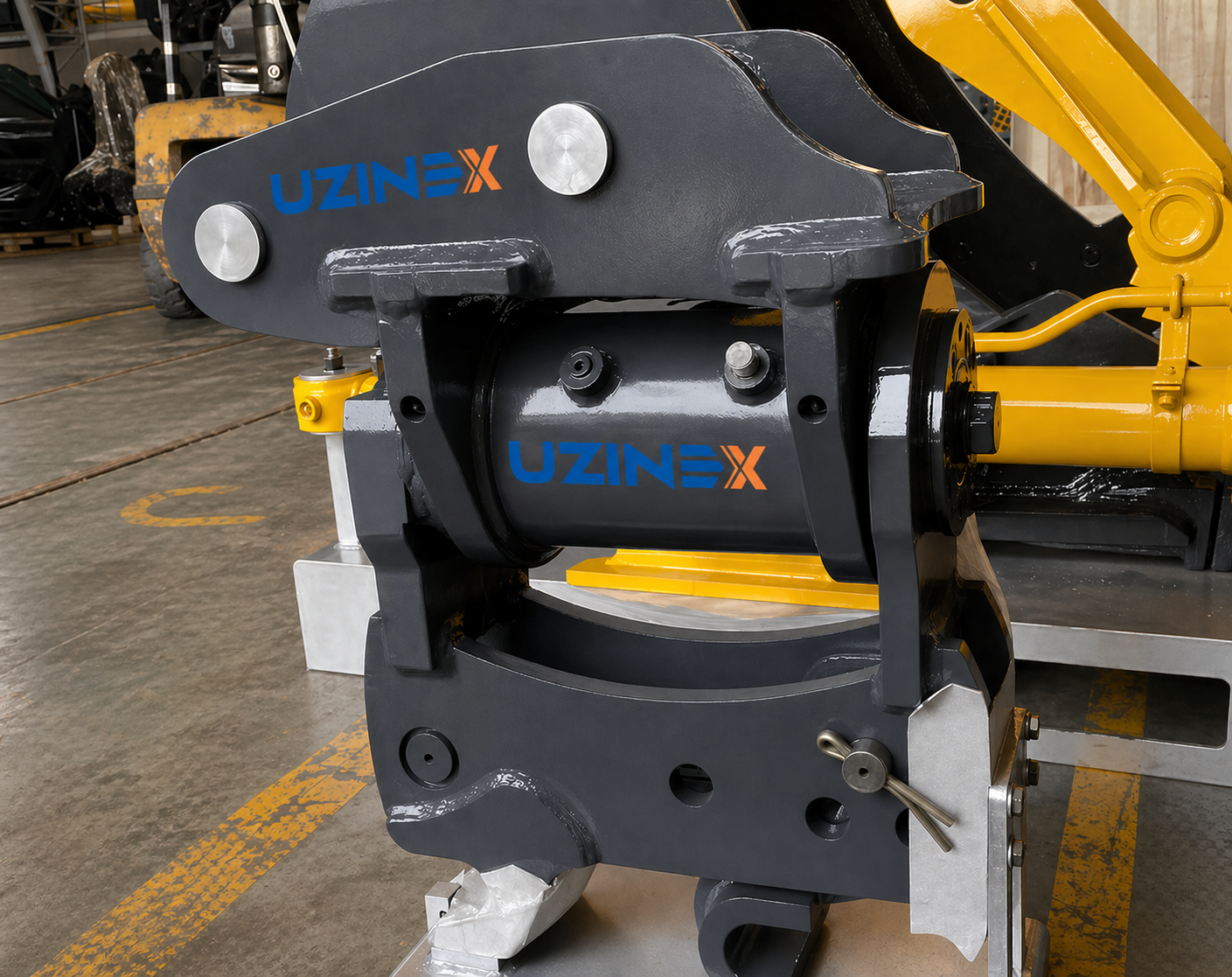

The Monde Tilt tilting quick coupler is the advanced version of the quick-attach system for excavators. Compared to a standard quick coupler that only allows changing the attachment, the tilting quick coupler adds the ability to hydraulically tilt the attachment by up to 70°–90° relative to the boom axis, without repositioning the excavator.
This function radically transforms the way the operator works in confined spaces, on slopes, near foundations and in any situation where the optimal angle of attack of the bucket or breaker does not match the achievable position of the machine.
The tilting quick coupler covers excavators from 0,8 tonnes (garden mini-excavators) up to 37,9 tonnes (heavy quarry and demolition excavators), with an SGS- and ISO-certified double auto-locking system, a structure made of high-strength Q355 or Q460 steel, and lubricated chrome-plated pins for minimal maintenance. Directly compatible with Caterpillar, Komatsu, Hitachi, Hyundai, Doosan, Volvo and most other major brands. Key advantages of the Monde Tilt tilting quick coupler
• 70°–90° hydraulic tilt from the cab — the tilting quick coupler lets the operator rotate the attachment by up to 70°–90° left-right relative to the boom axis, directly from the cab, via joystick or a dedicated pedal. This additional freedom of movement eliminates the need to reposition the excavator for each different working angle — saving time and space on sites with limited access.
• Attachment change from the cab + tilt — the tilting quick coupler combines two functions in the same device: rapid attachment change (without leaving the cab, in less than a minute) and hydraulic tilting of any mounted attachment. No need for two separate devices.
• SGS- and ISO-certified double auto-locking — the two independent locking points of the tilting quick coupler prevent accidental detachment even under high dynamic loads. SGS and ISO certification guarantees that the locking mechanism has been tested and validated to international safety standards for construction machinery.
• High-strength Q355 or Q460 steel — the structure of the tilting quick coupler is manufactured from high-strength structural steel Q355 (yield strength 355 MPa) or Q460 (460 MPa) — the reference materials for components subjected to repeated tension, compression and torsion in intensive excavation applications.
• Compatible with Caterpillar, Komatsu, Hitachi, Hyundai, Doosan, Volvo — the Monde Tilt tilting quick coupler is designed for direct compatibility with the coupling geometry of the leading excavator brands, with no intermediate adapters for the standard models in each tonnage class.
• Full coverage 0,8–37,9 tonnes — from compact 0,8-tonne mini-excavators used in landscaping and installations in tight spaces, to heavy 37,9-tonne excavators in quarries and industrial demolition, the Monde Tilt tilting quick coupler has a variant sized for each class.
• Lubricated chrome-plated pins — the articulation pins of the tilting quick coupler's tilt mechanism are chrome-plated and pre-lubricated, minimizing wear and the frequency of maintenance operations on high-activity sites.
• 60-month UZINEX warranty — extended coverage beyond the standard warranty, with spare parts in stock in Iași and nationwide technical support with a guaranteed 24–48 hour response time.
Technical specifications — Monde Tilt tilting quick coupler
| Parameter | Value |
|---|---|
| System type | Hydraulic with tilt (Tilt Quick Hitch) |
| Excavator capacity | 0,8 – 37,9 tonnes |
| Tilt angle | 70° – 90° |
| Locking system | Double (auto-locking) |
| Structure material | Q355 or Q460 steel (high-strength) |
| Pin diameter | 45–90 mm (model-dependent) |
| Weight | 500–8.000 kg (depending on tonnage class) |
| Hydraulic pressure | 40–380 bar |
| Oil flow | 10–20 L/min |
| Pins | Chrome-plated, lubricated |
| Standard color | Yellow (customizable) |
| Certifications | SGS, ISO |
| Brand compatibility | Caterpillar, Komatsu, Hitachi, Hyundai, Doosan, Volvo and others |
The exact model is selected based on the excavator's tonnage and coupling dimensions. UZINEX engineers confirm the correct variant for your machine — free technical consultancy available . The tilting quick coupler versus the standard quick coupler
The tilting quick coupler and the standard Monde DEHN quick coupler solve different needs and address different types of sites — the choice depends on the predominant type of work performed.
The standard quick coupler allows changing the attachment from the cab, but the attachment remains fixed in the boom axis — the angle of attack relative to the material is controlled exclusively through the movement of the boom and the body of the excavator. On sites with sufficient maneuvering space and relatively uniform work, the standard quick coupler is the correct solution and lighter in added weight.
The tilting quick coupler adds an extra degree of freedom — the attachment rotates independently of the boom. On sites with severe space constraints, on embankments and slopes, near foundations and retaining walls, or in trench-profile finishing work, the tilting quick coupler enables working angles otherwise impossible to achieve without moving the excavator — saving significant time per work cycle. Applications where the tilting quick coupler makes the difference
Work on embankments and slopes is the classic application of the tilting quick coupler. Finishing road embankments, reinforcing riverbanks and digging on inclined slopes require the bucket to follow the slope surface, not the boom axis. Without the tilting quick coupler, the operator repositions the excavator at every change in slope — with the tilting quick coupler, the adjustment is made from the joystick in a few seconds.
Work in confined spaces — near buildings, foundations, retaining walls and columns — benefits directly from the tilting quick coupler through the ability to reach working angles that are not accessible with the excavator boom from the achievable position. A 1–5 tonne mini-excavator equipped with the tilting quick coupler works efficiently in inner courtyards and spaces where a standard excavator cannot enter and where digging angles are dictated by fixed obstacles.
Finishing trench profiles with vertical walls or V-shaped walls requires the bucket edge to be perfectly aligned with the desired profile. The tilting quick coupler allows the operator to adjust the bucket angle for each trench section, regardless of the excavator's direction of travel relative to the trench axis.
Selective demolition — where adjacent structures must be protected — benefits from the additional precision offered by the tilting quick coupler: the hydraulic breaker can be precisely oriented onto the surface to be demolished, regardless of the angle at which the excavator accesses the work area. Frequently asked questions about the tilting quick coupler
Does the tilting quick coupler add significant weight compared to the standard coupler?
Yes — the tilting quick coupler is heavier than an equivalent standard coupler, due to the added hydraulic rotation mechanism. The weight varies between 500 and 8.000 kg depending on the tonnage class. UZINEX engineers calculate the exact impact of the chosen tilting quick coupler on your excavator's available lifting force, before confirmation. Does the tilting quick coupler require an additional hydraulic circuit compared to the standard coupler?
Yes — the tilting quick coupler requires two independent auxiliary hydraulic circuits: one for the attachment lock/unlock mechanism and one for the tilt mechanism. Modern excavators with two hydraulic auxiliaries are directly compatible. On excavators with a single auxiliary circuit, the installation of a hydraulic expansion kit is required. UZINEX engineers verify your excavator's hydraulic configuration at the quotation stage. Do standard attachments work on the tilting quick coupler without modifications?
Yes — the Monde Tilt tilting quick coupler is compatible with attachments that have the standard coupling geometry for the respective tonnage class. The same buckets, breakers and rakes used on a standard coupler mount directly onto the tilting quick coupler, additionally benefiting from the rotation function. Is the tilting quick coupler eligible for SEAP/SICAP public procurement?
Yes. UZINEX is a member of the Enterprise Europe Network and of the Chamber of Commerce and Industry, supplying equipment for EU-funded projects and public procurement. Complete technical documentation, including the SGS and ISO certifications, is provided on request. Leasing options are available on the UZINEX credit and leasing page . Why UZINEX for the tilting quick coupler
The tilting quick coupler is a precision piece of equipment with a direct impact on efficiency on sites with space and angle constraints. Correct sizing and verified hydraulic compatibility are essential to obtaining the real benefits of this system.
• 60-month warranty — extended coverage for the Monde Tilt tilting quick coupler in continuous industrial use.
• Full compatibility check — UZINEX engineers confirm the correct model, hydraulic compatibility and the impact on lifting force, before confirmation.
• Transport and installation included — delivery to destination, mounting on the boom, testing and operator training included in the price of the tilting quick coupler.
• Spare parts in stock in Iași — critical components for the tilt mechanism available immediately, with no waiting times that block sites.
• Nationwide technical support 24–48 hours — a network of technicians with national coverage and a guaranteed response time.
• Complete Monde accessories catalog — buckets, breakers, sorting rakes and other attachments available through UZINEX, compatible with the Monde Tilt tilting quick coupler.
The Monde Tilt tilting quick coupler available through UZINEX is the equipment that adds an extra degree of freedom to your excavator — 70°–90° working angle from the cab, attachment change in less than a minute, SGS/ISO-certified double locking and a 60-month warranty for the 0,8–37,9 tonne class.
