GTW06: telescopic sewer inspection camera with 12 inch touch screen, 10x zoom, 360°/180°, 2–5m pole, 2MP HD, IP68,…
| Controller screen | 12 inch touch screen, resolution 2000 × 1200 |
| Camera pixels | 2 Megapixels HD |
| Zoom | 10x auto zoom in/out |
| Camera head rotation | 360° continuous (infinite rotation) |
| Camera head tilt | 180° flip |
| Lighting | Own source, adjustable intensity |
| Water protection | IP68 waterproof |
| Pole length | 2–5 m (telescopic, adjustable) |
| Operating temperature range | -10°C → +50°C |
| Recording | Video + photos |
| Main applications | Pipes, large tanks, drainage channels, tunnels |
GTW06 telescopic sewer inspection camera: the portable system with an adjustable 2–5m telescopic pole for HD visual inspection of pipes, drainage channels, industrial tanks and tunnels without personnel entering the space. With a 12 inch touch screen, 10x optical zoom, infinite 360° rotation and 180° tilt, this telescopic sewer inspection camera gives the operator complete control of the image from the surface, regardless of the depth and type of inspected space.

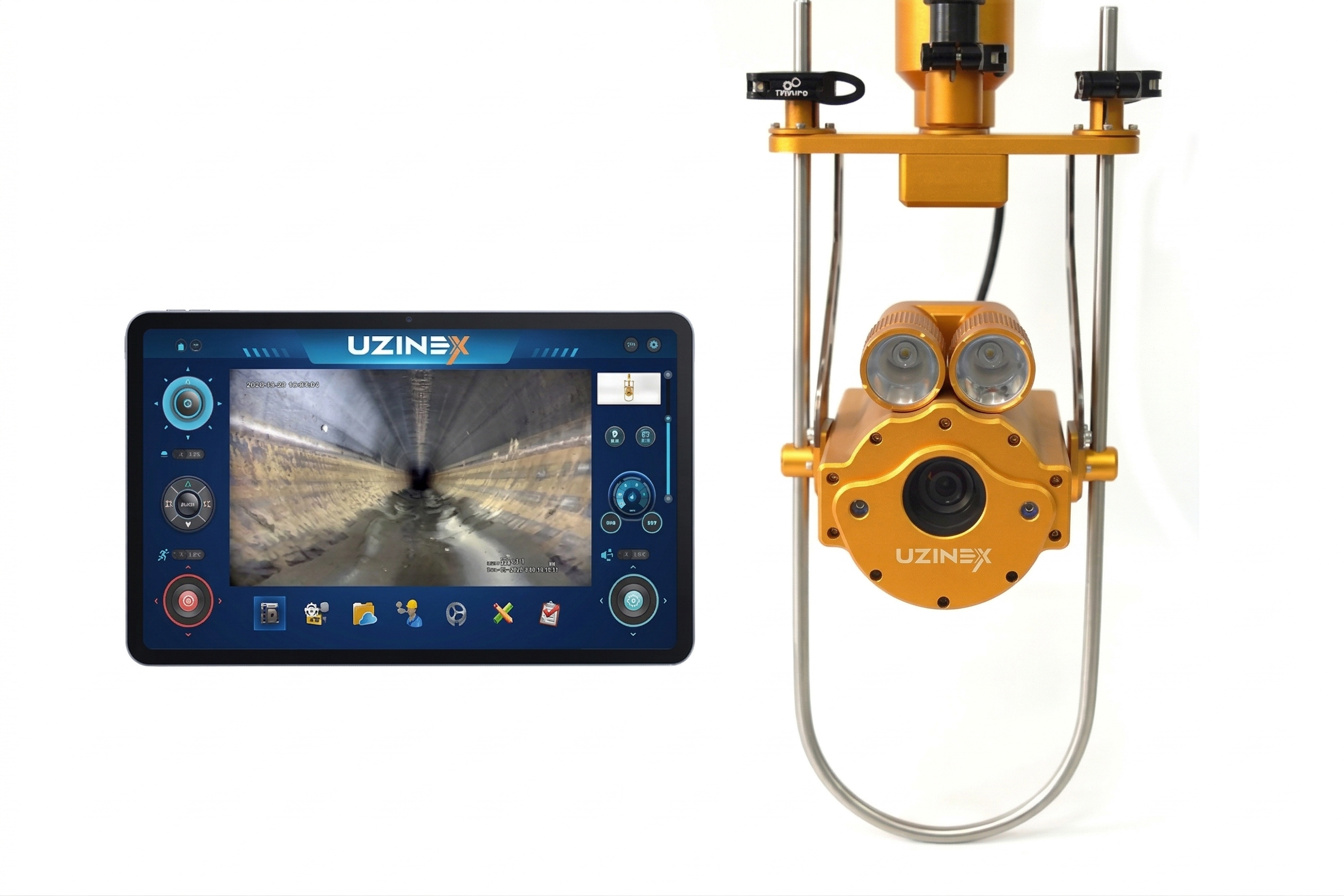

The 12 inch touch screen of this telescopic sewer inspection camera, the largest in the category of Jiutai telescopic pole systems, allows detailed viewing of the Full HD image directly in the field without connecting an external monitor. The pole adjustable from 2m to 5m covers the standard depths of manholes, sewer basins and tunnel accesses in urban infrastructure, with continuous adjustment to the optimal length for each inspection point. Key Advantages of the GTW06 Telescopic Sewer Inspection Camera
• 12 inch touch screen, the largest in the telescopic pole category: The 12 inch touch screen with 2000×1200 resolution delivers the HD image at an enlarged size, directly visible in direct outdoor light. Compared with the 7 inch screens of other portable systems, this telescopic sewer inspection camera allows reading defect details without looking away from the screen or using a sunshade, essential when the operator holds the pole with one hand and controls the camera with the other.
• 10x zoom, close-up on defects deep in the manhole: The 10x optical zoom allows detailed documentation of defects on the floor of the manhole, the lateral connections and the joints from depths of 2–5m without lowering the camera below the level of the access opening. Cracks, infiltration and deposits on internal surfaces become visible and photographable at maximum magnification from the surface position.

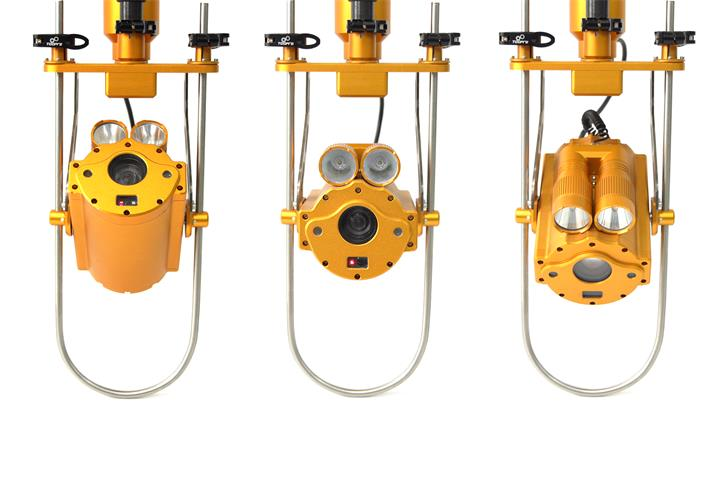

• Infinite 360° rotation + 180° tilt, complete coverage: The PTZ head rotates continuously 360° without angle limitation and tilts 180°, providing the complete image of any point inside the inspected manhole, channel or tunnel (vertical walls, floor, top cap and lateral connections) without repositioning the pole.
“allows detailed viewing of the Full HD image directly in the field without connecting an external monitor.”
• 2–5m telescopic pole, adjustable to the optimal depth: Unlike fixed poles that require additional extensions, the GTW06 telescopic pole adjusts continuously between 2m and 5m with locking at the desired length. A single system covers all depths in the 2–5m range without changing components or adding modular sections.
• IP68 waterproof, operable in manholes with residual liquid: Complete IP68 sealing allows this telescopic sewer inspection camera to be used in manholes with a high level of residual water, in stormwater drainage channels after rainfall and in basins with partial liquid content, without retracting the camera or stopping the session at the first contact with the water surface.
• Applicability for tunnels, an extension over standard pole cameras: The GTW06 is explicitly used for tunnel inspection, an application not documented for the GT75BXA or GTW106. The telescopic pole inserted through a lateral access opening allows viewing the cross-section of the tunnel and the condition of the interior lining without the inspection team entering the tunnel.
• Adjustable lighting with its own light source: The camera includes its own light source with adjustable intensity, adaptable to the size and type of the inspected space, from small manholes to large industrial tanks, without external lighting equipment.
• Portable and easy to transport, fast multi-point inspection: The compactness of the assembly and its low weight allow movement between several inspection points on the same day without a vehicle or special logistical support. A single operator manages the pole, the controller and the documentation of the entire session.
Technical Specifications: GTW06 Telescopic Sewer Inspection Camera
| Controller screen | 12 inch touch screen, resolution 2000 × 1200 |
|---|---|
| Camera pixels | 2 Megapixels HD |
| Zoom | 10x auto zoom in/out |
| Camera head rotation | 360° continuous (infinite rotation) |
| Camera head tilt | 180° flip |
| Lighting | Own source, adjustable intensity |
| Water protection | IP68 waterproof |
| Pole length | 2–5 m (telescopic, adjustable) |
| Operating temperature range | -10°C → +50°C |
| Recording | Video + photos |
| Main applications | Pipes, large tanks, drainage channels, tunnels |
Applications: The GTW06 Telescopic Sewer Inspection Camera in Practice
A GTW06 series telescopic sewer inspection camera is the standard tool of municipal teams of.
Systematic assessment of the condition of pipes and collectors.
Locating defects in process pipes in factories.
A telescopic sewer inspection camera from the GTW06 series is the standard tool of municipal maintenance teams that carry out routine inspections of manholes, collection basins and stormwater drainage channels. The 2–5m pole covers all standard depths in urban sewer infrastructure, and the 12 inch screen allows comfortable reading of the image without auxiliary equipment. One operator fully manages the session: the pole, the PTZ control and the video and photo documentation.
Civil construction contractors and infrastructure engineering firms use this telescopic sewer inspection camera for rapid tunnel and channel inspections, checking the condition of the lining, the joints and the interior drainage without mobilizing specialized confined space access teams. The 12 inch touch screen and the 10x zoom allow a complete visual assessment of the cross-section of the tunnel or channel from the access opening, with immediate photographic documentation of any defect or anomaly. Explore the full range of Uzinex industrial equipment for inspection solutions across all categories of pipes, manholes and confined spaces.
Industrial inspection companies use systems such as the GTW06 telescopic sewer inspection camera for the rapid assessment of the internal condition of tanks, containers and industrial spaces with limited access, without preparing confined space entry in accordance with safety procedures, ensuring compliance with international standards for video inspection of pipes and industrial spaces. How It Works: Workflow with the GTW06

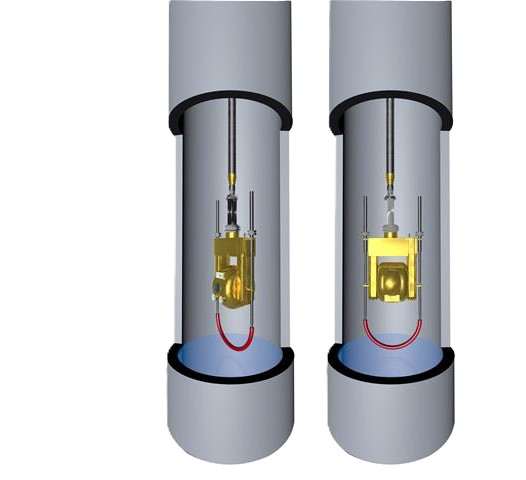

• Adjusting the telescopic pole to the manhole depth: The operator extends the pole to the length corresponding to the depth of the inspection point, between 2m and 5m, and locks it. No additional extensions or modular components are needed for different depths within the 2–5m range.
• Lowering the camera through the access opening: The PTZ head descends through the access opening of the manhole or the entry port of the tunnel/tank. The operator remains at the surface and watches the live image on the 12 inch touch screen, without entering the space.
• PTZ inspection with 10x zoom and 360° rotation: The operator rotates the camera 360° at the desired inspection level and uses the 10x zoom to document areas with defects or anomalies. The 180° tilt allows complete viewing, a defining quality of this telescopic sewer inspection camera, from the same pole position.
• Photographing and video recording directly on the touch screen: Identified defects are photographed or video recorded using the buttons on the 12 inch touch screen. The data is saved to the storage unit for archiving and subsequent reporting.
• Retracting the pole and moving to the next point: The pole is retracted, collapsed to the minimum length of 2m and transported to the next inspection point. One operator can inspect several manholes or access points of the same sewer system on the same working day.
Frequently Asked Questions about the GTW06 Telescopic Sewer Inspection Camera
How does the GTW06 differ from the GTW106 Pro and from the GT75BXA?
The GTW06 is the standard telescopic sewer inspection camera in the pole range: 2MP, 10x zoom, 12 inch touch screen, 2–5m pole, no laser and no carbon fiber. The GTW106 Pro (periscope) brings 4MP, 30x optical zoom, 1kg carbon fiber, a 1.25–6m pole, an integrated laser and defogging, recommended for inspections with Ultra HD documentation and dimensional measurement requirements. The GT75BXA is the system for spaces up to 6000mm in diameter with dual 10x+10x zoom. The GTW06 is the balanced choice for routine inspections of standard manholes and tunnels. What maximum manhole depths can the GTW06 inspect?
The GTW06 telescopic pole covers depths from 2m to 5m from the level of the access opening. The 5m depth covers the vast majority of manholes in municipal sewer networks. For manholes deeper than 5m or for spaces with depths of 6m, the GTW106 Pro with the 1.25–6m pole is the appropriate solution. Can the GTW06 inspect tunnels or only manholes?
Yes, tunnels are explicitly mentioned in the list of applications of this telescopic sewer inspection camera. The pole inserted through a lateral or vertical access opening allows viewing the cross-section of the tunnel and the condition of the lining with the 10x zoom and 360° rotation, providing the complete image of the condition of the tunnel without the inspection team entering it. Is the 12 inch screen a touch screen or does it require physical buttons?
The 12 inch screen is a fully functional touch screen: all PTZ commands (rotation, tilt, zoom, lighting), photographing and video recording are operated directly by touch on the touch screen. No remotes or additional controllers are needed for the complete inspection. What are the operating temperature limits and does winter matter?
The GTW06 operates between -10°C and +50°C. At -10°C, the electronics and the battery operate within normal parameters, covering winter temperatures in Romania across all regions, except in extreme frost situations. For inspections at temperatures below -10°C (mountain areas or exceptional weather conditions), the GTW106 Pro with the -20°C specification is the appropriate choice. Why Buy the GTW06 Telescopic Sewer Inspection Camera from UZINEX?
• Free consultation for selecting the optimal model: The UZINEX team analyzes the typical depths of the manholes being inspected, the zoom and documentation requirements and recommends the GTW06 or the GTW106 Pro depending on the specifics of your inspection program and budget.
• Complete delivery ready to use: This GTW06 telescopic sewer inspection camera is delivered with the telescopic pole, the PTZ head, the 12 inch touch screen and all accessories, fully equipped from day one, with no additional components to purchase.
• Extended 60-month warranty and technical support under 36 hours: Every telescopic sewer inspection camera delivered through UZINEX benefits from a 60-month warranty and a guaranteed response time under 36 hours, ensuring the continuity of periodic inspection programs.
• Complementary to the range of CCTV crawlers: This GTW06 telescopic sewer inspection camera rapidly assesses the interior condition of the manhole from the surface; the CCTV crawlers in the Uzinex range inspect the pipe section between manholes. Together they provide the complete documentation of underground infrastructure for audits, acceptances and annual maintenance programs.
• Access to the entire Uzinex range for advanced needs: When inspection requirements evolve toward 4MP, 30x zoom or a measurement laser, the upgrade to the GTW106 Pro is available within the same range distributed by UZINEX, without losing the investment in the operating skills accumulated with the GTW06.
GTW06 telescopic sewer inspection camera: the balanced solution with a 12 inch touch screen, 10x zoom and 2–5m pole for teams that inspect manholes, tanks, drainage channels and tunnels daily, without personnel entering confined spaces and without the complexity of Pro systems with carbon fiber or laser, everything that makes a telescopic sewer inspection camera efficient for daily inspections.
