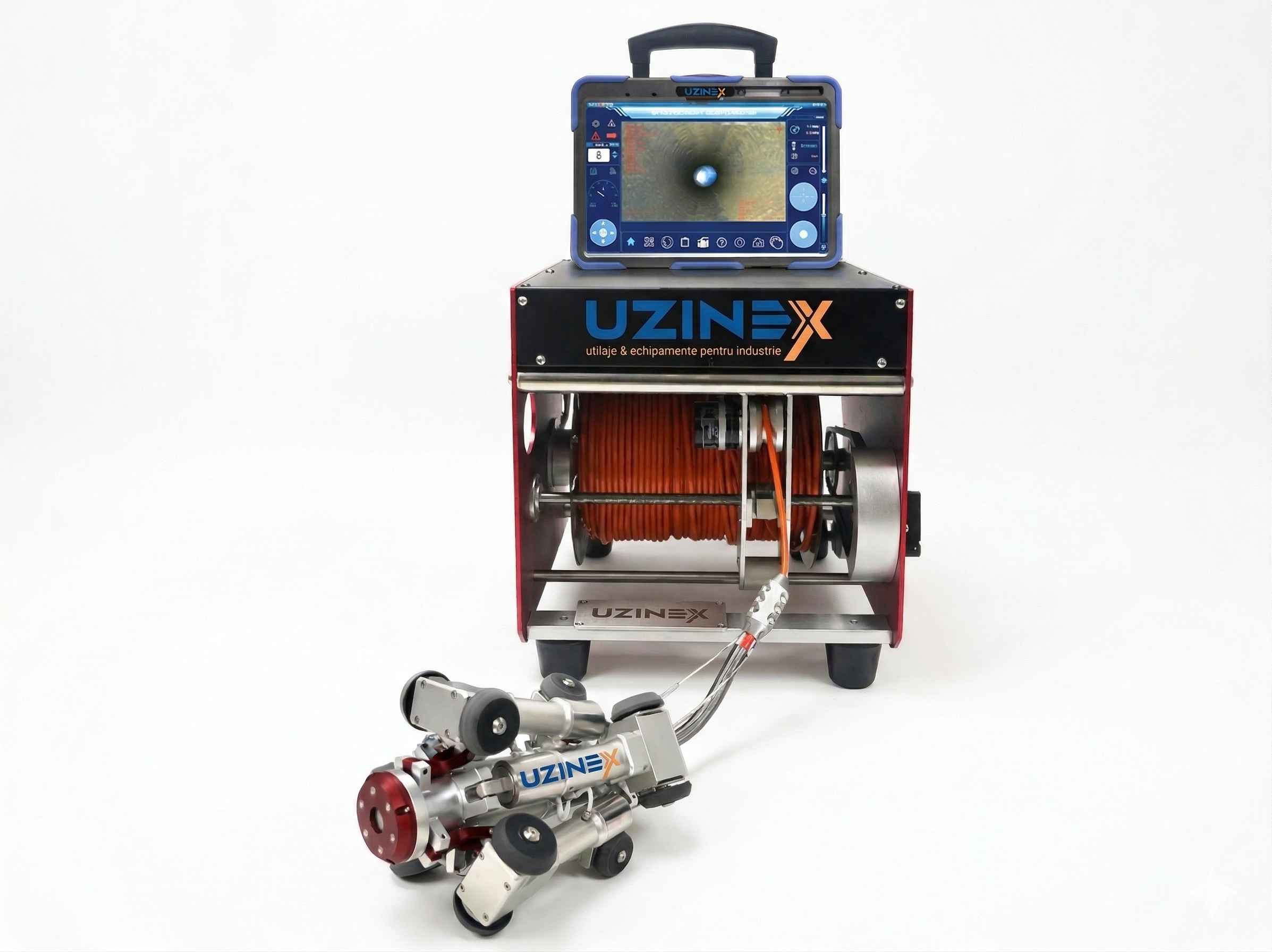

GTDR-200: pipe inspection robot with 2MP HD camera, 100–2500mm diameter, IP68, 12-inch screen, 5h runtime.
| Monitor screen | 12-inch colour LCD tablet |
| Screen resolution | 2560 × 1600 pixeli |
| Camera pixels | 2 Megapixels |
| Camera field of view | 210° |
| Front illumination | 6 adjustable LEDs, 6 levels, 180.000 LUX |
| Rear illumination | 2 adjustable LEDs, 180.000 LUX |
| Compatible pipe diameter | 100 – 2.500 mm |
| Standard crawler diameter | 165 – 295 mm (automatic adjustment on the move) |
| Travel directions | Horizontal, vertical (up/down), 90° bends |
| Supported bends | 2 successive bends, 1,5D radius |
| Standard cable length | 60 m (customizable up to 300 m) |
| Cable material | Professional flexible Kevlar, Ø 7,2 mm |
| Reel dimensions | 343 × 306 × 335 mm |
| Reel + cable weight | 23,3 kg |
| Internal storage | 128 GB (expandable up to 1 TB) |
| Battery runtime | 5 hours continuous operation |
| Water protection | IP68 |
| Data outputs | HDMI, inspection reports |
| Information display | Time, date, battery level, cable footage |
| Interface languages | English, French, Spanish, Russian |
An industrial-grade pipe inspection robot, the GTDR-200 operates both horizontally and vertically, in diameters ranging from 100 mm to 2.500 mm. Equipped with a panoramic 2-megapixel HD sensor, a 210° field of view and 180.000 LUX illumination, this pipe inspection robot transmits clear, detailed real-time images from any segment of the network, without excavation, without production stoppages, without guesswork.
Unlike push-rod cameras limited to small pipes and straight runs, a pipe inspection robot from the GTDR-200 series negotiates 90° bends, climbs and descends in vertical shafts and automatically adjusts the crawler diameter on the move, without manual intervention. The result is complete documentation of the pipe's interior condition: a technical report generated directly by the equipment, ready to archive and use immediately at acceptances or audits. Key advantages of a GTDR-200 pipe inspection robot
• Automatic adaptation to pipe diameter: The crawler tracks adjust continuously and automatically (165–295 mm standard) as the robot advances, eliminating stops for manual reconfiguration and speeding up the inspection.
• Native vertical and horizontal inspection: Unlike conventional horizontal crawlers, this pipe inspection robot can climb and descend in deep manholes, maintaining image and control stability throughout the entire run.
• Panoramic 210° camera with 6 adjustable LEDs: The 180.000 LUX illumination, adjustable across 6 levels, ensures perfect visibility even in completely dark, wet pipes or pipes with deposits on the walls.
• Full IP68 protection: The camera head and the crawler body are sealed to the IP68 standard, withstanding continuous full immersion, essential for inspecting sewer networks and pipes under residual pressure.
• 5-hour runtime: The integrated battery allows extended sessions over runs of 60 m (standard Kevlar cable) or up to 300 m in customized versions, without interruptions for recharging.
“5-hour autonomy: the integrated battery allows extended sessions on routes of 60 m (standard Kevlar cable) or up to 300 m on the variants.”
• Massive storage of up to 1 TB: Video and photos are saved to the 128 GB internal memory or to external storage of up to 1 TB; every defect documented instantly, every report complete at the end of the session.
• Automatically generated inspection reports: HDMI output and a report-generation function are included as standard, compatible with the acceptance and audit workflows used in municipal and industrial infrastructure.
• Anti-jam function: The crawler's anti-jam protection system prevents the robot from getting stuck in pipes with irregular geometry or concentrated deposits, reducing the risk of costly recovery interventions.
Technical specifications: GTDR-200 pipe inspection robot
| Monitor screen | 12-inch colour LCD tablet |
|---|---|
| Screen resolution | 2560 × 1600 pixeli |
| Camera pixels | 2 Megapixels |
| Camera field of view | 210° |
| Front illumination | 6 adjustable LEDs, 6 levels, 180.000 LUX |
| Rear illumination | 2 adjustable LEDs, 180.000 LUX |
| Compatible pipe diameter | 100 – 2.500 mm |
| Standard crawler diameter | 165 – 295 mm (automatic adjustment on the move) |
| Travel directions | Horizontal, vertical (up/down), 90° bends |
| Supported bends | 2 successive bends, 1,5D radius |
| Standard cable length | 60 m (customizable up to 300 m) |
| Cable material | Professional flexible Kevlar, Ø 7,2 mm |
| Reel dimensions | 343 × 306 × 335 mm |
| Reel + cable weight | 23,3 kg |
| Internal storage | 128 GB (expandable up to 1 TB) |
| Battery runtime | 5 hours continuous operation |
| Water protection | IP68 |
| Data outputs | HDMI, inspection reports |
| Information display | Time, date, battery level, cable footage |
| Interface languages | English, French, Spanish, Russian |
Applications and industries: where the GTDR-200 pipe inspection robot is used
A pipe inspection robot from the GTDR-200 series is frequently used by public utility companies for checking domestic, stormwater and industrial sewer networks. The equipment quickly identifies cracks, corrosion, blockages, infiltrations and structural deformations, without exploratory excavation, without prolonged service interruptions. Compatibility with diameters up to 2.500 mm also covers main collectors and large-diameter manholes.
In the energy, petrochemical and construction industries, the GTDR-200 pipe inspection robot becomes the standard tool for integrity audits of process pipes, connections and tanks with limited access. The vertical inspection function makes it indispensable in situations where manholes exceed 3–5 metres in depth, where conventional push-rod cameras can no longer be used efficiently. Consult the full range of Uzinex industrial equipment for complementary diagnostic and intervention solutions.
The food, pharmaceutical, aerospace and military sectors use pipe inspection robot systems for technical acceptances, internal checks and preventive maintenance programmes in accordance with international standards for video pipe inspection. Automatic report generation simplifies technical documentation and ensures compliance with the regulatory requirements in force. How it works: how the GTDR-200 pipe inspection robot operates
• Preparation and launch: The crawler is inserted into the pipe through the manhole or the accessible end. The tracks adjust automatically to the detected diameter: no tools, no wasted time.
A GTDR-200 series pipe inspection robot is frequently used by public utility companies for.
The food, pharmaceutical, aerospace and military sectors use pipe inspection robot systems for.
Drum 343 × 306 × 335 mm
• Controlled travel from the 12-inch tablet: The operator guides the robot while watching the live 210° panoramic image. The screen continuously displays the footage covered, the battery level and the time stamps.
• Continuous documentation on the move: Photos and videos are saved instantly with a single button. The illumination level is adjusted on the move across 6 steps to adapt to variable reflection or deposit conditions.
• Navigating bends and vertical runs: The on-the-move diameter-change function and the independent track motors allow negotiation of two successive 90° bends, and controlled climbing and descent in vertical segments.
• Report generation at the end of the session: The system automatically compiles all collected data (images, video, footage, markers) into an inspection report exportable via HDMI or stored internally for archiving and handover to the client.
• Quick cleaning and storage: The crawler's simplified design allows complete sanitation after each session in a few minutes, with low maintenance costs over the entire service life of the equipment.
Frequently asked questions about the GTDR-200 pipe inspection robot
What pipe diameters can the GTDR-200 robot inspect?
The system is compatible with pipes ranging in diameter from 100 mm to 2.500 mm. The standard crawler covers 165–295 mm with automatic adjustment on the move, without stopping for reconfiguration. This makes the GTDR-200 one of the most versatile pipe inspection robot systems in this price category, suitable for both municipal networks and large-diameter industrial pipes. Can this pipe inspection robot operate in a vertical position?
Yes. The GTDR-200 is specifically designed for both horizontal and vertical inspection. It can climb and descend in manholes and deep shafts, supporting 90° bends in a 1,5D configuration, ideal for complex networks with frequent changes of direction or for deep sewer manholes. What is the battery runtime and what pipe length does one session cover?
The integrated battery provides approximately 5 hours of continuous operation. With the standard 60 m cable, a complete session comfortably covers round-trip runs of 30–50 m. For extensive projects, the cable can be customized up to 300 m, and the electric reel allows automatic deployment and retrieval, reducing operator physical effort and speeding up inspections over long sections. What types of defects does a pipe inspection robot in this series detect?
The 210° panoramic camera and the 180.000 LUX illumination allow precise identification of cracks, corrosion, infiltrations, blockages, deposits, defective joints, foreign objects and structural deformations. All data is documented automatically with time stamping and footage, included in the final inspection report. Is special training required to operate the GTDR-200 inspection robot?
No advanced technical training is required. The 12-inch tablet interface is intuitive, with accessible functions (photo capture, video, light adjustment, footage) controllable with a single finger. The Uzinex team provides training on delivery so that operators are fully capable from the first day of use. Why purchase the pipe inspection robot from UZINEX?
• Free pre-purchase technical consultancy: We analyse your specific application together and recommend the optimal pipe inspection robot configuration (diameter, cable length, accessories) at no additional cost and with no commercial pressure.
• Delivery, installation and training included: We do not deliver just the equipment; we provide commissioning and operator training directly at the client's premises, so that the system is operational from the first day.
• Extended 60-month warranty: Every pipe inspection robot delivered through UZINEX benefits from an extended 60-month warranty and guaranteed technical support within 36 hours, including remote assistance for rapid diagnosis.
• Compatibility with Romanian reporting standards: The reports generated by the GTDR-200 are compatible with the format used by utility companies, infrastructure contractors and regulatory authorities in Romania.
• Low long-term maintenance costs: The simplified design and the availability of spare parts ensure a total cost of ownership that is competitive against pipe inspection robot systems in the premium European categories.
The GTDR-200 represents the modern standard in non-destructive diagnosis of underground infrastructure: a highly reliable pipe inspection robot, adapted to the real operational requirements of the Romanian utilities, construction and technical inspection industry.
