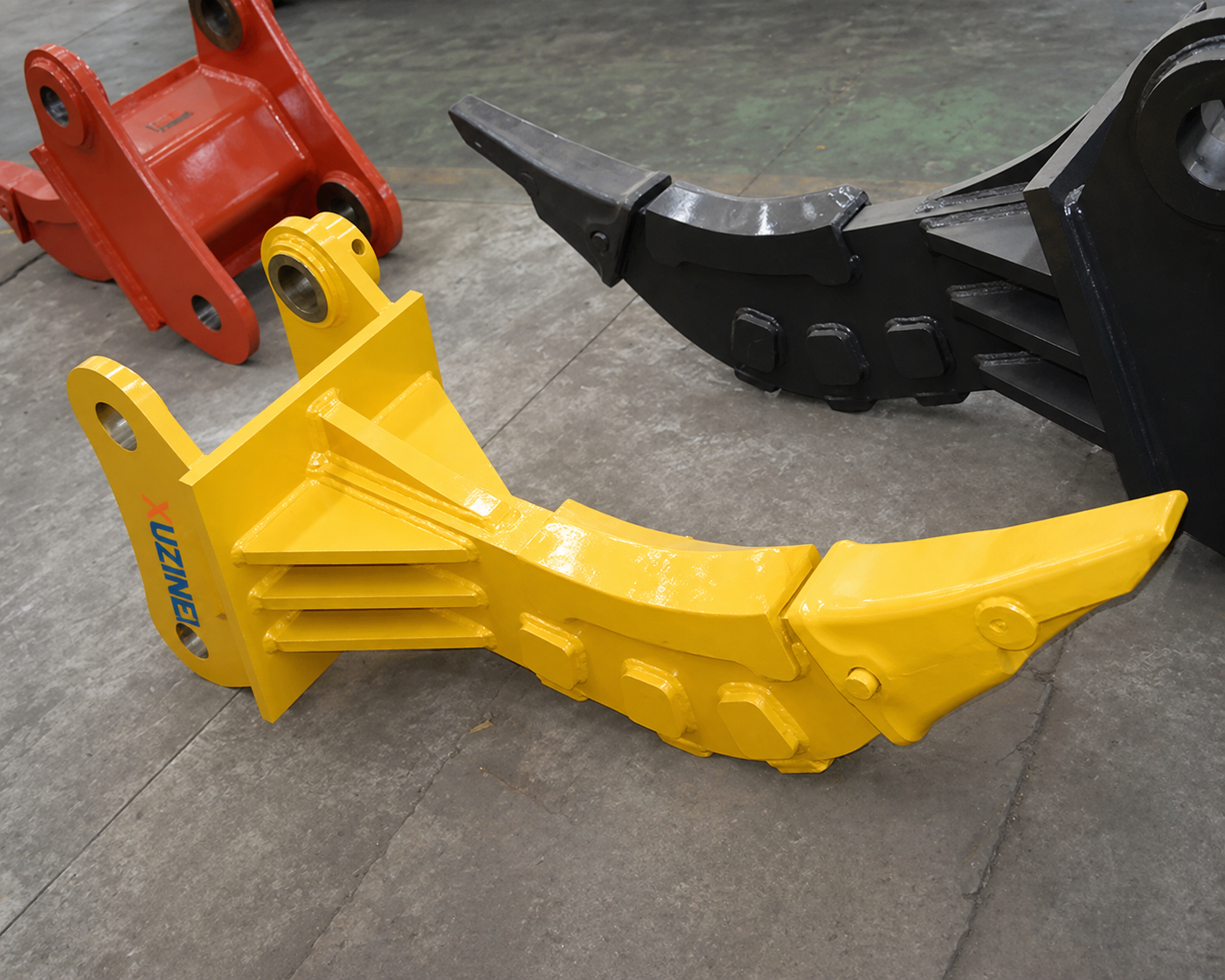

The Monde excavator ripper is a single-tooth attachment designed for breaking and loosening hard materials that resist the penetration force of a standard bucket — compact clay soil, frozen clay, soft weathered rock, weathered limestone, friable sandstone, and shallow cracked ground.
The excavator ripper drives its penetration tooth into the hard layer, applies the hydraulic force of the arm, and breaks the material through traction, without the shock of the hydraulic hammer and without the associated noise and vibration — a quieter and more economical alternative for materials that do not require percussion but also do not yield to a plain bucket.
The Monde range covers excavators from 3 to 45 tonnes in 9 models with tooth thicknesses from 50 to 110 mm, fabricated from Q460 steel for the light classes and from the Q460 + NM400 combination (Hardox-equivalent anti-wear steel) for classes of 17 tonnes and above, where abrasive-wear demands are significantly higher. Key advantages of the Monde excavator ripper
• Breaking hard soil without a hydraulic hammer — the excavator ripper loosens compact ground through the traction force of the excavator arm, without percussion. Compared to the hydraulic hammer, the excavator ripper produces less noise, fewer vibrations transmitted to the excavator structure, and lower hydraulic consumption — significant advantages on sites in residential areas or near sensitive structures.
• 9 models — full coverage 3–45 tonnes — the Monde excavator ripper is sized for each machine class: 260 kg models for 3–5 tonne mini-excavators, up to 920 kg models for heavy 41–45 tonne excavators. The tooth and mounting structure are proportioned to the available traction force of each excavator class.
• Q460 + NM400 steel for the 17–45 tonne classes — the excavator ripper intended for medium and heavy class excavators combines Q460 structural steel (yield strength 460 MPa) with NM400 anti-wear steel in the zones in direct contact with the material. NM400 is the equivalent of Hardox 400 — with a Brinell hardness of 370–430 HB, it resists abrasive wear 3–4 times better than standard structural steel.
• Penetration tooth 50–110 mm thick — the tooth thickness of the excavator ripper ranges from 50 mm (3–5t models) to 110 mm (36–45t models), proportional to the available penetration force and the hardness of the materials typical of each excavator class. The thinner tooth penetrates medium-hardness materials more easily; the thick tooth withstands the greater forces of the higher classes.
• An efficient alternative for soft rock and frozen ground — the excavator ripper is chosen over the hydraulic hammer when the material is weak enough to be broken by traction but too hard for the standard bucket. Soft weathered rock, weathered limestone, compacted clay, shallow frozen ground, and cracked rock are the typical materials where the excavator ripper is the optimal cost-efficiency solution.
• Removal of roots and underground barriers — the excavator ripper penetrates and severs the root systems of trees and shrubs, old stone barriers, and abandoned shallow foundations — applications where the hydraulic hammer would cause excessive collateral damage and the standard bucket cannot penetrate.
• Direct mounting in place of the bucket — the excavator ripper mounts on the excavator arm at the same attachment points as any standard bucket. On excavators equipped with the Monde DEHN quick coupler, switching between bucket and ripper is done from the cab in less than a minute.
• 60-month UZINEX warranty — extended coverage with spare parts in stock in Iași and national technical support with a guaranteed 24–48 hour response time.
Technical specifications — Monde excavator ripper (9 models)
| Excavator (tonnes) | Tooth thickness (mm) | Weight (kg) | Material |
|---|---|---|---|
| 3–5 | 50 | 260 | Q460 |
| 6–10 | 60 | 380 | Q460 |
| 11–16 | 90 | 540 | Q460 |
| 17–20 | 90 | 680 | Q460 + NM400 |
| 21–24 | 90 | 720 | Q460 + NM400 |
| 25–30 | 90 | 780 | Q460 + NM400 |
| 31–35 | 90 | 820 | Q460 + NM400 |
| 36–40 | 90/110 | 870 | Q460 + NM400 |
| 41–45 | 90/110 | 920 | Q460 + NM400 |
The correct model is selected based on the operating tonnage of the excavator. UZINEX engineers confirm the appropriate variant and verify compatibility with the existing mount — free technical consulting available. Q460 and NM400 materials — why they matter for the excavator ripper
The choice of material for the excavator ripper is decisive for the service life of the tooth in contact with abrasive materials.
Q460 is a high-strength structural steel with a yield strength of 460 MPa — resistant to plastic deformation under heavy loads, suitable for the mounting structure and frame of the excavator ripper. In the 3–16 tonne classes, where penetration forces are smaller and typical materials are less abrasive, Q460 alone is sufficient for an acceptable service life.
NM400 (Wear Resistant Steel 400 HB) is an anti-wear steel with a Brinell hardness of 370–430 HB, used in the zones in direct contact with the material in the excavator ripper intended for the 17–45 tonne classes.
At these classes, the high forces and hard materials wear out structural-steel teeth in a few dozen hours. NM400 extends tooth service life by 3–4 times compared to plain Q460 under the same working conditions — justifying its choice for the excavator ripper in the higher classes. The excavator ripper versus the hydraulic hammer — when to choose which
The excavator ripper and the hydraulic hammer are complementary attachments for hard materials, not fully interchangeable. The right choice depends on the type and strength of the material.
The excavator ripper is the right choice when the material can be broken by traction — soft and weathered rock, weathered limestone, compacted clay, shallow frozen ground, cracked rock with planes of weakness. The advantages over the hammer: lower hydraulic consumption, reduced noise and vibration, lower purchase and maintenance cost, applicability in residential areas.
The hydraulic hammer is necessary when the material is too hard for the traction of the excavator ripper — massive high-strength rock (granite, intact basalt), old concrete of C25+ strength, bonded natural-stone masonry. The hammer's percussion produces significantly greater fragmentation energy per unit area than the traction of the excavator ripper.
On sites with mixed materials — soft rock zones alternating with hard rock zones — the excavator ripper and the hydraulic hammer are used complementarily. If the excavator is equipped with the Monde DEHN quick coupler, switching between the two attachments is done from the cab in less than a minute. Applications for the Monde excavator ripper
Earthworks in areas with a soft rock layer or compacted clay are the primary application of the excavator ripper. Building foundations, road and channel cuts, basement excavations — all may encounter intermediate layers of material too hard for the bucket and too weak to justify the cost of percussion with the hammer. The excavator ripper is the exact solution for these intermediate layers.
Agricultural and forestry clearing and ground preparation work uses the excavator ripper to loosen compacted soil, remove the root systems of large trees, and break up impermeable clay layers that prevent drainage. Mini-excavators of 3–10 tonnes equipped with the excavator ripper are the standard machines for this work over medium surfaces.
Road and rail infrastructure work along routes with a weathered surface rock layer benefits from the excavator ripper for loosening the rock ahead of the loading bucket, without bringing a separate percussion machine to the site. The excavator ripper mounted on the existing earthworks excavator removes a machine from the work chain.
Selective demolition of old dry-stone foundations, old brick masonry with degraded mortar, and historic natural-stone paving are applications where the excavator ripper produces less dust and fewer vibrations than the hydraulic hammer — an important advantage near protected structures or in densely populated areas. Frequently asked questions about the excavator ripper
How do I choose the correct ripper model for my excavator?
The excavator ripper model is selected primarily based on the operating tonnage of the machine — a 15-tonne excavator will use the model for 11–16 tonnes (540 kg, 90mm tooth, Q460). An additional check is done on the mounting dimensions (pin diameter, center-to-center distance) to confirm direct compatibility. UZINEX engineers confirm the right model for your specific excavator on request. Can the excavator ripper be used on hard rock?
The Monde excavator ripper is designed for soft and weathered rock, weathered limestone, compacted clay, and frozen ground — materials with a compressive strength of up to 30–50 MPa. Massive hard rock (granite, intact basalt with strengths of 150–300 MPa) exceeds the traction-penetration capacity of the excavator ripper — for these materials the hydraulic hammer is required. UZINEX engineers can assess whether the specific material of your application is suited to the excavator ripper. Does the excavator ripper wear out the arm more than the standard bucket?
The excavator ripper applies higher traction forces (tension in the arm) than the standard bucket in hard materials — this is normal and engineered within the structural limits of the excavator. The risk of overload arises if the material is too hard for the excavator class and the chosen ripper model. Respecting the tonnage class indicated for each Monde excavator ripper model prevents excessive stress. Is the excavator ripper eligible for SEAP/SICAP public procurement?
Yes. UZINEX is a member of the Enterprise Europe Network and delivers excavator attachments in projects with EU funds and public procurement. Complete technical documentation is provided on request. Leasing options available on the UZINEX credit and leasing page. Why UZINEX for your excavator ripper
The excavator ripper is a simple design, but a critical choice in terms of material and sizing relative to the excavator used. An undersized ripper deforms; an oversized ripper overstresses the arm.
• 60-month warranty — extended coverage for the Monde excavator ripper under continuous industrial use.
• Free compatibility check — UZINEX engineers confirm the model and the mounting dimensions for your specific excavator before order confirmation.
• Transport and installation included — delivery to destination, mounting on the excavator, and operator training included in the price of the excavator ripper.
• Spare parts in stock in Iași — replacement teeth and wear components available immediately, with no waiting times that block worksites.
• Monde quick-coupler compatible — on excavators with the DEHN quick coupler, the excavator ripper is swapped for the bucket in less than a minute from the cab.
• National technical support 24–48 hours — a network of technicians with national coverage and a guaranteed response time.
The Monde excavator ripper available through UZINEX in 9 models for 3–45 tonnes is the attachment for loosening compact soils, soft rock, and frozen ground — with Q460 and NM400 steel, a tooth calibrated per tonnage class, and a 60-month warranty.
