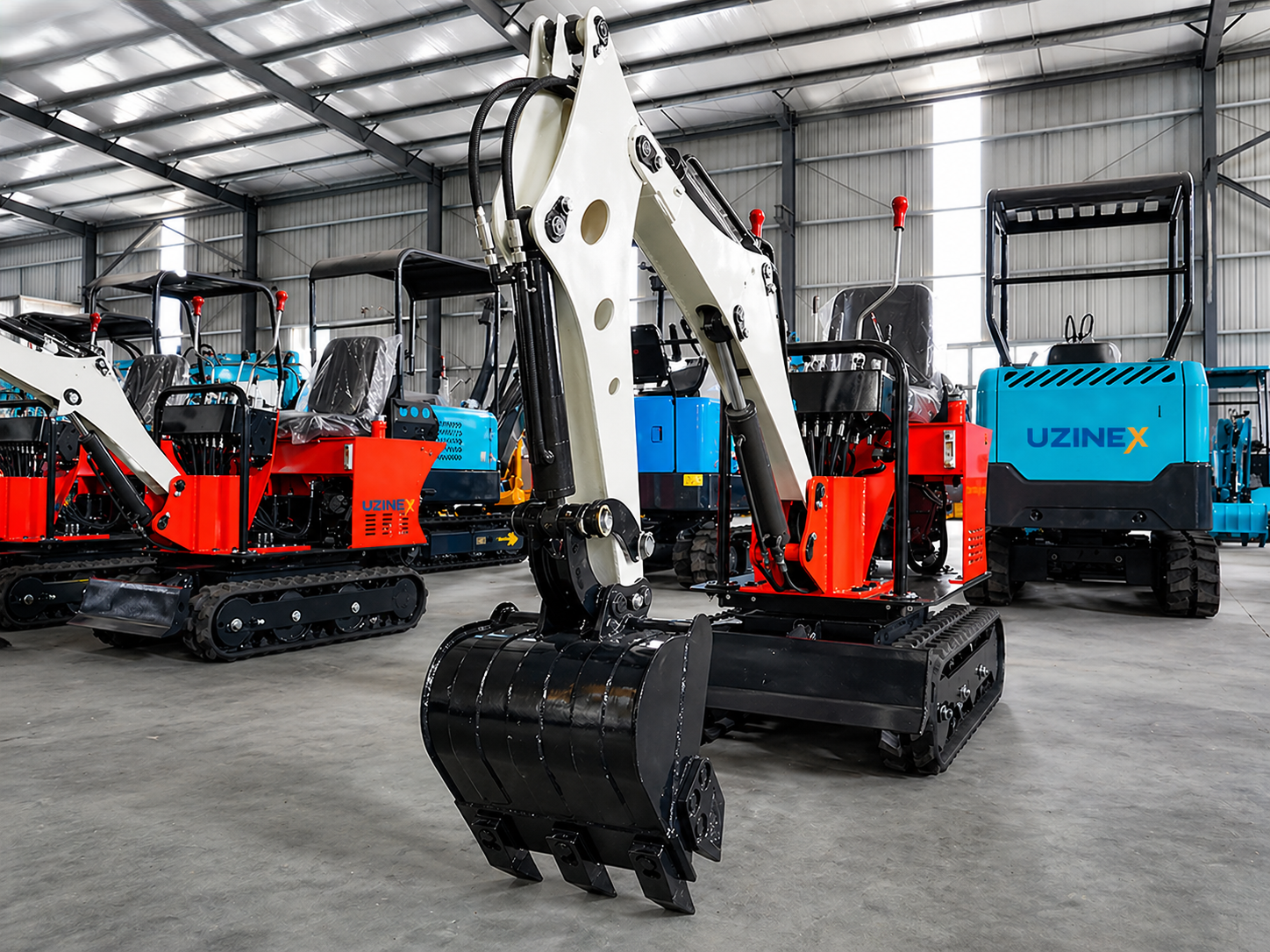

Monde 08 800 kg mini excavator — the most compact digging machine in the UZINEX range, built for spaces no other excavator can enter. With a transport width of 720 mm and a weight of approximately 800 kg, this 800 kg mini excavator passes through any standard gate, travels over patio pavers without damaging them, and works in gardens, parks and small urban sites without the logistics of a heavy-tonnage machine.
The 7,6 kW engine at 2.400 rpm, the hydraulic system with a working pressure of 14 MPa and the digging force of 7,5 kN make this 800 kg mini excavator a genuine machine — not a site toy. The 1,3 m digging depth covers irrigation trenches, electrical cables and stormwater drainage pipes in residential construction and landscaping projects. Key advantages of the Monde 08 800 kg mini excavator
• Weight ~800 kg — unrestricted access — it fits through 750 mm doors and travels over sensitive surfaces (pavers, paving, reinforced grass) without damage. It can be transported on a 1-tonne trailer towed by any SUV or pick-up.
• Width 720 mm in transport — the narrowest mini excavator in the UZINEX range. It accesses alleys, corridors between buildings and indoor spaces with size restrictions.
• Rubber or steel tracks — your choice — rubber tracks for finished surfaces (paving, concrete, pavers) and steel tracks for hard ground or light demolition work.
• 14 MPa hydraulic system with branded components — consistent performance and a long service life compared with the budget hydraulic systems found in the sub-1-tonne class.
• Compatible with multiple attachments — standard bucket, slope and narrow buckets, light hydraulic breaker, broom and grapple. A single machine for different applications without major additional investment.
• Slewing speed 12 rpm — smooth house rotation, fast enough for a productive work rhythm in tight spaces where frequent repositioning is costly in terms of time.
• Maximum gradeability 30° — good ability to traverse slopes in landscaped gardens and access standard site ramps.
• 60-month warranty — extended coverage for an 800 kg mini excavator in residential and light commercial use, with parts in stock at UZINEX.
Technical specifications — Monde 08 800 kg mini excavator
| Parameter | Value |
|---|---|
| Model | Monde 08 |
| Type | Ultra-compact tracked mini excavator |
| Operating weight | ~800 kg |
| Engine | 7,6 kW at 2.400 rpm |
| Working hydraulic pressure | 14 MPa |
| Digging force | ~7,5 kN |
| Maximum digging depth | ~1.300 mm |
| Maximum dumping height | ~1.700 mm |
| Slewing radius | ~1.400 mm |
| Standard bucket capacity | 0,025 m³ |
| Bucket width | ~340 mm |
| Travel speed | up to 2,2 km/h |
| House slewing speed | 12 rpm |
| Maximum gradeability | 30° |
| Transport length | ~2.500 mm |
| Transport width | ~720 mm |
| Transport height | ~1.350 mm |
| Track length | ~1.150 mm |
| Track width | ~150 mm |
| Ground clearance | ~80 mm |
| Track type | Rubber or steel (your choice) |
Rubber vs steel tracks on the 800 kg mini excavator — when to choose which
Choosing the track type on a Monde 08 800 kg mini excavator depends directly on the surface you work on and the type of application.
Rubber tracks are the right choice for working on finished or sensitive surfaces — paving slabs, concrete, composite wood decking, reinforced grass. They leave no marks, do not scratch and allow movement without additional protection. Ideal for landscaping and work in private gardens or public spaces.
Steel tracks offer more traction on broken-up ground, mud, gravel or slopes. They withstand abrasive wear better in harsh conditions. Recommended for light demolition, digging in virgin ground and work on sites with unprepared soil. On hard finished surfaces they can cause scratches — something to keep in mind before choosing. Suitable applications for the Monde 08 800 kg mini excavator
The Monde 08 is the 800 kg mini excavator of choice when the size of the machine is just as important as its working capacity. It covers a wide range of residential and light commercial applications.
Landscapers use it for planting large trees and shrubs, installing underground irrigation systems and shaping the ground in private gardens and parks. Its low weight allows work without compacting the soil in adjacent lawn areas.
Residential utility installers choose an 800 kg mini excavator for trenches for electrical cables, fibre optics, stormwater drainage and irrigation pipes in yards and gardens where access with larger machines is impossible or contractually prohibited.
Residential construction firms use it for preparatory works in narrow spaces — foundations for fences and small retaining walls, excavation for steps and paths, removing soil from areas with limited access where a hand shovel means extra days of work. Attachment compatibility — what the Monde 08 800 kg mini excavator can do
An 800 kg mini excavator with an auxiliary hydraulic system becomes a multifunctional machine. The Monde 08 is compatible with a varied range of attachments that significantly expand its scope of application.
• Multiple buckets — the 340 mm standard bucket for general digging, narrow buckets of 150–200 mm for cable trenches, slope buckets for finishing and grading.
• Light hydraulic breaker — for demolishing small concrete elements: old fence foundations, steps, kerbs, pavers set in concrete.
• Grapple — for handling and sorting materials: stones, boulders, demolition waste, logs.
• Hydraulic broom — for cleaning ditches, drains and surfaces after excavation work.
Frequently asked questions about the Monde 08 800 kg mini excavator
When do I choose the Monde 08 over the 1-tonne R10 ECO?
You choose the Monde 08 800 kg mini excavator when size and weight are critical factors: access through doors under 800 mm, sensitive surfaces that cannot bear 1 tonne, transport on a small trailer. The R10 ECO offers greater depth (1,83 m vs 1,3 m), a Kubota engine with Euro V and a telescopic dozer — for more serious construction work. The Monde 08 is chosen for landscaping and light utility work in residential spaces where size comes first. How is the Monde 08 transported between different sites?
At 800 kg and with dimensions of 2.500 × 720 × 1.350 mm, this 800 kg mini excavator loads onto any 1-tonne trailer. It can be transported with a standard SUV or pick-up fitted with a tow hitch rated for 1.200–1.500 kg. It requires no truck, special permits or escort. What type of engine does it have and does it need specialised service?
The Monde 08 is equipped with a 7,6 kW / 2.400 rpm engine. Service intervals are standard for small engines — oil and filters at the intervals recommended by the manufacturer. UZINEX keeps spare parts in stock and provides nationwide technical support with a response time of 24–48 hours. Details on the technical support page. Can it be used indoors or in covered spaces?
Yes, with the standard precautions for combustion-engine machines in enclosed spaces (adequate ventilation). The compact dimensions of this 800 kg mini excavator allow access into basements, halls and covered spaces with openings of at least 750 mm in width and 1.400 mm in clear height. Is it eligible for financing or leasing?
Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for projects financed through European funds. Leasing options are available on the credit and leasing page. Why UZINEX for an 800 kg mini excavator
Purchasing an 800 kg mini excavator is a long-term investment, even for residential use. UZINEX covers the entire after-sales equation.
• 60-month warranty — extended coverage for an 800 kg mini excavator compared with the 12-month market standard.
• Transport and commissioning included — delivery anywhere in Romania, installation, testing and operator training at no additional cost.
• Spare parts in stock — components available immediately, with no waiting times for imports.
• Nationwide technical support 24–48 hours — a network of technicians with national coverage and a guaranteed response time.
• AI-powered manuals — interactive documentation for rapid diagnostics, accessible from any device directly on site.
• Attachment selection consultancy — UZINEX engineers help you choose the optimal attachment configuration for your applications. Free consultancy here.
The Monde 08 is the 800 kg mini excavator chosen by landscapers, installers and builders who need a genuine machine in spaces where size makes the difference — backed by a partner offering complete services after delivery.
