Sewer Push Rod Camera GT220 | All-in-One | 10 Inch | Bend Spring | 20–400mm

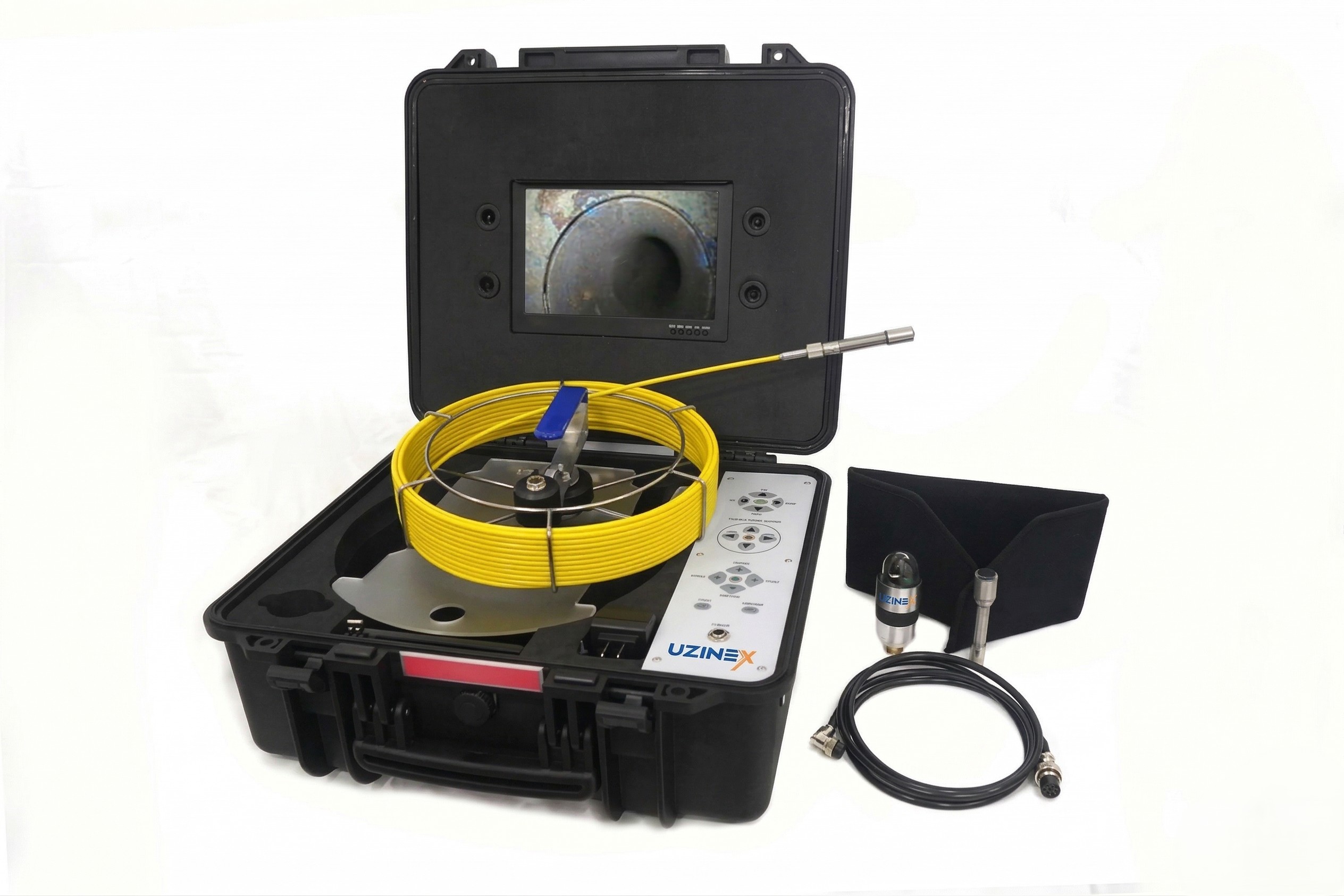

Sewer push rod camera GT220 — the ultra-portable all-in-one system for HD video inspection of sewer networks, drain connections, chimneys and service pipes with diameters between 20mm and 400mm. All the equipment — a 10-inch IPS monitor, the 20–100m cable reel, all the lenses and the battery — is integrated into a single rugged, transportable case. This sewer push rod camera requires no assembly or connection of separate components in the field: you open the case, take out the camera and insert it into the pipe.

The spring-mechanism design of the camera head allows automatic traversal of the multiple 90° bends in indoor plumbing and residential sewers — without forced manual guidance and without the risk of jamming — an essential quality of any professional sewer push rod camera used in residential installations. The keyboard integrated on the control unit allows editing and annotating defects directly on the recording in real time, without external software and without post-processing after the session. Key Advantages of the GT220 Sewer Push Rod Camera

• All-in-one — all the equipment integrated into a single case: The 10-inch monitor, the cable reel, the lenses, the battery and the keyboard are all integrated into the compact rugged case of the GT220. Unlike split systems with a separate control unit and reel, this sewer push rod camera is carried with one hand, deploys in under 60 seconds and requires no assembly or cable connection in the field.

• 10-inch IPS screen — the largest in the push rod category: The 10-inch Full HD IPS screen with a full viewing angle offers a larger display area than any other push rod camera in the range — more visible details, more comfortable reading of defects and usability even in direct outdoor light without the image appearing washed out.

• Spring body design — automatic traversal of bends: The spring mechanism of the camera body is designed specifically for inspecting pipes with many bends — residential plumbing, floor drains and apartment-block sewers. The 16mm lens with self-righting spring automatically passes through 90° bends without forcing or jamming the cable, significantly reducing the risk of lens damage at abrupt changes of direction.

• Integrated keyboard for real-time editing: Unlike systems with a touch interface or simple buttons, the GT220 has a physical keyboard integrated on the control unit that allows text entry, defect annotation and editing of recordings directly on the monitor in real time, without connecting an external device or transferring files after the session.

• 4 interchangeable lenses: 16mm, 21mm, 37mm, 51mm: The set of four lenses covers the entire application range for the 20–400mm interval: the 16mm lens with spring for small pipes with bends, the 21mm wide-angle front lens (176° field) for straight connections, the 37mm panoramic lens (360°/220°) for 100–200mm sewers and the 51mm lens for 200–400mm collectors.

• 21mm front lens with 176° field: The 21mm front camera with a 176° viewing angle and short-distance focusing offers almost omnidirectional visibility in straight small-diameter pipes — ideal for service connections and indoor plumbing pipes where a panoramic camera cannot fit.

• 37mm lens with 360° rotation and 220° tilt: The 37mm panoramic camera with infinite 360° rotation and 220° tilt, electric focusing and an optional infrared night vision option fully covers the cross-section of the pipe — no blind angle in the 100–300mm pipes of domestic sewer networks.

• IP68 waterproof and customizable 20–100m cable: The camera head is IP68 sealed for the inspection of pipes with residual water and permanently flooded traps. The cable length is configured from 20m (indoor inspections) to 100m (outdoor drainage networks) depending on the project requirements.

Technical Specifications — GT220 Sewer Push Rod Camera

Applications — The GT220 Sewer Push Rod Camera in Practice

A sewer push rod camera from the GT220 series is the core tool of licensed plumbers, drain-clearing firms and the maintenance teams that manage residential apartment blocks. The all-in-one design and the spring body design make the GT220 the optimal solution for inspections in the indoor plumbing of residential buildings, hotels, hospitals and public institutions — where sewer pipes have diameters of 20–100mm and a large number of 90° bends that jam rigid-body cameras.

Building service companies that carry out annual preventive inspections of drain pipes, chimneys and ventilation ducts use this sewer push rod camera to document internal condition and identify problems before failures occur. The 10-inch screen allows the defect images to be presented directly to the client in the field, without transferring the files to an external laptop, accelerating approval of repair works. Explore the full range of Uzinex industrial equipment for inspection solutions across all categories of pipes and installations.

Installers in the food, pharmaceutical and manufacturing industries use GT220-type sewer push rod camera systems for periodic inspections of 20–400mm process pipes, exhaust chimneys and the drainage systems of industrial halls, in line with international standards for non-destructive video inspection of pipes. The integrated keyboard allows complete documentation with the technician's notes directly on the recording, without losing details in a later transcription process. How It Works — Workflow with the GT220

• Opening the case and lens selection: The technician opens the all-in-one case, selects the lens suited to the pipe diameter and couples it quickly without tools. The system powers on instantly — there is no installation time or connection of separate components.

• Inserting the push rod cable into the pipe: The semi-rigid cable is inserted through the trap or drain opening. The 16mm lens with spring automatically passes the 90° bends without forcing; the 37/51mm lenses with 360° rotation document the complete cross-section in larger pipes.

• Live inspection on the 10-inch IPS screen: The Full HD image is displayed on the 10-inch screen of the integrated control unit. This sewer push rod camera permanently displays the footage counter with the position of the camera head — precise defect location without manual calculations.

• Annotation and editing with the integrated keyboard: When a defect is identified, the technician types directly on the control unit the defect type, technical observations and recommended intervention — all included in the recording in real time, without an additional post-processing step.

• Photographing, video recording and quick snapshot: Photography and video recording are activated with dedicated buttons. The quick snapshot instantly captures the current frame without stopping the session or losing the continuity of the cable's movement in the pipe.

• Cable retraction and documentation handover: The reel retracts the cable into the all-in-one case. The recordings and photos with annotations are immediately available on the integrated DVR for presentation on the 10-inch screen directly to the client in the field.

Frequently Asked Questions about the GT220 Sewer Push Rod Camera

What does "all-in-one" mean and why is it an advantage over split systems?

In split systems, the monitor, cable reel and storage unit are separate components that are connected in the field and transported individually. In this all-in-one sewer push rod camera, all components are integrated into the same rugged case: a 10-inch monitor, the cable reel, the lenses, the keyboard, the battery and the DVR. The technician carries a single unit, opens it in 10 seconds and starts the inspection — without connection cables, without the risk of leaving a component at home and without assembly time in the field. How does the spring body design help when inspecting pipes with bends?

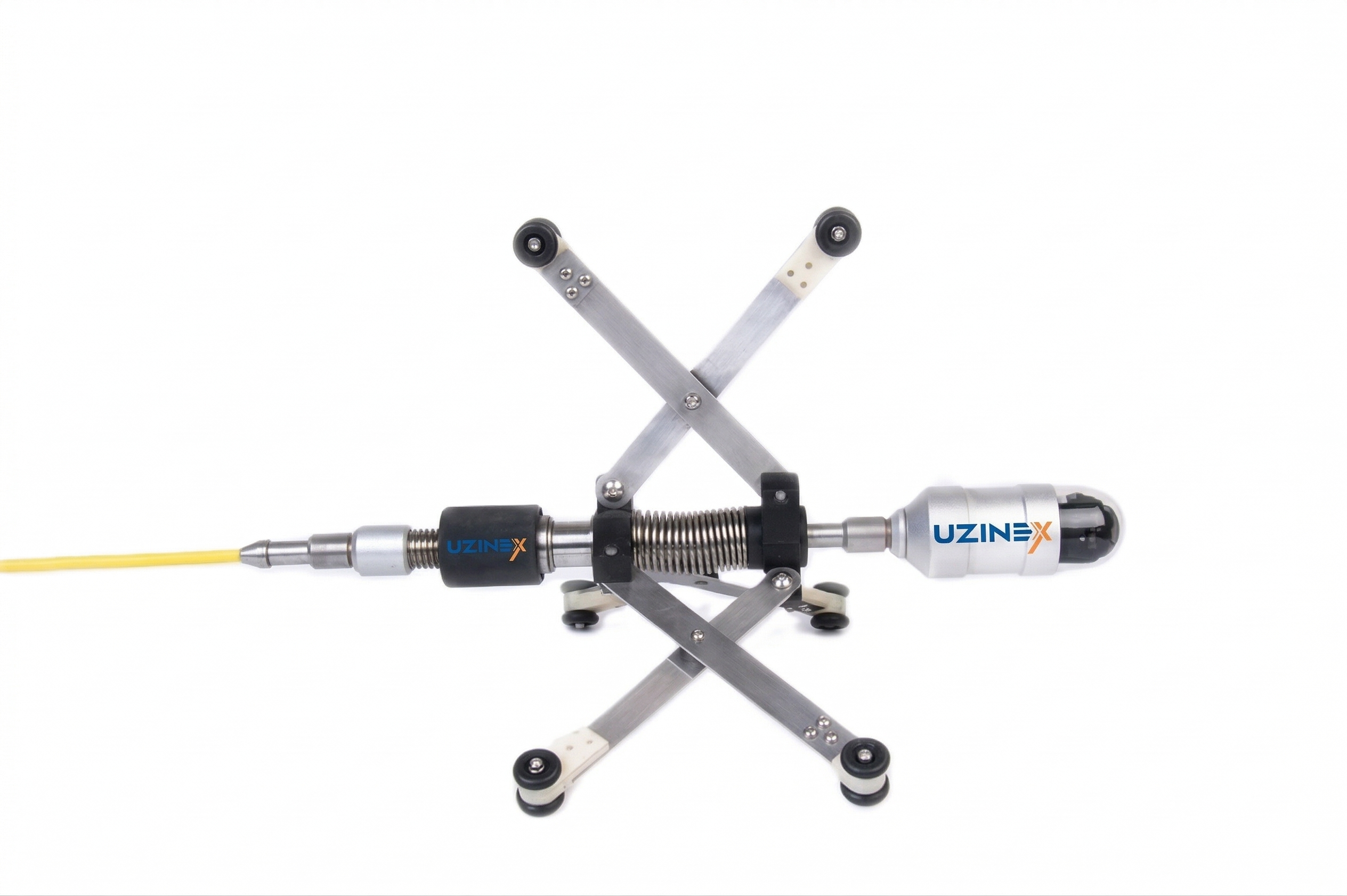

The 16mm lens with spring mechanism has a flexible body that folds on impact with the pipe bend and automatically returns to the axial position through the spring's force, without jamming and without damaging the joint. This sewer push rod camera can pass through several consecutive 90° bends in indoor plumbing — toilet connections, sink drains or floor traps — without manual intervention to free a jammed lens. What sets the GT220 apart from the GM320 and when should I choose the GT220?

The GT220 has a larger screen (10" vs 7"), a compact all-in-one design with all components integrated, a physical keyboard and a spring body design specific for bends. The GM320 has the touchscreen, 7 lenses (versus 4), a wider range (8–800mm vs 20–400mm), WiFi and advanced measurement software. Choose the GT220 if the priority is all-in-one portability, the larger screen and efficiency on residential plumbing with multiple bends. Choose the GM320 if you need diameters below 20mm, a touchscreen, WiFi or more than 4 lenses. Can the GT220 inspect chimneys and ventilation ducts?

Yes. The GT220 is frequently used to inspect chimneys in residential and commercial buildings (diameter 100–300mm), ventilation ducts and building HVAC ductwork. The 37mm lens with 360° rotation provides the complete panoramic image of the chimney's cross-section, identifying cracks, soot deposits, moisture and structural deformations that affect draught and fire safety. How long is the standard cable and can it be extended?

The standard cable of this sewer push rod camera comes in versions from 20m to 100m, configurable on order. The 20m length covers the indoor plumbing of an apartment; 50m reaches the base of the riser of a 10-storey block; 100m allows inspection of outdoor sewer connections and foundation drains. All lengths are compatible with the same all-in-one case, without modifying the reel or the control unit. Why Buy the GT220 Sewer Push Rod Camera from UZINEX?

• Free consultancy for the optimal configuration: The UZINEX team analyses the type of installations inspected, the dominant diameters and the route lengths and configures this sewer push rod camera with the lens set and cable length suited to your daily activity.

• Complete delivery and practical demonstration: The GT220 is delivered fully assembled in the all-in-one case. Operator training covers lens changing, use of the editing keyboard and extraction of recordings — all in under an hour thanks to the simplicity of the integrated design.

• Extended 60-month warranty and technical support within 36 hours: Every sewer push rod camera delivered through UZINEX benefits from a 60-month warranty and a guaranteed response time within 36 hours, with priority delivery of lenses and wear components from our own stock.

• Customization on request: The GT220 supports custom configurations — cable length, camera pixels and the 512Hz option for location — tailored to the specific requirements of your inspection or maintenance company.

• Complementary to the crawler range for larger diameters: This GT220 sewer push rod camera complements the crawler systems in the Uzinex range for the 20–400mm segment where the all-in-one push rod is faster and more practical than a motorised crawler. For diameters over 400mm or routes longer than 100m, the Uzinex CCTV crawler range offers the suitable solutions.

Sewer push rod camera GT220 — the portable all-in-one solution for installers and maintenance firms that inspect 20–400mm pipes daily, with spring body design for bends, a 10-inch IPS screen and an integrated keyboard for complete documentation directly in the field, with no separate components and no assembly time — everything that defines a professional sewer push rod camera.
