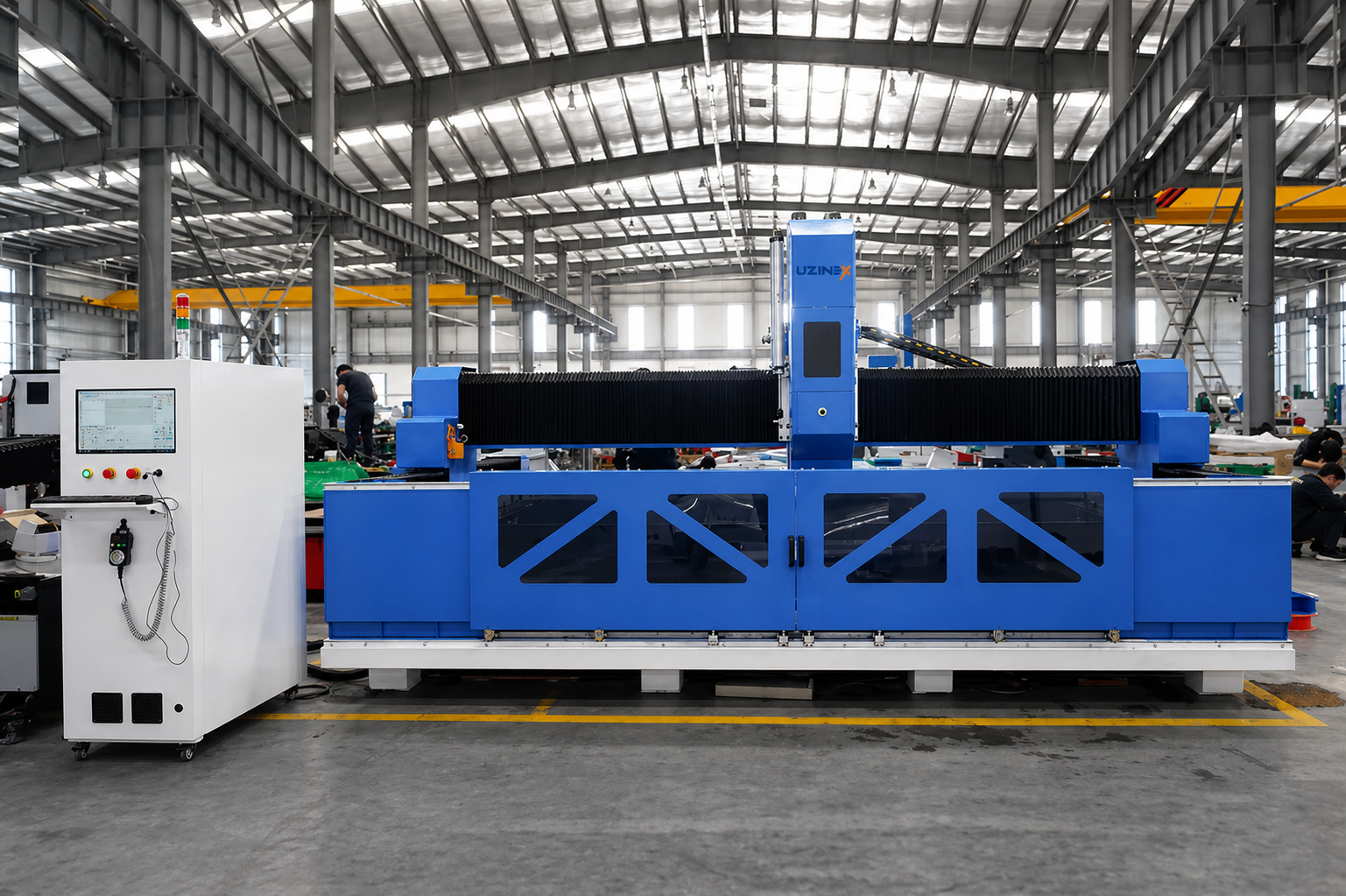

CNC Center for Stone, Granite and Quartz

The CNC center for machining granite and quartz stone is the reference equipment for manufacturers of countertops from natural granite, marble and composite quartz stone — it performs cutting to size, edge profiling, milling of cut-outs for sinks and hobs, and ornamental engraving on the same 1,500×3,000×300 mm work table, without transfer to other machines.

The 2 HITECO spindles of 5.5 kW each, the table with 8 vacuum suction cups and the water cooling system position the CNC center for machining granite and quartz stone at the level of the machining centers used by the major countertop studios and marble works in Romania and Europe.

The CNC center for machining granite and quartz stone is equipped with an Ncstudio 95A-3S controller, a SHIMPO gearbox, a Best 5.5 kW inverter, a 2.2 kW double-vortex vacuum pump or a 3 kW water circulation pump, an automatic lubrication system and Igus electrical cables. Switching between the edging function and the engraving function is done with a single push of a button, without manual reconfiguration — a feature relevant for manufacturers who alternate between standard edge profiles and engraved decorative elements on the same countertop. Technical specifications — the CNC center for machining granite and quartz stone

The CNC center for machining granite and quartz stone is configured at the quotation stage according to the type of stone, the types of edge profiles and the production volume. Free technical consultancy available. Advantages of the CNC center for machining granite and quartz stone

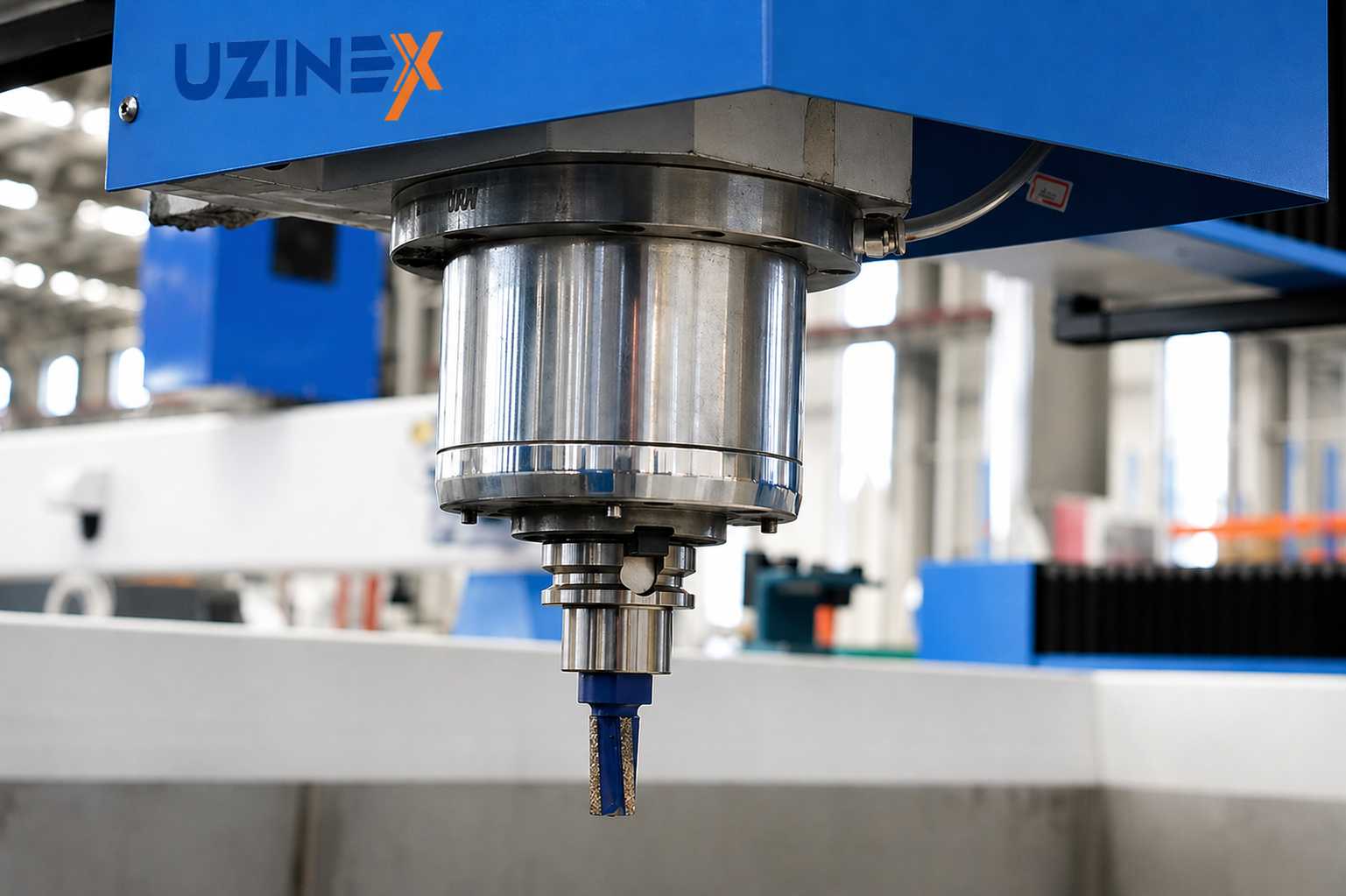

• 2 HITECO 5.5 kW spindles — milling power for granite, quartz and marble — the CNC center for machining granite and quartz stone has two HITECO spindles of 5.5 kW each, a reference manufacturer for stone-machining spindles. Granite (Mohs hardness 6–7) and composite quartz (Mohs 7) are the hardest materials machined in the countertop industry — the HITECO spindles are dimensioned specifically for this class of materials, with adequate cooling and a construction that withstands the vibrations generated by machining hard stone over long periods of continuous production.

• 1,500×3,000×300 mm work area — covers large kitchen countertops — the CNC center for machining granite and quartz stone has a work table of 1,500 × 3,000 mm that covers granite and quartz slabs of standard dimensions (up to 3,000 × 1,400 mm) and oversized ones (3,200 × 1,600 mm with overhang). The 300 mm machining depth on the Z axis allows not only cutting and profiling, but also ornamental carving into stone blocks with thicknesses of up to 250–280 mm, relevant for manufacturers of architectural elements and sculpture.

• 8 vacuum suction cups on the phenolic table — firm clamping without damaging the surface — the CNC center for machining granite and quartz stone clamps the granite or quartz slab with 8 vacuum suction cups on a table made of hard phenolic board. The phenolic table does not damage the underside of the slab (protecting the finish), and the 8 suction cups provide a uniform holding force over the entire surface of the slab, critical for machining stability at high feed rates on hard stone. The 2.2 kW double-vortex vacuum system provides the suction force required even on the partially porous surfaces of natural granite.

• Edging + engraving switching with a single button — maximum productivity on countertops with decorative elements — the CNC center for machining granite and quartz stone allows switching between the edge profile (edging) and decorative engraving without reconfiguration, with a single push of a button. On premium kitchen countertops that combine a profiled edge with decorative engravings or personalized inscriptions, this fast switching eliminates the pauses between operations and increases productivity on orders with multiple machining operations on the same countertop.

• Ncstudio 95A-3S controller — industry standard for stone CNC — the CNC center for machining granite and quartz stone uses the Ncstudio 95A-3S controller, the control system used as a standard in stone CNC centers worldwide. Ncstudio offers an interface familiar to operators experienced in the stone industry, accepts DXF files and other standard CAD formats, and has specific functions for managing water cooling and feed parameters on different types of stone.

• SHIMPO gearbox + Best inverter — precision kinematics for fine profiling — the CNC center for machining granite and quartz stone combines the SHIMPO gearbox (a reliability standard in industrial transmissions) with the Best 5.5 kW inverter for precise control of the HITECO spindle speed. Speed precision is the critical parameter for surface quality when profiling granite and quartz edges — speed variation produces non-uniform surfaces on mirror-finished edge profiles.

• Automatic lubrication + integrated water cooling — continuous production without overheating — the CNC center for machining granite and quartz stone has an automatic lubrication system for the guideways and racks and a 3 kW water circulation pump for cooling the diamond blades and the spindles during machining. Water cooling is mandatory when machining granite and quartz — without cooling, the diamond blade overheats and deteriorates rapidly, and the stone surface can crack thermally. The integrated cooling system of the CNC center for machining granite and quartz stone eliminates the need for an external cooling system.

• Igus cables + configuration on request — reliability and adaptability — the CNC center for machining granite and quartz stone uses Igus motion cables for long-term reliability in the wet and abrasive environment specific to stone machining. Configuration on request allows the equipment to be adapted to the specific types of stone, edge profiles and production volumes of each countertop studio or marble works. 60-month UZINEX warranty, spare parts in stock in Iași, national technical support within 24–48 hours.

Applications — the CNC center for machining granite and quartz stone

Kitchen and bathroom countertop studios working with natural granite and composite quartz stone are the primary user of the CNC center for machining granite and quartz stone. A granite kitchen countertop requires cutting the slab to the kitchen dimensions, milling the cut-out for the sink, profiling the edge (straight, ogee, bullnose, bevel or custom profile) and finishing the cut surface — all performed by the CNC center for machining granite and quartz stone in a continuous cycle, with precision and perfect repeatability across the entire order series.

Marble works and manufacturers of architectural decorative elements from natural stone — sculpted balustrades, decorative panels, sills, window frames, ornamental columns — use the CNC center for machining granite and quartz stone for 3D carving and engraving in calcite, marble, travertine and granite. The 300 mm machining depth on the Z axis allows stone blocks to be approached for decorative elements with volume, impossible to achieve on CNC centers with reduced Z travel.

Manufacturers of pavers, slabs and decorative cladding from natural stone use the CNC center for machining granite and quartz stone for personalized engraving — textures, reliefs, inscriptions and geometric patterns engraved on the surface of granite and marble slabs. This application is growing on the Romanian market, alongside the increased demand for personalization of exterior and interior natural-stone landscaping elements. Materials compatible with the CNC center for machining granite and quartz stone

The CNC center for machining granite and quartz stone machines all types of natural and composite stone used in the countertop and marble-works industry: granite (all varieties, Mohs hardness 6–7), marble and calcite (Mohs 3–4), travertine and onyx (Mohs 3–4), engineered quartz stone — Silestone, Caesarstone, Compac, Technistone and other brands (Mohs 7), basalt and volcanic stone, thick technical ceramic and porcelain (6–20 mm) and acrylic composite of the Corian and Hi-Macs type. The choice of diamond blade and feed parameters is adapted to the specific hardness of each material — UZINEX provides, on delivery, the recommended parameters for each type of stone. The CNC center for machining granite and quartz stone in the production flow

In a countertop studio, the CNC center for machining granite and quartz stone is the central machining station — it receives the granite or quartz slab after on-site measurement at the customer and delivers it finished to the exact dimensions of the kitchen, with profiled edges and cut-outs for the sink and hob executed with millimeter precision.

The typical flow on the CNC center for machining granite and quartz stone: the slab is loaded onto the table with 8 suction cups, the vacuum is started, the operator loads the DXF file with the countertop layout (exported from the measurement software), the CNC center for machining granite and quartz stone executes in order the contour cutting, the milling of the cut-outs, the edge profiling and the optional engraving, with continuous water cooling throughout the cycle. The finished countertop is unloaded and sent for final manual or mechanical polishing. Frequently asked questions about the CNC center for machining granite and quartz stone

Can the CNC center for machining granite and quartz stone also machine 20 mm engineered quartz stone?

Yes. Engineered quartz stone (composite stone with resin) in the standard thicknesses of 20 mm and 30 mm is the material for which the CNC center for machining granite and quartz stone is dimensioned. The 5.5 kW HITECO spindles provide the cutting force required for quartz of Mohs 7 hardness, and water cooling prevents overheating of the diamond blade during contour cutting and the milling of cut-outs in slabs of 20–30 mm thickness. Which edge profiles can the CNC center for machining granite and quartz stone execute?

The CNC center for machining granite and quartz stone can execute any edge profile for which a corresponding diamond profiling blade exists: straight profile (pencil edge), single and double ogee profile, bullnose (semicircular), bevel (45°), dupont profile, waterfall and custom profiles. The profile is selected by changing the diamond profiling blade and loading the corresponding program. UZINEX specifies, at the quotation stage, the compatibility with the specific profiles in your catalog. Is the 8-suction-cup vacuum system sufficient for 3,000 mm granite slabs?

Yes. The 8 suction cups of the CNC center for machining granite and quartz stone are dimensioned and distributed over the 1,500 × 3,000 mm table to support slabs of up to 300 kg uniformly. The 2.2 kW double-vortex pump provides adequate suction force even on the partially porous surfaces of natural granite. For irregular slabs or slabs with pronounced porous surfaces, UZINEX can configure additional suction cups or an alternative pump at the quotation stage. Is the CNC center for machining granite and quartz stone eligible for European funding?

Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for projects financed with EU funds — PNRR digitalization, the Regional Programme, the Just Transition Programme. The CNC center for machining granite and quartz stone can be added directly in SEAP/SICAP. Leasing and credit options available on the UZINEX credit and leasing page. Why UZINEX for the CNC center for machining granite and quartz stone

The CNC center for machining granite and quartz stone is the primary investment of a countertop studio or marble works — the correct choice of spindle, vacuum and cooling configuration determines the quality of the finished product and the long-term operating cost.

• Configuration at the quotation stage — UZINEX adapts the CNC center for machining granite and quartz stone to the predominant type of stone, the edge profiles in your catalog and the daily volume of countertops machined.

• Machining parameters included — UZINEX provides, on delivery, the recommended feed, speed and cooling parameters for granite, marble, engineered quartz stone and technical ceramic.

• Transport, installation and commissioning included — specialized installation, connection to the water and electrical supply, calibration and operator training at your location.

• 60-month warranty — extended coverage in continuous industrial production of countertops and stone elements.

• Spare parts in stock in Iași — diamond blades, suction cups, Ncstudio and Igus components available immediately.

• National technical support within 24–48 hours — technicians with nationwide coverage and a guaranteed response time.

• Eligible for European funds — complete technical documentation for PNRR, POR and other active programs.

The UZINEX CNC center for machining granite and quartz stone — 2 × HITECO 5,5 kW, 1.500×3.000×300 mm work area, phenolic table with 8 vacuum suction cups, Ncstudio 95A-3S, SHIMPO, Best inverter, double-vortex pump 2,2 kW, water cooling 3 kW, automatic lubrication, Igus cables, edging + engraving switching with a single button, configurable on request, 60-month warranty, transport, installation and commissioning included throughout Romania.
