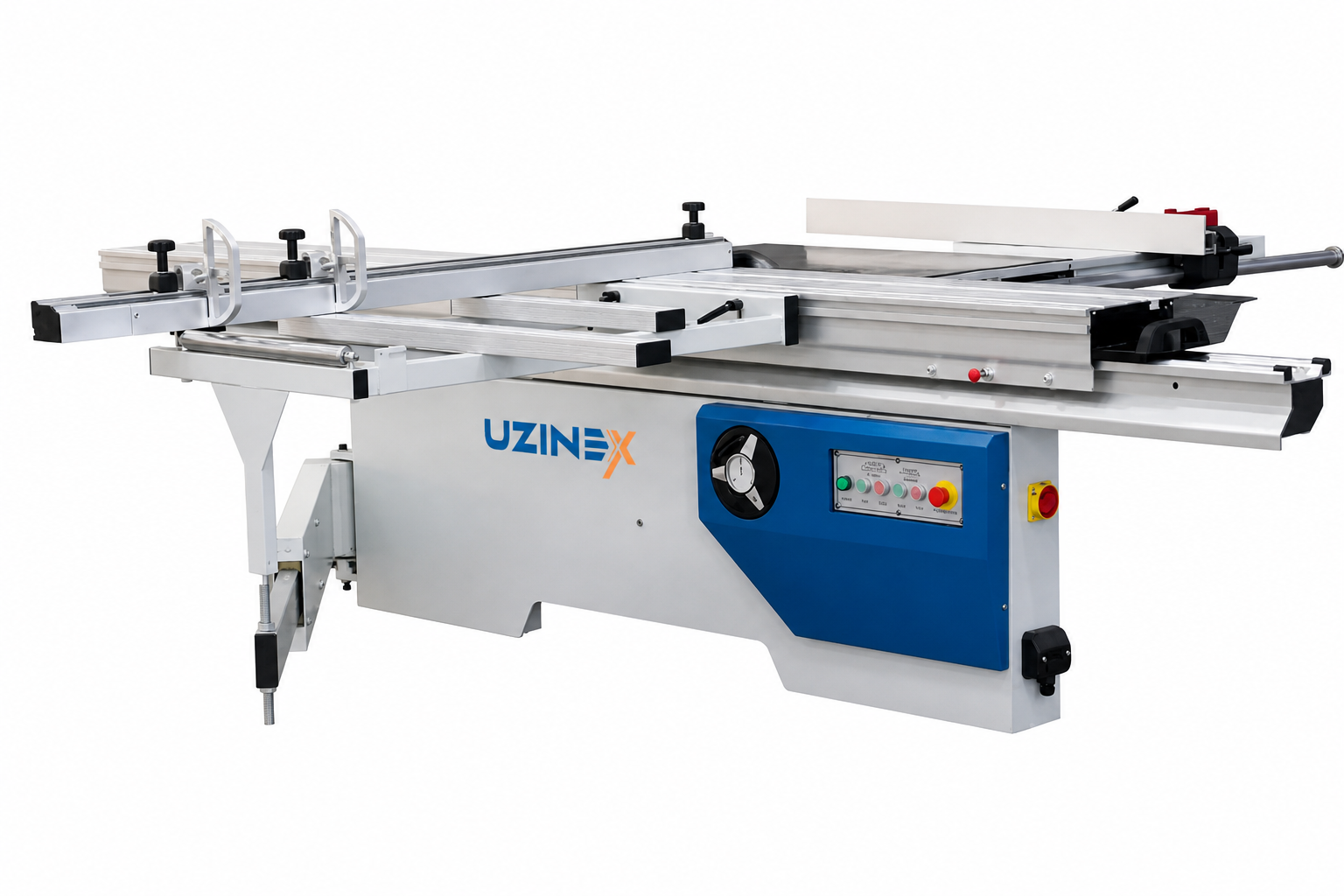

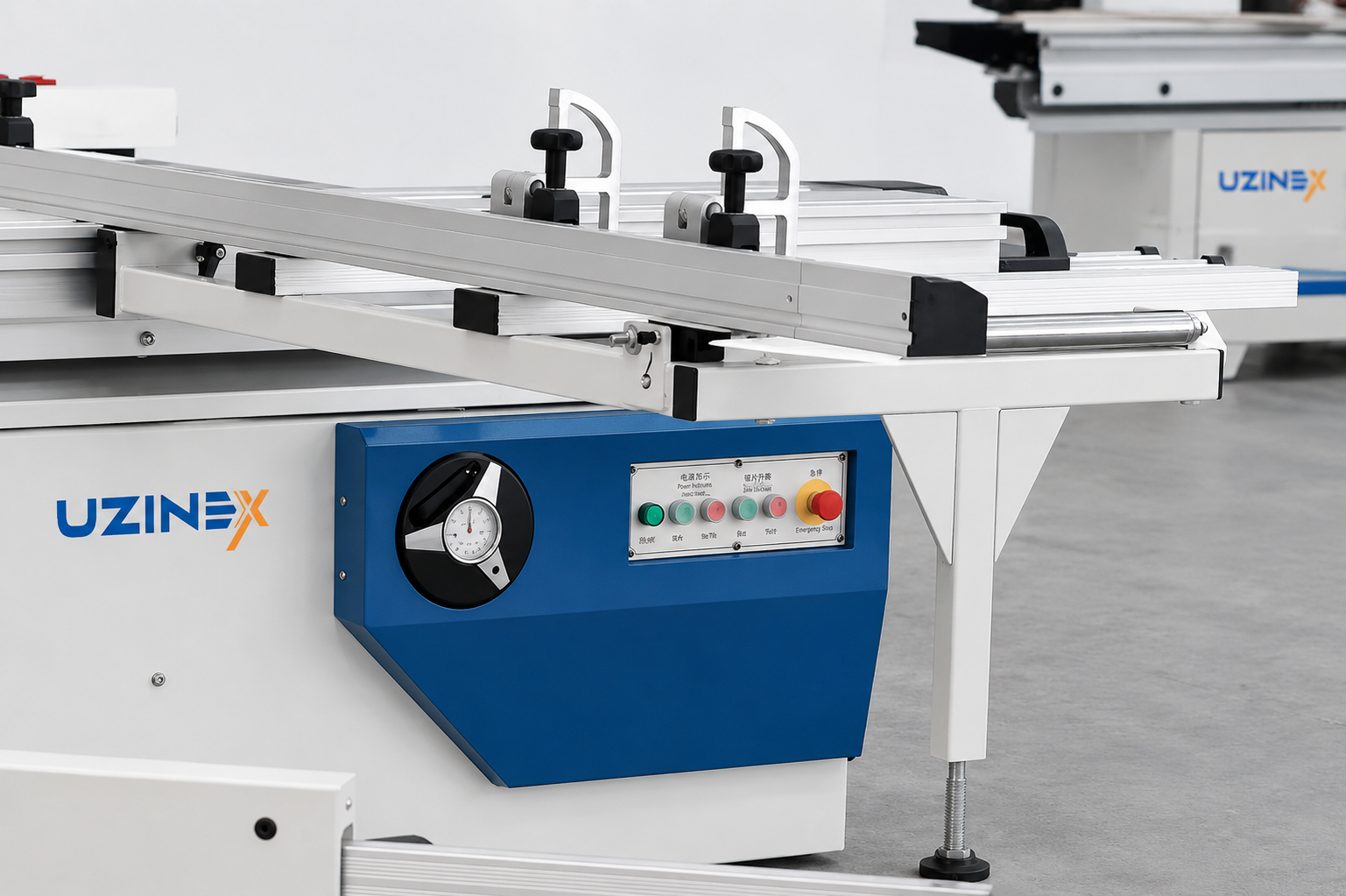

The sliding table panel saw is the high-precision sizing saw for furniture manufacturers, joinery workshops and processors of particleboard, MDF, plywood, OSB, ABS and PVC panels that need precise rip and cross cuts on formats up to 3000mm long and 1200mm wide with a maximum thickness of 78mm. The sliding table panel saw has a 300mm main blade at 4000 or 6000rpm and a 120mm scoring blade, a 3200×375mm sliding table, electric blade lifting and manual tilt with a digital display.
The sliding table panel saw is equipped with latest-generation linear guides for smooth, precise movement of the sliding table, an electric system for raising and lowering the main blade, and a digital display for exact reading of the tilt angle. The overall dimensions of 3200×2540×900mm and the robust construction of the sliding table panel saw ensure vibration stability and constant precision in small and medium series production. Transport, installation and commissioning included. 60-month warranty. Technical specifications — sliding table panel saw
| Parameter | Value |
|---|---|
| Overall dimensions | 3.200 × 2.540 × 900 mm |
| Sliding table size | 3.200 × 375 mm |
| Cutting length (saw teeth) | 3.000 mm |
| Cutting width (saw teeth) | 1.200 mm |
| Cutting thickness (saw teeth) | 78 mm |
| Main saw blade diameter | 300 mm |
| Main saw blade speed | 4.000 / 6.000 rpm |
| Scoring saw blade diameter | 120 mm |
| Main blade lifting | Electric |
| Main blade tilt | Manual with digital display |
| Sliding table guides | Precision linear guides |
Compatible materials
| Material | Specifications |
|---|---|
| Particleboard (with/without melamine) | Up to 78 mm thickness |
| MDF (plain / painted / foil) | Up to 78 mm thickness |
| Plywood | Up to 78 mm thickness |
| ABS and PVC boards | Depending on density |
| Chipboard | Up to 78 mm thickness |
The sliding table panel saw is delivered ready to use. Free technical consultancy available. Advantages of the sliding table panel saw
• Sliding table 3200×375mm with precision linear guides — guaranteed perpendicular cross cuts — the sliding table panel saw has a 3200×375mm sliding table mounted on latest-generation linear guides, ensuring smooth, side-play-free movement over the entire 3000mm length. The linear guides of the sliding table panel saw eliminate the lateral deviation that occurs on sliding-table saws with roller-type guides, guaranteeing cut perpendicularity at 90° with errors below 0,3mm over the entire panel length.
• Scoring blade Ø120mm — chip-free cuts on the lower face of melamine-faced panels — the sliding table panel saw has a 120mm scoring blade that precedes the main blade and opens a thin groove on the lower face of the panel before the main blade makes the full cut. This design of the sliding table panel saw eliminates chipping of the melamine on the visible face of the panel — the main defect of cutting melamine-faced particleboard without a scoring blade — and produces a clean edge ready for edge banding without additional sanding.
• Two blade speeds 4000/6000rpm — optimization for material and thickness — the sliding table panel saw offers the choice between 4000rpm for rough cuts on large thicknesses (60–78mm) where lower speed provides the necessary torque and longer blade life, and 6000rpm for finishing cuts on thin panels and materials at risk of chipping at low speeds. This flexibility of the sliding table panel saw allows quality-productivity optimization for each panel type processed.
• Electric lifting of the main blade — quick setting of cutting depth — the sliding table panel saw has an electric system for raising the main blade, allowing precise adjustment of the blade height above the panel with a button, without the manual cranking typical of conventional saws. The electric lifting of the sliding table panel saw reduces reconfiguration time when changing panel thickness and eliminates the cutting-depth variation caused by inaccurate manual setting.

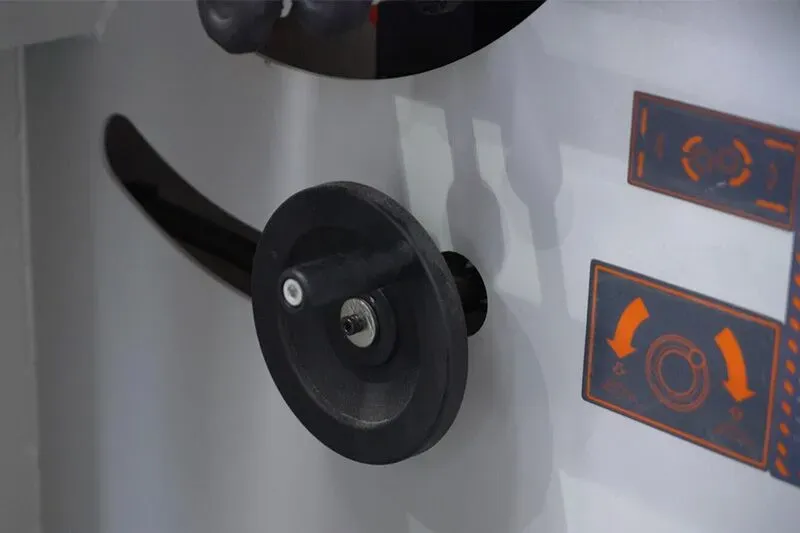

• Manual tilt with digital display — precise angled cuts for edges or joints — the sliding table panel saw allows tilting the main blade for cuts at angles other than 90°, with precise reading of the angle on the digital display. This function of the sliding table panel saw is used for producing angled edges on furniture fronts, mitered joints for furniture bodies without a visible edge, and 45° cuts for mirror frames and wooden picture frames.
• Compatibility with particleboard, MDF, plywood, ABS, PVC — a single machine for all panels in the workshop — the sliding table panel saw processes all panel materials used in furniture production, without changing equipment and without complex reconfigurations between different materials. The blade speed and cutting depth of the sliding table panel saw are quickly adjusted for each material, keeping cut quality constant across the entire range of panels in production. 60-month UZINEX warranty, 24–48 hour national technical support.
Applications — sliding table panel saw
Custom furniture workshops use the sliding table panel saw as the primary sizing equipment — the first operation on any panel is cutting to the dimensions in the cutting plan. The 3000mm sliding table of the sliding table panel saw covers all standard particleboard formats (2800×2070mm and 3050×2070mm) and allows lengthwise and crosswise cutting without turning the panel on the table, reducing handling and the risk of damaging the melamine.
Small and medium series furniture manufacturers use the sliding table panel saw for sizing particleboard and MDF into cabinet components and fronts. The scoring blade of the sliding table panel saw produces a clean edge on both faces of the melamine-faced panel, eliminating the need to sand the edge before applying the edge band and removing one step from the production flow.
Manufacturers of interior doors, cabinets and decorative panels use the sliding table panel saw for cutting to final dimensions and for special angles on fronts and decorative panels, benefiting from the digital display for the exact reproduction of tilt angles on batches of identical pieces. Frequently asked questions about the sliding table panel saw
Can the sliding table panel saw cut 18mm melamine-faced particleboard without chipping?
Yes. The sliding table panel saw has a Ø120mm scoring blade that eliminates chipping of the melamine on the lower face of the panel. Combined with the 300mm main blade at the correct speed, the sliding table panel saw produces a clean edge on both faces of the 18mm melamine-faced panel, ready for direct edge banding. What is the maximum cutting length of the sliding table panel saw?
The sliding table panel saw has a cutting length of 3000mm on the 3200mm sliding table. This coverage is sufficient for standard particleboard formats of 2800mm and 2070mm width. For panels longer than 3000mm, UZINEX recommends a beam saw or a high-speed CNC saw. Is the sliding table panel saw eligible for European funding?
Yes. UZINEX is a member of the Enterprise Europe Network and delivers equipment for EU-funded projects. The sliding table panel saw can be included in SEAP/SICAP. Leasing and credit options on the UZINEX credits and leasing page. Why UZINEX for the sliding table panel saw
• Delivered ready to use — the sliding table panel saw is delivered installed and calibrated, with operator training included.
• Transport and commissioning included — installation at the customer's location and complete verification of cutting accuracy.
• 60-month warranty — extended coverage for series furniture production.
• Spare parts in stock — blades, guides and components available quickly in Romania.
• 24–48 hour national technical support — technicians with national coverage.
• Eligible for European funding — complete technical documentation for PNRR, POR and other active programs.
UZINEX sliding table panel saw — sliding table 3200×375mm, cutting 3000×1200×78mm, main blade Ø300mm / 4000–6000rpm, scoring blade Ø120mm, electric blade lifting, manual tilt with digital display, precision linear guides, compatible with particleboard/MDF/plywood/ABS/PVC, dimensions 3200×2540×900mm, 60-month warranty, transport, installation and commissioning included throughout Romania.
