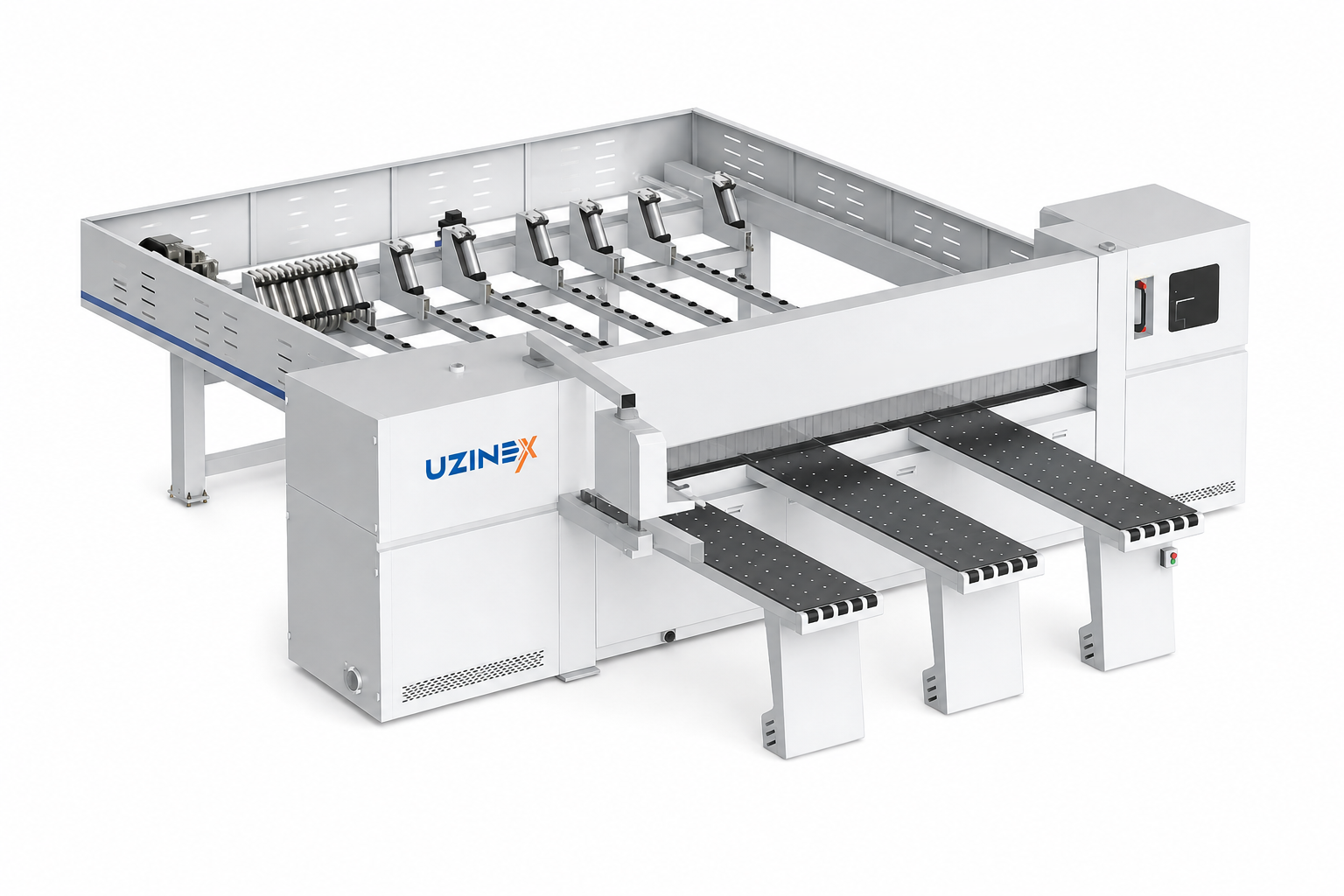

High-Speed CNC Saw for Cutting Wood Panels

The high-speed CNC saw for cutting wood panels is the CNC sizing machine with a servo carriage for furniture factories and panel manufacturers that process high volumes of particleboard, MDF, plywood and composite materials, with cutting lengths up to 3700mm and thicknesses up to 100mm.

The high-speed CNC saw for cutting wood panels has a 350mm main blade at 4800rpm with a 16kW motor, a 180mm scoring blade at 6900rpm with a 2,2kW motor, a carriage running at 100m/min forward / 150m/min return, automatic servo feeding 1,5kW / 100m/min and a total power of 23kW.

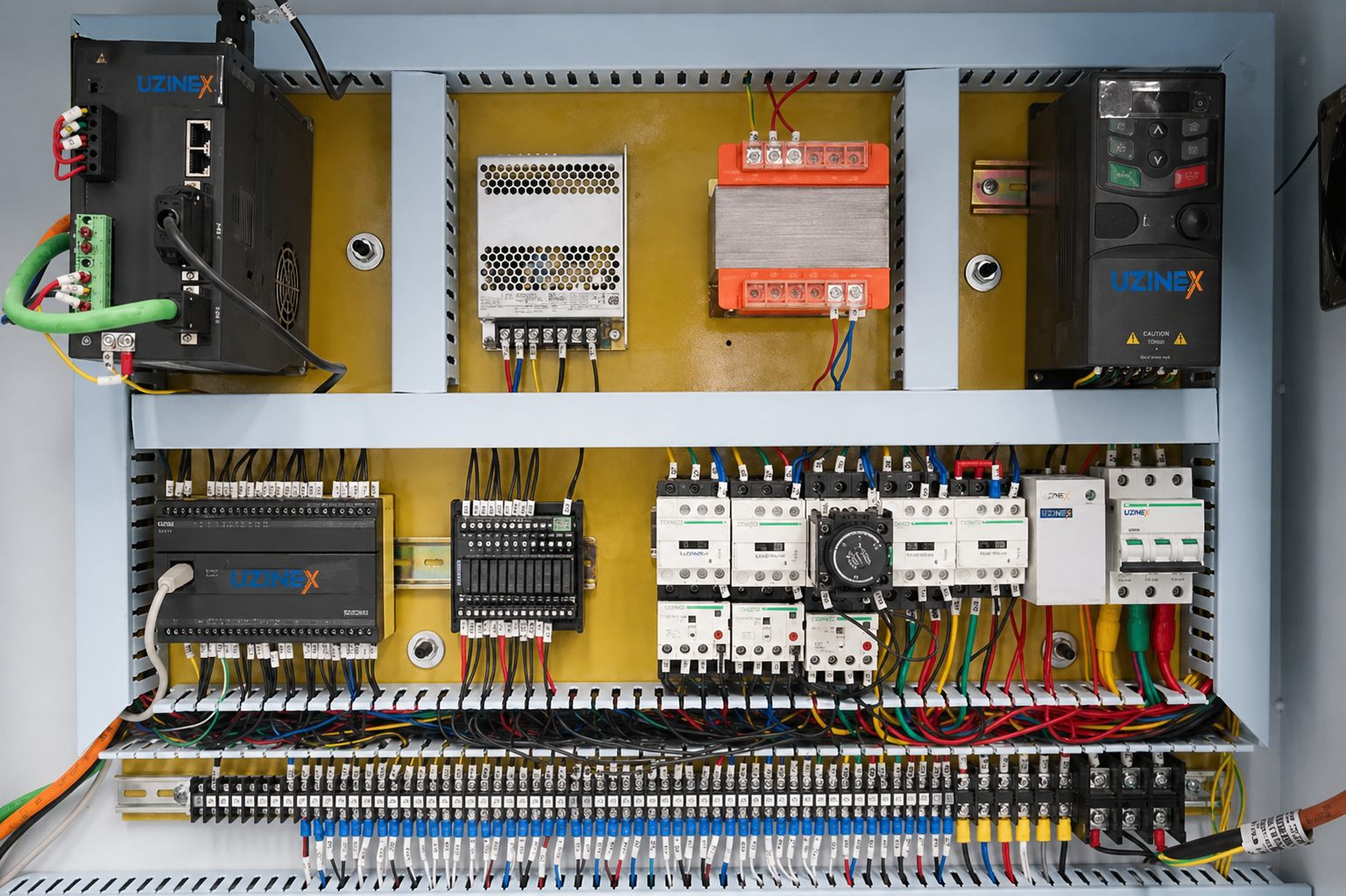

The high-speed CNC saw for cutting wood panels is equipped with a Fatek PLC, an Invt servo control system, an Invt inverter, a Fatek display, SLM linear guides, Schneider contactors and switches, Igus Germany cables with CE and cUL certification, Hengtong pneumatic elements, an AirTac solenoid valve and an Igarashi motor. The automatic warning system stops the machine on a fault, and the automatic error-detection system simplifies maintenance. Operator training takes about 2 hours. Transport, installation and commissioning included. 60-month warranty. Technical specifications — high-speed CNC saw for cutting wood panels

Components and brands — high-speed CNC saw for cutting wood panels

The high-speed CNC saw for cutting wood panels is configured at quotation stage according to the panel type and the range of cuts required. Free technical consultancy available. Advantages of the high-speed CNC saw for cutting wood panels

• Servo carriage at 100m/min forward and 150m/min return — maximum cut throughput per shift — the high-speed CNC saw for cutting wood panels has a carriage with servo travel at 100m/min during cutting and 150m/min on return, minimizing the non-productive time between consecutive cuts. This high carriage speed of the high-speed CNC saw for cutting wood panels translates into the maximum number of cutting cycles per 8-hour shift, a decisive factor for the productivity of a high-volume panel sizing line.

• Main blade Ø350mm / 4800rpm / 16kW — power for clean cuts on thicknesses up to 100mm — the high-speed CNC saw for cutting wood panels has a 350mm blade at 4800rpm with a 16kW motor, providing the torque and peripheral speed needed for thick panels, composites with a dense core or stacked packs. The 16kW power of the high-speed CNC saw for cutting wood panels prevents slowdown on heavy cuts and maintains cut-surface quality throughout the thickness.

• Scoring blade Ø180mm / 6900rpm — active prescoring that eliminates chipping on the lower face — the high-speed CNC saw for cutting wood panels has a 180mm scoring blade at 6900rpm that works as a prescorer: it opens a thin groove on the lower face of the panel before the main blade makes the full cut. The active prescoring of the high-speed CNC saw for cutting wood panels eliminates chipping of the melamine or foil on the lower face of the panel — the main defect when cutting melamine-faced particleboard and painted MDF — producing a clean edge on both faces.

• Servo automatic feeding 1,5kW / 100m/min and Fatek PLC — precise CNC positioning without manual measurement — the high-speed CNC saw for cutting wood panels has a 1,5kW servo automatic feeding system that positions the panel at the cutting dimension programmed in the Fatek PLC, without manual measurement and adjustment by the operator. The cutting programs of the high-speed CNC saw for cutting wood panels can be entered and stored in the PLC memory for repetitive batches, reducing setup time when changing the cutting plan.

• SLM linear guides and Igus Germany CE+cUL cables — constant precision and durability in intensive production — the high-speed CNC saw for cutting wood panels has SLM linear guides that ensure backlash-free travel of the carriage over the entire 3700mm cutting length, maintaining constant dimensional accuracy from the first to the last cut of the shift. The Igus Germany cables with CE and cUL certification of the high-speed CNC saw for cutting wood panels withstand thousands of flexing cycles, eliminating downtime caused by cable fatigue in continuous production.

• Automatic error-detection and warning system — stop on fault, training in 2 hours — the high-speed CNC saw for cutting wood panels has an automatic error-detection system that identifies mechanical and electrical faults and stops the machine before they cause damage or accidents. The Fatek interface of the high-speed CNC saw for cutting wood panels allows operators to learn the full operation in about 2 hours of training, reducing dependence on specialized technical staff and enabling operator rotation on the machine. 60-month UZINEX warranty, 24–48 hour national technical support.

Applications — high-speed CNC saw for cutting wood panels

Series furniture factories that size large volumes of particleboard and MDF into cabinet components use the high-speed CNC saw for cutting wood panels as their main cutting machine. The 100/150m/min carriage speed and the servo automatic feeding of the high-speed CNC saw for cutting wood panels enable processing of a consistent number of panels in 2800×2070mm or 3050×2070mm format per shift, replacing manual or semi-automatic saws with significantly lower productivity.

Composite panel manufacturers — high-density particleboard, thick MDF, glued solid-wood panels, OSB — use the high-speed CNC saw for cutting wood panels because of its cutting capacity for thicknesses up to 100mm and the 16kW power of the main blade. The 100mm cutting thickness of the high-speed CNC saw for cutting wood panels also allows cutting in stacked packs of thin panels (for example, two 45mm panels or four 22mm panels), doubling or tripling productivity when sizing identical components. Frequently asked questions about the high-speed CNC saw for cutting wood panels

What cutting plans can the high-speed CNC saw for cutting wood panels handle?

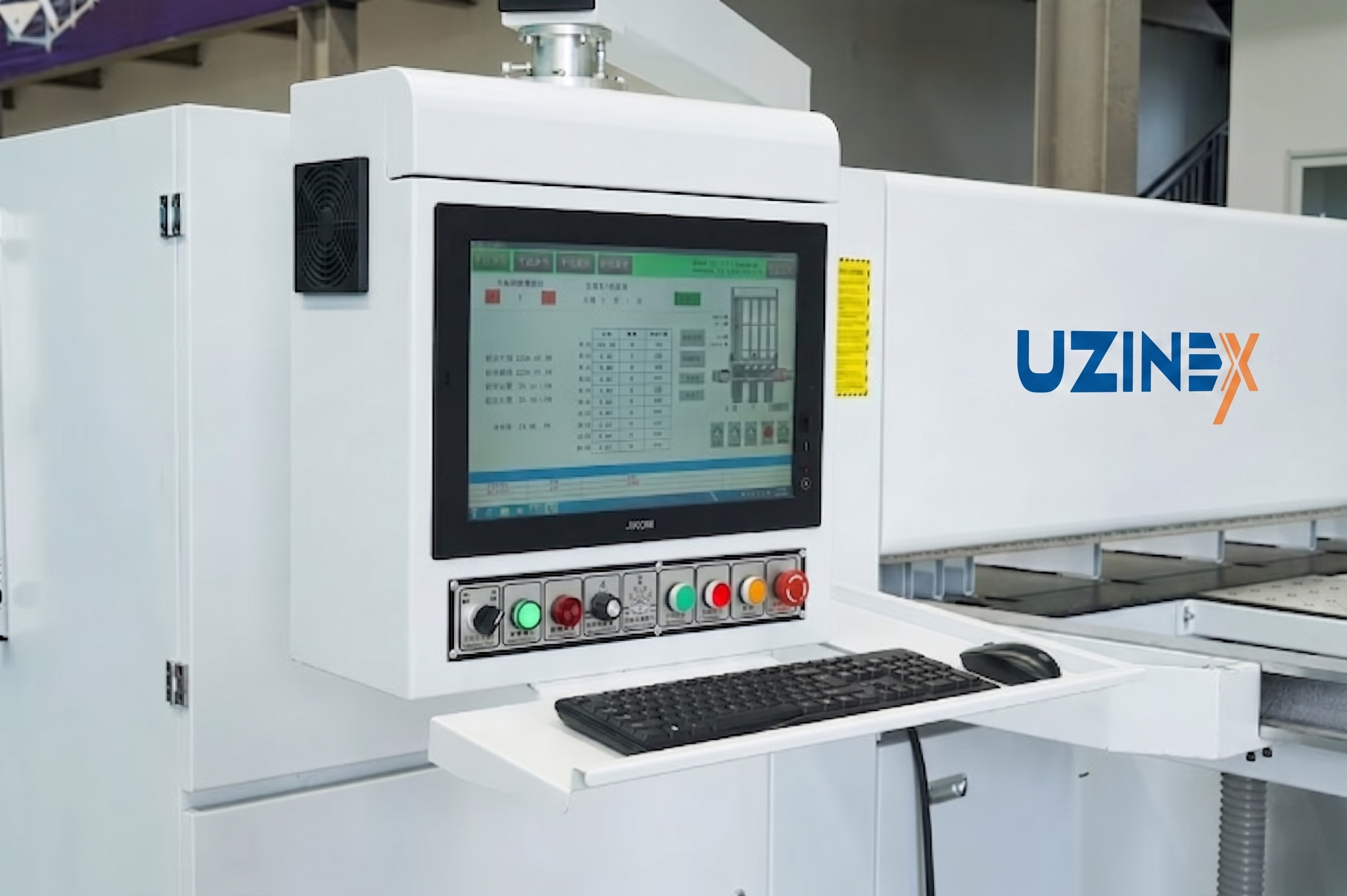

The high-speed CNC saw for cutting wood panels has a Fatek PLC with memory for cutting programs. The cutting plans with the component dimensions are entered in the Fatek HMI interface, and the machine automatically positions the panel at each programmed dimension. For complex cutting plans generated in CAD/CAM software, UZINEX confirms compatibility with the PLC import format at quotation stage. Is the high-speed CNC saw for cutting wood panels eligible for European funding?

Yes. UZINEX is a member of the Enterprise Europe Network and delivers equipment for EU-funded projects. The high-speed CNC saw for cutting wood panels can be included in SEAP/SICAP. Leasing and credit options on the UZINEX credits and leasing page. Why UZINEX for the high-speed CNC saw for cutting wood panels

• Configuration and programming included — UZINEX configures the cutting parameters and enters the initial cutting plans into the PLC of the high-speed CNC saw for cutting wood panels at commissioning.

• Transport, installation and commissioning included — installation on the customer's foundation, calibration and operator training in about 2 hours.

• 60-month warranty — extended coverage for continuous series furniture production.

• Spare parts in stock — blades, SLM guides, Schneider and Igus components available quickly in Romania.

• 24–48 hour national technical support — technicians with national coverage.

• Eligible for European funding — complete technical documentation for PNRR, POR and other active programs.

UZINEX high-speed CNC saw for cutting wood panels — cutting 3700mm / 100mm thickness, main blade Ø350mm/4800rpm/16kW, scoring blade Ø180mm/6900rpm/2,2kW, carriage 100m/min forward / 150m/min return, servo feeding 1,5kW/100m/min, ventilation 2,2kW, total 23kW, platform 950mm, Fatek PLC, Invt servo, SLM guides, Schneider, Igus CE+cUL cables, Hengtong, AirTac, Igarashi, 6400×6300×1800mm, 60-month warranty, transport, installation and commissioning included throughout Romania.
