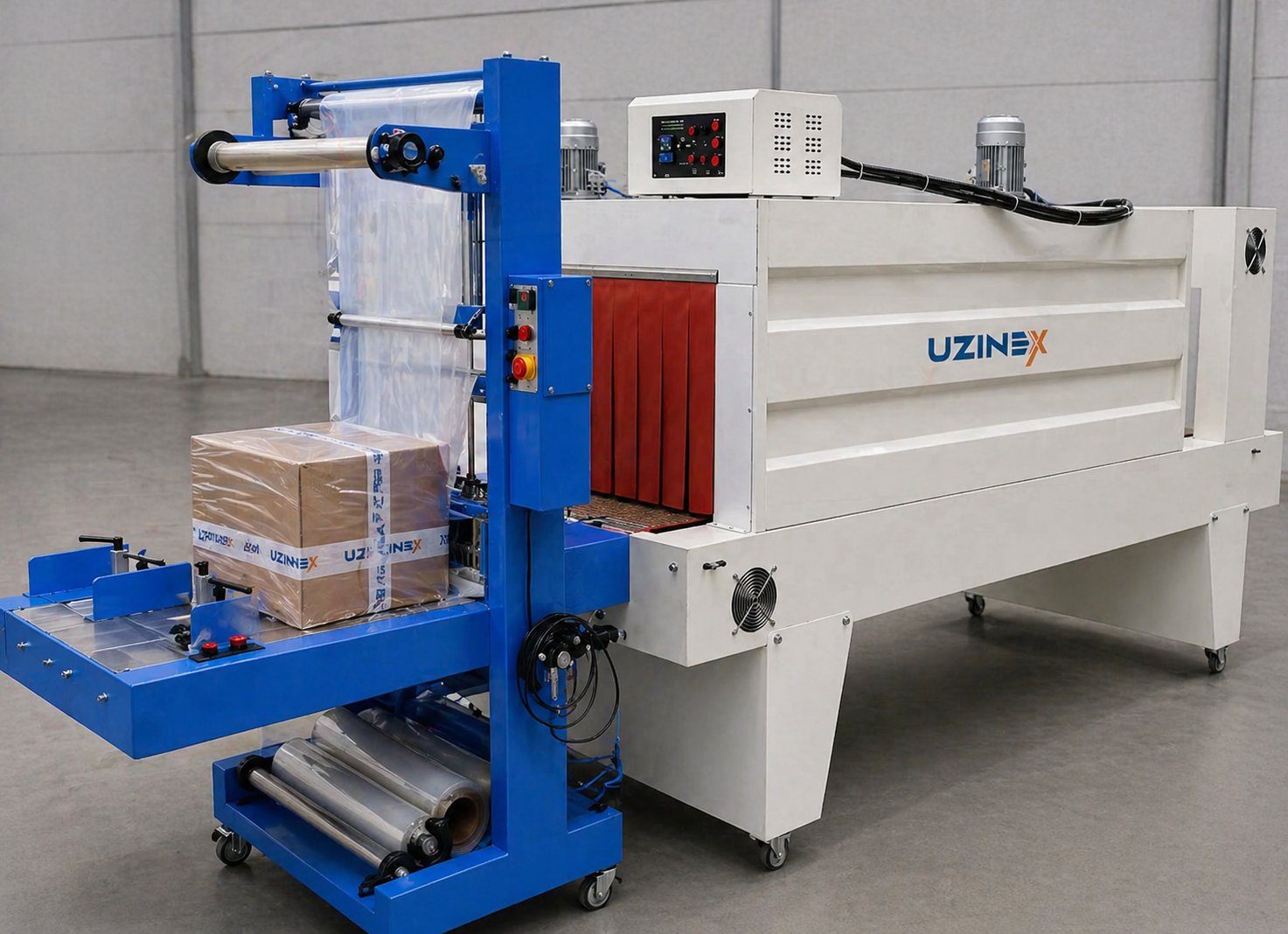

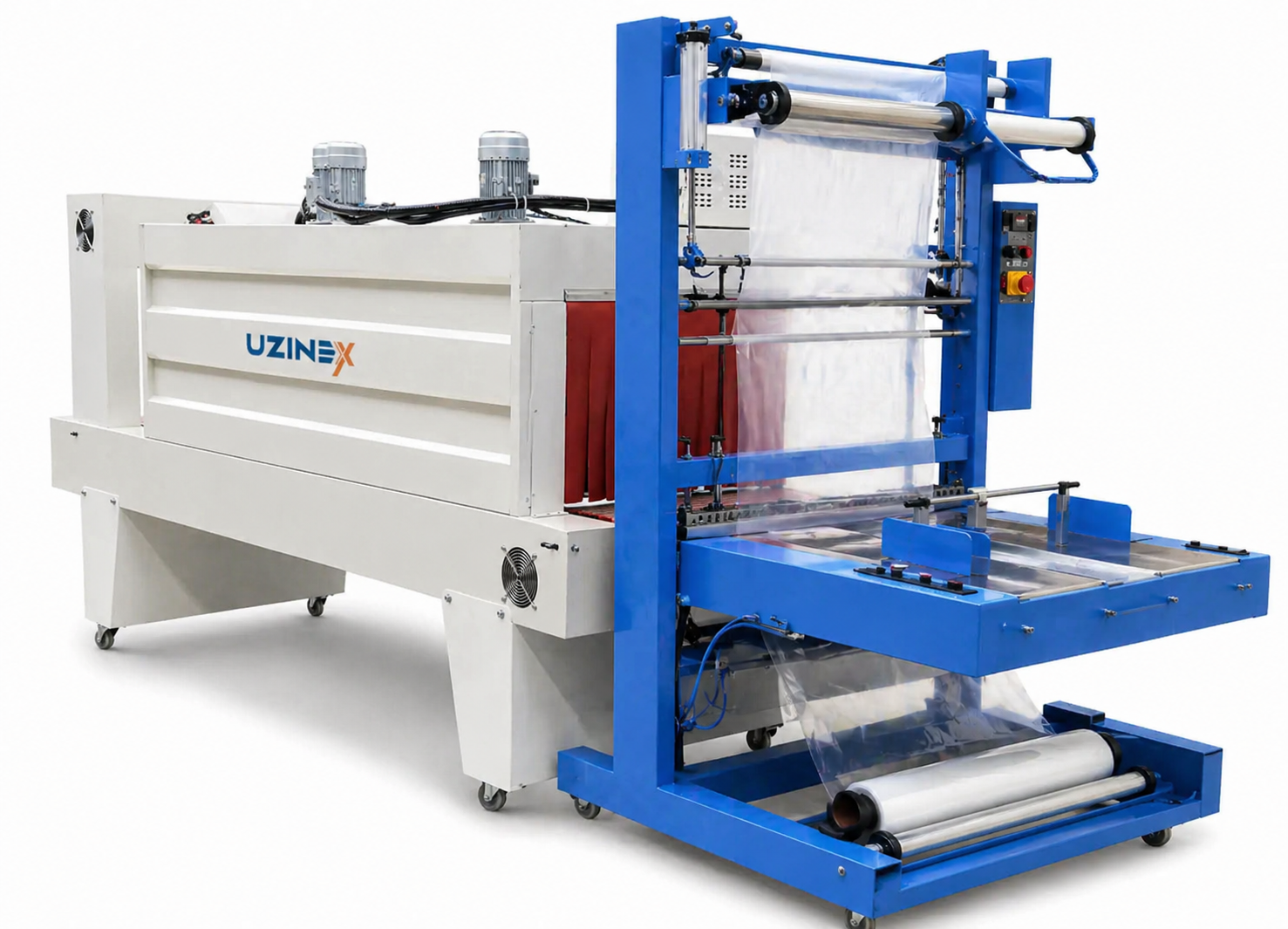

If you manufacture and distribute items that require compact, clean and professional packaging, a shrink wrapping machine is not a luxury — it is a direct operational advantage. The FL-6540 Pneumatic model is an industrial sleeve wrapper designed for medium semi-automatic production flows, where sealing precision and constant speed are priorities.
The integrated pneumatic system and the electromagnetic sensor for automatic adjustment to product height make this a shrink wrapping machine adaptable to a wide range of products, with no additional manual intervention between cycles. The result: uniform packages, free of distortion, with a tidy commercial appearance on every package.
Main advantages of the FL-6540 shrink wrapping machine
• Integrated Super Cooling system — active cooling of the cutting and sealing zone, which ensures a precise film joint and eliminates the thermal distortion common on models without cooling.
• Electromagnetic sensor for automatic adjustment — the product height is detected and adapted with no manual settings, reducing batch-changeover time.
• Dedicated motor for film-roll feeding — speed control prevents film tearing and ensures smooth unwinding, even at high rates of 6–9 packages per minute.
• Digital temperature control — the temperature is kept stable throughout the shift, with no variations that would affect sealing quality. Critical for continuous production lines.
• Dual PE and POF compatibility — you use the film you already have in stock, with no additional investment in specialized consumables.
• Standard compressed-air source — operates at 5–7 kg/cm², a pressure available in any production facility with a general-purpose industrial compressor.
• Robust ergonomic design — a structure built for intensive use, with easy access to wear parts and a compact floor footprint relative to its working capacity.
• 60-month warranty and spare parts in stock — guaranteed operational continuity, with no prolonged downtime in case of breakdown.
Technical specifications — FL-6540 Pneumatic Shrink Wrapping Machine
| Parameter | Value |
|---|---|
| Model | FL-6540 (Pneumatic) |
| Equipment type | Semi-automatic industrial sleeve wrapper |
| Power supply | AC 220 V / 50–60 Hz |
| Heater power | 1,5 kW |
| Packaging speed | 6–9 packages/minute |
| Machine dimensions (L × W × H) | 925 × 940 × 1290 mm |
| Maximum product dimensions (L × W × H) | 400 × 400 × 380 mm |
| Compressed air source | 5–7 kg/cm² |
| Cooling system | Super Cooling — precise sealing and cutting |
| Compatible film types | PE (polyethylene), POF (polyolefin) |
| Machine weight | approx. 300 kg |
| Temperature control | Digital, stable |
| Product height adjustment | Automatic — electromagnetic sensor |
| Film-roll feeding | Dedicated motor with speed control |
Applications and industries — where the FL-6540 shrink wrapping machine fits in
This industrial sleeve wrapper integrates optimally into any production or distribution line that requires individual or grouped packaging with shrink film. Its versatility makes it suitable for sectors with diverse format and cadence requirements.
In the food and beverage industry, an FL-6540-type shrink wrapping machine is used for grouping bottles, cans, boxes or individually packaged bakery products. POF film is preferred in these applications thanks to its high transparency and compliance with food-contact regulations.
Manufacturers in the cosmetics, pharmaceutical, hardware and stationery industries use this kind of shrink wrapping machine to secure products against unauthorized tampering before sale. The sleeve-type packaging provides a clean appearance, with no loose film ends, which increases the perceived value of the finished product. Compatible materials and film types
The FL-6540 Pneumatic is a shrink wrapping machine compatible with two main types of industrial film:
• POF (polyolefin) — the preferred film for food and cosmetic products. Excellent transparency, uniform shrinkage, no toxic fumes emitted during sealing. Compliant with European food-contact regulations.
• PE (polyethylene) — a mechanically tougher film, ideal for industrial products, hardware, bottle groups or heavier packages. Lower cost per unit than POF.
Center-folded film or standard roll — both formats work on this industrial sleeve wrapper, with no additional adapters. The recommended thickness falls within the standard distribution ranges in Romania. How the FL-6540 shrink wrapping machine works — workflow
• Preparing the film roll — the PE or POF film roll is mounted on the dedicated support. The film-roll feed motor starts automatically when the cycle is initialized.
• Introducing the product — the operator places the product on the infeed platform. The electromagnetic sensor detects the height and automatically adjusts the sealing frame.
• Sealing and cutting — the sealing bar descends pneumatically, cuts and welds the film around the product. The Super Cooling system immediately cools the cutting zone, ensuring a clean joint.
• Thermal shrinking — the wrapped product passes through the heating zone (1,5 kW), where the film shrinks uniformly around the shape of the product.
• Package discharge — the finished package is discharged from the platform. The cycle restarts automatically for the next product. Cadence: 6–9 packages/minute.
The temperature and pneumatic pressure settings are adjusted only once per product type. This shrink wrapping machine memorizes the parameters and maintains consistency throughout production.
Frequently asked questions about the FL-6540 shrink wrapping machine
What is the difference between a sleeve wrapper and a classic L-bar shrink wrapping machine?
A sleeve wrapper-type shrink wrapping machine uses film pre-folded into a continuous tube, which wraps the product laterally and longitudinally before sealing. The L-bar seals on three sides simultaneously, leaving two open ends. The FL-6540 sleeve wrapper provides a cleaner side seal, with no visible loose ends, and is faster per cycle on products with a regular format. It is preferred for products where commercial presentation matters — cosmetics, packaged foods, pharmaceutical products. What is the realistic hourly output of the FL-6540?
At the stated rate of 6–9 packages/minute, an FL-6540 shrink wrapping machine can produce between 360 and 540 packages per hour under normal operating conditions. The actual output depends on the product dimensions, the film type and operator skill. On small, uniform products, the higher rate of 9 packages/minute is frequently achieved. Are special technical skills required for operation?
No. This industrial sleeve wrapper is designed for operators with no specialized technical training. The digital control panel allows the temperature and cycle times to be set through intuitive buttons. UZINEX provides free basic training at commissioning, included in the delivery price. What happens if products vary in height on the same line?
The electromagnetic sensor of the FL-6540 shrink wrapping machine detects and automatically adjusts the working height of the sealing bar for each individual product. No manual adjustment is needed between products of different sizes, as long as they fall within the maximum limits of the machine (400 × 400 × 380 mm). Is technical support available after the warranty period as well?
Yes. UZINEX has a nationwide network of service technicians, with a 24–48 hour response time. Spare parts for this shrink wrapping machine are kept in stock to eliminate prolonged downtime. Post-warranty service contracts are available on request — see the UZINEX technical support page for details. Why choose UZINEX for your shrink wrapping machine
UZINEX is an industrial integrator with over 30 years of accumulated experience in production and packaging equipment, present on both the private market and in European-funded projects. When you choose a shrink wrapping machine through UZINEX, you benefit from:
• 60-month warranty — one of the most generous on the market for semi-automatic industrial packaging equipment.
• Transport and commissioning included — the equipment reaches you, is installed and tested by UZINEX specialists, with no hidden costs.
• Spare parts in stock — you do not wait weeks for an imported part. Immediate availability for critical components.
• AI-powered user manuals — interactive documentation that makes rapid, autonomous diagnosis of operational issues easier.
• Technological flow consultancy — if you purchase an industrial sleeve wrapper as part of a broader line, UZINEX engineers help you optimize the integration. Details on the UZINEX consultancy page.
• Members of the Chamber of Commerce and Industry and the Enterprise Europe Network — a verified structure, eligible as a supplier in European-funded NRRP projects and structural funds.
Investing in an industrial-grade shrink wrapping machine, backed by a partner with complete after-sales services, translates into operational continuity and rapid payback. The FL-6540 Pneumatic is the right choice for companies that want real efficiency, not promises.
