The FQ-P02 furniture packaging line is a fully automated line designed specifically for custom-furniture manufacturers and companies that pack products with large, variable dimensions, where standard packaging solutions are not efficient. Unlike systems that require a physical measuring station and MES integration for pre-grouping, this furniture packaging line works through intelligent QR-code scanning — the operator scans the product code, the system automatically identifies the dimensions from the database and immediately generates the corresponding box, without manual measuring and without prior MES configuration.
With proprietary in-house packaging-grouping software, a cutting system optimized for maximum material savings and a stacking capacity of up to 12 paper layers, the FQ-P02 furniture packaging line is the right solution for furniture factories, panel manufacturers and distribution companies that ship bulky products with per-order custom packaging.
Main advantages of the FQ-P02 furniture packaging line
• Intelligent QR scanning — no measuring station and no MES pre-grouping — the FQ-P02 line eliminates two costly stages compared with conventional systems: it requires no physical product measuring station and no pre-grouping in the MES system; the operator scans the product's QR code, and the system automatically identifies the dimensions from the internal library and generates the corresponding box in seconds.
• Proprietary packaging-grouping software — the in-house software system fully manages the package-grouping process, box-dimension generation, palletizing and delivery-note issuing; native integration with the production flow eliminates data-transfer errors between systems.
• Optimized cutting path — maximum paper/cardboard savings — the FQ-P02 line's cutting-path optimization algorithm minimizes material waste on each box generated, reducing the packaging material cost per order compared with non-optimized cutting.
• Standard model with 3 paper libraries, Pro with 6 libraries — the multi-library configuration allows simultaneous storage of several types and thicknesses of cardboard, with automatic selection of the suitable type according to the size and weight of the packed product — without manually changing the roll for each different order.
• Stacking up to 12 paper layers — the capacity to stack 12 paper/cardboard layers gives the furniture packaging line high autonomy between manual refills, reducing the frequency of operator intervention and increasing effective productivity per shift.
• One storage location compatible with 2 paper layers — the flexibility to store 2 different layers per storage location maximizes the variety of materials available simultaneously, essential for furniture manufacturers with orders varied in dimensions and material specifications.
• Minimum box thickness 18 mm — the thinnest cutting and sealing in its category — the ability to produce boxes with a minimum thickness of 18 mm makes the FQ-P02 line compatible with flat panels and thin furniture components that cannot be packed on systems with higher minimum limits.
• Production speed 3,5–10 packages/minute — the wide speed range reflects the versatility of the furniture packaging line across different formats: 10 packages/minute for orders with similar repetitive dimensions and 3,5 packages/minute for fully custom orders with unique dimensions per package.
Technical specifications — FQ-P02 furniture packaging line
| Parameter | Specification |
|---|---|
| Model | FQ-P02 |
| Solution type | Automatic packaging line for furniture and bulky products with QR scanning |
| Production efficiency | 3,5–10 packages/minute |
| Minimum processing length | 200 mm |
| Width processing range | 150–1.200 mm |
| Height processing range | 18–250 mm |
| Processed corrugated thickness | 3–7 mm |
| Conveyor speed | 18–50 m/min |
| Minimum box thickness produced | 18 mm |
| Paper libraries — standard model | 3 libraries |
| Paper libraries — Pro model | 6 libraries |
| Stacking capacity | Up to 12 paper layers |
| Compatibility per storage location | 2 paper layers per location |
| Product identification | Intelligent QR-code scanning |
| Measuring station | Not required |
| MES pre-grouping | Not required |
| Software | Proprietary packaging-grouping system, independently developed |
| Control system | Independently developed in-house |
| Cutting optimization | Automatically optimized path for cardboard savings |
| Software functions | Package grouping, palletizing, box-dimension generation, delivery-note issuing |
FQ-P02 vs. FQ-P01 — when to choose the furniture-specialized line
FQ-P01 is the universal automatic packaging solution for diverse products, with an intelligent measuring station that determines the dimensions of each physical product before box forming. The FQ-P02 furniture packaging line works differently: the product dimensions are known in advance from the software database, and identification is done through QR scanning — eliminating the physical measuring station and MES integration for pre-grouping.
FQ-P02 is the right choice when the factory produces furniture or products with predefined dimensions catalogued in the system, when each product has a QR or barcode with the dimensions stored, and when the production flow does not include an MES system or integration with it is not desired. The FQ-P02 line is operationally simpler than FQ-P01 and better suited to flat-pack furniture, panel and structural-component manufacturers with a defined range of SKUs. UZINEX provides free consulting to choose the optimal solution.
Applications and industries for the FQ-P02 furniture packaging line
The FQ-P02 line is intended primarily for manufacturers of custom and series furniture, where each order generates components of different dimensions that must be packed individually into boxes formed exactly to the panel or component dimensions. The QR scanning system and the internal dimensions library completely eliminate manual measuring and manual box selection for each piece.
Distributors of panels, particleboard (PAL), MDF and other interior construction materials use this line to pack delivery orders in boxes formed exactly to the dimensions of the ordered panels, with automatic generation of the delivery note and shipping documents directly from the included grouping software.
E-commerce companies specialized in made-to-order furniture and flat-pack furniture manufacturers that ship directly to end consumers find in the FQ-P02 a furniture packaging line with a speed of 3,5–10 packages/minute and the capacity to handle fully custom orders, without a stock of pre-formed boxes and without material losses from oversized packaging.

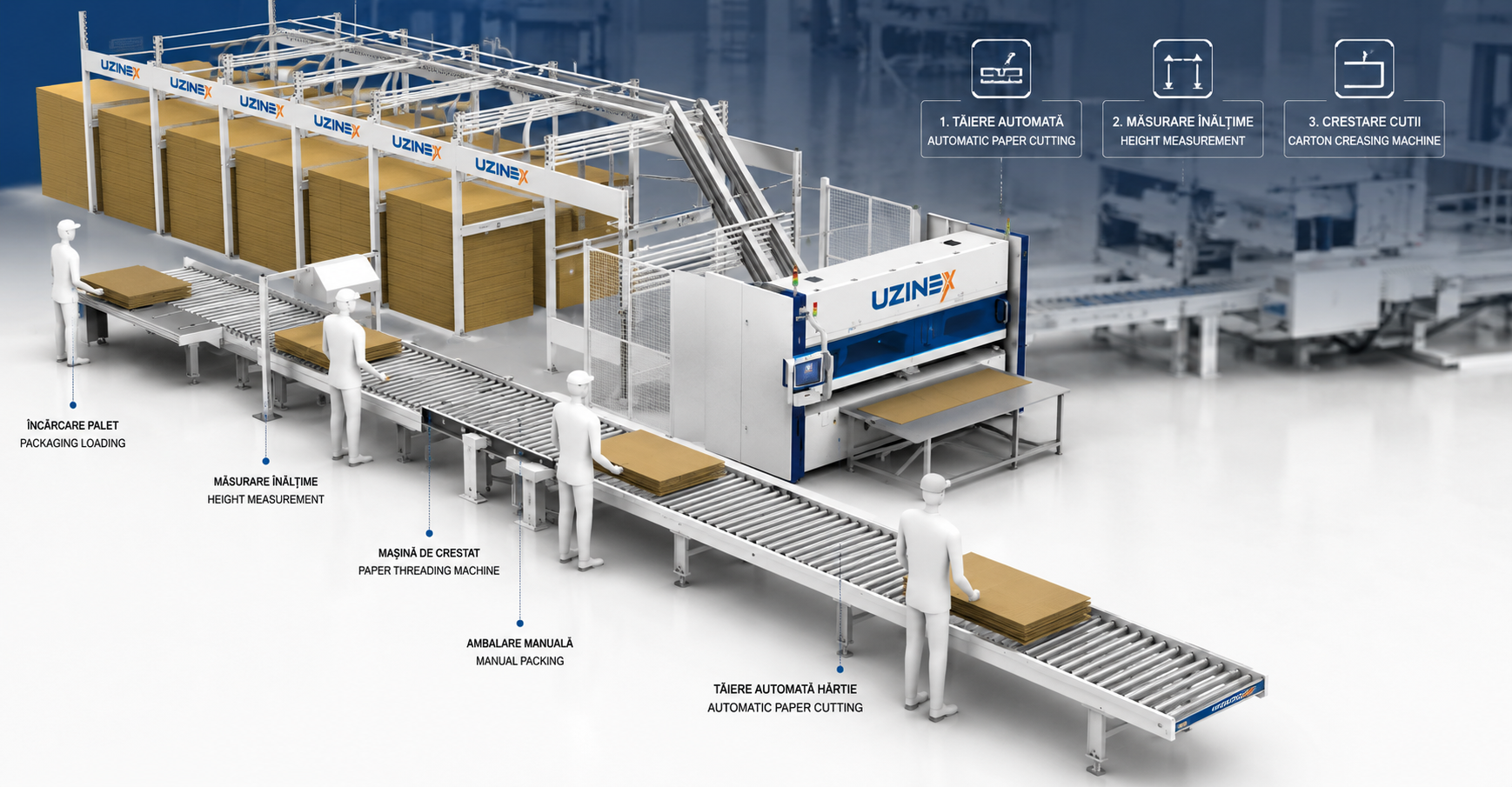

How the FQ-P02 furniture packaging line works
1. Manual package grouping and QR scanning — the operator groups the furniture components or panels at the station and scans the order's QR code; the software automatically identifies the dimensions from the internal library and calculates the optimal box for the scanned product group.
2. Automatic box-dimension generation — the proprietary packaging-grouping software generates the exact box dimensions and optimizes the cutting path to minimize cardboard waste; no manual data entry or MES configuration is required.
3. Height measurement — the height-measuring station verifies the real height of the product group and adjusts the calculated box dimensions if necessary, ensuring a perfect fit of the packaging to the physical product.
4. Cardboard insertion via the threading machine — the paper threading machine feeds the cardboard sheet automatically selected from the corresponding library and positions it for cutting; the system automatically selects the suitable cardboard type from the 3 (standard) or 6 (Pro) available libraries.
5. Automatic cutting and box forming — the carton cutting machine cuts the material along the optimized path calculated by the software, forming the box blank exactly to the product dimensions; the minimum achievable thickness is 18 mm.
6. Packing and sealing — the products are inserted into the formed box, the interior packaging is organized and the box is sealed with adhesive tape; the system automatically issues the delivery note corresponding to the scanned order.
Why UZINEX for a furniture packaging line
• Free technical consulting — UZINEX assesses the product portfolio, order volume, dimension variety and software-integration requirements to recommend the standard model (3 libraries) or Pro (6 libraries) of the FQ-P02 line, or FQ-P01 if the products do not have a pre-assigned QR code.
• Transport, installation and commissioning included free of charge — the line is delivered, installed and started at the customer's location by the UZINEX technical team, with import of the product catalogue into the database, testing with the customer's real products and full operator training.
• Extended 60-month warranty — one of the longest warranties available in Romania for automatic furniture packaging lines, with technical support included for the entire warranty period and on-site intervention or video assistance in under 36 hours.
• National technical support in under 36 hours — on-site intervention or a video diagnostic session in less than 36 hours of the request, with a dedicated 24/7 phone line for UZINEX customers.
• Intelligent AI manual included — complete operating, preventive-maintenance and troubleshooting documentation with AI assistance, able to instantly resolve over 96% of technical requests without human intervention.
• Full eligibility for European funds — UZINEX provides the complete documentation and support for purchases with EU, PNRR or structural funding, including public-tender procedures.
The FQ-P02 furniture packaging line is the solution for custom and flat-pack furniture manufacturers that want to fully automate packaging — with intelligent QR scanning without a measuring station, proprietary grouping software with automatic box-dimension and delivery-note generation, multiple paper libraries for automatic material selection and cutting capacity down to a minimum thickness of 18 mm, at 3,5–10 packages/minute.
