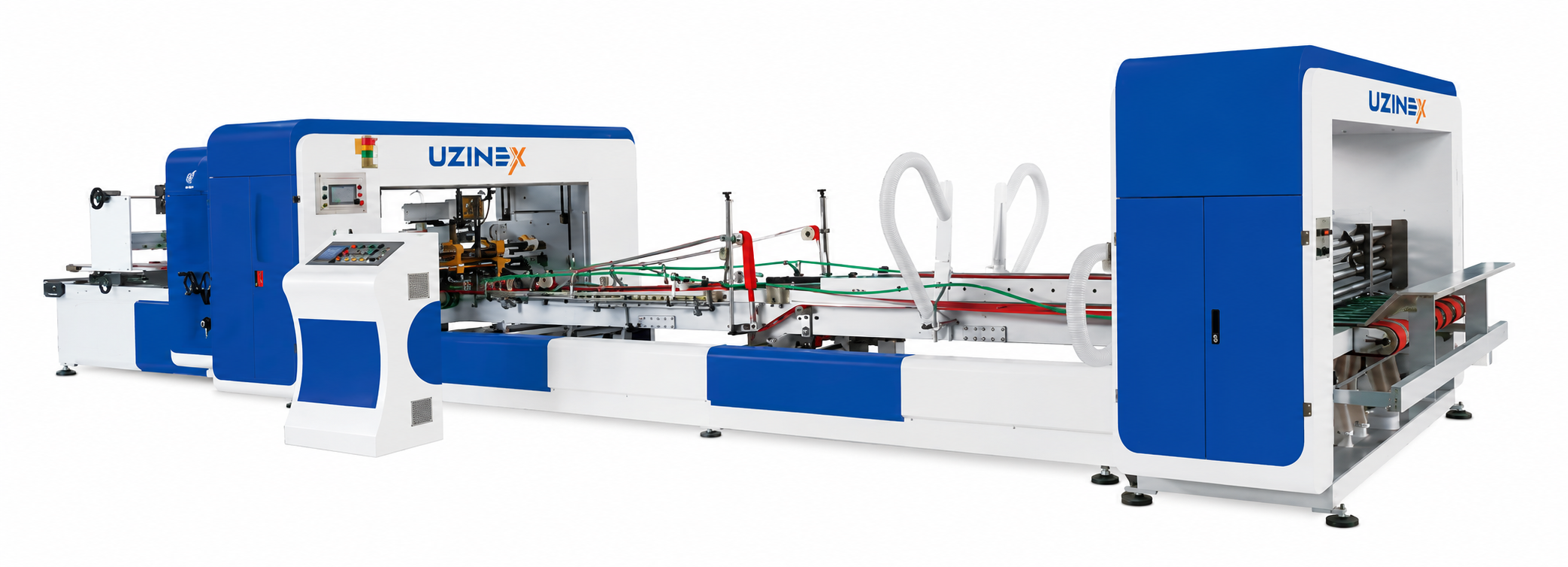

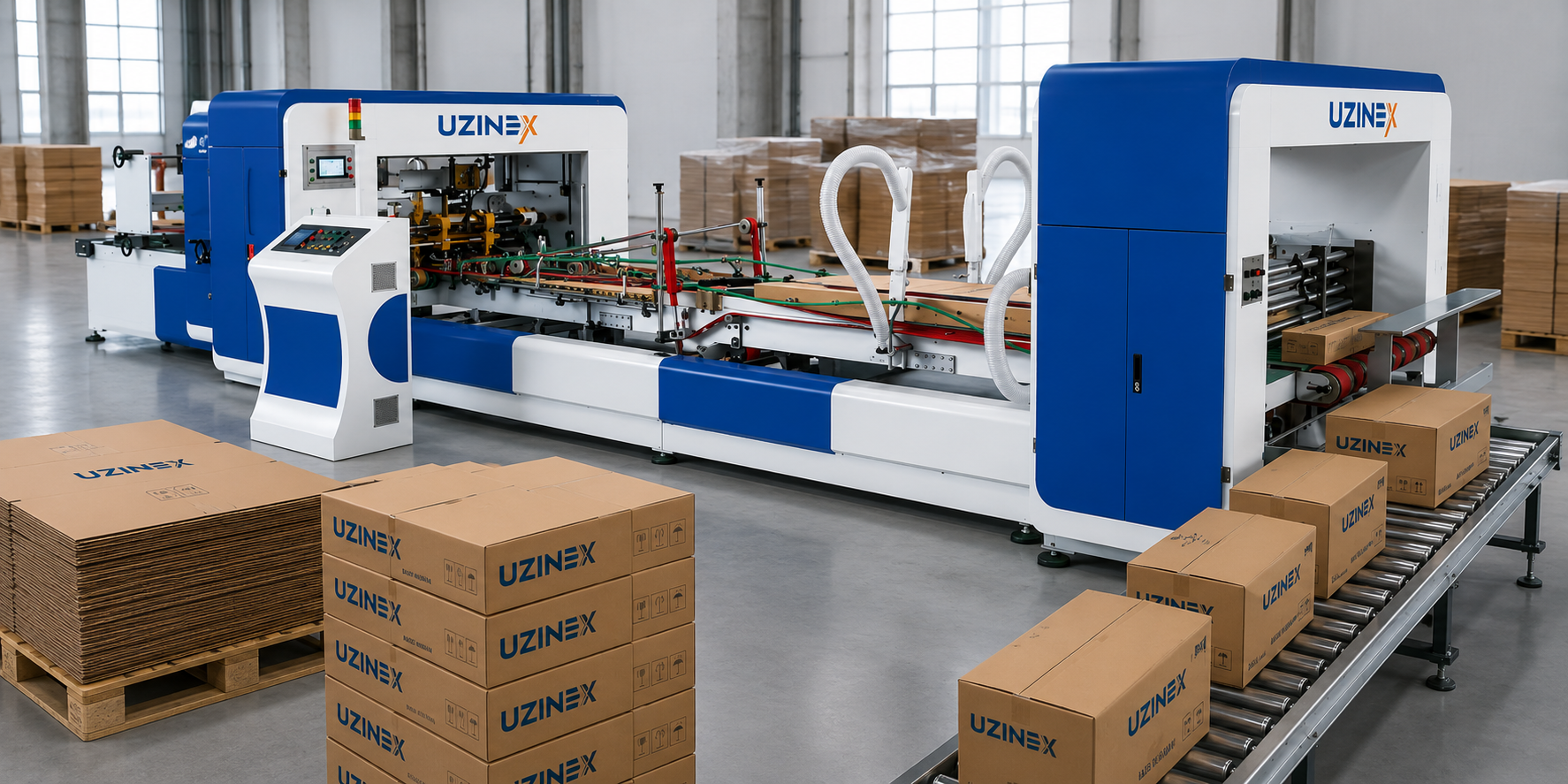

The YF-ZD Series is an automatic corrugated board box wire stitching machine with PLC touchscreen control, designed for packaging manufacturers that use wire stitching instead of adhesive gluing — a method preferred for 3, 5 and 7-layer cardboard boxes, heavy industrial packaging and applications where the mechanical strength of the joint takes priority over the aesthetic appearance. With a mechanical stitching-head speed of 600 staples/minute and an adjustable staple spacing of 30 to 100 mm, this automatic corrugated board box wire stitching machine is the only automatic stitching equipment available in the UZINEX portfolio.
Unlike all the other folder-gluer equipment in the UZINEX family (YF-Z, YF-C, HS-A, HS-B, HS-C, HS-T) that use hot-melt or cold adhesive to assemble boxes, the YF-ZD Series automatic corrugated board box wire stitching machine makes the mechanical joint with metal wire staples — a method with a long industrial tradition, preferred for the higher tensile strength of the joint and its compatibility with heavy corrugated board (triple wall, 7 layers) where adhesive gluing can be less reliable.
Key advantages of the YF-ZD Series automatic corrugated board box wire stitching machine
• Mechanical speed of 600 staples/minute — Taiwan stitching head – the Taiwan stitching head reaches 600 staples/minute mechanical speed, ensuring high industrial productivity with constant accuracy in the positioning and penetration of the staples into the thick corrugated board.
• Adjustable staple spacing 30–100 mm – the automatic corrugated board box wire stitching machine allows the staple spacing to be adjusted from 30 mm to 100 mm, adapting the stitching density to the strength requirements of each application — denser for heavy boxes, sparser for light boxes.
• Three stitching modes — single, double, one-time – the flexibility to choose between single stitching, double stitching or one-time stitching allows adaptation to different customer requirements regarding strength, production speed and wire consumption per box.
• Compatible with 3, 5 and 7-layer corrugated board – the automatic corrugated board box wire stitching machine processes single wall (CO3), double wall (CO5) and triple wall board (CO7 — with special specifications), covering the full range of weights and strengths used in industrial packaging.
• Vacuum feeding with edge-guide belt — board without deviation – the suction vacuum feeding system on the edge-guide belt ensures that each board sheet enters the stitching head perfectly aligned, with no lateral deviation that would shift the stitching away from the correct position on the flap.
• Format change in a few minutes – adjusting the box dimensions and staple spacing takes only a few minutes from the PLC touchscreen panel, with no tools or complex mechanical adjustments, allowing frequent job changes with minimal production downtime.
• PLC touchscreen control — simple and intuitive operation – the entire control system of the automatic corrugated board box wire stitching machine is managed through the PLC touchscreen interface; job change is simple, with parameter storage for fast recall of previous formats.
• Programmable staple count 1–99 per cycle – the number of staples per box is programmable between 1 and 99, with an adjustable stitching distance between 30 and 80 mm, allowing optimization of wire consumption and the mechanical strength of the finished box for each individual specification.
Technical specifications of the YF-ZD1224 automatic corrugated board box wire stitching machine
| Parameter | Value |
|---|---|
| Model | YF-ZD1224 |
| Maximum size (A+B) × 2 | 2400 mm |
| Minimum size (A+B) × 2 | 880 mm |
| Maximum size (C+D+C) | 1100 mm |
| Minimum size (C+D+C) | 340 mm |
| Min. Cover C | 100 mm |
| Max. Cover C | 400 mm |
| Max. Width B | 450 mm |
| Min. Width B | 165 mm |
| Max. Length A | 750 mm |
| Min. Length A | 250 mm |
| Max. Height D | 650 mm |
| Min. Height D | 200 mm |
| Stitching tab length E | 35–40 mm |
| Stitching-head mechanical speed (staples/min) | 600 |
| Programmable staple count | 1–99 |
| Stitching distance (mm) | 30–80 |
| Adjustable staple spacing (mm) | 30–100 |
| Stitching speed | 100 m/min |
| Stitching modes | Single / double / one-time |
| Compatible board | 3-layer (CO3), 5-layer (CO5), 7-layer (CO7 — with special specifications) |
| Stitching head | Imported from Taiwan |
| Feeding system | Vacuum with edge-guide belt — anti-deviation board |
| Control system | PLC touchscreen, simple and fast job change |
Wire stitching versus adhesive gluing — when to choose stitching
Adhesive gluing (hot-melt or cold) is the dominant method in the corrugated board packaging industry, used by the HS-A, HS-B, HS-C, HS-T, YF-Z and YF-C series in the UZINEX portfolio. The YF-ZD Series automatic corrugated board box wire stitching machine uses a fundamentally different method — a mechanical joint with galvanized metal wire staples — which offers specific advantages in certain applications.
Wire stitching is preferred when the boxes carry heavy products (metal parts, equipment, construction materials) where the tensile strength of the joint is critical; when the board is triple wall (7 layers) with large thicknesses where the adhesive penetrates with difficulty; when storage or transport temperatures are extreme (cold or heat) that affect adhesives; or when the end customer's recycling rules prefer a mechanical joint without chemical adhesive. UZINEX provides free consultancy for choosing the optimal assembly method based on the specifications of the packaged product.
Applications and industries for the YF-ZD Series automatic corrugated board box wire stitching machine
The YF-ZD Series automatic corrugated board box wire stitching machine is intended for manufacturers of heavy industrial packaging — boxes for metal parts, tools, automotive components, construction materials, agricultural equipment and any heavy product where the mechanical strength of the joint is the main criterion for selecting the assembly method.
Packaging plants that serve the chemical and petrochemical industries and industries with strict recycling requirements use this automatic corrugated board box wire stitching machine because the mechanical joint introduces no additional chemical substances into the packaging and simplifies the recycling process at the end of the box's life cycle.
Manufacturers of packaging for export in maritime containers or storage at extreme temperatures (freezing, cold rooms, industrial environments with large thermal variations) prefer wire stitching over adhesive because the mechanical strength of the staples is not affected by temperature — a direct advantage over hot-melt adhesives that become brittle in the cold or soften in the heat.
How the YF-ZD Series automatic corrugated board box wire stitching machine works
1. Vacuum feeding and automatic alignment – the pre-die-cut corrugated board blanks are fed through the suction vacuum feeding system; the edge-guide belt ensures the precise alignment of each sheet relative to the stitching head, with no lateral deviation that would shift the stitching off the flap.
2. Parameter programming on the PLC touchscreen – the operator selects the stitching mode (single / double / one-time), the number of staples (1–99), the staple spacing (30–100 mm) and the box dimensions directly from the touchscreen interface — changes that take a few minutes without tools.
3. Automatic stitching at 600 staples/min – the Taiwan stitching head makes the stitch at a mechanical speed of 600 staples/minute, with a stitching-tab length of 35–40 mm ensuring complete penetration of the staples through the board thickness (including 5 and 7 layers).
4. Stitching-distance adjustment 30–80 mm – the distance between staple groups (stitching distance) is adjustable between 30 and 80 mm, with electric adjustment from the PLC panel; the stitching density can be adapted according to the weight of the packaged product and the customer's strength requirements.
5. Production speed 100 m/min – the line advances the board at 100 m/min, synchronized with the mechanical speed of the stitching head to ensure uniform distribution of the staples along the entire length of the assembly flap.
6. Automatic bundling into stacks – the finished stitched boxes are stacked and bundled automatically into stacks for shipping, completing the production cycle with no manual intervention at the output.
Frequently asked questions about the YF-ZD Series automatic corrugated board box wire stitching machine
What type of wire does the YF-ZD1224 stitching machine use and how often must it be replaced?
The YF-ZD Series automatic corrugated board box wire stitching machine uses standard galvanized wire for industrial corrugated board stitching, available in rolls from consumable suppliers for the packaging industry. Wire consumption depends on the number of staples per box (1–99 programmable) and the staple spacing (30–80 mm). UZINEX provides consultancy for calculating wire consumption and identifying local suppliers of consumables compatible with the YF-ZD1224 model.
Can the YF-ZD1224 stitching machine process triple wall board (7 layers)?
Yes, with special specifications explicitly mentioned in the technical features. Triple wall corrugated board (CO7) has thicknesses of 12–16 mm depending on the flute structure and paper grammage, which requires specific calibration of the stitching head's penetration force and selection of the correct staple length. UZINEX verifies compatibility with the exact specifications of the customer's triple wall board during the free technical consultancy and configures the automatic corrugated board box wire stitching machine for this application before delivery.
What are the advantages of single stitching over double stitching on the YF-ZD Series?
Single stitching uses a single row of staples on the assembly flap — faster and with lower wire consumption, sufficient for boxes with medium-weight products. Double stitching applies two parallel rows of staples — doubling the mechanical strength of the joint, recommended for heavy products or applications with high tensile loads. The YF-ZD1224 automatic corrugated board box wire stitching machine can switch between stitching modes directly from the PLC touchscreen, with no mechanical changes, allowing adaptation to different strength specifications within the same production session.
When do I choose wire stitching (YF-ZD) instead of adhesive gluing (YF-Z, YF-C, HS-A/B/C/T)?
Three practical criteria. Weight of the packaged product: above 30–40 kg per box, the tensile force on the joint increases significantly and mechanical stitching offers superior strength compared with adhesive. Board thickness: with triple wall (CO7, 12–16 mm), hot-melt adhesive only partially penetrates the outer layers, while wire stitching traverses the entire thickness completely. Environmental conditions: at temperatures below -10°C or above 50°C (maritime containers, cold rooms, non-air-conditioned industrial warehouses), adhesives lose their properties, while metal staples remain constant. For standard boxes with consumer products under 20 kg and storage in normal conditions, gluing remains the recommended method — the speed of folder-gluers significantly exceeds stitching.
How long does a format change actually take on the YF-ZD1224 and what is adjusted?
A format change typically takes 3–5 minutes for a trained operator. From the PLC touchscreen panel, the following are adjusted: the box dimensions (A, B, C, D from the standard diagram), the number of staples per cycle (1–99), the staple spacing (30–100 mm), the stitching distance (30–80 mm) and the stitching mode (single/double/one-time). All these parameters can be saved as a preset for fast recall on recurring orders — a concrete advantage for plants with a varied customer portfolio where the same formats return periodically.
For what volumes is the automatic YF-ZD1224 machine economically justified over semi-automatic stitching solutions?
The economic threshold is related to labor and stitching consistency. Below 50,000 boxes/year, semi-automatic solutions (a manually operated stitching head) may be sufficient — the investment is lower, but the labor per box is high (10–30 seconds of active operator time). Above 50,000–80,000 boxes/year, the YF-ZD1224 automatic corrugated board box wire stitching machine reduces labor to feeding/supervision, ensuring stitching consistency (exact positioning, correct staple count) — critical for boxes that go to export or to customers with auditable quality requirements. The Taiwan stitching head at 600 staples/min allows a standard box to be processed in 1–2 effective seconds of stitching.
Is the YF-ZD Series automatic corrugated board box wire stitching machine eligible for EU-funded projects?
Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for EU-funded projects — NRRP, the Regional Program, the Just Transition Program. The YF-ZD Series automatic corrugated board box wire stitching machine can be included in funding applications for production automation and modernization of industrial packaging lines. The argument of recycling without chemical adhesive can strengthen the application in programs with a circular-economy or green-transition component. UZINEX provides the complete technical documentation for public procurement procedures and tenders.
Why UZINEX for an automatic corrugated board box wire stitching machine
• Free technical consultancy — gluing vs wire stitching – UZINEX evaluates the type of packaged product, the weight, the storage conditions and the recycling requirements to recommend the optimal assembly method (adhesive or stitching) and the right equipment from the portfolio.
• Transport, installation and commissioning included free of charge – the automatic corrugated board box wire stitching machine is delivered, installed and started at the customer's site by the UZINEX technical team, with calibration of the stitching head for the type of board and wire used and complete operator training.
• Extended 60-month warranty – one of the longest warranties available in Romania for automatic industrial stitching machines, with technical support included for the entire warranty period.
• National technical support in under 36 hours – on-site intervention or video diagnostic session in less than 36 hours from report, with a dedicated 24/7 telephone line for UZINEX customers.
• AI smart manual included – complete usage, maintenance and troubleshooting documentation with AI assistance, capable of instantly resolving over 96% of technical requests without human intervention.
• Full eligibility for European funding – UZINEX provides the documentation and full support for EU-, NRRP- or structural-funds procurement, including for public tenders.
The YF-ZD Series automatic corrugated board box wire stitching machine is the industrial solution for packaging plants that assemble thick corrugated board boxes (3, 5 and 7 layers) through mechanical wire stitching — with a Taiwan stitching head at 600 staples/minute, three stitching modes, adjustable spacing 30–100 mm, anti-deviation vacuum feeding and PLC touchscreen control for fast format change in a few minutes.
