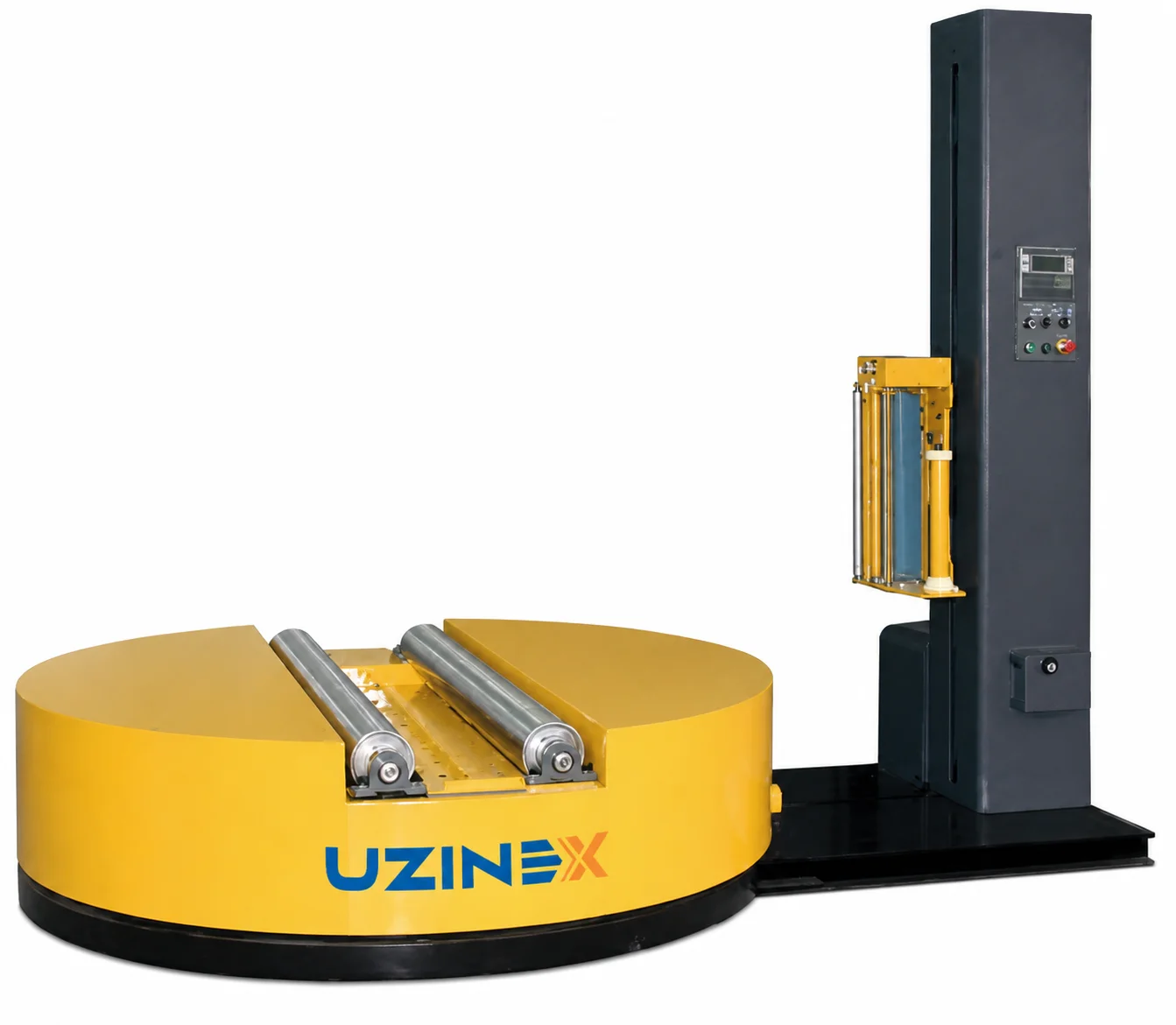

The KPW-YT2000 automatic stretch coil wrapping machine is the benchmark industrial equipment for automatic wrapping of bulky, heavy or irregularly shaped products — paper rolls, industrial tubes, textile products, construction materials and any load with a diameter of up to 1.500 mm and a weight of up to 2.000 kg. With a 2.000 mm diameter turntable, a PLC system with automatic height detection and LLDPE film pre-stretch up to 250%, the KPW-YT2000 automatic stretch coil wrapping machine ensures a complete wrapping cycle with no manual intervention — from start to film cutting.
The three-phase 380V supply and the installed power of 2,5 kW place the KPW-YT2000 automatic stretch coil wrapping machine in the high-capacity industrial equipment segment, intended for production lines and warehouses with a continuous flow of large products. The capacity of 20–35 units per hour eliminates operational bottlenecks at the end of the line, regardless of the size or configuration of the wrapped product.
Key Advantages of the KPW-YT2000 Automatic Stretch Coil Wrapping Machine
• Ø2.000 mm turntable, 2.000 kg capacity — the KPW-YT2000 automatic stretch coil wrapping machine accepts products with a width between 800 and 1.600 mm and a diameter between 500 and 1.500 mm, fully covering the range of large industrial products with no additional equipment adaptations.
• Fully automatic cycle — 20–35 units/hour — photoelectric height detection automatically starts and stops the film carriage on each cycle; the operator places the product and starts the cycle, the rest is managed by the PLC with no additional manual intervention.
• LLDPE film pre-stretch up to 250% — the motorized pre-stretch system of the automatic stretch coil wrapping machine applies the film at the optimal tension, reducing material consumption per wrapped unit by up to 30–50% compared to manual wrapping or equipment without pre-stretch.
• PLC control with configurable parameters — from the control panel the operator sets the number of film layers, the platform speed, the wrapping cycles and the film tension; the KPW-YT2000 automatic stretch coil wrapping machine stores the settings for repetitive products, eliminating reconfiguration at every product change.
• Automatic product height detection via photoelectric sensors — regardless of the height of the product placed on the platform (within the equipment limits), the automatic stretch coil wrapping machine automatically adapts the film carriage path with no manual adjustments between cycles.
• Three-phase 380V supply — ready for industrial environments — the KPW-YT2000 automatic stretch coil wrapping machine connects directly to standard industrial electrical infrastructure, with no transformers or adapters; installation is done in any warehouse or production hall with a three-phase panel.
• Soft platform start and stop — controlled acceleration and deceleration protect unstable products or products with a high center of gravity from accidental shifting on the platform during the wrapping cycle.
• Available expansion options — the KPW-YT2000 automatic stretch coil wrapping machine can be configured with a top-platen pressure device for load stabilization, an integrated weighing system, automatic film cutting, an HMI touch screen and a remote control interface.
Technical Specifications — KPW-YT2000 Automatic Stretch Coil Wrapping Machine
| Parameter | Value |
|---|---|
| Model | KPW-YT2000 |
| Turntable diameter | 2.000 mm |
| Load width | 800–1.600 mm |
| Maximum product diameter | Ø 500–1.500 mm |
| Maximum platform capacity | 2.000 kg |
| Wrapping speed | 20–35 units/hour |
| Compatible film type | LLDPE, 17–35 µm thickness, max. 500 mm width |
| Film pre-stretch | Up to 250%, adjustable |
| Control system | PLC with photoelectric sensors, configurable parameters |
| Product height detection | Automatic via photoelectric sensors |
| Machine footprint (L × W × H) | ~3.100 × 2.000 × 2.000 mm |
| Net machine weight | ~1.500 kg |
| Installed power | 2,5 kW |
| Electrical supply | 380V, 50Hz, three-phase |
| Available options | Top-platen, integrated weighing, automatic film cutting, HMI touch screen, remote control |
Industrial Applications — What Products the KPW-YT2000 Wraps
The KPW-YT2000 automatic stretch coil wrapping machine is designed specifically for product categories that standard pallet wrapping equipment cannot process efficiently — cylindrical, elongated or oversized products that exceed the footprint of a Euro pallet. The 2.000 mm diameter platform and the 2.000 kg capacity open access to automatic wrapping for industries that previously relied exclusively on manual wrapping or high-cost special equipment.
• Paper and printing industry — paper rolls, corrugated cardboard rolls and jumbo rolls from printing presses are protected by wrapping with LLDPE film against moisture, dust and mechanical damage in transport and storage.
• Textile industry — fabric rolls, rolled carpets and textile bales are wrapped uniformly and compactly, reducing storage volume and protecting the fibers from contamination or moisture during storage.
• Tube and profile manufacturing — metal tubes, aluminum profiles, PVC pipes and other elongated products with a circular or polygonal cross-section are grouped and wrapped compactly for transport without the package coming undone.
• Construction materials industry — rolls of waterproofing membrane, geotextile rolls, rolled insulating materials and similar items benefit from complete protection against damage in site warehouses or in transport.
• Logistics and distribution of bulky products — logistics operators handling products with variable dimensions and weights use the KPW-YT2000 automatic stretch coil wrapping machine as a universal wrapping station, eliminating the need for multiple specialized units for different product categories.
LLDPE Film Pre-Stretch — Real Material Savings
The KPW-YT2000 automatic stretch coil wrapping machine uses LLDPE film (Linear Low-Density Polyethylene) with a thickness between 17 and 35 microns, applied through a motorized pre-stretch system with a ratio of up to 1:2,5. Unlike manual wrapping or equipment with simple mechanical pre-stretch, the motorized system of the automatic stretch coil wrapping machine maintains a constant stretch ratio over the entire length of the roll, regardless of the diameter remaining on the reel.
The practical effect is directly measurable: the same LLDPE film roll covers up to 150% more products than application without pre-stretch, at a superior and uniform wrapping quality. For operators with high daily volumes of wrapped products, the reduction in film consumption generated by the KPW-YT2000 automatic stretch coil wrapping machine represents significant short-term savings, directly visible in the cost per wrapped unit.
How the KPW-YT2000 Automatic Stretch Coil Wrapping Machine Works
The wrapping cycle of the KPW-YT2000 automatic stretch coil wrapping machine is fully automated after the product is placed and the cycle is started:
• Place product on platform — the operator positions the product (roll, tube, package) on the 2.000 mm turntable using a forklift or crane, centered on the axis of rotation.
• Start automatic cycle — the operator initiates the cycle from the PLC panel; the KPW-YT2000 automatic stretch coil wrapping machine takes full control of the wrapping process.
• Automatic height detection — the photoelectric sensors scan the product height and transmit the data to the PLC, which calculates the optimal film carriage path for complete coverage.
• Wrapping with pre-stretched film — the turntable starts at the set speed while the film carriage moves vertically, applying the LLDPE film in overlapping layers according to the programmed number of layers; the 250% pre-stretch is maintained constant throughout the cycle.
• Configurable reinforcement layers — the PLC can apply additional layers at the base and at the top of the product for optimal fixing, configured once in the settings of the automatic stretch coil wrapping machine.
• Cycle completion and film cutting — once the programmed number of layers is completed, the platform stops, the operator cuts the film manually (or automatically, if the equipment is configured with the automatic cutting option) and the product is ready for palletizing or shipping.
Frequently Asked Questions about the Automatic Stretch Coil Wrapping Machine
What types of products can the KPW-YT2000 wrap?
The KPW-YT2000 automatic stretch coil wrapping machine wraps any product with a width between 800 and 1.600 mm, a diameter between 500 and 1.500 mm and a weight of up to 2.000 kg — paper rolls, industrial tubes, rolled textile products, grouped metal profiles, rolled construction materials and any other configuration that fits within the footprint of the 2.000 mm platform.
Is special electrical infrastructure required for the KPW-YT2000?
The KPW-YT2000 automatic stretch coil wrapping machine runs at 380V three-phase, 50Hz — the standard industrial voltage in Romania. Any production hall or warehouse with a three-phase electrical panel can power the equipment directly, with no transformers or additional adapters. The installed power of 2,5 kW is relatively low for the size of the equipment, minimizing the impact on the hall's energy consumption.
Can the automatic stretch coil wrapping machine operate integrated into a production line?
Yes. The KPW-YT2000 automatic stretch coil wrapping machine can be integrated at the end of a production line as an automatic wrapping station. The remote control and HMI touchscreen options allow integration into SCADA or centralized line control systems, with the ability to trigger the wrapping cycle automatically when the product arrives on the platform.
What film savings does the 250% pre-stretch generate?
A pre-stretch ratio of 250% means that one meter of LLDPE film from the reel is applied to the product over a surface equivalent to 2,5 meters of unstretched film. Compared to manual wrapping (typical pre-stretch of 100–150%), the KPW-YT2000 automatic stretch coil wrapping machine reduces material consumption by 30–50% per wrapped unit, at a superior and constant wrapping quality.
What additional options are available for the KPW-YT2000?
The KPW-YT2000 automatic stretch coil wrapping machine can be supplied with a top-platen pressure device for stabilizing tall or unstable products, an integrated weighing system built into the platform, an automatic film cutting system at the end of the cycle, an HMI touch screen for intuitive operation and a remote control interface for integration into automatic lines.
Why Choose UZINEX for the KPW-YT2000 Automatic Stretch Coil Wrapping Machine
UZINEX delivers the KPW-YT2000 automatic stretch coil wrapping machine with the complete industrial service package that ensures rapid operationalization and long-term production continuity. Equipment of this class requires professional installation, and UZINEX fully covers this stage — from transport to operator training.
• Delivery and commissioning included — the KPW-YT2000 automatic stretch coil wrapping machine weighs ~1.500 kg and requires handling equipment for unloading; UZINEX organizes and coordinates the entire logistics process up to the placement and start-up of the equipment in the customer's hall.
• Extended 60-month warranty — the warranty term fully covers the manufacturing defects of the automatic stretch coil wrapping machine; spare parts permanently in stock for rapid intervention with no waiting times for imports.
• Nationwide service network — engineers available nationwide with intervention within 24–48 hours; for high-capacity industrial equipment, downtime has a direct impact on productivity, and UZINEX eliminates this risk.
• User manuals with Artificial Intelligence — the technical documentation of the KPW-YT2000 automatic stretch coil wrapping machine is accessible and navigable through an AI interface, reducing the training time for new operators and simplifying the diagnosis of maintenance situations.
• Credit and leasing financing — flexible financing solutions for purchasing the automatic stretch coil wrapping machine; the investment can be structured so that the film savings and the productivity gain generated by the equipment cover the monthly installment from the very first quarter of operation.
• EU funds eligibility — the KPW-YT2000 automatic stretch coil wrapping machine can be included in projects with European funding (Regional Program, Just Transition, NRRP) as production process automation equipment; UZINEX provides the technical documentation required for the financing application.
The KPW-YT2000 automatic stretch coil wrapping machine is the right answer for any industrial operator that processes large, heavy or cylindrical products and needs a fully automated, repeatable and material-efficient wrapping cycle — with no compromises between speed, quality and operating cost.
