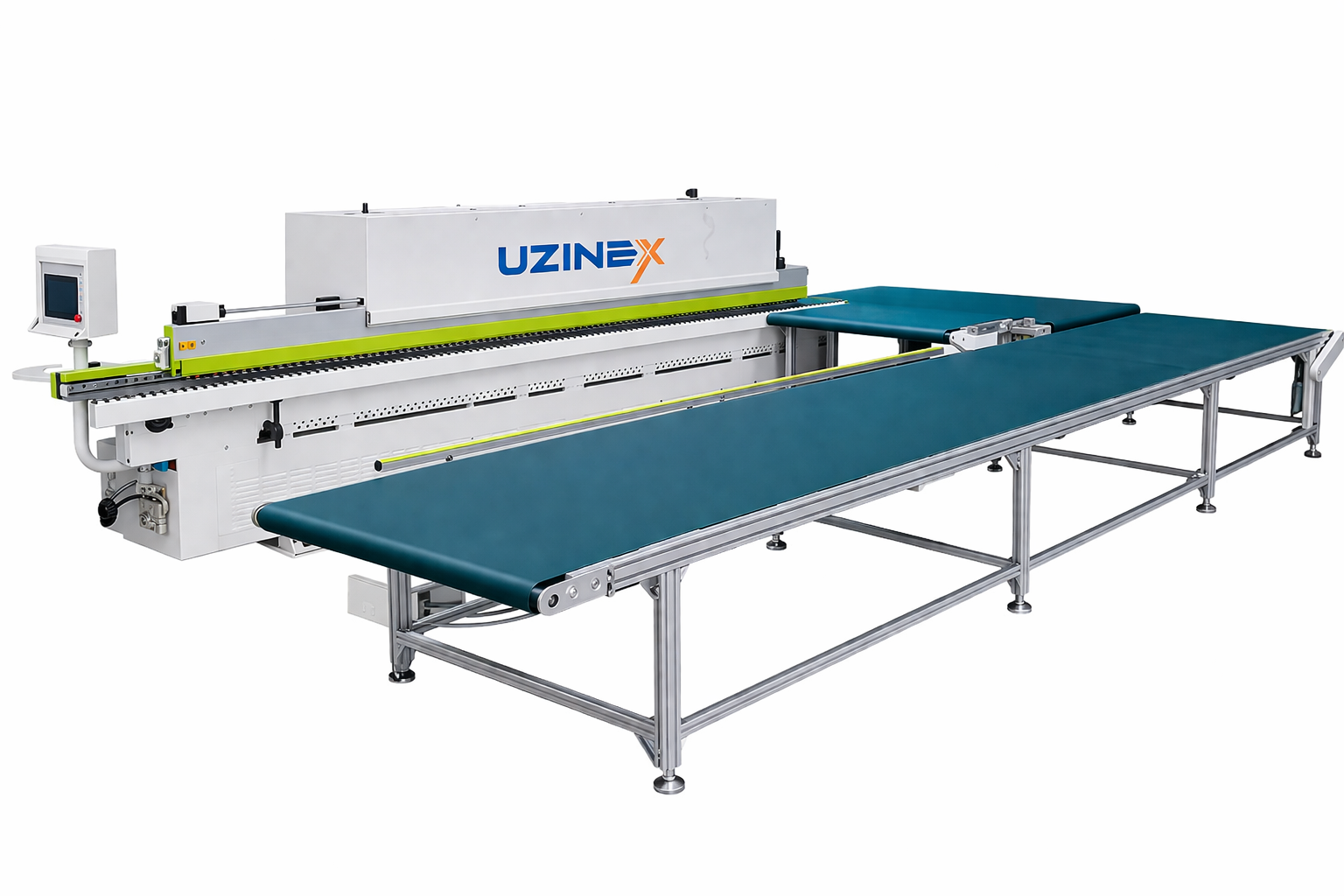

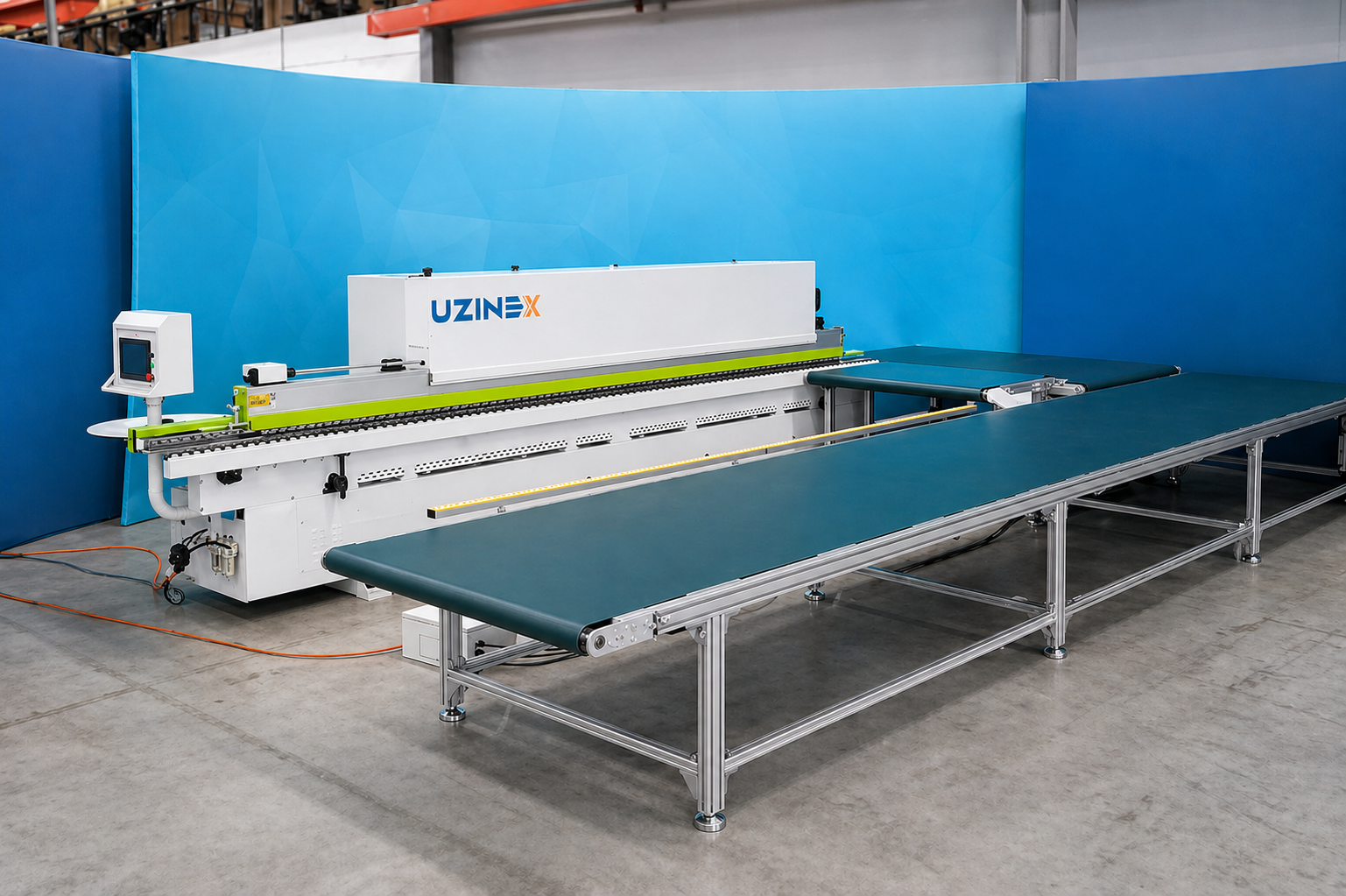

The automatic edge banding machine for circular contours is the edge banding line with a rotary circuit and conveyor belts for furniture factories that produce large volumes of panels and need to reduce the number of operators to a minimum. The automatic edge banding machine for circular contours integrates the edge bander and auxiliary platforms with conveyor belts into a continuous circuit supervised by a single operator.
The automatic edge banding machine for circular contours has a total power of 10,8kW, a feed speed of 15–23m/min and processes panels with a thickness of 10–60mm, a minimum length of 150mm, a minimum width of 60mm and an edge band of 0,4–3mm.

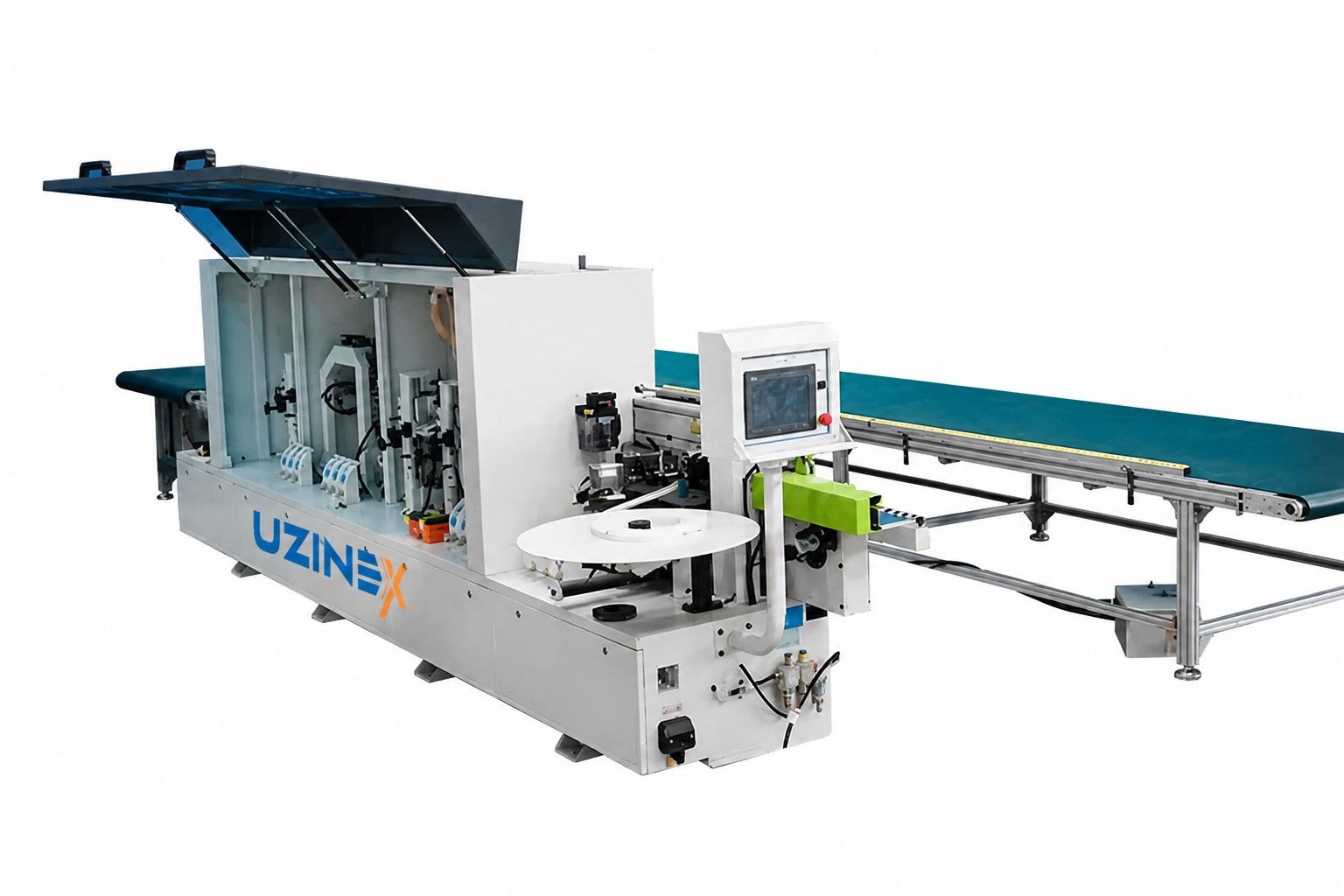

The automatic edge banding machine for circular contours performs in a fully automatic cycle: adhesive application, edge banding, end trimming, coarse and fine trimming, profile tracking, scraping and buffing. The 0,37kW electric lifting ensures precise adjustment of the panel thickness. The finishing unit with a high-speed motor ensures superior quality of the banded surface. Transport, installation and commissioning included. 60-month warranty.
Technical specifications — automatic edge banding machine for circular contours
| Parameter | Value |
|---|---|
| Overall dimensions (L×W×H) | 5.600 × 960 × 1.600 mm |
| Total power | 10,8 kW |
| Feed speed | 15 – 23 m/min |
| Electric lifting | 0,37 kW |
| Panel thickness | 10 – 60 mm |
| Minimum panel length | ≥ 150 mm |
| Minimum panel width | ≥ 60 mm |
| Edge band thickness | 0,4 – 3 mm |
| Working pressure | 0,6 MPa |
Integrated automatic stages — automatic edge banding machine for circular contours
| Stage | Description |
|---|---|
| Adhesive application | Automatic uniform dosing onto the panel edge |
| Edge banding | Application and pressing of 0,4–3mm edge band |
| End trimming | Automatic cut-off to the exact panel length |
| Coarse + fine trimming | Removal of excess edge band top and bottom |
| Profile tracking | Automatic profiling of the edge band |
| Scraping | Removal of adhesive residue from the panel surface |
| Buffing | Final finishing with a high-speed motor |
The automatic edge banding machine for circular contours is configured at quotation according to the production volume and range of panels. Free technical consultancy available.
Advantages of the automatic edge banding machine for circular contours
• Rotary circuit with conveyor belts — a single operator for the entire edge banding line — the automatic edge banding machine for circular contours is designed as a rotary-circuit line: panels are fed in, processed automatically through all 7 stages and returned to the starting point on the conveyor belts, without the operator moving between the ends of the line. The automatic edge banding machine for circular contours requires a single operator for supervision and feeding — compared with the 2–3 operators needed for conventional equipment — significantly reducing the labour cost per banded panel in series production.
• Fully automatic cycle in 7 stages — a finished edge with no intermediate manual operations — the automatic edge banding machine for circular contours performs in succession, with no human intervention: adhesive application, edge banding, end trimming, coarse trimming, fine trimming, profile tracking, scraping and buffing. The panel leaves the automatic edge banding machine for circular contours with the band applied, trimmed to the exact panel size, profiled at the upper and lower edge, cleaned of adhesive and buffed — ready for the next operation with no manual rework.
• Adjustable feed speed 15–23m/min — adapts to material and edge band thickness — the automatic edge banding machine for circular contours allows the feed speed to be selected between 15m/min (for thick panels or a 3mm ABS band that require more pressing time and adhesive adhesion) and 23m/min (for thin panels with a 0,4–0,8mm PVC band). This flexibility of the automatic edge banding machine for circular contours allows productivity to be optimised for each batch of panels without mechanical reconfiguration.
• Panel thickness 10–60mm and edge band 0,4–3mm — compatibility with the entire production range — the automatic edge banding machine for circular contours covers all the combinations common in furniture production: an 18mm panel with a 0,4mm PVC band for kitchen cabinets, a 28mm panel with a 2mm ABS band for a desk top, a 38mm panel with a 0,4mm melamine band for a wardrobe body and a 60mm panel with a 0,8mm veneer band for a thick kitchen worktop. The automatic edge banding machine for circular contours eliminates the need for different equipment for different ranges of panels.
• Finishing unit with a high-speed motor — uniform buffing along the entire length of the edge — the automatic edge banding machine for circular contours has a finishing unit with a high-speed motor that ensures uniform, consistent buffing across the entire surface of the edge, independent of the chosen feed speed. The buffing quality of the automatic edge banding machine for circular contours is reproducible from panel to panel throughout the production run, unlike manual finishing which varies with operator fatigue and with the type of material.
• 0,37kW electric lifting — quick thickness adjustment when changing the panel type — the automatic edge banding machine for circular contours has an electric lifting system for the conveyor table that adjusts the height to the thickness of the new panel with a single signal from the control panel, without manual cranking. The electric adjustment of the automatic edge banding machine for circular contours reduces reconfiguration time when changing the production batch and eliminates the positioning variation caused by manual mechanical adjustment. 60-month UZINEX warranty, nationwide technical support 24–48 hours.
Applications — automatic edge banding machine for circular contours
Series furniture factories — kitchen cabinets, wardrobes, bookcases, series office furniture — use the automatic edge banding machine for circular contours as the central equipment of the edge banding line. The rotary circuit of the automatic edge banding machine for circular contours allows a continuous flow of panels with no stagnation, maximising equipment utilisation and maintaining a steady production rhythm throughout the shift.
Manufacturers of furniture components — suppliers of banded panels for other factories or for distribution networks — use the automatic edge banding machine for circular contours for the high-volume edge banding of cut-to-size panels. The circular-line design of the automatic edge banding machine for circular contours is compatible with conveyor belts and with the automatic sorting and stacking systems of highly automated production lines.
Frequently asked questions about the automatic edge banding machine for circular contours
What types of edge band does the automatic edge banding machine for circular contours process?
The automatic edge banding machine for circular contours processes PVC edge band, ABS edge band, melamine edge band and natural veneer edge band with thicknesses of 0,4–3mm. The type of EVA adhesive and the pot temperature are adjusted for each type of band. At quotation, UZINEX provides the optimal settings for the materials in the customer's specific production.
Is the automatic edge banding machine for circular contours eligible for EU funding?
Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for EU-funded projects. The automatic edge banding machine for circular contours can be included in SEAP/SICAP. Leasing and credit options on the UZINEX credit and leasing page.
Why UZINEX for the automatic edge banding machine for circular contours
• Configuration included — UZINEX sizes the automatic edge banding machine for circular contours with the optimal parameters for the customer's production volume and range of panels.
• Transport, installation and commissioning included — complete installation of the circular line, calibration and operator training.
• 60-month warranty — extended coverage for continuous series furniture production.
• Spare parts in stock — components available quickly in Romania with no waiting times.
• Nationwide technical support 24–48 hours — technicians with nationwide coverage.
• EU-funding eligible — complete technical documentation for PNRR, POR and other active programmes.
UZINEX automatic edge banding machine for circular contours — rotary circuit with conveyor belts, 1 operator, 10,8kW, 15–23m/min, panel 10–60mm / ≥150mm / ≥60mm, edge band 0,4–3mm, 7 automatic stages (gluing+banding+trimming+adjusting+profiling+scraping+buffing), 0,37kW electric lifting, 0,6MPa, 5600×960×1600mm, 60-month warranty, transport, installation and commissioning included throughout Romania.
