The automatic wood polishing machine is the sanding and polishing equipment with automatic feed for manufacturers of doors, windows, cabinets and furniture who need a uniform, repeatable surface finish in series production, without the inevitable variability of manual sanding. The automatic wood polishing machine processes workpieces up to 1300mm wide and 2 to 100mm thick, with a power of 9,77kW and feed speed adjustable through frequency conversion, using a system of sisal and gauze brushes that provides both coarse sanding and fine polishing in a single pass.
The automatic wood polishing machine is compatible with solid wood, MDF boards, chipboard, veneer and sheet metal — materials used in door and furniture manufacturing. The brush system of the automatic wood polishing machine allows the sisal and gauze components to be replaced separately, reducing maintenance costs compared with belt or disc equipment. The compact dimensions of 3100×1750×1850mm and the weight of 1500kg make it integrable into any furniture or door production line. Transport, installation and commissioning included. 60-month warranty. Technical specifications — automatic wood polishing machine
| Parameter | Value |
|---|---|
| Maximum processing width | under 1.300 mm |
| Minimum processing length | over 400 mm |
| Processing thickness | 2 – 100 mm |
| Total power | 9,77 kW |
| Brush system | Sisal brushes + gauze brushes |
| Feed speed adjustment | Through frequency conversion (variable) |
| Net dimensions | 3.100 × 1.750 × 1.850 mm |
| Weight | 1.500 kg |
| Compatible materials | Solid wood, MDF, chipboard, veneer, sheet metal |
The automatic wood polishing machine is configured at the quotation stage — the type and number of brushes, the working speeds and the accessories are adapted to the specific application. Free technical consultancy available. Advantages of the automatic wood polishing machine

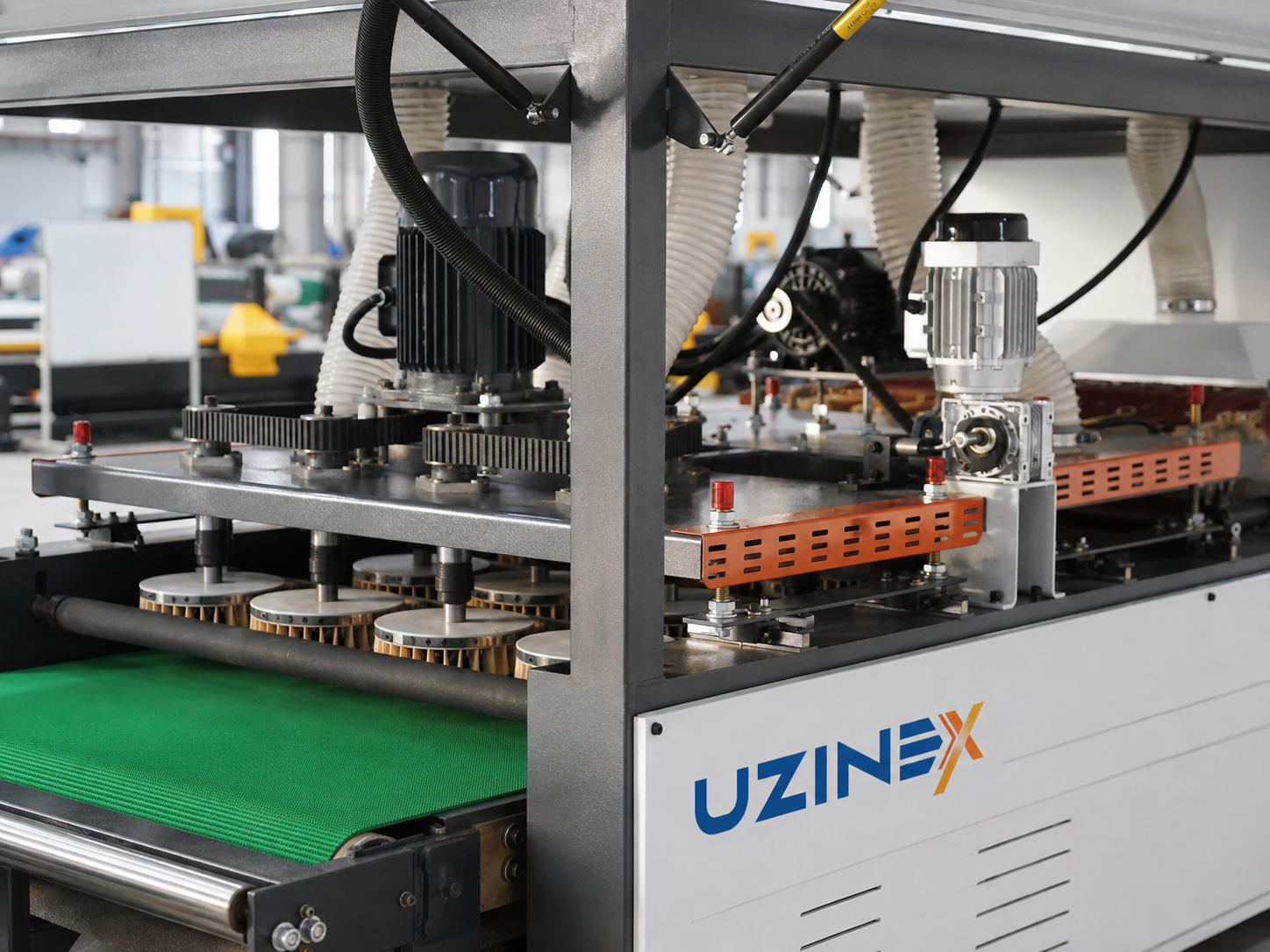

• Sisal + gauze brush system — coarse sanding and fine polishing in a single pass — the automatic wood polishing machine combines sisal brushes (for abrasive sanding, removing roughness and opening the wood pores) with gauze brushes (for polishing, smoothing and aesthetic finishing). This combination of the automatic wood polishing machine makes it possible to obtain a complete finish in a single pass of the workpiece through the equipment, eliminating a separate operation and reducing handling of the workpieces between production stages.
• Variable feed speed through frequency conversion — adaptation to material and operation — the automatic wood polishing machine has a feed speed adjustable through an inverter, allowing the contact time of the brushes with the workpiece surface to be adjusted. Low speed produces a finer finish, high speed ensures productivity for coarse sanding. This flexibility of the automatic wood polishing machine eliminates the need to change accessories when moving between materials with different finishing requirements.
• Processing thickness 2–100mm — from thin veneer to thick panel — the automatic wood polishing machine covers the entire range of thicknesses used in furniture and door production: from 2mm veneer sheets to thick 100mm solid wood panels. This wide range makes the automatic wood polishing machine a single piece of equipment capable of processing all types of panels in the production flow, from thin drawer covers to door panels with a solid frame.
• Processing width up to 1300mm — covers standard door and furniture formats — the automatic wood polishing machine processes workpieces up to 1300mm wide, covering the standard formats of residential doors (600–1050mm) and furniture panels (up to 1220mm). There is no need to split wide panels into narrower strips to fit into the machine, eliminating visible joints on the front surfaces of doors and cabinets.
• Separate replacement of sisal and gauze brushes — reduced maintenance costs — the automatic wood polishing machine allows the sisal and gauze brushes to be replaced individually, independently of one another. Unlike belt or disc equipment where the entire abrasive element is replaced as an assembly, on the automatic wood polishing machine only the worn component is replaced, reducing the cost per maintenance operation and eliminating long service downtime.
• Compact construction 3100×1750×1850mm / 1500kg — stable and integrable into any production line — the automatic wood polishing machine has a footprint that allows direct integration into existing door and furniture production lines, between the CNC sizing operation and finish application (lacquer, paint, oil). The 1500kg weight of the automatic wood polishing machine ensures stability against vibration and good damping in continuous production, without special floor anchoring. 60-month UZINEX warranty, national technical support within 24–48 hours.
Applications — automatic wood polishing machine
Manufacturers of interior and exterior doors use the automatic wood polishing machine as the final stage of surface preparation before applying lacquer or paint. The uniform sanding and polishing provided by the automatic wood polishing machine open the wood pores evenly across the entire panel surface, which allows the lacquer to penetrate and adhere uniformly — the basic condition for a finish without spots, streaks or areas with visibly different absorption after drying.
Manufacturers of kitchen, dressing-room and living-room furniture use the automatic wood polishing machine for finishing fronts in painted MDF and solid wood. The finishing uniformity obtained by the automatic wood polishing machine on large series of identical panels is impossible to replicate through manual sanding at the same labour costs — 10 cabinet door panels sanded manually with an orbital sander inevitably have small differences visible under raking light, whereas the same panels run through the automatic wood polishing machine come out identical.
Wooden window manufacturing uses the automatic wood polishing machine for preparing profiles and panels before finishing, including on materials with industrially applied lacquering where the uniformity of the base surface directly determines the quality of the lacquer layer and weather resistance. Frequently asked questions about the automatic wood polishing machine
Can the automatic wood polishing machine process MDF and melamine chipboard?
The automatic wood polishing machine is compatible with unfinished MDF and chipboard, primed MDF, raw chipboard and veneer. Melamine chipboard and MDF with foil already applied are not processed on the automatic wood polishing machine — the finished surface does not require further sanding. UZINEX clarifies the specific compatibility for the customer's production materials at the quotation stage. How often are the brushes of the automatic wood polishing machine replaced?
The service life of the sisal and gauze brushes of the automatic wood polishing machine depends on production volume, material type and the abrasiveness of the operation. At the quotation stage UZINEX provides the specific consumption estimates for typical production profiles and ensures the availability of spare parts in stock in Romania. Is the automatic wood polishing machine eligible for European funding?
Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for projects with European funds — PNRR, the Regional Programme, the Just Transition Programme. The automatic wood polishing machine can be included in SEAP/SICAP. Leasing and credit options are available on the UZINEX credit and leasing page. Why UZINEX for the automatic wood polishing machine
The automatic wood polishing machine is the investment that brings consistent quality to the surface preparation stage — the most critical stage for the quality of the final finish of the door or furniture.
• Configuration on request — the automatic wood polishing machine is configured at the quotation stage with the type and number of brushes, the working speeds and the accessories suited to the thickness and materials being processed.
• Transport, installation and commissioning included — delivery to destination, calibration and operator training.
• 60-month warranty — extended coverage for continuous multi-shift production.
• Spare parts in stock — sisal brushes, gauze brushes and components available quickly in Romania.
• National technical support within 24–48 hours — technicians with nationwide coverage.
• Eligible for European funds — complete technical documentation for PNRR, POR and other active programmes.
UZINEX automatic wood polishing machine — maximum width 1300mm, thickness 2–100mm, minimum length 400mm, power 9,77kW, separately replaceable sisal + gauze brushes, variable feed speed through frequency conversion, compatible with solid wood/MDF/chipboard/veneer/sheet metal, dimensions 3100×1750×1850mm, weight 1500kg, 60-month warranty, transport, installation and commissioning included throughout Romania.
