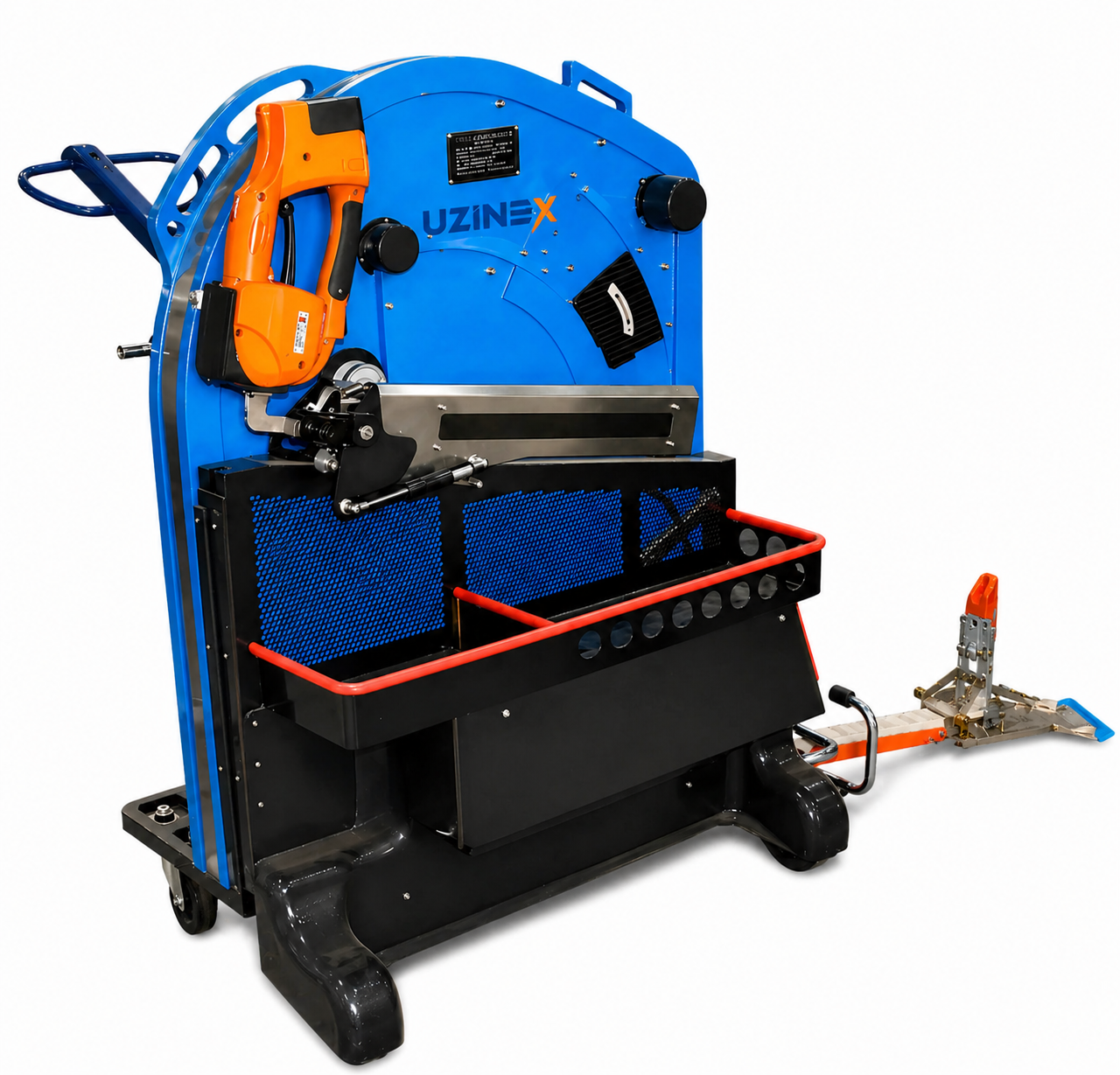

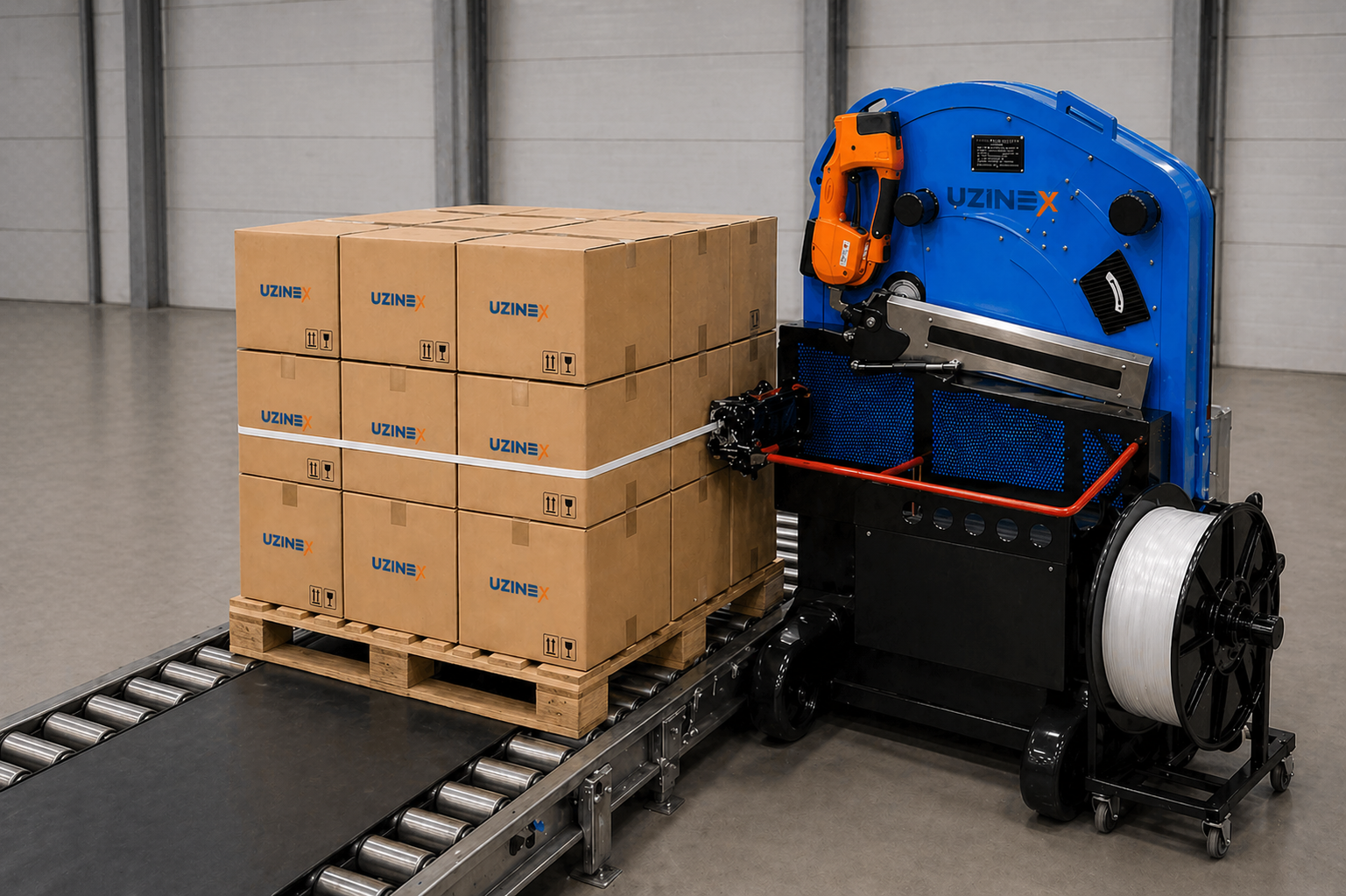

The KPW-JD-008 automatic electric pallet strapping machine is the fully automatic, exclusively electric-driven equipment for strapping pallets with PP or PET strap, at a rate of up to 30 cycles per minute — without manual intervention, without an air compressor and without three-phase power supply.
With automatic pallet size detection, low-strap alarm, heat welding and an electronic panel with digital display, the KPW-JD-008 automatic electric pallet strapping machine brings full automation of pallet strapping to warehouses and halls that lack pneumatic or three-phase infrastructure — the only installation requirement being a standard 220V outlet. Key Advantages of the KPW-JD-008 Automatic Electric Pallet Strapping Machine
• 30 cycles per minute — the highest speed in the KPW range — the KPW-JD-008 automatic electric pallet strapping machine applies a complete strap in less than 2 seconds; at 30 cycles per minute, a pallet with 4 straps is fully strapped in 8 seconds; the operator repositions the equipment rather than actively servicing it.
• No compressor — exclusively electric drive — unlike industrial equipment that requires compressed air sources at 0,4–0,6 MPa, the KPW-JD-008 automatic electric pallet strapping machine operates solely from the electrical grid; it eliminates the purchase and maintenance cost of a compressor and allows immediate installation in any space with an available outlet.
• PP and PET compatible — the only one in the range with polyester strap support — the KPW-JD-008 automatic electric pallet strapping machine accepts both PP (polypropylene) strap for standard applications and PET (polyester) strap for pallets with high tensile-strength requirements — export, sea freight, heavy goods at risk of slipping under sudden braking.
• Automatic pallet size detection — the KPW-JD-008 automatic electric pallet strapping machine automatically adapts the strapping cycle to the dimensions of the detected pallet, without manual adjustments when changing format; the operator places the pallet in the work area and starts the cycle — the equipment calculates and applies the strap correctly.
• Automatic alarm for missing strap and errors — the KPW-JD-008 automatic electric pallet strapping machine signals visually and audibly when the strap coil runs out or in any error situation, preventing the operation from continuing with an incomplete strap and alerting the operator without requiring periodic manual checks.
• 220V single-phase power supply — installation without electrical work — the KPW-JD-008 automatic electric pallet strapping machine connects to any standard outlet in Romania; no three-phase distribution boards, authorizations or specialized electricians are required; the equipment is operational immediately after connection.
• Heat welding with adjustable automatic tensioning — the KPW-JD-008 automatic electric pallet strapping machine tensions and heat-welds the strap at the parameters set from the electronic panel; the tensioning force is adjustable to accommodate pallets with fragile products and pallets with dense goods on the same equipment, without changing the mechanical configuration.
• Electronic panel with digital display and intuitive control — the parameters of the KPW-JD-008 automatic electric pallet strapping machine are set from the digital panel without complex technical procedures; an operator without specific training can configure tensioning, the number of cycles and the alarm parameters directly from the interface.
Technical Specifications — KPW-JD-008 Automatic Electric Pallet Strapping Machine
| Parameter | Value |
|---|---|
| Model | KPW-JD-008 |
| Operation type | Fully automatic, electric drive |
| Strapping speed | Up to 30 cycles / minute |
| Compatible strap type | PP (polypropylene) and PET (polyester) |
| Accepted strap width | 9 mm / 12 mm |
| Accepted strap thickness | 0,55–0,8 mm |
| Sealing method | Heat welding with automatic tensioning |
| Motor power | 90–120 W |
| Electrical supply | 220V / 50Hz, single-phase |
| Pneumatic system | Not required |
| Machine dimensions (L × W × H) | ~1.000 × 700 × 1.400 mm |
| Net weight | ~70–90 kg |
| Pallet size detection | Automatic |
| Missing strap / error alarm | Yes (visual and audible) |
| Control system | Electronic panel with digital display |
| Housing | Steel / corrosion-resistant metal alloy |
KPW-JD-008 versus KPW-1300 — Automatic vs. Semi-Automatic Pallet Strapping
The KPW-JD-008 automatic electric pallet strapping machine and the KPW-1300 semi-automatic machine solve the same problem — strapping pallets with PP strap — but at different levels of automation and speed. With the KPW-1300, the operator manually guides the strap around the pallet for each strap; with the KPW-JD-008 automatic electric pallet strapping machine, the strap is applied fully automatically once the pallet is placed in the work area.
The difference in pace is significant: the KPW-1300 produces one cycle at ~1,5 seconds per manually applied strap, while the KPW-JD-008 automatic electric pallet strapping machine reaches 30 complete cycles per minute in automatic mode. For warehouses with 50+ pallets per day or with large volume fluctuations, the automatic electric pallet strapping machine is the choice that completely eliminates variability related to operator availability and speed. Applications — Where the KPW-JD-008 Automatic Electric Pallet Strapping Machine Works
• Distribution warehouses with medium-high volume — the KPW-JD-008 automatic electric pallet strapping machine quickly processes pallets prepared for dispatch; at 30 cycles per minute, a pallet with 3–4 straps is fully strapped in less than 10 seconds, allowing a single operator to prepare hundreds of pallets per shift without significant physical effort.
• Export and international transport — PET strap applications — pallets intended for export or sea freight, where prolonged vibrations and humidity conditions require superior tensile strength compared to standard PP strap, are strapped with PET strap by the KPW-JD-008 automatic electric pallet strapping machine; this is the only one in the KPW range with native support for both materials.
• Production halls without pneumatic infrastructure — the KPW-JD-008 automatic electric pallet strapping machine is the solution for industrial spaces where there is no compressed-air network and investing in a compressor is not justified; the equipment brings full automation of pallet strapping with the only requirement being a 220V outlet.
• Food and beverage industry — crates, trays and mixed pallets with food products are strapped automatically by the KPW-JD-008 automatic electric pallet strapping machine; automatic pallet size detection eliminates manual adjustments when switching from crate pallets to box pallets, which is frequent on secondary packaging lines in the food sector.
• Construction materials and hardware distributors — pallets with floor tiles, cement bags, metal profiles and heavy components are strapped with PET strap at maximum tensioning by the KPW-JD-008 automatic electric pallet strapping machine; the polyester strap withstands the mechanical stresses specific to forklift handling of pallets with dense goods.
• 3PL operators and logistics service providers — third-party logistics companies that handle pallets with diverse goods and variable formats benefit from the automatic pallet size detection of the KPW-JD-008 automatic electric pallet strapping machine, which eliminates repetitive adjustments for each new client and standardizes strap quality regardless of pallet format.
PP and PET Strap for the KPW-JD-008 Automatic Electric Pallet Strapping Machine
The KPW-JD-008 automatic electric pallet strapping machine is compatible with two strap materials with distinct properties, offering unique flexibility compared to the rest of the range, which accepts PP only:
PP (polypropylene) strap in widths of 9 and 12 mm with a thickness of 0,55–0,8 mm is the standard choice for internal applications — pallets strapped for national road transport, storage and local distribution. PP strap is cheaper per meter, available from all packaging suppliers in Romania and sufficient for the retention forces required by most types of goods.
PET (polyester) strap in the same formats offers significantly higher tensile strength than PP and maintains tensioning better over time, not relaxing as a result of transport vibrations. The KPW-JD-008 automatic electric pallet strapping machine with PET strap is the solution for export, sea freight or any application where the shipping documents or customer requirements call for strap with certified tensile strength. Frequently Asked Questions about the KPW-JD-008 Automatic Electric Pallet Strapping Machine
Is a special electrical installation required for the KPW-JD-008?
No. The KPW-JD-008 automatic electric pallet strapping machine operates from a standard single-phase 220V/50Hz supply, identical to that of any household appliance or office equipment; no dedicated circuits, special fuses or large-section cables are required beyond the standard electrical installation of a warehouse or production hall. Can the KPW-JD-008 automatic electric pallet strapping machine work with pallets of different sizes without adjustments?
Yes. The automatic pallet size detection system of the KPW-JD-008 automatic electric pallet strapping machine recognizes the pallet format and adjusts the strapping cycle accordingly; the operator does not intervene manually when changing format, which is especially useful in warehouses with mixed pallets of varied sizes. What is the practical difference between PP and PET strap on the KPW-JD-008 automatic electric pallet strapping machine?
PP strap is more elastic and more affordable, suitable for standard road transport; PET strap is more rigid, with tensile strength 2–3 times higher and no relaxation over time, indicated for export and sea freight. The KPW-JD-008 automatic electric pallet strapping machine accepts both materials without mechanical modifications — the choice is made at the strap coil mounted in the equipment. How quickly is the strap coil changed on the KPW-JD-008?
Changing the strap coil on the KPW-JD-008 automatic electric pallet strapping machine is done in 2–3 minutes without tools; the automatic low-strap alarm warns the operator before the coil is completely depleted, allowing the new coil to be prepared without unplanned stops in the middle of a strapping cycle. Why Choose UZINEX for the KPW-JD-008 Automatic Electric Pallet Strapping Machine
The KPW-JD-008 automatic electric pallet strapping machine delivered through UZINEX comes with the complete package of technical support and services that ensures correct operation from day one and over the long term — including all the elements that turn the purchase of strapping equipment into an investment with calculable returns.
• Free transport and commissioning included — the KPW-JD-008 automatic electric pallet strapping machine is delivered anywhere in Romania at no additional cost; at commissioning, operators receive complete training on use, tension adjustment, coil changing and alarm interpretation.
• Extended 60-month warranty — full coverage for manufacturing defects; spare parts for the KPW-JD-008 automatic electric pallet strapping machine — sealing head, detection sensors, electronic modules — are kept permanently in stock for rapid intervention.
• National service network with 24–48h response — UZINEX service engineers intervene on site anywhere in Romania; for the automatic pallet strapping machine integrated into the dispatch flow, any unplanned stop directly affects daily deliveries, and UZINEX guarantees minimization of downtime.
• User manuals with Artificial Intelligence — the technical documentation of the KPW-JD-008 automatic electric pallet strapping machine is accessible through an AI interface for rapid diagnostics and step-by-step guidance through adjustments and maintenance procedures, without requiring the presence of a technician for minor situations that a trained operator can resolve.
• Financing through credit and leasing — flexible financing solutions for the purchase of the KPW-JD-008 automatic electric pallet strapping machine; the equipment qualifies for projects with EU funding (Regional Programme, Just Transition, PNRR) as an investment in the automation of packaging and pallet preparation processes.
• Complete range — from semi-automatic to industrial line — UZINEX offers the entire range of strap-tying equipment for any level of volume and automation, from semi-automatic tabletop machines for small parcels to integrated industrial systems with conveyor; the KPW-JD-008 automatic electric pallet strapping machine is positioned as a complete solution for warehouses that have outgrown the semi-automatic but do not require the full infrastructure of pneumatic-arch lines.
The KPW-JD-008 automatic electric pallet strapping machine is the clear investment for any warehouse or production hall that wants to eliminate manual labor at the pallet strapping station without investing in a compressor, three-phase power or conveyor — a single piece of equipment, a single 220V outlet, 30 pallets strapped per minute.
