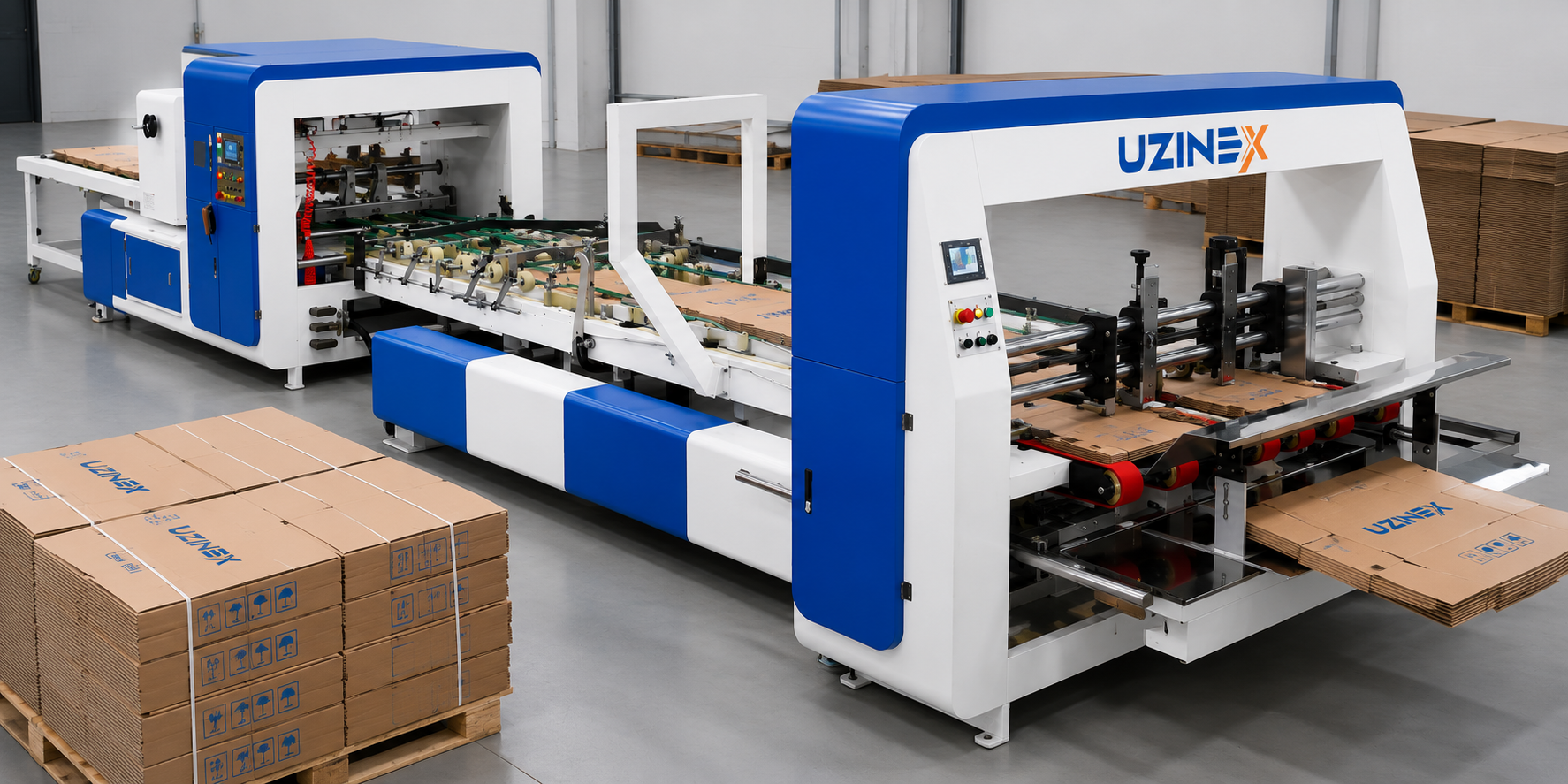

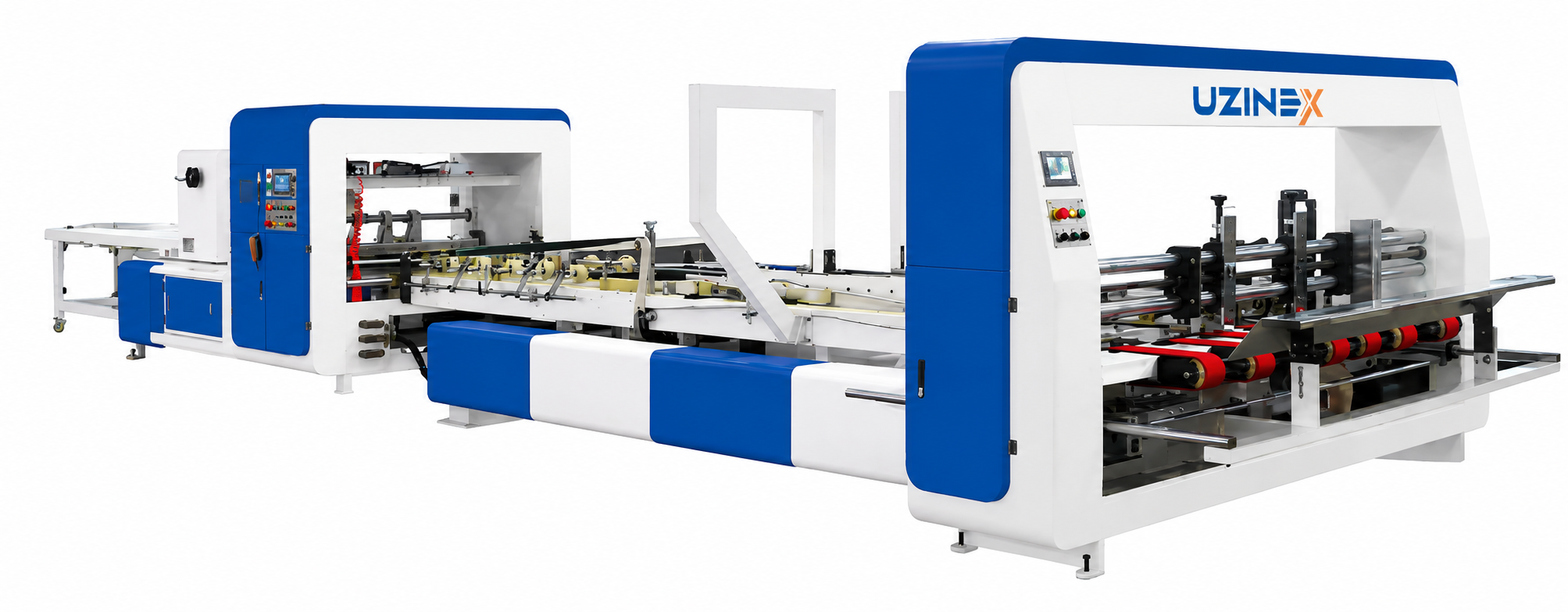

YF-C Series Automatic Corrugated Board Box Gluing Machine

The YF-C Series is a compact automatic corrugated board box gluing machine with three integrated modules — paper feeding, adhesive application and folding, counting and stacking — operating synchronously through PLC control with a dual frequency inverter. With an average speed of 130 m/min and a maximum speed of 220 sheets/min, this automatic corrugated board box gluing machine combines operational simplicity with industrial performance, in a compact and energy-efficient design.

Compared with the YF-Z Series, which uses a complex modular architecture with 6 stations and differential correction for extra-large industrial formats, the YF-C Series adopts a more direct approach — three clear modules with a synchronized dual frequency inverter — suitable for plants that seek a reliable, easy-to-operate automatic corrugated board box gluing machine with a small footprint, capable of processing formats from 130 mm front (1224 model) up to 1000 mm front (1630 model) at a maximum speed of 220 sheets/min.

Key advantages of the YF-C Series automatic corrugated board box gluing machine

• Dual frequency inverter with synchronized operation – the system with two frequency inverters operating synchronously ensures that the feeding speed and the processing speed are perfectly coordinated at all times, eliminating the speed imbalances that generate wobble or incorrect folding during acceleration and deceleration.

• PLC control with digital speed adjustment – a simple, fast, reliable and precise control module, with digital speed adjustment directly from the PLC panel; the automatic corrugated board box gluing machine requires no manual mechanical adjustments to change the production speed.

• Maximum speed 220 sheets/min — with an average speed of 130 m/min – the maximum speed of 220 sheets/min allows production to be adapted to orders with tight deadlines, maintaining gluing and folding accuracy of ±2 mm across the entire speed range.

• Minimum folding spacing 210 mm (1224 model) – the YF-C 1224 automatic corrugated board box gluing machine processes boxes with a folding spacing from 210 mm, versus 350 mm on the YF-Z, covering smaller formats typical of packaging for consumer products and ecommerce.

• Box front from 130 mm to 1000 mm – the format range covers both small boxes (front min 130 mm, back min 80 mm on the 1224 model) and large industrial boxes (front max 1000 mm, back max 1100 mm on the 1630 model), in a compact and efficient machine.

• Three fully automatic modules – automatic paper feeding, automatic adhesive application and folding, automatic counting, stacking and output; the automatic corrugated board box gluing machine operates with no manual intervention between stations throughout a run.

• Compact and energy-efficient design – the three-module architecture with a synchronized dual frequency inverter reduces energy consumption compared with systems using several independent motors; energy efficiency and reduced environmental impact are stated design principles of the YF-C Series.

• Feeding with a minimum height of 210 mm (1224 model) – the minimum feed height of 210 mm allows the processing of boxes with short flaps that cannot be handled by machines with a higher feed, extending the equipment's format versatility.

Technical specifications of the YF-C Series automatic corrugated board box gluing machine

The 2 models of the YF-C Series automatic corrugated board box gluing machine

1224 — small and medium formats with a minimum spacing of 210 mm

The 1224 model of the automatic corrugated board box gluing machine processes boxes with a front between 130 mm and 800 mm and a back between 80 mm and 800 mm, with a minimum folding spacing of 210 mm and a minimum feed height of 210 mm. It is the choice for plants that process small and medium format boxes for ecommerce, cosmetics, food and household products, where the equipment's compactness and small-format versatility are as important as production speed.

1630 — large formats with a front up to 1000 mm

The 1630 model extends the capacity to boxes with a front between 200 mm and 1000 mm and a back between 150 mm and 1100 mm, with a minimum folding spacing of 350 mm and a minimum feed height of 300 mm, at the same average speed of 130 m/min. The 1630 automatic corrugated board box gluing machine is the solution for manufacturers of packaging for furniture, household appliances and industrial equipment that need large formats processed simply and efficiently, without the mechanical complexity of the YF-Z Series.

The YF-C Series versus the YF-Z Series — when to choose simplicity over mechanical complexity

The YF-Z Series uses a 6-module architecture with left-right differential correction, full alignment with linear rails and one-key adjustment — the technical solution for heavy industrial boxes where board rigidity variations generate wobble or incomplete folding on conventional systems. The accuracy of the YF-Z 1224Z is ±1,5 mm versus ±2 mm for the YF-C 1224.

The YF-C Series automatic corrugated board box gluing machine with its 3-module architecture and synchronized dual frequency inverter is the solution when the format requirements are similar but differential correction is not needed — standard corrugated board boxes (not heavy triple wall), moderate production volumes and a priority on operational simplicity, small footprint and energy efficiency. UZINEX provides free consultancy for selecting between the YF-C and YF-Z based on the customer's concrete specifications.

Applications and industries for the YF-C Series automatic corrugated board box gluing machine

The YF-C Series automatic corrugated board box gluing machine is intended for packaging plants with a varied format range — from small ecommerce boxes (130×80 mm front/back on the 1224 model) to large industrial boxes (1000×1100 mm front/back on the 1630 model) — that seek a versatile, energy-efficient and easy-to-operate automatic folder-gluer, without the complexity of systems with differential correction or multi-axis servo control.

Manufacturers of packaging for the food industry use this automatic corrugated board box gluing machine for medium-volume production of standard boxes with constant specifications, where the 130 m/min speed and the full automation of the three operations (feeding, gluing/folding, counting/stacking) significantly reduce labor requirements compared with manual or semi-automatic processing.

Small and medium packaging plants that do not justify the investment in more complex systems but need full automation and a speed of 220 sheets/min find in the YF-C Series an automatic corrugated board box gluing machine with an excellent capability-to-investment ratio, suitable for a wide range of applications without specialization in a particular segment.

How the YF-C Series automatic corrugated board box gluing machine works

1. Automatic paper feeding – the pre-die-cut blanks are fed automatically into the automatic corrugated board box gluing machine through the feeding module; the digital speed adjustment via PLC sets the feeding rate according to the format of the current job.

2. Dual frequency inverter synchronization – the two frequency inverters synchronize automatically at startup and maintain synchronization throughout production, eliminating the speed differences between the feeding module and the folding module that would generate misalignment or wobble.

3. Automatic adhesive application and folding – the central module applies the adhesive on the gluing flap and folds the box in the same automatic cycle; the PLC control with variable frequency maintains the optimal adhesive-application rate synchronized with the board advance speed.

4. Box forming and fixing – after adhesive application and folding, the box is formed and fixed along its path through the central module; at the average speed of 130 m/min, the adhesive's contact time is sufficient for a complete bond along the entire length of the flap.

5. Automatic counting and stacking – the output module automatically counts the finished boxes and stacks them; the stacking quantity and output parameters are settable from the PLC panel without manual intervention during production.

6. Output and bundling into stacks – the stack of finished boxes is discharged automatically and prepared for bundling; the maximum speed of 220 sheets/min allows production to be adapted to urgent orders without mechanical changes.

Frequently asked questions about the YF-C Series automatic corrugated board box gluing machine

What is the practical difference between 130 m/min average speed and 220 sheets/min maximum speed?

The 130 m/min speed is the sustained average production speed recommended for optimal gluing quality — the adhesive has sufficient contact time with the flap for a complete bond at this speed. The maximum speed of 220 sheets/min can be reached on shorter formats (small box length) or with fast-setting adhesives. The YF-C Series automatic corrugated board box gluing machine can operate at 220 sheets/min, but UZINEX recommends testing the gluing quality at maximum speed with the customer's specific adhesive before series production.

Can the 1224 model process small boxes for ecommerce?

Yes — with a minimum folding spacing of 210 mm, a box front from 130 mm and a back from 80 mm, the YF-C 1224 automatic corrugated board box gluing machine covers the standard small ecommerce box formats. The minimum feed height of 210 mm is compatible with boxes with short flaps, typical of packaging for small-size products. Compared with the HS-T Series (700 pcs/min dedicated to ecommerce), the YF-C 1224 is the solution for plants with moderate volumes that do not justify the maximum speed of the HS-T.

What is the concrete difference between the YF-C (UZX-198) and the YF-Z (UZX-197) — when do I choose each?

The YF-Z Series is a 6-module architecture with left-right differential correction and linear-rail alignment — designed for heavy large-format boxes (furniture, household appliances, export for pallet stacking) where geometric accuracy is critical (the 1224Z reaches ±1,5 mm). The YF-C Series is a compact 3-module architecture with a synchronized dual inverter — designed for a wide range of formats (130–1000 mm front) with standard board, energy efficiency and operational simplicity (±2 mm accuracy). Recommendation: YF-Z for heavy/triple wall boxes or strict geometric accuracy requirements; YF-C for a varied format range, small footprint and optimal investment. UZINEX evaluates the concrete specifications free of charge for a recommendation.

Why the 3-module architecture instead of 6 modules as on the YF-Z?

The 6 modules of the YF-Z (feeding → suction folding → differential correction → full alignment → output → bundling) are needed when each stage has distinct technical requirements — the differential correction and the linear-rail alignment occupy two dedicated modules for heavy boxes where board rigidity variations must be actively compensated. On the YF-C Series, the 3 integrated modules (paper feeding + adhesive application/folding + counting/stacking/output) are sufficient for standard board, where the synchronized dual inverter maintains speed coordination without the need for differential correction. The concrete result: a footprint reduced by approximately 30–40% compared with the YF-Z, lower energy consumption, fewer moving parts to maintain.

For what volumes is the YF-C 1224 justified over the HS-T Series (700 pcs/min ecommerce)?

The HS-T Series is optimized exclusively for small ecommerce boxes at very high speed (700 pcs/min) — the solution for dedicated plants that process a single format or a very narrow range of small boxes at high volumes. The YF-C 1224 automatic corrugated board box gluing machine covers a much wider format range (front 130–800 mm) at moderate speed (220 sheets/min max). The economic threshold: if over 70–80% of orders are small ecommerce boxes with a constant format, the HS-T justifies the investment through its superior speed; if the portfolio also includes medium formats (over 400 mm front) or food/household, the YF-C 1224 offers versatility at a more affordable cost.

How do I choose between the YF-C 1224 and YF-C 1630?

The main criterion is the maximum box format. The YF-C 1224 processes boxes with a front between 130 and 800 mm and a back between 80 and 800 mm — covering small and medium boxes for ecommerce, cosmetics, food and household. The YF-C 1630 extends to a front between 200 and 1000 mm and a back between 150 and 1100 mm — needed for boxes for furniture, household appliances and equipment where the formats are larger. If over 20–25% of orders have boxes with a front larger than 800 mm, the 1630 is justified; below this threshold, the 1224 offers the same automatic flow at a lower investment. The speed is identical (130 m/min) on both models, so it is not a differentiating factor.

Is the YF-C Series automatic corrugated board box gluing machine eligible for EU-funded projects?

Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for EU-funded projects — NRRP, the Regional Program, the Just Transition Program. The YF-C Series automatic corrugated board box gluing machine can be included in funding applications for production automation and modernization of packaging lines. The series' design principles (energy efficiency, eco-friendly design, small footprint) represent additional arguments in programs with a green-transition or energy-efficiency component. UZINEX provides the complete technical documentation for public procurement procedures and tenders.

Why UZINEX for an automatic corrugated board box gluing machine

• Free technical consultancy for model and series selection – UZINEX evaluates the range of formats processed, the production volume and the operational-simplicity requirements to recommend the YF-C 1224, YF-C 1630 or another series in the folder-gluer family, based on the plant's concrete specifications.

• Transport, installation and commissioning included free of charge – the automatic corrugated board box gluing machine is delivered, installed and started at the customer's site by the UZINEX technical team, with complete calibration of the three modules and operator training.

• Extended 60-month warranty – one of the longest warranties available in Romania for automatic folder-gluer machines, with technical support included for the entire warranty period.

• National technical support in under 36 hours – on-site intervention or video diagnostic session in less than 36 hours from report, with a dedicated 24/7 telephone line for UZINEX customers.

• AI smart manual included – complete usage, maintenance and troubleshooting documentation with AI assistance, capable of instantly resolving over 96% of technical requests without human intervention.

• Full eligibility for European funding – UZINEX provides the documentation and full support for EU-, NRRP- or structural-funds procurement, including for public tenders.

The YF-C Series automatic corrugated board box gluing machine is the compact, energy-efficient solution for packaging plants that process varied formats — from small boxes (130 mm front) to large industrial boxes (1000 mm front) — with full automation in three modules, a synchronized dual frequency inverter, PLC control and a maximum speed of 220 sheets/min, at an optimal ratio between capability, operational simplicity and investment.
