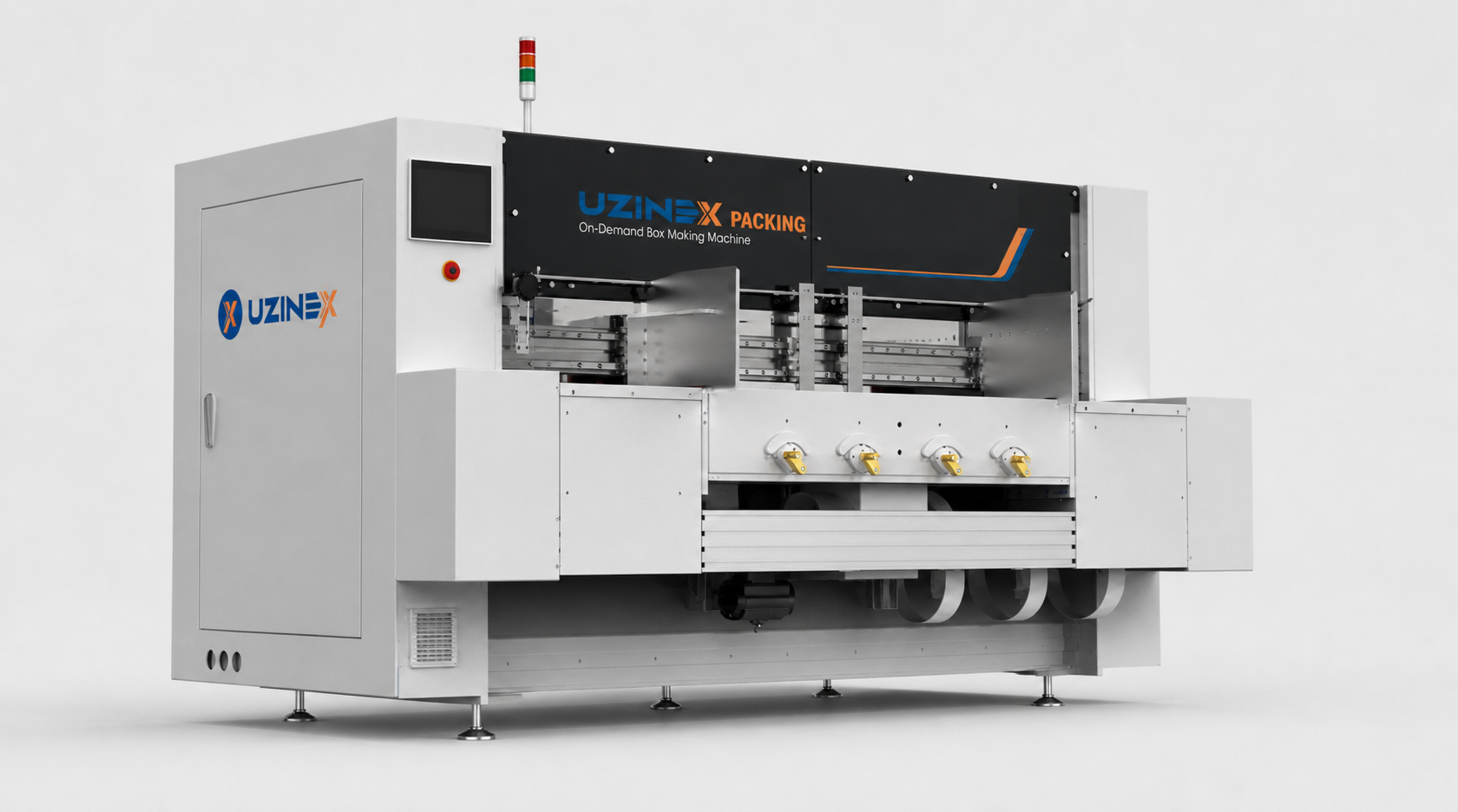

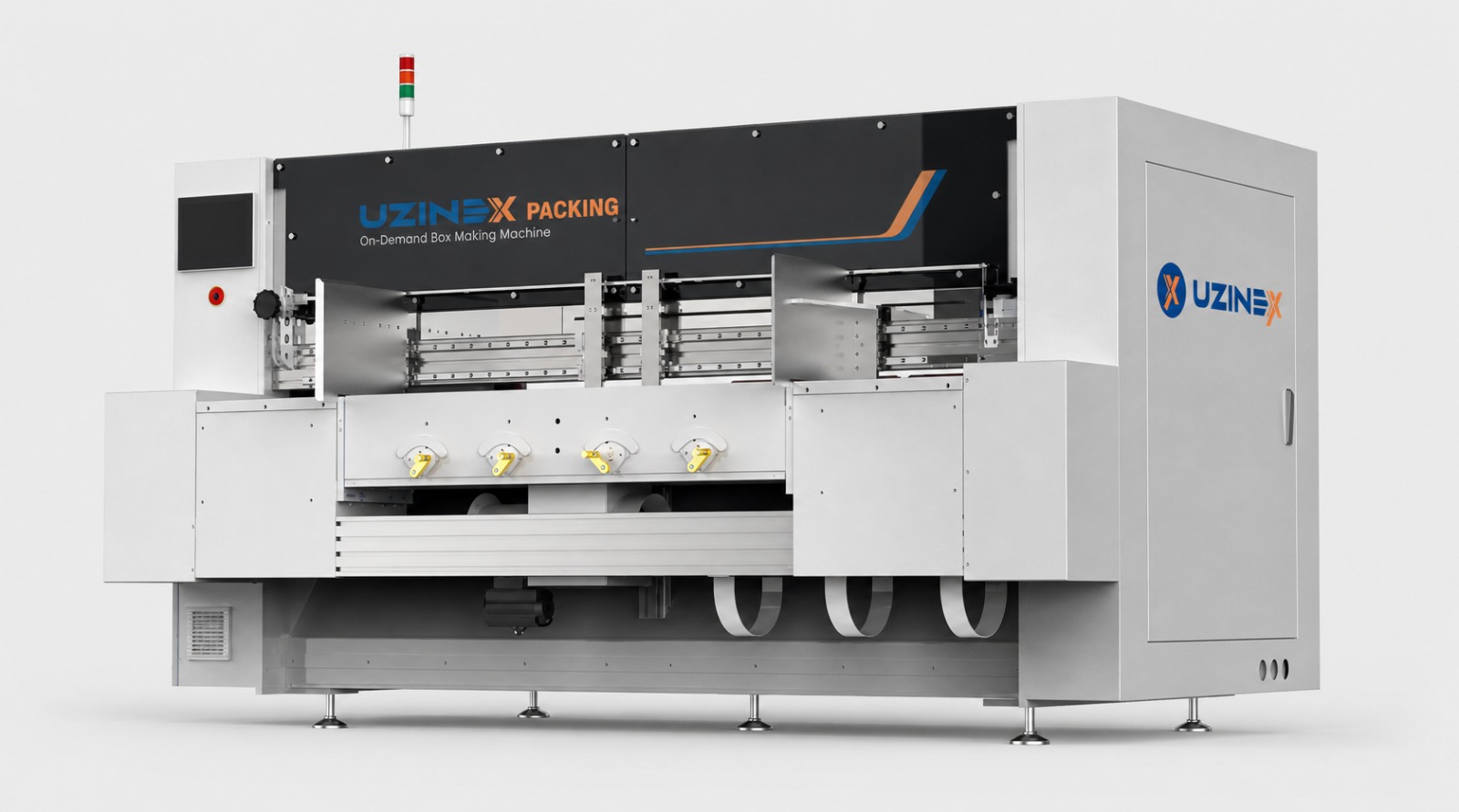

The UZX1800PRO is a corrugated cardboard box-making machine intended for companies that need customized packaging, short runs and flexible production, without depending on large stocks of standard boxes. The equipment processes corrugated cardboard sheets and produces boxes at the exact dimensions entered by the operator, automatically performing the feeding, cutting, slotting and creasing operations in a single working cycle.
Unlike classic production based on fixed dies, this corrugated cardboard box-making machine allows the format to be changed in about 3 seconds, with no additional mechanical intervention. The operator enters the order dimensions, selects the box style from the internal library of over 100 FEFCO codes, and the machine automatically performs the entire production cycle.
Key advantages of the UZX1800PRO corrugated cardboard box-making machine
• On-demand production, with no dedicated dies – each box is produced to the real dimensions of the product, eliminating the need for separate die sets for each format.
• Over 100 FEFCO codes available – the internal library covers all standard box formats, from flap boxes to telescopic variants or industrial boxes.
• Format change in about 3 seconds – one of the fastest reconfigurations in the category of corrugated cardboard box-making machines, with no significant downtime between orders.
• Productivity of up to 700-800 pcs./hour – a sustained industrial pace, suitable for continuous production flows with variable orders.
• Reduced stock of prefabricated boxes – companies produce exactly what is needed, when it is needed, freeing up warehouse space and reducing the risk of unused packaging.
• Compatible with single wall and double wall cardboard – processes corrugated cardboard with thicknesses from 1 mm to 12 mm and densities of up to 1200 g/m².
• Configurable with optional functions – gluing system, flexographic printing, perforation, pre-creasing or male-female creasing, depending on the customer's production flow.
UZX1800PRO technical specifications
| Parameter | Value |
|---|---|
| Model | UZX1800PRO |
| Machine type | Automatic machine for on-demand production of corrugated cardboard boxes |
| Equipment dimensions | approx. 2900–2950 mm L × 1600 mm W × 1820 mm H |
| Weight | approx. 3200–3500 kg, depending on configuration |
| Power supply | 380 V, 50/60 Hz |
| Installed power | approx. 10 kW |
| Air pressure | 0,6–0,8 MPa |
| Productivity | up to 700–800 pcs./hour (depending on format and configuration) |
| Format change time | approx. 3 seconds |
| Processed cardboard type | corrugated cardboard in sheets (single wall / double wall) |
| Cardboard density | up to 1200 g/m² |
| Cardboard thickness | approx. 1–12 mm |
| Maximum cardboard width | 1800 mm |
| Minimum cardboard dimension | approx. 200 mm width × 560 mm length |
| Maximum box dimension | unlimited length × 600 mm width × 1700 mm height |
| Minimum box dimension | approx. 150 mm L × 150 mm W × 75 mm H |
| Available box models | over 100 FEFCO types |
| Slotting knives | 2 pcs. × 300 mm |
| Vertical cutting knives | 4 pcs. |
| Horizontal cutting knife | 1 pc. |
| Creasing wheels | 4 pcs., configurable |
| Vacuum system | internal vacuum |
| PLC / servo motor | industrial configuration, adaptable to the project |
Applications and industries for corrugated cardboard box-making machines
The UZX1800PRO corrugated cardboard box-making machine is designed for industrial environments where product dimensions vary frequently and where classic production of standard boxes generates cardboard waste, high logistics costs or tied-up stock. It is particularly suited to companies that want to internalize packaging production and eliminate dependence on external suppliers with long lead times.
Manufacturers of furniture, equipment and technical components use it for packaging products with unique dimensions per order. Fulfillment centers and ecommerce companies integrate it directly into the packaging flow, producing the box exactly before packing, with no intermediate stock. Logistics warehouses with variable volumes and factories with short production runs benefit from the high flexibility of this corrugated cardboard box-making machine.
Companies that produce technical components, industrial parts, bulky products or fragile items find in the UZX1800PRO a complete solution for customized corrugated cardboard packaging, adapted to each individual product. The machine can be additionally configured with a gluing system or flexographic printing for more complex flows.
Compatible materials
Single wall corrugated cardboard (CO3)
The most widely used type of corrugated cardboard for corrugated cardboard box-making machines – made up of two liners and one fluted layer. Suitable for light and medium products, ecommerce, transport packaging.
Double wall corrugated cardboard (CO5)
Recommended for heavy products or those that require additional resistance to stacking and compression. The UZX1800PRO processes double wall corrugated cardboard with thicknesses of up to 12 mm, covering a wide range of industrial applications.
Density and grammage
The UZX1800PRO corrugated cardboard box-making machine processes materials with densities of up to 1200 g/m², compatible with the most widely used types of corrugated cardboard available on the European market.
How the UZX1800PRO corrugated cardboard box-making machine works, the workflow
1. Start-up and initialization – at start-up, the corrugated cardboard box-making machine automatically returns to the zero position and is ready for production without manual intervention.
2. Feeding with corrugated cardboard – the operator positions corrugated cardboard sheets in the feeding area. The internal vacuum system picks up and guides the material in a controlled manner.
3. Entering the order data – the box dimensions (length, width, height) are entered and the desired FEFCO code is selected from the library of over 100 available models.
4. Automatic processing – the machine automatically performs the cutting, slotting, creasing and trimming operations, with no manual mechanical adjustments between operations.
5. Obtaining the box blank – at the end of the cycle, the box is ready for folding, gluing or integration into the existing packaging flow.
6. Format change – for a new order with different dimensions, reconfiguration is carried out in about 3 seconds, allowing a corrugated cardboard box-making machine to switch quickly from one order to another.
Frequently asked questions about the UZX1800PRO corrugated cardboard box-making machine
What types of boxes can the UZX1800PRO corrugated cardboard box-making machine produce?
The UZX1800PRO has over 100 FEFCO codes programmed, covering flap boxes, telescopic boxes, self-forming boxes, trays, display stands and other standard formats. Additional codes can be added on request, depending on the specifics of the customer's packaging. This corrugated cardboard box-making machine is one of the most flexible in its category in terms of the variety of available formats.
How quickly can the format be changed on the UZX1800PRO?
The format change is carried out in about 3 seconds. This corrugated cardboard box-making machine requires no die replacement or manual mechanical adjustments when switching from one format to another; the operator enters the new dimensions and the machine reconfigures automatically.
What cardboard thicknesses and structures does the UZX1800PRO process?
The UZX1800PRO corrugated cardboard box-making machine processes corrugated cardboard with thicknesses from approximately 1 mm to 12 mm, in both single wall (CO3) and double wall (CO5) structures, with densities of up to 1200 g/m². The maximum width of the cardboard sheet is 1800 mm, with unlimited length.
Can the UZX1800PRO corrugated cardboard box-making machine be integrated into existing production flows?
Yes. The UZX1800PRO can be configured with optional functions such as a gluing system (cold adhesive or hot-melt), flexographic printing for markings and logos, a perforation or coding system. The corrugated cardboard box-making machine is designed to be adapted to each customer's specific production flow, including integration into semi-automated or fully automated lines.
Is the UZX1800PRO corrugated cardboard box-making machine eligible for EU-funded projects?
Yes. UZINEX is a member of the Enterprise Europe Network and delivers equipment for projects with EU funds, the NRRP, the Regional Programme and the Just Transition Programme. The UZX1800PRO corrugated cardboard box-making machine can be included in funding files for production automation and the streamlining of packaging processes. UZINEX provides the technical documentation required for procurement procedures and public tenders.
Why UZINEX for a corrugated cardboard box-making machine
• Free technical consultancy – before purchase, UZINEX evaluates the volume and typology of packaging orders to confirm that the UZX1800PRO corrugated cardboard box-making machine is the right configuration for the customer's production flow.
• Transport, installation and commissioning included – the equipment is delivered, installed and started up at the customer's location by specialized technicians, including operator training.
• Extended 60-month warranty – one of the longest warranties in the category of corrugated cardboard box-making machines available on the Romanian market, with national technical support.
• National technical support within 36 hours – rapid technical intervention through our own support network, with spare parts available and remote or on-site assistance.
• Eligibility for EU funds – UZINEX provides the technical documentation for EU-funded procurement procedures, including public tenders and NRRP projects.
• Complete range of packaging production equipment – the UZX1800PRO is part of an extensive range that includes the UZX2500, UZX3000 and UZX3000HD models, for any production volume and specification. Consultancy for selecting the optimal model is available free of charge.
The UZX1800PRO is the corrugated cardboard box-making machine suited to companies that want to produce customized packaging in-house, with full control over dimensions, costs and production times — an investment in flexibility and operational efficiency over the long term.
