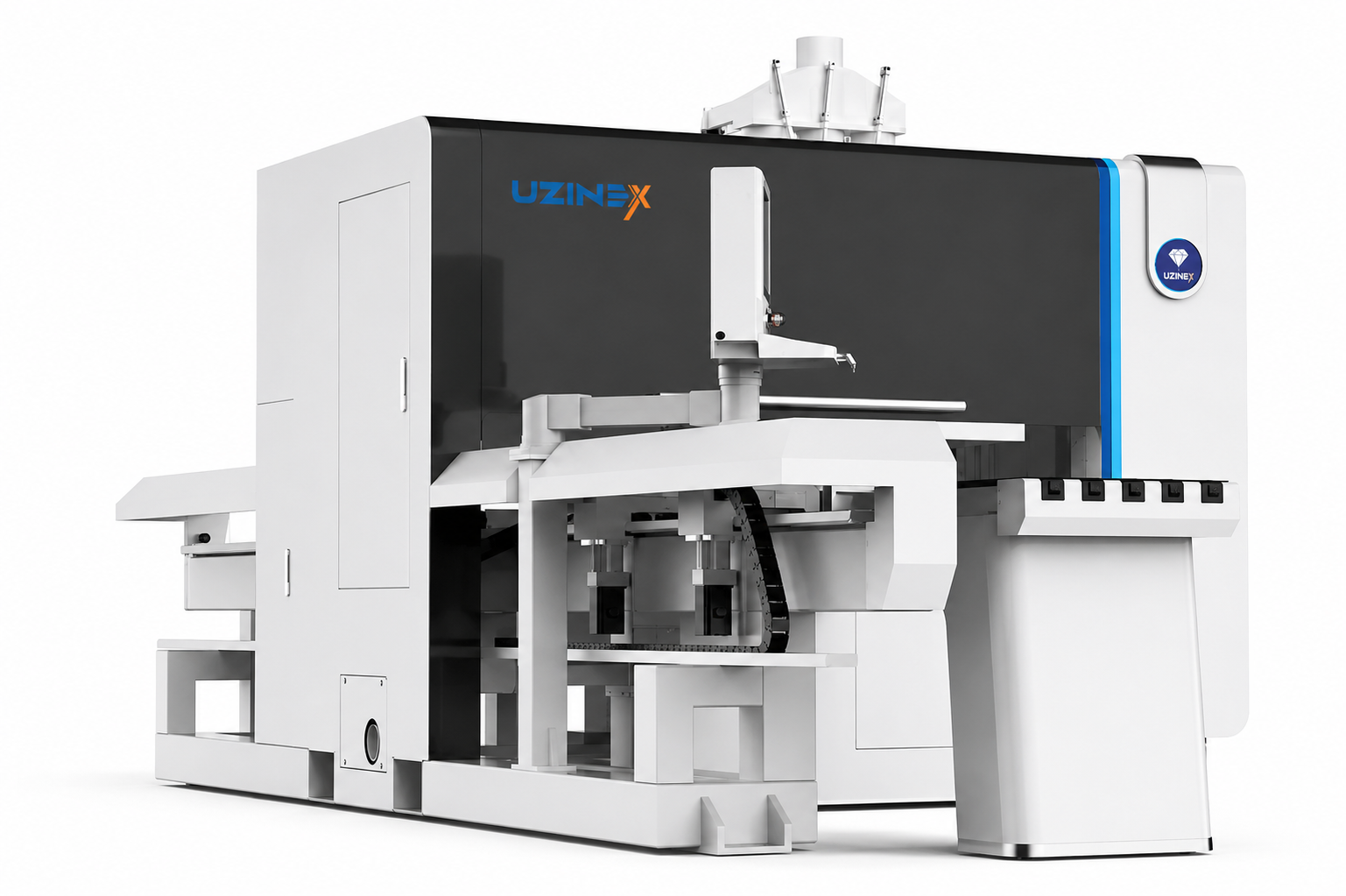

Six-Sided CNC Drilling Machine for Wooden Furniture Production

The six-sided furniture CNC drilling centre is the industrial machining centre for series-production furniture factories processing chipboard and MDF panels on all six sides in a single pass — the top face, the bottom face and the four edges — with 29 tools active simultaneously, automatic barcode scanning and automatic panel loading.

A travel speed of 120 m/min on the X axis, drive by absolute servo motors and a precision of ±0,03 mm position the six-sided furniture CNC drilling centre as a reference machine for made-to-order furniture production lines (KD furniture) and for factories processing a high volume of panels per shift.

The six-sided furniture CNC drilling centre is equipped with a custom Blue Elephant control system, helical rack transmission from Taiwan, a high-precision floating table and two 3,5 kW main spindles with air cooling. The 29 tools — 12 for top vertical drilling, 8 for horizontal drilling and 9 for bottom vertical drilling — simultaneously execute all the dowel holes, hinges, Minifix connectors and grooves required to assemble a furniture panel, eliminating separate drilling operations on multiple machines. Technical specifications — six-sided furniture CNC drilling centre

The six-sided furniture CNC drilling centre is configured at the quotation stage according to production volume, panel types and the requirements for integration into the existing production line. Free technical consultancy available. Advantages of the six-sided furniture CNC drilling centre

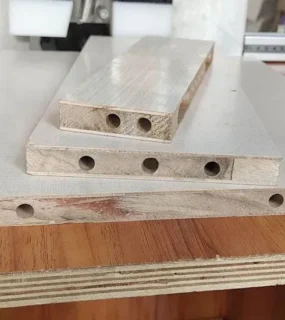

• Complete machining on 6 sides in a single pass — eliminating separate drilling stations — the six-sided furniture CNC drilling centre simultaneously machines the top face, the bottom face and all four edges of the panel in a single pass cycle. The 29 active tools execute all the dowel holes, cup hinges, Minifix connectors, euro screws and the grooves for the carcass back without manual repositioning of the panel and without transfer to separate drilling stations. In a conventional line, a panel passes through 3–4 separate stations — the six-sided furniture CNC drilling centre reduces the entire process to a single pass.

• Automatic barcode scanning — sorting and positioning without operator intervention — the six-sided furniture CNC drilling centre automatically reads the barcode on each panel as it enters the work area and loads the corresponding drilling program from the factory database. The operator does not manually enter the dimensions or program for each panel — the six-sided furniture CNC drilling centre reconfigures itself automatically between panels of different dimensions and drilling patterns, with no production stops. This function is essential for made-to-order production where every order contains panels with unique drilling positions.

• Automatic panel loading — continuous production with no operator at the infeed — the six-sided furniture CNC drilling centre has an automatic panel loading system that picks the panel from the conveyor belt or the infeed stack and automatically positions it in the work area. Automated loading eliminates the infeed operator and allows the six-sided furniture CNC drilling centre to run with a single operator supervising the entire flow, instead of the two or three operators required at manual drilling stations.

• 120 m/min on the X axis, 80 m/min on the Y axis — industrial positioning speeds — the six-sided furniture CNC drilling centre reaches 120 m/min on the X axis and 80 m/min on the Y axis thanks to absolute servos and helical rack from Taiwan. Travel speeds determine the panel throughput per hour — the faster the heads reposition, the more panels per shift. Holding ±0,03 mm, the six-sided furniture CNC drilling centre combines industrial throughput with series-production accuracy.

• 29 simultaneous tools — top vertical, horizontal and bottom vertical drilling in one cycle — the six-sided furniture CNC drilling centre has 12 tools for vertical drilling on the top face, 8 tools for horizontal drilling on the edges and 9 tools for vertical drilling on the bottom face, all active simultaneously in the working configuration. This 29-tool architecture allows the complete drilling pattern on the furniture panel to be executed simultaneously — no return passes, no additional operations, no panel transfer.

• Skin breaking function — perfect holes on melamine surfaces without chipping — the six-sided furniture CNC drilling centre has an original skin breaking function that perforates the melamine or surface veneer of the panel with a controlled fine perforation movement before the actual drilling. This function eliminates chipping and cracking of the melamine around the hole — a frequent defect on melamine-faced chipboard drilled with ordinary bits at high speeds — and produces holes with clean edges that require no rework or additional waste.

• Absolute servo motors — position retained on shutdown, no recalibration — the six-sided furniture CNC drilling centre is driven by absolute servo motors that retain the exact axis position even after shutdown or power interruption. On restart, the six-sided furniture CNC drilling centre resumes work from the exact position without a recalibration (homing) sequence, eliminating dead time at the start of the shift or after interruptions and ensuring that the ±0,03 mm precision is maintained throughout production.

• 60-month UZINEX warranty — spare parts in stock in Iași, national technical support in 24–48 hours, commissioning and integration into the production line included.

Applications — six-sided furniture CNC drilling centre

KD (knock-down / flat-pack) furniture factories for retail and e-commerce represent the primary application of the six-sided furniture CNC drilling centre. Flat-pack furniture requires an extremely precise and repeatable drilling system — every dowel hole and every Minifix connector must be at the exact position so that the end customer can assemble the carcass without professional help. The six-sided furniture CNC drilling centre, with its ±0,03 mm precision and automatic barcode scanning, guarantees this precision over volumes of thousands of panels per day.

Manufacturers of made-to-order kitchens with multiple configuration variants use the six-sided furniture CNC drilling centre to manage the wide variety of panels with different drilling patterns. Each made-to-order kitchen contains dozens of panels with unique dimensions and drilling positions — the six-sided furniture CNC drilling centre machines each panel according to its individual program, read automatically from the barcode, with no manual reconfiguration between pieces.

Integrated factories producing office furniture, storage furniture and shelving systems for industrial retail use the six-sided furniture CNC drilling centre as the central node of the panel machining line. The high volumes, the variety of dimensions and the precision requirements for fast assembly at destination make the six-sided furniture CNC drilling centre the production solution with the best speed-precision-automation ratio available for this application. The six-sided furniture CNC drilling centre in the production line

The six-sided furniture CNC drilling centre is integrated after panel sizing and edge banding and before assembly. The edge-banded panels arrive with the barcode applied from the sizing stage — the six-sided furniture CNC drilling centre picks them up automatically, reads the barcode, loads the drilling pattern, machines all 6 sides and releases the panel ready for assembly onto the outfeed belt, with no operator intervention between infeed and outfeed.

Integrating the six-sided furniture CNC drilling centre into an existing line is achieved by connecting to the factory's ERP or MES system — the database of drilling patterns per order and per panel is automatically exported to the six-sided furniture CNC drilling centre, which loads them when the barcode is read. UZINEX ensures software integration and commissioning within the existing production line. Frequently asked questions about the six-sided furniture CNC drilling centre

Can the six-sided furniture CNC drilling centre be integrated with existing ERP or MES systems?

Yes. The six-sided furniture CNC drilling centre with the Blue Elephant system supports importing drilling programs from ERP and MES systems through standard production file formats. The database of drilling patterns per order is loaded into the Blue Elephant system and activated automatically when the barcode on each panel is read. UZINEX provides software integration consultancy at commissioning. What panel thicknesses can the six-sided furniture CNC drilling centre process?

The six-sided furniture CNC drilling centre processes standard furniture panels in thicknesses of 16, 18, 19 and 25 mm, covering the entire range of chipboard and MDF used in interior furniture production. For special thicknesses or materials with different densities, UZINEX checks compatibility at the quotation stage and configures the appropriate drilling parameters. Is the skin breaking function activated automatically or does it require separate setup?

The skin breaking function of the six-sided furniture CNC drilling centre is programmable per material type and is activated automatically from the drilling pattern associated with the panel's barcode. Once configured for a panel type (e.g. white melamine-faced chipboard 16mm), the function is applied automatically to all panels of the same type without operator intervention. Is the six-sided furniture CNC drilling centre eligible for European funding?

Yes. UZINEX is a member of the Enterprise Europe Network and delivers production lines and CNC centres for projects with EU funds — the Just Transition Programme, the NRRP digitalisation programme, the Regional Programme for modernising industrial production. The six-sided furniture CNC drilling centre can be added directly to SEAP/SICAP. Leasing and credit options available on the UZINEX credit and leasing page. Why UZINEX for the six-sided furniture CNC drilling centre

The six-sided furniture CNC drilling centre is a major capital investment that transforms the production capacity and cost structure of the furniture factory. Correct configuration selection and successful integration into the existing line directly determine the return on this investment.

• Integration consultancy included — UZINEX analyses the existing production line and configures the six-sided furniture CNC drilling centre for optimal integration with the panel saw, edge bander and assembly belt.

• ERP/MES software integration — connecting the six-sided furniture CNC drilling centre to the factory's management system for automatic transfer of drilling patterns per order.

• Commissioning and technical training included — UZINEX engineers commission the six-sided furniture CNC drilling centre at the factory location and train the operators and the maintenance technician on the use and maintenance of the equipment.

• 60-month warranty — extended coverage for the six-sided furniture CNC drilling centre in continuous industrial production over two or three shifts.

• Spare parts in stock in Iași — drill bits, servo components and electronic modules immediately available to minimise downtime.

• National technical support in 24–48 hours — UZINEX technicians with national coverage and guaranteed response time, critical for continuously operating production lines.

• Eligible for European funding — complete technical documentation for funding files, direct addition to SEAP/SICAP.

UZINEX six-sided furniture CNC drilling centre — 29 active tools (12 top vertical + 8 horizontal + 9 bottom vertical), 2 × 3,5 kW, 120 m/min X axis, 80 m/min Y axis, ±0,03 mm, work area 1.300×2.500 mm, absolute servo, helical rack from Taiwan, barcode scanning, automatic loading, skin breaking, Blue Elephant system, high-precision floating table, 60-month warranty, transport and commissioning included throughout Romania.
