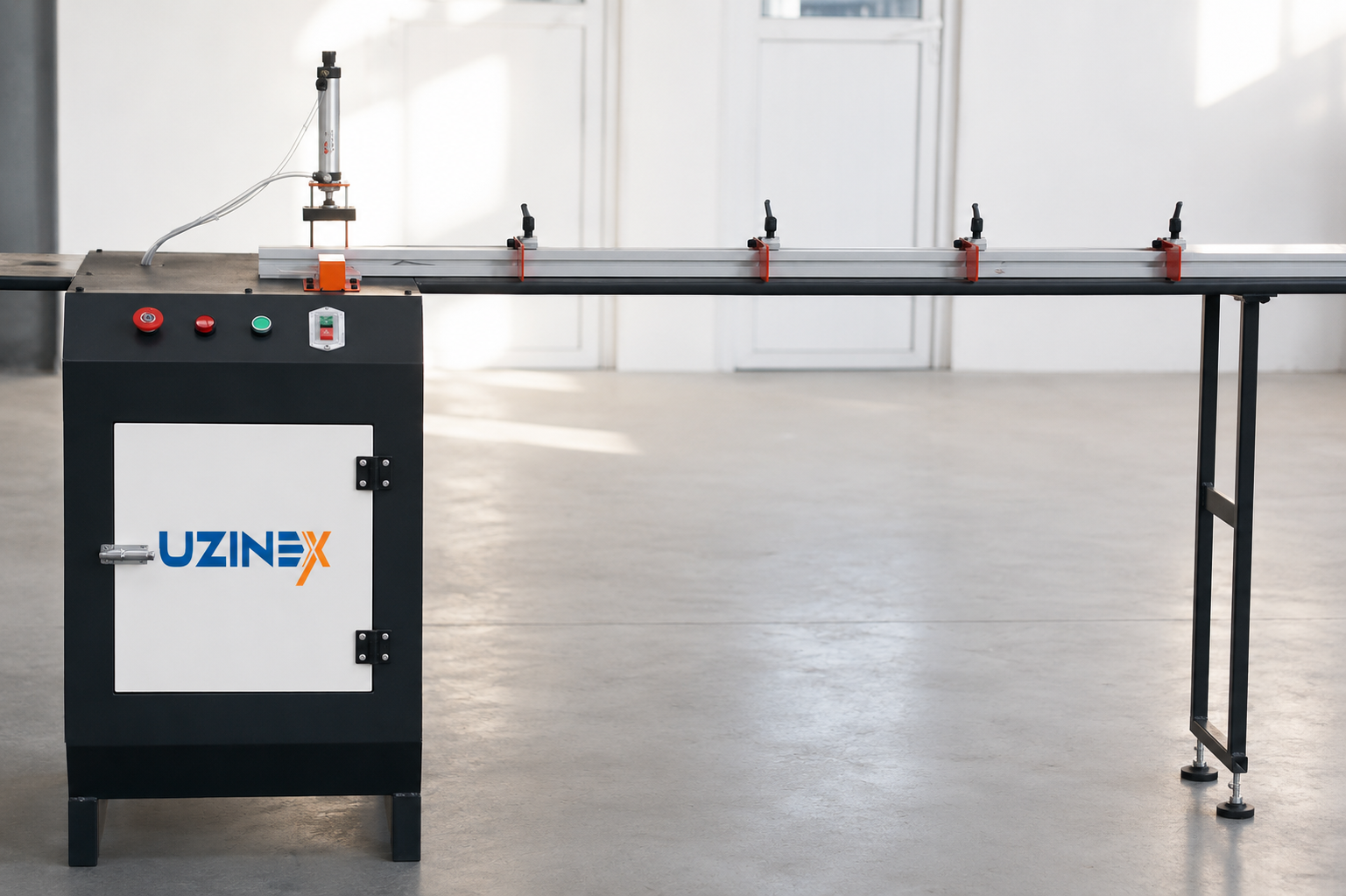

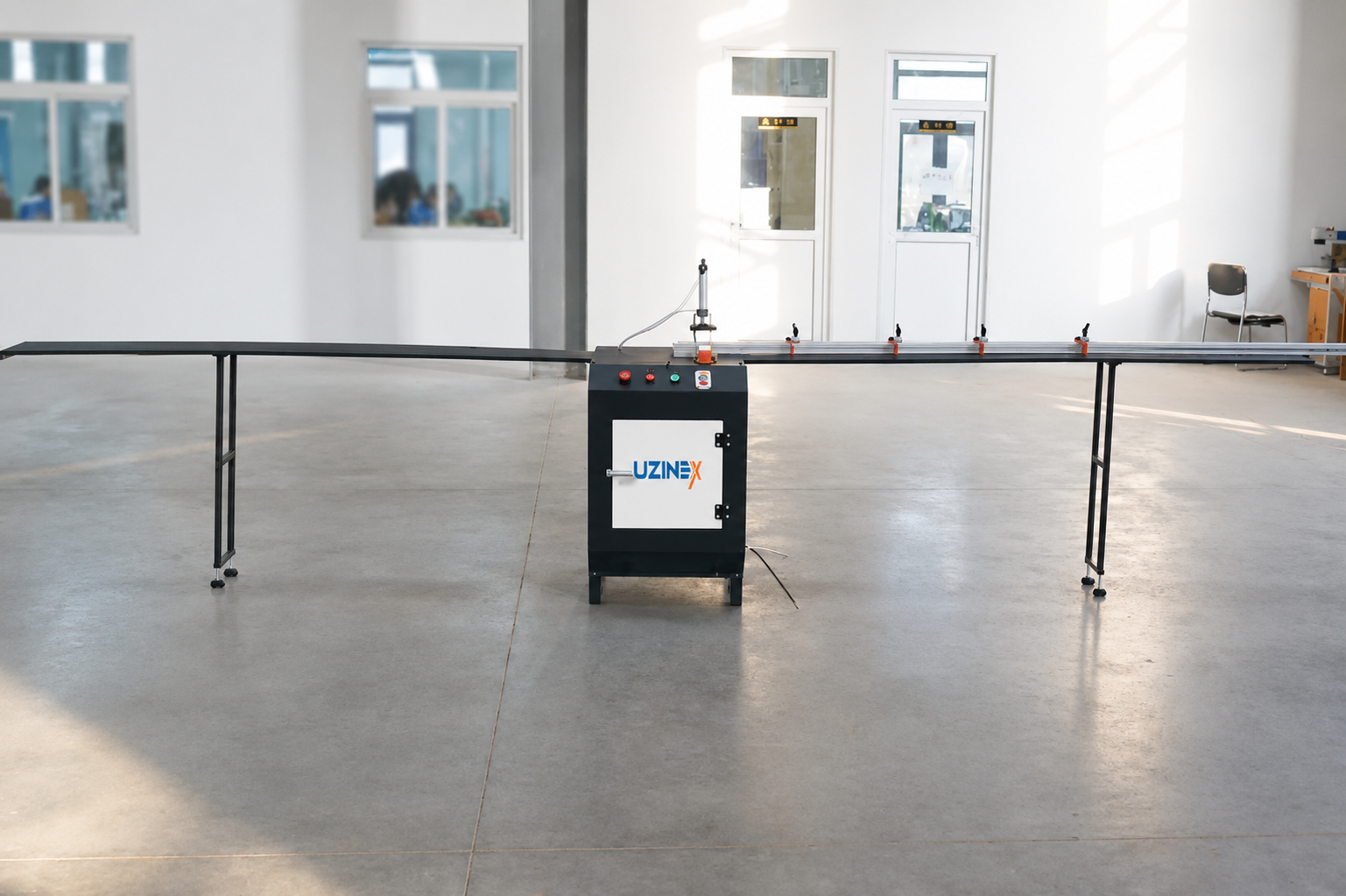

The T-profile metal strip cutting machine is the workshop equipment for the automatic series cutting of T-shaped metal strips and profiles — the solution for metalworking workshops, manufacturers of T-track worktables and makers of industrial accessories who cut repetitive volumes of metal strips at the same processing length. With a power of 1,1 kW, a 200×25,48 mm circular blade with isosceles right-angle teeth and single-button operation, the metal strip cutting machine automates an operation previously carried out manually or with non-specialised equipment.
The metal strip cutting machine has a working area of 550×520 mm, a support rack 2.350 mm long that is extendable and foldable for compact storage, a weight of 110 kg and overall dimensions of 4.740×680×830 mm — parameters that allow integration into medium-sized workshops without major reconfiguration of the production space. The dual supply voltage of 380V/220V ensures compatibility with the electrical installations of any industrial or service workshop in Romania. Technical specifications — metal strip cutting machine
| Parameter | Value |
|---|---|
| Motor power | 1,1 kW |
| Saw blade | 200 × 25,48 mm |
| Supply voltage | 380 V / 220 V |
| Support rack length | 2.350 mm |
| Working area size | 550 × 520 mm |
| Processing length | 6 / 8 / 10 mm |
| Weight | 110 kg |
| Overall body dimensions | 4.740 × 680 × 830 mm |
| Operating mode | Automatic, single button |
| Blade type | High-precision alloy, hardened, isosceles right-angle teeth |
| Support frame | Extendable, foldable, removable |
The metal strip cutting machine is available for quotation through UZINEX. Free technical consultancy for selecting the configuration suited to the volume and type of metal strips processed in your workshop. Advantages of the metal strip cutting machine
• Automatic single-button operation — the metal strip cutting machine eliminates the need for continuous manual operation. The operator positions the metal strip, presses a single button and the machine performs the cut automatically, without continuous operator intervention during the cycle. This automation reduces fatigue and human error in the repetitive production of metal strips at the same processing length.
• 200mm circular blade in hardened alloy — clean cuts, extended service life — the saw blade of the metal strip cutting machine has a diameter of 200×25,48 mm, is made of high-precision alloy and is heat-hardened for hardness and wear resistance. The teeth designed at isosceles right angles produce cuts with no significant burrs on the metal strips, reducing the need for subsequent deburring operations and maintaining consistent quality over long runs.
• Working area 550×520 mm — sufficient for standard T profiles — the metal strip cutting machine has a working area of 550×520 mm that covers the standard dimensions of T-shaped metal strips and profiles used in the production of T-track worktables, clamping jaws, guide rails and industrial accessories. The 2.350 mm support rack supports long T-profile bars along their entire length during cutting.
• Extendable, foldable and removable support rack — workshop flexibility — the support frame of the metal strip cutting machine extends to support long metal profile bars and folds or disassembles compactly when the machine is not in use or when the workshop space needs reconfiguration. This feature is relevant for workshops with limited space that use the metal strip cutting machine intermittently between other operations.
• Dual 380V/220V supply — universal compatibility with workshops in Romania — the metal strip cutting machine runs on both 380V three-phase (the standard installation in industrial workshops) and 220V single-phase, eliminating the need for electrical adaptations to integrate it into workshops with different electrical infrastructure.
• Compact footprint, 110 kg — mobility and easy integration — with a weight of 110 kg and dimensions of 4.740×680×830 mm, the metal strip cutting machine can be moved with a standard forklift or pallet truck and integrates into medium-sized workshops without changes to the space. The narrow footprint width (680 mm) allows positioning in workshop aisles without blocking circulation.
• 60-month UZINEX warranty — spare parts in stock at Iasi, national technical support within 24–48 hours, transport and commissioning included on delivery.
Applications — metal strip cutting machine
Manufacturers of T-track worktables for metal, wood and stone processing workshops use this machine for the series cutting of T-shaped metal strips that form the clamping channels of the table. A standard worktable has 4–8 T tracks, each requiring metal strips cut to the same length — the equipment produces these strips with perfect repeatability and greater speed than manual cutting with a saw.
Manufacturers of industrial accessories — clamping jaws, guide rails, adjustable supports, fixturing systems for CNC machines — use this equipment for the production of T-strip components requiring precise and repetitive cuts. The processing lengths of 6, 8 and 10 mm of the metal strip cutting machine cover the standard dimensions of the T profiles used in these applications.
Service and repair workshops for CNC machines and industrial equipment use the strip cutting machine to produce spare parts and fixturing elements from T-shaped metal strip, eliminating dependence on external suppliers for standard components that can be produced in-house with a minimal investment in processing time. Workflow — metal strip cutting machine
• Select the desired processing length — 6, 8 or 10 mm — and adjust the length stop of the metal strip cutting machine.
• The T-profile metal bar is fed onto the 2.350 mm support rack and guided into the 550×520 mm working area up to the stop.
• The operator presses the single start button — the equipment automatically performs the cut with the 200 mm circular blade.
• The cut metal strip drops into the parts collector; the T-profile bar is advanced for the next cut.
• The cycle repeats without continuous operator intervention — the equipment ensures cutting repeatability across the entire production run.
Frequently asked questions about the metal strip cutting machine
What types of metal can the metal strip cutting machine cut?
The metal strip cutting machine is designed for cutting T-shaped strips and profiles made of carbon steel, aluminium and metal alloys with a hardness compatible with the 200 mm hardened alloy circular blade. For hard metals or strips with thicknesses greater than those specified, UZINEX confirms compatibility at the quotation stage before delivery. What processing lengths are available?
The metal strip cutting machine processes strips at lengths of 6, 8 and 10 mm in the standard configuration. These are the standard lengths for the T profiles used in the production of T-track worktables and industrial accessories. If your application requires other processing lengths, contact the UZINEX engineers at the quotation stage to check whether the equipment can be configured further. Does the metal strip cutting machine require a dedicated operator throughout operation?
No. The metal strip cutting machine has automatic operation — the operator positions the profile bar, presses the single button and the machine performs the cut independently. The operator can supervise the metal strip cutting machine from a distance and can handle other tasks in parallel during the cutting cycles, increasing the overall productivity of the workshop. Is the metal strip cutting machine eligible for European funding?
Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for projects with European funds. The metal strip cutting machine can be added directly in SEAP/SICAP. Leasing and credit options are available on the UZINEX credit and leasing page. What weight does the metal strip cutting machine have and how is it transported in the workshop?
The metal strip cutting machine weighs 110 kg and has dimensions of 4.740×680×830 mm. It is moved with a standard forklift or pallet truck. UZINEX includes transport and commissioning at the customer's location — the metal strip cutting machine is delivered, positioned and started up by the UZINEX technical team at no additional cost. Why UZINEX for the metal strip cutting machine
The metal strip cutting machine is a productivity investment with rapid payback for workshops that perform repetitive cuts of T-shaped metal strips and profiles. UZINEX provides full selection, delivery and technical support.
• Verified compatibility — at the quotation stage UZINEX confirms that the metal strip cutting machine is suitable for the type and dimensions of the metal profiles processed in your workshop.
• Transport and commissioning included — delivery to destination, positioning, electrical connection and operator training included at no additional cost.
• 60-month warranty — extended coverage for the metal strip cutting machine in continuous series production.
• Spare parts in stock at Iasi — replacement blades and components available immediately to minimise downtime.
• National technical support within 24–48 hours — UZINEX technicians with nationwide coverage and a guaranteed response time.
• Eligible for European funds — complete technical documentation for funding applications, direct addition to SEAP/SICAP.
• 380V/220V supply — compatible with any workshop electrical installation in Romania, with no additional adaptations.
UZINEX metal strip cutting machine — 1,1 kW motor, 200×25,48 mm hardened alloy circular blade, 550×520 mm working area, 2.350 mm extendable and foldable support rack, processing lengths 6/8/10 mm, 380V/220V supply, 110 kg, single-button operation, 60-month warranty, transport and commissioning included throughout Romania.
