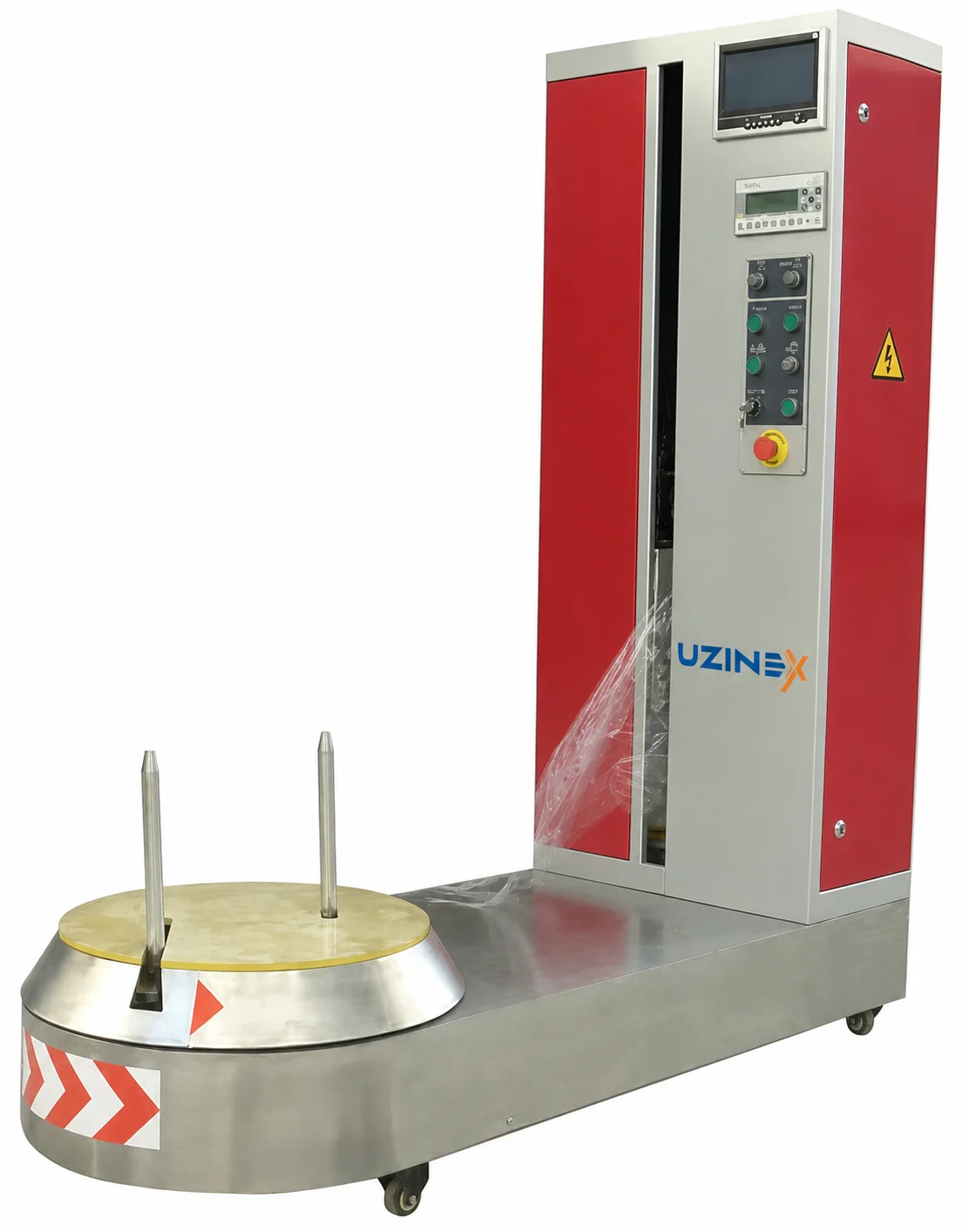

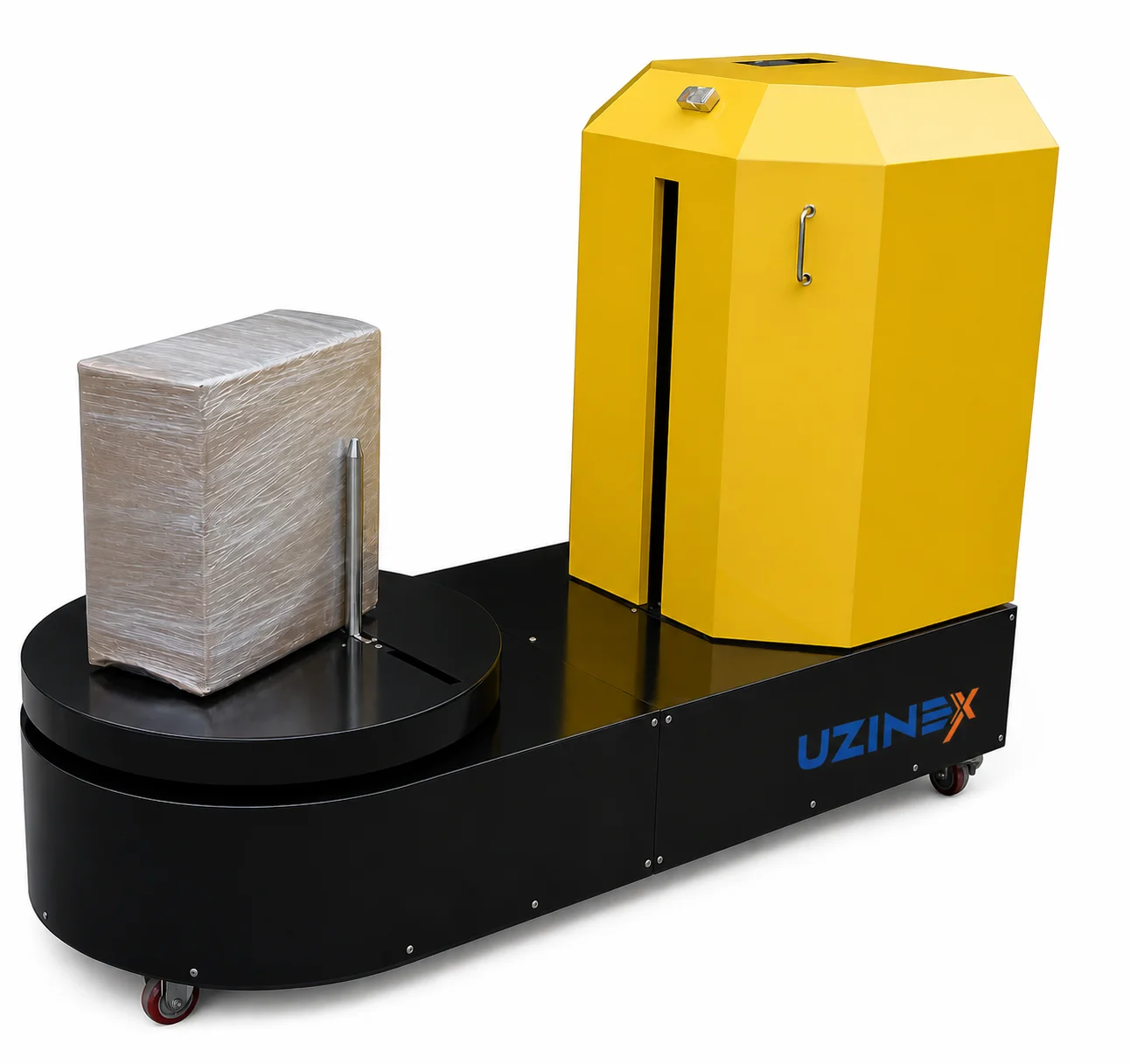

The KPW-ZXL600 luggage wrapping machine is the professional equipment dedicated to airports, transport terminals, hotels and logistics operators that offer luggage protection services through wrapping with elastic LLDPE film. With a capacity of 20–40 bags per minute, automatic height detection via a photocell and a film pre-stretch system up to 250%, the KPW-ZXL600 luggage wrapping machine provides complete protection on all six faces of every processed bag — fast, uniform and with no additional effort from the operator.
The dual 110V/220V single-phase supply and the consumption of just 0,48 kW make the KPW-ZXL600 luggage wrapping machine a solution with no electrical infrastructure requirements, operational immediately after installation in any airport, hotel, bus or train terminal. The footprint of 1.600 × 630 × 1.670 mm allows integration even in high-traffic areas without blocking the flow of passengers.
Key Advantages of the KPW-ZXL600 Luggage Wrapping Machine
• Complete protection on 6 faces — the luggage wrapping machine wraps the bag entirely, including handles and wheels, eliminating the risk of damage, soiling, moisture or accidental opening during handling and transport.
• Capacity 20–40 bags/minute — a single operator can process a continuous flow of bags during peak hours, with no downtime between cycles, with identical wrapping quality from the first to the last bag of the day.
• Automatic height detection via photocell — the KPW-ZXL600 luggage wrapping machine adapts automatically to the dimensions of each bag (heights between 250 and 1.000 mm), with no manual adjustment; small trolley cases and large suitcases are processed in the same automatic cycle.
• LLDPE film pre-stretch up to 250% — the elastic film is applied at the optimal tension for maximum adhesion and minimum material consumption; each film roll covers more bags than systems without motorized pre-stretch.
• Film tension adjustment from the PLC panel — the operator adjusts the tightening level according to the bag type, shape and sensitive contents, with no tools and without stopping the luggage wrapping machine.
• Automatic mode and manual mode — the KPW-ZXL600 luggage wrapping machine operates fully automatically for heavy flows or in manual mode for special situations, offering the operator total flexibility with no hardware reconfiguration.
• 110V and 220V single-phase compatibility — runs on both standard voltages, ideal for international terminals, airports with mixed infrastructure or locations where the available voltage varies.
• Robust powder-coated chassis — resistance to abrasion and corrosion under intensive daily use; the KPW-ZXL600 luggage wrapping machine is built for continuous operation in environments with high passenger traffic.
Technical Specifications — KPW-ZXL600 Luggage Wrapping Machine
| Parameter | Value |
|---|---|
| Model | KPW-ZXL600 |
| Accepted bag dimensions (L × W × H) | 250–1.200 mm × 200–500 mm × 250–1.000 mm |
| Maximum bag weight | 100 kg |
| Wrapping efficiency | 20–40 bags/minute |
| Machine footprint (L × W × H) | 1.600 × 630 × 1.670 mm |
| Machine weight | ~180 kg |
| Rated power | 0,48 kW |
| Electrical supply | 110V / 220V, 50/60Hz, single-phase |
| Film type | LLDPE (pre-stretched elastic film) |
| Film pre-stretch | Up to 250% |
| Bag height detection | Automatic via photocell |
| Control | PLC with layer and film tension adjustment |
| Operating modes | Automatic and manual |
| Chassis finish | Powder-coated (resistant to abrasion and corrosion) |
Applications and Locations — Where the KPW-ZXL600 Luggage Wrapping Machine Works
The KPW-ZXL600 luggage wrapping machine is designed for any location where passengers leave luggage in the care of other people or operators: national and international airports, train and bus stations with luggage services, seaports, hotels with concierge and luggage storage services, express courier companies for large-sized parcels and tour operators with a high flow of groups.
Luggage wrapping has become a standard at modern airports in Europe — passengers pay for additional protection, and the operator quickly recovers the investment in the luggage wrapping machine through the fee charged per wrapped bag. The capacity of 20–40 bags/minute ensures that even peak hours do not create queues, keeping the passenger experience at high standards.
Premium-service hotels and VIP transfer companies find in this luggage wrapping machine a concrete way to add value to their service, differentiating themselves from competitors that offer only simple storage. A single compact unit, installed at the reception or in the luggage area, turns an optional service into a source of additional revenue with minimal investment.
LLDPE Film for the Luggage Wrapping Machine — Protection and Savings
The KPW-ZXL600 luggage wrapping machine uses pre-stretched LLDPE film (Linear Low-Density Polyethylene) — the same quality standard used in industrial pallet wrapping, adapted for applications with short cycles and high luggage flows. LLDPE film offers transparency for visual identification of the bag, puncture resistance for the rough handling found in luggage halls and inter-layer adhesion that prevents the package from accidentally coming undone in transit.
The integrated pre-stretch system of the luggage wrapping machine extends every linear meter of LLDPE film at a ratio of up to 1:2,5, significantly reducing the material cost per wrapped bag. At a high volume of daily operations, the film savings generated by the 250% pre-stretch quickly offset the difference from equipment without this system.
How the KPW-ZXL600 Luggage Wrapping Machine Works
The wrapping cycle of the KPW-ZXL600 luggage wrapping machine is fast, safe and can be learned by any operator in a few minutes:
• Bag positioning — the operator places the suitcase, trolley case or bag on the turntable of the luggage wrapping machine, oriented according to the instructions shown on the equipment panel.
• Vertical post adjustment — the guide posts of the luggage wrapping machine are adjusted to the width of the bag before the cycle starts, ensuring correct and complete wrapping on all faces.
• Automatic height detection — the photocell of the KPW-ZXL600 luggage wrapping machine instantly scans the bag height and automatically sets the film carriage path; no manual intervention is needed for different sizes.
• Automatic wrapping with pre-stretched film — the turntable rotates at the set speed (20–40 turns/minute) while the carriage applies the LLDPE film in overlapping layers, configured from the PLC (additional layers at the base and at the top according to the operator's preference).
• Manual cutting and sealing — at the end of the automatic cycle, the operator cuts the film and presses the end onto the surface of the bag; the KPW-ZXL600 luggage wrapping machine is immediately ready for the next bag.
Frequently Asked Questions about the Luggage Wrapping Machine
What bag dimensions does the KPW-ZXL600 machine accept?
The KPW-ZXL600 luggage wrapping machine accepts bags with a length between 250 and 1.200 mm, a width between 200 and 500 mm and a height between 250 and 1.000 mm, with weights of up to 100 kg. In practice, this covers the entire range of checked luggage, large carry-on bags and trolley cases of any standard size.
Can the investment in the luggage wrapping machine be recovered through commercial services?
Yes. The KPW-ZXL600 luggage wrapping machine is used as revenue-generating equipment at airports, terminals and hotels, where the wrapping service is charged per bag. At an average market rate and a reasonable volume of daily bags, the investment in the luggage wrapping machine is recovered within a few months of operation, and the equipment continues to generate profit throughout its useful life.
Is special technical training required to operate the KPW-ZXL600?
No. The KPW-ZXL600 luggage wrapping machine is designed for intuitive operation — the PLC panel with clear controls and automatic height detection eliminate the need for repeated technical adjustments. UZINEX provides operator training at the customer's premises as part of commissioning, included at no additional cost.
What film is required for the KPW-ZXL600 luggage wrapping machine?
The KPW-ZXL600 luggage wrapping machine uses standard LLDPE film, available from any packaging consumables supplier in Romania. No special formats or proprietary consumables are required — the stretch film rolls available on the local market at competitive prices are used.
Can the luggage wrapping machine operate continuously during peak hours?
Yes. The KPW-ZXL600 luggage wrapping machine is built for intensive and continuous use, with a powder-coated chassis resistant to daily wear and components sized for repeated cycles without interruption. The capacity of 20–40 bags/minute ensures that a single unit and a single operator can handle the flow of passengers even during the busiest periods of the day.
Why Choose UZINEX for the KPW-ZXL600 Luggage Wrapping Machine?
UZINEX delivers the KPW-ZXL600 luggage wrapping machine with the complete service package that turns the purchase of equipment into an investment with no operational risks. Every delivered unit benefits from an extended 60-month warranty, spare parts permanently in stock and nationwide technical support with intervention within 24–48 hours.
• Delivery and commissioning included — free delivery throughout Romania, installation at the customer's premises and complete operator training; the KPW-ZXL600 luggage wrapping machine is ready for commercial use on the day of delivery.
• 60-month warranty — the longest warranty term on the local market for packaging equipment; the luggage wrapping machine is fully covered against manufacturing defects, with no hidden costs.
• Spare parts in stock — wear components are immediately available; for operators who depend on the continuity of the wrapping service, the absence of waiting times for parts is a concrete operational advantage.
• Nationwide service network — engineers available nationwide for rapid intervention, regardless of the location of the airport, hotel or terminal.
• Credit and leasing financing — flexible financing solutions tailored for operators who want to launch the wrapping service without significant initial capital.
• Complete portfolio of packaging equipment — from the luggage wrapping machine to complete industrial packaging systems; UZINEX covers all the packaging needs of an expanding operator.
The KPW-ZXL600 luggage wrapping machine is the concrete investment for any operator that wants to offer a luggage protection service at international standards — fast, reliable and profitable from the very first day of operation.
