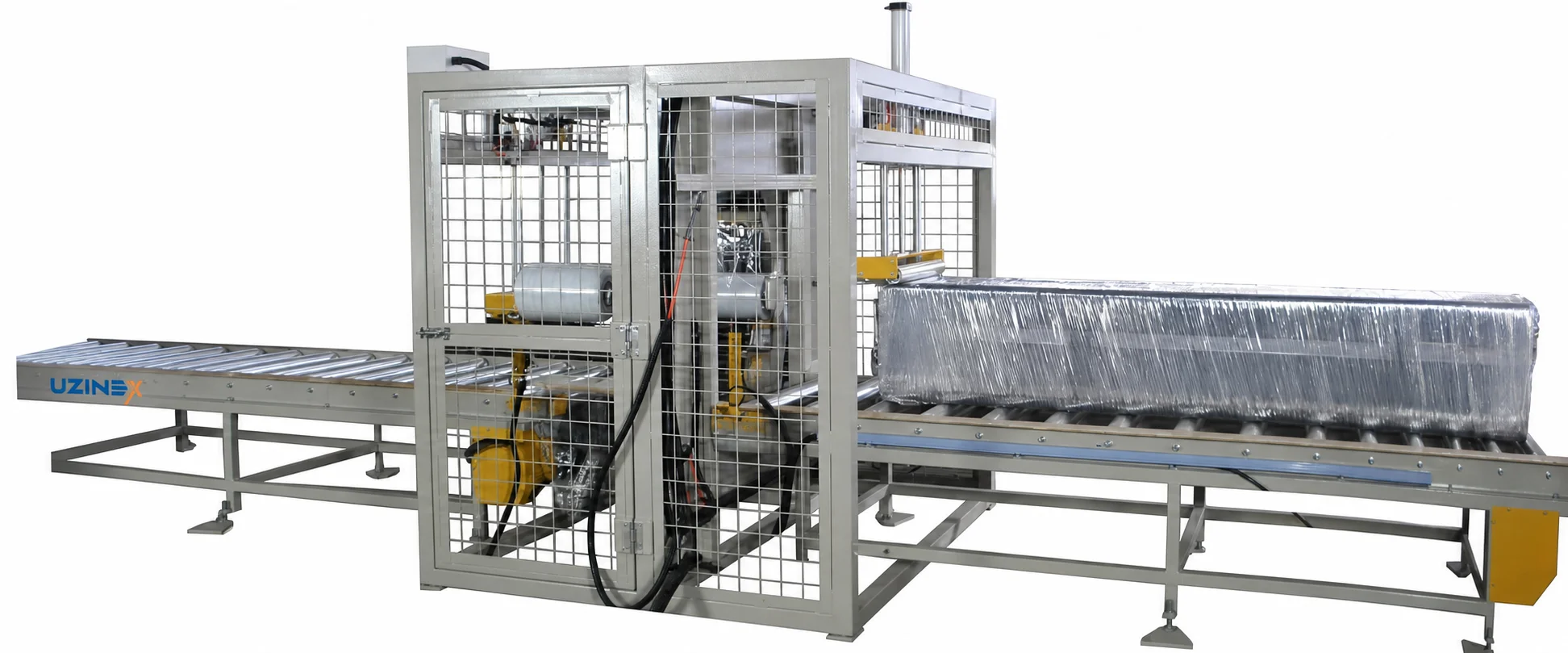

The KPW-SP1000 horizontal stretch wrapping machine is the industrial machine with a fixed rotating ring designed for the automatic spiral wrapping of elongated products — aluminium and PVC profiles, metal bars, tubes, panels, building materials, rolled textiles and any product with a cross-section between 300×300 mm and 650×650 mm. Unlike turntable machines, the KPW-SP1000 horizontal stretch wrapping machine moves the product through the rotating ring on a 900 mm wide conveyor belt at speeds of 6–12 m/min, while the ring applies LLDPE film in a continuous helical wrap at up to 57 rotations per minute.
PLC control with settings memory, standard three-phase power supply at 380V and an installed power of 3,0 kW place the KPW-SP1000 horizontal stretch wrapping machine in the category of equipment ready for direct integration into continuous-flow production lines — no operators dedicated to packaging, no manual adjustments between products and no downtime between cycles. Key Advantages of the KPW-SP1000 Horizontal Stretch Wrapping Machine
• Rotating ring Ø1.000 mm — products up to 650×650 mm — the KPW-SP1000 horizontal stretch wrapping machine accepts any product that fits within the ring envelope: square, rectangular or circular sections with dimensions between 300×300 mm and 650×650 mm (width × height), with weights of up to 1.000 kg per linear meter of conveyor belt.
• Ring speed 19–57 r/min with variable control — the KPW-SP1000 horizontal stretch wrapping machine adjusts the ring speed independently of the conveyor belt speed, allowing precise adjustment of the film spiral overlap according to the product type, film thickness and required level of protection.
• 900 mm conveyor belt at 6–12 m/min — the conveyor belt speed of the KPW-SP1000 horizontal stretch wrapping machine is correlated with the ring speed to achieve the desired overlap density; elongated products of any length are wrapped continuously without limitation on the longitudinal dimension.
• Continuous helical wrapping without stops — unlike turntable machines that process one product per cycle, the KPW-SP1000 horizontal stretch wrapping machine operates in continuous flow: one product enters the belt while another already exits wrapped, maximizing productivity at the end of the production line.
• Compatibility with stretch film and composite paper — the KPW-SP1000 horizontal stretch wrapping machine accepts both standard LLDPE film (100–300 mm width, 76 mm core) and composite paper for products that require additional protection against scratches or moisture in transit.
• PLC control with multi-product settings memory — the wrapping parameters for each product type are saved in the PLC memory of the horizontal stretch wrapping machine; changing the product on the line requires no manual adjustments — the operator selects the corresponding program and production continues immediately.
• Three-phase 380V power supply — direct integration into industrial halls — the KPW-SP1000 horizontal stretch wrapping machine connects to standard industrial electrical infrastructure without auxiliary equipment; the 3,0 kW power rating ensures continuous operation with low energy consumption relative to the productivity achieved.
• Robust structure ~1.000 kg for intensive industrial use — the heavy-duty construction of the KPW-SP1000 horizontal stretch wrapping machine ensures stability and wrapping precision even at maximum ring speeds, eliminating the vibrations that affect the quality of film application on long products.
Technical Specifications — KPW-SP1000 Horizontal Stretch Wrapping Machine
| Parameter | Value |
|---|---|
| Model | KPW-SP1000 |
| Rotating ring diameter | 1.000 mm |
| Accepted product dimensions (W × H) | 300×300 mm — 650×650 mm |
| Maximum product weight | 100–1.000 kg/lm belt |
| Rotating ring speed | 19–57 r/min (adjustable) |
| Conveyor belt width | 900 mm |
| Conveyor belt speed | 6–12 m/min (adjustable) |
| Compatible film type | LLDPE stretch film / composite paper |
| Accepted film width | 100–300 mm |
| Film core inner diameter | 76 mm (standard) |
| Control | Automatic PLC with settings memory |
| Installed power | 3,0 kW |
| Power supply | 380V, 50Hz, three-phase |
| Net machine weight | ~1.000 kg |
Applications — Which Products the KPW-SP1000 Horizontal Stretch Wrapping Machine Wraps
The KPW-SP1000 horizontal stretch wrapping machine solves the specific challenge of elongated products — the category for which turntable machines are unsuitable and manual wrapping is slow, uneven and costly. The fixed rotating ring principle, through which the product passes on the belt, is precisely the mechanism that produces a continuous, repeatable and perfectly controlled helical wrap over any product length.
• Aluminium and PVC profile industry — extruded profiles made of aluminium, PVC, polystyrene and other plastics are wrapped in grouped packs or individually, protected against scratches and contamination during transport and storage; the KPW-SP1000 horizontal stretch wrapping machine maintains wrap uniformity even at lengths of 6–8 metres per profile.
• Pipe and tube production — pipes made of metal, PVC, PE and other plastics, grouped into cylindrical or square packs, are wrapped compactly on the horizontal stretch wrapping machine to secure the pack and protect surfaces during handling with forklift or crane.
• Metallurgical industry — metal bars and profiles — round, square and hexagonal bars made of steel, aluminium or copper are grouped and wrapped on the KPW-SP1000 horizontal stretch wrapping machine for safe transport without displacement of the individual elements within the pack.
• Panel and board production — plasterboard, OSB, particleboard, solid wood or composite panels stacked in flat packs are protected on all faces by the spiral wrapping of the horizontal stretch wrapping machine, reducing damage to the edges and corners typical of warehouse handling.
• Textile and carpet industry — fabric rolls, rolled carpets, rugs and other elongated textile materials are wrapped on the KPW-SP1000 horizontal stretch wrapping machine with film or composite paper for complete protection against dust and moisture in the warehouse and in transit.
• Elongated building materials — construction timber, beams, panelling, packed flooring and any other elongated product in the construction sector benefit from the uniform protection provided by the continuous helical wrapping of the horizontal stretch wrapping machine.
How the KPW-SP1000 Horizontal Stretch Wrapping Machine Works — The Rotating Ring Principle
The KPW-SP1000 horizontal stretch wrapping machine uses a different principle from all the other wrapping machines in the KPW range — the product does not rotate; instead, the ring rotates around the product as it advances on the belt. This architecture completely eliminates the length limitation and allows continuous wrapping of products of any longitudinal dimension, from 50 cm to several metres.
• Product feeding onto the belt — the product (profile, bar pack, textile roll) is placed on the conveyor belt of the KPW-SP1000 horizontal stretch wrapping machine at the line entry, manually or automatically via a feeding conveyor.
• Controlled advance through the ring — the conveyor belt moves the product through the centre of the rotating ring at the speed set in the PLC (6–12 m/min); the advance speed, together with the ring speed, determines the density of the film spirals applied to the product.
• Continuous helical wrapping — the rotating ring of the horizontal stretch wrapping machine spins at 19–57 r/min, applying LLDPE film in overlapping spirals over the product surface; the film tension and spiral overlap are adjusted from the PLC without stopping the machine.
• Wrapped product output — the product exits the KPW-SP1000 horizontal stretch wrapping machine fully wrapped along its entire length; the operator cuts the film at the ends, or the machine can be fitted with an automatic cutting system for a fully unattended flow.
• Continuous cycle without downtime — immediately after one product exits, the KPW-SP1000 horizontal stretch wrapping machine is ready for the next product without reset, without adjustments and without manual intervention; line productivity is determined solely by the product feeding rate.
Frequently Asked Questions about the Horizontal Stretch Wrapping Machine
What is the difference between the horizontal stretch wrapping machine and a turntable machine?
On the KPW-SP1000 horizontal stretch wrapping machine, the rotating ring is fixed and the product passes through it on the conveyor belt — suitable for elongated products of any length. On turntable machines (such as the KPW-YT2000), the product sits on a platform that rotates — suitable for compact, heavy or cylindrical products. The two types complement each other and cover different product categories. Can the KPW-SP1000 horizontal stretch wrapping machine wrap products of different lengths without adjustments?
Yes. The KPW-SP1000 horizontal stretch wrapping machine has no limitation on the longitudinal dimension of the product — the ring applies the film continuously along the entire length of the product passing through it. Changing the product length requires no machine adjustment; the only adjustments needed concern the spiral density, set via the ring speed/belt speed ratio in the PLC. What film is used with the KPW-SP1000 horizontal stretch wrapping machine?
The KPW-SP1000 horizontal stretch wrapping machine uses standard LLDPE (Linear Low-Density Polyethylene) film with a width between 100 and 300 mm and a 76 mm inner core diameter — a format available from any packaging consumables supplier in Romania. The machine also accepts composite paper for products that require additional scratch protection, such as anodized or painted aluminium profiles. Can the horizontal stretch wrapping machine be integrated into an automatic production line?
Yes. The KPW-SP1000 horizontal stretch wrapping machine is designed for integration at the end of the production line or into automated logistics flows. The conveyor belt connects to adjacent conveyors, and the PLC can be interfaced with the line control system for automatic start/stop on product arrival, without operators dedicated to the packaging station. What is the actual productivity of the KPW-SP1000 horizontal stretch wrapping machine?
The productivity of the KPW-SP1000 horizontal stretch wrapping machine depends on the product length and the wrapping density set. At the maximum belt speed of 12 m/min and average product lengths of 6 metres, the machine processes up to 2 products per minute in continuous flow. A higher spiral density reduces the advance speed but increases protection — the optimal balance is set once in the PLC for each product type. Why Choose UZINEX for the KPW-SP1000 Horizontal Stretch Wrapping Machine
UZINEX delivers the KPW-SP1000 horizontal stretch wrapping machine with the same complete service package available for the entire range of industrial equipment — from transport and physical installation to operator training and post-sale technical support throughout the entire warranty period and beyond.
• Transport and commissioning included — the KPW-SP1000 horizontal stretch wrapping machine (~1.000 kg) requires handling equipment for installation; UZINEX coordinates the entire logistics process and commissions the machine at the client's site, verifying the PLC parameters for the client's specific products.
• Extended 60-month warranty — the longest warranty term available on the local market for industrial wrapping machines; the horizontal stretch wrapping machine is fully covered for manufacturing defects, with spare parts permanently in stock for rapid intervention.
• National service network with 24–48h response — UZINEX service engineers are available nationwide; for a horizontal stretch wrapping machine integrated into the production line, minimizing downtime is the top priority, and UZINEX guarantees rapid intervention anywhere in Romania.
• User manuals with Artificial Intelligence — the technical documentation of the KPW-SP1000 horizontal stretch wrapping machine is accessible through an AI interface for fast diagnostics, reducing dependence on the service technician for routine maintenance situations or parameter reconfiguration.
• Financing through credit and leasing — flexible financing solutions for purchasing the horizontal stretch wrapping machine; the savings in labour and consumables generated by automating the wrapping process can cover the monthly instalment within the first year of operation, turning the investment into an asset with rapid returns.
• European funds eligibility — the KPW-SP1000 horizontal stretch wrapping machine can be included in modernization and automation projects funded by European funds (the Regional Programme, Just Transition, NRRP); UZINEX provides the technical documentation required for the funding file and has proven experience in processing procurement for EU fund beneficiaries.
• Complete industrial packaging portfolio — from semi-automatic machines for small volumes to fully automated lines with rotating rings and 2.000 kg industrial platforms, UZINEX covers all the stretch wrapping needs of a growing manufacturer or distributor, through a single technical and commercial partnership.
The KPW-SP1000 horizontal stretch wrapping machine is the right solution for manufacturers and distributors of profiles, bars, tubes and any elongated products who want to eliminate slow, uneven manual wrapping — replacing it with a continuous automatic cycle, PLC-controlled, integrated directly into the existing production flow.
