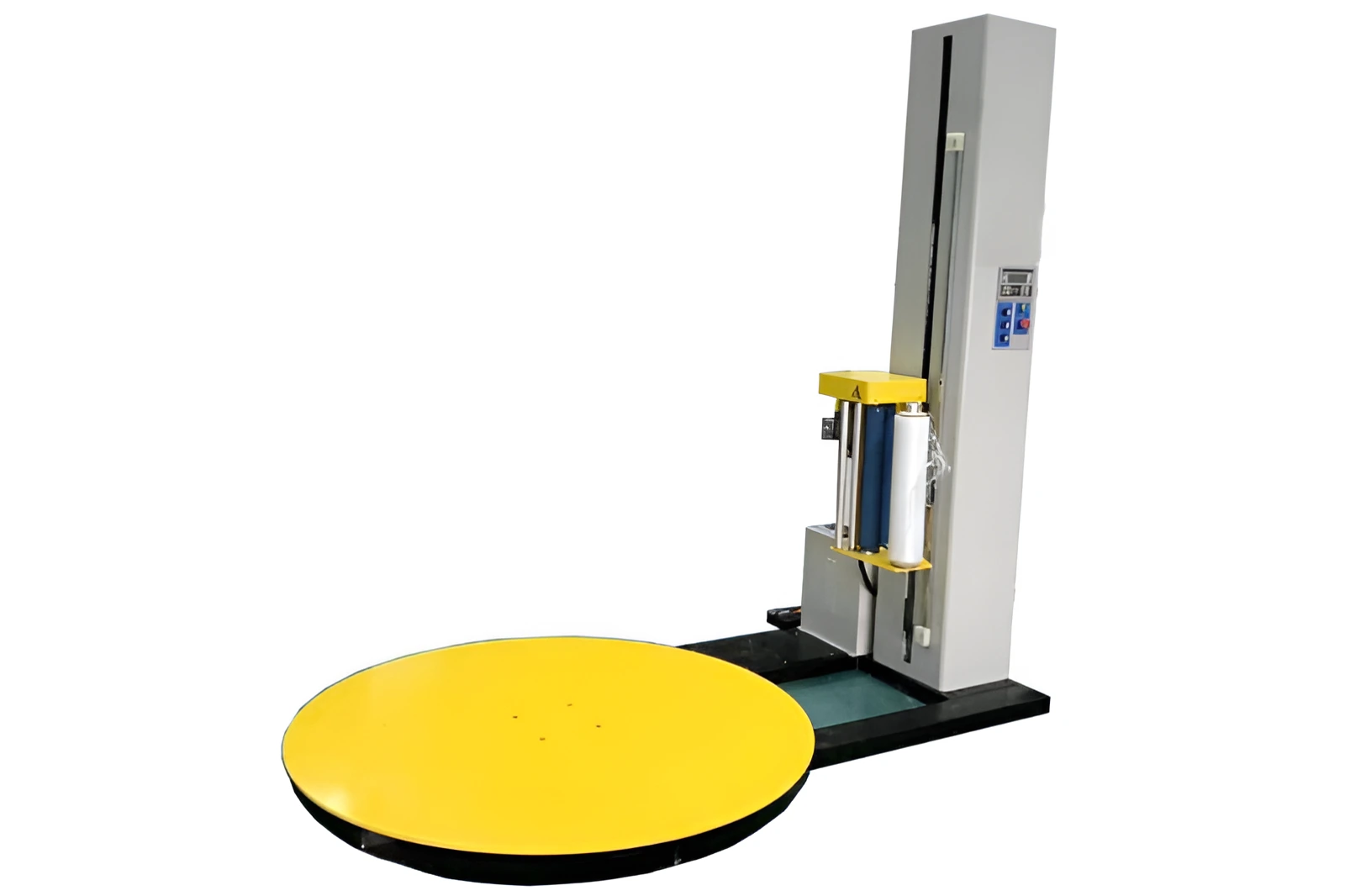

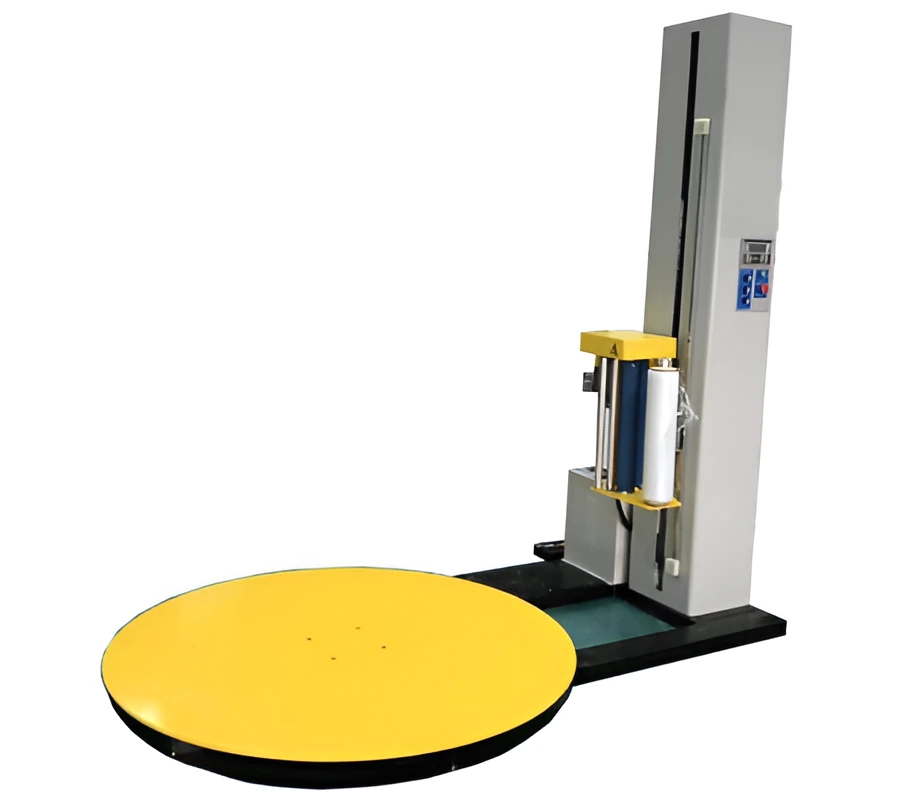

Pallet Wrapping Machine with Stretch Film — Model KPW-TP1650F
The KPW-TP1650F pallet wrapping machine is the essential equipment for any warehouse or production line that ships palletized goods. Using LLDPE stretch film, it automatically wraps pallets of bulk goods, ensuring complete protection against dust, moisture and mechanical damage during transport and storage.
With a maximum load of 2.000 kg, a 1.650 mm turntable and compatibility with pallets up to 1.200×1.200×2.000mm, the KPW-TP1650F pallet wrapping machine integrates quickly into any logistics flow — with no infrastructure changes and no specialized operators.
Key Advantages
• Complete protection of goods — LLDPE film resistant to dust, moisture and mechanical shocks during transport
• Maximum load 2.000 kg — suitable for heavy pallets from any industry
• Adjustable turntable speed — 0–12 r/min, adaptable to the type and weight of the goods
• Reduced energy consumption — 1,5 kW motor, single-phase 220V/110V
• Low packaging costs — LLDPE film has a significantly lower cost per pallet than other protection methods
• Simple operation — accessible interface, no advanced technical training required
• Maximum versatility — usable for glass products, hardware, electronics, paper, ceramics, chemicals, food, beverages and construction materials
Technical Specifications — KPW-TP1650F Pallet Wrapping Machine
| Description | Parameter |
|---|---|
| Model | KPW-TP1650F |
| Turntable diameter | 1.650 mm |
| Turntable speed | 0–12 r/min |
| Package dimensions (L×W×H) | L(500–1.200)mm × W(500–1.200)mm × 2.000mm |
| Maximum load | 2.000 kg |
| Machine dimensions | 2.500 × 1.650 × 2.450 mm |
| Machine weight | 700 kg |
| Machine power | 1,5 kW |
| Machine voltage | 220V / 110V, 50Hz / 60Hz, single-phase |
| Suitable film | LLDPE, thickness 20–35 microns, width 500 mm |
Industries and Applications
The KPW-TP1650F stretch-film pallet wrapping machine is commonly used in logistics and distribution, the food and beverage industry, construction materials production, the glass and ceramics industry, paper and cardboard manufacturing, the chemical and pharmaceutical industry, as well as in electronics and hardware production.
Wherever goods are shipped on pallets, this machine reduces transport losses, eliminates manual film wrapping and significantly shortens the order preparation time for delivery.
Contact the UZINEX team for a personalized quote and free technical consultancy. See also other equipment in the commercial equipment and machinery category available in our portfolio.
