Rotary Arm Pallet Wrapping Machine KPW-YB1800L — Full Automation, 40–50 Pallets/Hour, Production Line Integration

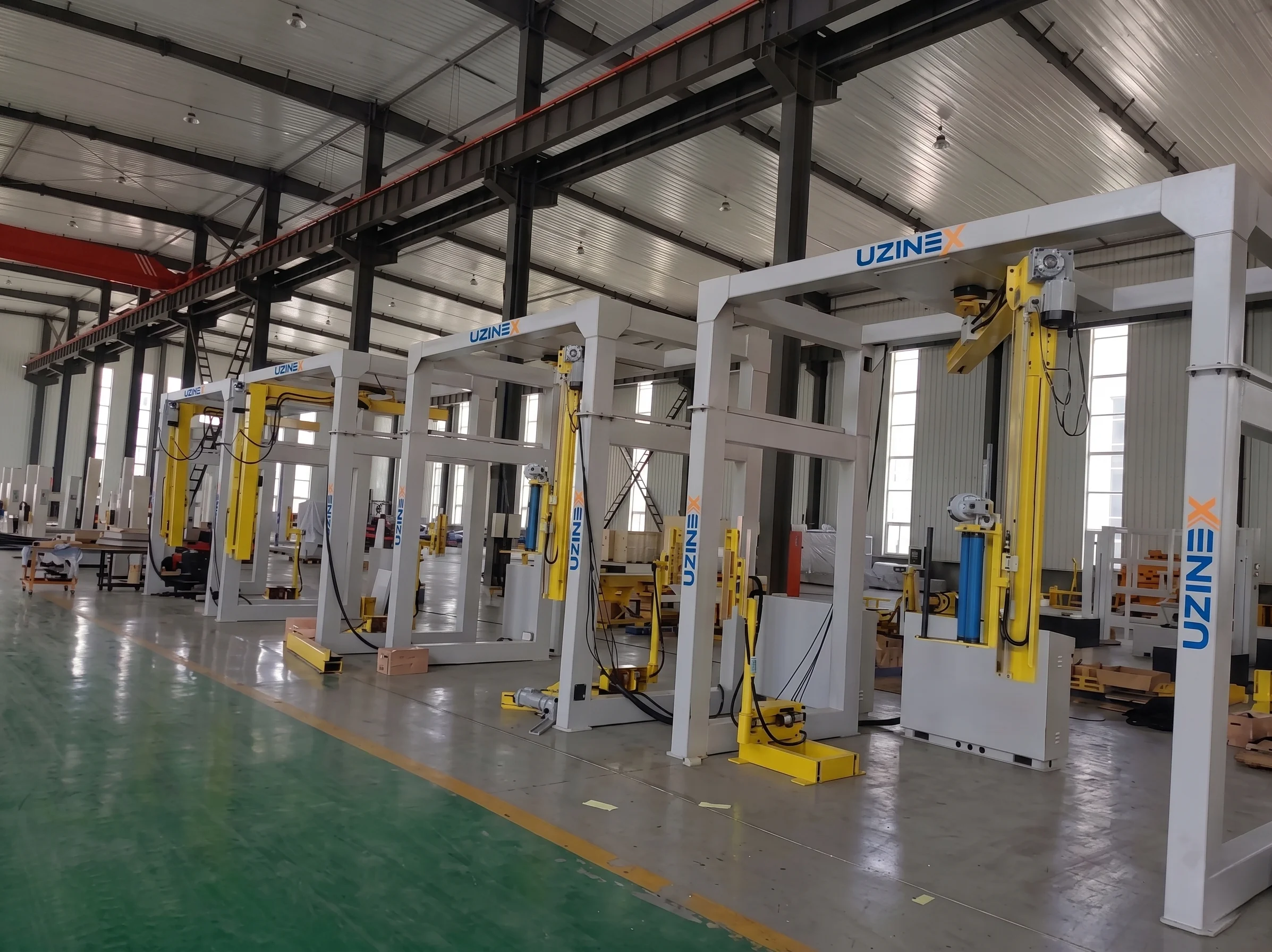

The KPW-YB1800L rotary arm pallet wrapping machine is the automated LLDPE stretch film wrapping solution for high-volume production lines, where the pallet stays stationary while the rotary arm moves around it. Unlike turntable machines, this system eliminates mechanical stress on unstable or heavy loads — the pallet does not rotate, the arm wraps around it.
With a PLC control system, a touch-screen interface, automatic detection via photoelectric sensors, an automatic film cutter at the end of the cycle and a capacity of 40–50 pallets per hour , the KPW-YB1800L rotary arm wrapping machine integrates directly into production lines with roller, belt or double rotary platform conveyors.
Key Advantages
• Fully automatic operation — automatic start when the pallet is detected by photoelectric sensors and PLC, automatic film cutter at the end of the cycle, automatic return to the home position
• Rotary arm — the pallet stays stationary — ideal for unstable, heavy or rotation-sensitive loads; maximum load 1.000 kg/pallet
• High productivity — approximately 40–50 pallets per hour in continuous flow
• Customizable wrapping cycle — 5–9 preset programs, top/bottom/reinforcement layer control, film tension adjustment — all via the touch-screen interface
• Pre-stretch system and film control — significant reduction in film consumption per pallet compared to manual wrapping
• Enhanced safety — automatic stop on collision with an obstacle, perimeter protection, durable frame with no rotating zone at pallet level
• Easy to clean — design with no turntable, also suitable for the food industry
• Production line integration — compatible with roller and belt conveyors and a double rotary platform
• Optional accessories — pneumatic press, integrated weighing scale, top sheet dispenser, conveyor belts, advanced control
Technical Specifications — Rotary Arm Pallet Wrapping Machine KPW-YB1800L
| Description | Parameter |
|---|---|
| Model | KPW-YB1800L |
| Package size (L×W×H) | 1.200mm × 1.000mm × 1.600mm |
| Rotary arm speed | 0–15 r/min |
| Maximum load | 1.000 kg/pallet |
| Machine power | 2,5 kW |
| Machine voltage | 380V, 50Hz, three-phase |
| Compressed air consumption | 1.500 ml/min |
| Work table height | 580mm ± 10mm |
| Suitable film | LLDPE, thickness 20–35 microns, width 500mm |
| Film roll inner diameter | 76,2mm |
| Film roll outer diameter | 250mm |
| Machine weight | 1.500 kg |
| Machine dimensions | 3.100 × 2.000 × 3.250mm |
When Is the Rotary Arm Machine the Right Choice?
The KPW-YB1800L rotary arm pallet wrapping machine is the ideal choice when the palletized load is too heavy, unstable or sensitive to be rotated on a turntable. The arm rotates around the stationary pallet, eliminating centrifugal forces and the risk of load shifting during wrapping.
It is used in the food and beverage industry, construction materials manufacturing, chemicals, electronics, hardware and any sector with automated shipping lines where wrapping volume and speed are critical factors.
Contact the UZINEX team for a tailored quote and free technical consultancy. Discover the full range of commercial equipment and machinery available in our portfolio.
