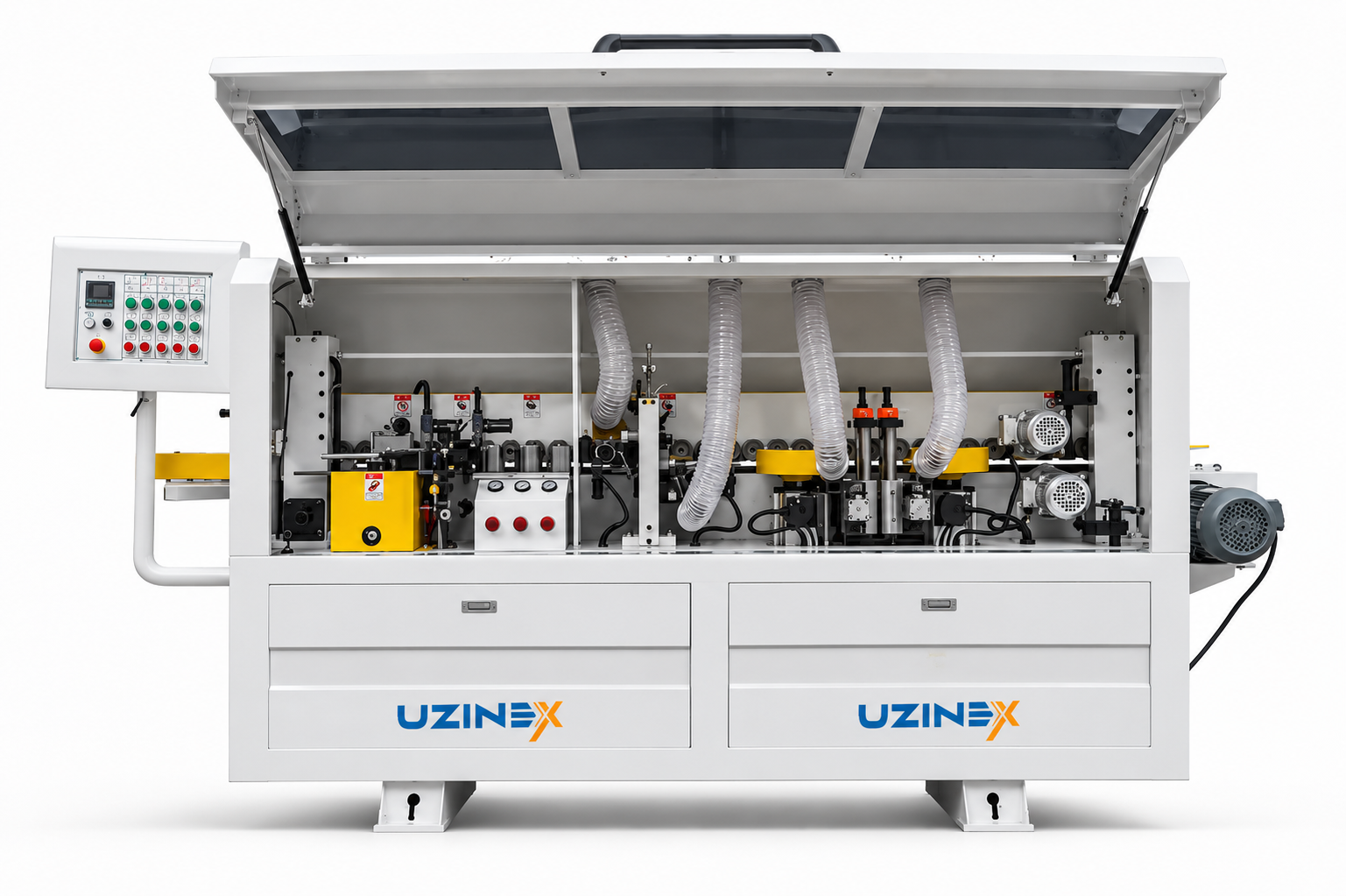

The semi-automatic edge banding machine for plywood, portable, for small workshops is the compact edge banding equipment for joiners, small production workshops and custom furniture makers who need to apply edge banding to straight and curved edges on panels of MDF, chipboard, plywood, solid wood and aluminium honeycomb panels, without the investment in a large, high-cost automatic machine. The semi-automatic edge banding machine for plywood, portable, for small workshops has a feed speed of 12–22m/min, panel thickness of 10–60mm and edge thickness of 0,4–3mm at a working pressure of 0,6MPa.
The semi-automatic edge banding machine for plywood, portable, for small workshops is equipped with a low-voltage electrical device by LS Korea Power Generation, a temperature control panel by Autonics Korea, a travel switch by Kaikun Korea and a WSN cylinder. It performs in a semi-automatic cycle: adhesive gluing, edge band application, fine trimming, milling, sanding and polishing. Transport, installation and commissioning included. 60-month warranty.
Technical specifications — semi-automatic edge banding machine for plywood, portable, for small workshops
| Parameter | Value |
|---|---|
| Feed speed | 12 – 22 m/min |
| Panel thickness | 10 – 60 mm |
| Edge band thickness | 0,4 – 3 mm |
| Working pressure | 0,6 MPa |
| Low-voltage electrical device | LS Power Generation — Korea |
| Temperature control panel | Autonics — Korea |
| Travel switch | Kaikun — Korea |
| Cylinder | WSN |
Integrated functions — semi-automatic edge banding machine for plywood, portable, for small workshops
| Function | Description |
|---|---|
| Adhesive gluing | Uniform application of EVA adhesive on the panel edge |
| Edge band application | Banding of PVC / veneer / melamine edge band 0,4–3mm |
| Fine trimming | Trimming the ends of the edge band to the exact length |
| Milling | Removing the excess edge band above and below |
| Sanding | Smoothing the edge band corner after milling |
| Polishing | Final finishing of the edge band surface |
Compatible materials
| Panel material | Edge type |
|---|---|
| MDF (plain / painted / foiled) | Straight + curved |
| Chipboard (with/without melamine) | Straight + curved |
| Eco panels | Straight + curved |
| Structural and decorative plywood | Straight + curved |
| Solid wood | Straight + curved |
| Aluminium honeycomb panels | Straight + curved |
The semi-automatic edge banding machine for plywood, portable, for small workshops is configured at the quotation stage. Free technical consultancy available.
Advantages of the semi-automatic edge banding machine for plywood, portable, for small workshops
• Portable and compact — moved and installed without fixed infrastructure — the semi-automatic edge banding machine for plywood, portable, for small workshops is designed as compact equipment, light enough to be moved and reinstalled in the workshop without floor anchors or fixed high-capacity pneumatic infrastructure. This portability of the semi-automatic edge banding machine for plywood, portable, for small workshops allows small workshops to reorganise their work space or to transport the equipment to the job site or to the customer who needs on-site edge banding.
• Straight and curved edges in the same equipment — maximum versatility for custom furniture — the semi-automatic edge banding machine for plywood, portable, for small workshops can apply edge banding both on the straight edges of standard panels and on the curved edges of profiled furniture fronts, rounded kitchen consoles and decorative panels with special contours. This capability of the semi-automatic edge banding machine for plywood, portable, for small workshops sets it apart from fixed-edge automatic machines that cannot process curved geometries without costly special accessories.
• LS Korea, Autonics Korea, Kaikun Korea components and WSN cylinder — reliability in continuous production — the semi-automatic edge banding machine for plywood, portable, for small workshops uses LS Power Generation Korea electrical devices, an Autonics Korea temperature panel, a Kaikun Korea switch and a WSN cylinder. The quality of these components ensures the stable operation of the semi-automatic edge banding machine for plywood, portable, for small workshops at 12–22m/min, without temperature variations or pressure fluctuations.
• Adjustable feed speed 12–22m/min — adaptation to material and operator experience — the semi-automatic edge banding machine for plywood, portable, for small workshops allows the feed speed to be adjusted between 12m/min for curved panels or 3mm thick edge banding that requires more pressing and gluing time and 22m/min for straight panels with thin 0,4mm edge banding. The speed flexibility of the semi-automatic edge banding machine for plywood, portable, for small workshops also makes it accessible to operators with no prior experience, who can start at low speed and increase progressively.
• Compatibility with MDF, chipboard, plywood, solid wood and aluminium honeycomb panels — a single piece of equipment for all materials in the workshop — the semi-automatic edge banding machine for plywood, portable, for small workshops processes all panel materials used in joinery and furniture workshops: 18mm MDF panels for kitchen carcasses, 12mm plywood for cabinet backs, 40mm solid wood for fronts and worktops and aluminium honeycomb panels for lightweight composite doors. This wide range of the semi-automatic edge banding machine for plywood, portable, for small workshops eliminates the need for different equipment for different panel types.
• Complete 6-stage cycle: gluing, banding, trimming, milling, sanding, polishing — finished edge with no additional manual operations — the semi-automatic edge banding machine for plywood, portable, for small workshops completes the panel edge in 6 successive stages within the same compact equipment. The panel exits the semi-automatic edge banding machine for plywood, portable, for small workshops with the edge band applied, trimmed, milled, sanded and polished, ready for assembly or finishing — with no additional manual sanding. 60-month UZINEX warranty, national technical support within 24–48 hours.
Applications — semi-automatic edge banding machine for plywood, portable, for small workshops
Joiners and made-to-order furniture workshops with varied orders and small volumes use the semi-automatic edge banding machine for plywood, portable, for small workshops as their main edge banding equipment, replacing manual edge banding with adhesive and spatula — a slow method, with variable gluing quality and a risk of bubbles and non-adhesion. The semi-automatic edge banding machine for plywood, portable, for small workshops ensures consistent edge band quality along the entire length of the panel, regardless of operator experience.
Custom furniture makers — made-to-order wardrobes, bookcases with special shapes, tables with curved contours — use the semi-automatic edge banding machine for plywood, portable, for small workshops thanks to its ability to band curved edges without additional accessories. Furniture with profiles and special contours requires equipment that follows the panel shape at low speed, and the semi-automatic edge banding machine for plywood, portable, for small workshops allows the speed to be adjusted to 12m/min for complex geometries.
Frequently asked questions about the semi-automatic edge banding machine for plywood, portable, for small workshops
What types of edge banding can the semi-automatic edge banding machine for plywood, portable, for small workshops apply?
The semi-automatic edge banding machine for plywood, portable, for small workshops processes PVC edge banding, natural or engineered veneer edge banding, melamine edge banding and plastic edge banding, with thicknesses of 0,4–3mm. The type of EVA adhesive and the reservoir temperature are adjusted according to the edge band type. At installation, UZINEX provides the recommended settings for the materials used in the specific production.
Is the semi-automatic edge banding machine for plywood, portable, for small workshops eligible for European funding?
Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for EU-funded projects. The semi-automatic edge banding machine for plywood, portable, for small workshops can be listed in SEAP/SICAP. Leasing and credit options on the UZINEX credit and leasing page.
Why UZINEX for the semi-automatic edge banding machine for plywood, portable, for small workshops
• Configuration included — UZINEX sets up the semi-automatic edge banding machine for plywood, portable, for small workshops with the optimal parameters for the materials and edge band types in the customer's production.
• Transport, installation and commissioning included — complete installation and operator training.
• 60-month warranty — extended coverage for made-to-order furniture production.
• Spare parts in stock — WSN, LS Korea, Autonics components quickly available in Romania.
• National technical support within 24–48 hours — technicians with nationwide coverage.
• Eligible for European funding — complete technical documentation for PNRR, POR and other active programmes.
Semi-automatic edge banding machine for plywood, portable, for small workshops UZINEX — portable, straight+curved edges, 12–22m/min, edge band 0,4–3mm, panel 10–60mm, 0,6MPa, LS Korea Power Generation + Autonics Korea + Kaikun Korea + WSN cylinder, 6 stages (gluing+banding+trimming+milling+sanding+polishing), compatible with MDF/chipboard/plywood/solid wood/aluminium honeycomb, 60-month warranty, transport, installation and commissioning included throughout Romania.
