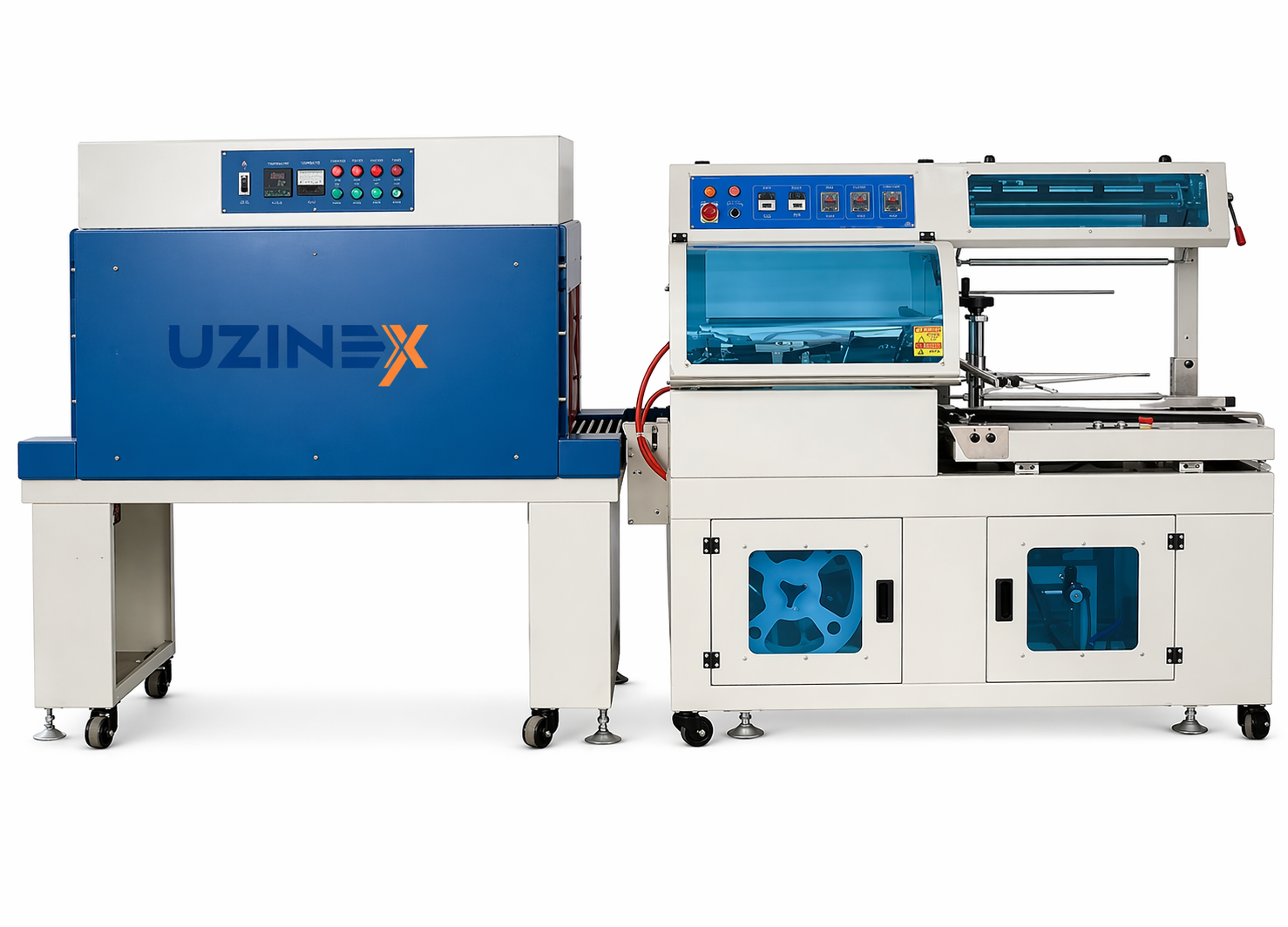

L-Bar Sealing Machine with Shrink Tunnel KPW-FL550

The L-bar sealing machine with shrink function KPW-FL550 is the automatic all-in-one equipment that combines, in a single compact unit, L-shaped sealing (L-bar sealing) and a heat-shrink tunnel — wrapping the product in shrink film, automatically sealing and cutting the two perpendicular seams and immediately shrinking the film around the product, with a maximum film width of 550 mm, compatible with PE, PP, PVC and POF films, with digital control of temperature, speed and shrinking time and a stainless steel frame for intensive use.

The L-bar sealing machine with shrink function KPW-FL550 eliminates the need for two separate machines (an L-sealer and a standalone shrink tunnel) by integrating both functions into a single continuous flow: the operator inserts the product into the film centred on the conveyor, the L-shaped bar simultaneously seals and cuts the front and side seam, and the product passes immediately through the integrated shrink zone, where it exits with the packaging uniformly shrunk, ready for labelling or shipping. Key Advantages of the L-Bar Sealing Machine with Shrink Function KPW-FL550

• All-in-one L-sealer + shrink tunnel — a single machine instead of two — the L-bar sealing machine with shrink function KPW-FL550 combines L sealing and a heat tunnel in a single piece of equipment; compared with the solution of two separate units (L-sealer + BSE6040A tunnel), the L-bar sealing machine with shrink function KPW-FL550 requires less space on the workshop floor, a single electrical connection, a single parameter-setting operation and a single point of intervention for service.

• Film width up to 550 mm — the largest in the compact L-sealer category — the L-bar sealing machine with shrink function KPW-FL550 processes films up to 550 mm wide, allowing the packaging of products with significant cross dimensions; with centre-folded film 550 mm wide, products up to approximately 220–250 mm wide can be fully wrapped and sealed without incomplete seams or insufficient film on the sides.

• L sealing — front and side seam simultaneously, a single cycle — the L-bar sealing machine with shrink function KPW-FL550 uses an L-shaped sealing bar that simultaneously applies the front seam (perpendicular to the advance direction) and the side seam (parallel to the product); the two seams are made and cut in a single cycle of the bar, unlike sequential sealing which requires two separate cycles and doubles the idle time per package.

• Integrated heat shrinking — film uniformly conformed immediately after sealing — the L-bar sealing machine with shrink function KPW-FL550 shrinks the film immediately after L sealing, in the heat zone integrated within the equipment body; the product does not need to be transferred manually or on an additional conveyor to a separate tunnel; the flow is continuous from product feeding to the fully shrink-wrapped package.

• Compatible with PE, PP, PVC and POF — flexibility for any packaging application — the L-bar sealing machine with shrink function KPW-FL550 works with all the main types of shrink film: PE (polyethylene) for industrial bundles and products with high mechanical strength, PP (polypropylene) for products with a neat shelf presentation, PVC for applications with high shrinkage and gloss, and POF (polyolefin) for food and pharmaceutical packaging with excellent transparency and lower sealing temperatures.

• Fully automatic operation — product feeding, sealing, shrinking without continuous intervention — the L-bar sealing machine with shrink function KPW-FL550 operates automatically after the initial parameters are set; the operator places the products on the conveyor and collects them packaged at the outlet; the L-shaped bar descends and seals automatically when it detects the product, with no manual actuation per cycle, reducing operator fatigue and packaging-quality variability.

• Digital LCD control panel — setting temperature, speed and shrinking time — the L-bar sealing machine with shrink function KPW-FL550 has a digital control panel with an LCD display for setting and monitoring all operating parameters: the sealing-bar temperature, the shrink-zone temperature, the conveyor speed and the sealing-cycle duration; the set parameters are visible in real time and can be adjusted without stopping production.

• Stainless steel frame — corrosion resistance and easy-to-maintain hygiene — the L-bar sealing machine with shrink function KPW-FL550 has a stainless steel structure resistant to corrosion, chemical cleaning products and moisture; the smooth stainless surfaces are easy to clean when changing the type of product or during the periodic disinfections required in the food, pharmaceutical and cosmetic industries.

Technical Specifications — L-Bar Sealing Machine with Shrink Function KPW-FL550

The L-Bar Sealing Machine with Shrink Function KPW-FL550 versus the BSE6040A Tunnel — When to Choose Each

The UZINEX range of shrink-packaging equipment includes both the all-in-one solution (the L-bar sealing machine with shrink function KPW-FL550) and the standalone tunnel (BSE6040A); the correct choice depends on the production volume, the product dimensions and the configuration of the existing line:

• Choose the L-bar sealing machine with shrink function KPW-FL550 if you do not have an existing L-sealer in the line and want a compact all-in-one solution; if the workshop space is limited and you cannot allocate the area for two machines in series; if you produce varied product formats with dimensions below the 550 mm film width; or if the production volume is medium and does not require the maximum speed of a separate industrial tunnel.

• Choose the standalone BSE6040A tunnel if you already have an L-sealer or a sleeve wrapping machine installed and want to add shrinking capacity only; if you package heavy industrial bundles with thick PE film that requires the 24 kW thermal power of the dedicated tunnel; or if the production rate requires a tunnel with a 1.800 mm heat zone for prolonged exposure of products that are hard to shrink.

• The essential practical difference — the L-bar sealing machine with shrink function KPW-FL550 seals and shrinks in the same machine; the BSE6040A tunnel only shrinks, assuming the product has already been sealed upstream; for an operator starting a shrink-packaging line from scratch, the KPW-FL550 is the natural entry point that eliminates an additional investment.

Applications — What Products the L-Bar Sealing Machine with Shrink Function KPW-FL550 Packages

• Retail and consumer products — attractive individual packaging in POF or PP film — the L-bar sealing machine with shrink function KPW-FL550 produces individual shrink packaging for consumer products destined for the shelf: cosmetics, accessories, toys, stationery articles and any product with variable dimensions requiring attractive, transparent and protective packaging; the high-transparency POF film applied by the L-bar sealing machine with shrink function KPW-FL550 showcases the product and provides protection against dust and handling.

• Food industry — fresh and pastry products — the L-bar sealing machine with shrink function KPW-FL550 packages pastry products, sliced bread, fresh vegetables and fruit in PE or POF film; the shrink packaging maintains the product's freshness and provides uniform shelf presentation; the film shrunk tight to the product reduces movement in the packaging and visually extends shelf life.

• Pharmaceuticals and parapharmaceuticals — tamper-evident packaging — the L-bar sealing machine with shrink function KPW-FL550 produces the protective shrink packaging on medication boxes, supplements and medical devices; the film shrunk tightly around the box is visibly damaged at any attempt to open it before purchase, assuring the consumer that the product has not been handled.

• Cosmetics and perfumery — premium shelf presentation — the L-bar sealing machine with shrink function KPW-FL550 with transparent POF film produces packaging with high gloss and clean sealing edges, compatible with the presentation standards of cosmetics and perfumery; the stainless steel frame and the precise temperature control ensure consistent sealing quality and a uniform appearance from one product to another.

• Printers and publishers — books, albums, office sets — the L-bar sealing machine with shrink function KPW-FL550 packages individual books, photo albums, calendars and office sets in transparent POF or PP film; the shrink packaging protects the corners and scratch-sensitive printed surfaces during transport and storage.

• Electronics and accessories — presentation packaging with moisture protection — the L-bar sealing machine with shrink function KPW-FL550 packages electronic accessories, component boxes, mice, headphones and other medium-sized products in PE or POF film; the shrink packaging provides protection against moisture and dust during storage in non-climate-controlled warehouses and a professional presentation appearance on the retail shelf.

• Toy industry — individual packaging for sets and accessories — the L-bar sealing machine with shrink function KPW-FL550 packages toy sets, individual pieces and accessories in shrink film with high transparency; the maximum film width of 550 mm also covers large toy boxes, and the automatic L sealing ensures clean edges that meet the presentation standards of the toy industry.

How the L-Bar Sealing Machine with Shrink Function KPW-FL550 Works — The Complete Cycle

The L-bar sealing machine with shrink function KPW-FL550 completes shrink packaging in four automatic stages, all integrated within the same compact equipment:

• Stage 1 — Film centring and product insertion — the centre-folded shrink film from the roll forms a flat tube open at both ends; the operator inserts the product into the tube on the feed belt of the L-bar sealing machine with shrink function KPW-FL550, centred relative to the film width.

• Stage 2 — L sealing and cutting — the L-shaped sealing bar of the L-bar sealing machine with shrink function KPW-FL550 descends and simultaneously applies the perpendicular front seam and the side seam parallel to the product; the blade integrated in the sealing bar cuts the film simultaneously with the sealing, separating the package from the film roll without a separate cutting step.

• Stage 3 — Integrated heat shrinking — the sealed package passes immediately into the shrink zone integrated within the body of the L-bar sealing machine with shrink function KPW-FL550; hot air at the set temperature shrinks the film uniformly over all surfaces of the product, eliminating the air under the film and adhering tightly to the product's contour.

• Stage 4 — Finished package discharge — the package with the shrunk film exits onto the discharge belt of the L-bar sealing machine with shrink function KPW-FL550, ready for labelling, visual inspection or shipping; the entire cycle repeats automatically when the next product is inserted on the feed belt.

Frequently Asked Questions about the L-Bar Sealing Machine with Shrink Function KPW-FL550

Can the L-bar sealing machine with shrink function KPW-FL550 package products of variable height?

Yes. The L-bar sealing machine with shrink function KPW-FL550 is adjusted for products of different heights by adjusting the height of the L sealing bar and the parameters of the shrink zone; the 550 mm film width allows coverage of products with a variable cross perimeter, and the temperature and speed are adjusted from the digital panel for each type of packaged product. What film width is needed relative to the product dimensions?

The film width required for the L-bar sealing machine with shrink function KPW-FL550 is calculated as the cross perimeter of the product (2 × width + 2 × height) plus a surplus of 30–50 mm for film overlap and seam formation; for a product 200 mm wide and 80 mm high, the minimum film width required is approximately 590–610 mm — in this case a model with wider film would be needed; UZINEX engineers calculate the optimal film width for the customer's specific products before purchase. Does the L-bar sealing machine with shrink function KPW-FL550 require compressed air?

No. The L-bar sealing machine with shrink function KPW-FL550 operates exclusively on electricity; there are no pneumatic components in the mechanism and no compressed-air installation is required; a standard electrical connection is sufficient for full operation of the equipment. How does the L-bar sealing machine with shrink function KPW-FL550 differ from sleeve wrapping machines?

The L-bar sealing machine with shrink function KPW-FL550 seals the film on two perpendicular sides (L-shaped) from a flat centre-folded film tube; sleeve wrapping machines apply the film as a continuous sleeve on long products (profiles, bundles, books) and seal only at the ends; the L-bar sealing machine with shrink function KPW-FL550 is suitable for individual products with regular shapes, while sleeve machines are for products of variable or unlimited length. Why Choose UZINEX for the L-Bar Sealing Machine with Shrink Function KPW-FL550

The L-bar sealing machine with shrink function KPW-FL550 is equipment with two critical integrated functions — sealing and shrinking — where the correct calibration of the bar temperature relative to the shrink-tunnel temperature and of the conveyor speed is essential for defect-free packaging; a bar temperature too low produces incomplete sealing, while a wrong shrinking temperature produces film burns or insufficient shrinking.

• Pre-purchase consultancy — calculating the film width and checking compatibility with the products — UZINEX engineers calculate the film width required for the customer's product dimensions, confirm that the KPW-FL550 with its 550 mm width covers all formats and recommend the type of film suited to the specific application (PE, POF, PP or PVC).

• Free shipping and commissioning included — the L-bar sealing machine with shrink function KPW-FL550 is delivered free of charge anywhere in Romania; at commissioning, UZINEX engineers calibrate the sealing-bar and shrink-zone temperature for the customer's film and product, set the optimal conveyor speed and train the operators in using the control panel and in the sealing-bar cleaning procedures.

• Extended 60-month warranty and spare parts in stock — the L-bar sealing machine with shrink function KPW-FL550 benefits from a 60-month warranty; the wear components — the L sealing bar heating elements, the protective teflon strips, the shrink-zone heating elements and the temperature sensors — are kept permanently in stock at UZINEX.

• National service with 24–48h response — UZINEX service engineers intervene on site anywhere in Romania; as the L-bar sealing machine with shrink function KPW-FL550 integrates two critical functions, any fault simultaneously stops sealing and shrinking, which is why UZINEX prioritizes interventions on this type of equipment.

• Financing through credit and leasing — financing solutions available for the purchase of the L-bar sealing machine with shrink function KPW-FL550; the equipment qualifies for EU-funded projects as an investment in the automation of primary packaging.

• Complete range for shrink packaging — UZINEX offers complete solutions for shrink packaging: the L-bar sealing machine with shrink function KPW-FL550 for the compact all-in-one solution, the BSE6040A tunnel for industrial shrinking capacity in combination with an existing L-sealer, and the sleeve wrapping machines for long or unlimited-length products.

The L-bar sealing machine with shrink function KPW-FL550 is the choice for any operator who wants to package individual products in shrink film with a single compact machine — automatic L sealing and integrated shrinking, film up to 550 mm wide, compatible with PE, PP, PVC and POF, no compressed air and no investment in two separate machines.
