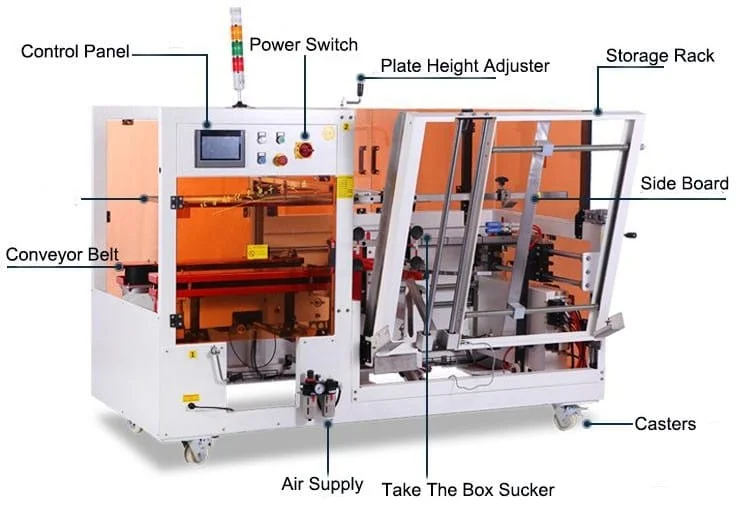

The KPW-KX4040 case erector is the automatic pneumatic erector that transforms flat corrugated cardboard blanks into three-dimensional boxes ready to be filled, and simultaneously seals the base with adhesive tape of 48–72 mm, at a rate of 8–10 boxes formed per minute — processing boxes with a length of 280–600 mm, a width of 230–400 mm and a height of 185–400 mm, with single-phase supply at 220V and compressed-air consumption of 200 L/min at 6 kg/cm².
The KPW-KX4040 case erector operates at the start of the packaging line, ahead of the filling stations: the operator or an automatic system feeds the flat cardboard blanks, and the equipment opens them, forms them into complete boxes and seals their base, sending rigid and stable boxes directly onto the conveyor or to the filling station. It is the natural complement to the top-flap sealers in the KPW-FX and KPW-ZFX series that work at the end of the line. Key Advantages of the KPW-KX4040 Case Erector
• Forming and base sealing in a single cycle — a box ready to fill in a few seconds — the KPW-KX4040 case erector takes the flat cardboard blank, opens it, forms the three-dimensional box and applies the adhesive tape to the base of the box in a single automatic operation; the box exits the equipment rigid, with the base sealed, ready to receive the products without any intermediate manual intervention.
• 8–10 boxes formed per minute — a constant pace without operator fatigue — the KPW-KX4040 case erector processes 8–10 boxes per minute in continuous operation, which means 480–600 boxes per hour; manual forming of corrugated cardboard boxes — opening, folding flaps, taping the base — does not exceed 100–150 boxes per hour per operator and generates rapid muscle fatigue at high volumes.
• Pneumatic drive — constant forming force on thick corrugated cardboard — the KPW-KX4040 case erector uses compressed air at 6 kg/cm² (0,6 MPa) with a flow of 200 L/min to drive the box opening and flap-folding mechanisms; the pneumatic force ensures that even thick corrugated cardboard (double-wall, triple-wall) is formed correctly without deformations or incomplete folds that would compromise the rigidity of the box.
• Wide range of dimensions — a single machine for multiple box formats — the KPW-KX4040 case erector processes boxes with a length from 280 to 600 mm, a width from 230 to 400 mm and a height from 185 to 400 mm; the format change is made by adjusting the guides and the size stop, without replacing mechanical components, which allows warehouses with multiple box formats to use a single piece of equipment for all product lines.
• Adhesive tape 48–72 mm — the widest base seal in the KPW range — the KPW-KX4040 case erector applies 48 or 72 mm tape on the seam of the box base; the wide 72 mm tape distributes the adhesion force over a larger surface, essential for heavy boxes with products of 10–20 kg that are handled mechanically with a pallet truck or forklift after filling.
• Work table height 650 mm — correct ergonomics for the operator — the KPW-KX4040 case erector has the work table at the ergonomic height of 650 mm from the ground; the formed boxes exit at the optimal height for direct pickup onto the conveyor or for manual transfer without repeated bending that would generate musculoskeletal problems in operators over the long term.
• 220V/110V single-phase — simple electrical installation — the KPW-KX4040 case erector requires a single single-phase 220V or 110V outlet for the electronic control component; the only special connection is to the compressed-air installation; no three-phase distribution boards or dedicated circuits are required to power the motor.
• Compact footprint relative to capacity — 2.050 × 1.950 × 1.450 mm — the KPW-KX4040 case erector occupies an area of approximately 4 m² on the hall floor; for a capacity of 8–10 boxes per minute with sizes of up to 600 × 400 × 400 mm, the floor footprint is small and allows installation in packaging lines with limited space.
Technical Specifications — KPW-KX4040 Case Erector
| Parameter | Value |
|---|---|
| Model | KPW-KX4040 |
| Function | Forming boxes from flat blanks + base sealing with tape |
| Box length (mm) | 280–600 |
| Box width (mm) | 230–400 |
| Box height (mm) | 185–400 |
| Forming speed | 8–10 boxes/minute |
| Adhesive tape width (mm) | 48–72 |
| Compressed-air pressure | 6 kg/cm² (0,6 MPa) |
| Compressed-air consumption | 200 L/min |
| Supply voltage | 220V / 110V, 50Hz / 60Hz, single-phase |
| Machine dimensions L × W × H (mm) | 2.050 × 1.950 × 1.450 |
| Work table height | 650 mm |
| Drive type | Pneumatic (compressed air) |
The KPW-KX4040 Case Erector in the Packaging Line — Position and Role
The KPW-KX4040 case erector is the first active piece of equipment in the packaging line, with a fundamentally different role compared to the top-flap sealers with which it is frequently confused by operators less familiar with packaging equipment:
• The KPW-KX4040 case erector — at the line entrance, forms the empty box — it takes the flat corrugated cardboard blank, opens it into a three-dimensional box, folds the base flaps and applies the tape to the lower seam; the box exits the equipment empty, rigid and ready to fill.
• The filling station — after the case erector — the formed box passes to the manual or automatic filling station where the products are inserted; without the KPW-KX4040 case erector, the operator manually forms each box before filling, which consumes time and energy at every cycle.
• The top-flap sealer (KPW-FX or KPW-ZFX) — at the line exit, seals the filled box — the filled box passes through the sealer where the top flap is closed and sealed with tape; the sealers in the KPW-FX and KPW-ZFX series available at UZINEX complete the line at the opposite end from the KPW-KX4040 case erector.
• The complete line with the KPW-KX4040 case erector — flat blank → KPW-KX4040 case erector (forming + base sealing) → filling station → KPW-FX or KPW-ZFX top-flap sealer → labeling → palletizing; this sequence completely eliminates manual forming at both ends of the line and reduces the number of operators needed.
Applications — Where the KPW-KX4040 Case Erector Works
• Packaging lines with a high daily volume of boxes — the KPW-KX4040 case erector is installed in halls where hundreds or thousands of corrugated cardboard boxes are formed daily before filling; manufacturers of food, beverages, cosmetics, household chemicals and any industry with final packaging in cardboard boxes benefit directly from the elimination of manual forming.
• E-commerce fulfillment warehouses with multiple box formats — the KPW-KX4040 case erector processes multiple box formats by adjusting the guides; warehouses with 3–5 box formats can use a single piece of equipment for all formats instead of multiple dedicated machines or instead of manually forming the non-standard boxes.
• Food industry — boxes for dry products and canned goods — the KPW-KX4040 case erector forms the corrugated cardboard boxes used in packaging dry food products, canned goods and beverages; the pace of 8–10 boxes per minute synchronizes with the speeds of the semi-automatic filling lines frequently used in medium-sized food factories.
• Manufacturers of household appliances and electronics — the corrugated cardboard boxes for household appliances have dimensions in the range L280–600 × W230–400 × H185–400 mm, processable by the KPW-KX4040 case erector; sealing the base with 72 mm tape ensures the base does not give way during handling of the box with appliances of 5–15 kg.
• Distributors with a stock of flat blanks — savings in storage space — the KPW-KX4040 case erector allows the box stock to be stored in flat format (blanks), which occupies 5–8 times less space than already-formed boxes; the flat blanks are stored compactly on pallets and formed as needed at the packaging line, eliminating the need for an intermediate store of formed boxes.
• Pharmaceutical and cosmetic industry — boxes with standardized dimensions — the KPW-KX4040 case erector processes the outer corrugated cardboard boxes used to group individual cosmetic and pharmaceutical products into collective boxes (displays, transport groupings); uniform forming and correct base sealing ensure that the collective boxes withstand the handling in the distribution chain.
The KPW-KX4040 Case Erector versus Manual Box Forming
Manual forming of cardboard boxes is the most frequent source of invisible inefficiency in packaging lines — operators perceive it as a normal activity, but the real cost of the time consumed on each box is significant at high volumes:
• Speed: 8–10 boxes/minute automatic vs. 2–3 boxes/minute manual — the KPW-KX4040 case erector forms 3–4 times more boxes per minute than the fastest manual operator; over 8 hours of production per day, the difference means 2.400–3.200 additional boxes formed per day with the same number of operators allocated to the filling station.
• 100% uniformity vs. quality variations — the KPW-KX4040 case erector forms each box with the same folds, the same pressure on the flaps and the same tape length on the base; manual forming produces boxes with incomplete folds, bases with tape applied crookedly or with insufficient overlap that give way during filling or handling.
• Eliminating fatigue at the forming station — manual forming of thick corrugated cardboard involves physical force to open the blank and fold the flaps; at volumes of hundreds of boxes per day, operators face muscle fatigue in the wrists and shoulders; the KPW-KX4040 case erector completely eliminates this physical strain and reduces medical absences on the packaging line.
• Freeing operators for value-added tasks — the KPW-KX4040 case erector allows operators to be reassigned from the manual forming station to quality control, labeling or palletizing stations where the human contribution brings more value than the repetitive forming of boxes.
Frequently Asked Questions about the KPW-KX4040 Case Erector
What type of cardboard blanks does the KPW-KX4040 case erector accept?
The KPW-KX4040 case erector processes flat corrugated cardboard blanks (single-wall, double-wall) with resulting box dimensions between L280–600 × W230–400 × H185–400 mm; the blanks must be cut and creased correctly for the box size set on the equipment; the cardboard blank supplier can deliver the exact dimensions required for each configured box format. How quickly is the box format changed on the KPW-KX4040 case erector?
The KPW-KX4040 case erector is adjusted for a new box format by adjusting the side guides and the size stops; the format change takes a few minutes and does not require special tools or spare parts; the frequency of format changes influences the choice of the optimal packaging line configuration, which UZINEX engineers analyze before purchase. What compressed-air installation does the KPW-KX4040 case erector require?
The KPW-KX4040 case erector requires compressed air at a pressure of 6 kg/cm² (0,6 MPa) with a flow of 200 L/min; the flow of 200 L/min is significant compared to the ZFX sealers (50 L/min) and implies an air compressor with a capacity of at least 300–400 L/min to ensure constant pressure at the connection; UZINEX engineers verify the compatibility of the existing compressed-air installation before commissioning. Can the KPW-KX4040 case erector work in tandem with the KPW-FX or KPW-ZFX sealers?
Yes. The KPW-KX4040 case erector forms and seals the base of the box at the line entrance, and the KPW-FX (electric) or KPW-ZFX (pneumatic) sealers available at UZINEX seal the top flap at the line exit, after filling; configuring the complete line — case forming, filling, top-flap sealing — is a consultancy service offered by UZINEX with the purchase of any of these pieces of equipment. Why Choose UZINEX for the KPW-KX4040 Case Erector
The KPW-KX4040 case erector is a complex pneumatic piece of equipment with folding, guiding and pressing mechanisms that requires precise commissioning and a service team capable of quickly diagnosing both mechanical and pneumatic and electronic faults.
• Consultancy for configuring the complete packaging line — UZINEX engineers analyze the box formats, the daily volume, the number of shifts and the existing pneumatic infrastructure in order to recommend the optimal line configuration: the KPW-KX4040 case erector + filling station + top-flap sealer from the KPW-FX or KPW-ZFX series; a line correctly configured from the start avoids additional purchases or premature equipment replacements.
• Free transport and commissioning included — the KPW-KX4040 case erector is delivered free of charge anywhere in Romania; at commissioning, UZINEX engineers connect the equipment to the compressed-air installation, adjust the guides for the current box formats, calibrate the working pressure and train operators in the use and changing of formats.
• Extended 60-month warranty and spare parts in stock — the KPW-KX4040 case erector benefits from a 60-month warranty; wear components — pneumatic cylinders, guides, tape pressure rollers, detection sensors — are kept permanently in stock at UZINEX for rapid intervention without waiting times for imports.
• National service with 24–48h response — UZINEX service engineers intervene on site anywhere in Romania; for production lines where the KPW-KX4040 case erector is the first active piece of equipment, any unplanned stop blocks the entire packaging flow, and UZINEX prioritizes these interventions.
• Financing through credit and leasing — financing solutions available for the purchase of the KPW-KX4040 case erector; the equipment qualifies for projects with EU funding as an investment in the automation of the packaging line and the increase of productivity.
• Complete range for the packaging line — from forming to sealing — UZINEX offers equipment for all stages of packaging in cardboard boxes: the KPW-KX4040 case erector for forming and base sealing, the KPW-FX and KPW-ZFX sealers for top-flap sealing, PP strapping machines for final consolidation — all available from a single supplier with integrated national service.
The KPW-KX4040 case erector is the choice for any operator that daily forms hundreds or thousands of cardboard boxes and wants to completely eliminate this manual operation from the packaging line — with pneumatic drive for constant force on thick cardboard, a pace of 8–10 boxes per minute and simultaneous base sealing with tape of up to 72 mm.
