Multi-Head Drilling Machine with Saw

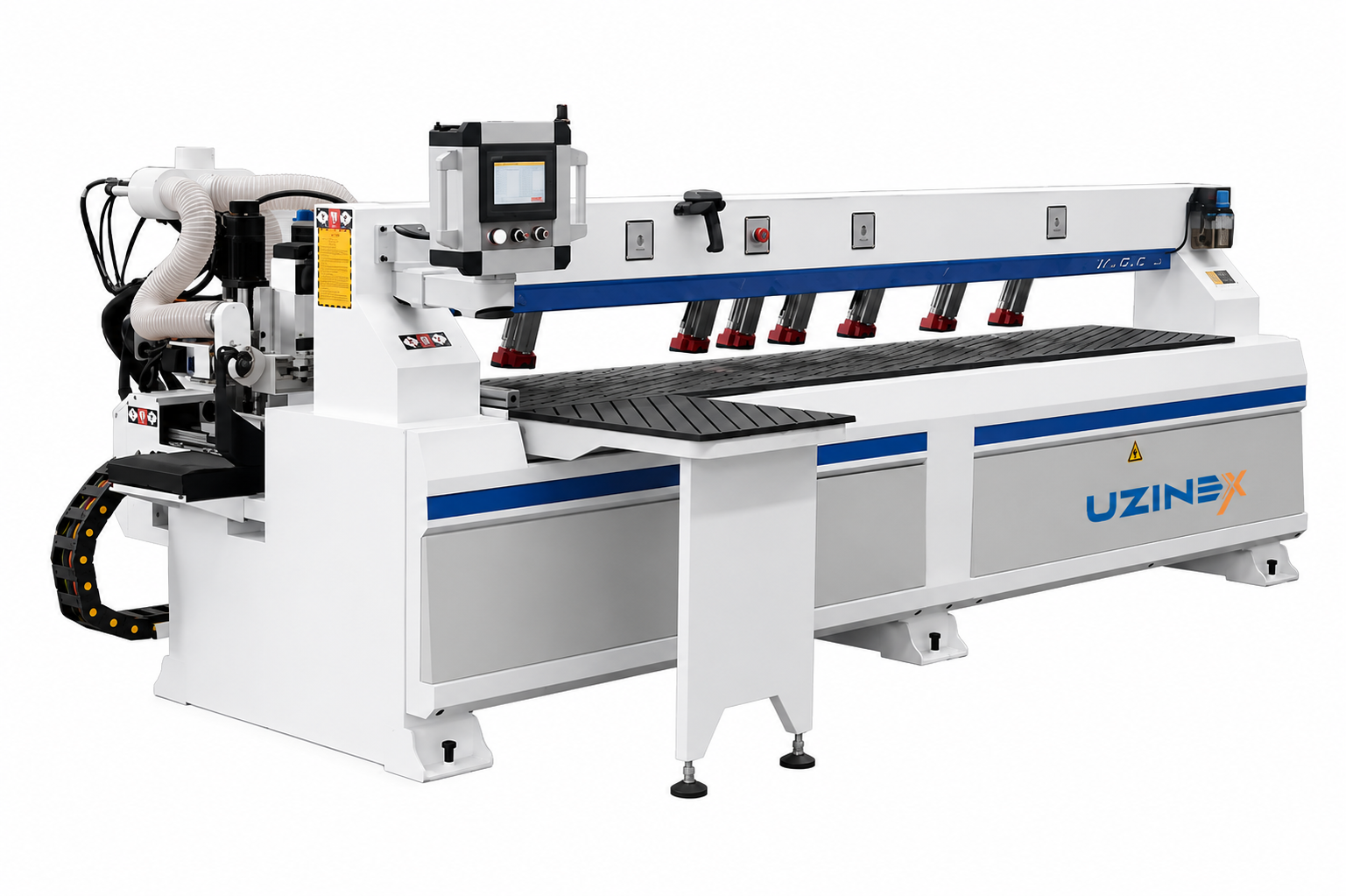

The multi-head drilling machine with saw is the drilling and cutting equipment for panel furniture manufacturers that drill connector, hinge and accessory holes on chipboard and MDF parts directly in the production flow, with automatic part identification through dual barcode and laser scanning.

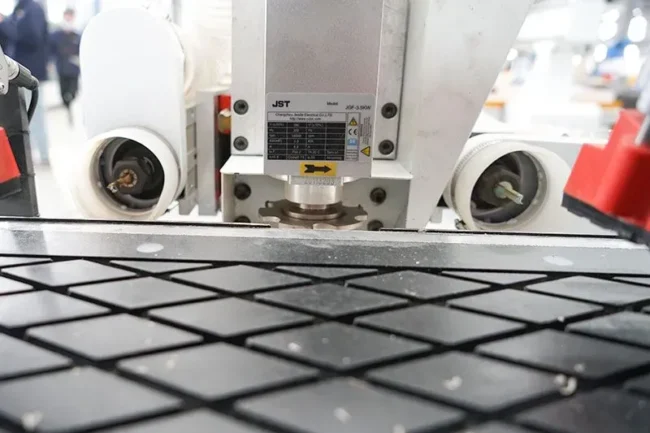

The multi-head drilling machine with saw has a 2,2kW drilling spindle and a 2,2kW AKEMDE/JST saw, a rotation speed of 0–18000rpm, a working speed of 80m/min, a rapid traverse speed of 100m/min and a working stroke of 2800mm, controlled by the Luolunchi system.

The multi-head drilling machine with saw is equipped with three 0,75kW Dongling servo motors for the travel axes, BANNER sensors, square rail #20 guides, a Taiwan JUELI rack and a high-precision screw. Its dimensions of 3600×1250×1300mm allow integration into panel furniture production lines. The multi-head drilling machine with saw requires no complex programming software — the operator is trained in about one hour, reducing training and skilled-labour costs. Transport, installation and commissioning included. 60-month warranty. Technical specifications — multi-head drilling machine with saw

The multi-head drilling machine with saw is configured at the quotation stage according to the range of parts and furniture accessories used. Free technical consultancy available. Advantages of the multi-head drilling machine with saw

• Drilling and cutting in a single machine — no part transfer between machines — the multi-head drilling machine with saw executes the holes for connectors, hinges and accessories and the cut-to-size in the same cycle, on the same part, without the need to move the panel to a separate saw or a separate drilling centre. Eliminating part transfer in the multi-head drilling machine with saw reduces unproductive time, the risk of repositioning error and the number of operators required.

• Dual barcode + laser scanning system Luolunchi — automatic identification and drilling without positioning errors — the multi-head drilling machine with saw has the Luolunchi controller with dual barcode scanning and laser positioning of the parts, which identifies each panel at the infeed and automatically loads the corresponding drilling program. This automation of the multi-head drilling machine with saw eliminates manual setup errors when changing part type and allows processing of mixed panel batches without manual reprogramming between parts.

• Working speed 80m/min and rapid traverse 100m/min — high productivity per shift — the multi-head drilling machine with saw moves at 80m/min during drilling and at 100m/min when traversing empty between operations. This high speed of the multi-head drilling machine with saw allows processing of a large volume of parts per shift, relevant for series furniture manufacturers working with steady orders of kitchen carcasses, wardrobes and living-room furniture.

• Spindle 0–18000rpm — adaptable to the type of hole and material — the multi-head drilling machine with saw has a spindle with variable speed from 0 to 18000rpm, covering the entire range of furniture drilling operations: connector holes at medium speed, hinge holes at high speed for a clean finish on painted MDF, and screw holes at low speed to preserve exact geometry in chipboard. The speed flexibility of the multi-head drilling machine with saw allows adaptation to every type of accessory and material without changing the equipment.

• Three Dongling servo motors and square rail #20 guides — repeatable positioning precision — the multi-head drilling machine with saw has three 0,75kW Dongling servo motors for precise position control on all travel axes, combined with square rail #20 guides and a high-precision screw. This mechanical construction of the multi-head drilling machine with saw guarantees that the inter-hole distances are reproduced identically from part to part in series production — the critical condition for the interchangeability of furniture elements with Minifix and Rafix connectors.

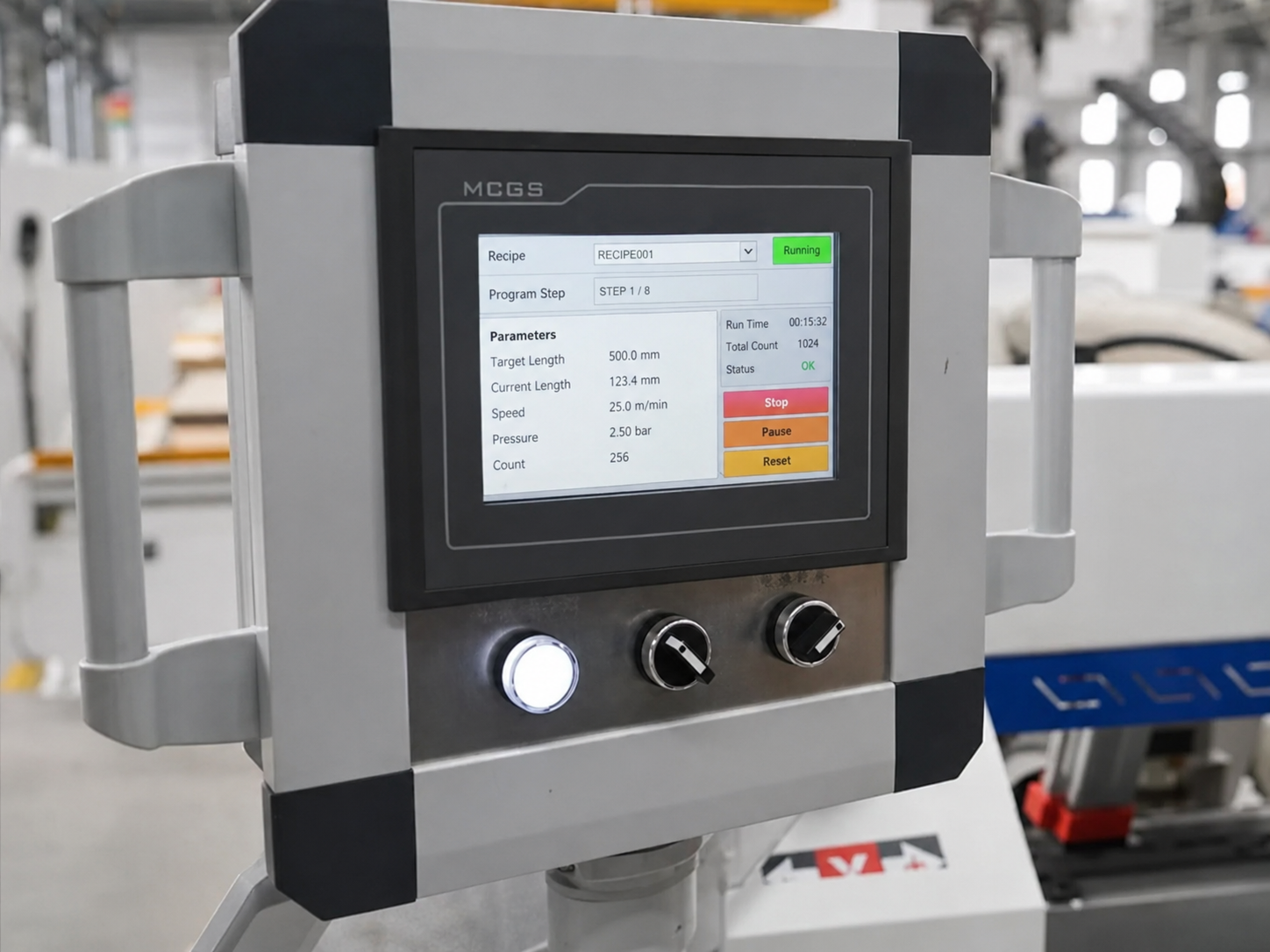

• Operation without complex software — training in about one hour — the multi-head drilling machine with saw requires no CAM programming or advanced CNC knowledge. The operator sets the parameters through the Luolunchi controller interface, and automatic barcode scanning preloads the program for the part type. This operational simplicity of the multi-head drilling machine with saw reduces dependence on specialised operators and allows rapid integration of new staff into the production process. 60-month UZINEX warranty, national technical support in 24–48 hours.

Applications — multi-head drilling machine with saw

Panel furniture manufacturers — kitchen carcasses, dressing-room wardrobes, bookcases and bedside tables — use the multi-head drilling machine with saw to drill all the Minifix, Rafix and eccentric connector holes in a side or horizontal panel in a single cycle. The 2800mm working stroke of the multi-head drilling machine with saw covers the side panels of tall kitchen carcasses and wardrobes, including oversized formats.

Manufacturers of interior doors and furniture fronts use the multi-head drilling machine with saw to drill the cup-hinge recesses and to cut the doors and fronts to their final dimensions in an integrated cycle. The automatic barcode identification of the multi-head drilling machine with saw allows processing of batches with different door dimensions without manual reconfiguration between parts. Frequently asked questions about the multi-head drilling machine with saw

What types of holes does the multi-head drilling machine with saw drill?

The multi-head drilling machine with saw drills Minifix and Rafix connector holes (diameter 15mm, 25mm and 35mm), cup hinge holes (diameter 26mm and 35mm), screw holes and bore holes for various furniture accessories. The configuration of the drilling heads is established at the quotation stage according to the range of accessories used in the client's specific production. Can the multi-head drilling machine with saw be integrated into an automated production line?

Yes. The multi-head drilling machine with saw has compact dimensions of 3600×1250×1300mm and can be positioned in line with a panel-sizing saw and an edge banding machine. The Luolunchi automatic barcode scanning system of the multi-head drilling machine with saw is compatible with the labelling and production management systems used in made-to-order furniture lines. Is the multi-head drilling machine with saw eligible for European funding?

Yes. UZINEX is a member of the Enterprise Europe Network and delivers equipment for projects with EU funds. The multi-head drilling machine with saw can be included in SEAP/SICAP. Leasing and credit options on the UZINEX credit and leasing page. Why UZINEX for the multi-head drilling machine with saw

• Drilling head configuration included — UZINEX configures the multi-head drilling machine with saw with the heads and inter-hole distances suited to the accessories in the client's production.

• Transport, installation and commissioning included — installation, calibration and operator training in about one hour.

• 60-month warranty — coverage for continuous series furniture production.

• Spare parts in stock — components quickly available in Romania.

• National technical support in 24–48 hours — technicians with national coverage.

• Eligible for European funding — complete documentation for NRRP, Regional Programme and other active programmes.

UZINEX multi-head drilling machine with saw — 2,2kW drilling spindle + 2,2kW AKEMDE/JST saw, 0–18000rpm, working speed 80m/min / rapid traverse 100m/min, stroke 2800mm, Dongling 0,75kW×3 servo motors, BANNER sensors, Luolunchi controller with dual barcode+laser scanning, square rail #20 guides, Taiwan JUELI rack, high-precision screw, 3600×1250×1300mm, 60-month warranty, transport, installation and commissioning included throughout Romania.
