Shrink Tunnel Machine BSE6040A | 24kW, 0–15m/min, PE Film | UZINEX

The BSE6040A shrink tunnel machine is the industrial equipment that completes the shrink-packaging process by passing products wrapped in PE film through a heat tunnel with forced air circulation, shrinking the film uniformly around the product — with an installed power of 24 kW, a conveyor speed adjustable between 0 and 15 m/min, an interior tunnel of 1.800 × 600 × 400 mm and a maximum product capacity of 500 × 350 mm at a load of 25 kg on the conveyor.

The BSE6040A shrink tunnel machine is specially designed for the thick PE film used in the industrial packaging of bundles, multipacks and bulky products, while remaining compatible with other shrink films (POF, PVC) used in the packaging of individual retail products. Electronic zone temperature control, forced air circulation through high-power fans and the automatic cooling system after exiting the tunnel ensure uniform shrinking with no local overheating, film burns or product distortion. Main Advantages of the BSE6040A Shrink Tunnel Machine

• Quartz heating elements — rapid thermal response and long service life — the BSE6040A shrink tunnel machine uses quartz heating elements strategically arranged inside the tunnel; the quartz elements reach working temperature within a few minutes, compared with conventional metal resistances that require 15–20 minutes to stabilize the temperature; on shifts with multiple start-ups or small-batch production, the shorter preheating time translates directly into less unproductive time at the start of each work session.

• Forced air circulation — uniform shrinking across all product surfaces — the BSE6040A shrink tunnel machine distributes the hot air through high-power fans that create a uniform flow inside the tunnel; the film shrinks simultaneously across all product surfaces — side, top and bottom — with no zones of insufficient shrinkage or overheating; products with irregular shapes or thermal shadows (recesses, protrusions) are covered uniformly thanks to the forced circulation.

• Electronic zone temperature control — independent adjustment for each tunnel zone — the BSE6040A shrink tunnel machine allows independent temperature setting for the different zones of the tunnel (inlet, middle, outlet); PE film requires a lower inlet temperature so it does not shrink abruptly and trap air beneath it, followed by a higher temperature in the central zone for complete shrinking; the zone-based adjustment reproduces this optimal thermal sequence for each film type.

• Conveyor speed 0–15 m/min, continuously adjustable — adaptation to any film and product — the BSE6040A shrink tunnel machine allows continuous adjustment of the conveyor speed through a speed variator; thick PE film requires a lower speed (longer exposure time in the tunnel) than thin POF film, which shrinks rapidly; the continuous adjustment allows the speed to be optimized for each film–product combination with no compromise between shrinkage quality and production rate.

• Interior tunnel 1.800 × 600 × 400 mm — industrial capacity for large bundles — the BSE6040A shrink tunnel machine has a useful tunnel opening of 600 mm wide and 400 mm high, processing products or bundles with dimensions of up to 500 × 350 mm; this capacity covers beverage cartons, can multipacks, cosmetic product bundles and any product packaged individually or collectively in medium- and large-thickness PE film.

• Maximum load 25 kg on the conveyor — heavy products without distortion — the BSE6040A shrink tunnel machine supports a load of up to 25 kg on the conveyor with no belt distortion or speed variation; heavy products (cans, packaged construction materials, bundles of industrial products) are transported uniformly through the tunnel at the set speed, with no accelerations or decelerations that would produce uneven film shrinkage.

• Automatic cooling system after exit — fixing the film shape before handling — the BSE6040A shrink tunnel machine includes an automatic cooling system at the exit from the shrinking zone; rapid cooling fixes the shrunk film onto the shape of the product before the package is picked up by the operator or by the next conveyor system; without cooling, the hot film can deform or stick on contact with other surfaces in the first seconds after exiting the tunnel.

• Power supply 220V / 380V / 415V, single- or three-phase — compatible with any electrical installation — the BSE6040A shrink tunnel machine is available in multiple voltage configurations (220V, 380V, 415V) and supports both single-phase and three-phase power supply, depending on the existing installation in the facility; the correct voltage configuration is chosen at the order stage, together with UZINEX engineers, based on the available electrical panel.

Technical Specifications — BSE6040A Shrink Tunnel Machine

How the BSE6040A Shrink Tunnel Machine Works in the Packaging Line

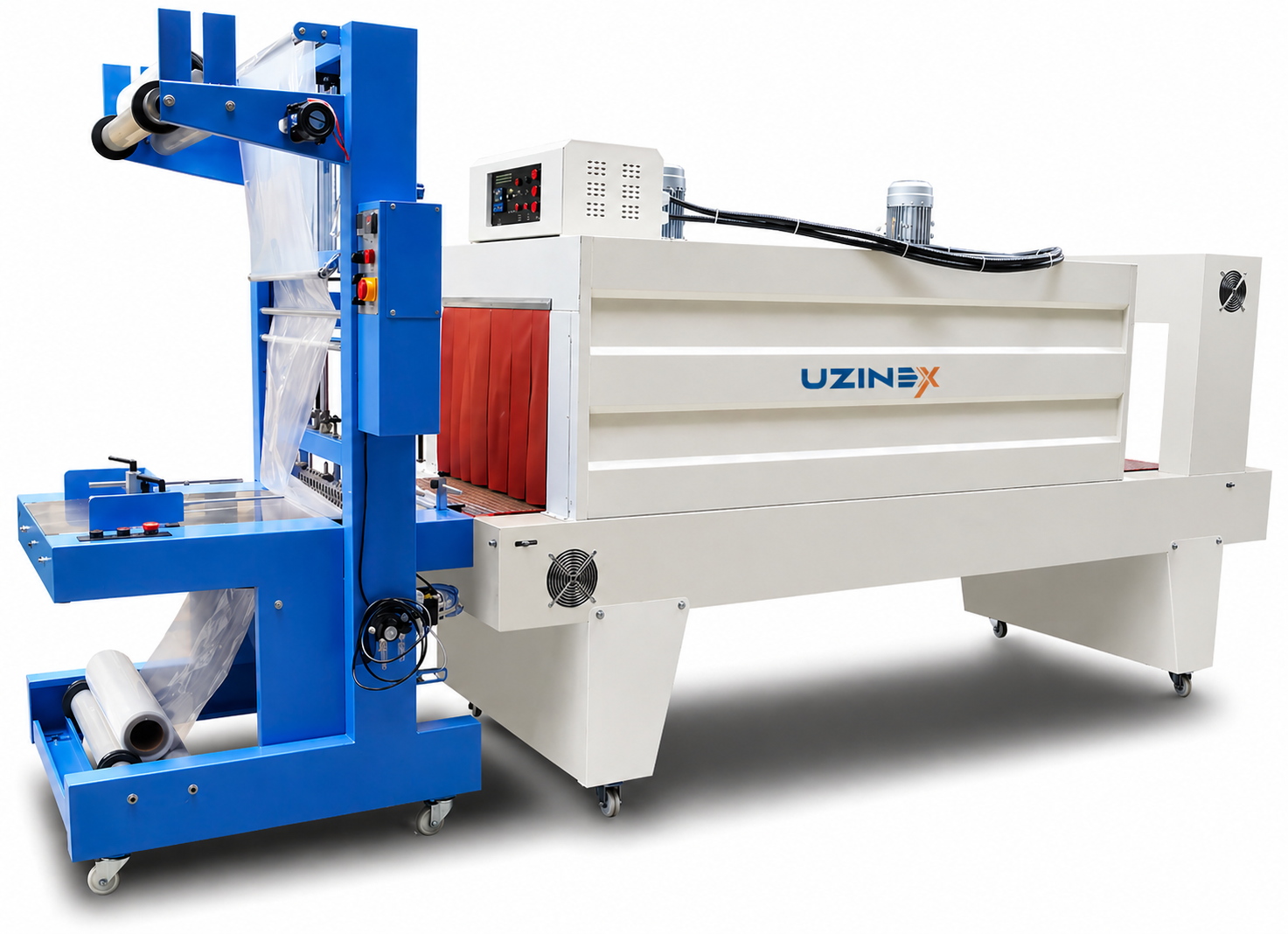

The BSE6040A shrink tunnel machine is the second piece of equipment in the shrink-packaging line, positioned after the sleeve wrapper or after an L-bar sealer that closes the film around the product. Understanding the position and role of the BSE6040A shrink tunnel machine in the packaging sequence is essential for correctly configuring the line:

• Step 1 — Wrapping with film (upstream of the BSE6040A tunnel) — the sleeve wrapper or the L-bar sealer wraps the product or bundle in shrink film and seals the seams, producing a package with the film applied loosely around the product, with air between the film and the product; at this stage, the packaging is not finished.

• Step 2 — Passing through the BSE6040A tunnel — the product wrapped in film enters the conveyor of the BSE6040A shrink tunnel machine and travels the 1.800 mm of the heat tunnel; the hot air with forced circulation heats the film uniformly across all surfaces, and it shrinks tightly around the product, eliminating the air beneath it.

• Step 3 — Cooling and fixing — at the exit from the BSE6040A shrink tunnel machine, the automatic cooling system fixes the shrunk film onto the shape of the product; the finished package has the film adhering uniformly to the product surface, with a professional commercial appearance, ready for labeling and shipping.

Applications — What Products the BSE6040A Shrink Tunnel Machine Packages

• Beverage multipacks — groups of bottles and cans — the BSE6040A shrink tunnel machine is the standard equipment for shrinking PE film onto groups of 4, 6 or 12 bottles or cans; the tunnel capacity of 600 mm width and the 25 kg load cover all multipack formats in the beverage industry; the shrunk PE film ensures bundle cohesion during mechanical handling with the pallet truck and forklift.

• Food industry — groups of cans and packaged products — the BSE6040A shrink tunnel machine shrinks PE film onto trays of cans, groups of yogurts, milk cartons and any food product packaged collectively in shrink film for distribution; the uniform shrinkage keeps the products in the bundle aligned and stable throughout the distribution chain.

• Industrial products and collectively packaged construction materials — the BSE6040A shrink tunnel machine processes bundles of industrial products with loads of up to 25 kg; profiles, tubes, packs of boards or heavy accessories packaged in thick PE film are shrunk uniformly with no conveyor distortion or speed variation at high weights.

• Retail and cosmetic products — individual packaging in POF film — the BSE6040A shrink tunnel machine also processes individual products packaged in thin POF (polyolefin) film for shelf presentation; the zone temperature control and the precise conveyor speed adjustment allow the shrinking parameters to be adapted for thin POF film (12–19 µm) versus the thick PE film (50–100 µm) used for industrial bundles.

• Pharmacy and parapharmaceuticals — tamper-evident packaging — the BSE6040A shrink tunnel machine produces tamper-evident shrink packaging (with a visible inviolability indicator) on boxes of pharmaceutical and parapharmaceutical products; the film shrunk tightly around the box is visibly damaged at any attempt to open it, ensuring consumer protection.

• Printing and publishing industry — blocks of books and magazines — the BSE6040A shrink tunnel machine packages batches of books, magazines and catalogs in PE or POF film for distribution; the shrink packaging protects the printed surfaces against scratches and moisture during transport and storage.

The BSE6040A Shrink Tunnel Machine and PE Film — The Standard Industrial Combination

The BSE6040A shrink tunnel machine is specially optimized for thick PE (polyethylene) film, the dominant material in the industrial packaging of bundles and multipacks. PE film has a wider shrinking window than other shrink films, which makes it more tolerant of temperature variations in the tunnel and more suitable for products with irregular shapes:

• PE film — the advantages for industrial packaging — tear-resistant, available in thicknesses of 50–200 µm, higher shrinking temperature (130–160°C), suitable for heavy products and bundles that require a film with high mechanical strength; the BSE6040A shrink tunnel machine with its 24 kW power provides the temperature needed for complete shrinking of thick PE film without excessive exposure times that would slow the line.

• Compatibility with POF and PVC film — the BSE6040A shrink tunnel machine also works with POF (polyolefin) film at lower temperatures and with PVC film in configurations with improved ventilation; the independent zone temperature adjustment and the continuous variation of the conveyor speed allow the parameters to be adapted for each film type; for films other than PE, UZINEX recommends running shrink tests at commissioning to establish the optimal parameters.

Frequently Asked Questions about the BSE6040A Shrink Tunnel Machine

What supply voltage should be chosen for the BSE6040A shrink tunnel machine?

The BSE6040A shrink tunnel machine is available in 220V, 380V and 415V configurations, single- or three-phase; the choice depends on the electrical panel available in the facility; at the installed power of 24 kW, three-phase supply at 380V is the preferred option for distributing the load uniformly across the phases and reducing the current on each wire compared with single-phase supply; UZINEX engineers check the existing electrical installation and recommend the correct configuration before the order. How many products per hour does the BSE6040A shrink tunnel machine process?

The BSE6040A shrink tunnel machine does not have a capacity expressed in packages per hour, because this depends on the product length and the set conveyor speed; at the maximum speed of 15 m/min and a product with a length of 300 mm, the theoretical throughput is 50 products per minute; the optimal production speed is established based on the film type and thickness, the product dimensions and the desired shrinkage quality, with adjustment at commissioning. What working space does the BSE6040A shrink tunnel machine require?

The BSE6040A shrink tunnel machine has exterior dimensions of 2.750 × 840 × 1.500 mm; in addition to the equipment footprint, a minimum of 1 m of space must be provided on the sides and at the ends of the tunnel for operation and access to the heating elements; adequate ventilation of the space is mandatory given the thermal power of 24 kW dissipated in the facility during continuous operation. Can the BSE6040A shrink tunnel machine be connected to an existing sleeve wrapper?

Yes. The BSE6040A shrink tunnel machine connects to any sleeve wrapper or L-bar sealer that produces packages in shrink film; the height of the tunnel inlet conveyor must be synchronized with the outlet height of the previous equipment; UZINEX checks the mechanical compatibility with the existing equipment and adapts the connection to the line configuration at commissioning. Why Choose UZINEX for the BSE6040A Shrink Tunnel Machine

The BSE6040A shrink tunnel machine with its installed power of 24 kW is a high-energy-consumption piece of equipment whose correct operation depends on precise commissioning of the temperature and speed parameters for each film type and product; an incorrectly set temperature produces either insufficient shrinkage (film with wrinkles) or film burns or product distortion.

• Pre-purchase consultancy — checking the electrical installation and compatibility with the existing line — UZINEX engineers analyze the available electrical panel to recommend the appropriate supply voltage, check the conveyor height relative to the adjacent equipment and confirm that the tunnel dimensions cover the customer's products and packaging formats before the order is finalized.

• Free transport and commissioning included — the BSE6040A shrink tunnel machine is delivered free anywhere in Romania; at commissioning, UZINEX engineers connect the equipment to the electrical installation, calibrate the zone temperatures for the film used by the customer and run shrink tests for each product format, establishing the optimal parameters that are saved for repeated use.

• Extended 60-month warranty and spare parts in stock — the BSE6040A shrink tunnel machine benefits from a 60-month warranty; the quartz elements, the air circulation fans, the temperature controller and the conveyor speed variators are kept permanently in stock at UZINEX for rapid intervention with no waiting times for imports.

• National service with 24–48h intervention — UZINEX service engineers intervene on site anywhere in Romania; for shrink-packaging lines where the tunnel is the last active piece of equipment before shipping, any breakdown not resolved quickly stops the entire packaging flow.

• Financing through credit and leasing — financing solutions available for the purchase of the BSE6040A shrink tunnel machine; the equipment qualifies for European-funded projects as an investment in the automation of the packaging line.

• Complete range of equipment for shrink packaging — UZINEX offers complete solutions for shrink packaging: sleeve wrappers for applying the film, the BSE6040A shrink tunnel machine for shrinking, and complementary equipment for sealing and banding — all available from a single supplier with integrated national service.

The BSE6040A shrink tunnel machine is the choice for any operator completing the shrink packaging of industrial bundles or individual products — with 24 kW installed power for the complete shrinking of thick PE film, an 1.800 mm tunnel for uniform thermal exposure and an automatic cooling system for perfect fixing of the film before handling.
