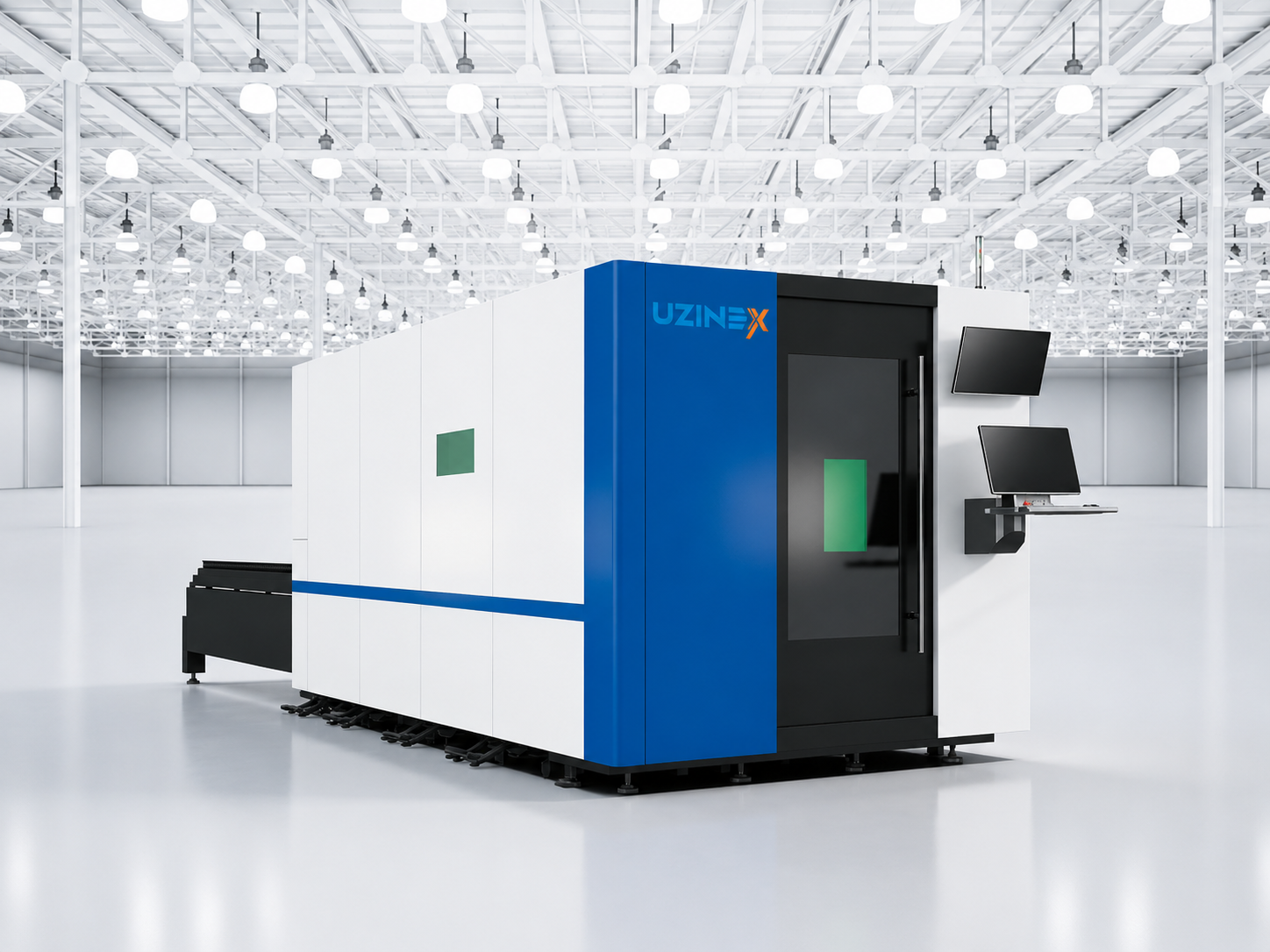

WyCut FE Series Fully Enclosed Fiber Laser Machine

The WyCut FE Series is a fully enclosed fiber laser machine, with an automatic shuttle table and an AI cutting-optimization system, available in 5 configurations — from the FE 3015 to the FE 8025 — with laser power between 1,5 kW and 30 kW. The fully enclosed housing compliant with European protection standards, the automatic shuttle table for eliminating downtime, and the intelligent 7-zone dust and fume extraction system make this fully enclosed fiber laser machine the reference solution for plants that combine maximum productivity with operator safety and compliance with environmental regulations.

Compared with single open-platform machines, the WyCut FE Series fully enclosed fiber laser machine adds four decisive advantages: the protective housing that isolates the laser radiation, fumes and sparks; the automatic shuttle table that allows the new sheet to be loaded while cutting continues on the other table; the AI system that automatically optimizes the cutting parameters; and the professional Donaldson USA fume extraction system with self-cleaning. The result is a machine utilization close to 100% per shift, with zero operator exposure to hazardous substances.

Key advantages of the WyCut FE Series fully enclosed fiber laser machine

• Fully enclosed housing — CE protection with light curtains — the WyCut FE Series fully enclosed fiber laser machine complies with European protection standards for laser radiation, with a sealed housing, laser sensors and REER Italy / Schmersal Germany light curtains that immediately stop the machine at any unauthorized opening during operation.

• Automatic shuttle table — minimal changeover time — while cutting takes place on one table, the operator loads the sheet on the other table; the automatic changeover practically eliminates loading-unloading downtime, increasing the effective utilization of the fully enclosed fiber laser machine to nearly 100% per shift.

• AI cutting system — automatic parameter optimization — the intelligent AI cutting system automatically optimizes the power, speed and gas parameters for each material and thickness, eliminating dependence on highly experienced operators and ensuring constant quality regardless of the team's level of training.

• Intelligent 7-zone dust and fume extraction system — Donaldson USA — the professional system with 7 independent extraction zones, Donaldson USA filtration and self-cleaning ensures that fumes and particles are removed from the cutting area in real time, in compliance with European workplace air-quality regulations.

• Automatic material feeding system — productivity +30% — the automatic feeding, guiding and lateral sheet-adjustment system reduces manual intervention and increases the productivity of the fully enclosed fiber laser machine by up to 30% compared with manual loading on open-platform machines.

• IPG or Raycus laser source with 1–5 year warranty — the high-power laser sources from IPG Germany or Raycus ensure stability, high energy efficiency and a service life of over 100,000 hours, with an extended warranty from the source manufacturer.

• Free AI software updates for 3 years — the Fscut AI system is updated free of charge for 3 years from delivery, bringing algorithm improvements, new material profiles and additional functionality at no extra cost to the customer.

Technical specifications of the WyCut FE Series fully enclosed fiber laser machine

The WyCut FE Series versus the WyCut S Series — when to choose the fully enclosed housing

The WyCut S Series with a single open platform is the solution for workshops that prioritize accessibility, a small footprint and a lower initial cost. The WyCut FE Series fully enclosed fiber laser machine is the choice for plants that have strict safety requirements (mandatory CE protection), high production volumes where the automatic shuttle table makes the difference, or work environments where exposure to fumes and radiation must be eliminated.

European workplace regulations for sites with industrial-power laser equipment (class 4) impose strict protective measures against radiation, fumes and sparks. The WyCut FE Series fully enclosed fiber laser machine meets these requirements by design, eliminating the need for separate workspace-protection measures and simplifying compliance with occupational health and safety regulations.

Applications and industries for the WyCut FE Series fully enclosed fiber laser machine

The WyCut FE Series fully enclosed fiber laser machine is intended for continuous-production plants that process high volumes of metal sheets in multi-shift production, where maximum productivity and operator safety are simultaneous requirements. The automatic shuttle table and the AI system make it the standard solution for automated or semi-automated production lines.

Manufacturers of electrical cabinets, HVAC equipment, facade panels and architectural metal structures use the FE 4020 and FE 6015 models of the fully enclosed fiber laser machine for the wide formats and extended lengths needed for large components. The FE 8025 model with the 8000×2500 mm table is intended for manufacturers of large structures or plants that simultaneously process extra-large format sheets.

Plants with ISO environmental and occupational-safety certifications find in the WyCut FE Series fully enclosed fiber laser machine a piece of equipment that contributes directly to maintaining the certifications, through the Donaldson extraction system compliant with air-quality regulations and the CE protective housing.

How the WyCut FE Series fully enclosed fiber laser machine works

1. Sheet loading on the free table — while the fully enclosed fiber laser machine cuts on the active table, the operator or the automatic feeding system loads the new sheet on the waiting table, without stopping production.

2. Automatic table changeover — when the program on the active table is completed, the automatic changeover brings the new table into the cutting position in a few seconds, minimizing downtime between batches.

3. AI parameter optimization — the AI system analyzes the selected material and thickness and automatically optimizes the laser power, cutting speed and assist-gas pressure for maximum quality and minimum consumption.

4. Cutting in the enclosed housing — cutting takes place entirely inside the enclosed housing; the 7-zone extraction system removes fumes and particles in real time, with the Donaldson filters retaining the fine particles.

5. Monitoring and automatic safety — the light curtains and sensors continuously monitor the integrity of the housing; any unauthorized opening during operation immediately stops the fully enclosed fiber laser machine for operator protection.

6. Unloading and preparing the next batch — the finished parts are unloaded from the free table while cutting continues; the cycle resumes without stops between consecutive batches.

Frequently asked questions about the WyCut FE Series fully enclosed fiber laser machine

Why is a fully enclosed housing necessary on an industrial laser machine?

Industrial-power fiber lasers (3 kW and above) are classified in laser safety class 4 — the most dangerous, capable of causing instantaneous eye and skin injuries even from indirect reflections. The WyCut FE Series fully enclosed fiber laser machine completely contains the radiation inside the housing, eliminating the need for exclusion zones, special protective glasses or complex safety procedures. Under European workplace safety regulations, the use of an unprotected class-4 laser machine imposes additional costly measures.

How long does the automatic table changeover take on the WyCut FE Series?

The automatic table changeover of the WyCut FE Series fully enclosed fiber laser machine is performed in a few seconds, with precise synchronization ensured by the HIWIN system. The exact changeover time depends on the table size and the selected model. Compared with manual loading on a single-platform machine, which can take 2–5 minutes, the automatic changeover increases the effective machine utilization by 15–25% per 8-hour shift depending on the production pace.

Is the WyCut FE Series fully enclosed fiber laser machine eligible for European funding?

Yes. UZINEX supplies equipment for EU-funded projects — NRRP, the Regional Program, the Just Transition Program — and is a member of the Enterprise Europe Network. The WyCut FE Series fully enclosed fiber laser machine can be included in funding applications for modernizing production capacity. UZINEX provides the complete technical documentation for public procurement procedures and tenders.

Why UZINEX for the WyCut FE Series fully enclosed fiber laser machine

• Free technical consultancy — optimal model and power — UZINEX evaluates the materials and thicknesses processed, the production volume and the safety requirements to recommend the optimal model and laser power in the WyCut FE range.

• Transport, installation and commissioning included free of charge — the fully enclosed fiber laser machine is delivered, installed and started at the customer's site, with calibration of the AI system, testing on the real materials and operator training.

• Extended 60-month warranty — warranty included for the entire equipment line, with technical support and intervention in under 36 hours.

• National technical support in under 36 hours — on-site or video intervention in less than 36 hours, with a dedicated 24/7 telephone line.

• AI smart manual included — complete documentation with AI assistance for over 96% of technical requests.

• Full eligibility for European funding — complete documentation and support for EU-, NRRP- or structural-funds procurement.

The WyCut FE Series fully enclosed fiber laser machine is the industrial solution for plants that combine maximum productivity through the automatic shuttle table, complete safety through the CE housing and artificial intelligence for the cutting parameters — in 5 models from 3000×1500 mm to 8000×2500 mm, with laser power of 1,5–30 kW.
