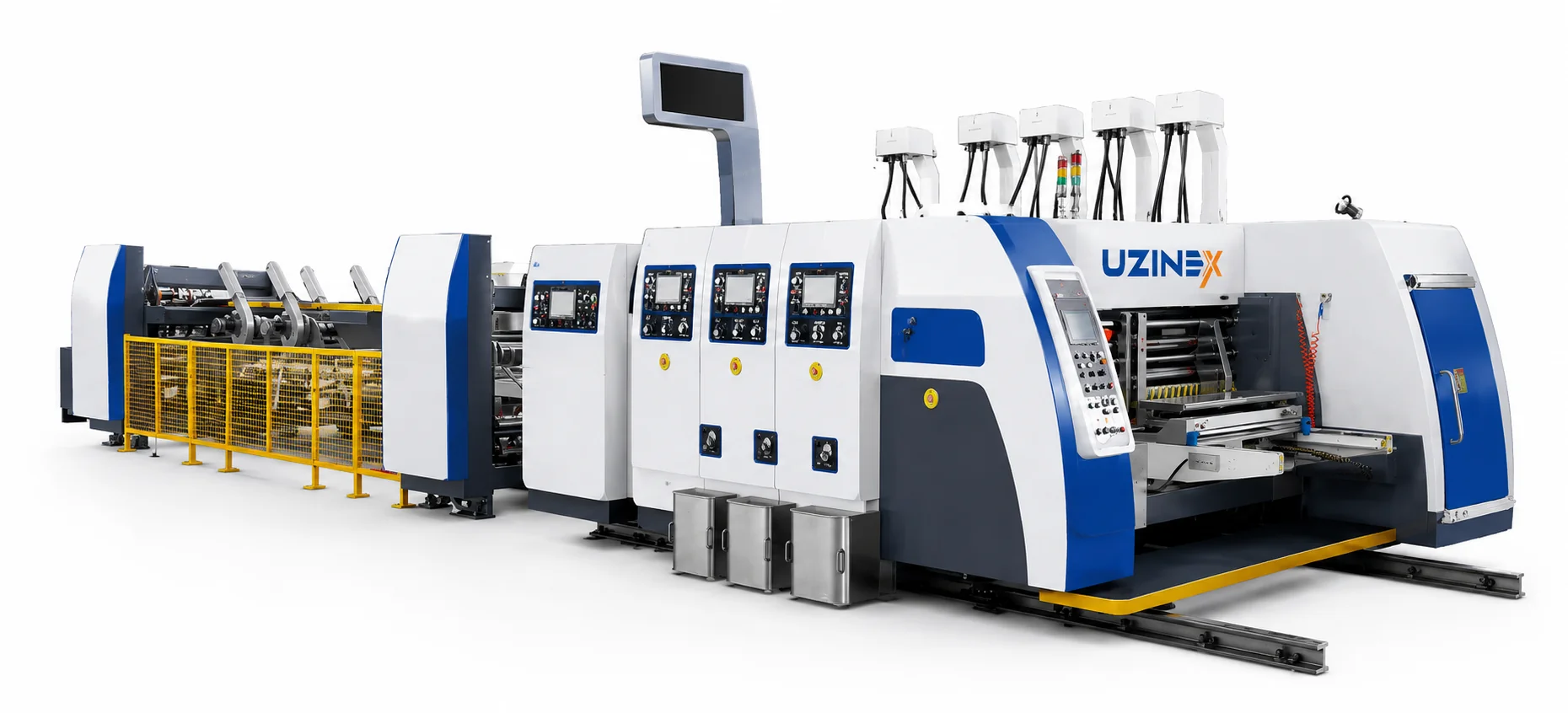

The HS-T Series is a fully automatic, high-speed ecommerce box gluing machine, designed exclusively for packaging manufacturers in the ecommerce and fulfillment sector that process massive volumes of small boxes with extremely varied formats. With a production speed of up to 700 pcs/min in high-speed mode and a minimum folding spacing of 210 mm, this ecommerce box gluing machine is the fastest and most specialized reshipment folder-gluer in the entire UZINEX family for small-size boxes.
Unlike the HS-A, HS-B and HS-C series, which cover a wide range of applications, the HS-T Series is built from the ground up for the specific requirements of ecommerce: very frequent format changes, small-size boxes, maximum processing speed and a high-frequency "bottom insertion" system — a specific mechanical solution for the correct entry of small boxes into the collection section at speeds of 700 pcs/min without jams or misalignment.
Key advantages of the HS-T Series ecommerce box gluing machine
• Speed up to 700 pcs/min — the fastest in the entire UZINEX family – the HS-T Series ecommerce box gluing machine reaches 700 pcs/min in high-speed mode, twice as fast as any other model in the UZINEX folder-gluer family, designed specifically for the massive volumes of ecommerce fulfillment operations.
• High-frequency "bottom insertion" system — ecommerce-specific – the high-frequency bottom-insertion alignment system is better suited to high-speed production of small packaging boxes than conventional lift alignment systems, preventing the jams and misalignment common at 700 pcs/min on formats under 300 mm.
• Minimum folding spacing 210 mm, box front min 130 mm, back min 80 mm – this ecommerce box gluing machine covers small formats typical of ecommerce that the HS-A and HS-B series (with a minimum 350 mm spacing and 140–150 mm front/back) cannot physically process.
• Gluing cover with electric multi-wheel lifting mechanism – an easy-to-adjust multi-wheel lifting mechanism ensures precise pressure of the gluing cover on the adhesive and prevents the phenomenon of weak gluing — critical for small ecommerce boxes where faulty gluing is noticed immediately when the customer opens the parcel.
• Gluing system with adjustable constant temperature – the adhesive temperature is maintained and adjusted automatically, ensuring optimal adhesion characteristics regardless of ambient temperature variations or the format of the box being processed.
• Feeding without paper pressure — no damage to thin board – the feeding structure without paper pressure protects the board from compression losses at the inlet, essential for ecommerce boxes that frequently use light or medium board with sensitive printed surfaces.
• Independent variable frequency for feeding and stack output – the production speed can be freely matched to the size and height of the stack, more suitable for producing different box specifications within the same production session — a standard requirement of ecommerce operations with multiple SKUs.
• Electrically adjustable locking carriage and pressing roller – both components are electrically adjustable in distance directly from the control panel, with no tools or manual intervention, saving time at format changeover.
Technical specifications of the HS-T Series ecommerce box gluing machine — model 920T
| Parameter | 920T |
|---|---|
| Production speed (pcs/min) | 300 / 700 (high-speed mode) |
| Minimum folding spacing (mm) | 210 |
| Box front — min (mm) | 130 |
| Box front — max (mm) | 890 |
| Box back — min (mm) | 80 |
| Box back — max (mm) | 870 |
| Folding accuracy (mm) | ±1,5 |
| Min. feed height with vibrator (mm) | 212 |
| Min. feed height without vibrator (mm) | 280 |
| Feeding system | Edge-guide belt + adjustable air + variable frequency, no paper pressure |
| Collection alignment system | High-frequency "bottom insertion" — specific to high-speed small boxes |
| Gluing cover | Electric multi-wheel lifting mechanism, precise adhesive pressure |
| Gluing system | Adjustable constant temperature + mesh wheels + pressure device + electric position adjustment |
| Folding bridge | Extended with raised arm, HS central support, smooth high-speed operation |
| Folding guide | Precise synchronized linear wheel + navigation buoys + top-bottom belts |
| Variable frequency | Independent feeding and stack output, free adjustment |
| Electric adjustments | Paper locking carriage + pressing roller — electrically adjustable in distance |
| Output stacking | Auto counting + pneumatic stacking + settable quantity + adjustable force |
| Main application | Ecommerce, fulfillment, small boxes, frequent format changes |
The HS-T Series versus the other gluing machines in the UZINEX family — a selection guide
The UZINEX folder-gluer family covers a broad spectrum of applications. The HS-T Series ecommerce box gluing machine holds the unique position of equipment specialized exclusively for ecommerce and fulfillment — the only model in the family built from the ground up for this application, with a speed of 700 pcs/min and a high-frequency bottom-insertion system.
The HS-A Series (350 pcs/min, min spacing 350 mm) and the HS-B Series (280 pcs/min, min spacing 350 mm) are optimized for medium and large formats, unsuitable for the small boxes specific to ecommerce. The HS-C Series (280 pcs/min, min spacing 210 mm, PLC touchscreen control) covers the same small-format segment as the HS-T, but at lower speeds and with an emphasis on advanced control and ERP connectivity. The HS-T Series ecommerce box gluing machine is the choice when the maximum speed of 700 pcs/min and exclusive specialization for ecommerce are priorities over advanced control features. UZINEX provides free consultancy for selecting the optimal configuration.
Applications and industries for the HS-T Series ecommerce box gluing machine
The HS-T Series ecommerce box gluing machine is designed for fulfillment centers and packaging plants that supply finished boxes to ecommerce operators with high daily order volumes and multiple SKUs. At 700 pcs/min, a single 920T ecommerce box gluing machine can produce the equivalent of 2–3 standard folder-gluers from other categories, significantly reducing the investment in production space and operating personnel.
Manufacturers of packaging for large marketplaces (B2C and B2B platforms) use this ecommerce box gluing machine to deliver ready-to-use batches of finished boxes, with precise gluing and uniform appearance — a quality requirement of major logistics operators that systematically test the gluing strength of the packaging received from suppliers.
Companies that simultaneously produce boxes for ecommerce and for traditional retail benefit from the format versatility of the HS-T Series ecommerce box gluing machine: box front from 130 mm to 890 mm and back from 80 mm to 870 mm covers both micro boxes for cosmetic or pharmaceutical products and medium boxes for electrical or household products.
How the HS-T Series ecommerce box gluing machine works
1. Belt feeding with variable-frequency control – the small pre-die-cut blanks are fed into the ecommerce box gluing machine by the edge-guide belt system with an adjustable air section with variable frequency; the structure without paper pressure protects the thin board from deformation at the inlet.
2. Adhesive application with constant temperature and lateral mesh – the mesh-type wheel system applies the adhesive uniformly on the gluing flap at the adjustable constant temperature; the pressure-wheel device and the electric position adjustment ensure correct dosing with no gaps or over-dosing at speeds of 700 pcs/min.
3. Gluing-cover pressing with multi-wheel mechanism – the electric multi-wheel lifting mechanism presses the gluing cover onto the applied adhesive with the correct force and angle, preventing weak gluing on small boxes where the flap's contact surface is reduced.
4. Folding with extended bridge and synchronized linear guide – the extended folding bridge with high-strength central support folds the box with ±1,5 mm accuracy; the synchronized linear-wheel guide and the navigation buoys ensure precise left-right alignment along the entire length of the box.
5. Box forming with right-angle wheel – the unique forming system with right-angle wheel fixes the board fold at the correct 90° angle, ensuring the precise cubic shape of the finished box even on small formats where angle errors are noticed immediately.
6. Collection through high-frequency "bottom insertion" – the high-frequency bottom-insertion system aligns and collects the small boxes at speeds of 700 pcs/min without jams; the pneumatic stacking device counts and stacks the boxes according to the set quantity, with adjustable pushing force.
7. Output with independent variable frequency – the stack output with independent variable frequency adjusts the discharge speed according to the size and height of the stack, optimizing the output flow for each box specification with no manual intervention.
Frequently asked questions about the HS-T Series ecommerce box gluing machine
Why 700 pcs/min and not more — what is the mechanical limit of the HS-T machine?
The 700 pcs/min speed of the HS-T Series ecommerce box gluing machine represents the optimal limit for processing small boxes (front min 130 mm, back min 80 mm) with ±1,5 mm folding accuracy and complete gluing without gaps. Above this speed, the adhesive's contact time with the gluing flap drops below the threshold needed for a complete bond — regardless of the gluing system used. The HS-T Series is designed to maximize speed within the limits of guaranteed gluing quality. Accuracy over speed: 700 pcs/min with ±1,5 mm is better than 900 pcs/min with 5% waste.
What does the "bottom insertion" system mean compared with conventional alignment systems?
Conventional stack alignment systems use lifting the box from bottom to top to position it in the stack — a movement that generates stability problems at high speeds on small, light boxes. The bottom-insertion system of the HS-T Series ecommerce box gluing machine inserts the box into the stack from top to bottom, at high frequency, a more mechanically stable movement for small formats at 700 pcs/min. The result: a more uniform stack and 60–80% less waste caused by misalignment at collection compared with conventional lift systems.
What is the concrete difference between the HS-T (UZX-194) and the HS-C (UZX-193) — both for small boxes?
Both process small boxes (130/80 mm front/back, 210 mm folding spacing). The main difference is the positioning: the HS-T (700 pcs/min, single model 920T) is built EXCLUSIVELY for ecommerce/fulfillment with a "bottom insertion" system specific to massive volumes; the HS-C (280 pcs/min, 3 models 920C/924C/1224C) is more versatile, with an advanced PLC touchscreen and 1-click format change, suitable for plants with a mixed portfolio (cosmetics + pharma + ecommerce). Recommendation: the HS-T for dedicated fulfillment centers; the HS-C for plants producing for several industries.
For what order volumes per day is the investment in the HS-T over the HS-C justified?
The economic threshold is around 200,000 boxes/day or 50–60 million boxes/year. Below this volume, the HS-C at 280 pcs/min with advanced PLC and a lower cost is more efficient. Above this volume, the HS-T at 700 pcs/min delivers the equivalent of 2.5× the HS-C capacity, justifying the higher cost and continuous operation over long shifts. For fulfillment centers with more than 500,000 boxes/day, the HS-T becomes a mandatory requirement — with the HS-C you would need 3 parallel machines plus operators, exceeding the cost of the HS-T.
Can the HS-T Series produce several different formats within the same shift?
Yes — the independent variable-frequency system for feeding and stack output allows the production speed to be quickly adjusted according to the size and height of the stack for each format. The locking carriage and the pressing roller are electrically adjustable in distance without tools. A format change on the HS-T takes 60–90 seconds vs 5–8 minutes on conventional systems — essential for ecommerce operations with dozens of SKUs in the same production session. UZINEX initially programs the 20–30 most-used formats at delivery for instant recall.
Does the HS-T Series also process pre-printed boxes with ecommerce branding?
Yes — and it is designed specifically for this. The "no paper pressure" feeding system protects the print from scratches or transport marks, and the electric multi-wheel gluing-cover pressing mechanism applies force only on the flap area (not on the printed surface). For ecommerce boxes with rich branding (logo, opening instructions, marketing), the HS-T Series delivers finished boxes with the printed surface intact — a standard requirement of large marketplaces that impose minimum visual-quality thresholds.
Is the HS-T Series ecommerce box gluing machine eligible for EU-funded projects?
Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for EU-funded projects — NRRP, the Regional Program, the Just Transition Program. The HS-T Series is particularly eligible for applications with a logistics-digitalization component, modernization of ecommerce infrastructure and increased productivity in the fulfillment sector — all strategic priorities of current European funding. UZINEX provides all the technical documentation required for public procurement procedures and tenders.
Why UZINEX for an ecommerce box gluing machine
• Free technical consultancy – UZINEX evaluates the daily order volume, the SKU portfolio and the box formats to confirm that the HS-T Series ecommerce box gluing machine is the optimal configuration, or to recommend another series in the family if the requirements differ.
• Transport, installation and commissioning included free of charge – the ecommerce box gluing machine is delivered, installed and started at the customer's site by the UZINEX technical team, with complete parameterization for all initial SKUs and operator training.
• Extended 60-month warranty – one of the longest warranties available in Romania for automatic ecommerce folder-gluer machines, with technical support included for the entire warranty period.
• National technical support in under 36 hours – on-site intervention or video diagnostic session in less than 36 hours from report, with a dedicated 24/7 telephone line for UZINEX customers.
• AI smart manual included – complete usage, maintenance and troubleshooting documentation with AI assistance, capable of instantly resolving over 96% of technical requests without human intervention.
• Full eligibility for European funding – UZINEX provides the documentation and full support for EU-, NRRP- or structural-funds procurement, including for public tenders.
The HS-T Series ecommerce box gluing machine is the industrial solution for fulfillment centers and packaging plants that supply ecommerce at massive volume — 700 pcs/min, formats from 130×80 mm minimum, a high-frequency bottom-insertion system, constant-temperature gluing and automatic bundling into stacks, all in equipment built from the ground up for the specific requirements of ecommerce packaging.
