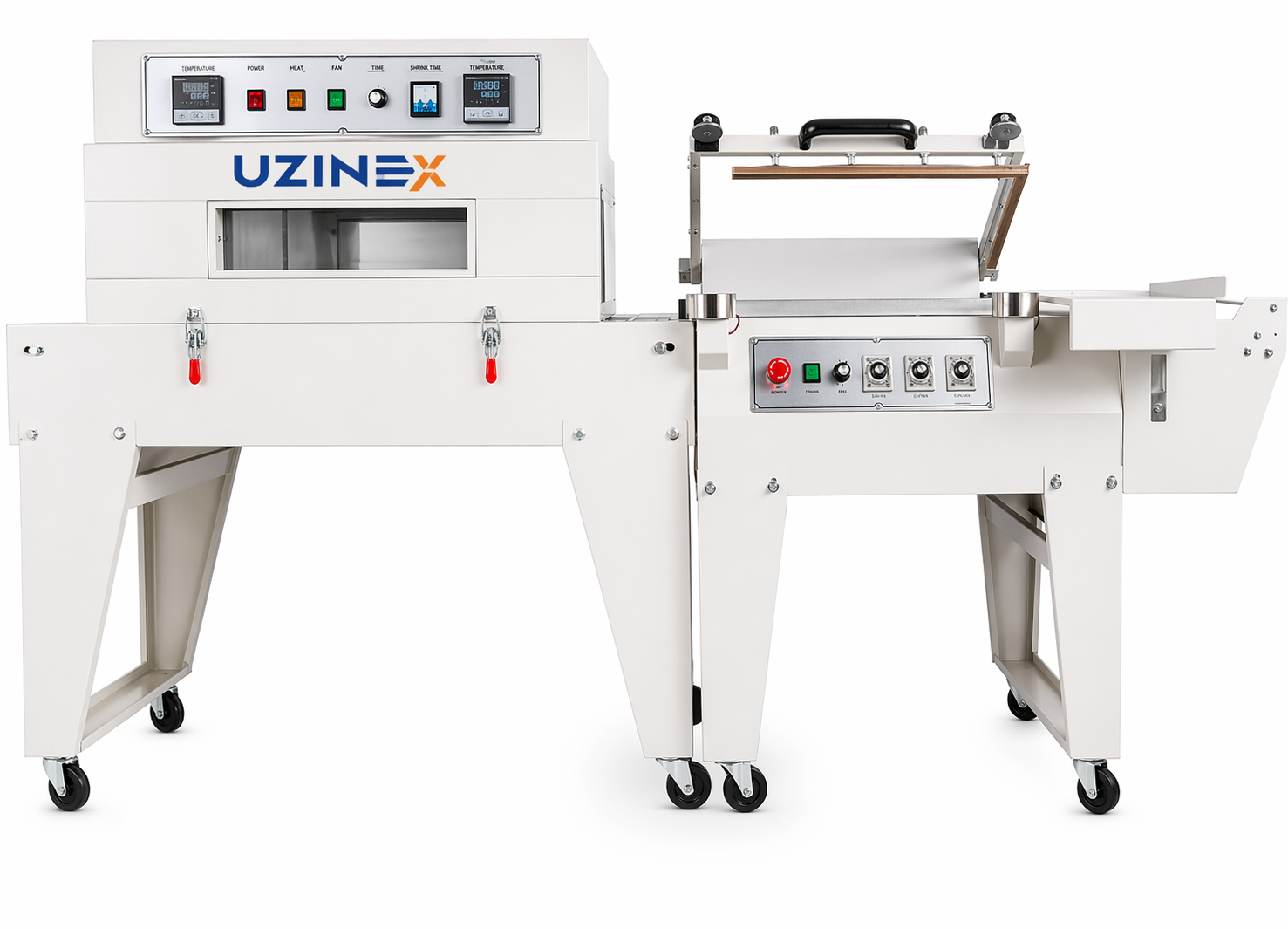

The semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel is the entry-level equipment for shrink packaging that combines manual L-shaped sealing and an integrated shrink tunnel — with a 400 × 200 mm sealing zone, a tunnel with adjustable temperature up to 250°C, a rate of 3–6 cycles per minute, a total power of 2,5 kW at 220V single-phase, a weight of 80–100 kg and compatibility with POF, PE and shrink PVC films.

The semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel differs from all the other FL models in the range by a single essential element: the operator positions the product in the film and manually actuates the L-shaped sealing bar for each cycle, instead of relying on automatic product detection; after manual actuation, the bar seals, cuts and automatically releases the package, which then passes through the integrated shrink tunnel.

The semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel is thus the right solution for small and medium volumes, for discontinuous production or for operators who package products of varied shapes or sizes where full cycle automation brings no advantage over the operator's controlled intervention in centring the product in the film. Key Advantages of the Semi-Automatic L-Bar Sealing Machine with Shrink Function KPW-4020 Tunnel

• Semi-automatic — the operator controls the pace, the bar completes the cycle automatically — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel offers human control of product placement and cycle triggering, combined with automation of sealing, cutting and shrinking after actuation; for products with dimensions or shapes that vary from one package to another, manual control of the sealing moment ensures better centring of the product in the film than automatic systems with a fixed-speed conveyor.

• Shrink tunnel with adjustable temperature up to 250°C — full film coverage — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel allows the tunnel temperature to be adjusted up to 250°C, covering the full range of shrink films: POF at 100–130°C, PE at 130–160°C and PVC at 100–120°C; the extended temperature range allows the equipment to be used with any type of film available on the market, with no restriction to a particular supplier.

• Sealing zone 400 × 200 mm — sizing for small and medium products — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel has an L-shaped sealing bar with dimensions of 400 mm on the longitudinal axis and 200 mm on the cross axis; products up to 400 mm long and 200 mm wide are fully covered by the L-shaped bar without repositioning the film or partial cycles.

• 2,5 kW at 220V single-phase — installation without special electrical work — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel consumes 2,5 kW at 220V single-phase, connectable to any standard outlet in a workshop, warehouse or small packaging space; no three-phase panels, dedicated circuits or special electrical permits are required for installation.

• 80–100 kg — mobility for relocation and flexibility of use — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel, weighing 80–100 kg, can be moved by two operators without lifting equipment; for temporary packaging stations, production spaces with a variable layout or operators packaging in different locations, the equipment's mobility is a practical advantage over the 150–250 kg industrial machines anchored to the floor.

• Compact design — suitable for spaces with limited area — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel has a small footprint compared with automatic models with a dedicated conveyor; the shrink tunnel is integrated within the equipment's compact body, with no side extensions that would require additional space beyond the machine's actual footprint.

• Compatible with POF, PE and PVC — film from any local supplier — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel processes all the main types of shrink film available from local packaging-material suppliers; there are no source constraints or proprietary formats; the operator chooses the type of film suited to the packaged product — POF for maximum transparency, PE for heavier products, PVC for high gloss.

• Sealing-bar protection system — operator safety during manual actuation — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel has an integrated protection system on the sealing bar that prevents accidents as the hot bar descends; operator safety during repetitive manual actuation is a priority in equipment with per-cycle intervention, unlike automatic models where the operator does not enter the sealing zone.

Technical Specifications — Semi-Automatic L-Bar Sealing Machine with Shrink Function KPW-4020 Tunnel

Semi-Automatic vs Automatic — When Is the Semi-Automatic L-Bar Sealing Machine with Shrink Function KPW-4020 Tunnel the Right Choice

Understanding the operational difference between the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel and the automatic models in the FL range is essential for the correct choice and for avoiding oversizing or undersizing the equipment relative to actual production needs:

• Choose the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel if the daily packaging volume is below 200–300 packages per day; if the products have varied dimensions or shapes that require manual centring in the film before sealing; if production is discontinuous (there is no continuous flow of products); if the available space is limited or if the equipment must be periodically relocated; or if the available investment budget favours an entry-level unit with lower acquisition costs than the automatic models.

• Choose the automatic FL450-2, FL450 or FL550 models if the volume exceeds 300 packages per day and the continuous pace of automatic equipment brings a real advantage over manual actuation; if the products are uniform and dimensioned so that the automatic conveyors centre them without intervention; or if operator fatigue from repetitive manual actuation at high volumes would generate sealing errors or musculoskeletal problems.

• The difference in pace in figures — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel at 6 cycles per minute produces a maximum of 360 packages per hour; the automatic FL450/FL550 models produce 600–1.500 packages per hour; for an operator packaging 100 products per day, the difference is irrelevant and justifies choosing the semi-automatic unit; for 1.000 products per day, the automatic model becomes necessary.

Applications — What Products the Semi-Automatic L-Bar Sealing Machine with Shrink Function KPW-4020 Tunnel Packages

• Promotional products and gift packages — varied formats, low volume — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel is the standard equipment for packaging gift packages, promotional sets and product baskets that vary in size from one product to another; manual control of placement in the film ensures correct centring of each product regardless of its shape or size, impossible to fully automate for highly varied formats.

• Artisanal food and confectionery products — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel packages cakes, artisanal sweet boxes, pastry products and prepared foods in small-medium quantities in transparent POF film; artisanal producers and small food-production units packaging under 200 products per day find in the KPW-4020 Tunnel the equipment with an investment justified by their production volume.

• Cosmetic and pharmaceutical products in small volumes — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel produces tamper-evident packaging on cosmetic and pharmaceutical product boxes in small runs, for new product launches, limited editions or made-to-order production; at volumes below 100 units per day, the cost per package of a semi-automatic unit is lower than that of an automatic model oversized relative to actual needs.

• Industrial components and technical parts packaged individually — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel packages, in shrink film, technical components, spare parts and accessories of varying dimensions that require individual packaging for moisture protection and identification; the irregular shape of many technical parts makes manual centring necessary for an attractive package.

• Small e-commerce — additional protection for fragile or premium products — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel is used by small online stores that add a layer of shrink packaging to fragile or premium products before placing them in the shipping parcel; the shrunk film reduces product movement in the parcel and adds a positive first visual impression when the customer opens the parcel.

• Small printers and publishers — individual packaging of books and printed materials — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel packages books, magazines, calendars and printed materials individually or in small sets in transparent POF film; for small runs where each product is packaged on delivery, the semi-automatic unit is sufficient and more economical than automatic equipment.

The Packaging Cycle of the Semi-Automatic L-Bar Sealing Machine with Shrink Function KPW-4020 Tunnel

The semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel completes each package in four steps, with human intervention at the first step and automation for the rest of the cycle:

• Step 1 — Manual positioning (operator) — the operator opens the centre-folded film from the roll, inserts the product into the tube at the desired size and positions the assembly under the L-shaped sealing bar of the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel; manual centring ensures the product is placed exactly where the operator wants it relative to the sealing seams.

• Step 2 — L sealing and cutting (automatic after actuation) — the operator actuates the bar; the L-shaped sealing bar of the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel descends automatically, simultaneously applies the front and side seam, cuts the film and lifts; the sealing and cutting cycle is fully automatic after the moment of manual actuation.

• Step 3 — Shrinking in the integrated tunnel (automatic) — the sealed package passes through the integrated shrink tunnel of the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel; the temperature, adjustable up to 250°C, shrinks the film uniformly over all surfaces of the product, producing a conformed and attractive package.

• Step 4 — Package collection and cycle restart — the operator collects the finished package and prepares the next product; the rate of 3–6 cycles per minute is determined by the operator's speed at the manual steps, not by the equipment's speed; an experienced operator quickly reaches 6 cycles per minute, i.e. 360 packages per hour.

Frequently Asked Questions about the Semi-Automatic L-Bar Sealing Machine with Shrink Function KPW-4020 Tunnel

How different is the working pace compared with an automatic model?

The semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel produces 3–6 cycles per minute (180–360 packages/hour) compared with 10–25 cycles per minute on the automatic FL450/FL550 models; for production below 300 packages per day (i.e. under 1–2 hours of operation at maximum pace), the difference in pace does not justify the additional investment in an automatic model. Can the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel package products of very different sizes in the same day?

Yes. The semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel adapts to products of varied sizes without mechanical adjustments, as long as the product fits within the 400 × 200 mm sealing zone; the operator manually adjusts the size of the film segment on each cycle according to the product's dimensions; this flexibility is the main advantage of the semi-automatic unit over automatic models with a conveyor calibrated for a specific format. Which type of film is recommended for the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel?

The semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel works with POF (polyolefin) films for retail and food products, PE films for heavier products and PVC films for high gloss; POF film is the most versatile and the simplest to calibrate on the sealing bar; UZINEX engineers recommend the specific type of film at commissioning according to the packaged products. Can the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel be upgraded later to an automatic version?

The semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel is a distinct platform from the automatic FL450/FL550 models and cannot be converted into an automatic model; if the production volume grows and justifies an automatic model, UZINEX provides consultancy for choosing the FL model suited to the new production requirements, and the KPW-4020 Tunnel can continue to be used as secondary equipment or for special formats. Why Choose UZINEX for the Semi-Automatic L-Bar Sealing Machine with Shrink Function KPW-4020 Tunnel

The semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel is simple to operate but requires correct calibration of the tunnel temperature for the specific type of film used; a temperature too low produces insufficient shrinking, while one too high burns the film or deforms heat-sensitive products.

• Pre-purchase consultancy — does your production volume justify the semi-automatic unit or an automatic model? — UZINEX engineers analyse the daily volume, the types of products, the variability of dimensions and the available budget to confirm that the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel is the right choice compared with the automatic FL450-2, FL450 or FL550 models.

• Free shipping and commissioning included — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel is delivered free of charge anywhere in Romania; at commissioning, UZINEX engineers calibrate the sealing-bar and tunnel temperature for the film chosen by the customer, run packaging trials with the customer's products and train the operator in the correct use of the equipment.

• Extended 60-month warranty and spare parts in stock — the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel benefits from a 60-month warranty; the wear components — the sealing-bar heating elements, the protective teflon strips, the tunnel heating elements — are kept permanently in stock at UZINEX.

• National service with 24–48h response — UZINEX service engineers intervene on site anywhere in Romania; even for entry-level equipment, an unexpected stoppage at a low production volume affects daily deliveries, and UZINEX handles all requests with the same priority.

• Financing through credit and leasing — financing solutions available for the purchase of the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel; the equipment qualifies for EU-funded projects as an investment in packaging equipment.

• Complete range of shrink-packaging equipment — UZINEX offers complete solutions for shrink packaging at any level of automation and volume: the semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel for small and medium production, the automatic FL450-2, FL450 and FL550 models for larger volumes, the BSE6040A tunnel for industrial capacity and the sleeve wrapping machines for long products.

The semi-automatic L-bar sealing machine with shrink function KPW-4020 Tunnel is the choice for operators packaging varied products in small and medium quantities with POF, PE or PVC shrink film — L sealing with manual control of product placement, automatic shrinking in the integrated tunnel, 2,5 kW at 220V single-phase and 80–100 kg mobility without floor anchoring.
